Connect Work Tools CHG Series Hydraulic Breakers – High-Performance Excavator Hammers
Powerful & Efficient Hammer for Excavators
The Connect Work Tools CHG Series Hydraulic Breakers are designed for superior performance, durability, and efficiency, making them the ideal choice for construction, mining, quarrying, and demolition applications. Engineered for maximum impact energy, these excavator hammers are built to handle the toughest breaking jobs with ease.
With a gas-assist design, the CHG Series offers enhanced power and efficiency, reducing stress on the hydraulic system while delivering consistent, high-impact performance. Whether you’re breaking concrete, rock, or frozen ground, this hydraulic hammer for excavators ensures maximum productivity on every job.
CHG Series Excavator Hammer Features:
✔ Gas-Assisted Technology – Increases impact force and efficiency for faster breaking.
✔ Heavy-Duty Construction – Built with high-strength, wear-resistant materials for extreme durability.
✔ Optimized Impact Energy – Powerful breaking force for demanding applications.
✔ Low Operating Costs – Efficient design reduces fuel consumption and maintenance needs.

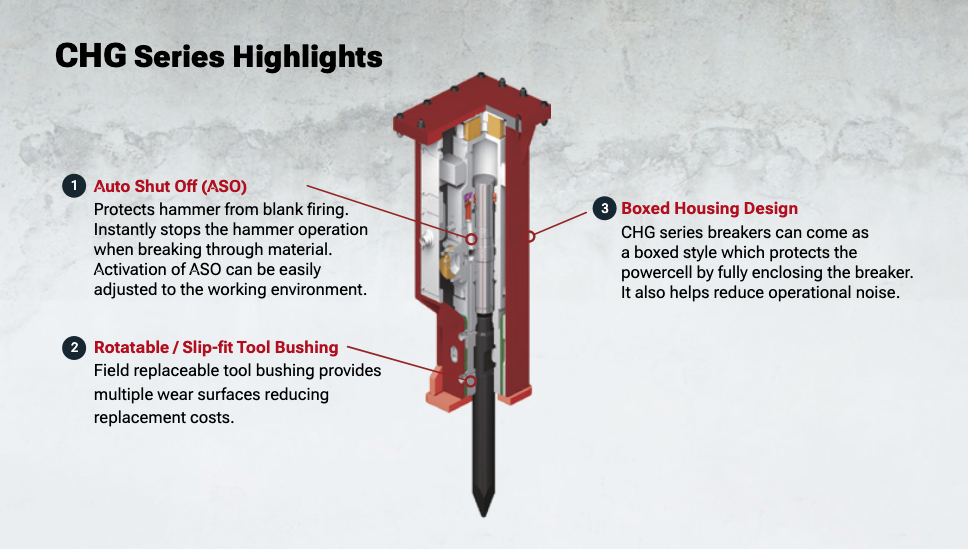

✔ Fully Enclosed Housing – Protects internal components while reducing noise and vibration.
✔ Universal Excavator Compatibility – Works with a wide range of excavator models from 2,200 to 40,000 lbs.
✔ Easy Maintenance – Fewer moving parts and a simplified design minimize downtime.

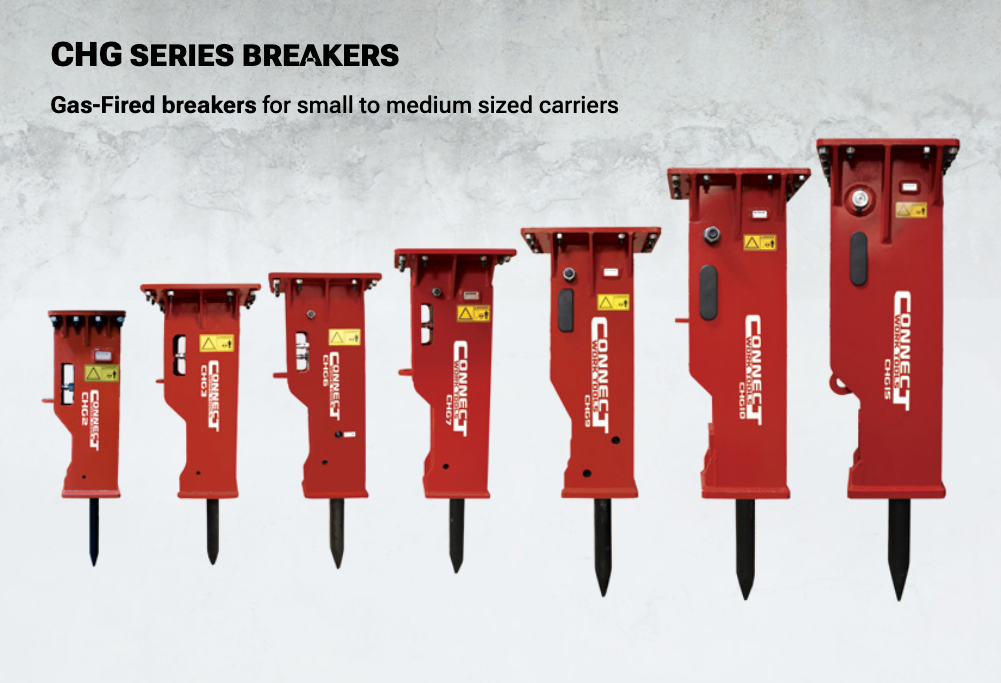

CHG Series Excavator Hammers – Available Models & Specifications:
PRICING INCLUDES MOUNTING BRACKET, PINS, HOSES
CHG Series Excavator Hammers – Specifications
| Model | Carrier Weight (lbs) | Working Weight (lbs) | Tool Diameter (inches) | Impact Rate (BPM) | Operating Pressure (PSI) | Oil Flow (GPM) |
|---|---|---|---|---|---|---|

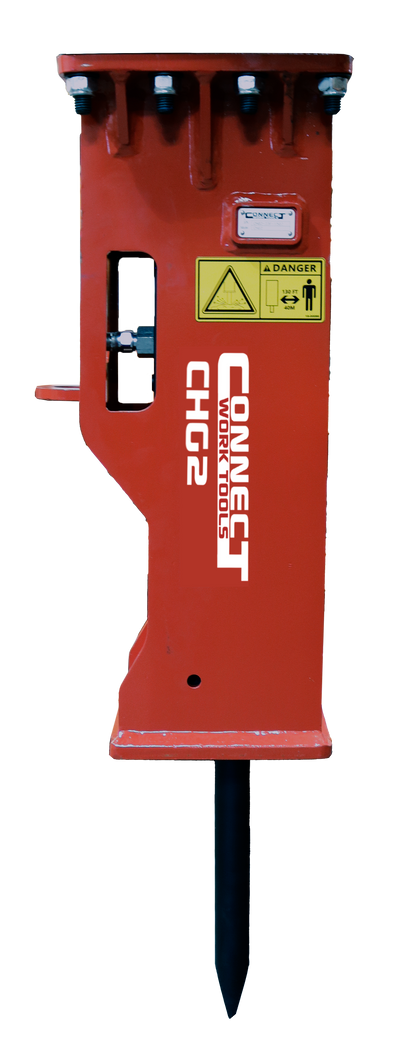

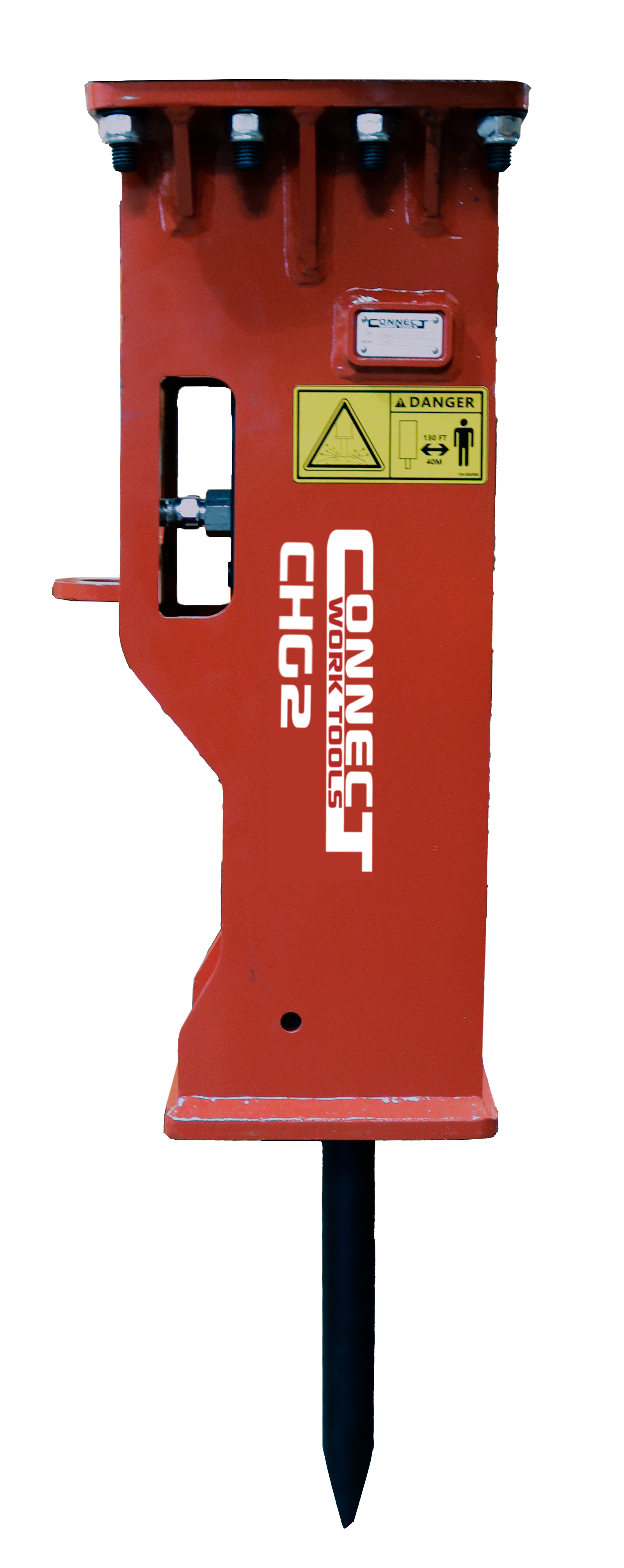

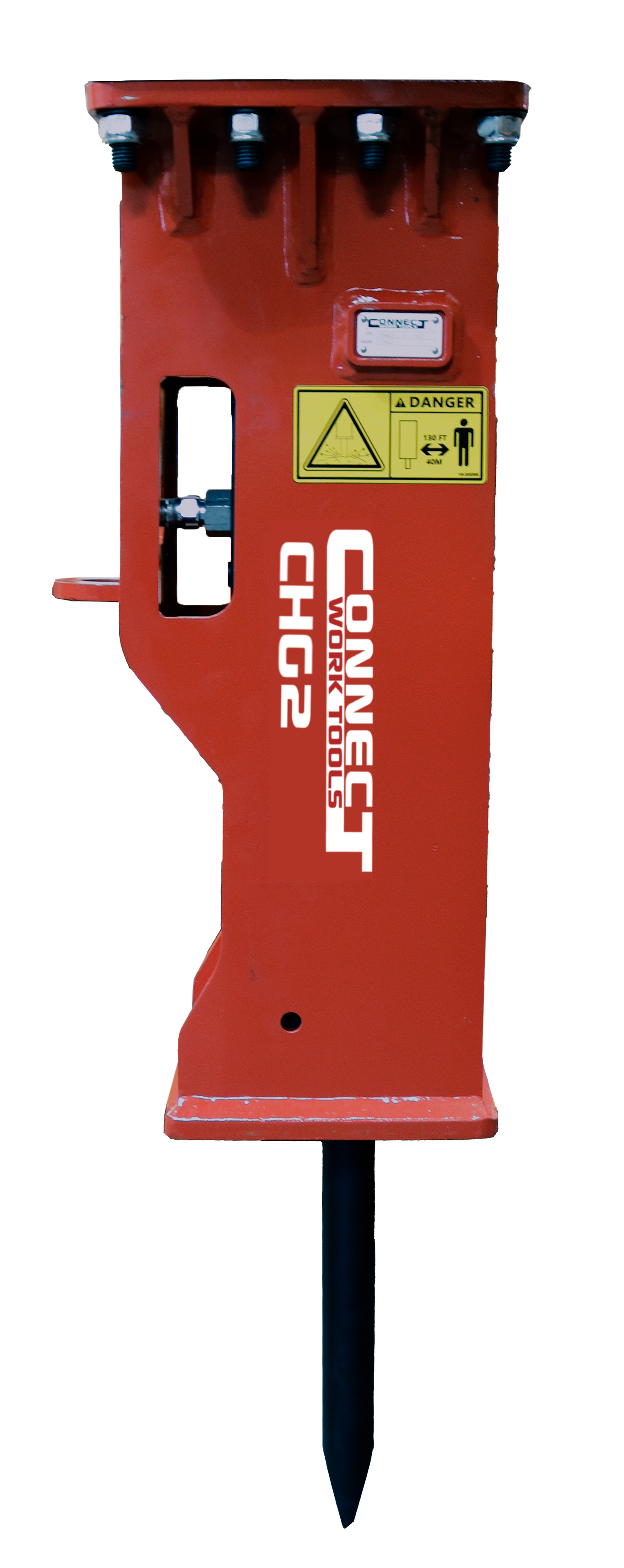

| CHG2 | 2,200 – 6,600 | 485 | 2.36 | 700 – 1500 | 1400 – 1800 | 8 – 13 |

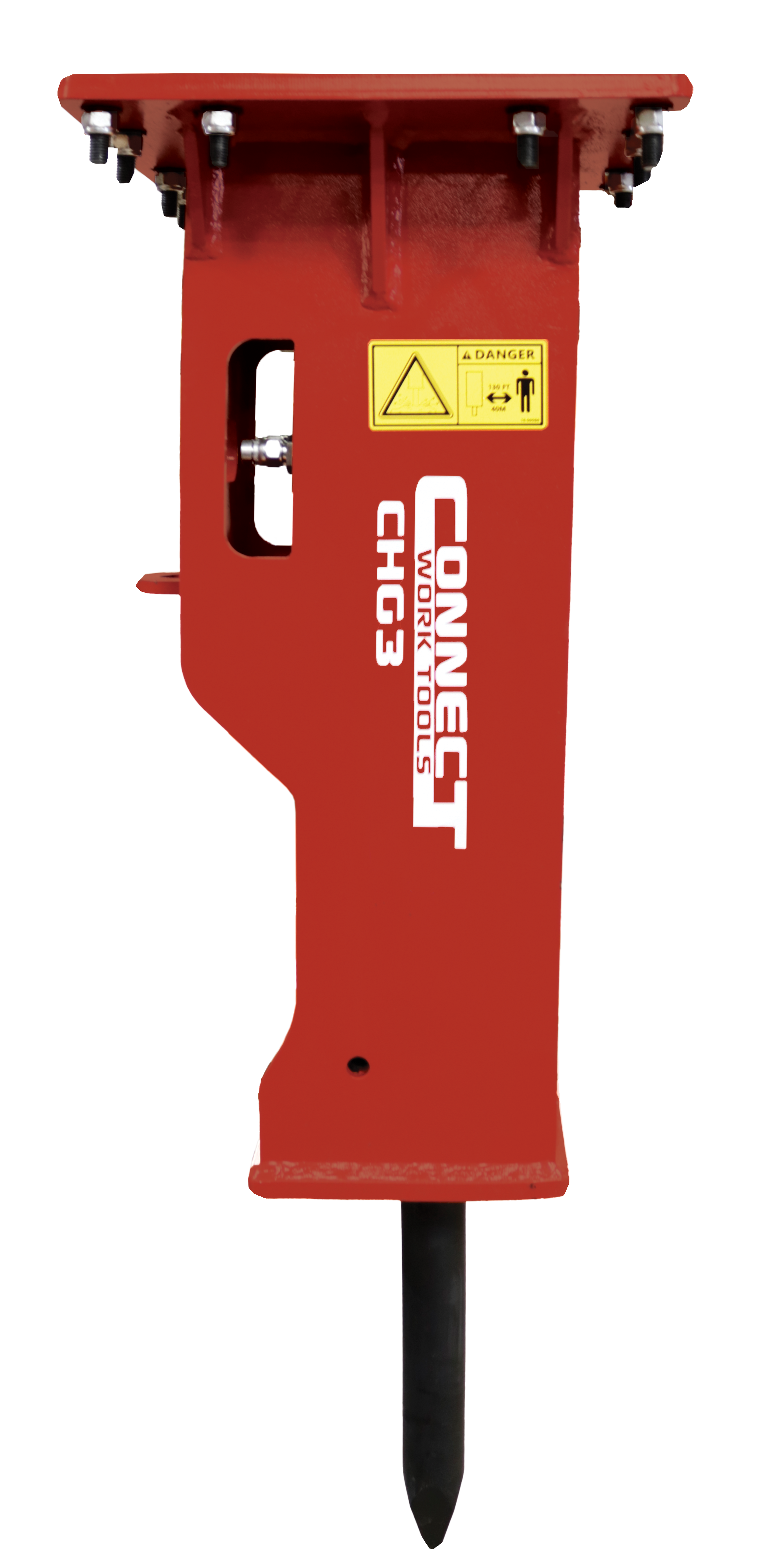

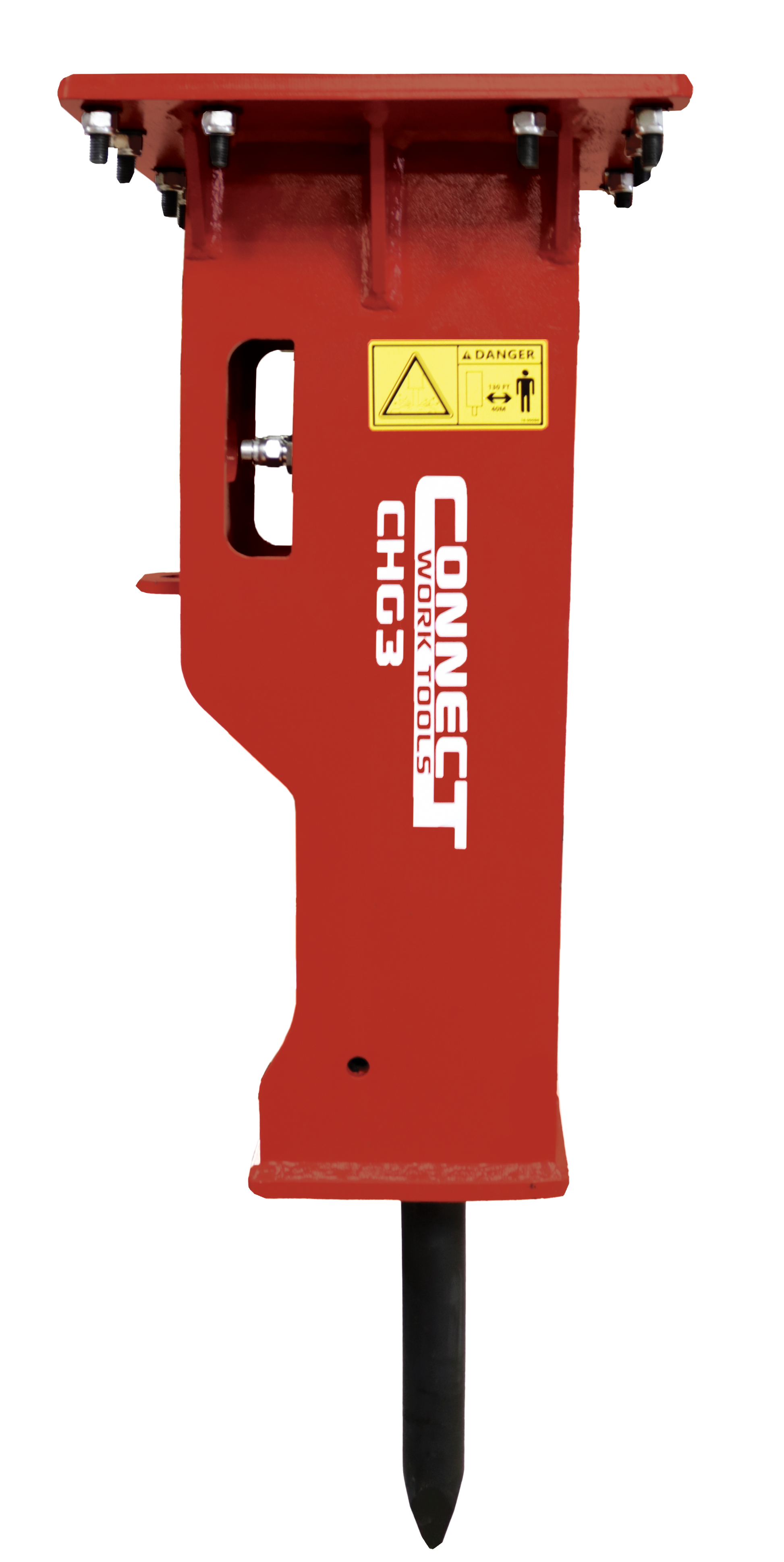

| CHG3 | 4,400 – 9,900 | 770 | 2.76 | 450 – 1150 | 1600 – 2000 | 10 – 18 |

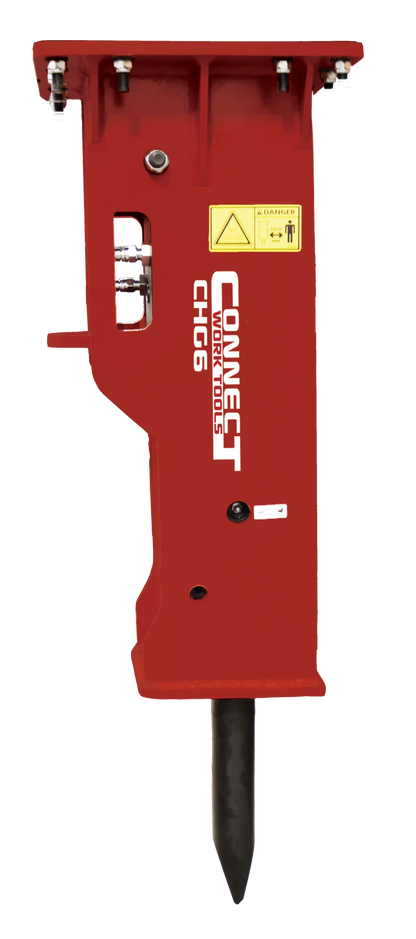

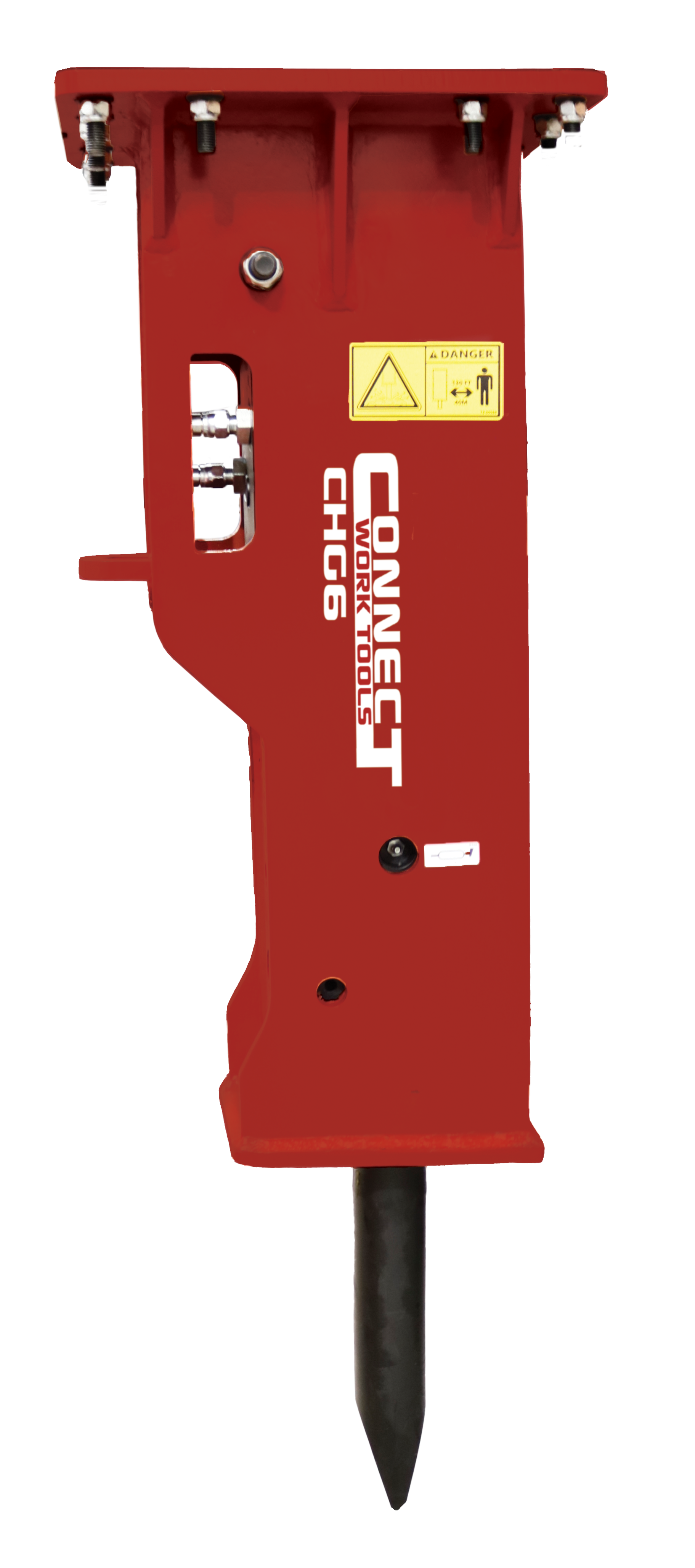

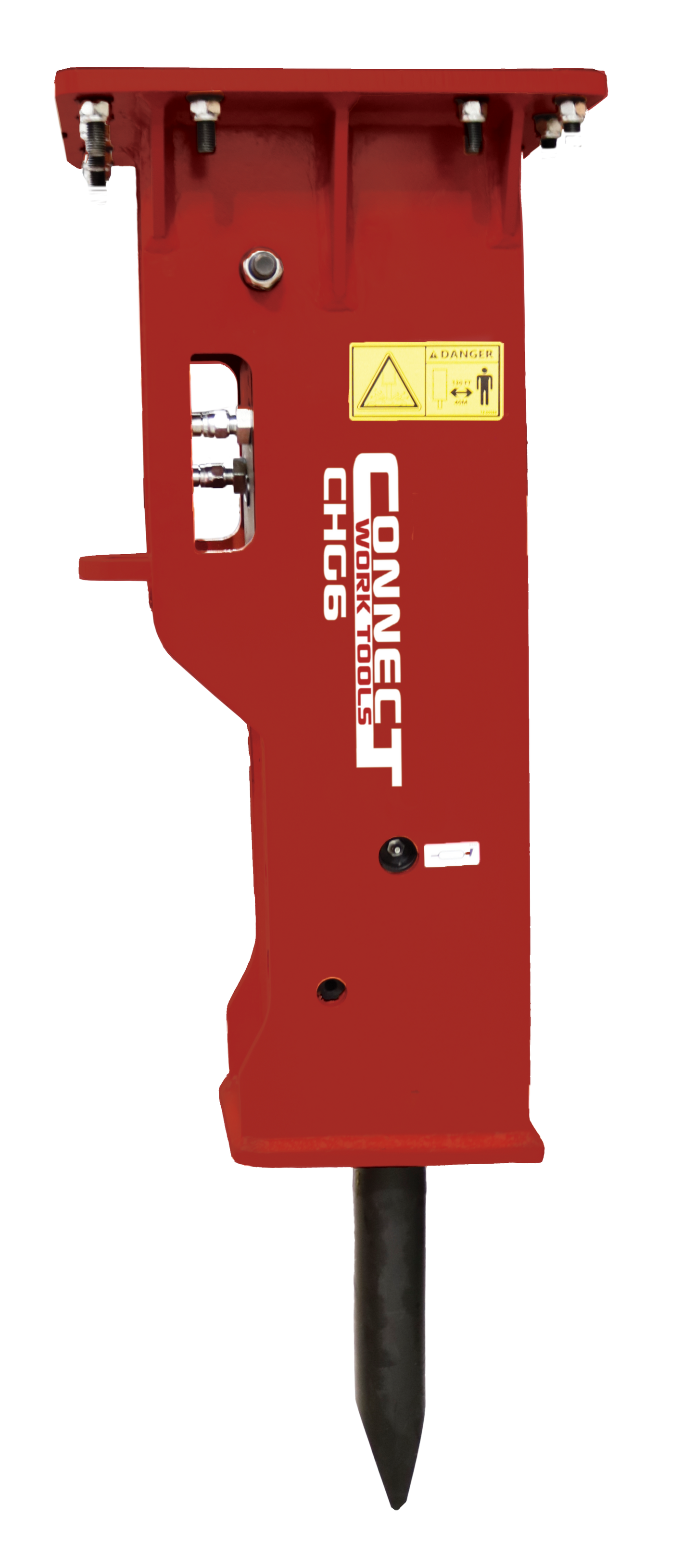

| CHG6 | 6,000 – 10,000 | 1180 | 3.15 | 632 – 1500 | 1700 – 2100 | 14 – 26 |

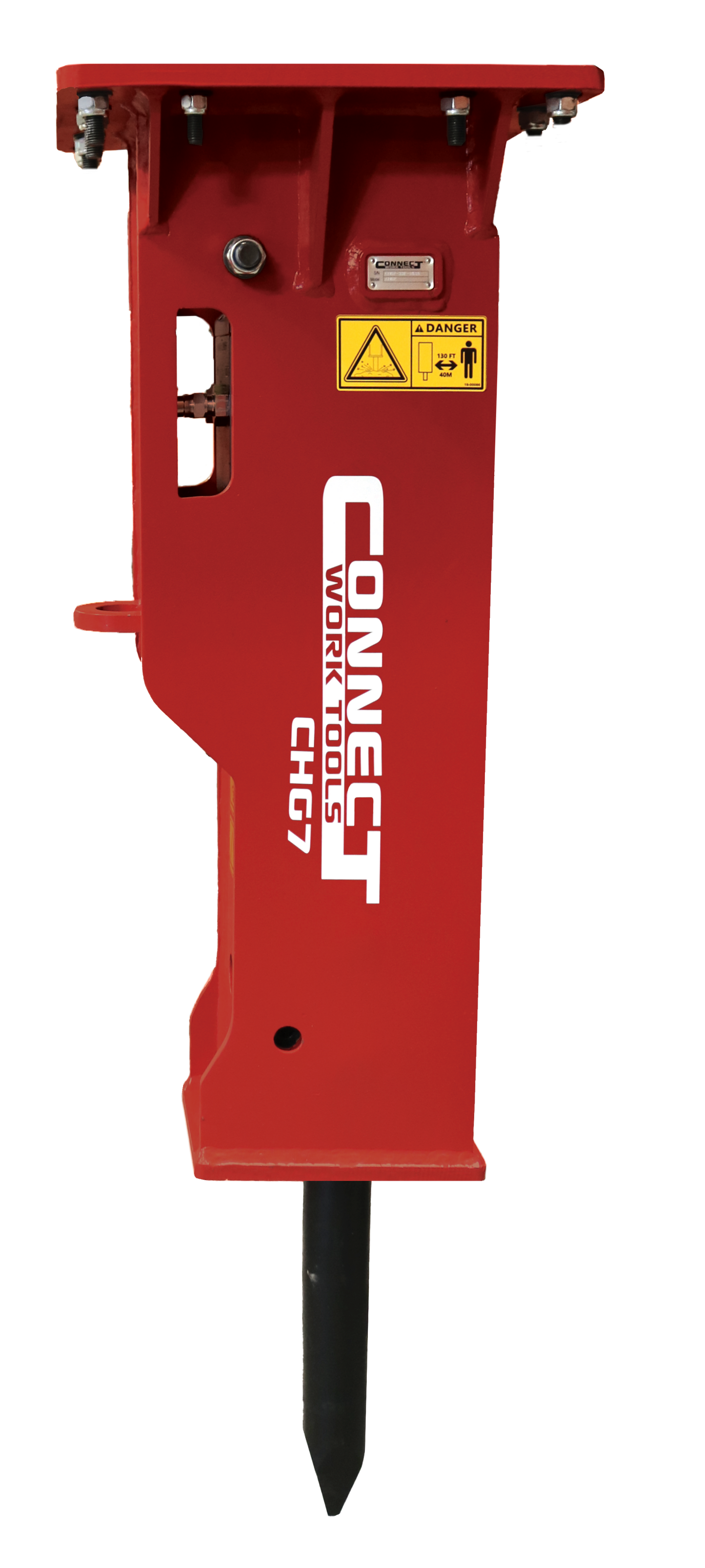

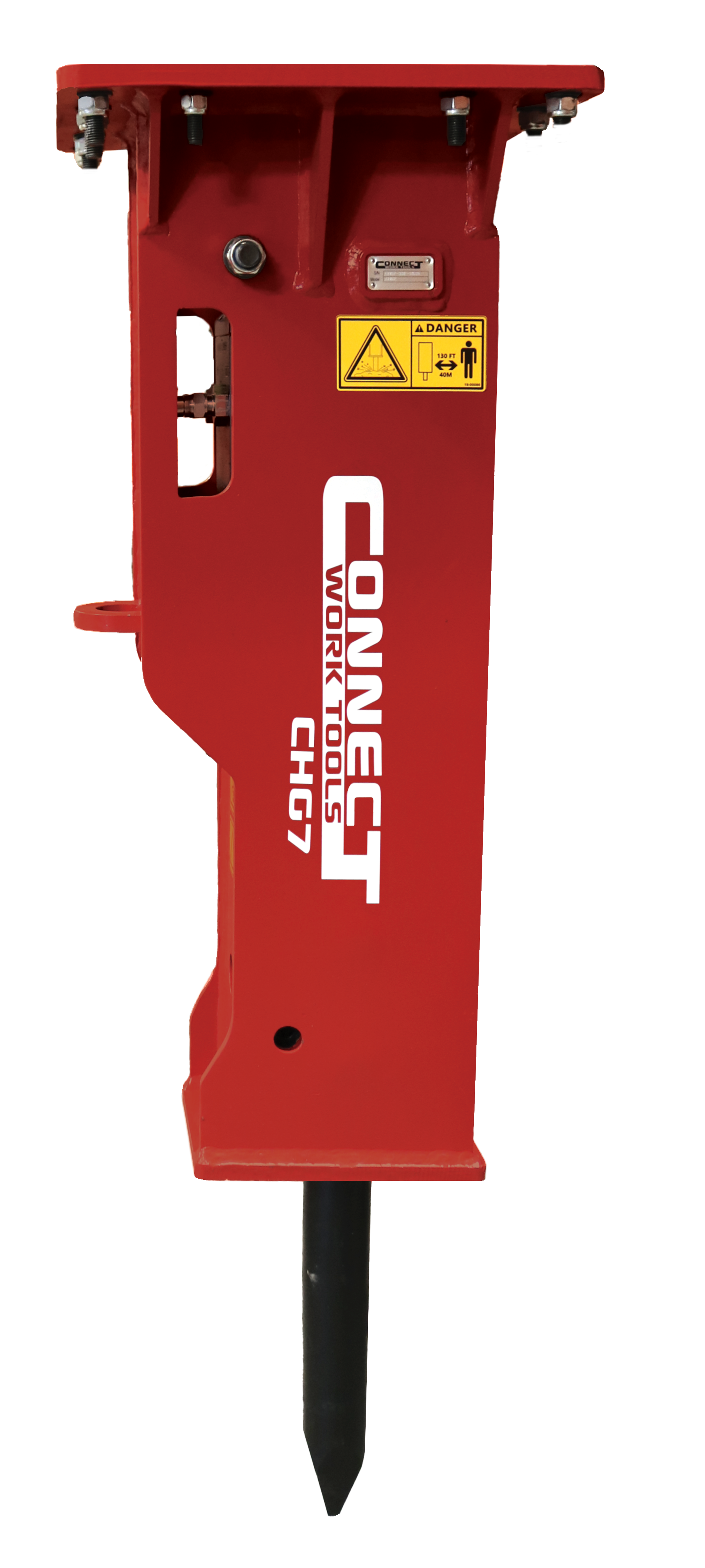

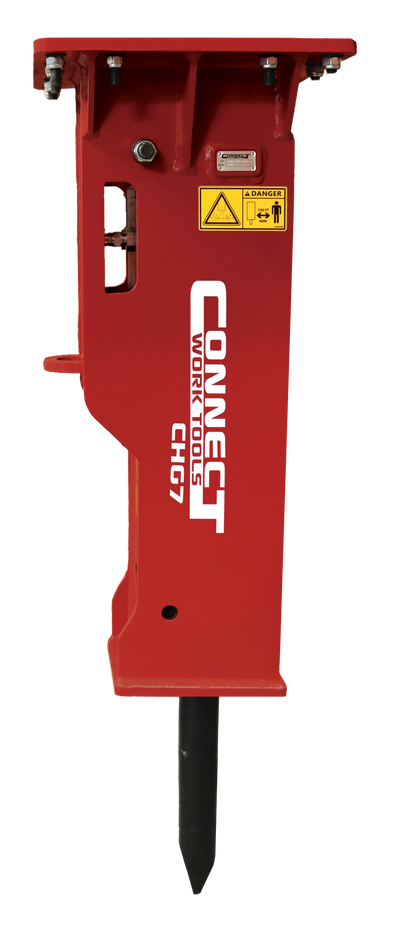

| CHG7 | 8,500 – 12,000 | 1900 | 3.94 | 600 – 1100 | 1800 – 2200 | 18 – 30 |

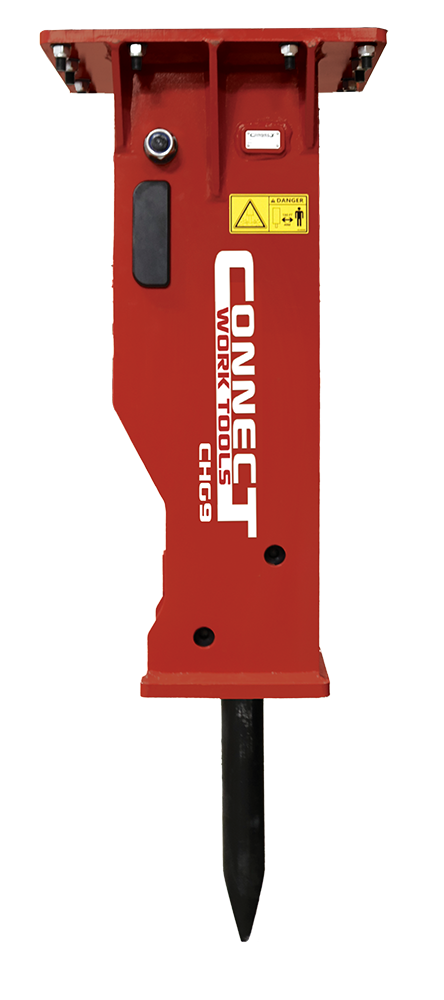

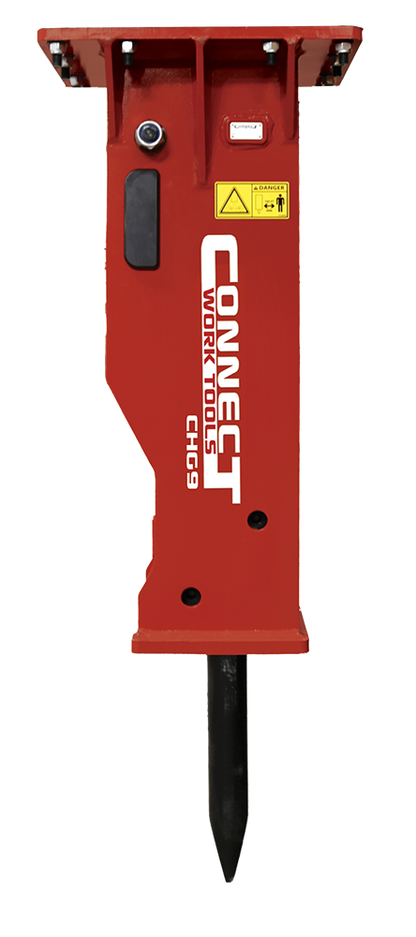

| CHG9 | 10,000 – 20,000 | 2760 | 4.72 | 350 – 600 | 2000 – 2400 | 26 – 37 |

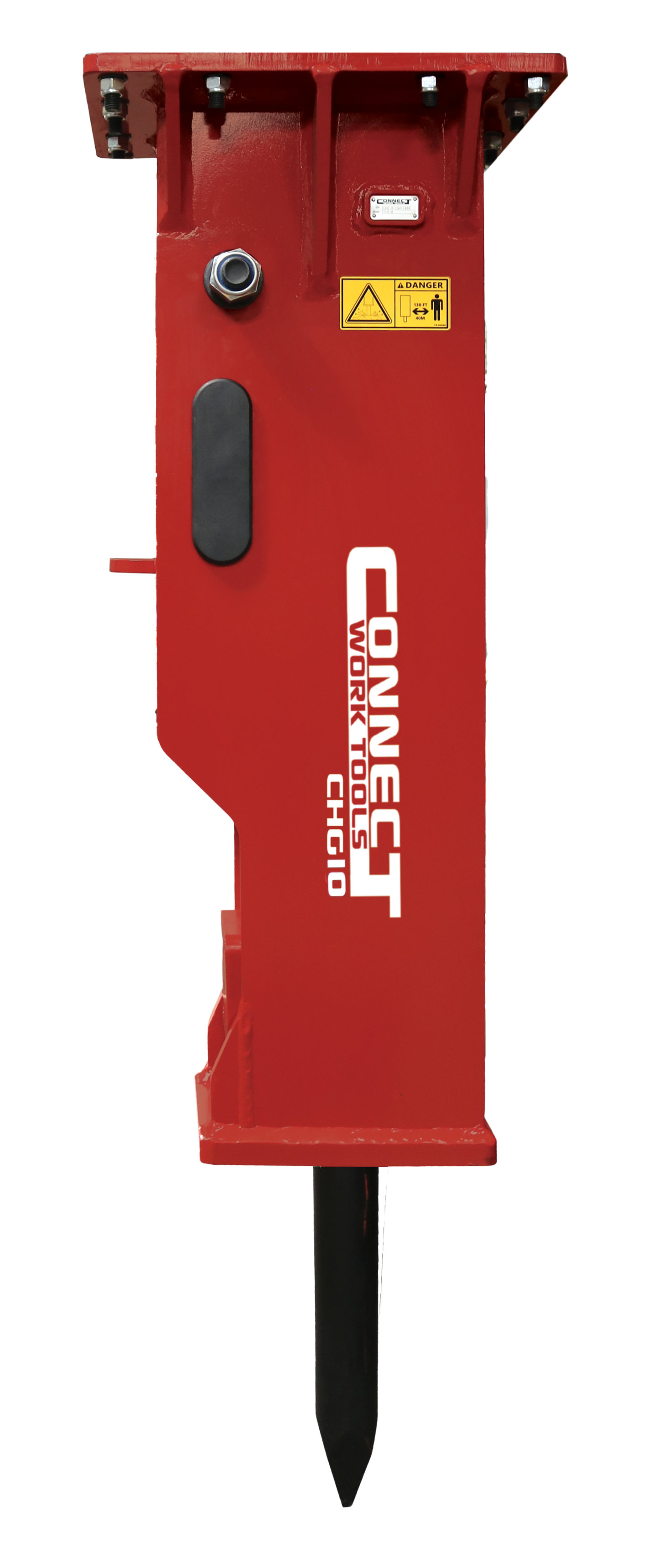

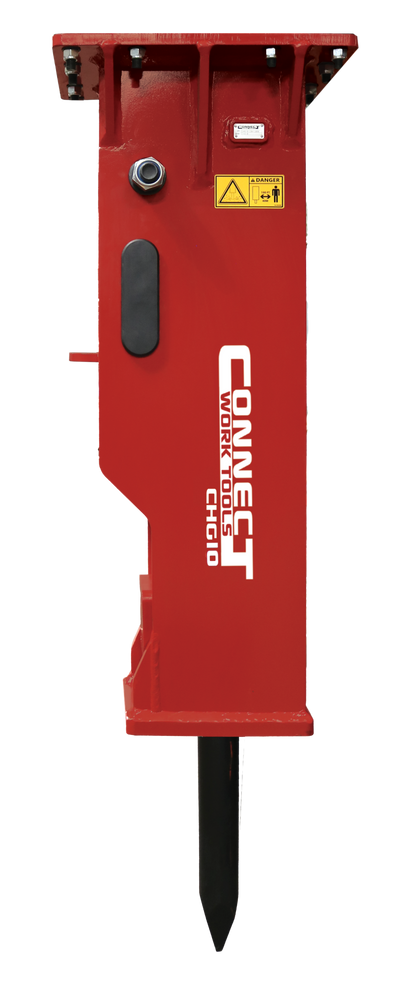

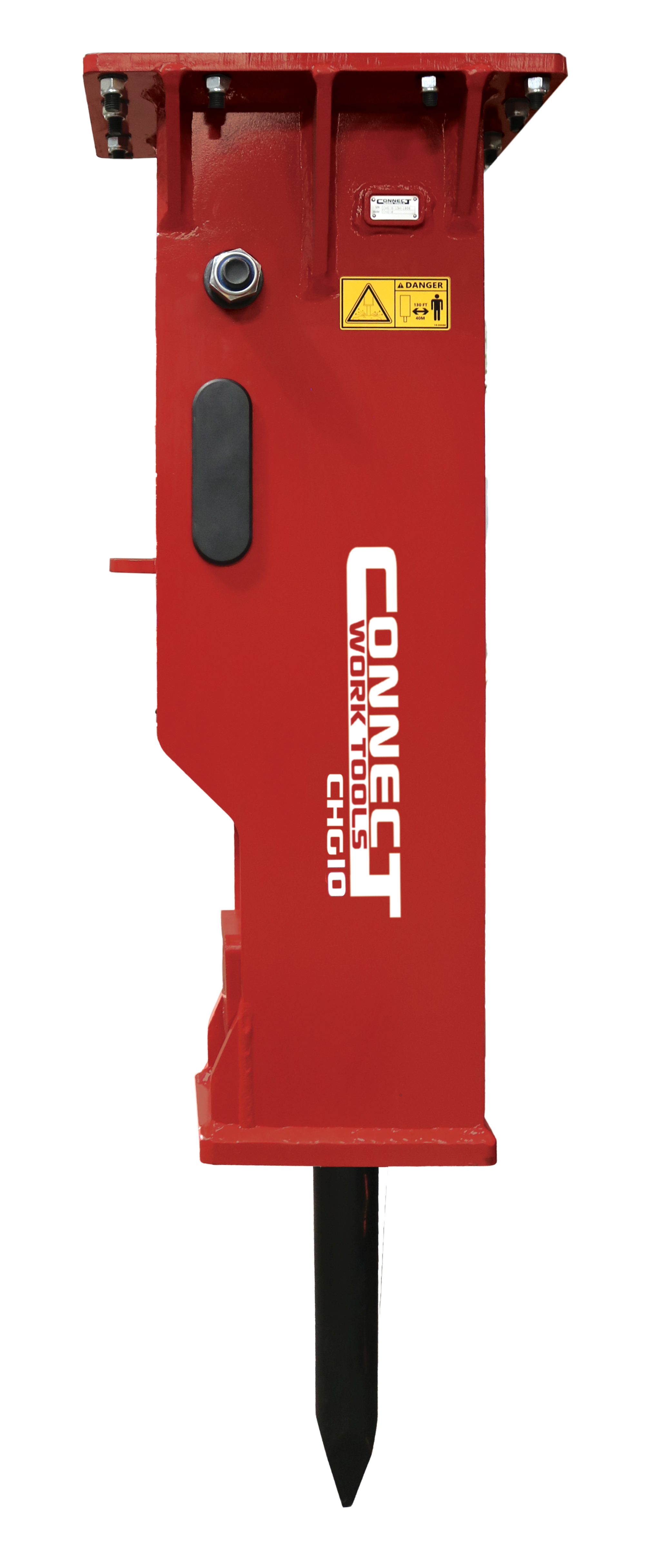

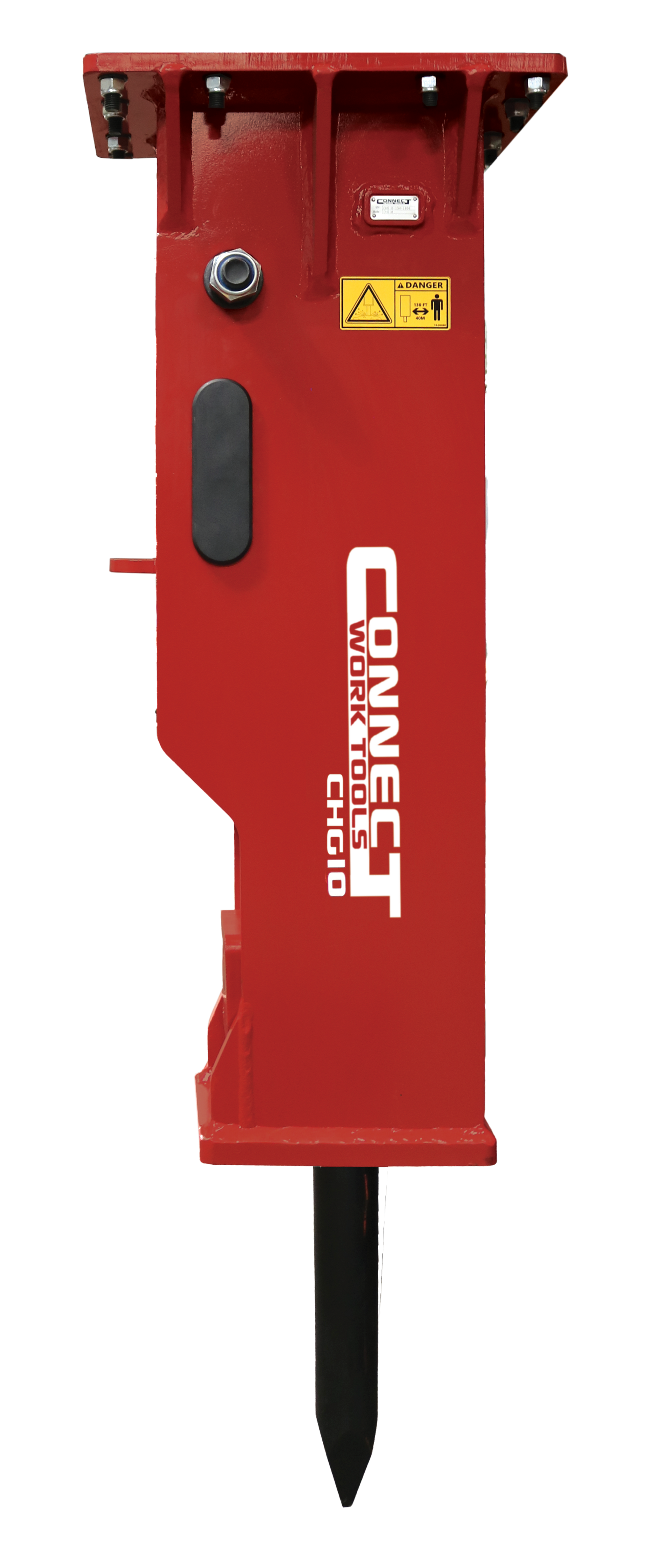

| CHG10 | 12,000 – 24,000 | 3970 | 5.51 | 450 – 750 | 2100 – 2500 | 30 – 45 |

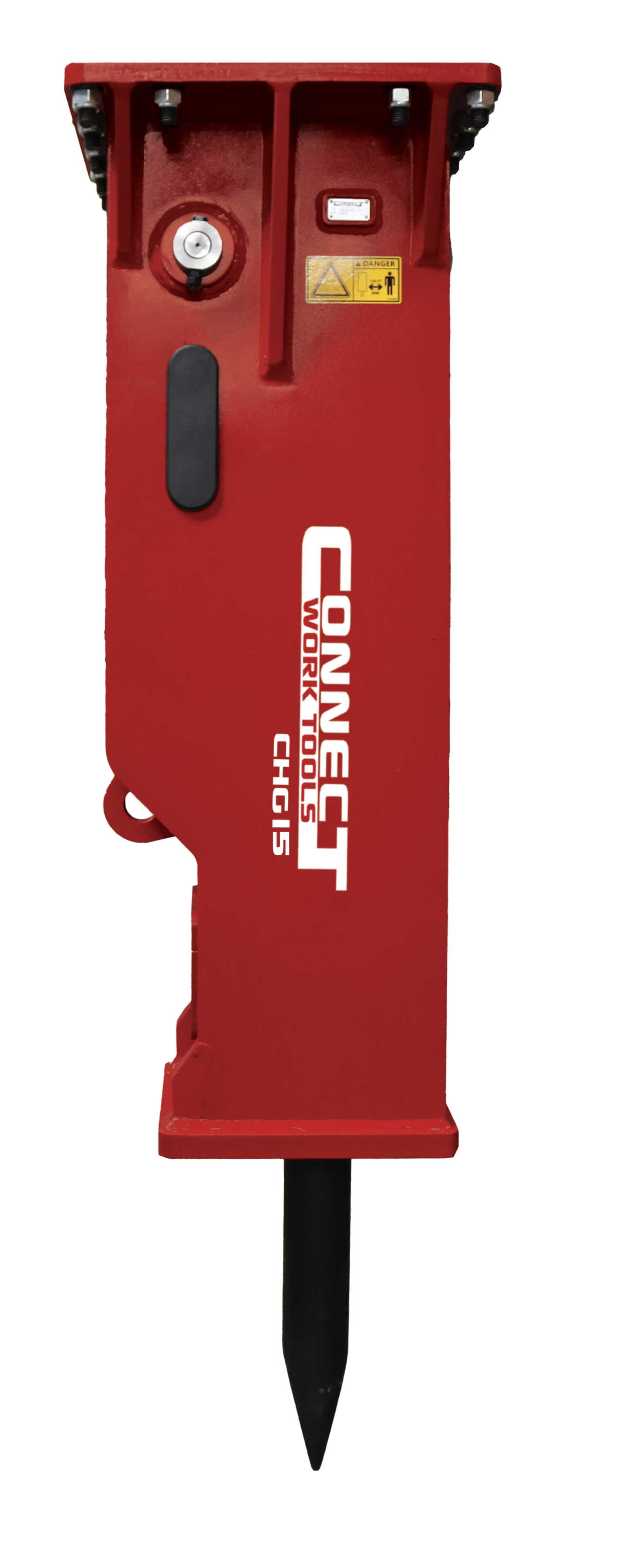

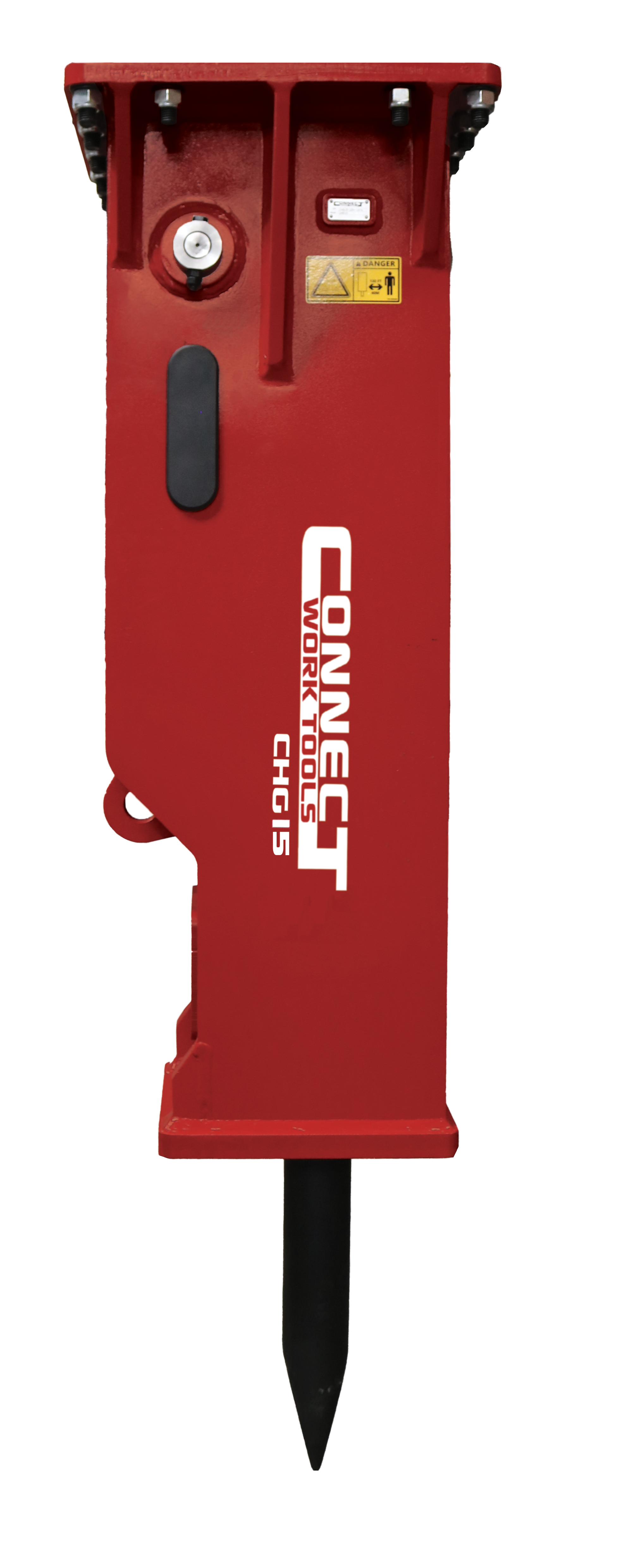

| CHG15 | 30,000 – 40,000 | 5510 | 6.30 | 450 – 750 | 2200 – 2600 | 37 – 50 |
