Description

•

•

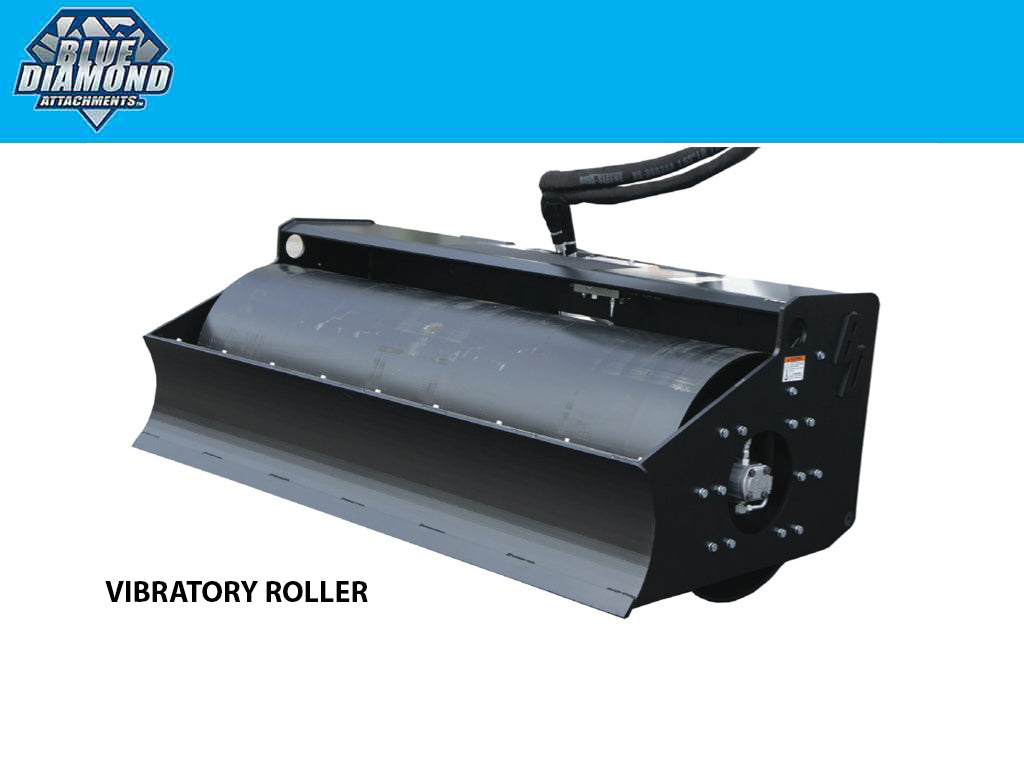

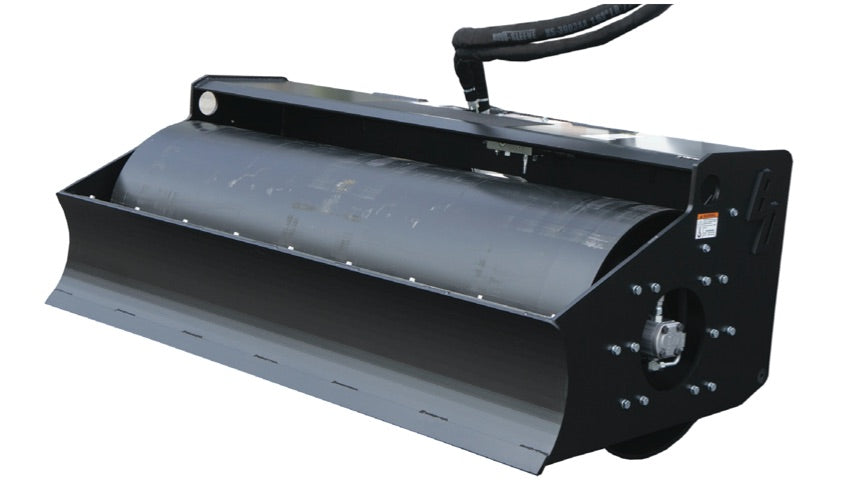

  VIBRATORY ROLLER

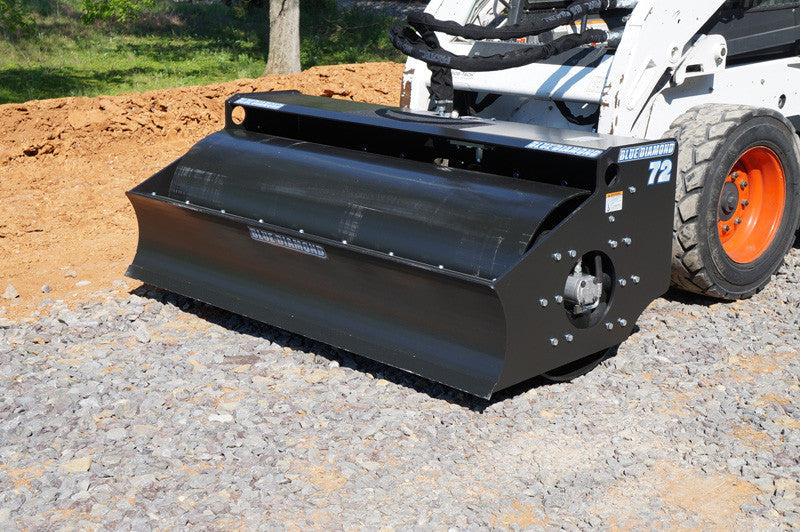

  The Blue Diamond roller models are available in 73 and 84 inch working widths. All models feature hydraulically powered exciter systems lubricated by an oil mist design. All models minimize exciter shaft deflection, lower operating temperatures, and provide Blue Diamond Attachments with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame minimizing transmission of vibration to the host machine. All models come with a universal quick attach system. Smooth or pad foot drums options are available. Blue Diamond compaction attachments for skid-steer loaders offer contractors and rental yards a cost effective, low maintenance alternative to comparatively high cost self-contained rollers.

  FEATURES INCLUDE:

  • Industry leading bearing design

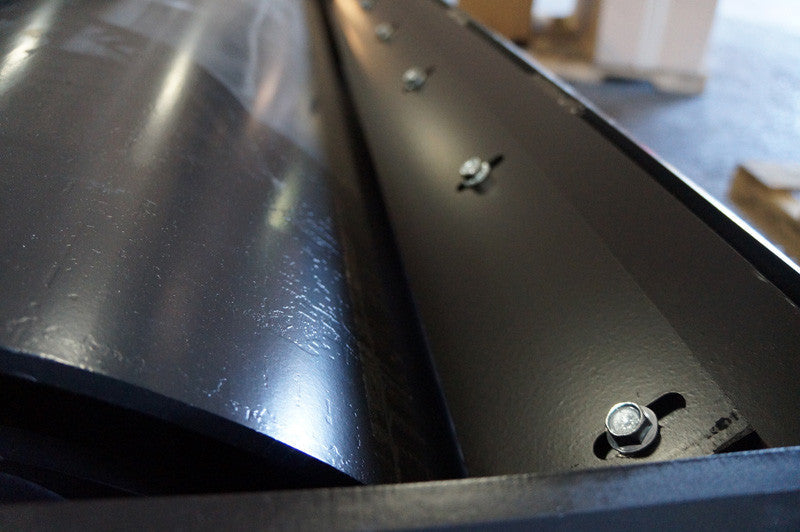

  • Integral knockdown blade
  • Smooth or pad foot models
  • Exciter systems are oil mist lubricate
  • Vibrating drums are effectively isolated from the roller frame

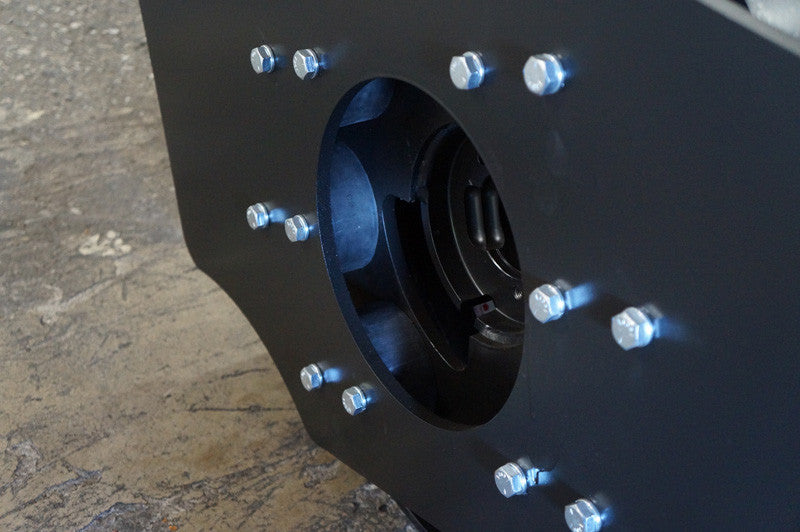

  • 12 heavy duty rubber shock mounts
  • Control valve block compensates for the correct flow of oil to prevent over speeding and over pressure of the exciter shaft
  • Universal adapter plate

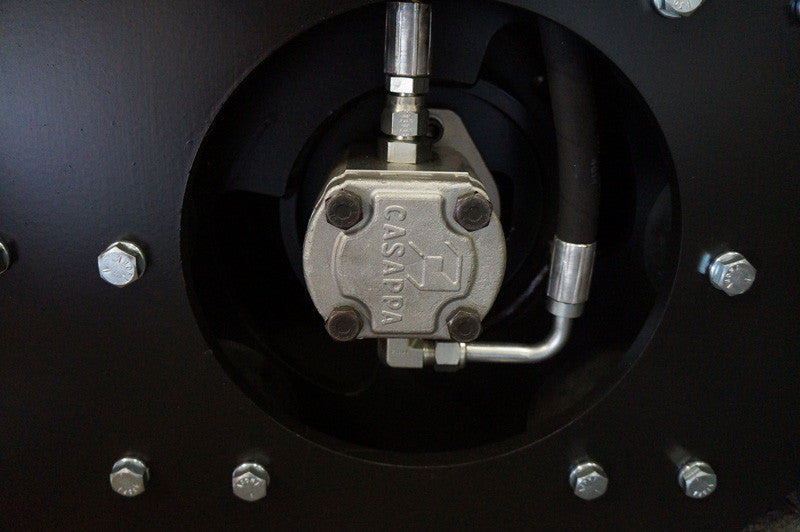

  • Drive motor is inside a heavy duty steel frame



  Specifications

• PART NUMBER	124010	124015	124030	124035
  MODEL	73” Smooth	73” Pad Foot	84" Smooth	84" Pad Foot
  LENGTH	43.3"	43.3"	43.3"	43.3"
  HEIGHT	29"	30"	29"	30"
  WEIGHT (LBS)	2050	2210	2300	2450
  EXCITER SPEED (RPM)	3000	3000	3000	3000
  CENTRIFUGAL FORCE (LBS)	8850	8850	9765	9765
  FLOW REQUIREMENTS (GPM)	10-50	10-50	10-50	10-50
  PRESSURE REQUIREMENTS	1500-3000	1500-3000	1500-3000	1500-3000
  HYDRAULIC CONNECTION	½" Flat	½" Flat	½" Flat	½" Flat
