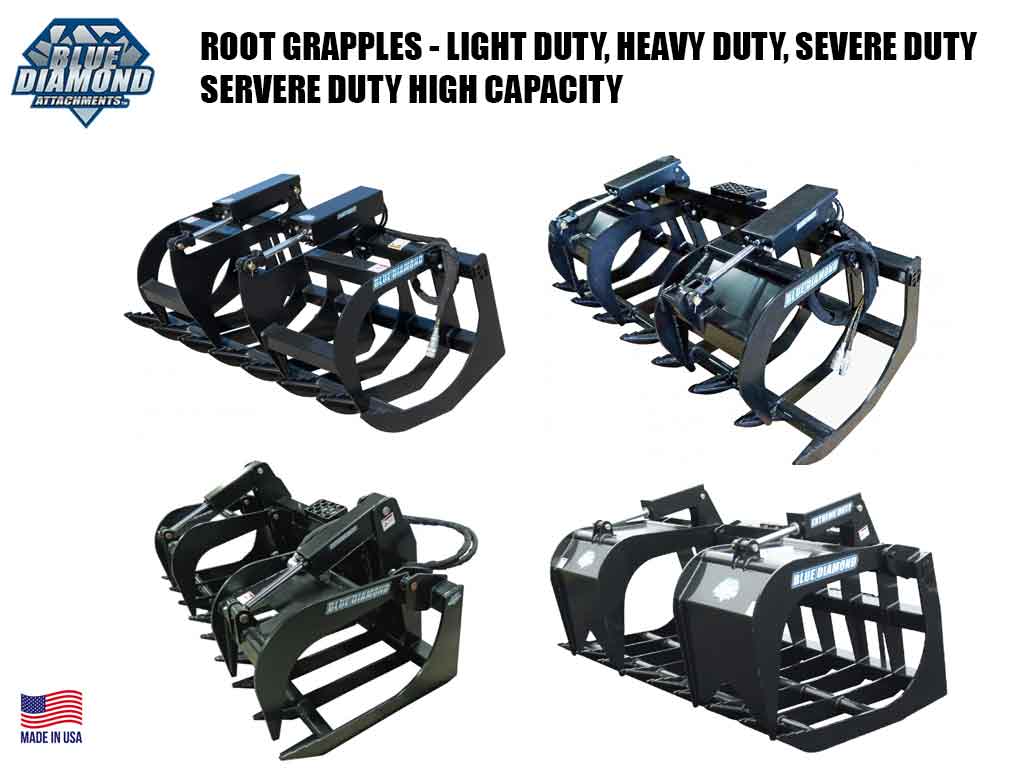

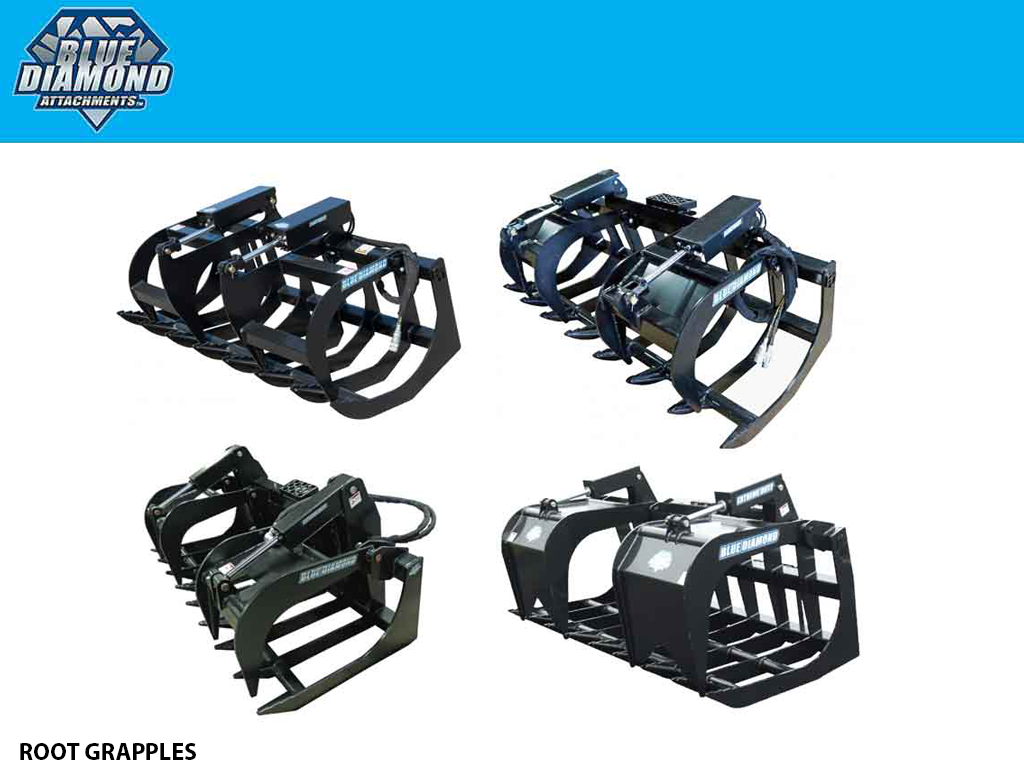

ROOT GRAPPLE – LIGHT DUTY

This lightweight grapple is designed with small loaders in mind with limited lift capacity. Weighing only 454 lbs, it lets you grab a load without the fear of tipping your machine. Dual top clamps and grease fittings are standard.

FEATURES INCLUDE:

Dual independent clamps
3/8” steel
Greasable 1” pivot pin
One-piece tines
Protected cylinders
Flat face couplers included
Opens to 30”

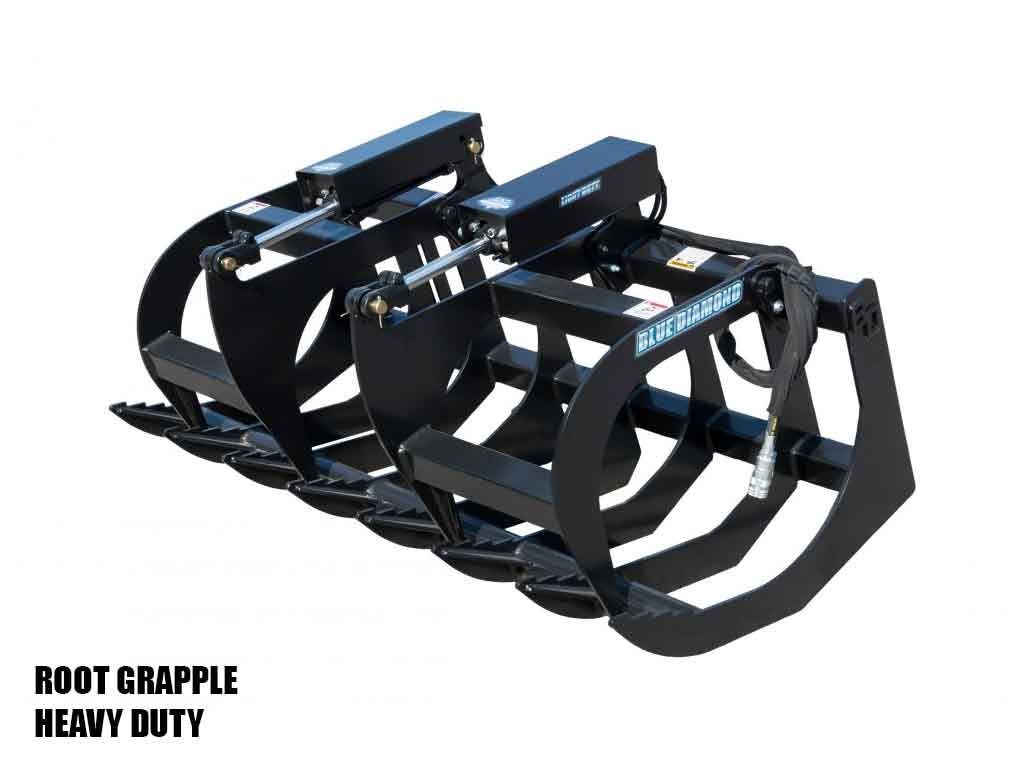

ROOT GRAPPLE – HEAVY DUTY

The Heavy-Duty Root Grapple is designed for up to 50 hp machines with a moderate work load. Made from 1/2” steel, it is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard.

FEATURES INCLUDE:

1/2″ thick top clamps
Cylinder protection covers
Opens to 32″
Best suited for machines up to 50HP or 1800 lb lift capacity
Protected hoses

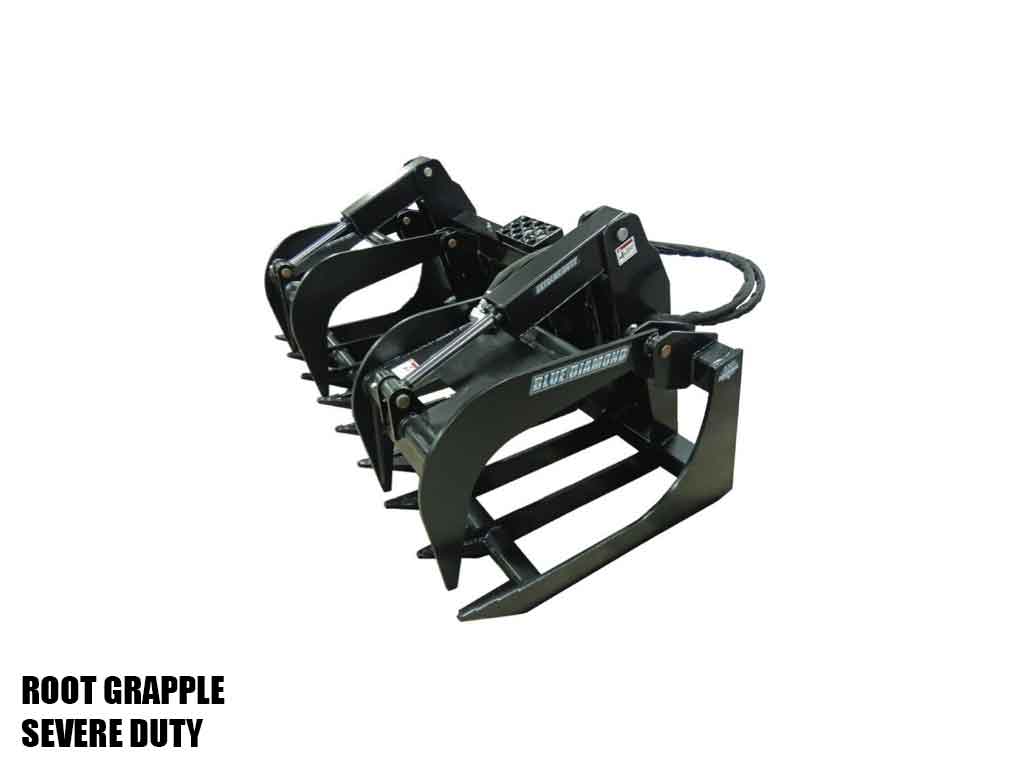

ROOT GRAPPLE – SEVERE DUTY

This awesome addition to the Blue Diamond skid steer grapples offers some great new features suggested by our customers! The new hose routing keeps the hoses out of the pinch area by running them internally through the left cylinder tower. The quick attach area is solid to protect the cylinder and lines on the hydraulic quick attach that many newer machines offer. Extra tubing in the grapple clamps prevents twisting and the one piece tines bucket tines no longer have a seam in the back of the grapple. This new design has made a great grapple even better.

FEATURES INCLUDE:

Half inch, extra strong one-piece tines throughout
Closed in quick attach area
Reinforced top clamps
New “no pinch” hose routing
Opens to 34″
35″ deep
8″ tine spacing
1.25″ pivot pins in bushings with grease fittings

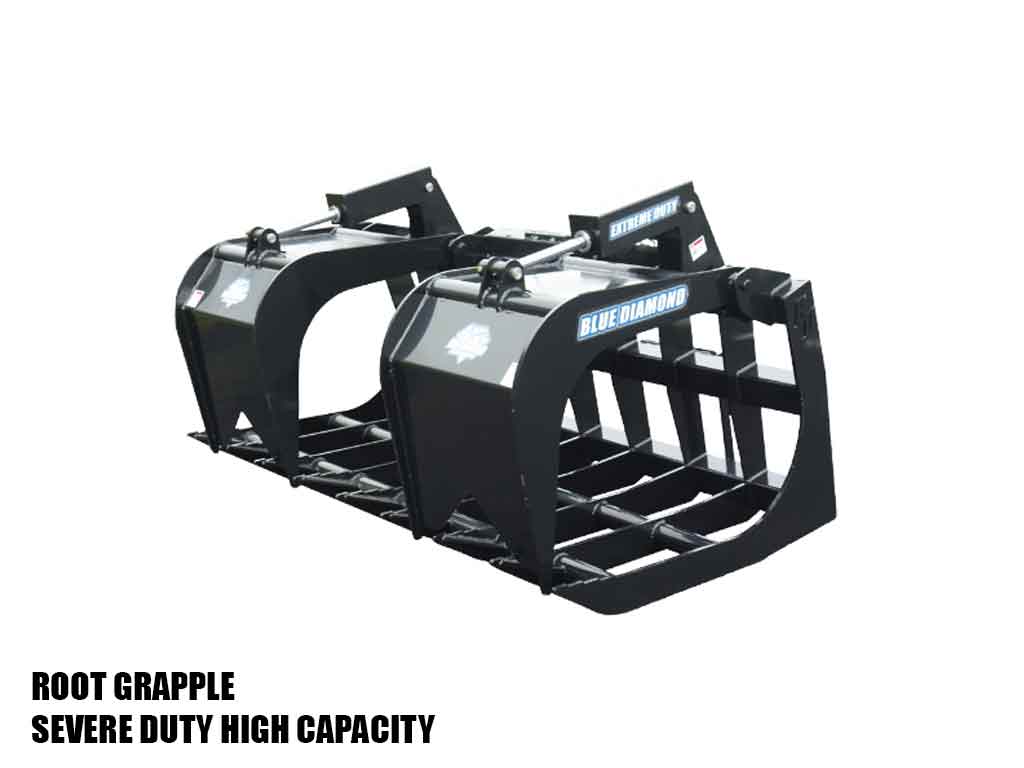

EXTREME DUTY HIGH CAPACITY ROOT GRAPPLE

This Blue Diamond® Extreme Duty High Capacity Root Grapple is designed to handle very large jobs with ease. The protected cylinders and hoses ensure that down time is kept to a minimum. From the heavily reinforced mount to the rugged top clamps, this grapple is one of the toughest on the market. The massive top clamps allow for 25”H x 42”D worth of material to be grabbed in each load.

FEATURES INCLUDE:

3/8” thick tines with 1/2” top clamps
25”H x 42”D opening inside of clamps
Opens to 59” at tip of tines/clamp
Dual acting cylinders
Heavily reinforced mount
Serrated tine tips to rip through roots

VIDEOS

Heavy Duty

Severe Duty

SPECIFICATIONS

Light Duty

Part Number	Model	Weight
106053-S	48" Root Grapple, Light Duty, Single Clamp	341 lbs
106054-S	52" Root Grapple, Light Duty, Single Clamp	350 lbs
106053	48" Root Grapple, Light Duty, Dual Clamps	399 lbs
106054	52" Root Grapple, Light Duty, Dual Clamps	407 lbs
106057	56" Root Grapple, Light Duty, Dual Clamps	425 lbs
106055	60" Root Grapple, Light Duty, Dual Clamps	480 lbs
106060	66" Root Grapple, Light Duty, Dual Clamps	689 lbs

Heavy Duty

Part Number	Model	Weight
106075	60” Root Grapple, HD, Dual Clamps	608 lbs
106080	66” Root Grapple, HD, Dual Clamps	633 lbs
106090	72” Root Grapple, HD, Dual Clamps	689 lbs

Severe Duty

Part Number	Model	Weight
106440	66” Root Grapple, Severe Duty	608 lbs
106450	72” Root Grapple, Severe Duty	633 lbs
106460	78” Root Grapple, Severe Duty	689 lbs
106470	84” Root Grapple, Severe Duty	740 lbs

Extreme Duty

Part Number	Model	Weight
106220	72” Grapple, Root, Extreme Duty, High Capacity	1,159 lbs
106230	78” Grapple, Root, Extreme Duty, High Capacity	1,194 lbs
106240	84” Grapple, Root, Extreme Duty, High Capacity	1,294 lbs
106260	96” Grapple, Root, Extreme Duty, High Capacity	1,360 lbs
