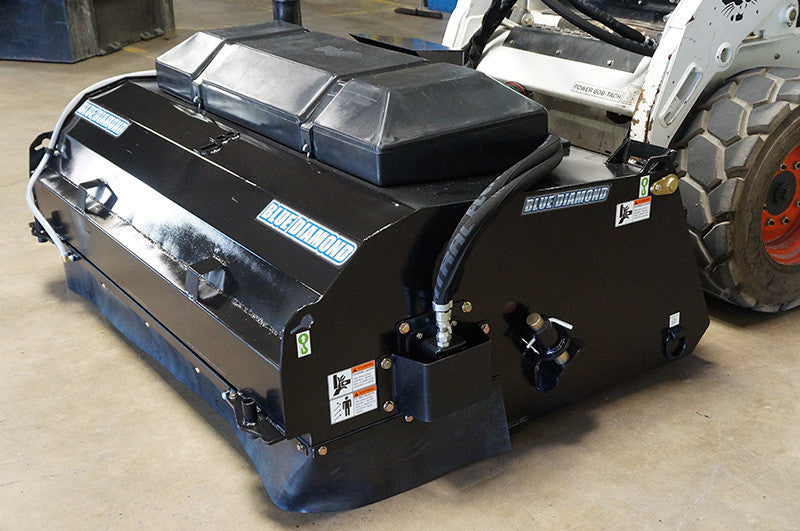

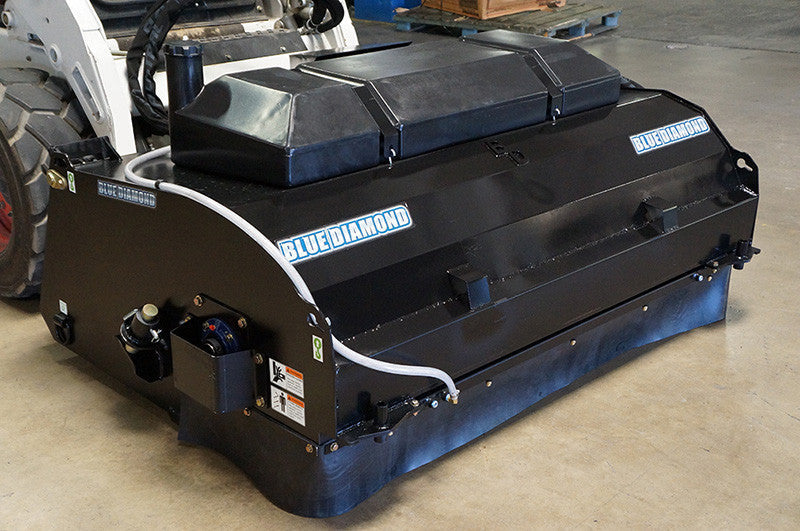

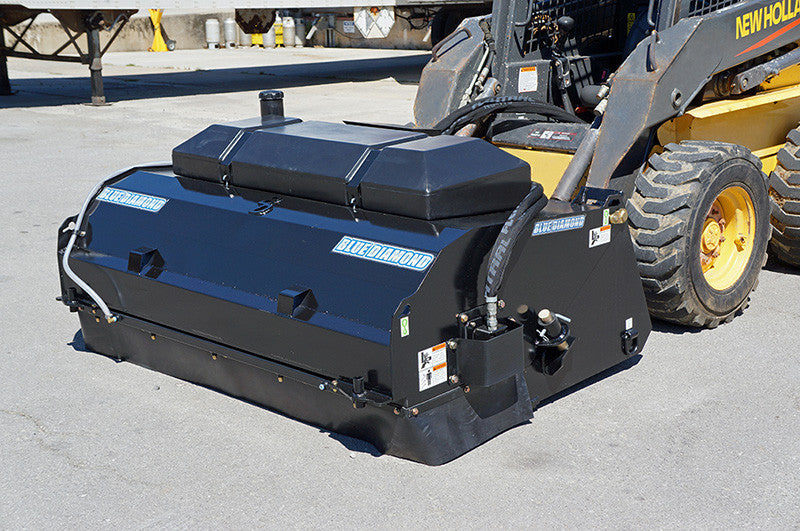

BLUE DIAMOND Pickup Broom for Skid Steer Series 2

Skid Steer Pickup Broom

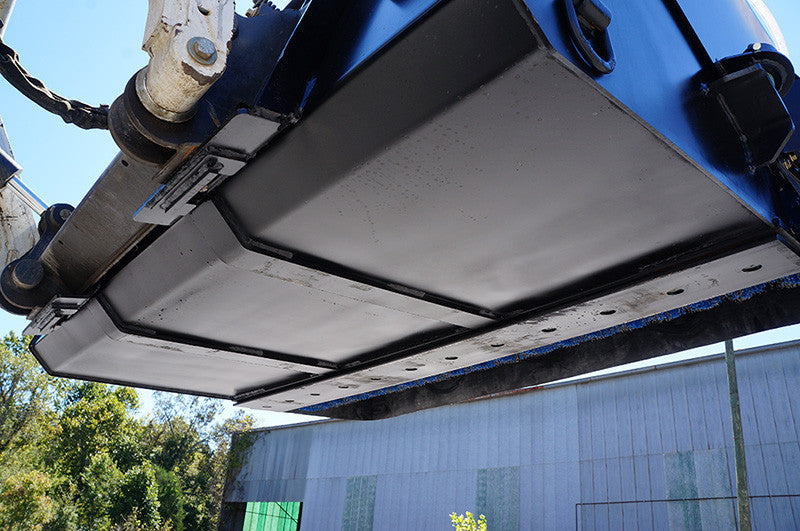

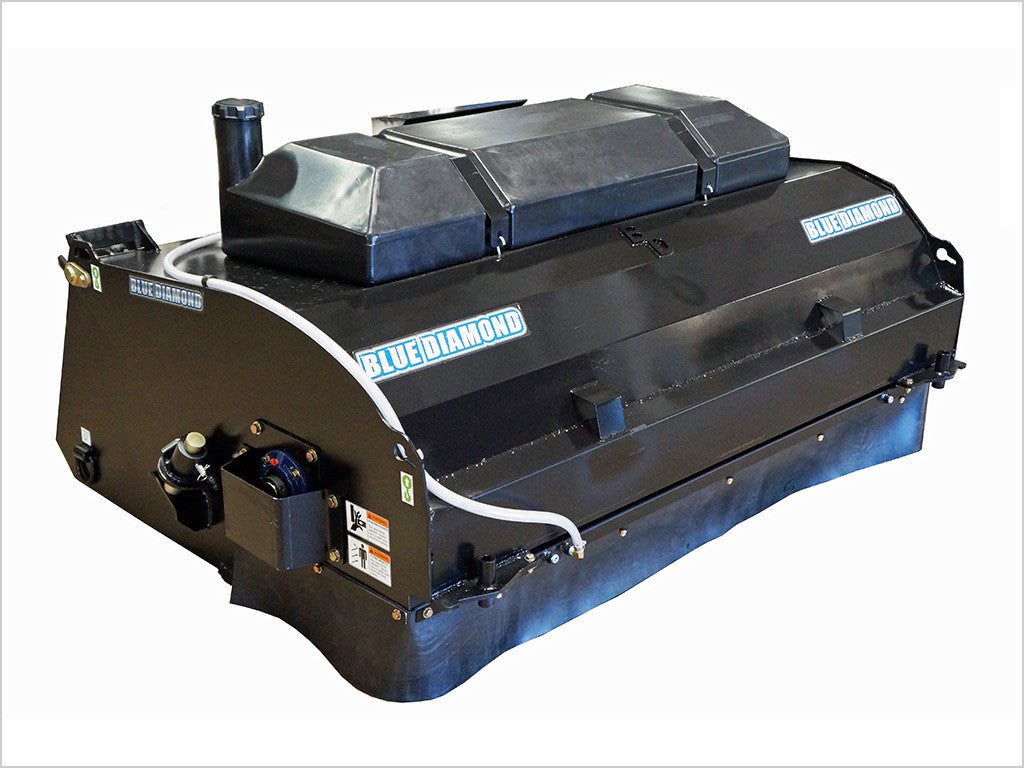

This premium pickup broom is designed for heavy commercial use. Years of market research lead to this premium broom that will stand up to the rigors of the roadwork industry as well as hold up in rental applications. This simple, clean design gives added structure to typical wear areas and damage-prone components such as a built-in water kit, and heavy reinforcement on the front of the broom shroud. The low profile water tank allows the operator better visibility of the work area thereby reducing accidents. The 26” diameter poly/ steel broom is available in 60”, 72”, 84” and a 96” width. An oversized bolt-on 8″ x ¾” double bevel edge protects the ¾” weld in edge from wear and adds strength to the leading edge of the bucket. Wear bars welded to the bottom of the bucket provides strength and protects the bucket from premature wear. Oversize bearings and spindles also set this broom on a new level versus competitive brands!

For those that require a high-quality broom, this is the answer!

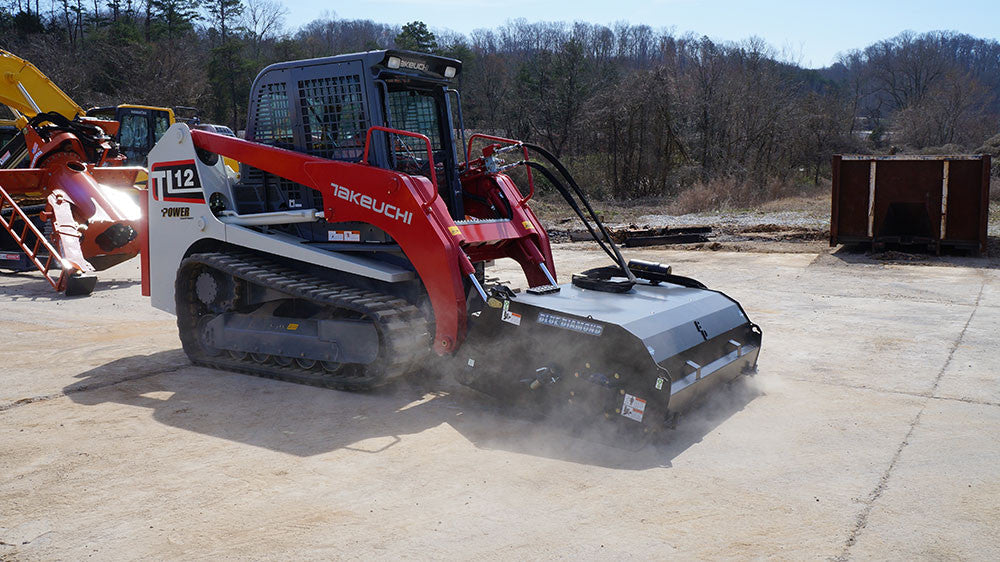

Great for construction and road work

FEATURES INCLUDE :

• Heavy 2″ main shaft
• Oversized 6″ bearings
• 7″ tall front crash bar
• Motor and shaft guards
• Heavy-duty dump stops
• Grease fittings on all pivot points and bearings

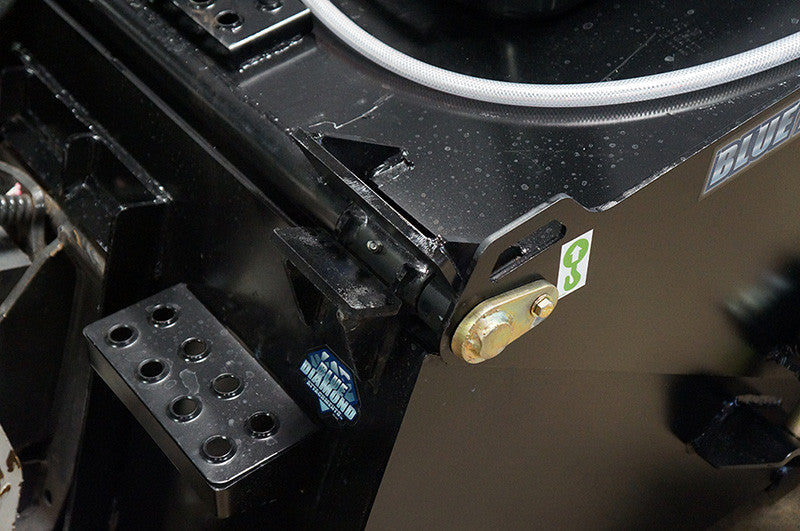

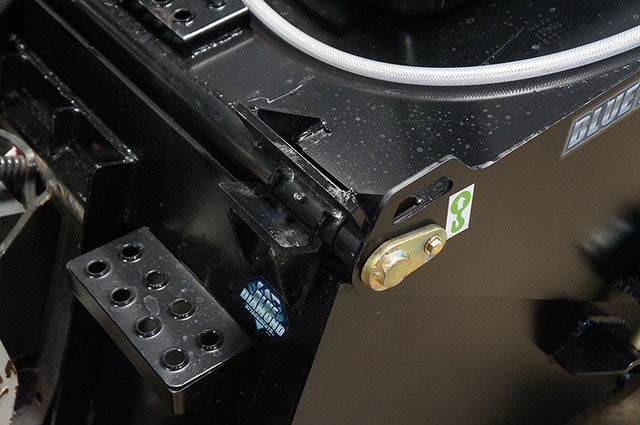

• Steps mounted on back of bucket for entering and exiting the host machine

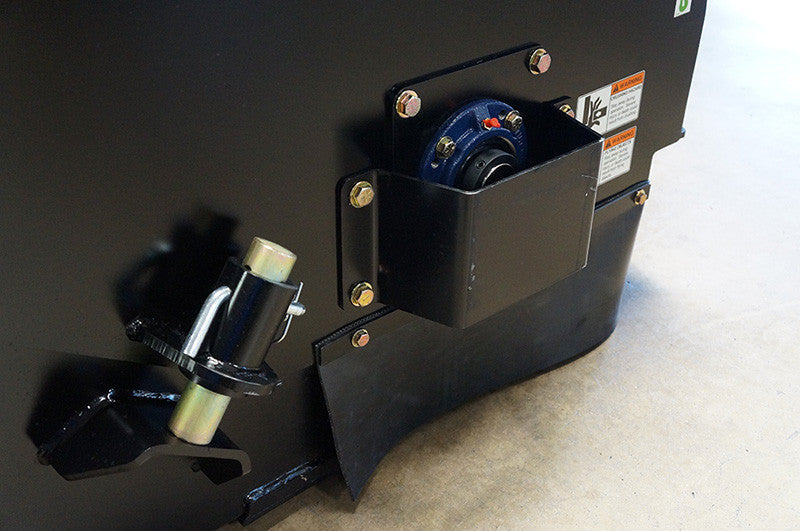

• 1 1/2″ x 7″ Zinc height adjustment pins with 4 positions

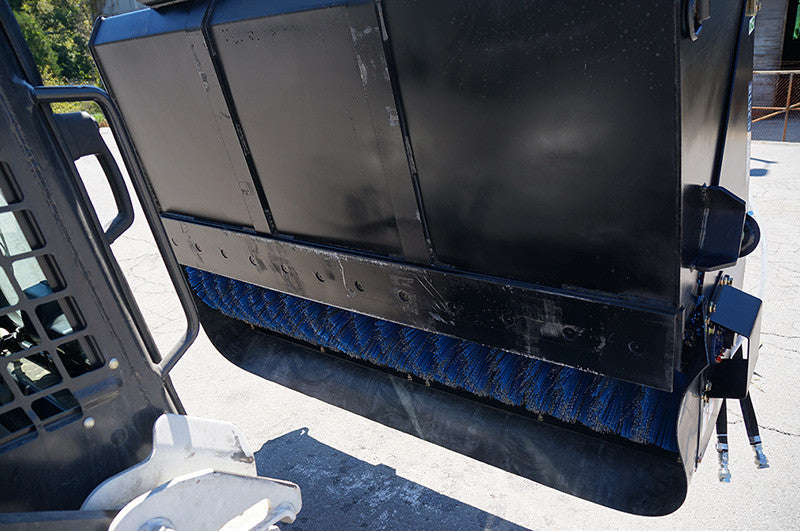

• Bolt-on rubber skirting to contain debris
• 28″H x 58″D

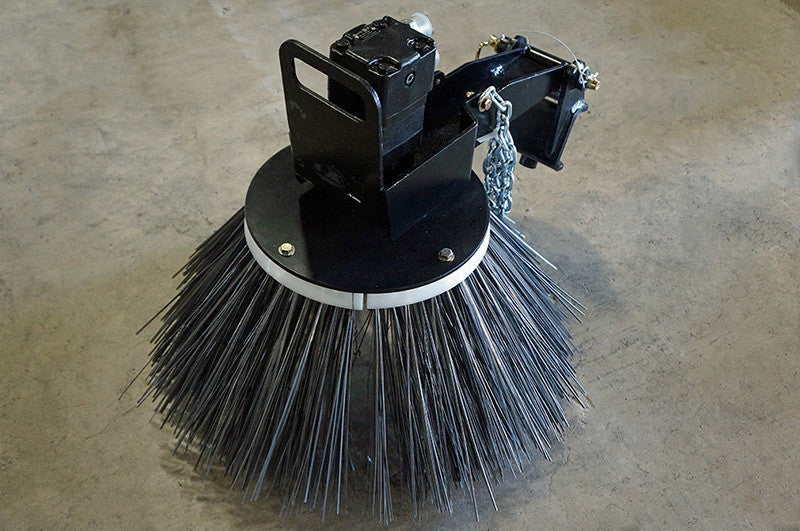

• Optional gutter brush available

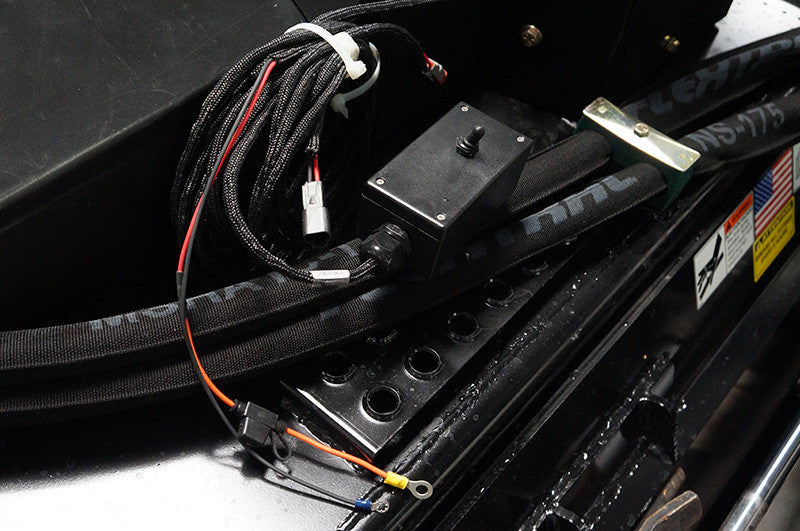

• Predrilled for optional pressurized water system

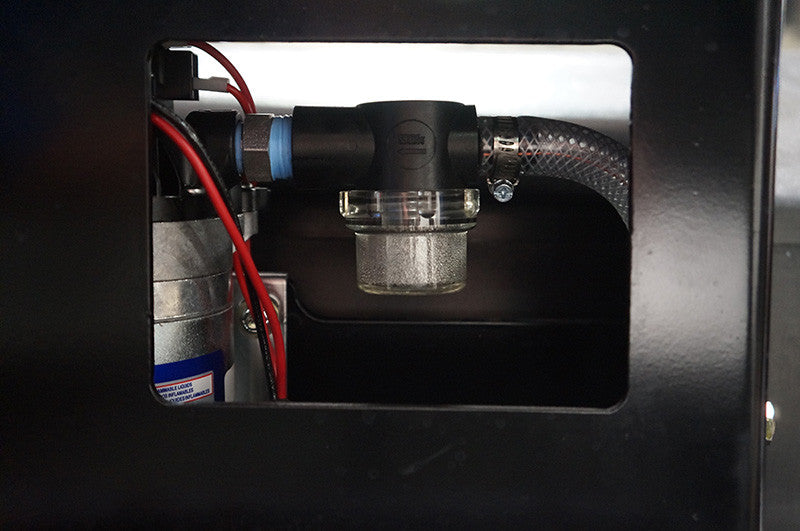

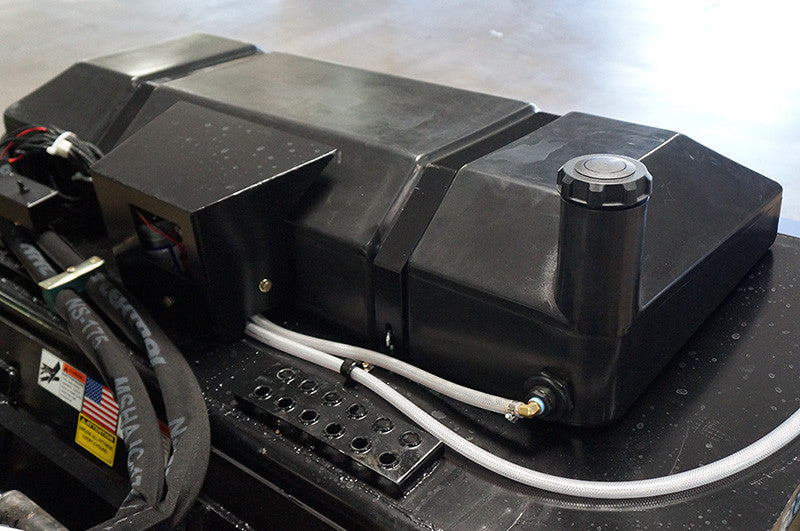

• Optional 37 gallon low profile pressurized water system kit

• PRODUCT SPECS

• SIZE	WEIGHT	WIRE/POLY WAFERS	TOTAL WAFERS	WATER RUN TIME	FLOW RANGE
  60″	995 lbs	15 wire / 16 poly	31	58 minutes	15-25 GPM
  72″	1125 lbs	18 wire / 19 poly	37	40 minutes	15-25 GPM
  84″	1300 lbs	21 wire / 22 poly	43	38 minutes	15-25 GPM
  96″	1450 lbs	24 wire / 25 poly	49	33 minutes	15-25 GPM

•
