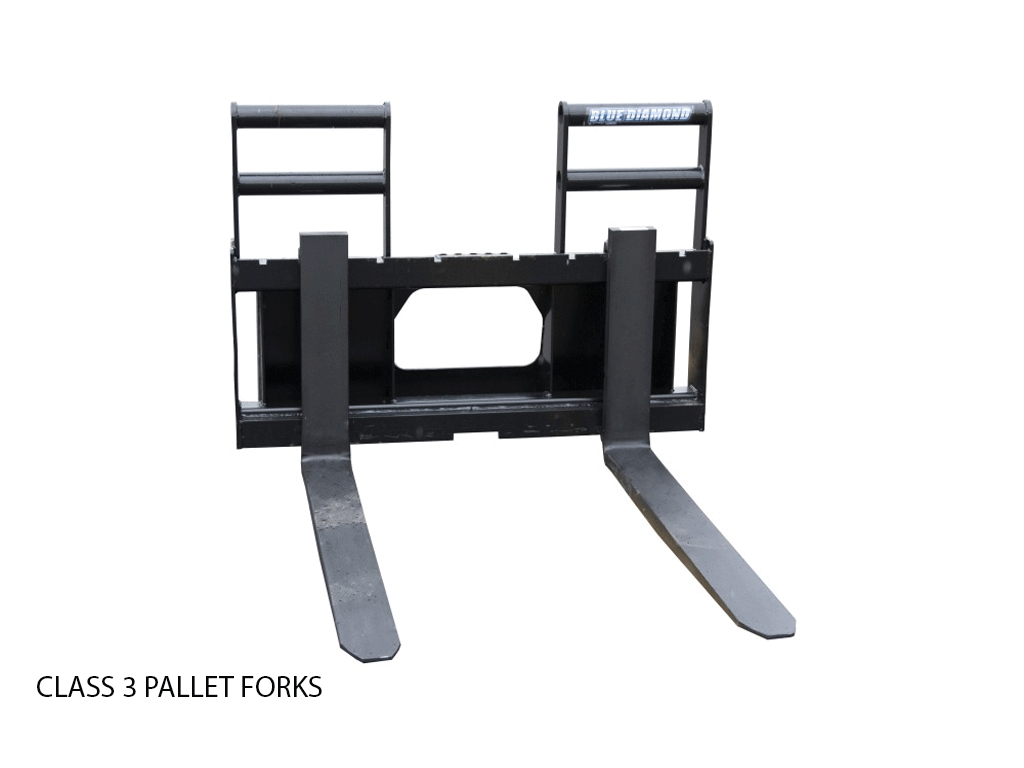

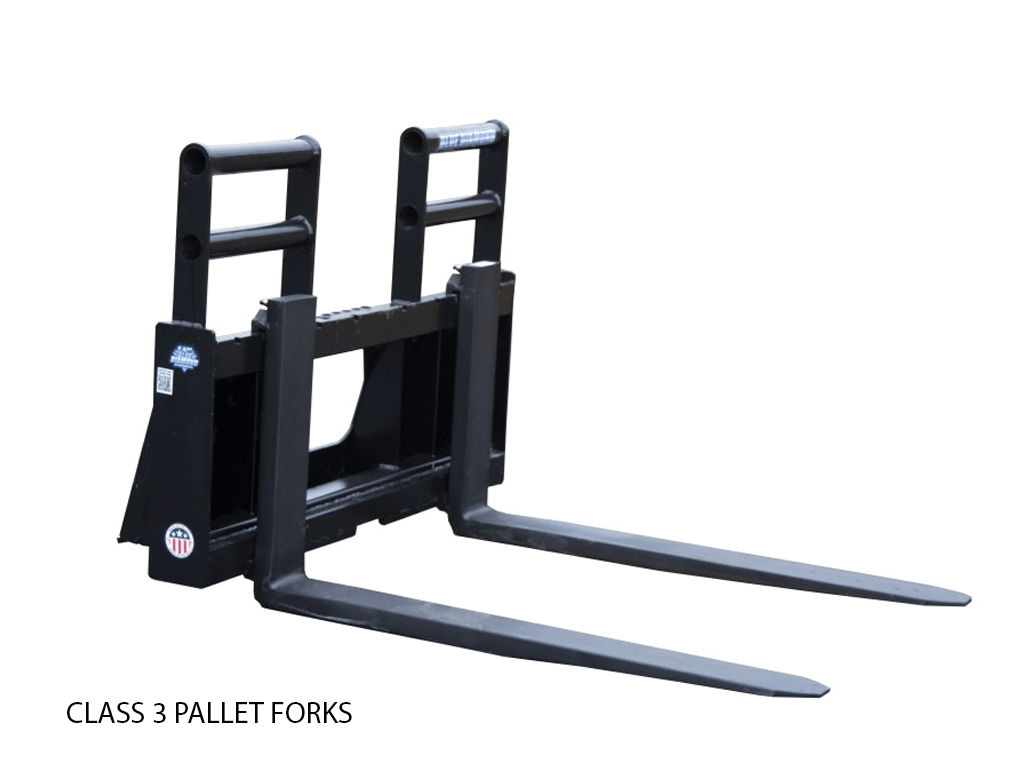

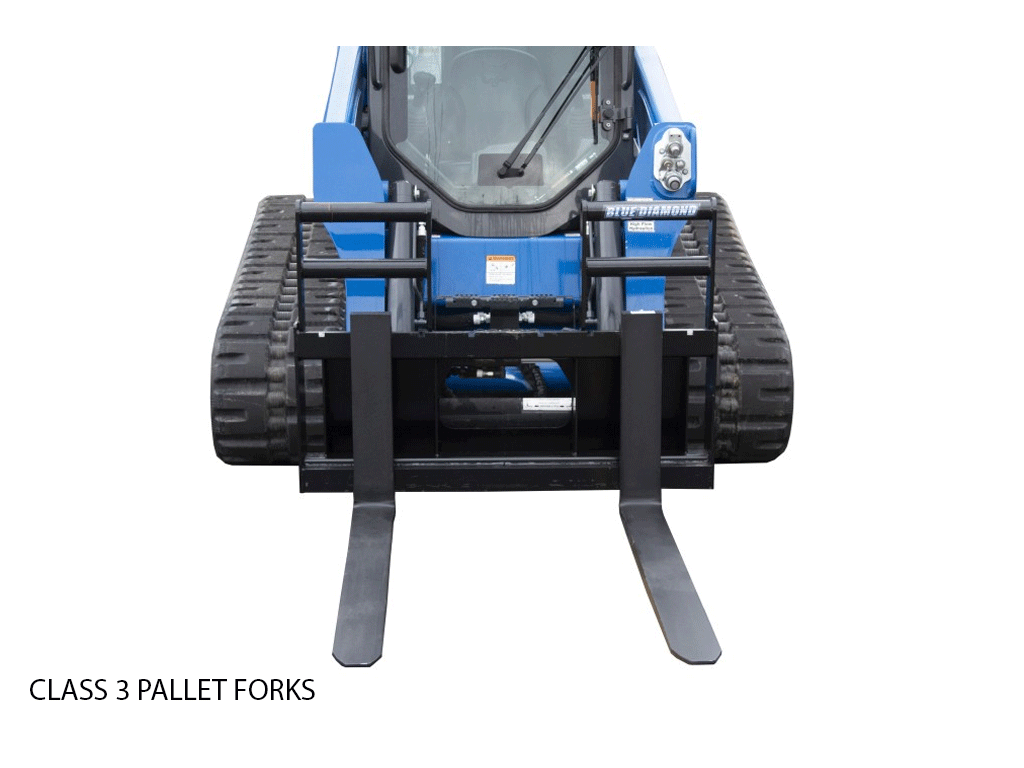

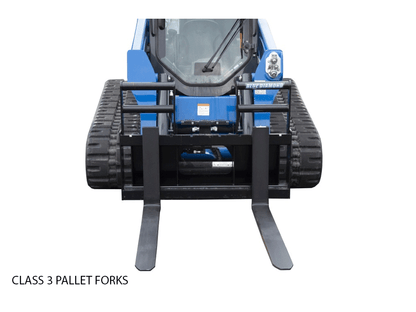

BLUE DIAMOND | Pallet Forks For Skid Steer - Class 3

Engineered for demanding material handling, these pallet forks fit large-frame skid steer quick-attach systems and wheel loaders, delivering strength and versatility on busy job sites.

Features

• Class 3 frame, 10,000 lb lift capacity designed to handle heavy pallets and bulk materials with confidence.
• Multiple frame lengths available to match your workflow: 48", 60", 72", 84", and 96" frames.
• Tine options: 48" and 60" frames offer 1 3/4" tines; 72", 84", and 96" frames use 2" tines.
• Backrest cutout provides easy cab entry on skid steers and clearances for center linkage on wheel loaders.
• Backrest design supports multiple applications, with a 50" wide frame footprint for stability.
• Fork dimensions: 2" x 5" specification ensures compatibility with standard pallets and attachments.
• Rugged construction built for durability in rough job-site conditions.
• Weight varies by model from 595 lb (48" frame) to 875 lb (96" frame), reflecting robust steel engineering.
• Designed for Class 3 quick attach systems for quick, secure attachment to compatible machines.

Benefits

• Unlock high-capacity pallet handling with a true 10,000 lb lift rating, enabling efficient loading of heavy pallets and materials.
• Choose the right length to optimize visibility and balance—shorter lengths for tight spaces, longer lengths for extended reach.
• The backrest cutout and center-link clearance reduce operator effort during cab entry and material handling in wheel loaders.
• A stable 50" wide frame footprint improves load control on uneven surfaces and when transporting bulk items.
• Versatile for a range of applications beyond pallets, such as landscaping supplies, lumber, steel, or brick pallets.
• Clear, model-specific specifications help you verify compatibility with your fleet and safety requirements.
• Durable steel construction for long service life in demanding environments.

Specifications by model

• 314150 Frame 48" x 1 3/4" | 10,000 lbs lift | 595 lbs
• 314152 Frame 60" x 1 3/4" | 10,000 lbs lift | 732 lbs
• 314155 Frame 60" x 2" | 10,000 lbs lift | 758 lbs
• 314160 Frame 72" x 2" | 10,000 lbs lift | 828 lbs
• 314165 Frame 84" x 2" | 10,000 lbs lift | 848 lbs
• 314167 Frame 96" x 2" | 10,000 lbs lift | 875 lbs

Ideal for rental yards, contractor fleets, and farms that regularly move heavy pallets with large-frame skid steers or wheel loaders. The combination of variable lengths, solid backrest design, and center-link clearance helps you tailor handling tasks to the job—boosting productivity while maintaining safety and control on busy worksites.
