Description

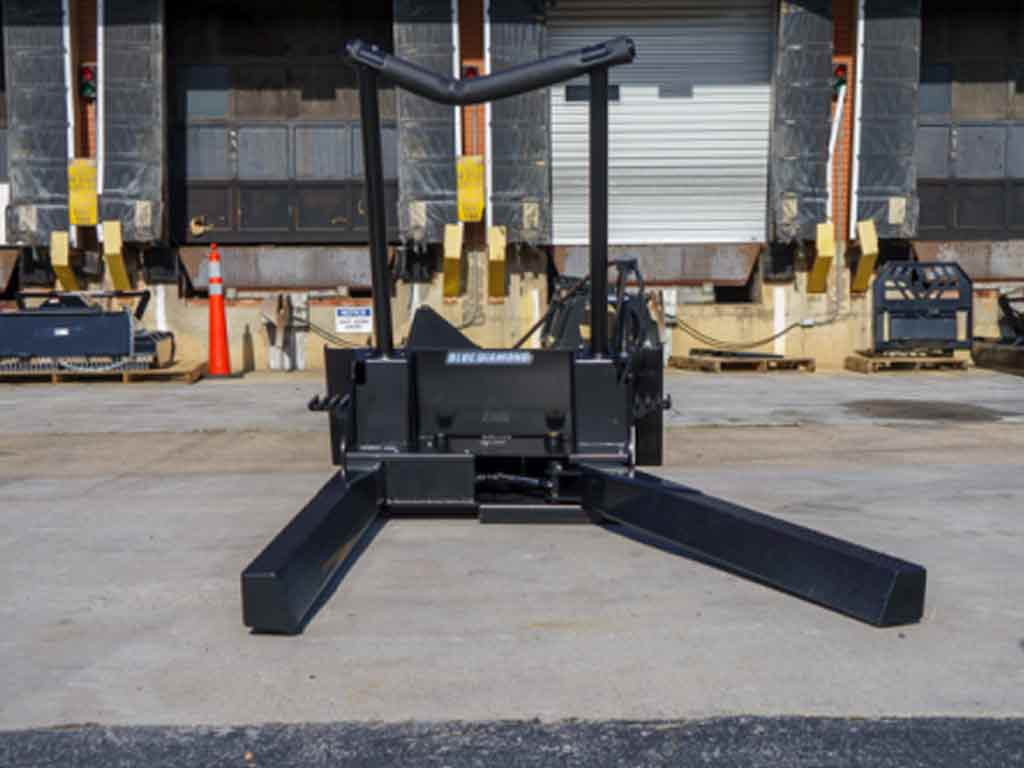

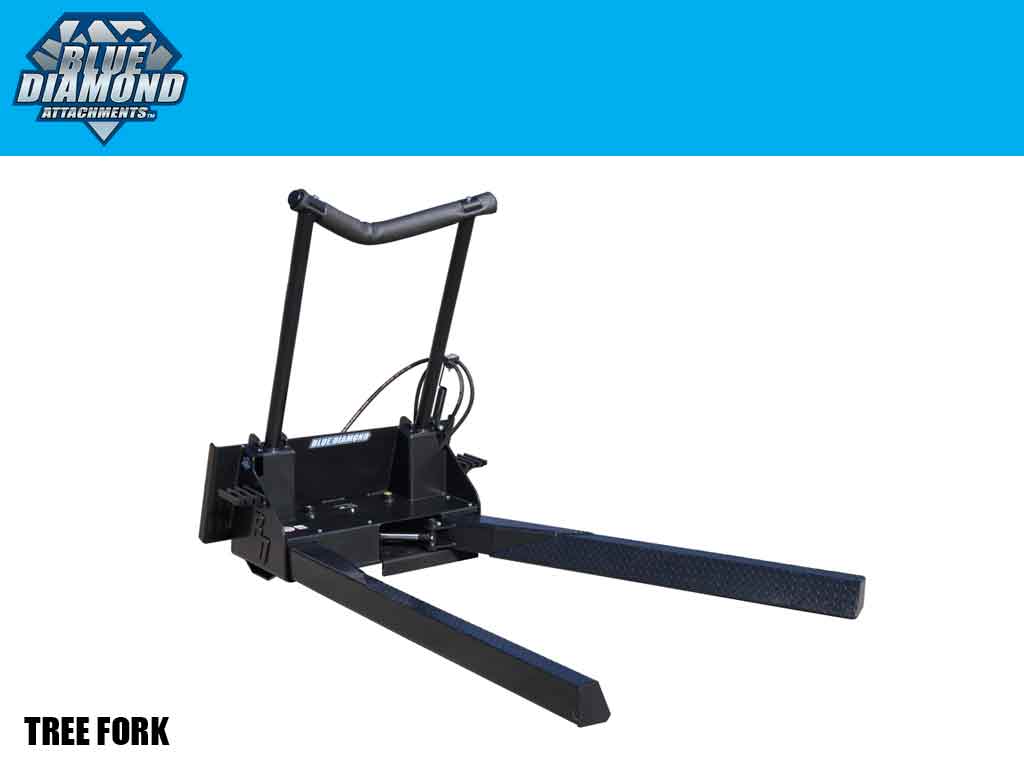

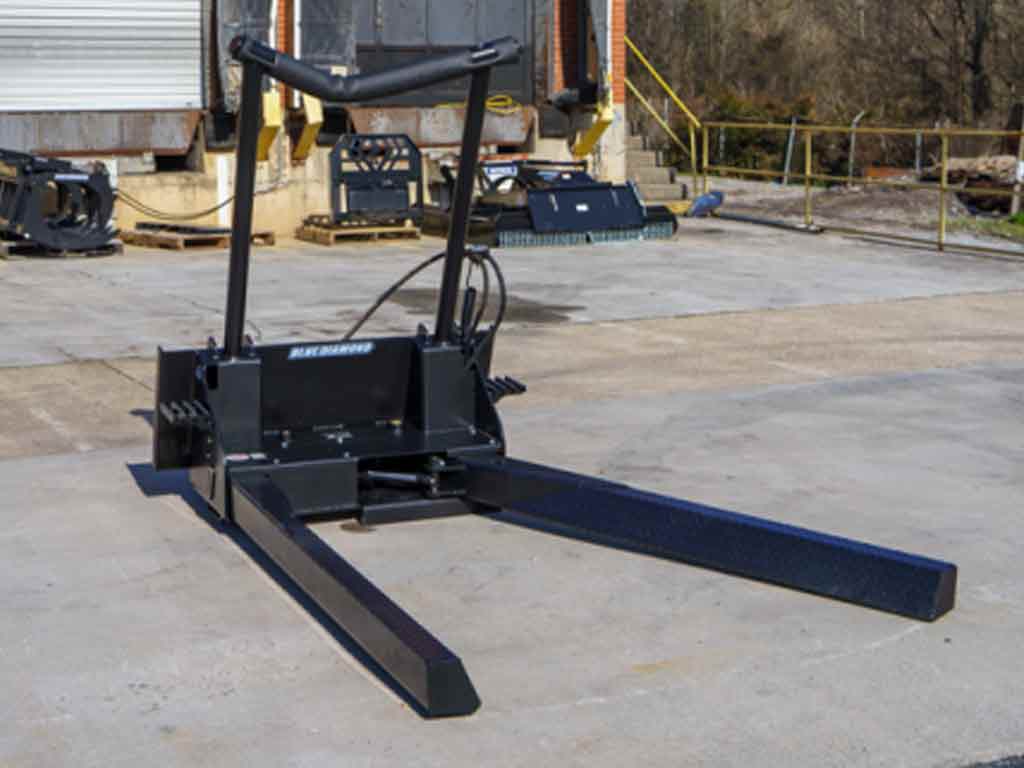

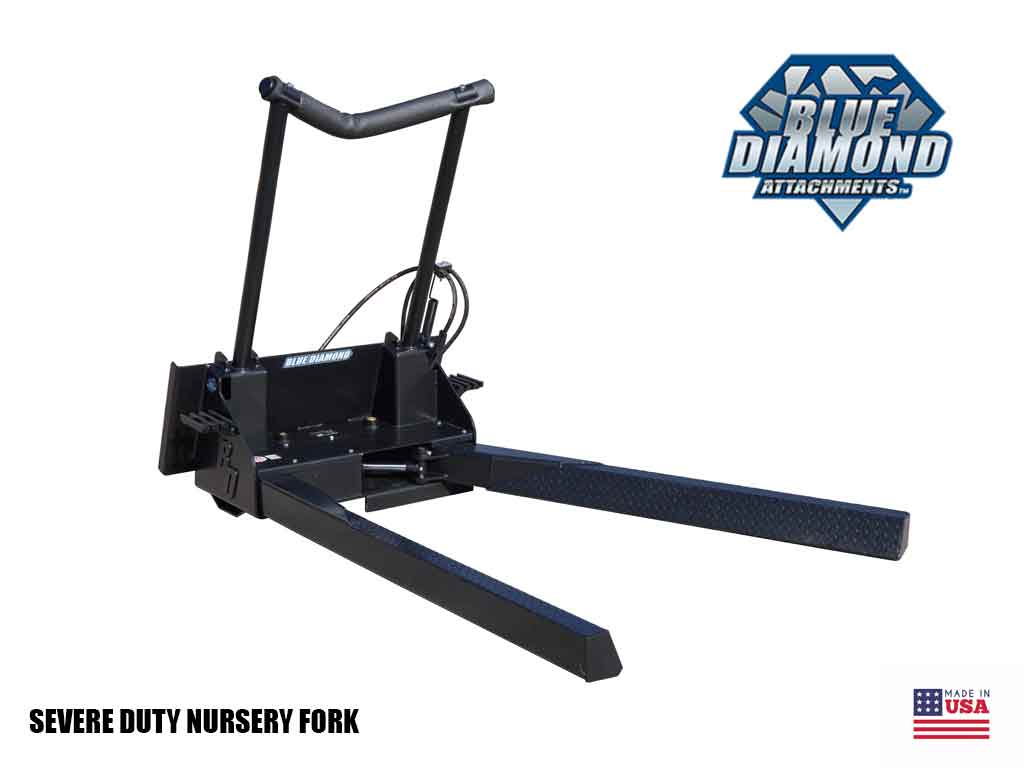

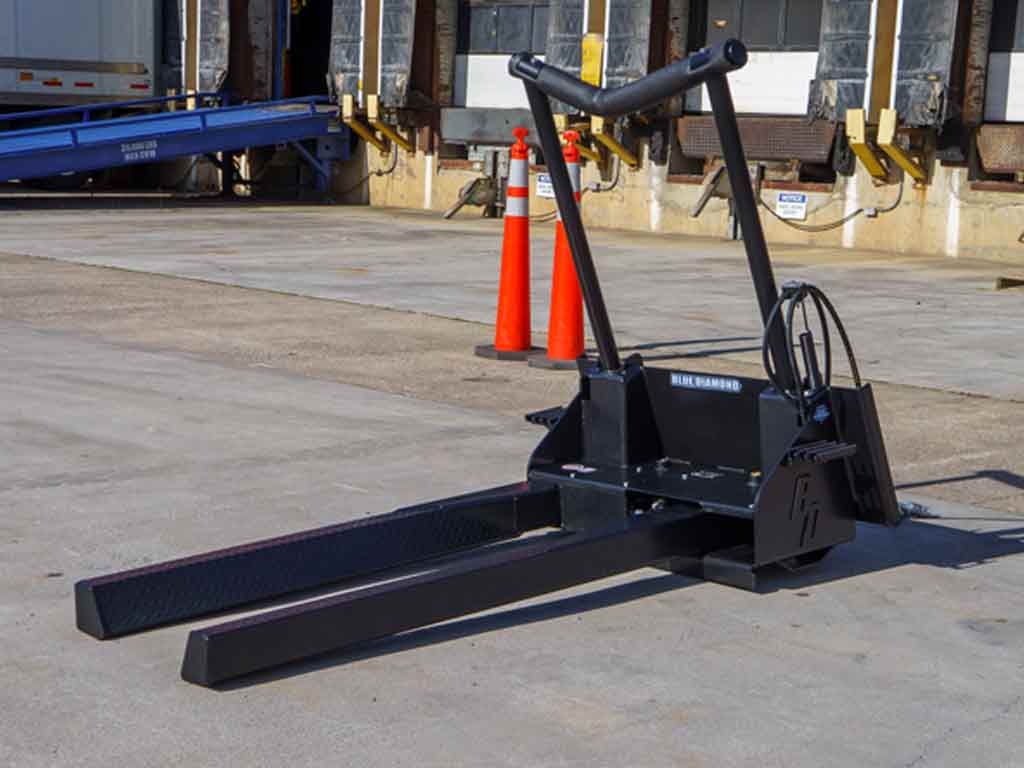

SKID STEER NURSERY FORK
The Blue Diamond® Skid Steer Severe and Standard Duty Nursery Forks were designed for the operator who handles tree bulbs regularly. The attachment comes ready to use and includes hoses, couplers, and a protective foam sleeve to cradle the tree trunk. The hoses can be routed to the left or right side to best fit where your machine couplers are. The hose protector spring prevents the hose from getting pinched in between the mount and machine. All pivots have grease fittings and can be accessed without removing any panels.
Features Include:
- Internal Protected Hose
- Greasable Pivots
- Hose Saver Spring
- Safety Step
- Foam Tree Trunk Protection on Cradle
- Left or Right Hose Routing
SPECIFICATIONS
| Part Number | Model | Fork Opening (Closed To Open) | Lift Capacity | Weight |
|---|---|---|---|---|
| 114092 | Hydraulic Nursery Fork, Standard Duty | 3" TO 60.5" | 2,500 lbs | 442 lbs |
| 114095 | Hydraulic Nursery Fork, Severe Duty | 6" TO 54" | 3,000 lbs | 633 lbs |
