Description
MATERIAL ROLLER FOR SKID STEER

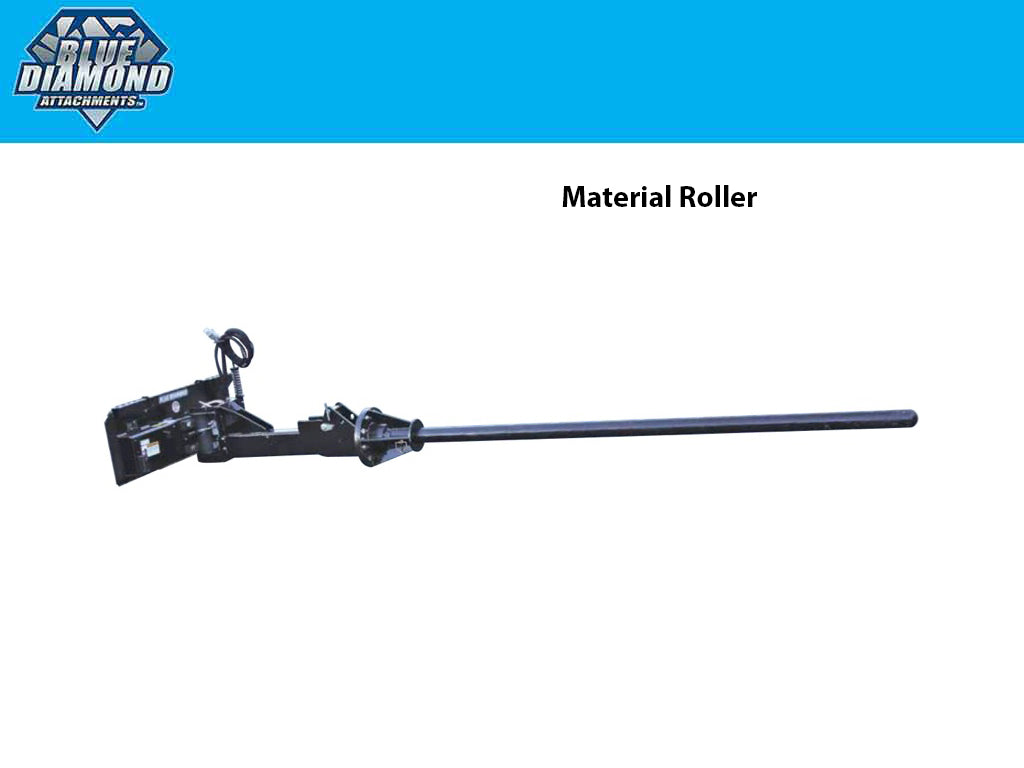

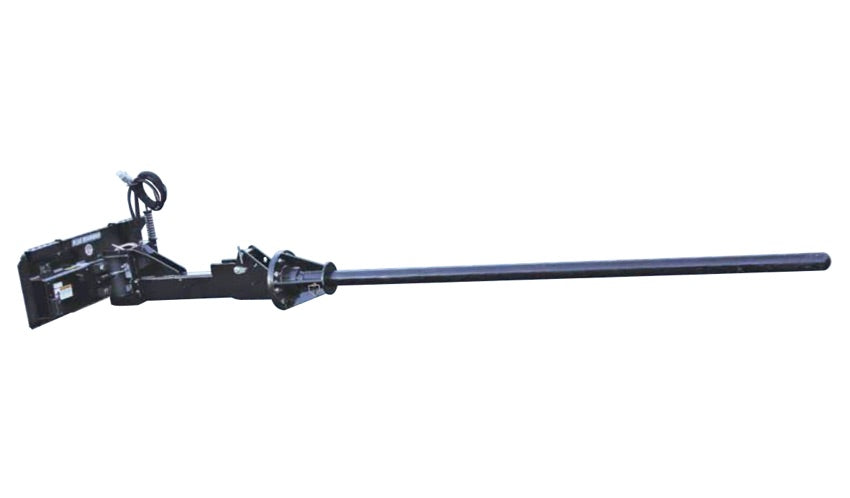

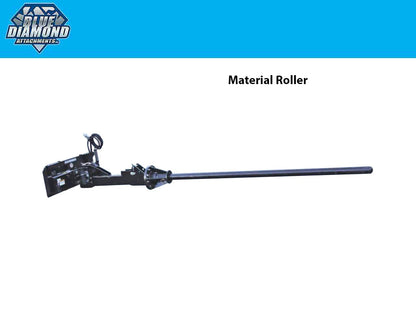

Your workday just got a lot easier. Introducing the Blue Diamond® Skid Steer Material Roller. Precisely crafted and ruggedly built, the material roller will not only lighten your load but will also cut your crew requirements by almost half. From loading to unloading the flatbed to laying down roll after roll, any project will get done faster with less physical effort with the material roller.
FEATURES:
- Pivot arm locks for storage and transport
- Pivot arm adjustable stop allows for below horizontal operation
- Quickly and easily mounts on any skid steer
- Hydraulic actuator allows the stem to swing 180˚ left or right, 115˚ up, and 8˚ down
- Detachable stem available in 3 lengths
- Retaining collar with quick pin keeps material perfectly positioned on the stem
SPECIFICATION
Part Number | Model | Weight |
---|---|---|
174005 | Material Roller, Hydraulic Side Angle (Requires Stem) | 500 lbs |
174105 | 3.5" Diameter, Roll Stem for 4' Wide Roll | 40 lbs |
174110 | 3.5" Diameter, Roll Stem for 6.67' Wide Roll | 60 lbs |
174115 | 3.5" Diameter, Roll Stem for 8' Wide Roll | 66 lbs |
174120 | 3.5" Diameter, Roll Stem for 16' Wide Roll | 174 lbs |
174130 | 2 3/8" Diameter, Roll Stem for 4' Wide Roll | 18 lbs |
174135 | 2 3/8" Diameter, Roll Stem for 6.67' Wide Roll | 28 lbs |
174140 | 2 3/8" Diameter, Roll Stem for 8' Wide Roll | 33 lbs |
