Description
BUCKET – GENERAL PURPOSE

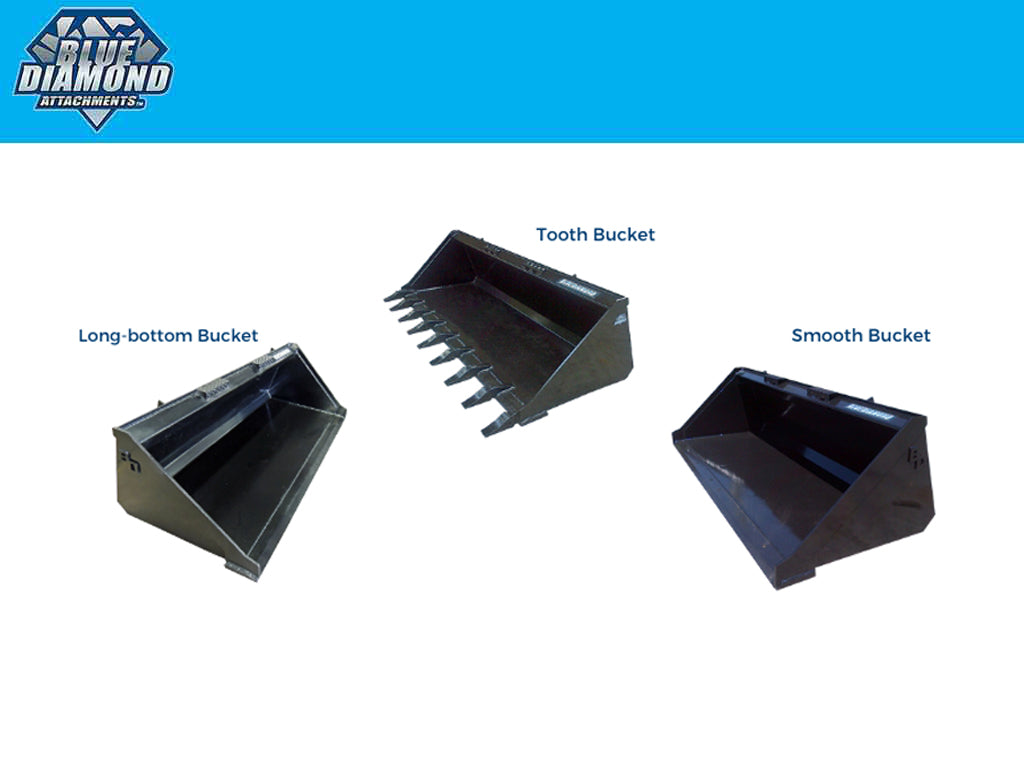

The Blue Diamond® General Purpose Buckets for skid steers are available in a variety of configurations. We offer weld-on cutting edge, bolt-on cutting edge, teeth, tooth bar, or a long-bottom version. These well-engineered, low-profile buckets offer a powerful breakout force and great visibility. Buckets up to 72″ wide use 3/16″ material back and bottom. The 78″ and larger sizes use 1/4″ material. All standard buckets are 20″ tall and use a 3/4″ by 6″ cutting edge. The standard bottom is 30″ front to back, and the long-bottom bucket is 36″.

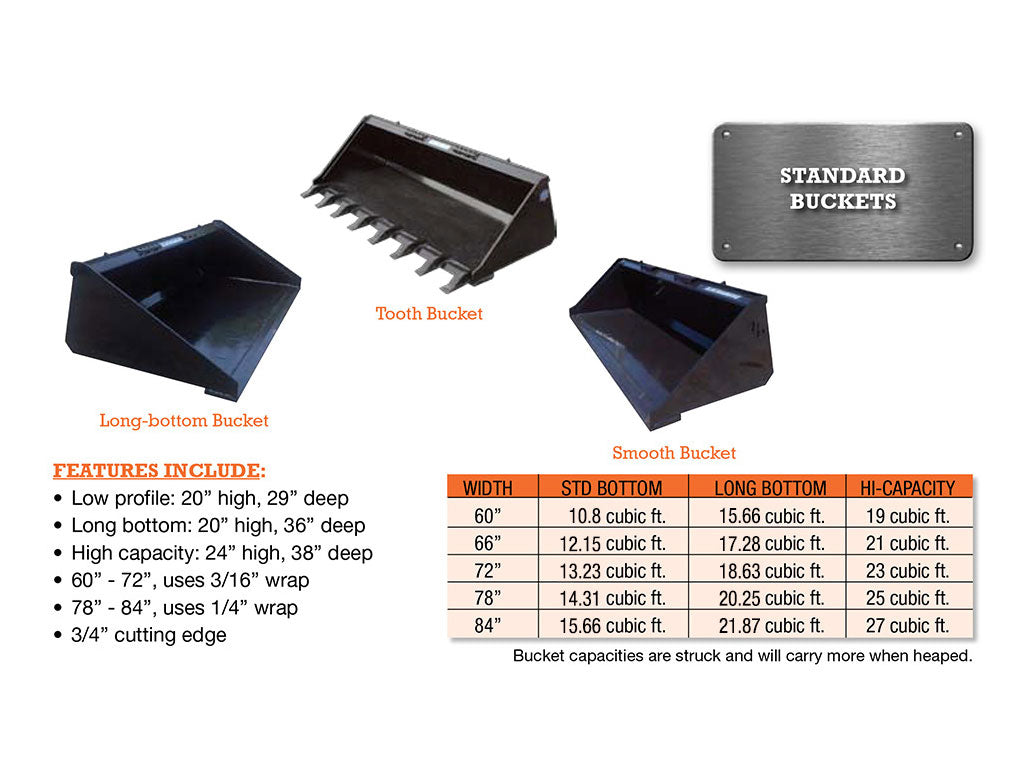

FEATURES INCLUDE:
- Low profile: 20″ high, 29″ deep

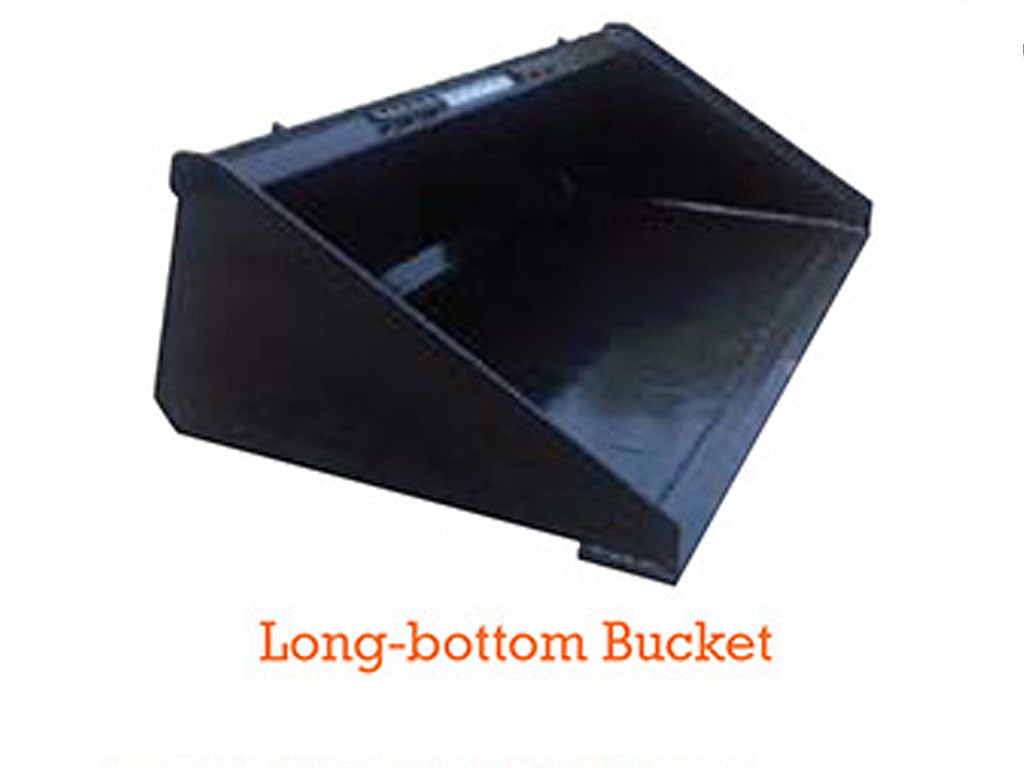

- Long bottom: 20″ high, 36″ deep

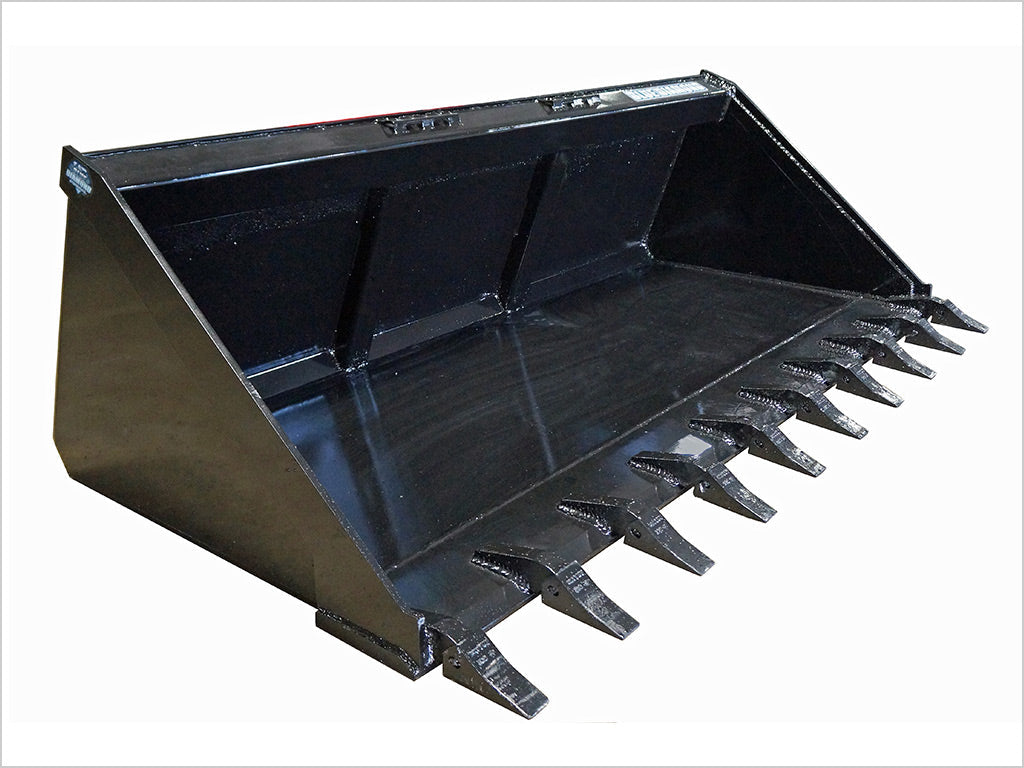

- High Capacity: 24″ high, 38″ deep
- 60″ – 72″, uses 3/16″ wrap
- 78″ – 84″, uses 1/4″ wrap
- 3/4″ cutting edge
SPECS
| Part Number | Model | Struck Capacity | Weight |
|---|---|---|---|
| 108090 | 60" Low Profile-Smooth | 10.8 cu ft | 334 lbs |
| 108095 | 60" Low Profile-Tooth | 10.8 cu ft | 384 lbs |
| 108100 | 66" Low Profile-Smooth | 12.2 cu ft | 354 lbs |
| 108105 | 66" Low Profile-Tooth | 12.2 cu ft | 409 lbs |
| 108110 | 72" Low Profile-Smooth | 13.2 cu ft | 378 lbs |
| 108115 | 72" Low Profile-Tooth | 13.2 cu ft | 437 lbs |
| 108120 | 78" Low Profile-Smooth | 14.3 cu ft | 408 lbs |
| 108125 | 78" Low Profile-Tooth | 14.3 cu ft | 460 lbs |
| 108130 | 84" Low Profile-Smooth | 15.7 cu ft | 436 lbs |
| 108135 | 84" Low Profile-Tooth | 15.7 cu ft | 515 lbs |
| 108140 | 60" Low Profile-Long Bottom-Smooth | 15.7 cu ft | 385 lbs |
| 108145 | 60" Low Profile-Long Bottom-Tooth | 15.7 cu ft | 434 lbs |
| 108150 | 66" Low Profile-Long Bottom-Smooth | 17.3 cu ft | 426 lbs |
| 108155 | 66" Low Profile-Long Bottom-Tooth | 17.3 cu ft | 472 lbs |
| 108160 | 72" Low Profile-Long Bottom-Smooth | 18.6 cu ft | 446 lbs |
| 108165 | 72" Low Profile-Long Bottom-Tooth | 18.6 cu ft | 505 lbs |
| 108170 | 78" Low Profile-Long Bottom-Smooth | 20 cu ft | 441 lbs |
| 108180 | 84" Low Profile-Long Bottom-Tooth | 22 cu ft | 505 lbs |
Bucket capacities are struck and will carry more when heaped.
