BLUE DIAMOND | Industrial Grapple Bucket

BLUE DIAMOND | Industrial Grapple Bucket

Brand: Blue Diamond

|

SKU: 106065

$2,865.00 USD
$2,865.00 USD
Sale Sold out
1 22

BLUE DIAMOND | Industrial Grapple Bucket

BLUE DIAMOND | Industrial Grapple Bucket

Brand: Blue Diamond

|

SKU: 106065

GRAPPLE BUCKET – LIGHT DUTY The Blue Diamond® Light Duty Grapple Bucket is designed with small loaders in mind with limited lift capacity. Weighing only 454 lbs, it lets you...

$2,865.00 USD
$2,865.00 USD
Sale Sold out
  • Free Shipping On Orders Over $5000
  • 30 Day Satisfaction Guarantee
  • Easy Financing Available Here

Easy payment options available through ShopPay

  • Description

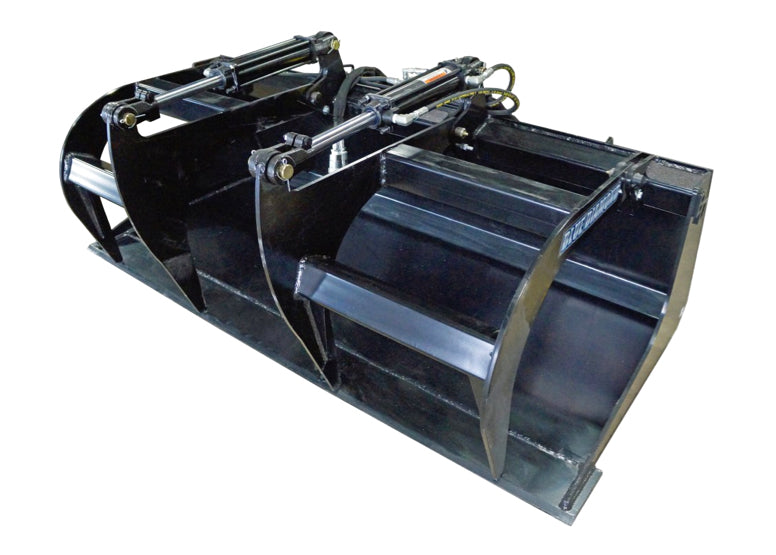

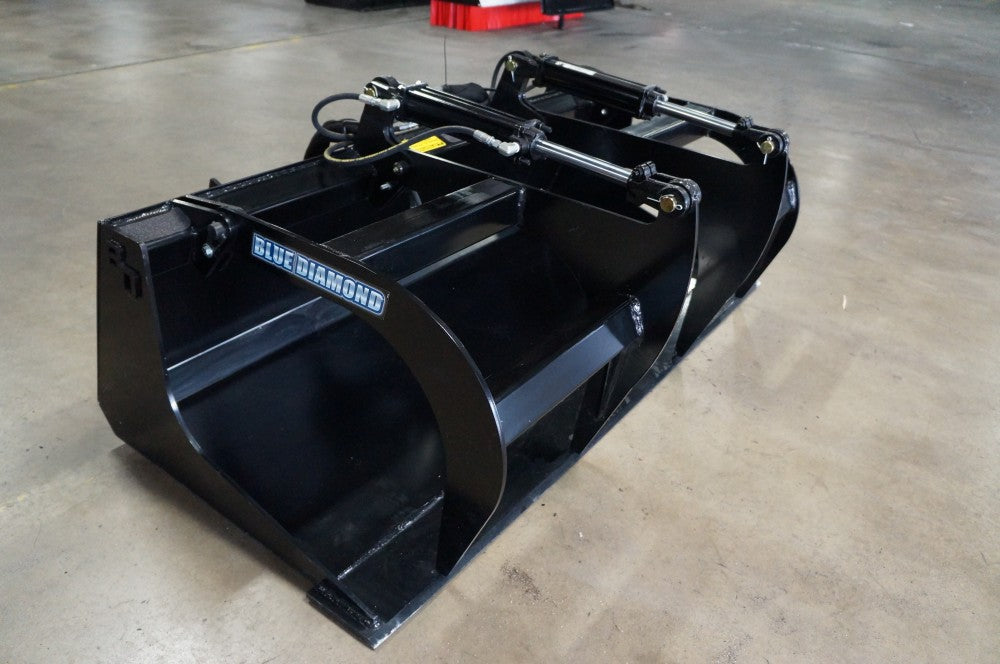

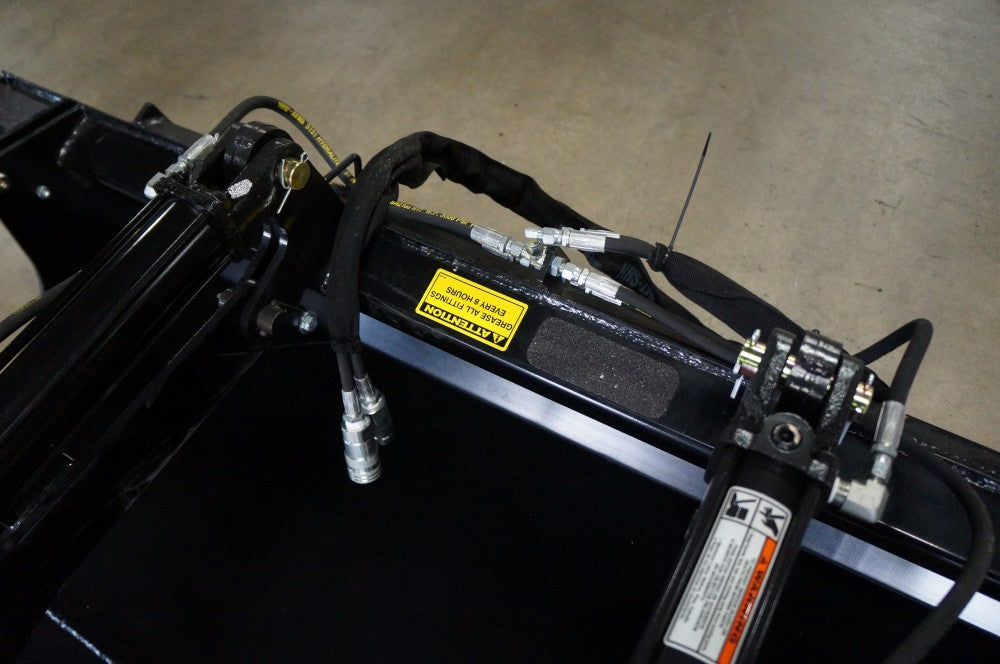

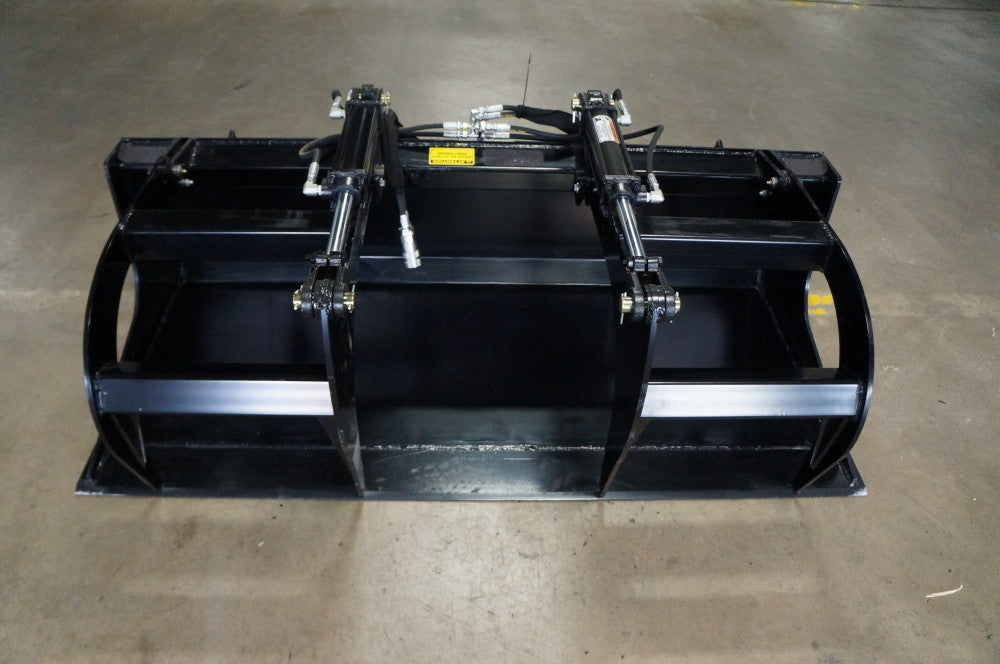

    GRAPPLE BUCKET – LIGHT DUTY

    The Blue Diamond® Light Duty Grapple Bucket is designed with small loaders in mind with limited lift capacity. Weighing only 454 lbs, it lets you grab a load without the fear of tipping your skid steer. Dual top clamps and grease fittings are standard.

    FEATURES INCLUDE:

    • Dual independent clamps
    • 3/8” steel

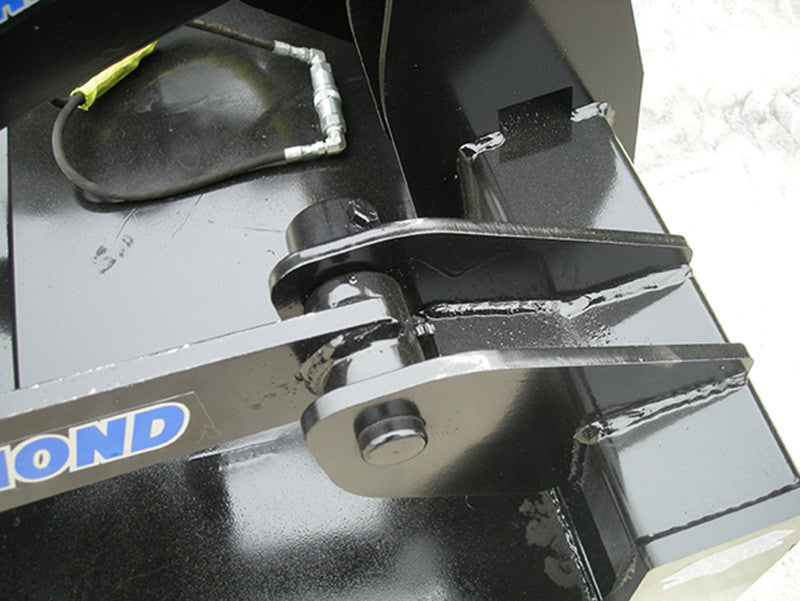

    • Greasable 1” pivot pins
    • Flat face couplers included
    • Opens to 30”

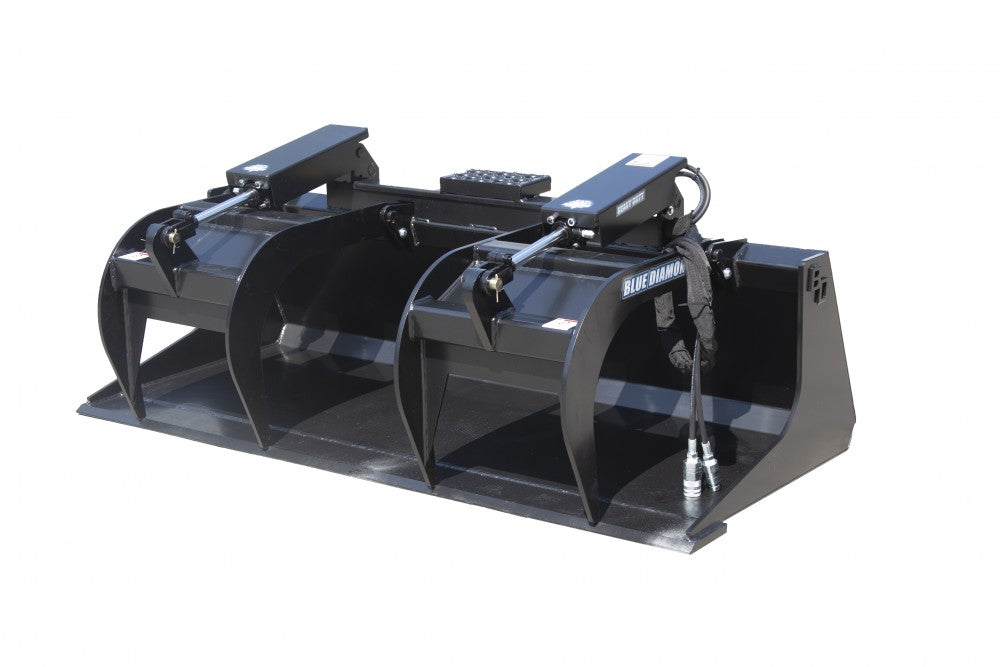

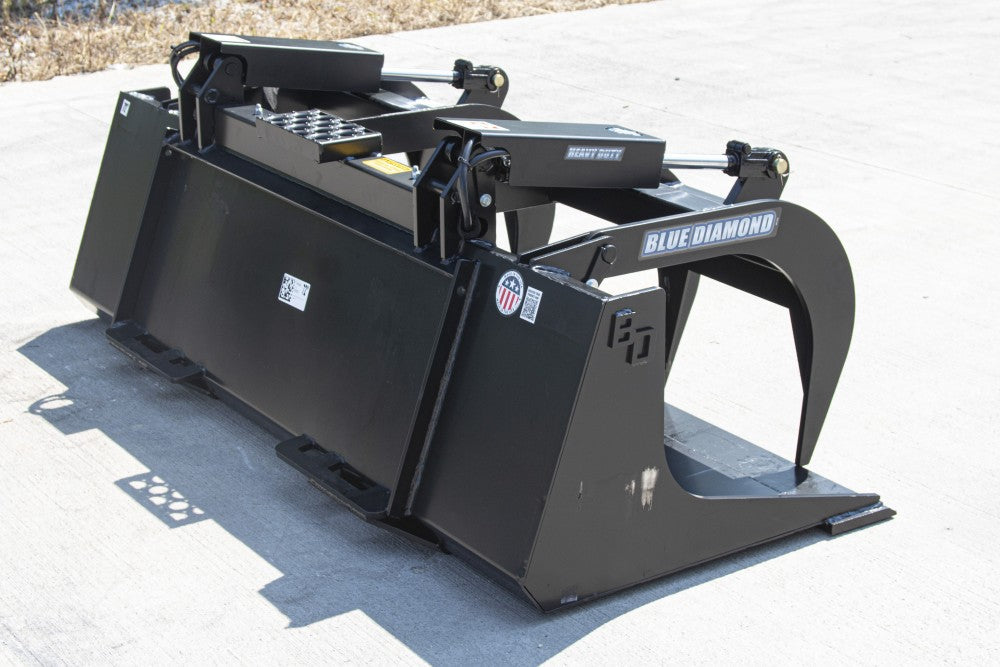

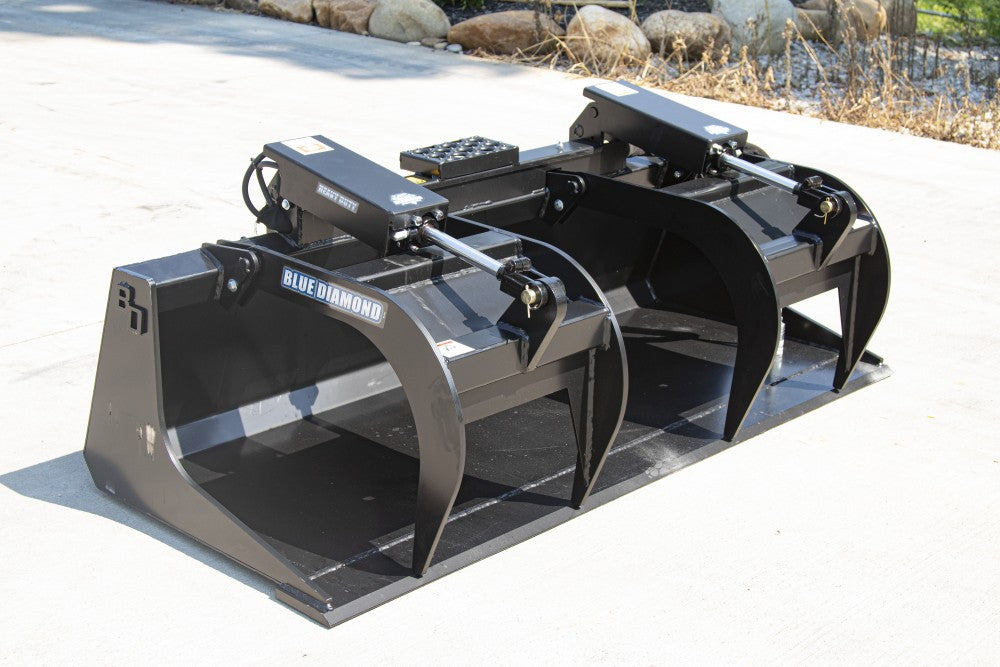

    GRAPPLE BUCKET – HEAVY DUTY

    The Heavy-Duty Grapple Bucket is designed for up to 50 hp machines with a moderate work load. Made from 1/2” steel, it is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard.

    FEATURES INCLUDE:

    • 1/2″ thick top clamps
    • Cylinder protection covers
    • Opens to 32″
    • Best suited for machines up to 50HP or 1800 lb lift capacity
    • Protected hoses

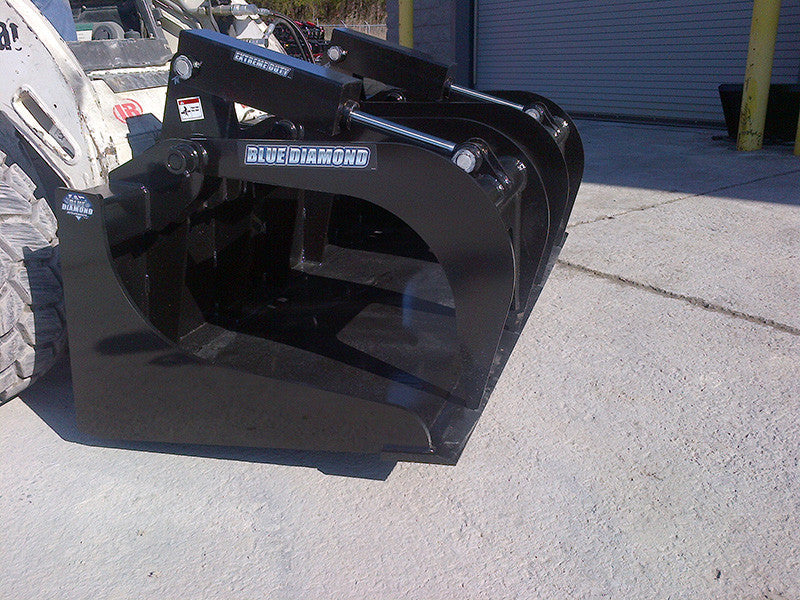

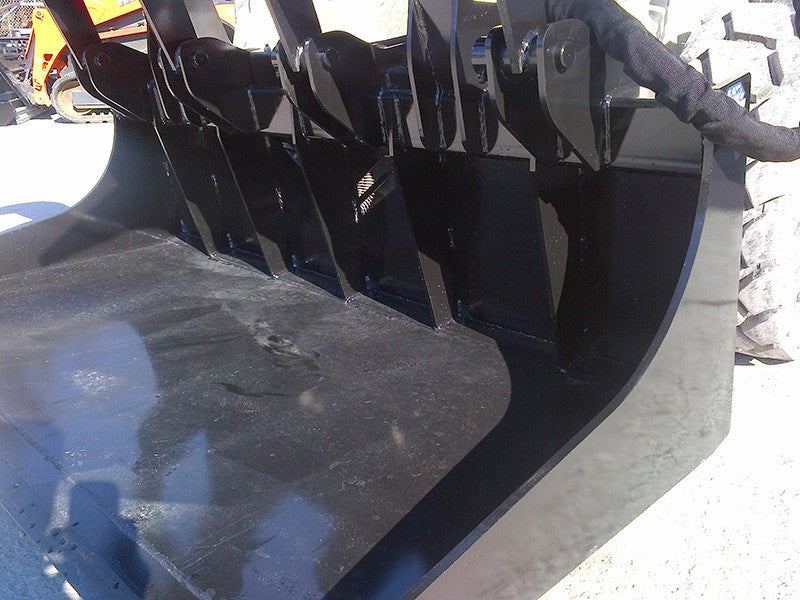

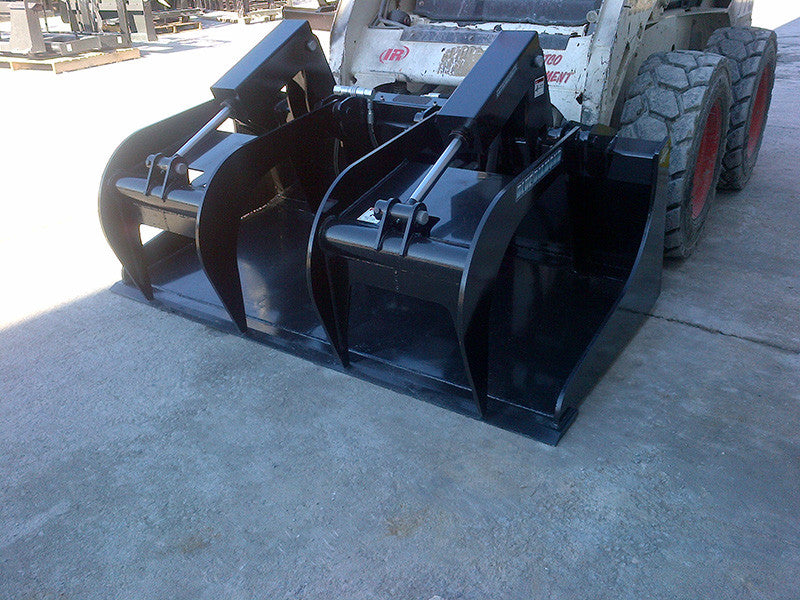

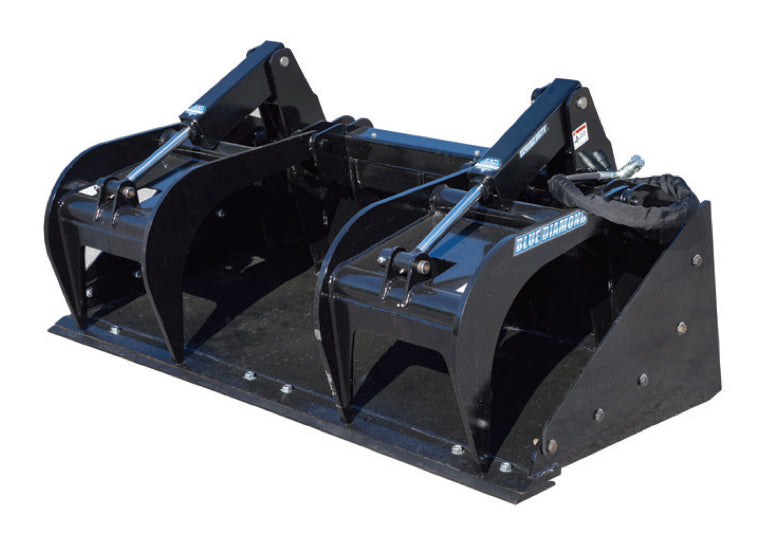

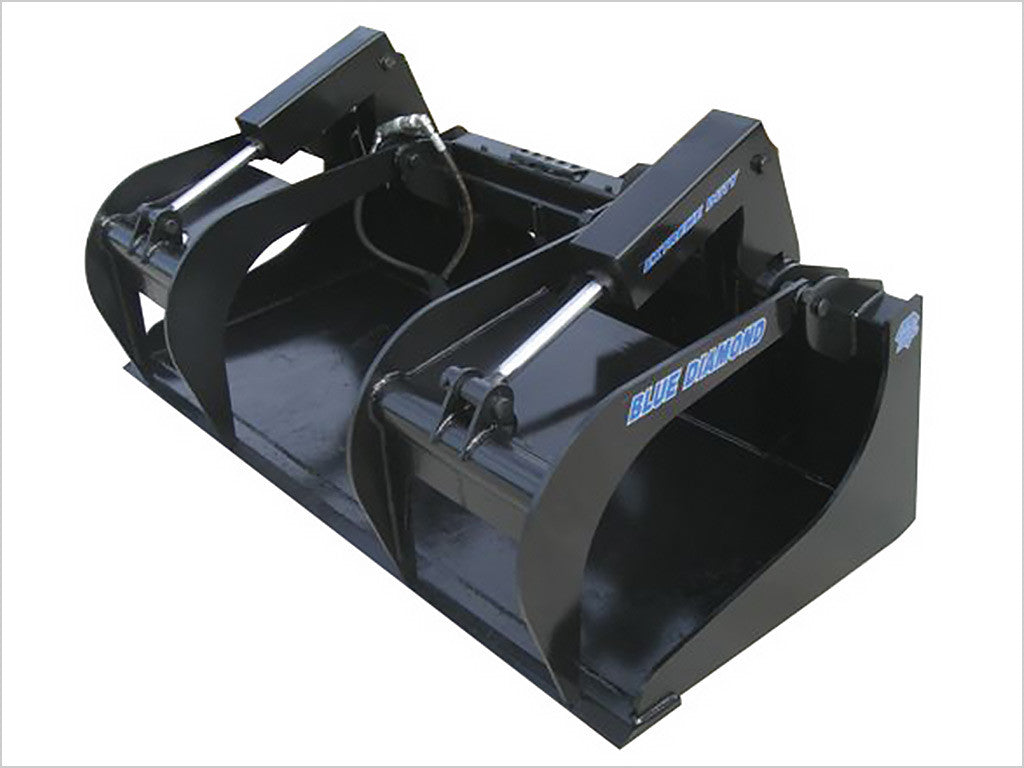

    GRAPPLE BUCKET- SEVERE DUTY

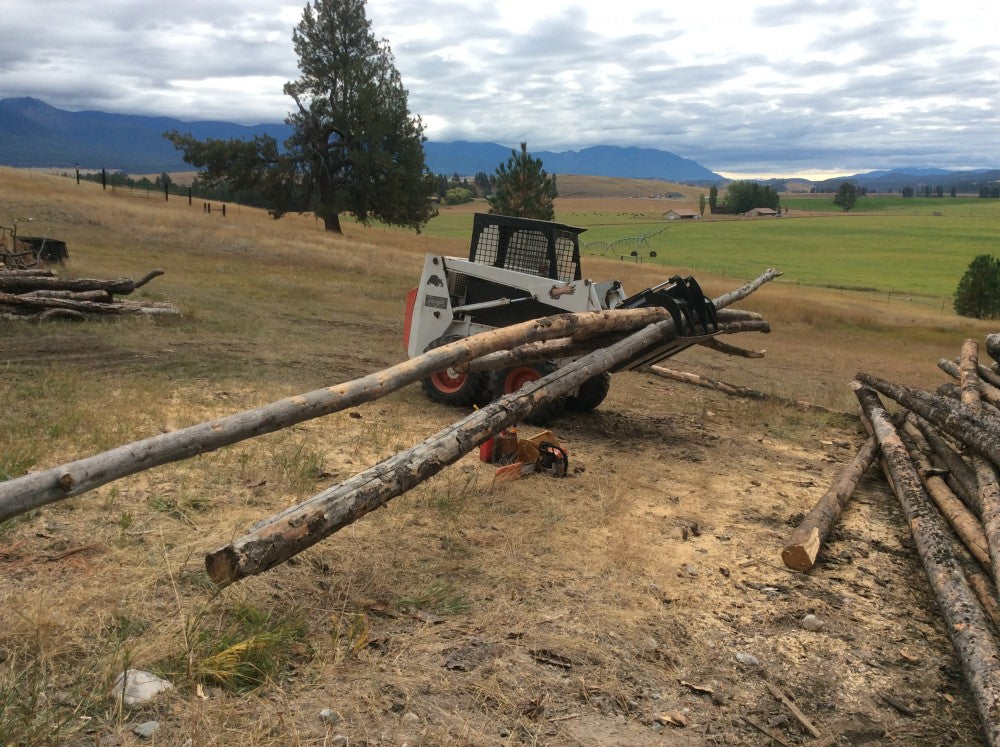

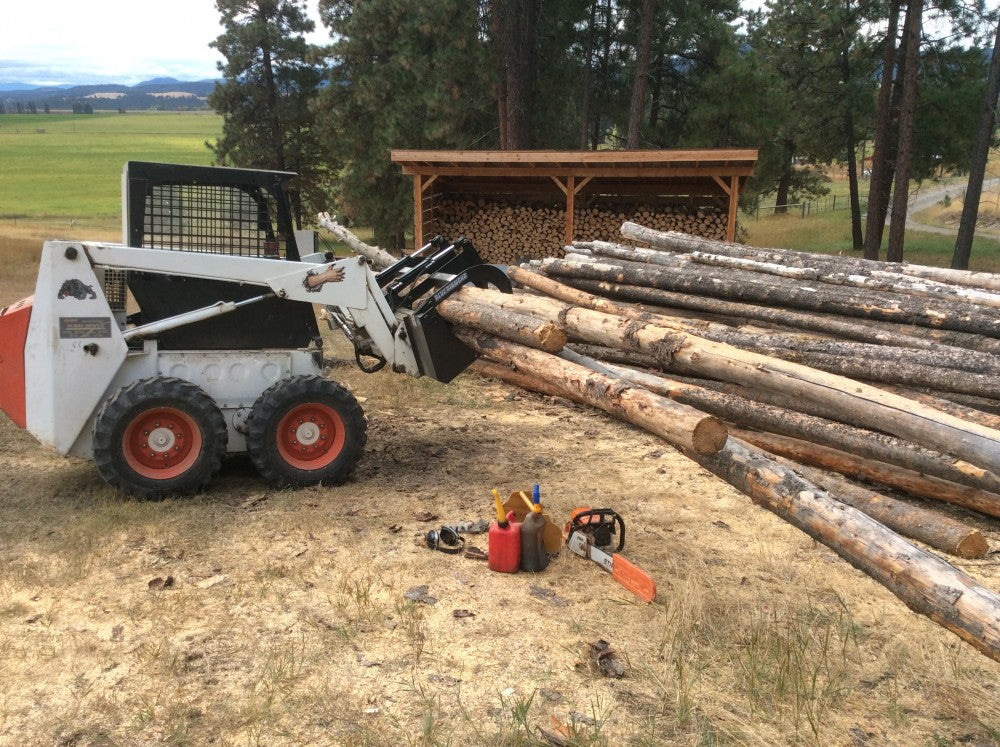

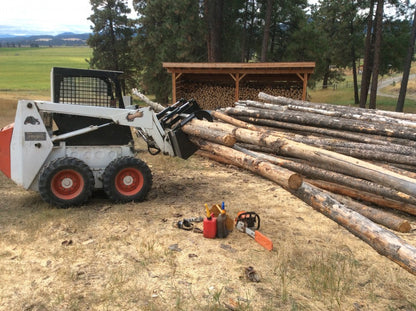

    This brutal grapple comes from years of input from demolition contractors and recyclers. The Severe duty model combines features from our demolition series, our extreme duty model and some new features to offer one of the most effective and durable grapple buckets in the industry. The bolt-on-sides allows the operator to contain more material if needed or remove them for handling longer products like pipe or trees.

    FEATURES INCLUDE:

    • No pinch hose routing

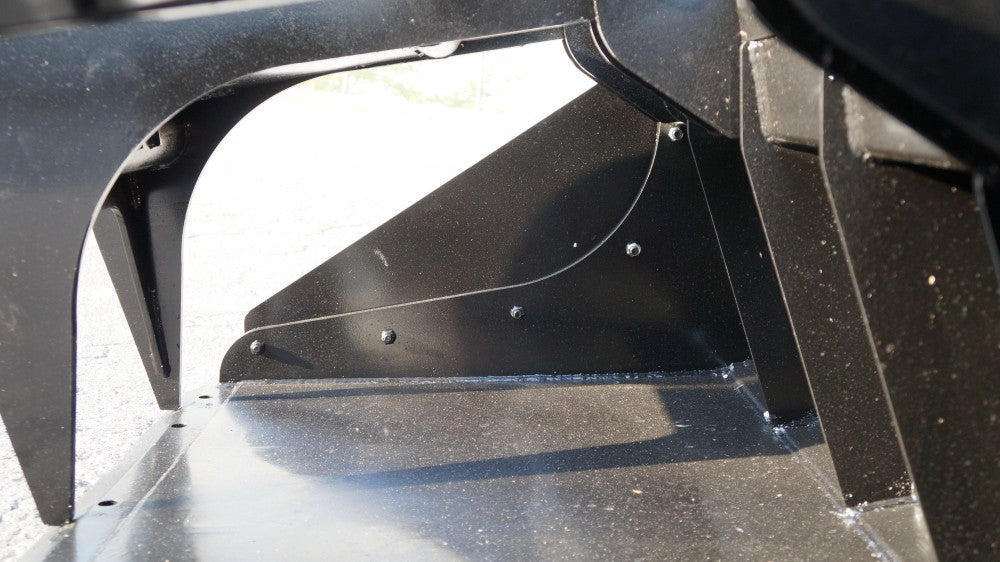

    • Bolt-on-sides
    • 3/4″ top tines
    • Heavily reinforced top clamps

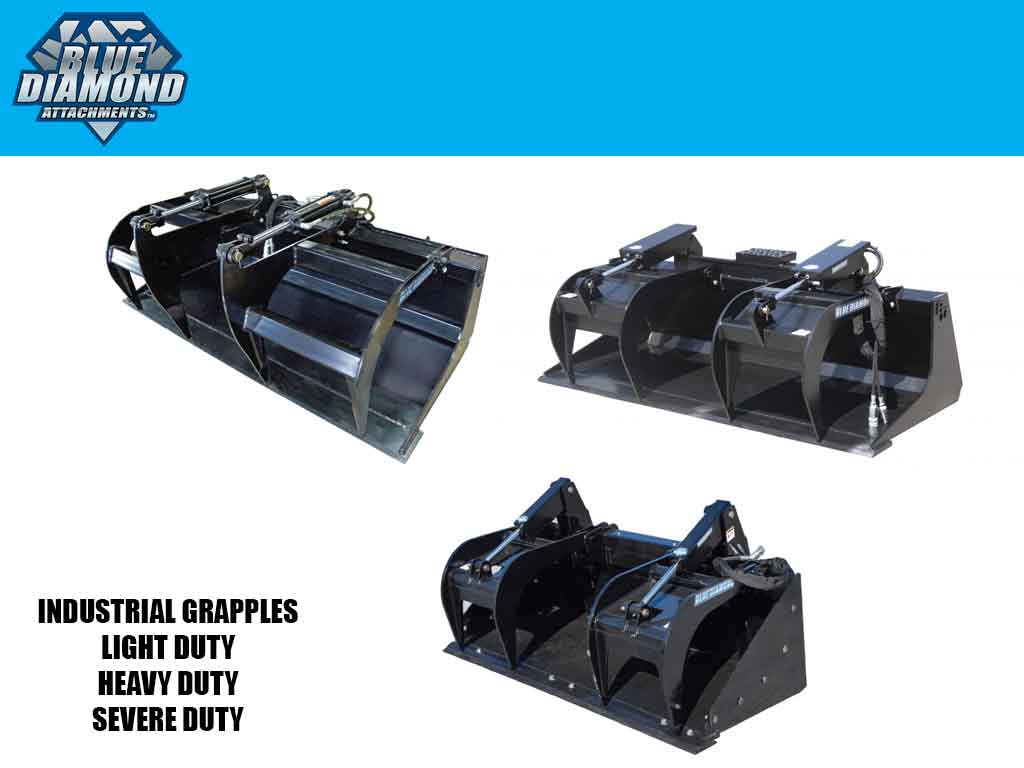

    SPECIFICATIONS
    Light Duty
    Part Number Model Lift Capacity Weight
    106065 66” Grapple Bucket, Light Duty, Dual Clamps 11.07 CU FT 480 lbs


    Heavy Duty
    Part Number Model Life Capacity Weight
    106077 60” Grapple Bucket,HD, Dual Clamps 10.26 CU FT 440 lbs
    106085 66” Grapple Bucket, HD, Dual Clamps 11.07 CU FT 587 lbs
    106095 72” Grapple Bucket, HD, Dual Clamps 11.88 CU FT 674 lbs

    Severe duty

    Part Number Model Life Capacity Weight
    106429 60” Grapple Bucket, Severe Duty 10.26 CU FT 905 lbs
    106444 66” Grapple Bucket, Severe Duty 11.07 CU FT 1,139 lbs
    106454 72” Grapple Bucket, Severe Duty 11.88 CU FT 1,179 lbs
    106457 72” Grapple Bucket, Severe Duty W/Teeth 11.88 CU FT 1,066 lbs
    106464 78” Grapple Bucket, Severe Duty 12.69 CU FT 1,210 lbs
    106476 84” Grapple Bucket, Severe Duty 14.04 CU FT 1,227 lbs
    Severe Duty - for machines with 50+ HP.
