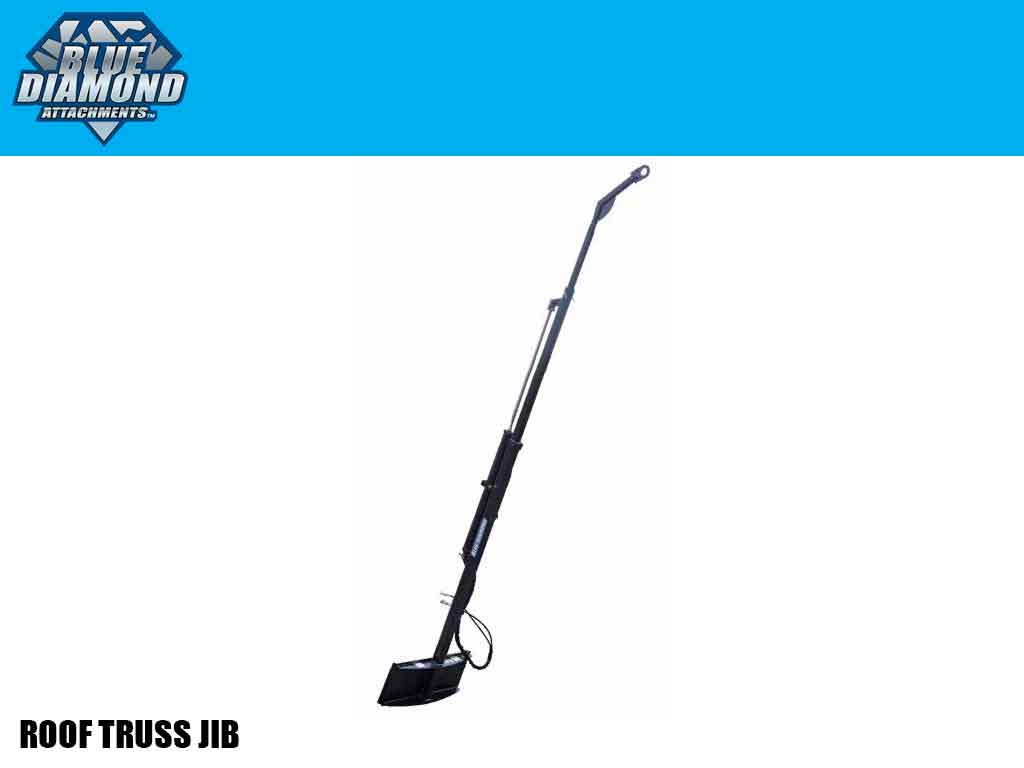

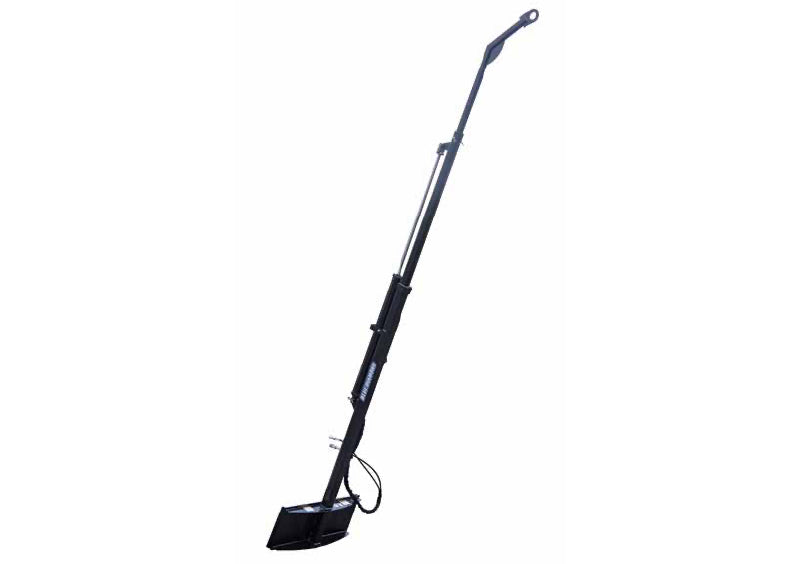

The Blue Diamond® Roof Truss Boom is a great way to get lightweight items much higher than your machine would normally be able to reach. When retracted, the boom is 148″ and when fully extended it reaches 220″. It features a hydraulic cylinder that allows 48” of extension with your machine controls, and a manual pin lockout feature allows for an additional 12″ or 24″ of reach. The 2 1/2″ hole makes it easy to hook on chains or straps.

FEATURES INCLUDE:

• Up to 220″ additional reach
• 1,200 lbs capacity
• 48″ hydraulic extension, 24″ manual extension
• 2 1/2″ hole for hooking chains and straps
• Ideal for setting roof trusses or beams

SPECIFICATIONS

The Blue Diamond® Roof Truss Jib is a hydraulically driven pole allows for easy transportation of your items, with the ability to hydraulically extend your height by 72”. The pole has a 4” x 4” base with 3/8” thick walls. The hydraulic extension arm is a 3” x 3”, and the manual extension arm is a 2” x 2” and is rated to carry 1,200 lbs. The manual extension arm can be positioned in 2 different height locations, one at 12” and the other at 24”.
