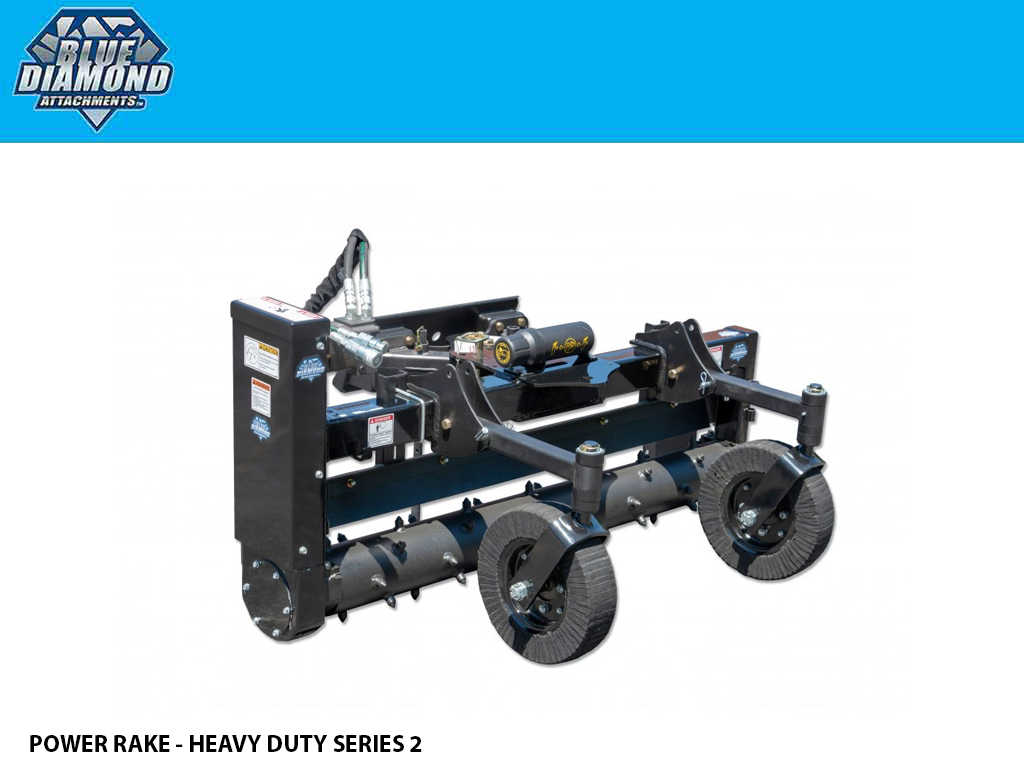

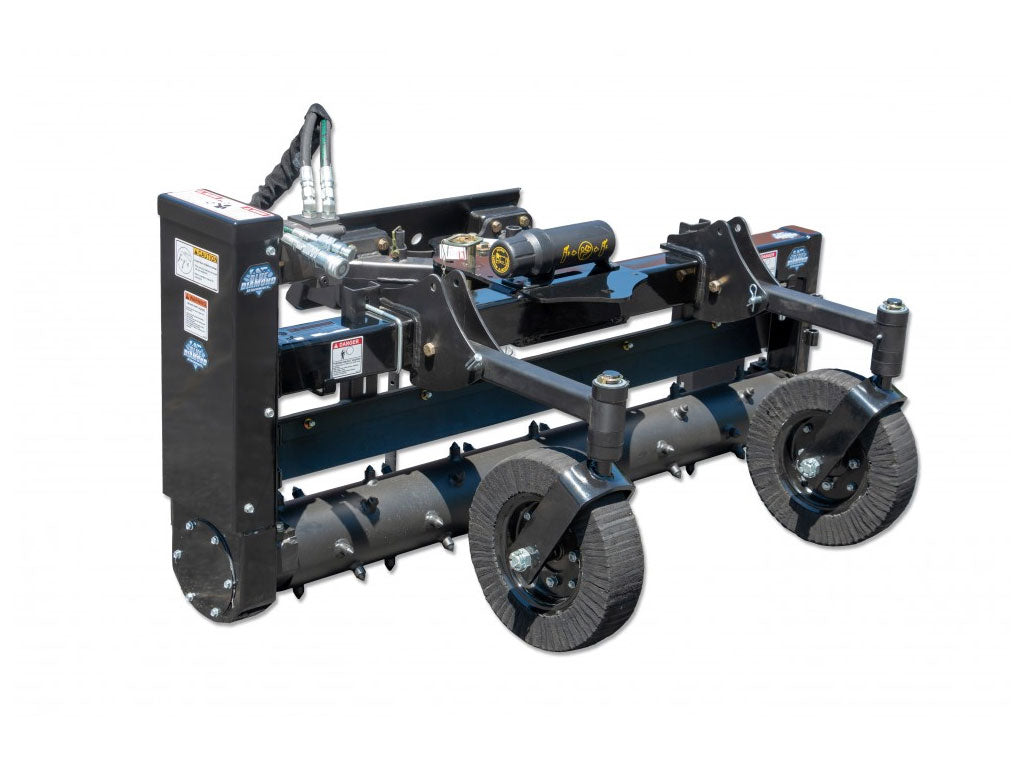

BLUE DIAMOND Heavy Duty Power Rake For Skid Steer

Designed for rental fleets, landscapers, and construction crews, this Heavy Duty Series 2 Power Rake with Manual Angle delivers robust soil and debris management on smaller frame skid steers and walk-behind machines. Its bolt-on mount provides flexible compatibility across mini and full-size machines, making it a versatile choice for varied job sites.

Features

• Heavy-Duty Series 2, Manual Angle power rake built for demanding jobs with reliable, long-lasting construction.
• Two rotor widths available 48", 60", and 72" to fit a range of skid steer machines.
• 7" diameter drum with replaceable 1.5" teeth for easy wear replacement.
• Chain drive with a pre-lubricated chain for simple servicing and strong torque.
• Greaseable bearings on the drum spindles (1 3/8" diameter) for smoother operation.
• Durable frame details 9" overall width increase over the drum, 7/8" greaseable axles, airless tires, and flip-up wheels.
• Bolt-on mount for quick, flexible installation on mini and full-size skid steers.
• Inclusive mounting and controls Universal/Bobcat mounting, hydraulic angle units, angle kit, and universal control harness included.
• Flow compatibility designed for 15–23 GPM hydraulic systems; features require a case drain if pressure exceeds 3,000 PSI.
• Angle options two positions (10° and 20°) to tailor aggressiveness; example: 72" model yields 69" (10°) and 66" (20°) working widths.
• Optional accessories skid shoes and replaceable teeth available to extend service life.
• Weights vary by model 528–628 lbs depending on width and tooth configuration. See model details below for exact figures.

Included model details and weights

• 132407 Replaceable 48" — 528 lbs
• 132400 Fixed 48" — 580 lbs
• 132408 Replaceable 60" — 580 lbs
• 132401 Fixed 60" — 584 lbs
• 132409 Replaceable 72" — 600 lbs
• 132402 Fixed 72" — 628 lbs

Benefits

• Efficient site prep break up compacted soil and debris, creating a smoother, ready-to-work surface for grading or seeding.
• Machine versatility bolt-on mounting and multiple widths make it easy to fit a wide range of skid steers, rental fleets, and dealers’ inventories.
• Adjustable aggressiveness choose manual angle or hydraulic option to control raking intensity based on material (soil, gravel, roots) and job conditions.
• Low maintenance pre-lubricated chain and greaseable bearings simplify upkeep; replaceable teeth extend service intervals.
• Durable design rugged drum, solid frame, and optional skid shoes increase longevity on rough work sites.
• On-site efficiency included mounting/harness kit and universal control options speed up setup across different machines.
• Clear operating requirements compatible with 15–23 GPM systems; plan for a case drain on higher-pressure configurations to maintain hydraulic health.

Ideal for landscapers, municipal maintenance crews, and rental fleets performing soil conditioning, drive restoration, and seedbed preparation. This Blue Diamond Power Rake offers a practical balance of rugged construction, adaptable mounting, and job-site flexibility without compromising on reliability.
