Description

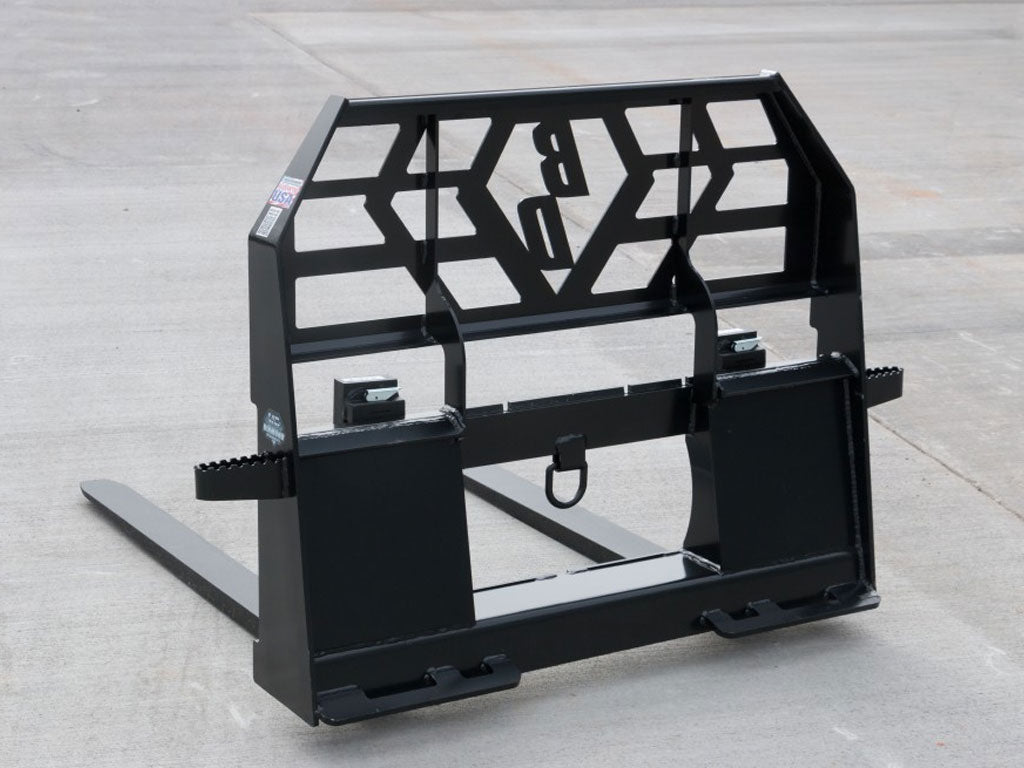

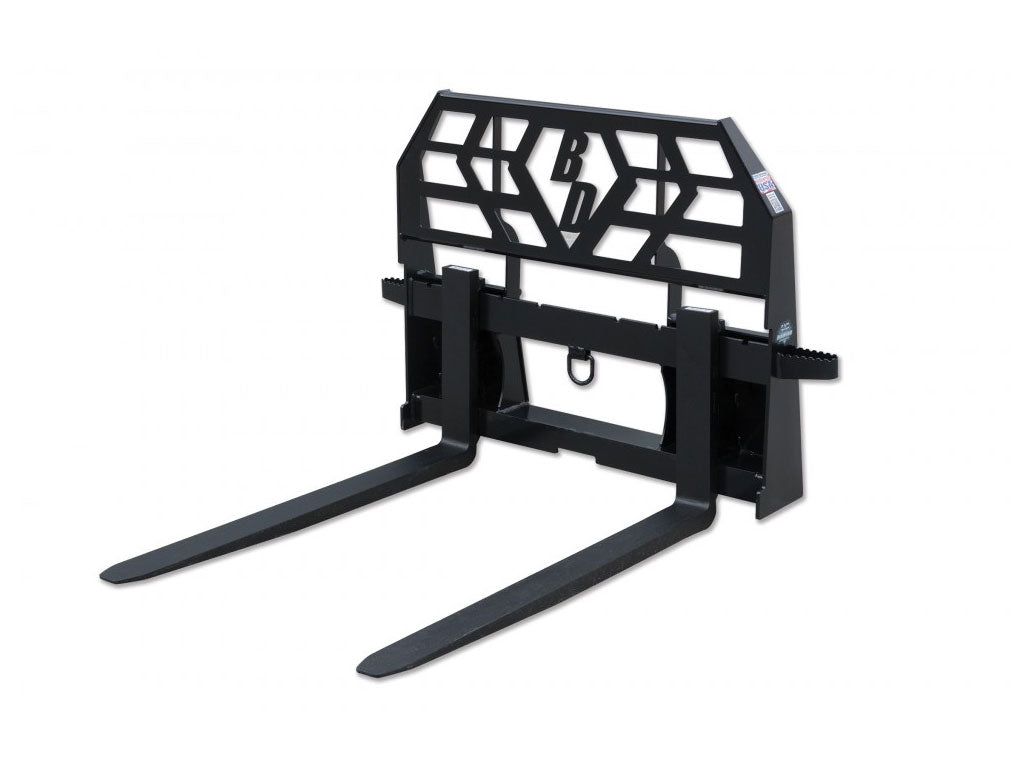

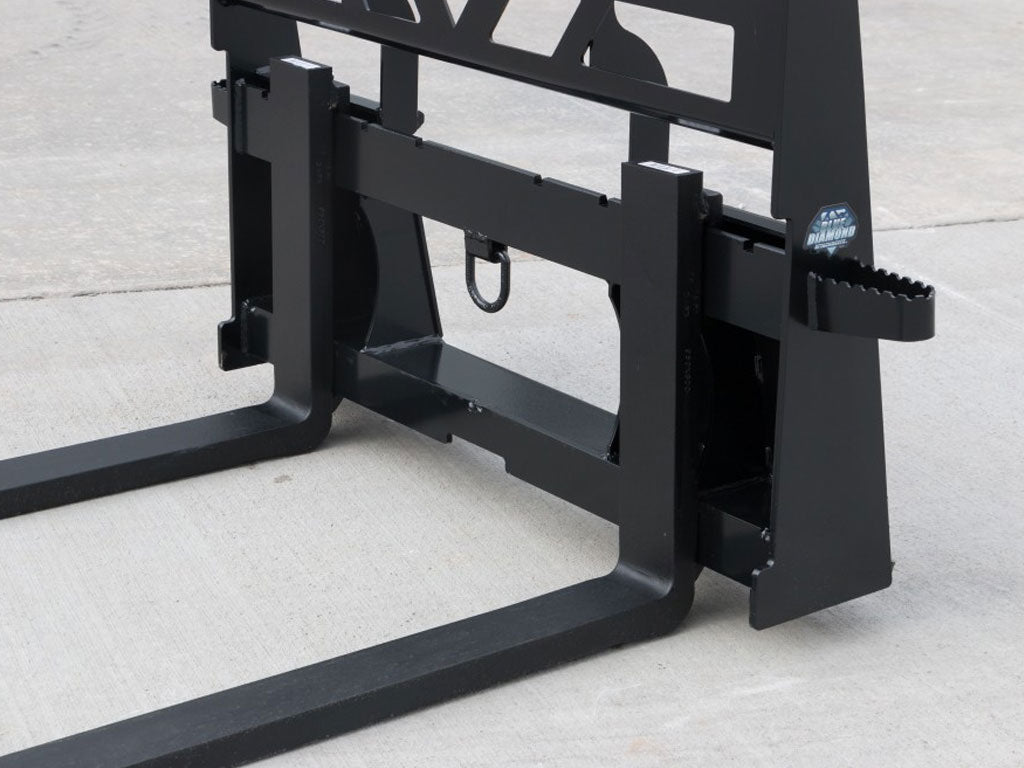

PALLET FORKS – 6,000 LBS. CAPACITY TALL FRAME HEAVY DUTY
Our new Blue Diamond® Tall Frame Heavy Duty Skid Steer Pallet Forks are rated for 6,000 lbs lift. Featuring a heavier frame than our standard height Heavy Duty frame, these forks bring a few additional benefits. A heavy D-ring comes standard as do a high-visibility back rest and steps on each side. The back rest on this frame is set forward so the face of the backrest is flush with the front of the tines below. With a massive bottom frame and bracing, these forks are ready for whatever you’re lifting. They come standard with 48″ or 60″ adjustable tines.
FEATURES & BENEFITS
- Includes D-ring
- 4” carriage bar
- Excellent visibility
- Side steps for easy access into your machine
- 6,000 lb capacity
- 45″ wide (Outside of tine measurement)
- 38″ tall
SPECIFICATIONS
| Part Number | Model | Tine Size | Lift Capacity | Weight |
|---|---|---|---|---|
| 314019 | Pallet Fork, HD, W/Steps/D-Ring | 48" x 1 3/4" | 6,000 lbs | 375 lbs |
| 314020 | Pallet Fork, HD, W/Steps/D-Ring | 48" x 1 3/4" | 5,500 lbs | 486 lbs |
| 314021 | Pallet Fork, HD, W/Steps/D-Ring | 60" x 1 3/4" | 6,000 lbs | 560 lbs |
| 314022 | Pallet Fork, HD, W/Steps/D-Ring | 60" x 1 3/4" | 5,500 lbs | 260 lbs |
| 314023 | Pallet Fork, HD, W/Steps/D-Ring | 72" x 1 3/4" | 6,000 lbs | 562 lbs |
| 314024 | Pallet Fork, HD, W/Steps/D-Ring | 42" x 1 3/4" | 6,000 lbs | 481 lbs |
