Description

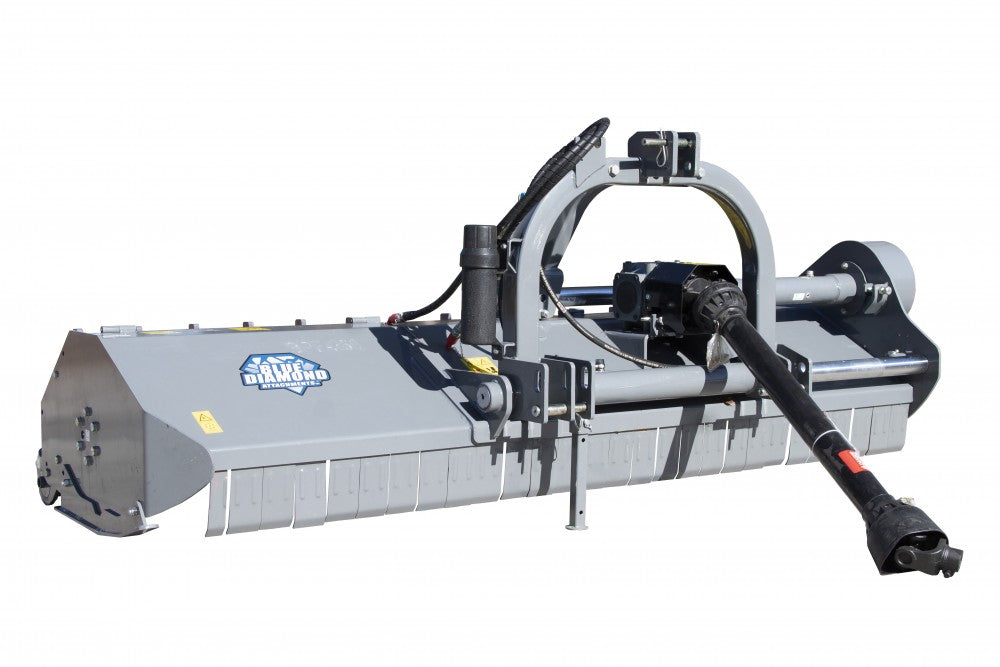

TRACTOR ATTACHMENTS - FLAIL MOWER
The Blue Diamond® Attachments Flail Mower is suitable for tractors from 35 hp to 100 hp with Category 1 or 2 hitches. It utilizes a wide mowing width (up to 98” wide) and has multi-purpose capability allowing it to mow grass and brush (1.5” thickness) by means of flails or hammers. Hydraulic side shift, rear roller, and rakes are standard.
*STANDARD DUTY FITS CATEGORY 1, HD FITS CATEGORY 2. INCLUDES HOSES. COUPLERS SOLD SEPARATELY*
FEATURES INCLUDE
- Multi-purpose for grass and brush up to 1.5”
- Dual tapered bearing design for easy adjustment
- Minimum tractor weight of 2,000 lbs
- Counterweight recommended
- 1.5” brush capacity
- Hydraulic side shift
- Rear anti-scalp roller
- 2-year warranty
PRODUCT SPECS
| CATEGORY 1 SIZE | 69” | 81” | 187” |
| Overall Width | 75.5” | 87.4” | 93” |
| Mowing Width | 69” | 81” | 87” |
| Tractor hp Range | 40-70 | 45-70 | 50-70 |
| 3-Point Hitch Type | CAT 1 | CAT 1 | CAT 1 |
| Hydraulic Sideshift | 12” | 12” | 12” |
| Number of Hammers | 22 | 26 | 28 |
| Weight (without PTO) | 957 lbs | 1,063 lbs | 1,116 lbs |
| Belts | 4 | 4 | 4 |
| CATEGORY 2 SIZE | 87” | 98” |
| Overall Width | 96” | 106” |
| Mowing Width | 87” | 98” |
| Tractor hp Range | 50-100 | 50-100 |
| 3-Point Hitch Type | CAT 2 | CAT 2 |
| Hydraulic Sideshift | 15” | 15” |
| Number of Hammers | 20 | 24 |
| Number of Blades |
60 |
72 |
| Roller Diameter | 6.69” | 6.69” |
| Rotor Diameter | 6.69” | 6.69” |
| Weight (without PTO) | 1,726 lbs | 1,907 lbs |
| Belts | 4 | 5 |
