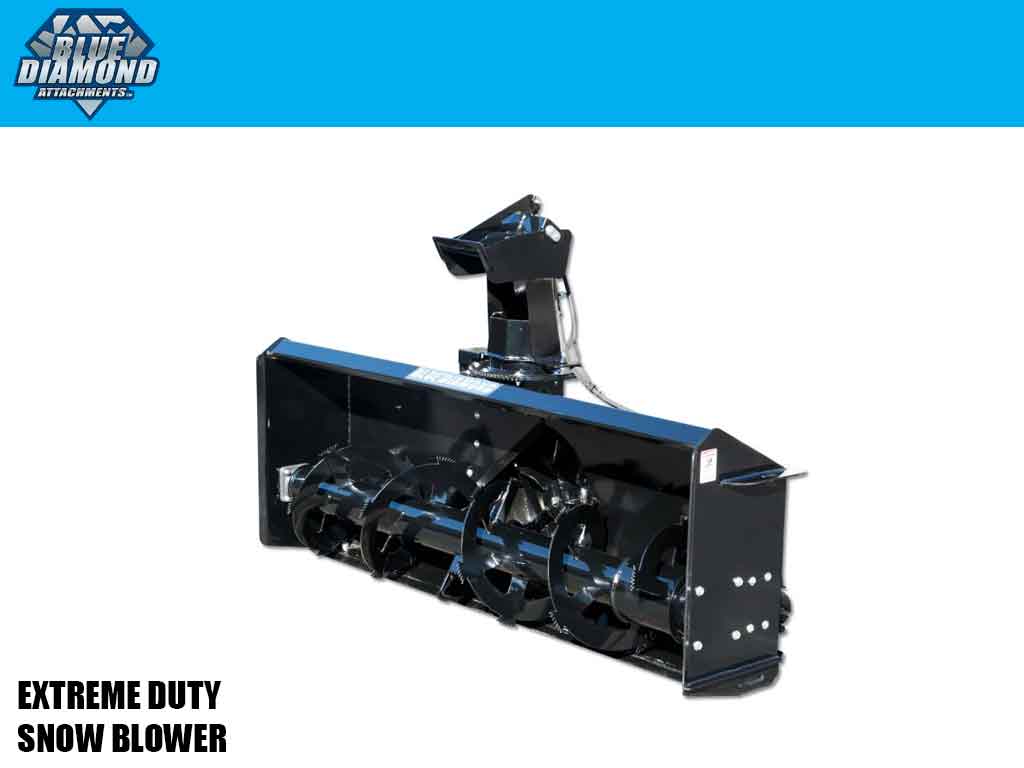

SNOW BLOWER – EXTREME DUTY
The Blue Diamond Skid Steer Snow Blower is engineered for years of use. A high pressure bypass relief system eliminates the need for shear pins during sudden stops. With a choice of widths and motor packages, you can find the optimal sized snow blower to match your skid steer or compact track loader’s capacity.
FEATURES:

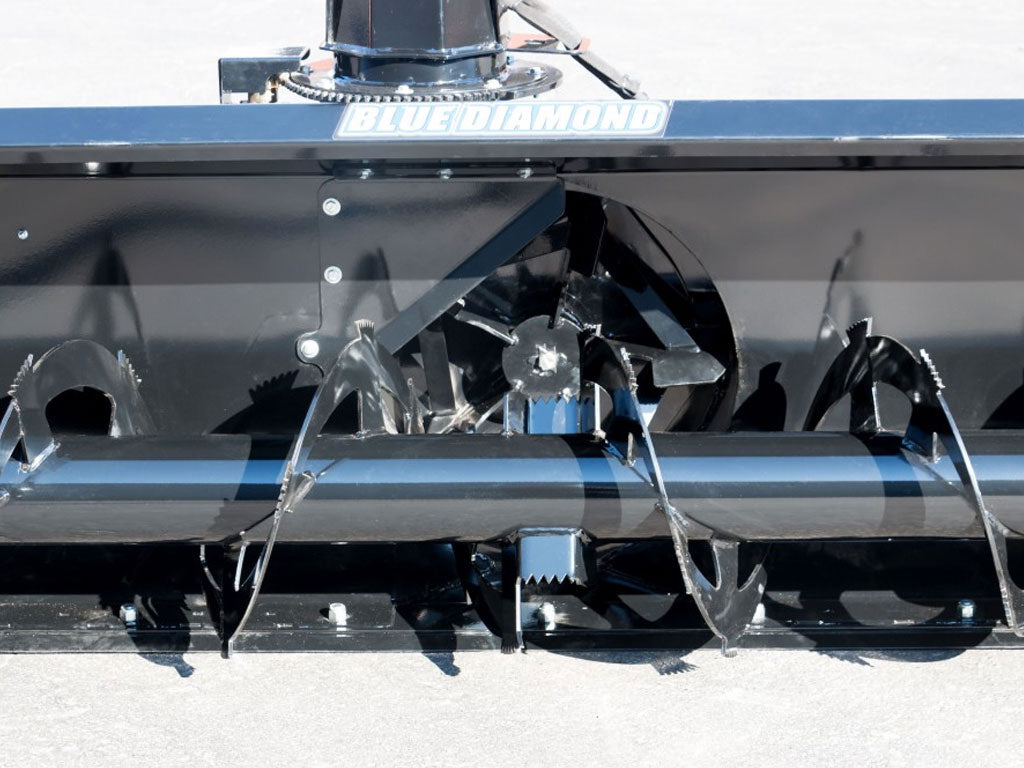

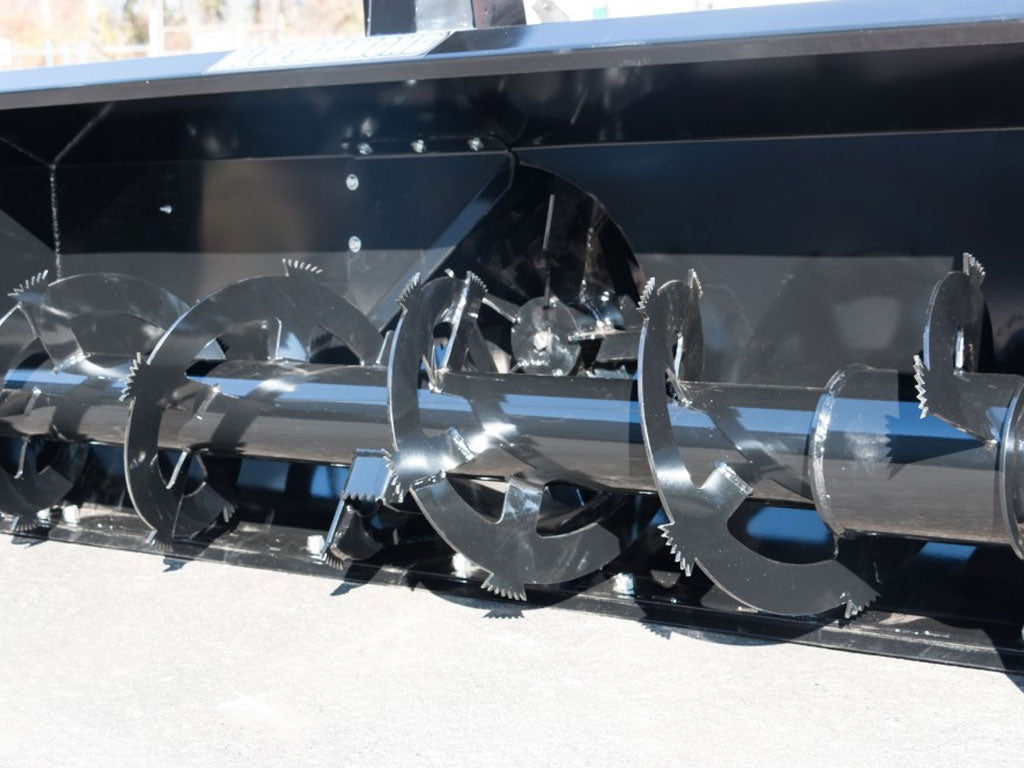

- Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
- 5 blade fan, 22″ diameter, 6 1/2″ deep

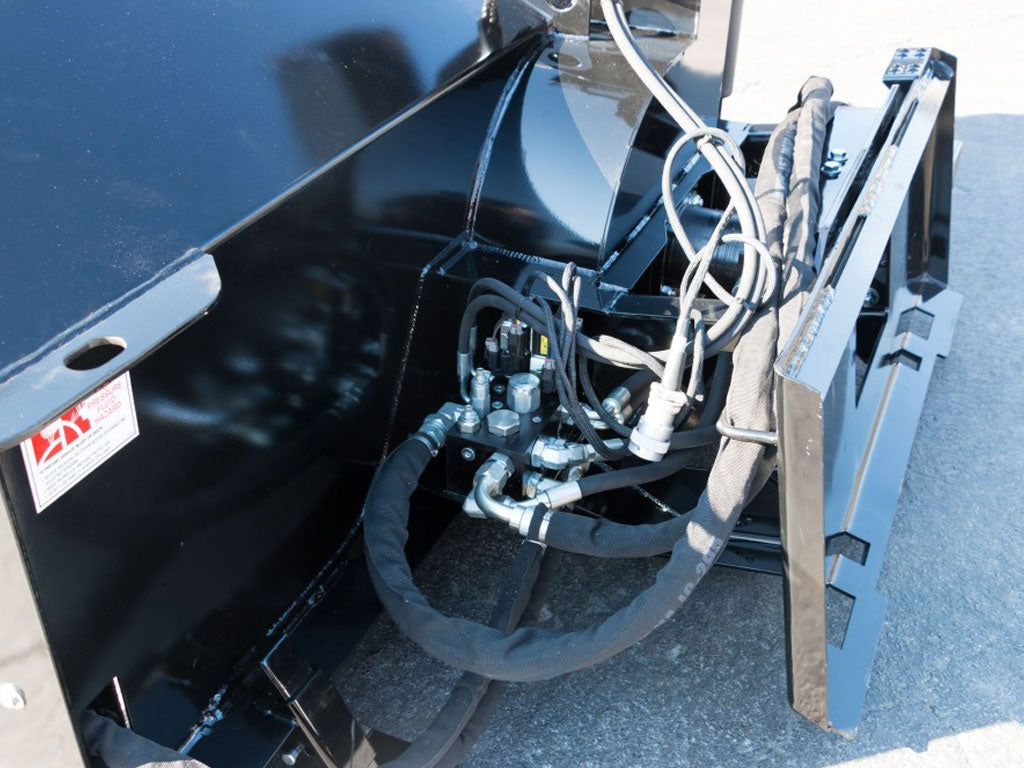

- No shear pins; high pressure bypass relief system
- No chains; direct drive auger and fan

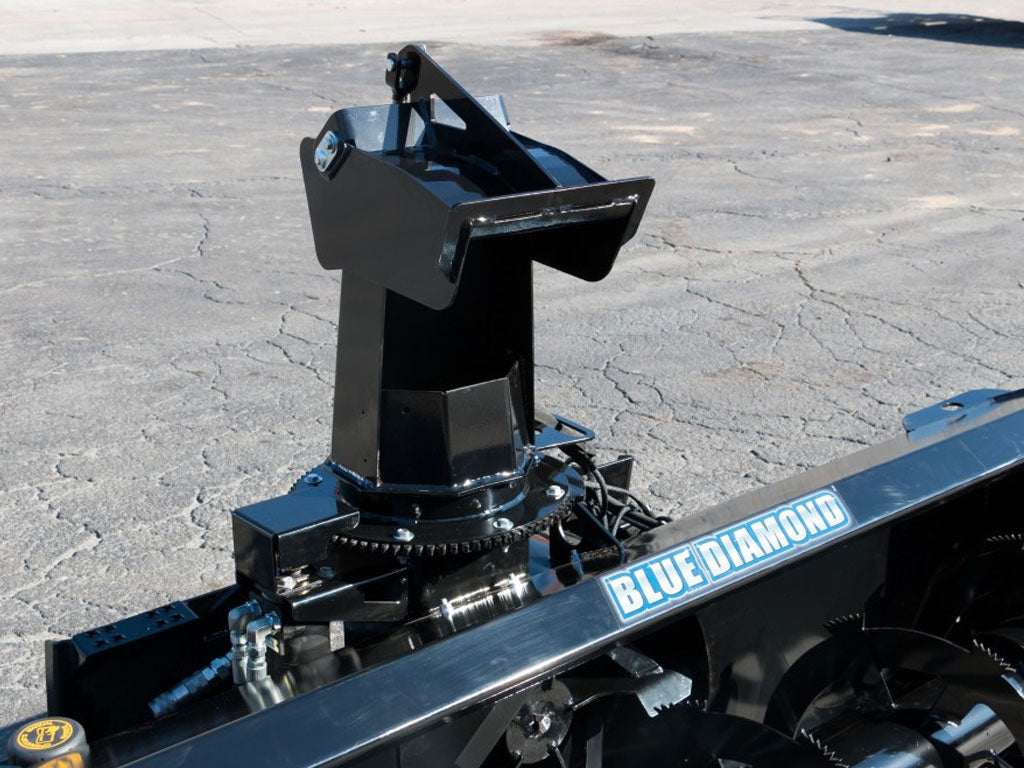

- 270◦ hydraulic rotary chute with 7” opening
- Hydraulic chute deflector
- Adjustable hardened steel skid shoes
- 7 gauge steel fan housing
- 10 gauge steel blower shell
- 1/4″ end plates
- High strength corner bracing
- Heavy-duty polyurethane idler wheels
- Bolt-on grader cutting edge
SPECIFICATIONS
| Model | Flow Range | Cut Width | Cut Height | Overall Width | Overall Height | Weight |
|---|---|---|---|---|---|---|
| 68″ | 11-16 GPM | 69.7″ | 29.5″ | 73.5″ | 60.5″ | 915 lbs. |
| 68″ | 17-20 GPM | 69.7″ | 29.5″ | 73.5″ | 60.5″ | 915 lbs. |
| 68″ | 21-23 GPM | 69.7″ | 29.5″ | 73.5″ | 60.5″ | 915 lbs. |
| 72″ | 17-20 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 72″ | 21-23 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 72″ | 24-25 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 72" | 26-29 GPM | 73.7" | 29.5" | 77.5" | 60.5" | 1046 lbs. |
| 72″ | 30-40 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 84" | 21-23 GPM | 85.7" | 29.5" | 89.5" | 60.5" | 1110 lbs. |
| 84″ | 24-25 GPM | 85.7″ | 29.5″ | 89.5″ | 60.5″ | 1050 lbs. |
| 84″ | 26-29 GPM | 85.7″ | 29.5″ | 89.5″ | 60.5″ | 1050 lbs. |
| 84″ | 30-40 GPM | 85.7″ | 29.5″ | 89.5″ | 60.5″ | 1050 lbs. |
