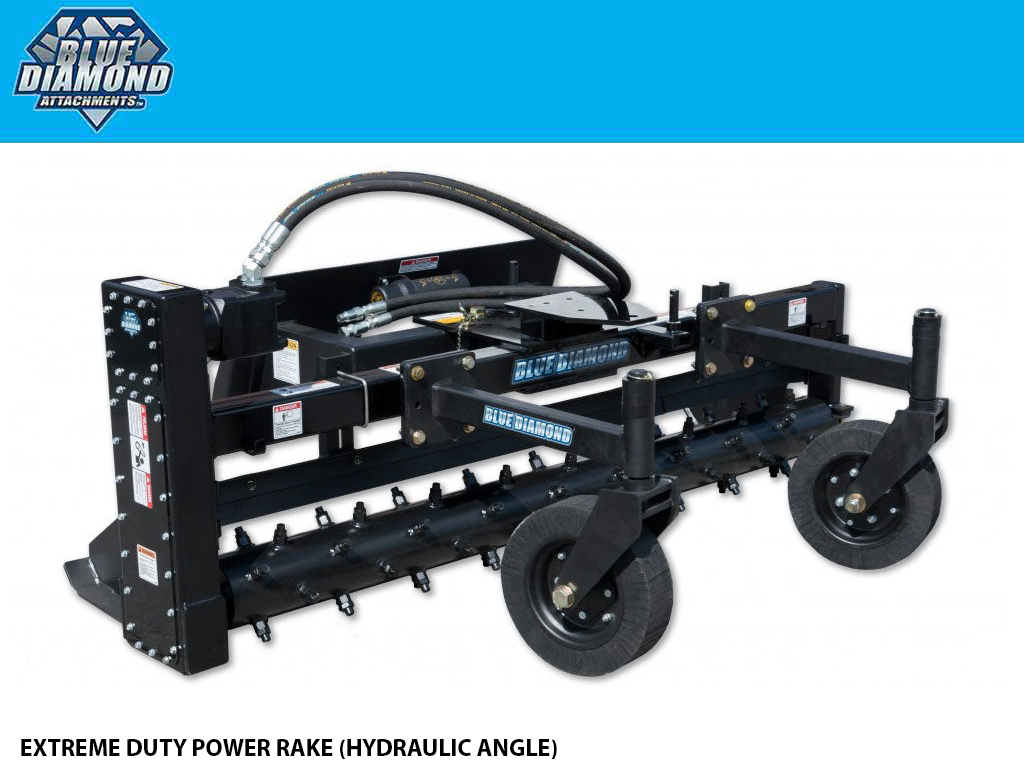

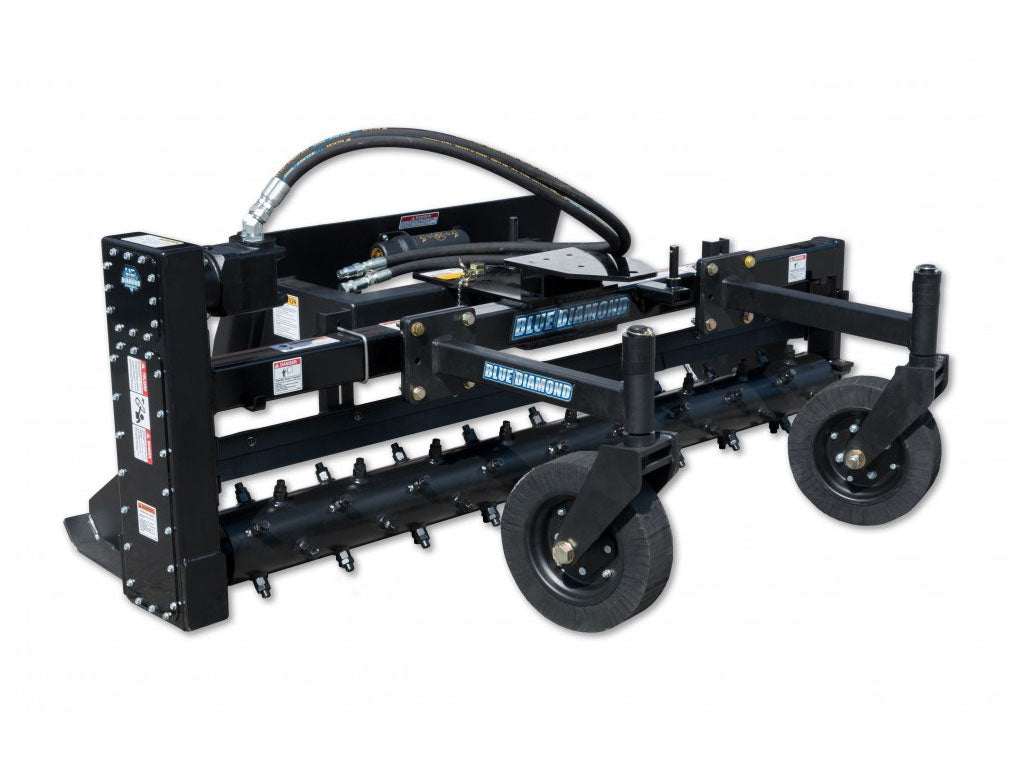

BLUE DIAMOND Extreme Duty Power Rake for Skid Steer, Hydraulic Angle

Features

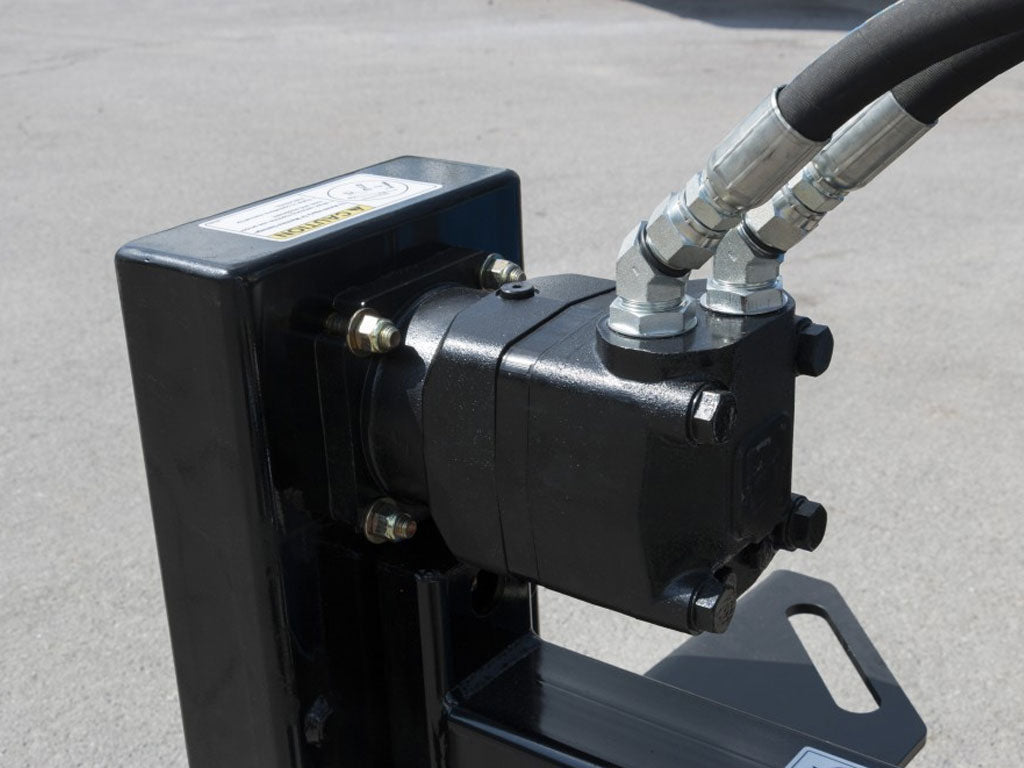

• 6000 series motor: weighs twice as much as competitive models and delivers roughly 40% more torque, keeping the motor out of the way to maximize usable width in tight areas.
• 4" x 4" square tube frame for increased rigidity and long-term durability.
• Drum diameter: 6 3/4" (10 3/4" including teeth) for effective soil conditioning and seed-bed preparation.
• Hydraulic angle with 5 positions at 20 degrees, selectable manually or hydraulically.
• 16–26 GPM hydraulic flow (typical on skid steers) with a max 4000 PSI rating; case drain required for PSI over 3000.

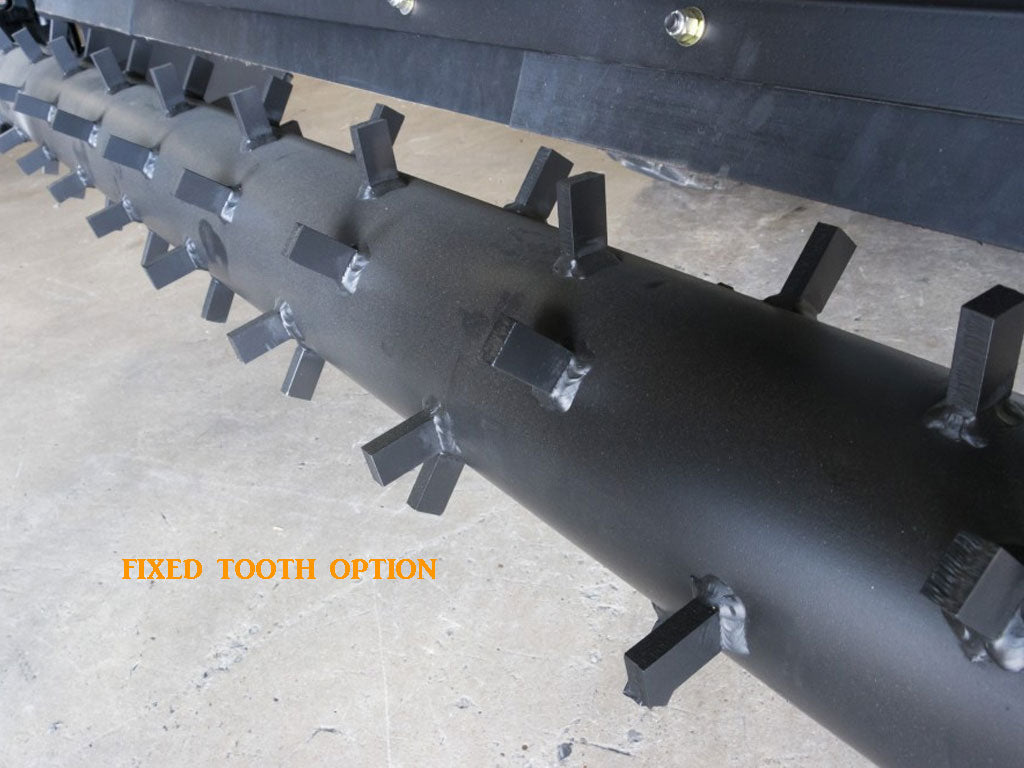

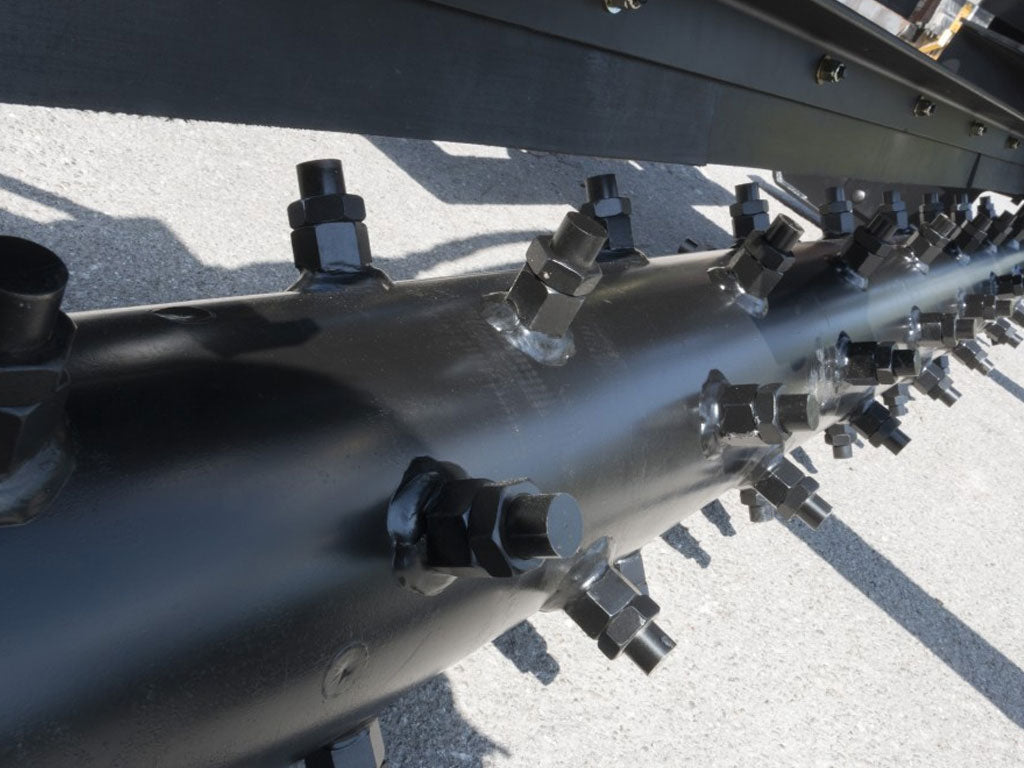

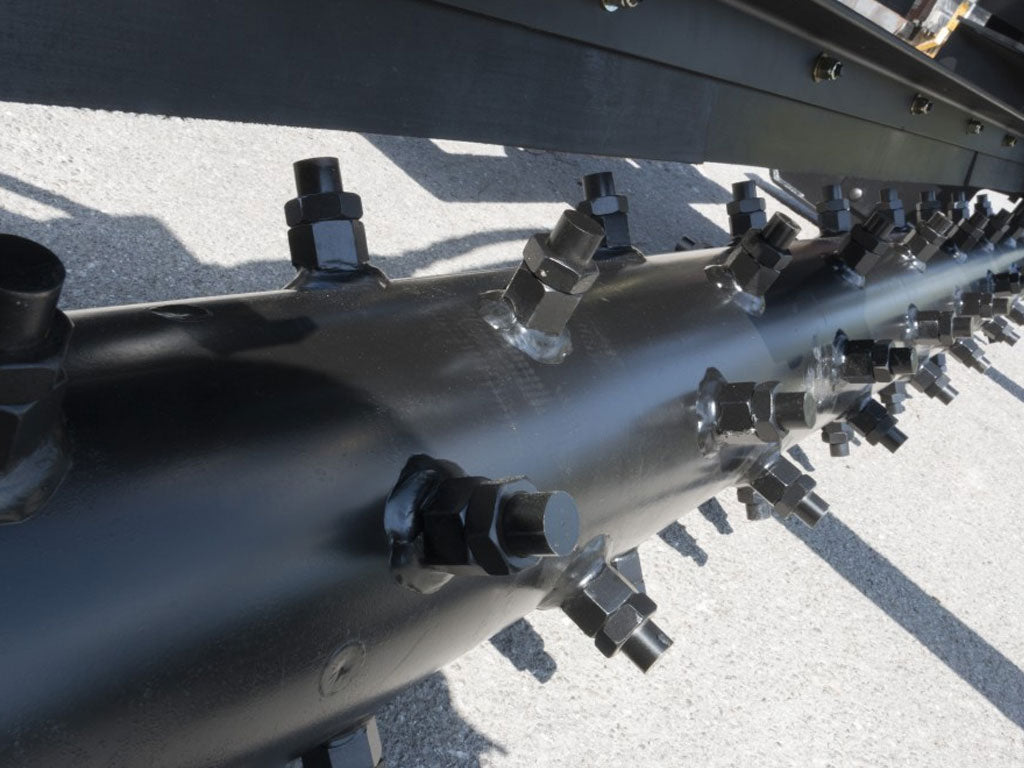

• Replaceable teeth (2" aggressive teeth) vs fixed teeth; replaceable teeth hardness rated at HRC 50 for easier maintenance.

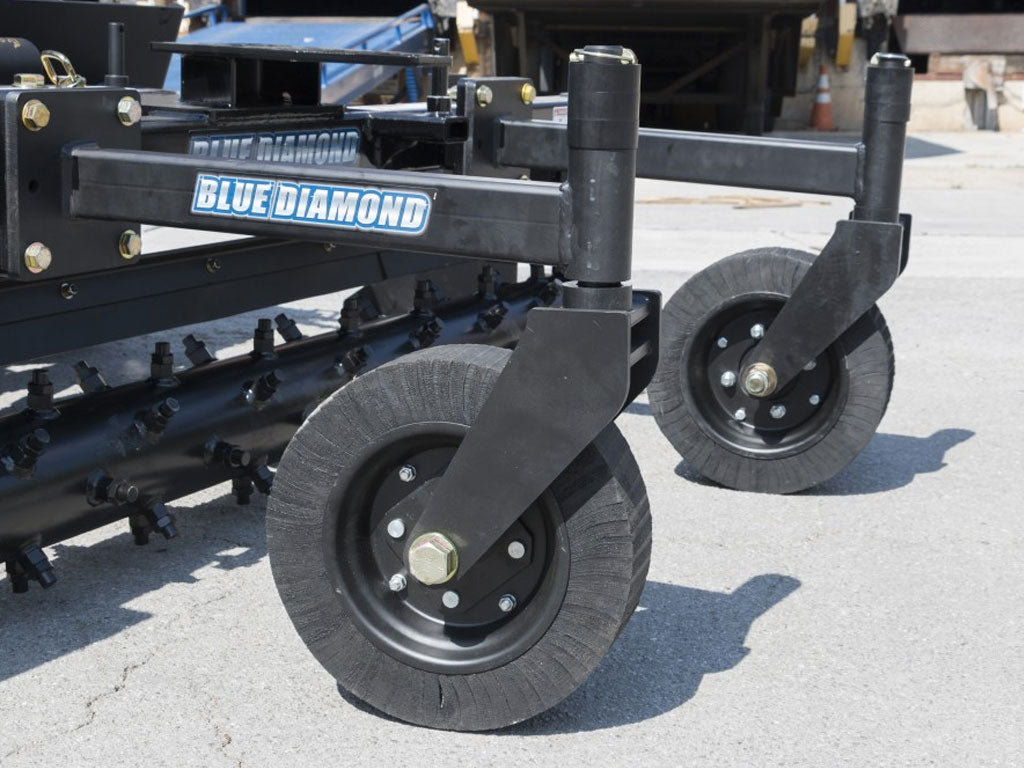

• 1.5" spindle on castors with spacers; 1" front wheel axles (versus ¾" on some models); airless tires to prevent flats.
• Durable components: 1.5" motor shaft, high-pressure seals, and double struts on the castors.

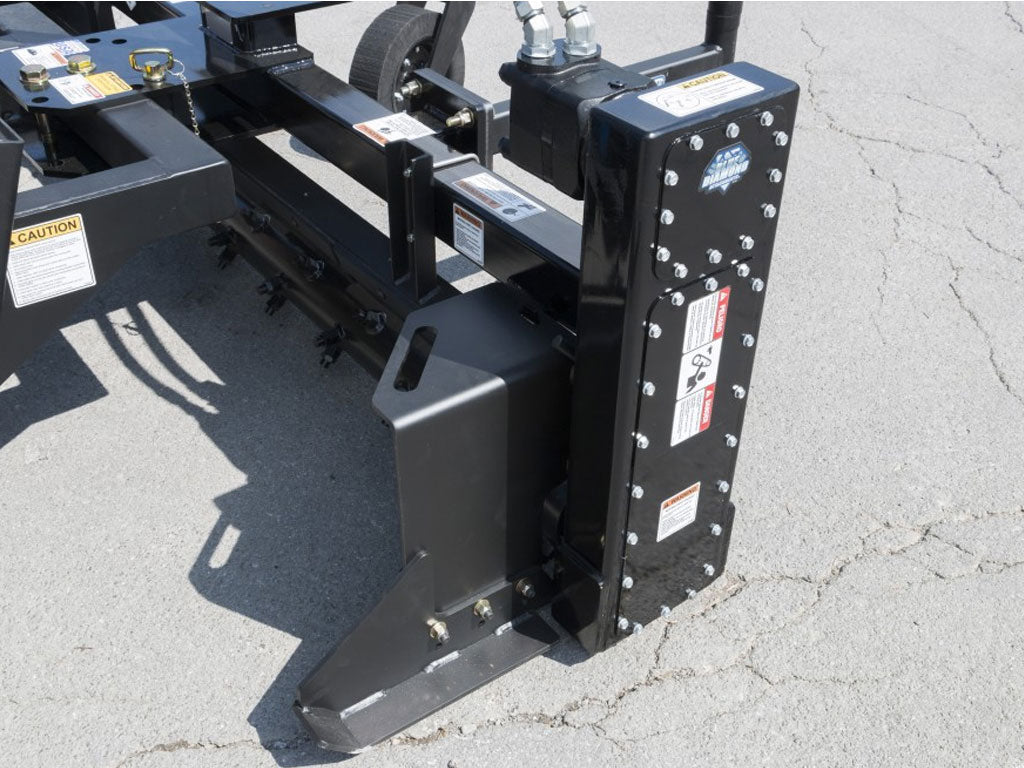

• Optional bolt-on skid shoes add ~30% load capacity over side plates alone.

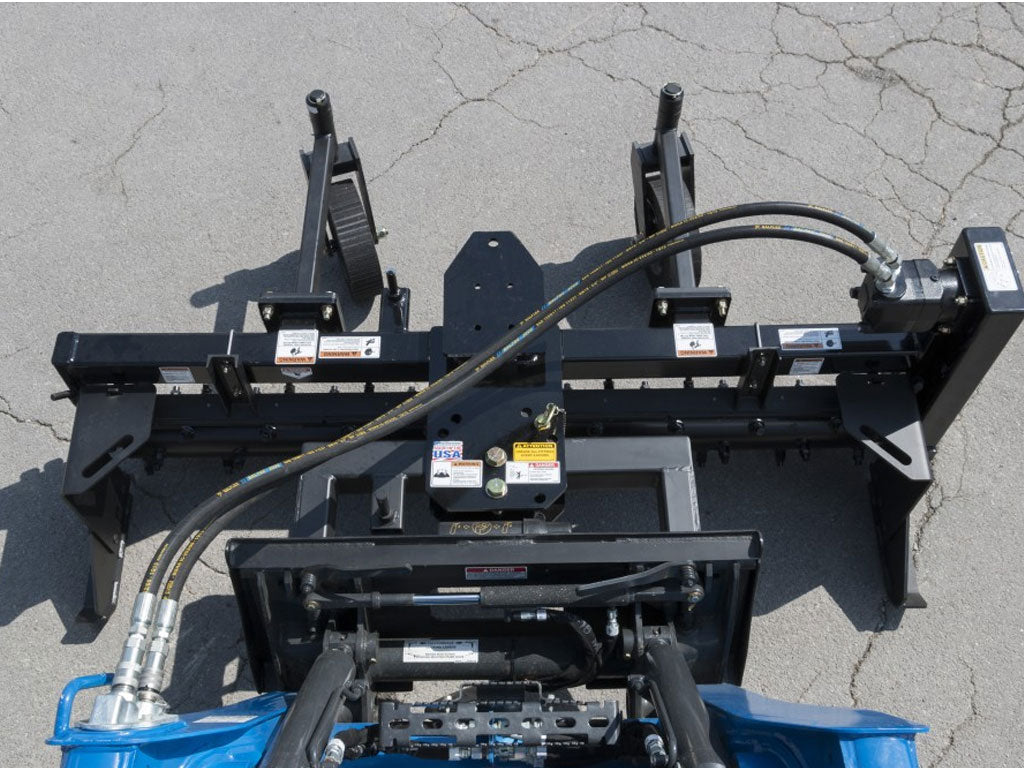

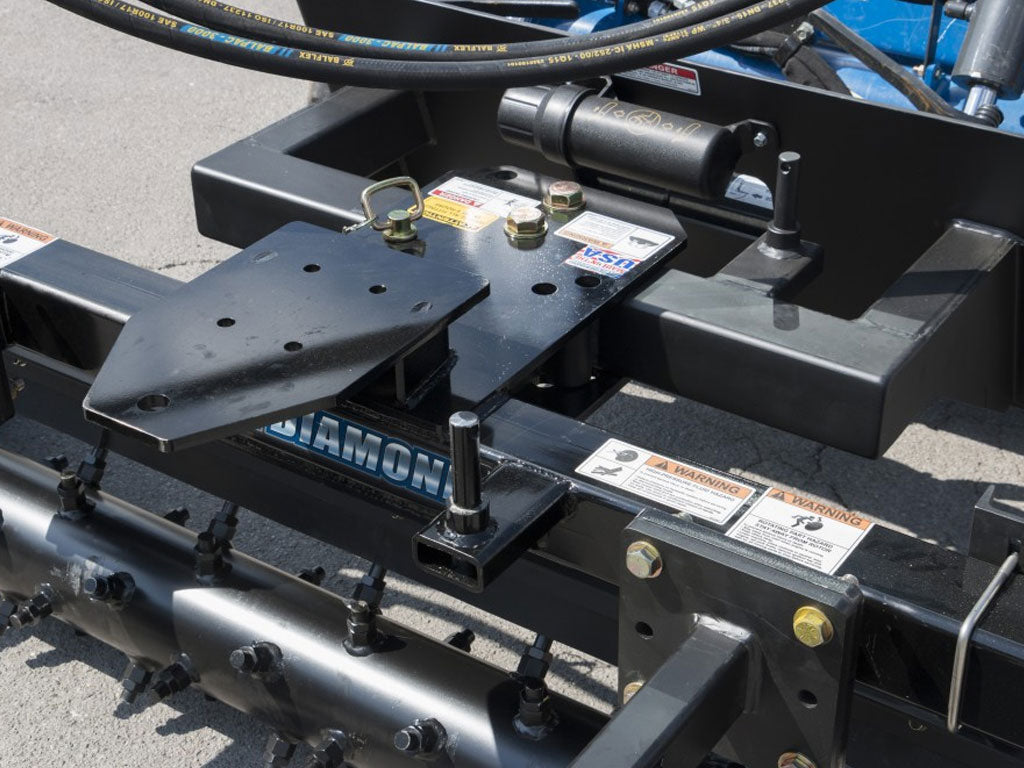

• Includes universal/Bobcat mounting hydraulic angle units, angle kit, universal control harness, hoses and fittings; ready to install.
• Case drain line available on request for machines over 25 GPM.
• Working width options: 72", 84", or 96" with straight and angled configurations (see specs for exact dimensions and weights).

Benefits

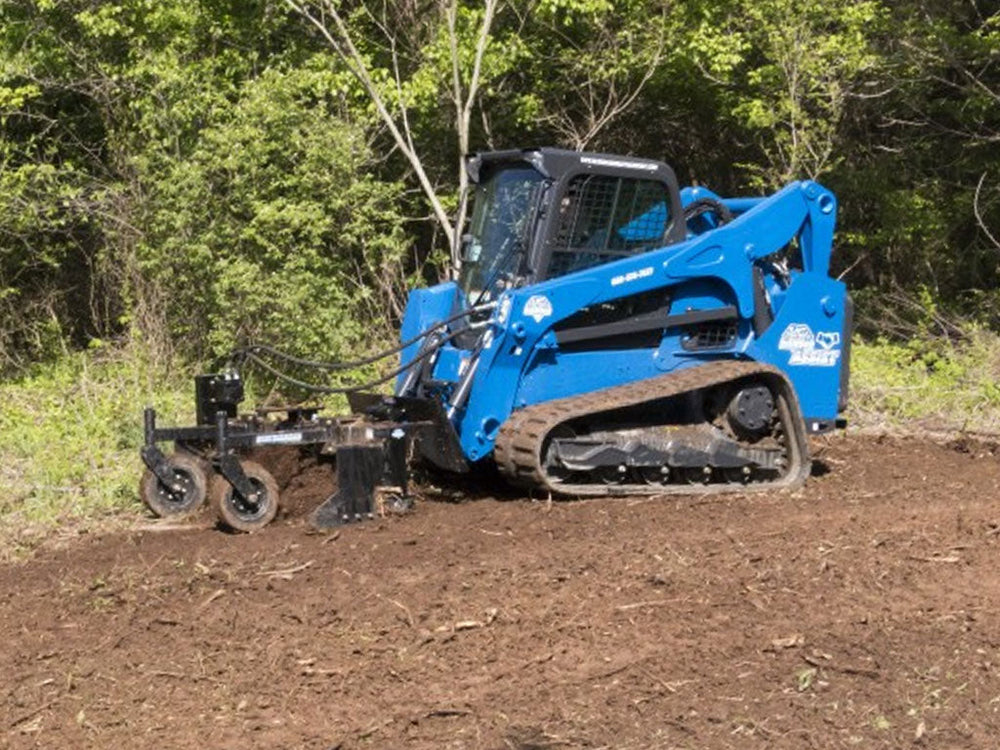

Designed for the increasingly capable skid steers in today’s market, the BLUE DIAMOND Extreme Duty Power Rake powers through tough soil and dense debris, delivering a clean, seed-ready bed with fewer passes. The heavy 6000 series motor provides substantial torque without occupying valuable width, making it easier to work in confined spaces while still delivering premium performance in open areas.

Why it matters: a tougher, more productive attachment reduces your project time and machine fatigue. The replaceable 2" teeth and hard-wearing components simplify maintenance, so you spend less time servicing and more time finishing jobs. The 5-position, 20-degree hydraulic angle lets you tailor rake depth and direction on the fly, adapting to changing soil conditions without leaving the cab.

Who this is for: contractors, rental yards, landscapers, and municipal crews needing reliable soil conditioning and seed-bed preparation on medium to large sites. Ideal for prepping turf, reclaiming rough ground, or restoring seedbeds where aggressive material handling and consistent performance matter most.

How it compares to alternatives: this model emphasizes durability and torque, with a robust 6000 series motor and a rigid 4x4" frame, plus easy maintenance through replaceable teeth and high-pressure seals. The inclusive mounting and harness kit reduce install time, and optional skid shoes boost load capacity for demanding jobs.

Practical tips: use with an 18–26 GPM hydraulic system and stay within the 4000 PSI limit. If your machine operates above 3000 PSI, request the case drain option to avoid pressure-related issues. For wider working widths, plan for the 84" or 96" configurations with angled settings to maximize productivity on larger sites.
