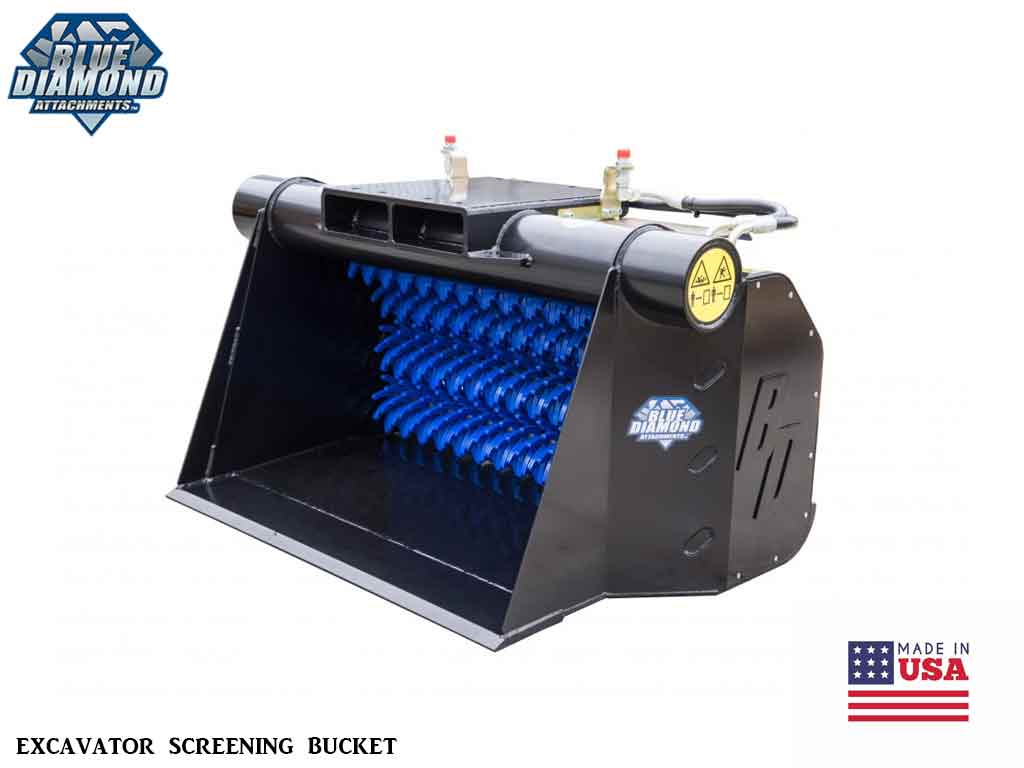

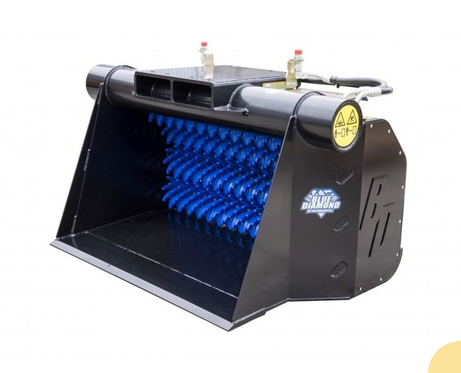

EXCAVATOR SCREENING BUCKETS
The Blue Diamond® Screening Bucket is used for the screening, aerating, separating and mixing of soils, aggregates, woodchip and compost. The efficient screening process is created by the star rotors agitating the material, causing the fines to flow through the rotating stars leaving the oversized material in the bucket.
FEATURES INCLUDE:
- 1” or smaller material will flow through
- Horizontal shafts, fitted with poly stars that rotate in the same upwards direction
- Hardened steel cutting edge
- 2-position mount plate
- Mounts available to fit most machines
- 1-year warranty
- Hoses and Couplers not included. Call For Pricing
SPECIFICATIONS
| MODEL |
HOST MACHINE |
MAX FLOW |
MAX PSI |
WEIGHT | CAPACITY |
| 3-33E | 6600-11000 LB | 14 | 2900 | 640 LB | 6 CU FT |
| 4-40HE | 11000-22000 LB | 23 | 2900 | 1235 LB | 12.36 CU FT |
| 4-47HE | 22000-30000 LB | 23 | 2900 | 1320 LB | 14.85 CU FT |
| 4-60HE | 28600-35000 LB | 23 | 2900 | 1720 LB | 18.60 CU FT |
SHIPPING
Availability varies. If in stock will ship in 3-5 days
