Blue Diamond
  • Free Shipping On Orders Over $5000
  • Lead Times May Vary Depending on Machine Fitment
  • Message Us for Up-To-Date Fitment Status
  • 30 Day Satisfaction Guarantee
  • Easy Financing Available Through Shop Pay
Size: 18" (30 GPM MIN FLOW)
Harness: (3 LINE / 1 CIRCUIT) CASE 400. SR. SV & LATER /GEHL/JCB/NH/VOLVO
Price:
$42,482.00
Stock:
In stock

Description

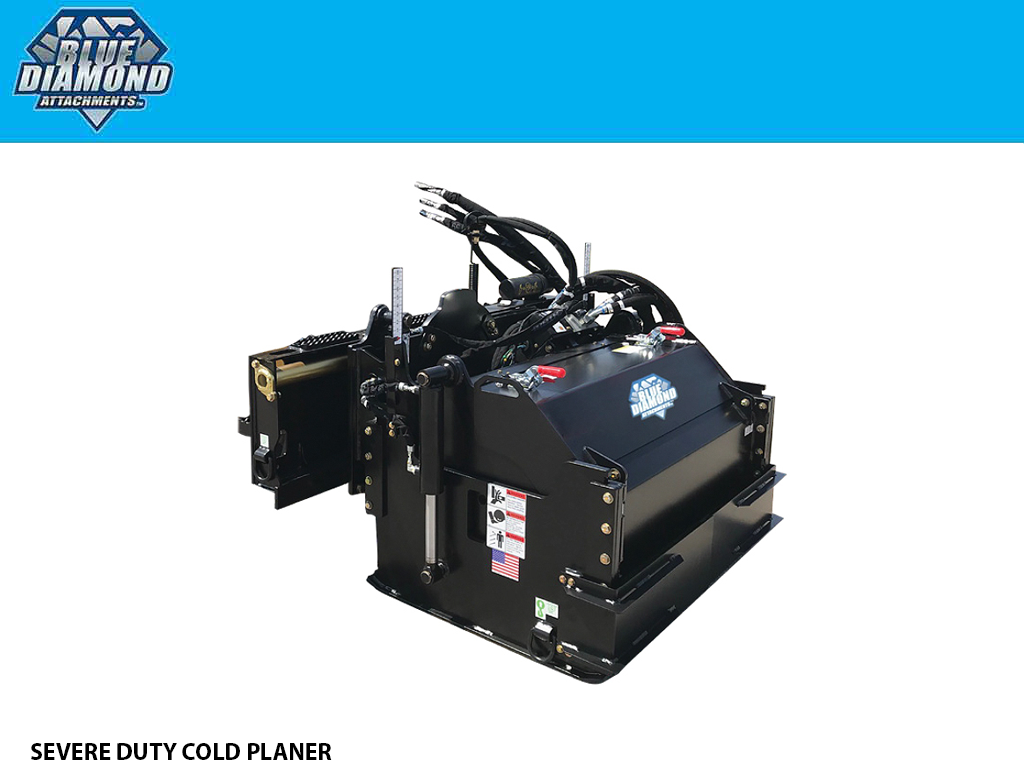

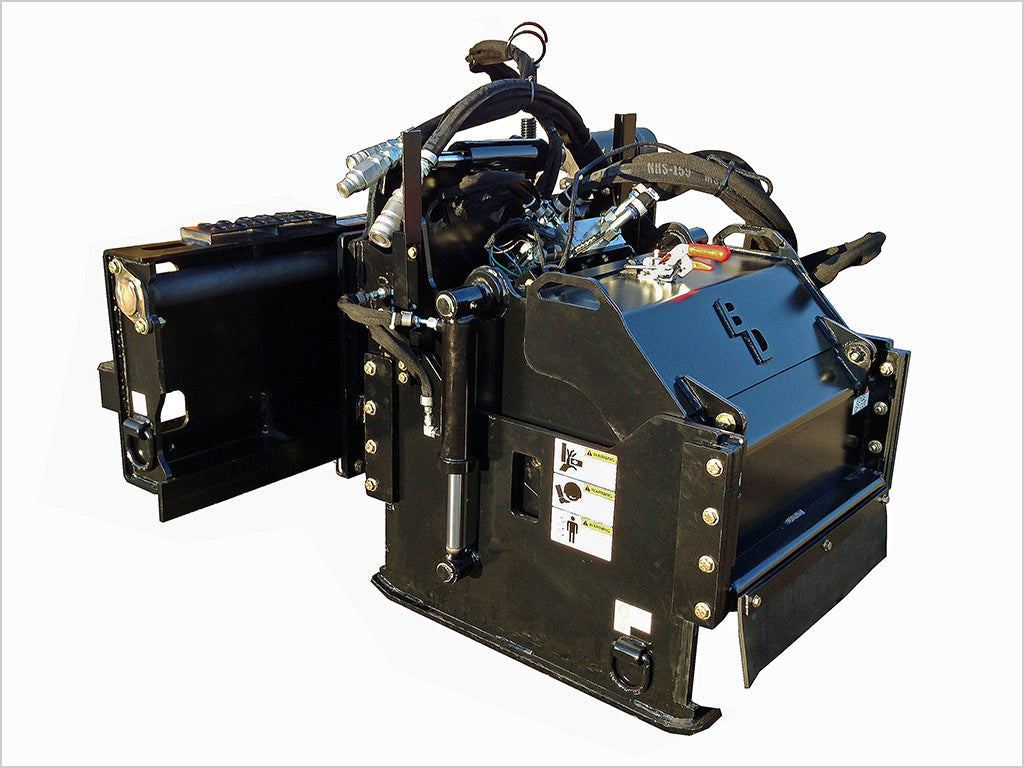

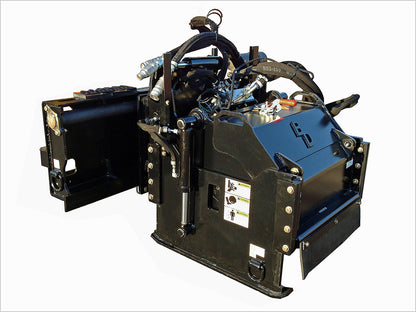

COLD PLANER FOR SKID STEER SEVERE DUTY HIGH-FLOW

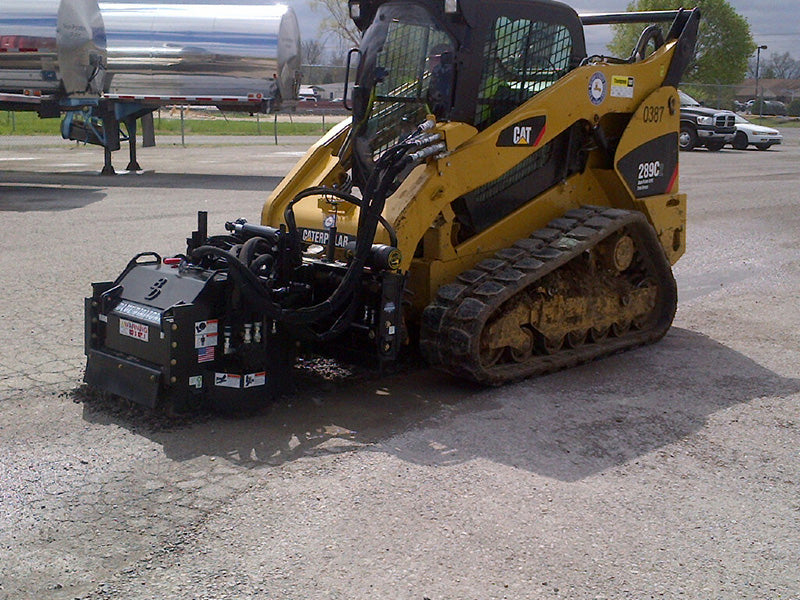

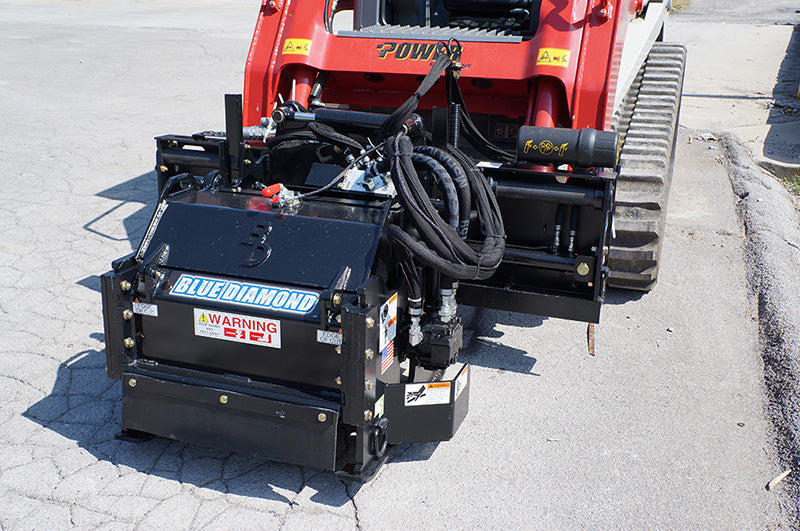

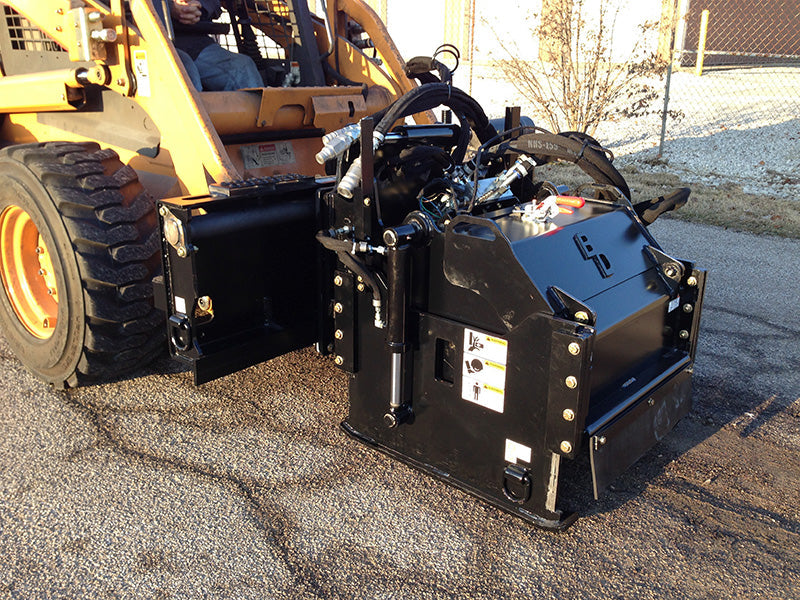

The Blue Diamond® Severe Duty High Flow Cold Planer for skid steer uses the most trusted components in the industry, from the Sauer piston motor to the Fairfield planetary hub featured in the high-flow models, such as this one. These high-end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer attachment.

FEATURES

  • Hydraulic adjustment controls
  • Hydraulic side shift
  • High-torque, planetary drive
  • High drum weight = less vibration
  • 1 1/2″ thick drum tube

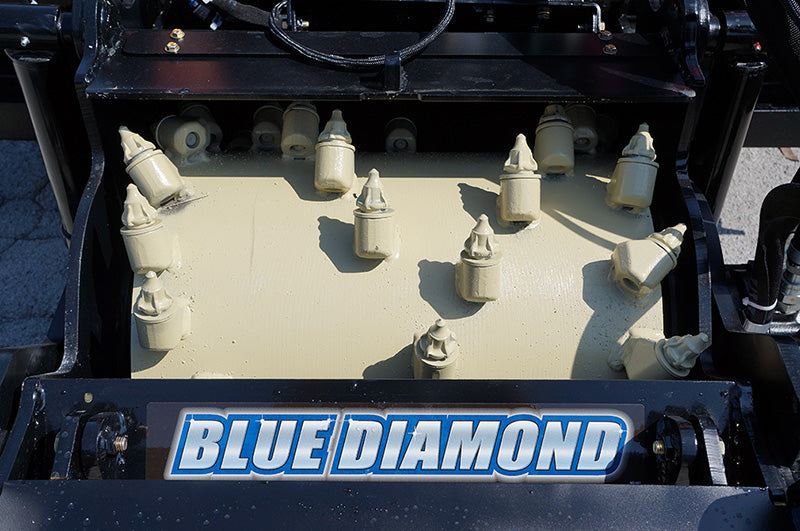

  • Easy access tooth replacement
  • Water kit available

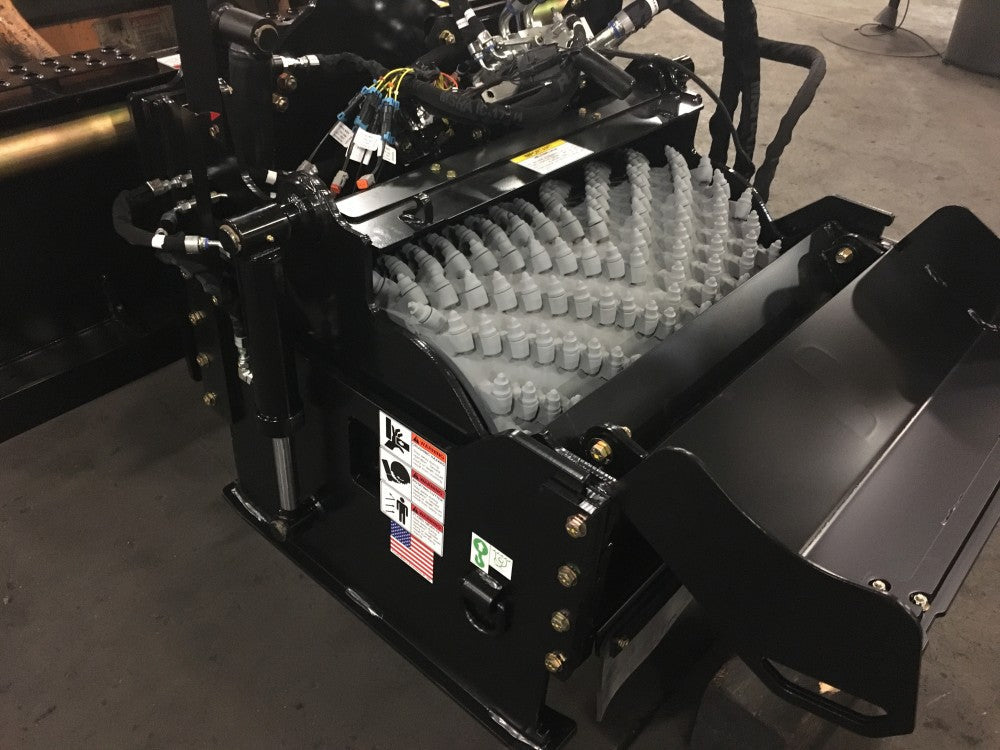

  • Fine-cut drum available
  • Hard facing & stand-off blocks
  • Up to 8″ cutting depth

APPLICATION INCLUDE:

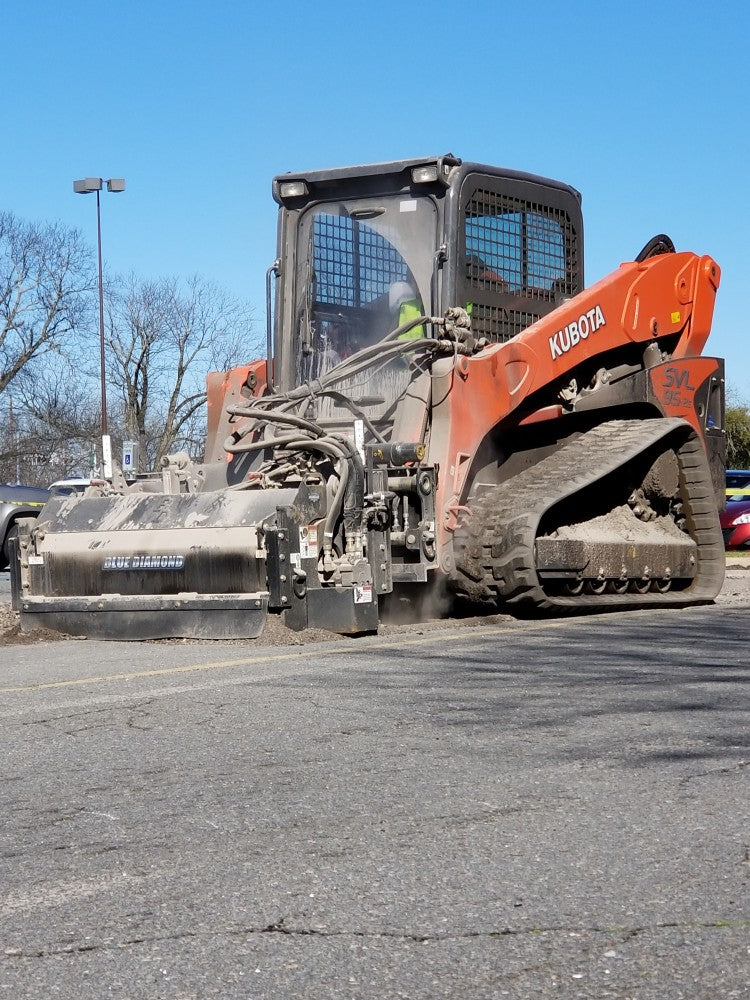

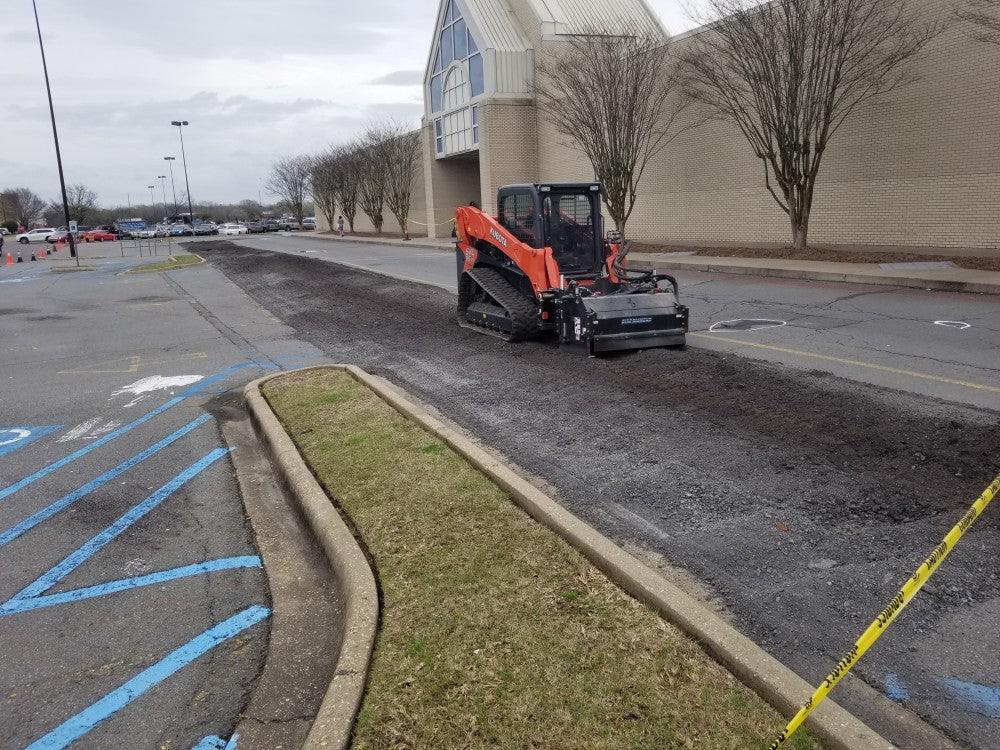

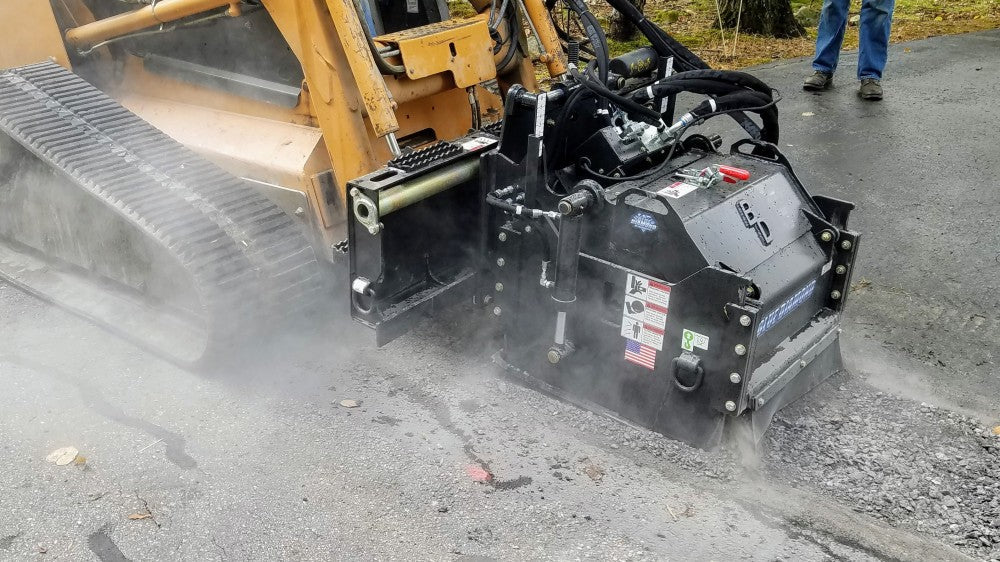

  • Removing asphalt surfaces prior to overlay
  • Widening shoulders

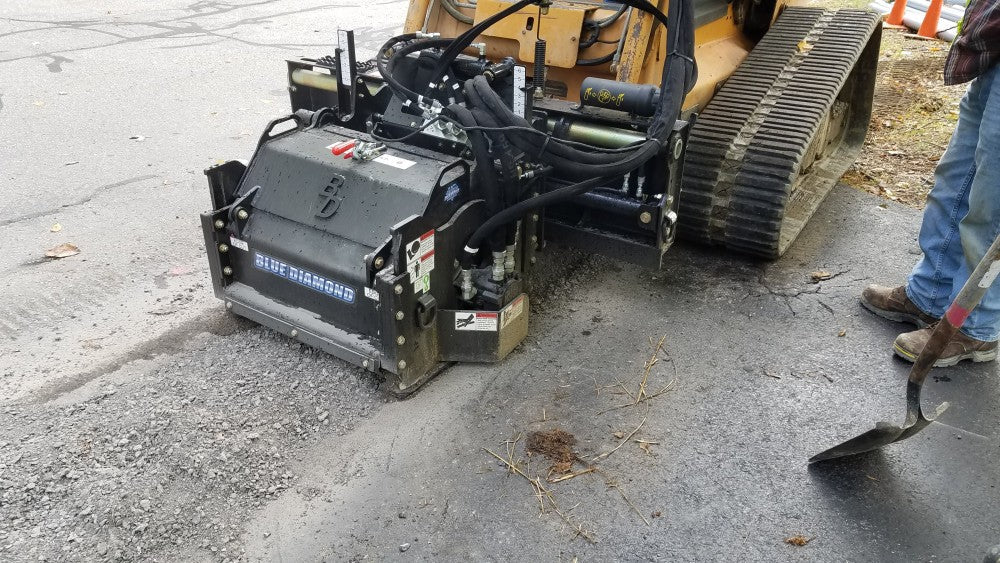

  • Repairing potholes
  • Restoring drainage lines
  • Mixing stabilizing agents into base for a more durable repair



    SPECS
    Part Number Model Number of Teeth Mix-Max Flow Mix-Max Pressure Weight
    160810-HP 18" Severe Duty 46 30-45 GPM 3000-5000 PSI 2,050 lbs
    160815-HP 24" Severe Duty 56 30-45 GPM 3000-5000 PSI 2,300 lbs
    160820 30" Severe Duty 66 30-45 GPM 2000-3500 PSI 2,770 lbs
    160820-HP 30" Severe Duty 66 30-45 GPM 3000-5000 PSI 2,550 lbs
    160825 40" Severe Duty 76 30-45 GPM 3000-5000 PSI 2,975 lbs
    160825-HP 40" Severe Duty 76 30-45 GPM 3000-5000 PSI 3,000 lbs
    160830-HP 40" Severe Duty 106 30-45 GPM 3250-5000 PSI 3,200 lbs



    CONTROL TYPES

    WE WILL NEED TO KNOW YOUR MAKE AND MODEL OF MACHINE AND THE HYDRAULIC CONTROL TYPE YOU HAVE.

    • BOBCAT (3) LINE - MOST COMMON
    • BOBCAT (5) LINE
    • CASE (3) LINE
    • CASE (5) LINE XT SERIES
    • CAT (5) LINE A,B,C-SERIES
    • CAT (3) LINE D-SERIES
    • DEERE (3) LINE D-SERIES
    • DEERE (5) LINE
    • JCB (3) LINE
    • NEW HOLLAND (3) LINE
    • VOLVO (3) LINE
