GRADER BLADE

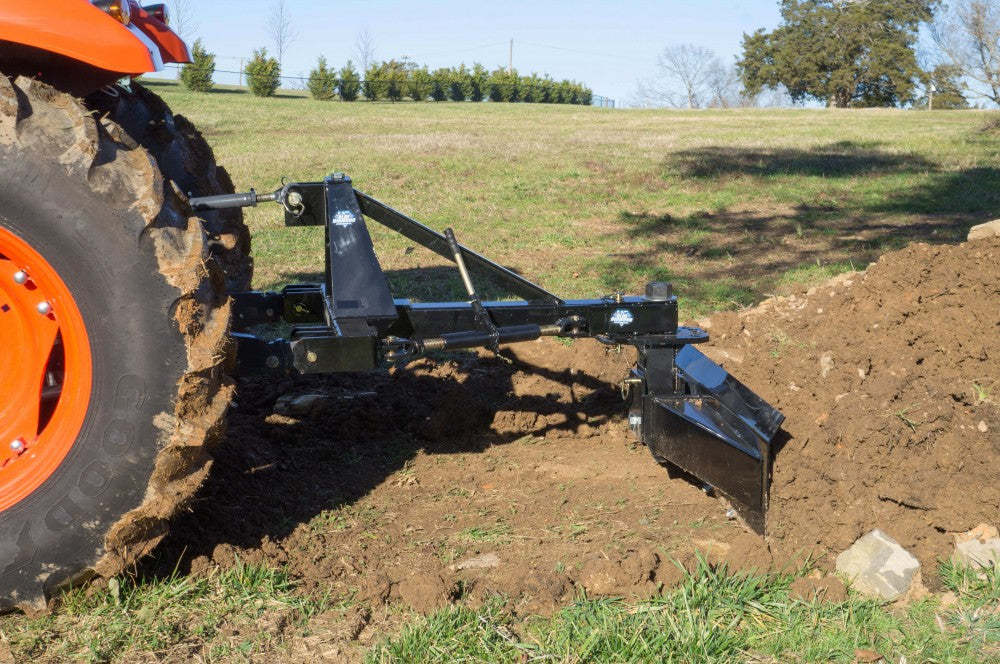

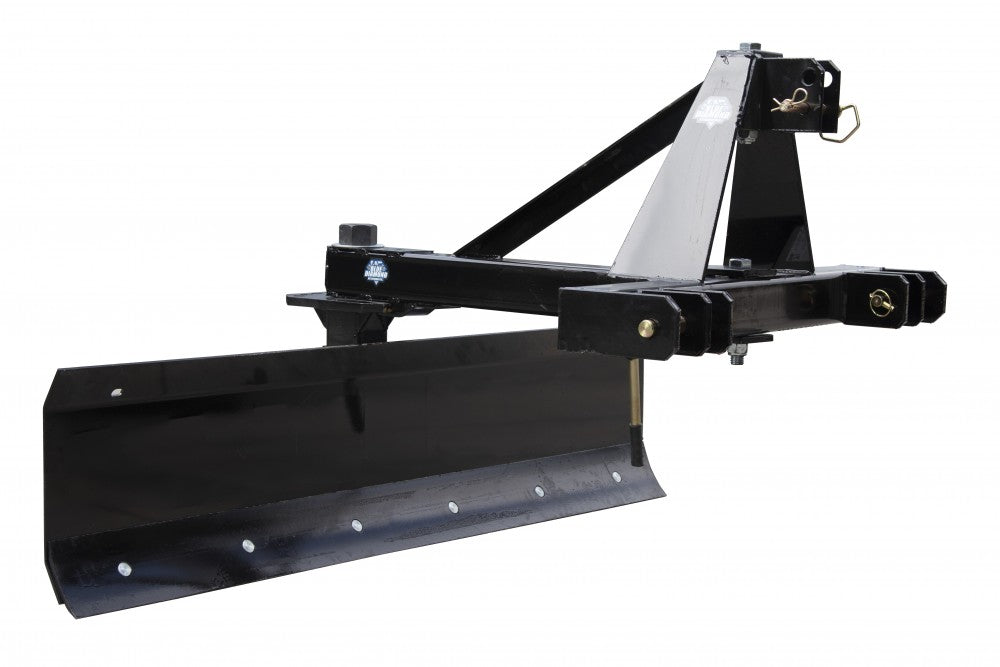

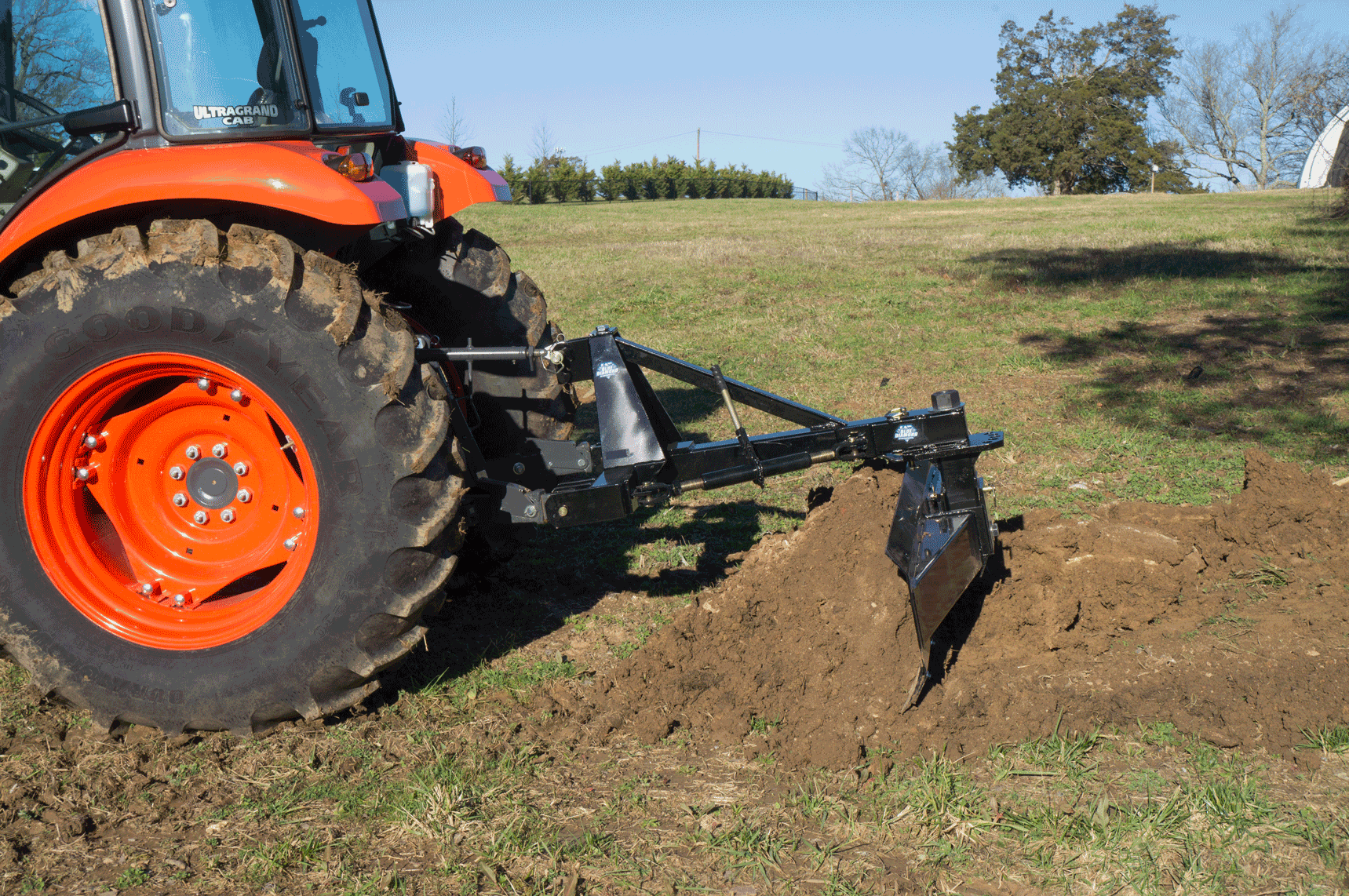

These Heavy-Duty Grader Blades are our toughest grader blades. These models will easily meet all of your land grading, leveling, or backfilling needs. Designed for 45 to 75 hp tractors, they feature a five-position angle adjustment forward and reverse, three-position tilt adjustment, utilize a ratchet jack for the offset adjustment, and are Category 1 & 2 quick hitch compatible. Three models provide working widths from 72” to 96”.
FEATURES INCLUDE:
- Ratchet jack offset adjustment
- Fits category 1 and 2 hitches
- Used for grading, leveling, and backfilling needs
- 5 position angle in forward and reverse 3 position tilt adjustment
- 2-year warranty
GRADER BLADE SPEC SHEET
| MODEL | 6’ | 7’ | 8’ |
| Horsepower | 45-75 | 50-75 | 55-75 |
| Width | 72” | 84” | 96” |
| Moldboard Height | 17” | 17” | 17” |
| Weight | 439 lbs | 469 lbs | 503 lbs |
| Angle Adjustment | 5 Position, Forward & Reverse | 5 Position, Forward & Reverse | 5 Position, Forward & Reverse |
| Tilt Adjustment | 3 Position | 3 Position | 3 Position |
| Offset Adjustment | Rachet Jack | Rachet Jack | Rachet Jack |
| A-Frame Material | 3/8” | 3/8” | 3/8” |
| Cutting Edges | 6” | 6” | 6” |
| Quick Hitch Compatible | Yes | Yes | Yes |
| Hitch | CAT 1 & 2 | CAT 1 & 2 | CAT 1 & 2 |
