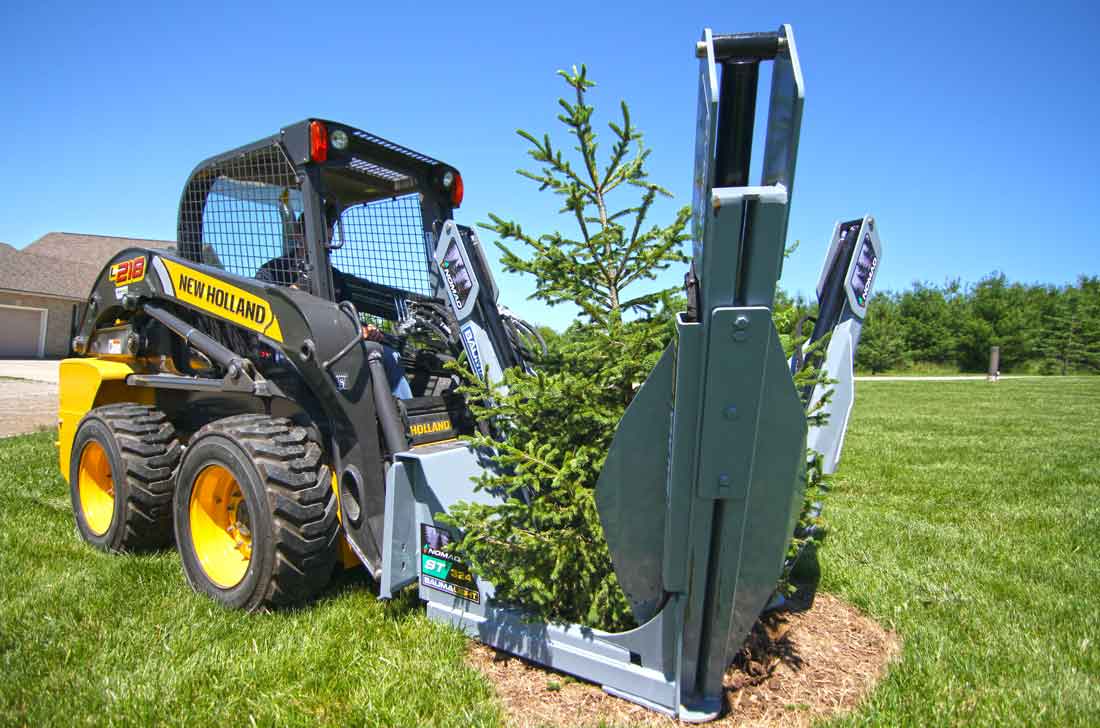

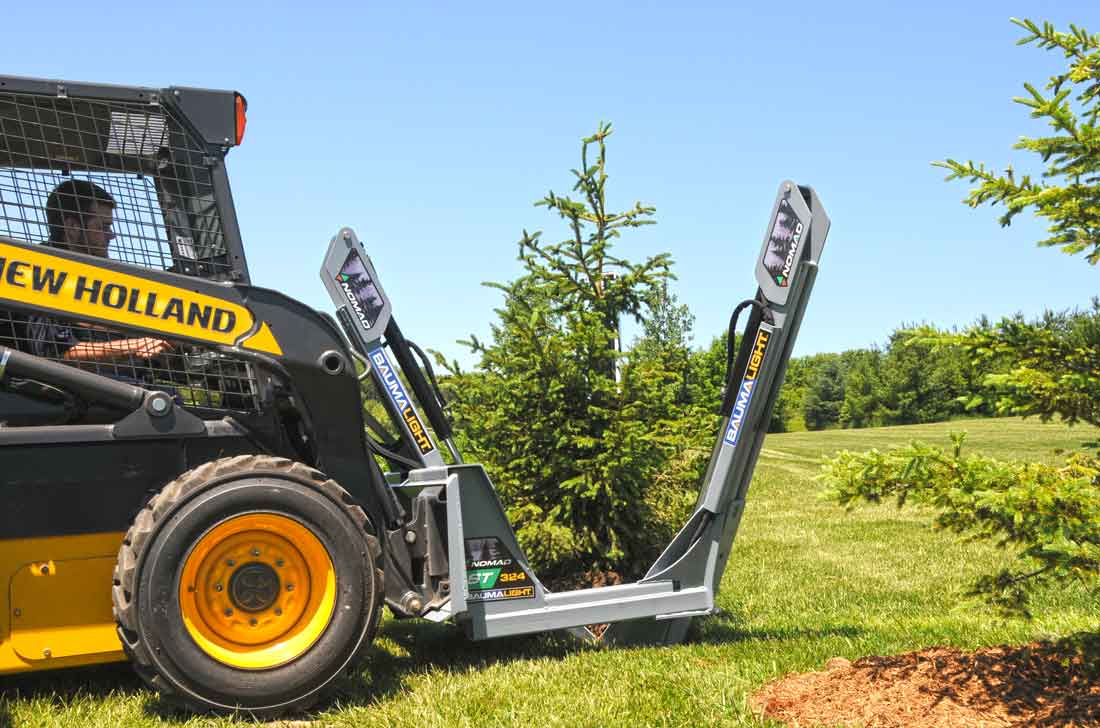

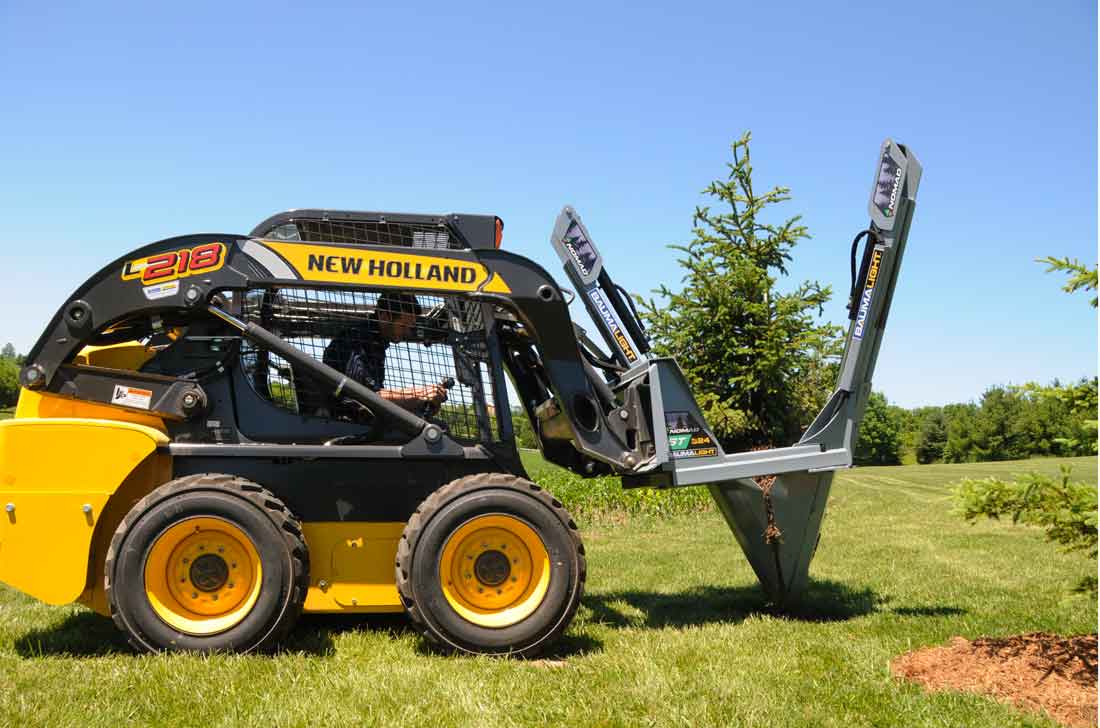

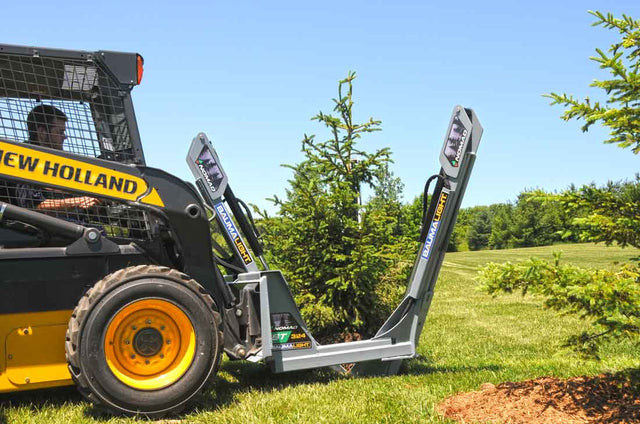

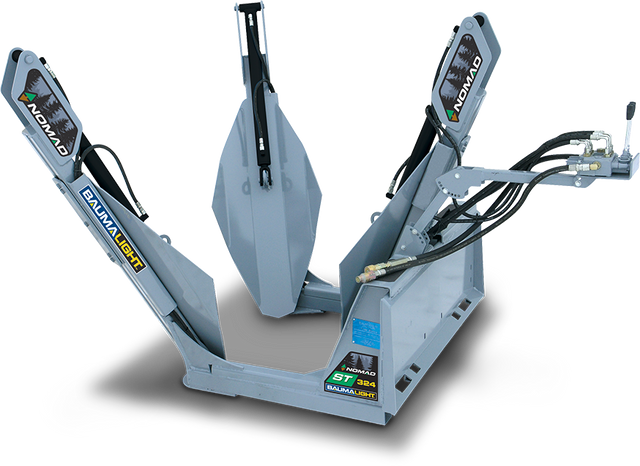

Baumalight ST324 Tree Spade For Skid Steer

BaumalightSKU: ST324-D001782

  • Free Shipping On Orders Over $5000
  • Lead Times May Vary Depending on Machine Fitment
  • Message Us for Up-To-Date Fitment Status
  • 30 Day Satisfaction Guarantee
  • Easy Financing Available Through Shop Pay
Model: ELECTRIC CONTROLS WITH 20' OF WIRE
Price:
Sale price$8,597.00
Stock:
In stock

Description

Baumalight Tree Spade | Model ST324/D003430 | Capacity 24" Root Ball | For Telehandler / Skid Steer

DESCRIPTION

The Baumalight ST324/D003430 Tree Spade is an efficient attachment designed for telehandlers, capable of handling root balls up to 24 inches in diameter. This tree spade is perfect for transplanting small to medium-sized trees with precision and ease. Built with durable materials and offering precise control options, it ensures successful tree transplants for landscaping, forestry, and agricultural operations.

ELECTRIC CONTROLS WITH 20' OF WIRE

TREE SPADE (ELECTRIC CONTROLS WITH 20' OF WIRE)MUST SPECIFY MOUNT

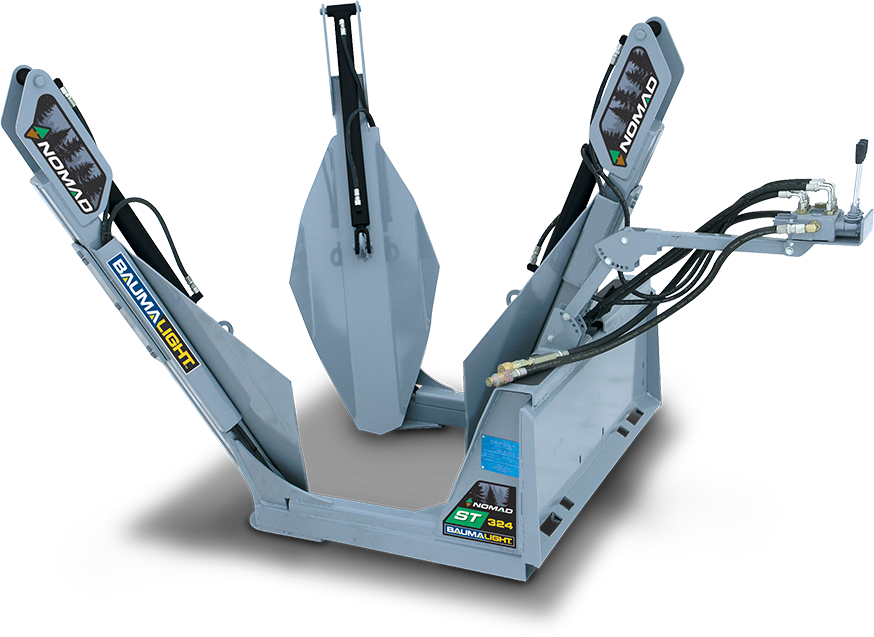

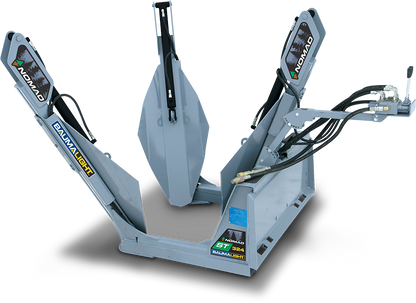

ST324: Small Fixed Compact This fixed frame hydraulic tree spade gives you tree-moving power for your smaller skidsteers. The ST324 Small Fixed Compact tree spade features three blades to give you the digging and root ball compacting action necessary for cleaner and more viable transplants.

AUX CONNECTION FOR ST324

TREE SPADE (AUX CONNECTION FOR ST324) REQUIRED 2 LIVE PINS

ST324: Small Fixed Compact This fixed frame hydraulic tree spade gives you tree-moving power for your smaller skidsteers. The ST324 Small Fixed Compact tree spade features three blades to give you the digging and root ball compacting action necessary for cleaner and more viable transplants.

WIRELESS HAND CONTROLS WITH 20' OF WIRE

TREE SPADE (WIRELESS HAND CONTROLS WITH 20' OF WIRE)MUST SPECIFY MOUNT

ST324: Small Fixed Compact This fixed frame hydraulic tree spade gives you tree-moving power for your smaller skidsteers. The ST324 Small Fixed Compact tree spade features three blades to give you the digging and root ball compacting action necessary for cleaner and more viable transplants.

MANUAL CONTROLS

TREE SPADE (MANUAL CONTROLS)MUST SPECIFY MOUNT

ST324: Small Fixed Compact This fixed frame hydraulic tree spade gives you tree-moving power for your smaller skidsteers. The ST324 Small Fixed Compact tree spade features three blades to give you the digging and root ball compacting action necessary for cleaner and more viable transplants.

Key Features

  • Efficient Root Ball Handling: Capable of handling root balls up to 24 inches in diameter.
  • Durable Construction: Made of high-strength steel for long-lasting performance.
  • Versatile Control Options: Offers manual, hydraulic, and wireless control options for precise operation.
  • Powerful Hydraulic System: Operates with a hydraulic flow of 10 - 50 GPM for powerful performance.
  • Adjustable Arm: Provides user comfort and better control over the transplanting process.
  • Wide Application: Suitable for landscaping, forestry, and agricultural operations.
  • Four-Blade Design: Ensures efficient digging and compacting of root balls for cleaner and more viable transplants.



Anti Slip

Non slip step pads for easy entry.

Anti Slip

JIC Fittings

Secure hydraulic conectios and easy servicing.

JIC Fittings

Sleeved Hoses

All hoses are sleeved for operator and hose protection.

Hoses Shielded for Extra Protection

Powder Coat Finish

Heavy-duty construction and a durable powder-coated finish.

Powder Coat Finish

Lifting Eye

Lifting eyes for easy storage and transport.

Lifting Eye

Semi Truncated Blades

The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to to hold sandier soils.

Semi Truncated Blades

Cylinders Push for Maximum Efficiency

Cylinders Push for Maximum Efficiency

Universal Skidsteer Adaptor



Universal Skidsteer Adaptor

Bolt in Tractor Loader Adaptor

Note: Not included in Price of Spade

Bolt in Tractor Loader Adaptor

Wide Range of Control Options

Increase the efficiency of your tree spade operation with the Controls line of remotes from Baumalight.


Wide Range of Control Options



CONTROL OPTIONS:

With multiple choices available, the Controls line from Baumalight gives you both the power and freedom to control your tree spade. Whether you choose a fixed manual control solution, wired, wireless or AUX Baumalight has you covered. We also can custom connect to your existing electrical plug on your boom to connect to your build in cab controls.

Manual Control

Manual hydraulic valves with a dual position mounting stand.

Manual Control

Wired Control

Control all the digging and swinging actions from the seat of your carrier with hand held remote control using the power of your 12 volt plug.

Wired Control

Wireless Control

For the ultimate in convenience, the wireless controller option gives you the ability to move freely around the spading operation for the most precise insertion and extraction points available.

Wireless Control

Auxiliary Electrical Connection

Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.

See video on how AUX operation works
Auxiliary Electrical Connection



HOW IT WORKS:



How it Works Step 1

Step 1

Find the new location for your tree. Position the spade at a defined direction, say North. Engage blades and scoop your hole.

How it Works Step 2

Step 2

Align the spade with the tree in the same direction chosen for the hole—in this case, North.
Open blade, move forward to position tree in the center of the dig area. Engage blades until they meet.

How it Works Step 3

Step 3

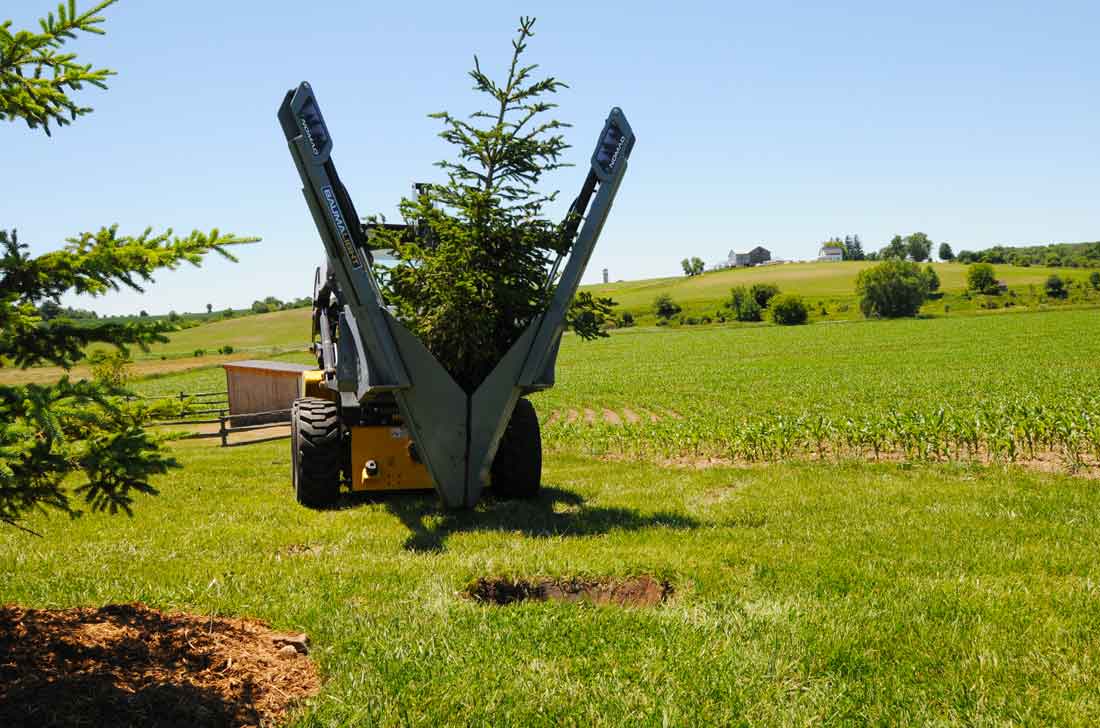

Lift the tree up and transport to the new hole. Note: In harder earth, the spades may cause glazing on the hole walls. Before the new tree is placed, this surface needs scuffing in order for the new roots to penetrate.

How it Works Step 4

Step 4

Align the shaft with the orientation of the new hole. Lower and position the tree Note: Trees become more tolerant of hot afternoon sun on one side. Changing their orientation can burn the foliage.



TREE MOVING BEST PRACTICES

When to Move

Trees can be planted any time of year, watering becomes more important if moved in a dry season. Although moving trees in the spring or fall has previously been seen as the optimal time, this is only because it is typically cooler and wetter during these times. When moving a tree outside of this, simply be sure the tree is well watered for several days before hand.

Preparation

Tree

Make sure the trees are well watered 2-3 days before moving.

Mark the trees orientation so it may be transplanted in the same direction reducing the risk of sunscalding.

Secure any low hanging branches that may be damaged during transplant.

Trunk size

The trunk size helps estimate the size of the root ball underground, as roots typically extend as far as the tree's branches. For softwood trees, it is generally acceptable to trim about half of the roots. Increased watering may be necessary when moving softwoods larger than recommended and selecting shady or moist locations will also help insure survivability when trimming large amounts of root. In contrast, for hardwood trees, only about one-third of the roots should be trimmed, as they are more sensitive to root loss and excessive watering will only lower chances of survival.

Hole

Location - find a suitable location that meets the environmental requirements of the specimen.

Create the hole in which the specimen will be relocated.

Prepare the hole based on the soil condition. If the soil has a large clay content rough up the sides for easier root penetration. If the soil is sandy add appropriate nourishment, and if the soil is dry water the hole.

Aftercare

Keep well watered to help establish roots.

Apply mechanical supports if required to help stabilize the tree for one to two years while the specimen re-establishes.

Tips

Keep your tree spade in good operating condition and wellmaintained. Sharp blades will reduce damage to root systems.

Try to replant your specimen within two hours. This will help reduce shock.

Nomad Action Image


Spade School:

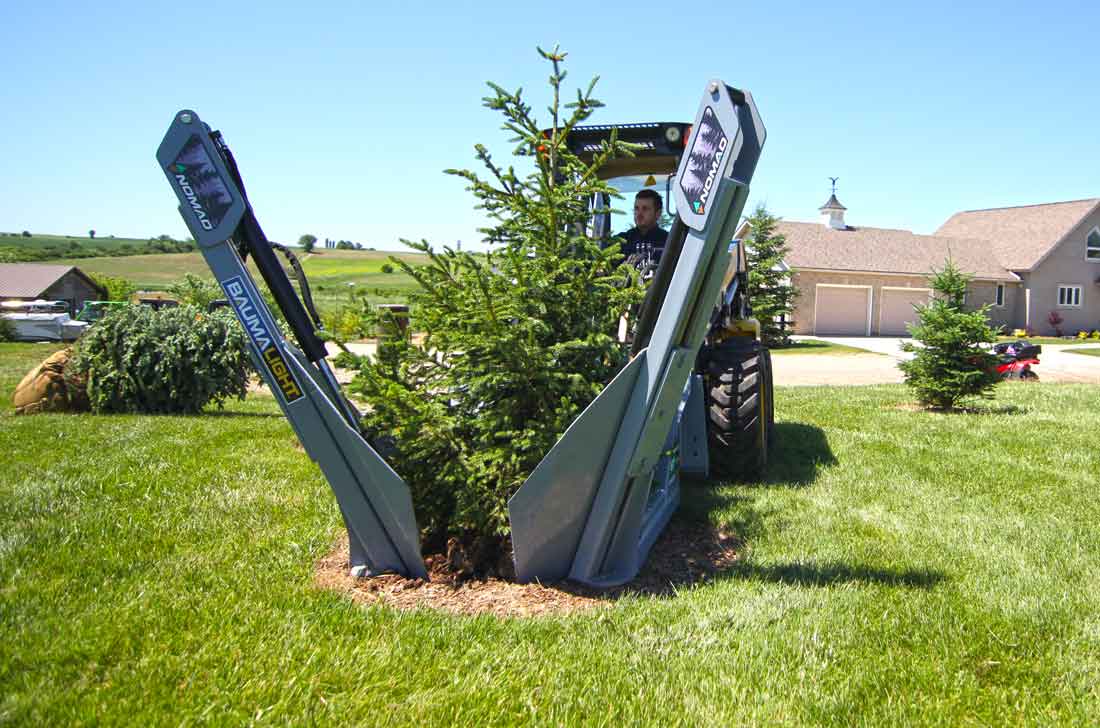

Position the tree spade around the tree to be moved ensuring it is resting on the ground and that the spades are spaced evenly around the tree. Failure to accurately position the spade may result in unnecessary trauma to the tree.

Depth Illustration

Dig in with each spade 3 inches down then 2 inches back until frame rests on ground. Move to the next spade working around the tree. This keeps the spades aligned with less disruption to the roots and keeps the tree straight. Keep working the spades in until they are fully extended.

Note: Frame must remain on ground or root ball size will be decreased.

When all spades are fully extended, wiggle the root ball in the hole slightly increasing the pocket sides and releasing additional root mass. Raise the unit, lifting the tree out of the hole. Depending on the extent of the root growth some manual root pruning may be required to free the tree.

Place the tree in the hole and reverse the process by raising the spades around the tree a little at a time until the tree is resting comfortably in its new home.

Depth Illustration



How it Works Step 1

Step 1

Prepare root ball.

Flatten root ball for stability. Retract the spades a little at a time in a circular motion, until approx. 6" of the root ball is exposed below spades. Using a shovel remove the excess and flatten the root ball.

How it Works Step 2

Step 2

Get basket ready.

Place your burlap liner in the wire basket and place the basket on level ground.

How it Works Step 3

Step 3

Place in Basket

Line up the root ball with basket and lower into place. Retract the spades fully, until root ball is resting in basket. Remove the tree spade leaving tree in basket.

How it Works Step 4

Step 4

Tie tree in place.

Fold in burlap and basket and tie tree into place.

Tree Baskets

Tree Baskets

Detailed Specifications

Specification Details
Model ST324/D003430
Root Ball Capacity 24 inches
Blade Count 4
Blade Material High-strength steel
Control Options Manual, Hydraulic, Wireless
Hydraulic Flow 10 - 50 GPM
Weight Approx. 1350 lbs
Usage Landscaping, Forestry, Agricultural
Mounting Type Telehandler
Adjustable Arm Yes
Color Gray


ELECTRIC CONTROLS WITH 20' OF WIRE

Part #: ST324/D001782
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 24" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 4,500LBS-12,000LBS
Attachment Size: 24" ROOT BALL

AUX CONNECTION FOR ST324

Part #: ST324/D003427
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 24" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 4,500LBS-12,000LBS
Attachment Size: 24" ROOT BALL

WIRELESS HAND CONTROLS WITH 20' OF WIRE

Part #: ST324/D003430
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 24" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 4,500LBS-12,000LBS
Attachment Size: 24" ROOT BALL

MANUAL CONTROLS

Part #: ST324/D003443
Mfg: BAUMALIGHT
Category: TELEHANDLER ATTACHMENTS
SubCategory: TREE SPADE TELEHANDLER 24" ROOT BALL
Industry: CONSTRUCTION
Machine Size: 4,500LBS-12,000LBS
Attachment Size: 24" ROOT BALL

General Warranty Info:

  • Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

SERVICE AND INSTRUCTIONAL VIDEOS

Greasing Tree Spade Pins



How to Keep Tree Spade Frame Down in Tough Digging Conditions



How to Operate Baumalight Tree Spade with AUX Controls


Inserting a pin in a 8 and 14 pin connector
