TREE SPADE (ELECTRIC CONTROLS WITH 20' OF WIRE) Needs 12V wire to spade

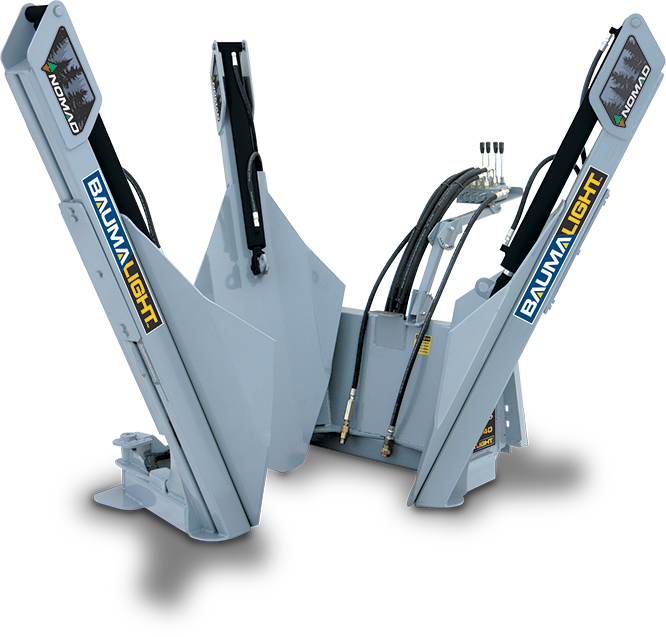

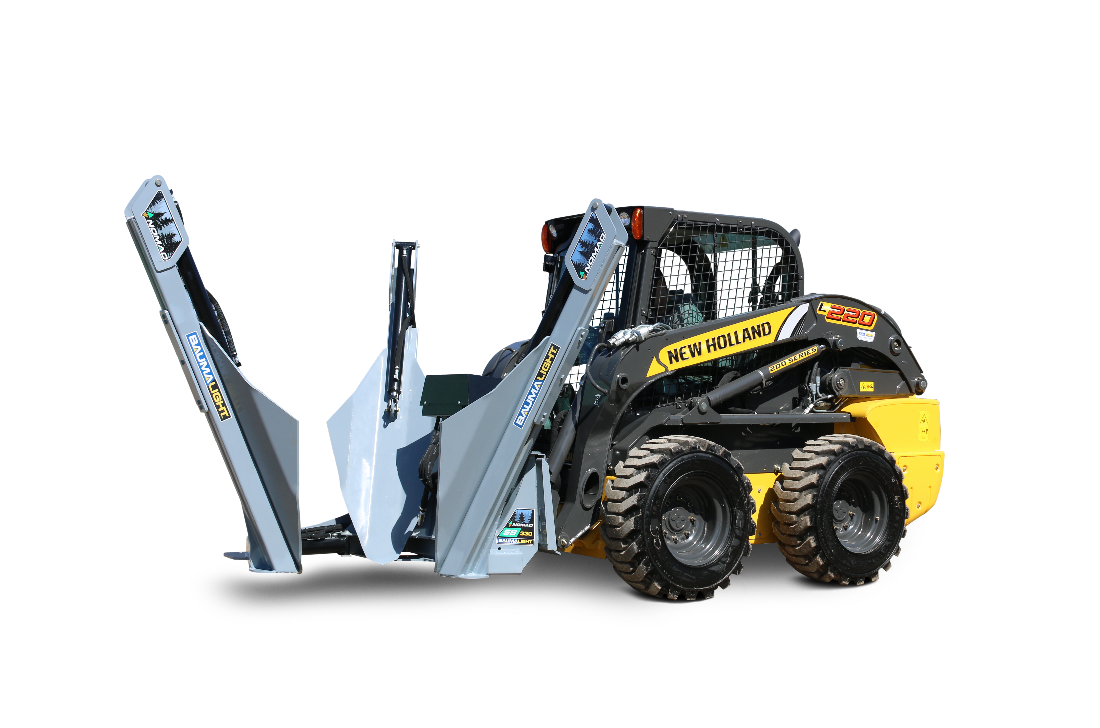

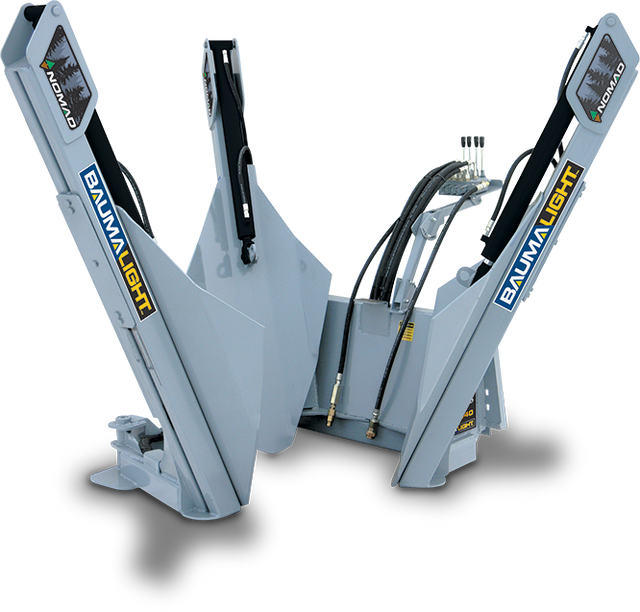

SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers
TREE SPADE (WIRELESS HAND CONTROLS WITH 20' OF WIRE)
SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers.
TREE SPADE (MANUAL CONTROLS)
SS330: Compact Hinged 3 Blade The Baumalight SS330 tree spade adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make this skid steer mounted tree spade a great match for landowners and landscapers.
SKIDSTEER EXTENSION ADAPTOR (D005198)
Depending on your skidsteer model, the wheel base may be too close to the hoses when the DR434 tilts all the way back. If this is the case, the D005198 extension adaptor protects the hoses by pushing out the spade away from the wheel base.
ANTI SLIP
Non slip step pads for easy entry.
SLEEVED HOSES
All hoses are sleeved for operator and hose protection.
POWDER COAT FINISH
Heavy-duty construction and a durable powder-coated finish.
POWERFUL GATE CYLINDER
LIFTING EYE
Lifting eyes for easy storage and transport.
SEMI TRUNCATED BLADES
The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to hold sandier soils.
STEP GRIP IN FRAME
The powder coated frame has multiple anti-slip pads and laser cut steps, giving the operator a secure footing for easy entry and exit from the cab.
UNIVERSAL SKIDSTEER ADAPTOR
HARDENED STEEL BUSHING
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
POWERFUL GATE CYLINDER
GREASEABLE PINS
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
Find the new location for your tree. Position the spade at a defined direction, say North. Engage blades and scoop your hole.
Align the spade with the tree in the same direction chosen for the hole—in this case, North.
Open blade, move forward to position tree in the center of the dig area. Engage blades until they meet.
Lift the tree up and transport to the new hole. Note: In harder earth, the spades may cause glazing on the hole walls. Before the new tree is placed, this surface needs scuffing in order for the new roots to penetrate.
Align the shaft with the orientation of the new hole. Lower and position the tree Note: Trees become more tolerant of hot afternoon sun on one side. Changing their orientation can burn the foliage.
Prepare root ball.
Flatten root ball for stability. Retract the spades a little at a time in a circular motion, until approx. 6" of the root ball is exposed below spades. Using a shovel remove the excess and flatten the root ball.
Get basket ready.
Place your burlap liner in the wire basket and place the basket on level ground.
Place in Basket
Line up the root ball with basket and lower into place. Retract the spades fully, until root ball is resting in basket. Remove the tree spade leaving tree in basket.
Tie tree in place.
Fold in burlap and basket and tie tree into place.
ASV RT120 HIGH FLOW | |
ASV RT75 HIGH FLOW | |
ASV RT75 STANDARD FLOW | |
ASV VT70 HIGH FLOW | |
ASV VT70 STANDARD FLOW | |
BOBCAT T62 HIGH FLOW | |
BOBCAT T62 STANDARD FLOW | |
BOBCAT T64 HIGH FLOW | |
BOBCAT T64 STANDARD FLOW | |
BOBCAT T66 HIGH FLOW | |
BOBCAT T66 STANDARD FLOW | |
BOBCAT T740 HIGH FLOW | |
BOBCAT T740 STANDARD FLOW | |
BOBCAT T76 HIGH FLOW | |
BOBCAT T76 STANDARD FLOW | |
BOBCAT T770 HIGH FLOW | |
BOBCAT T770 STANDARD FLOW | |
CASE TR270 HIGH FLOW | |
CASE TR270 STANDARD FLOW | |
CASE TR310 HIGH FLOW | |
CASE TR310 STANDARD FLOW | |
CASE TR340 ENHANCED HIGH FLOW | |
CASE TR340 STANDARD FLOW | |
CASE TV370 HIGH FLOW | |
CASE TV370 STANDARD FLOW | |
CASE TV450 ENHANCED HIGH FLOW | |
CASE TV450 STANDARD FLOW | |
CATERPILLAR 257 STANDARD FLOW | |
CATERPILLAR 289 HIGH FLOW | |
CATERPILLAR 299 D3 XE | |
CATERPILLAR 299 HIGH FLOW | |
CATERPILLAR 299 STANDARD FLOW | |
CATERPILLER 259 HIGH FLOW | |
CATERPILLER 259 STANDARD FLOW | |
CATERPILLER 279 STANDARD FLOW | |
CATERPILLER 289 STANDARD FLOW | |
JOHN DEERE 325G HIGH FLOW | |
JOHN DEERE 325G STANDARD FLOW | |
JOHN DEERE 331G HIGH FLOW | |
JOHN DEERE 331G STANDARD FLOW | |
JOHN DEERE 333G HIGH FLOW | |
JOHN DEERE 333G STANDARD FLOW | |
KUBOTA SSV65F HIGH FLOW | |
KUBOTA SVL75 HIGH FLOW | |
KUBOTA SVL75 STANDARD FLOW | |
KUBOTA SVL90 HIGH FLOW | |
KUBOTA SVL90 STANDARD FLOW | |
KUBOTA SVL95 HIGH FLOW | |
KUBOTA SVL95 STANDARD FLOW | |
KUBOTA SVL97 HIGH FLOW | |
KUBOTA SVL97 STANDARD FLOW | |
MUSTANG 1650RT STANDARD FLOW | |
NEW HOLLAND C332 HIGH FLOW | |
NEW HOLLAND C332 STANDARD FLOW | |
NEW HOLLAND C334 HIGH FLOW | |
NEW HOLLAND C345 HIGH FLOW | |
NEW HOLLAND C345 STANDARD FLOW | |
NEW HOLLAND C362 HIGH FLOW | |
TAKEUCHI TL10 HIGH FLOW | |
TAKEUCHI TL10V2 STANDARD FLOW | |
TAKEUCHI TL6R STANDARD FLOW | |
TAKEUCHI TL8 HIGH FLOW | |
TAKEUCHI TL8R2 STANDARD FLOW |
Part #: | SS330/D001565 |
Mfg: | BAUMALIGHT |
Category: | SKID STEER ATTACHMENTS |
SubCategory: | TREE SPADE SKID STEER 30" ROOT BALL |
Industry: | CONSTRUCTION |
Machine Size: | 5,200LBS-12,000LBS |
Attachment Size: | 30" ROOT BALL |
Part #: | SS330/D001261 |
Mfg: | BAUMALIGHT |
Category: | SKID STEER ATTACHMENTS |
SubCategory: | TREE SPADE SKID STEER 30" ROOT BALL |
Industry: | CONSTRUCTION |
Machine Size: | 5,200LBS-12,000LBS |
Attachment Size: | 30" ROOT BALL |
Part #: | SS330/D003444 |
Mfg: | BAUMALIGHT |
Category: | SKID STEER ATTACHMENTS |
SubCategory: | TREE SPADE SKID STEER 30" ROOT BALL |
Industry: | CONSTRUCTION |
Machine Size: | 5,200LBS-12,000LBS |
Attachment Size: | 30" ROOT BALL |
