Greasing Tree Spade Pins
Description

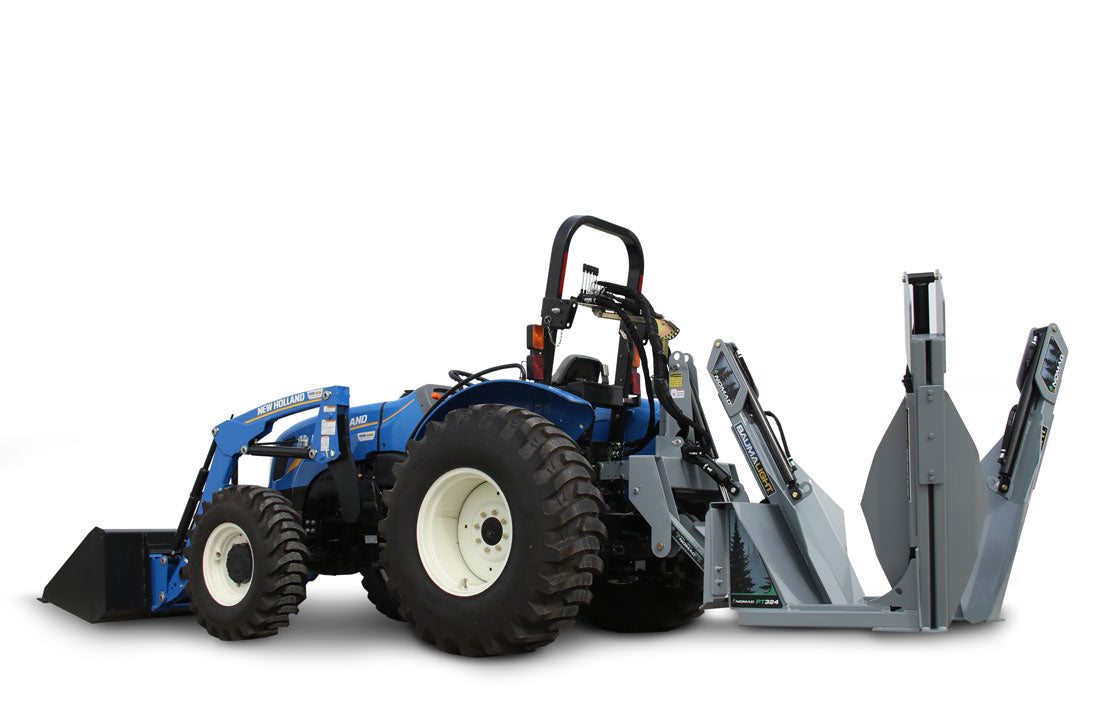

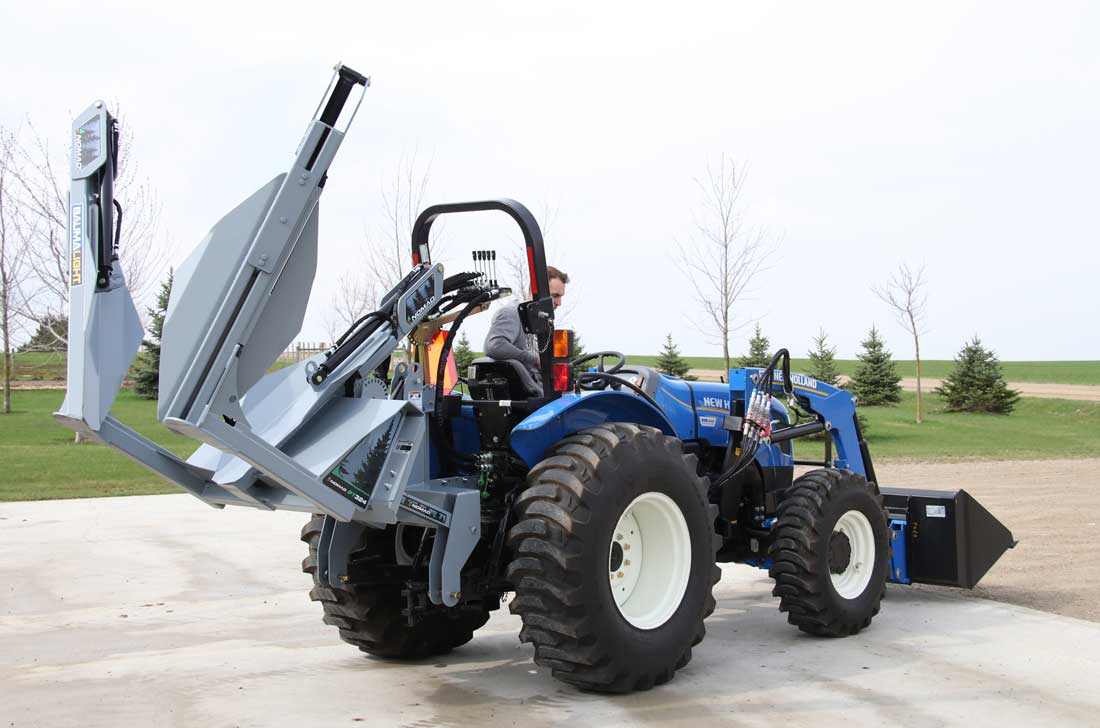

Baumalight Tree Spade | Model PT324/D003430 | 24" Root Ball With 3 Point Hitch | For Tractor
DESCRIPTION
The Baumalight PT324/D003430 Tree Spade is a powerful attachment designed for tractors with a 3- point hitch It features a 24" root ball capacity, making it ideal for transplanting trees with precision and eas. The spade is equipped with three blades to ensure efficient digging and root ball compacting, ensuring cleaner and more viable transplants
PT324-D003430 - ST324 w/6M 3PT Hitch Adaptor - Wireless Controls (needs 12v to spade)
This fixed frame hydraulic tree spade gives you tree-moving power for your smaller skidsteers. The PT324 Small Fixed Compact tree spade features three blades to give you the digging and root ball compacting action necessary for cleaner and more viable transplants.
PT324-D003443 - ST324 w/6M 3PT Hitch Adaptor - Manual Controls
This fixed frame hydraulic tree spade gives you tree-moving power for your smaller skidsteers. The PT324 Small Fixed Compact tree spade features three blades to give you the digging and root ball compacting action necessary for cleaner and more viable transplants.
PT324-D001782 - ST324 w/6M 3PT Hitch Adaptor - Electric Controls (20" of wire)
This fixed frame hydraulic tree spade gives you tree-moving power for your smaller skidsteers. The PT324 Small Fixed Compact tree spade features three blades to give you the digging and root ball compacting action necessary for cleaner and more viable transplants.
Key Features
-
Efficient Root Ball Compacting: The three blades provide effective digging and root ball compacting action.
-

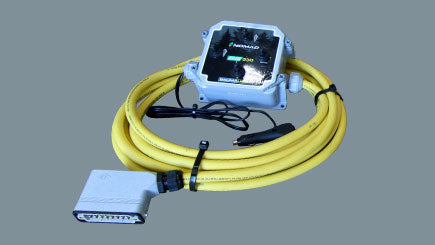

Wireless Control: Allows for precise control from a distance, enhancing operational efficiency.
-
Builtin Hydraulics: Provides tilt, down pressure, and lift functions for better positioning and handling.
-
Field Installable: Can be added to an existing Baumalight spade.
-
Heavy-Duty Construction: Designed for durability and long-lasting performance
ANTI SLIP
Non slip step pads for easy entry.
JIC FITTINGS
Secure hydraulic conectios and easy servicing.
SLEEVED HOSES
All hoses are sleeved for operator and hose protection.
POWDER COAT FINISH
Heavy-duty construction and a durable powder-coated finish.
LIFTING EYE
Lifting eyes for easy storage and transport.
SEMI TRUNCATED BLADES

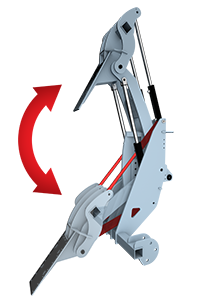

The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to hold sandier soils.
CYLINDERS PUSH FOR MAXIMUM EFFICIENCY
UNIVERSAL SKIDSTEER ADAPTOR
BOLT IN TRACTOR LOADER ADAPTOR
POWER BUILT-IN

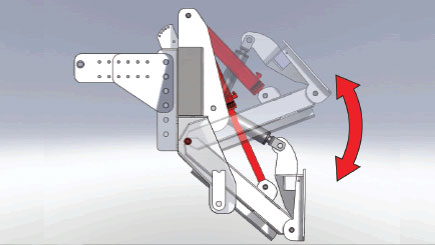

Attached to your tractor by a rigid top link and lower arms, the built-in hydraulics are designed to provide tilt for positioning, down pressure to help keep the frame in position, and lift to get the tree spade out of the hole.
WIDE RANGE OF CONTROL OPTIONS
Increase the efficiency of your tree spade operation with the Controls line of remotes from Baumalight.
GREASEABLE PINS
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
SET UP FOR SHIPPING
The PT324 3-point hitch tree spade is shipped on a nice metal shipping and storage skid.
STEP 1
Find the new location for your tree. Position the spade at a defined direction, say North. Engage blades and scoop your hole.
STEP 2
Align the spade with the tree in the same direction chosen for the hole—in this case, North.
Open blade, move forward to position tree in the center of the dig area. Engage blades until they meet.
STEP 3
Lift the tree up and transport to the new hole. Note: In harder earth, the spades may cause glazing on the hole walls. Before the new tree is placed, this surface needs scuffing in order for the new roots to penetrate.
STEP 4
Align the shaft with the orientation of the new hole. Lower and position the tree Note: Trees become more tolerant of hot afternoon sun on one side. Changing their orientation can burn the foliage.
HOW IT BUCKET
STEP 1
Prepare root ball.
Flatten root ball for stability. Retract the spades a little at a time in a circular motion, until approx. 6" of the root ball is exposed below spades. Using a shovel remove the excess and flatten the root ball.
STEP 2
Get basket ready.
Place your burlap liner in the wire basket and place the basket on level ground.
STEP 3
Place in Basket
Line up the root ball with basket and lower into place. Retract the spades fully, until root ball is resting in basket. Remove the tree spade leaving tree in basket.
STEP 4
Tie tree in place.
Fold in burlap and basket and tie tree into place.
TREE BASKETS
Detailed Specifications
| Specification | Detail |
|---|---|
| Model | PT324/D003430 |
| Root Ball Capacity | 24" |
| Minimum Tractor Weight | 3000 lbs |
| Control Type | Wireless |
| Mount Type | 3-Point Hitch |
| Blade Count | 3 |
| Hydraulics | Built-in for tilt, down pressure, and lift |
| Control Options | Manual hydraulic valves, wireless controller |
PT324/D003430
| Part #: | PT324/D003430 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 24" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 3000LBS MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 24" ROOT BALL |
PT324/D001782
| Part #: | PT324/D001782 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 24" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 3000LBS MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 24" ROOT BALL |
PT324/D003443
| Part #: | PT324/D003443 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 24" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 3000LBS MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 24" ROOT BALL |
