Baumalight Tree Spade Dual Hinged 6 Blade | Model ST650-D001783 | 50" Root Ball Diameters | For Skid Steer

DESCRIPTION

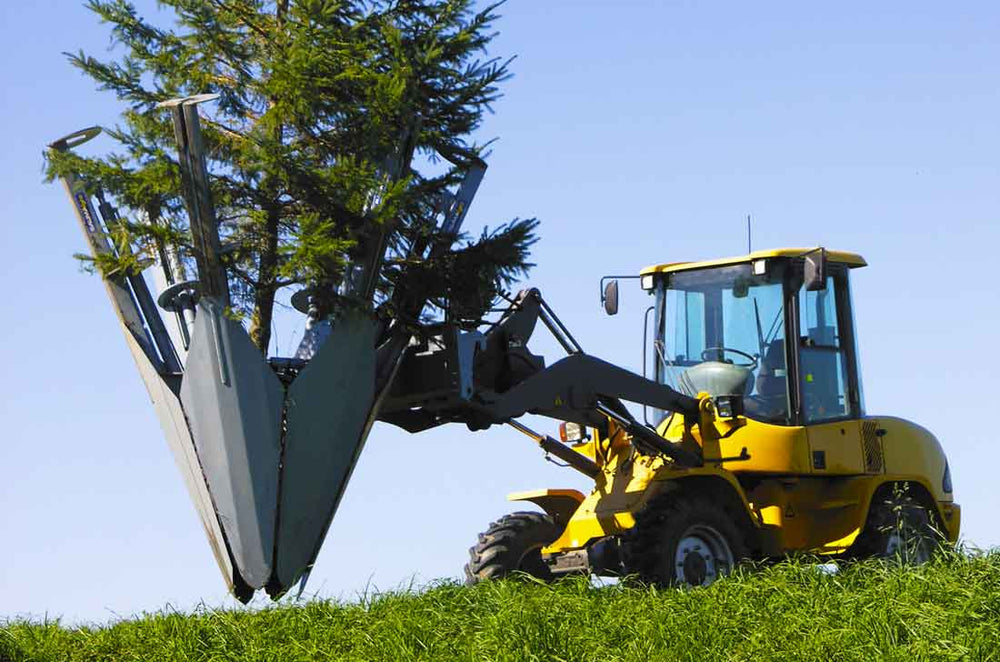

The Baumalight Tree Spade 50" Root Ball 9,000LBS-12,000LBS for Skid Steer is a powerful attachment designed to simplify the process of transplanting trees and large shrubs. It features a robust, three-blade design that can handle trees with trunk diameters up to 3 inches and root balls up to 50 inches in diameter and 28 inches deep. The spade is built with a rugged frame and uncomplicated controls, making it easy to operate and highly efficient for various tree-moving tasks.

ELECTRIC CONTROLS WITH 20' OF WIRE

TREE SPADE (ELECTRIC CONTROLS WITH 20' OF WIRE)

ST650: Dual Hinged 6 Blade This six-blade skid steer mounted tree spade can move trees with trunks up to 5" in diameter and a root ball 50" in diameter and 43" deep. The dual-hinged outer frame arms allow the Nomad tree spade to open up and hug the tree for accurate positioning and to prevent damage to lower branches. The six blades deliver easier spading, cleaner cuts and a better root ball for a more viable transplant. Baumalight ST650 5" Evergreen 4" Hardwood Wheeled Skidsteer - 9200 lbs Tracked Skidsteer - 8500 lbs Wheel Loader - 8000 lbs Min. 3PH - 10000 lbs Min. Tractor Loader - 13000 lbs Min. Backhoe - 8000 lbs Telehandler - 8000 lbs

MANUAL CONTROLS

TREE SPADE (MANUAL CONTROLS)

WIRED HAND CONTROLS WITH AUX

TREE SPADE (WIRED HAND CONTROLS WITH AUX) NEED 12 VOLT TO SPADE REQUIRED 1 LIVE PIN

AUX CONNECTION FOR ST 650

TREE SPADE (AUX CONNECTION FOR ST 650) REQUIRED 7 LIVE PINS

Key Features

Three-Blade Design: Ensures efficient and clean root ball extraction.
Heavy-Duty Construction: Built to withstand tough working conditions.
Versatile Compatibility: Works with various types of loaders and backhoes.
Easy Operation: Simple controls for efficient tree transplanting.
Wireless Control Option: Allows for greater mobility and precision during operation.
Rugged Frame: Provides durability and longevity.

Anti Slip

Non slip step pads for easy entry.

JIC Fittings

Secure hydraulic conectios and easy servicing.

Sleeved Hoses

All hoses are sleeved for operator and hose protection.

Powder Coat Finish

Heavy-duty construction and a durable powder-coated finish.

Lifting Eye

Lifting eyes for easy storage and transport.

Semi Truncated Blades

The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to to hold sandier soils.

Cylinders Push For Maximum Efficiency

Universal Skid Steer Adaptor

Note: Not included in Price of Spade

Bolt in Tractor Loader Adaptor

Note: Not included in Price of Spade

Wide Range Of Control Options

Increase the efficiency of your tree spade operation with the Controls line of remotes from Baumalight.

Hardened Steel Bushing

Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.

Greaseable Pins

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

CONTROL OPTIONS:

With multiple choices available, the Controls line from Baumalight gives you both the power and freedom to control your tree spade. Whether you choose a fixed manual control solution, wired, wireless or AUX Baumalight has you covered. We also can custom connect to your existing electrical plug on your boom to connect to your build in cab controls.

Manual Control

Manual hydraulic valves with a dual position mounting stand.

Wired Control

Control all the digging and swinging actions from the seat of your carrier with hand held remote control using the power of your 12 volt plug.

Wireless Control

For the ultimate in convenience, the wireless controller option gives you the ability to move freely around the spading operation for the most precise insertion and extraction points available.

Auxiliary Electrical Connection

Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.

See video on how AUX operation works

HOW IT WORKS:

Step 1

Find the new location for your tree. Position the spade at a defined direction, say North. Engage blades and scoop your hole.

Step 2

Align the spade with the tree in the same direction chosen for the hole—in this case, North.
Open blade, move forward to position tree in the center of the dig area. Engage blades until they meet.

Step 3

Lift the tree up and transport to the new hole. Note: In harder earth, the spades may cause glazing on the hole walls. Before the new tree is placed, this surface needs scuffing in order for the new roots to penetrate.

Step 4

Align the shaft with the orientation of the new hole. Lower and position the tree Note: Trees become more tolerant of hot afternoon sun on one side. Changing their orientation can burn the foliage.

TREE MOVING BEST PRACTICES

When to Move

Trees can be planted any time of year, watering becomes more important if moved in a dry season. Although moving trees in the spring or fall has previously been seen as the optimal time, this is only because it is typically cooler and wetter during these times. When moving a tree outside of this, simply be sure the tree is well watered for several days before hand.

Preparation

Tree

Make sure the trees are well watered 2-3 days before moving.

Mark the trees orientation so it may be transplanted in the same direction reducing the risk of sunscalding.

Secure any low hanging branches that may be damaged during transplant.

Trunk size

The trunk size helps estimate the size of the root ball underground, as roots typically extend as far as the tree's branches. For softwood trees, it is generally acceptable to trim about half of the roots. Increased watering may be necessary when moving softwoods larger than recommended and selecting shady or moist locations will also help insure survivability when trimming large amounts of root. In contrast, for hardwood trees, only about one-third of the roots should be trimmed, as they are more sensitive to root loss and excessive watering will only lower chances of survival.

Hole

Location - find a suitable location that meets the environmental requirements of the specimen.

Create the hole in which the specimen will be relocated.

Prepare the hole based on the soil condition. If the soil has a large clay content rough up the sides for easier root penetration. If the soil is sandy add appropriate nourishment, and if the soil is dry water the hole.

Aftercare

Keep well watered to help establish roots.

Apply mechanical supports if required to help stabilize the tree for one to two years while the specimen re-establishes.

Tips

Keep your tree spade in good operating condition and wellmaintained. Sharp blades will reduce damage to root systems.

Try to replant your specimen within two hours. This will help reduce shock.

Nomad Action Image

Spade School:

Position the tree spade around the tree to be moved ensuring it is resting on the ground and that the spades are spaced evenly around the tree. Failure to accurately position the spade may result in unnecessary trauma to the tree.

Depth Illustration

Dig in with each spade 3 inches down then 2 inches back until frame rests on ground. Move to the next spade working around the tree. This keeps the spades aligned with less disruption to the roots and keeps the tree straight. Keep working the spades in until they are fully extended.

Note: Frame must remain on ground or root ball size will be decreased.

When all spades are fully extended, wiggle the root ball in the hole slightly increasing the pocket sides and releasing additional root mass. Raise the unit, lifting the tree out of the hole. Depending on the extent of the root growth some manual root pruning may be required to free the tree.

Place the tree in the hole and reverse the process by raising the spades around the tree a little at a time until the tree is resting comfortably in its new home.

Depth Illustration

HOW TO BASKET:

Step 1

Prepare root ball.

Flatten root ball for stability. Retract the spades a little at a time in a circular motion, until approx. 6" of the root ball is exposed below spades. Using a shovel remove the excess and flatten the root ball.

Step 2

Get basket ready.

Place your burlap liner in the wire basket and place the basket on level ground.

Step 3

Place in Basket

Line up the root ball with basket and lower into place. Retract the spades fully, until root ball is resting in basket. Remove the tree spade leaving tree in basket.

Step 4

Tie tree in place.

Fold in burlap and basket and tie tree into place.

Tree Baskets
