Baumalight | DR434 Tree Spade For Skid Steer 4-Blades

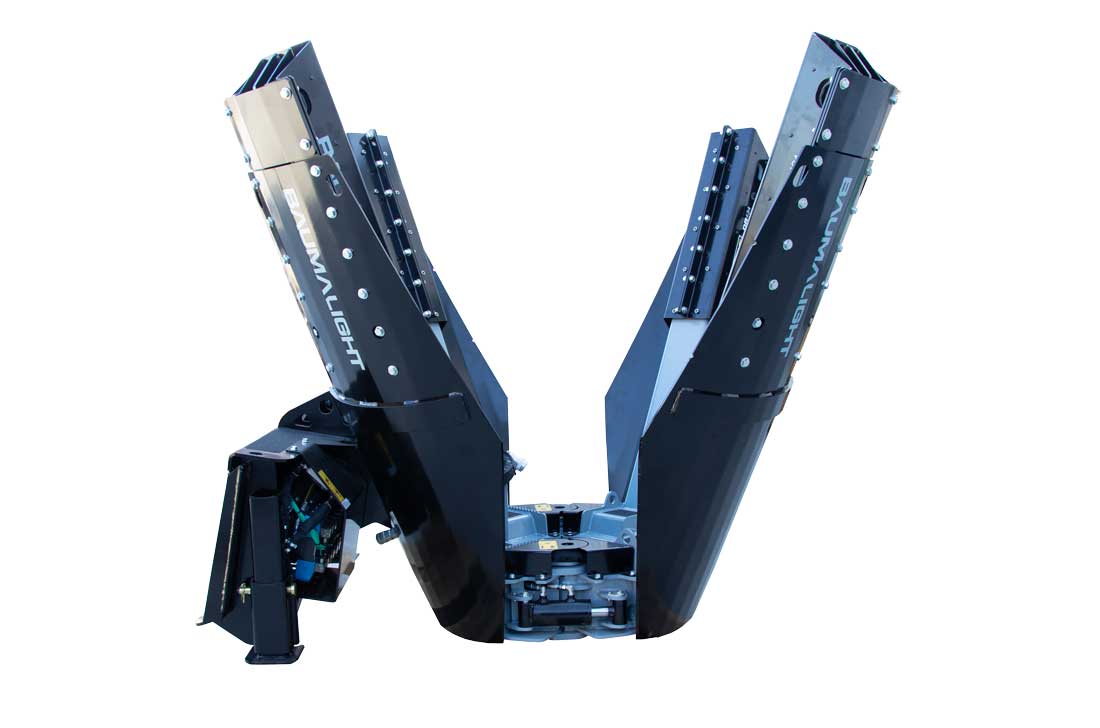

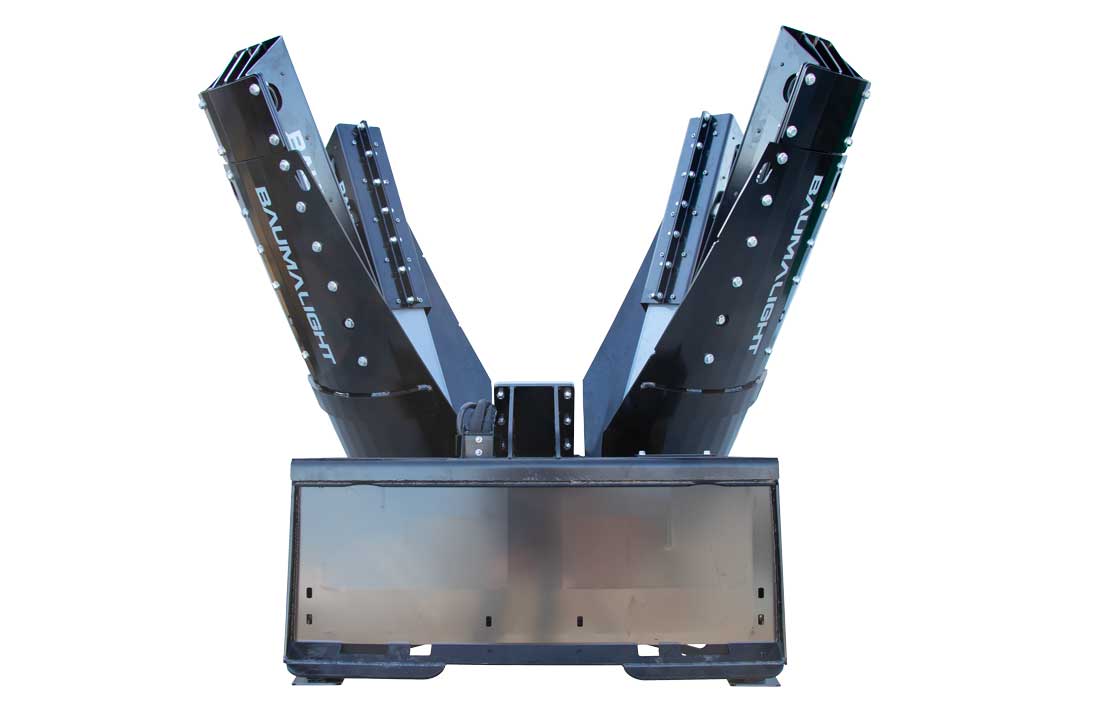

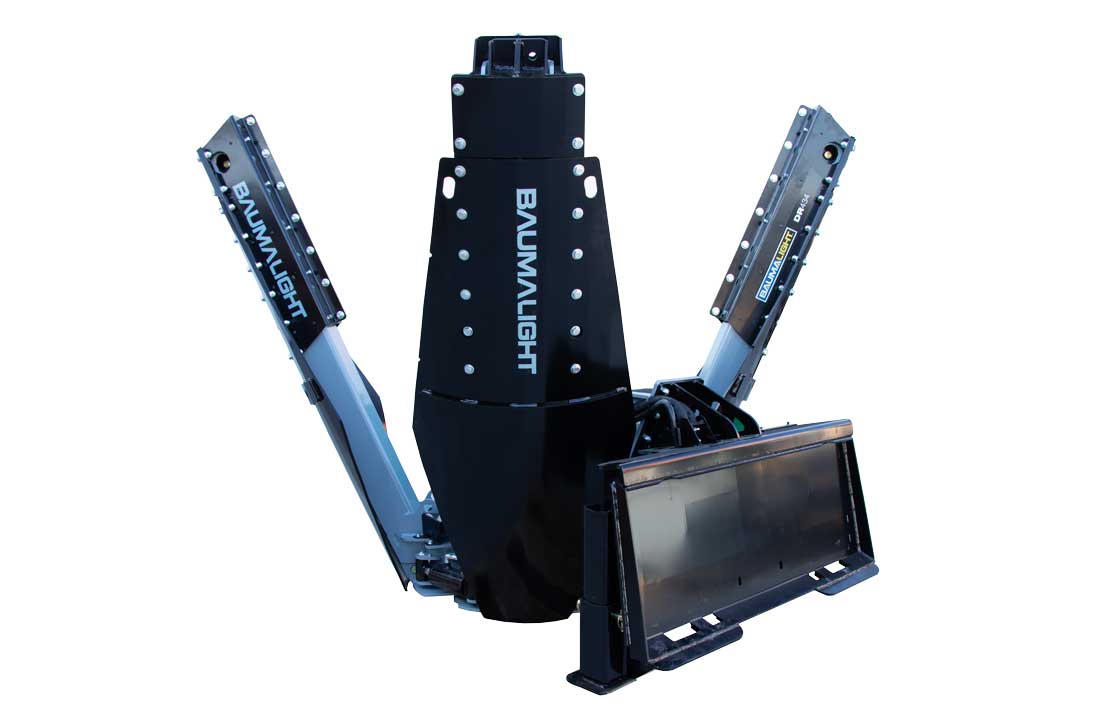

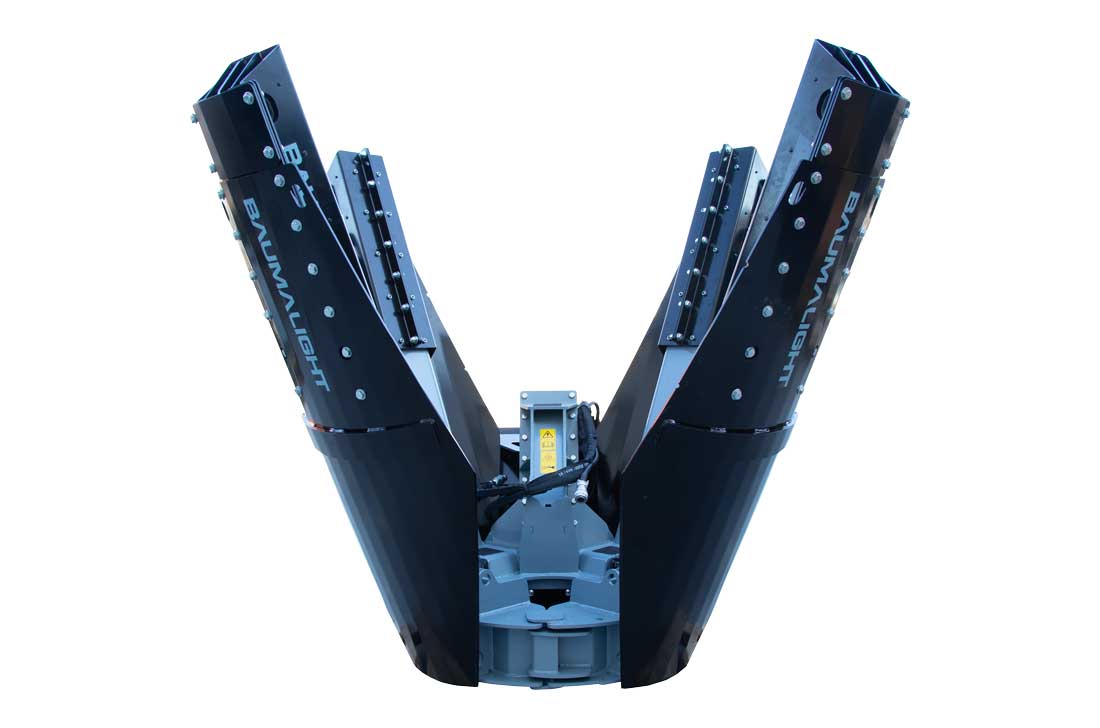

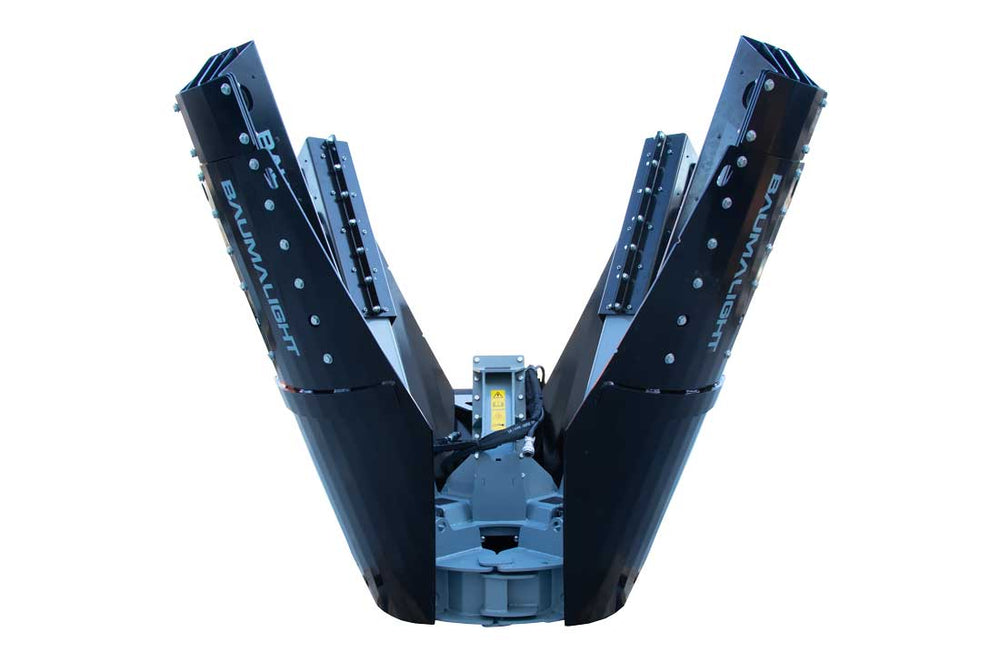

Baumalight Tree Spade 4-Blades | Model DR434/D001313 | 34" Root Ball Attachment Size | For Skid Steer

DESCRIPTION

The Baumalight Tree Spade 34" Root Ball 4-Blades for Skid Steer is a highly efficient and durable tool designed for transplanting trees with ease. This tree spade features a compact design, making it suitable for various environments and tasks. With its 34-inch root ball capacity and 4-blade configuration, it ensures precise and clean cuts, minimizing damage to the tree and its roots. The spade is equipped with a high-strength steel construction and intuitive controls, providing both reliability and ease of use for operators.

Spade-Electric Controls (20" of wire)

DR434 Skidsteer Industrial Tree Spade 34" 4-Blade Skidsteer Spade-Electric Controls (20" of wire)

The DR434, our smallest Industrial Tree Spades uses the same high-quality components as the larger industrial spades. In terms of design, the Baumalight DR434 is compact. This DR434 is capable of handling a variety of tasks in a variety of environments. The spade measures 34 inches in diameter and the blade thickness is 5/16-inch T1, a type of high-strength steel known for its toughness and durability. Another key characteristic of the Baumalight DR434 tree spade is its ease of operation. The spade is designed to be simple and straightforward, with intuitive controls that allow the operator to adjust the depth and angle of the spade to suit the task at hand. The spade is also equipped with a locking mechanism that holds the tree in position for transport. 3.5" Evergreen 3" Hardwood Wheeled Skidsteer - 7715 lbs Tracked Skidsteer - 6715 lbs Wheel Loader - 5715 lbs Min. 3PH - 7715 lbs Min. Tractor Loader - 8715 lbs Min. Backhoe - 6715 lbs Telehandler - 5715 lbs

Key Features

• 34-Inch Root Ball Capacity: Ideal for transplanting medium-sized trees with minimal root disturbance.
• 4-Blade Configuration: Ensures clean and precise cuts for better tree health.
• High-Strength Steel Blades: Made from 5/16-inch T1 steel for durability and toughness.
• Electric Controls: Easy-to-use controls with 20 inches of wire for flexible operation.
• Compact Design: Suitable for various environments and easy to maneuver.
• Powder-Coated Finish: Provides a durable and long-lasting finish to withstand tough conditions.
• Versatile Compatibility: Designed to fit most skid steer models for added convenience.

• SKIDSTEER EXTENSION ADAPTOR (D005198)

  Depending on your skidsteer model, the wheel base may be too close to the hoses when the DR434 tilts all the way back. If this is the case, the D005198 extension adaptor protects the hoses by pushing out the spade away from the wheel base.



• ANTI SLIP

  Non slip step pads for easy entry.



• SLEEVED HOSES

  All hoses are sleeved for operator and hose protection.



• POWDER COAT FINISH

  Heavy-duty construction and a durable powder-coated finish.



•  POWERFUL GATE CYLINDER



• LIFTING EYE

  Lifting eyes for easy storage and transport.



• SEMI TRUNCATED BLADES

  The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to hold sandier soils.



• STEP GRIP IN FRAME

  The powder coated frame has multiple anti-slip pads and laser cut steps, giving the operator a secure footing for easy entry and exit from the cab.



•  UNIVERSAL SKIDSTEER ADAPTOR



• HARDENED STEEL BUSHING

  Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.



•  POWERFUL GATE CYLINDER



• GREASEABLE PINS

  Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.



CONTROL OPTIONS:

MANUAL CONTROL

Manual hydraulic valves with a dual position mounting stand.

WIRED CONTROL

Control all the digging and swinging actions from the seat of your carrier with hand held remote control using the power of your 12 volt plug.

WIRELESS CONTROL

For the ultimate in convenience, the wireless controller option gives you the ability to move freely around the spading operation for the most precise insertion and extraction points available.

AUXILIARY ELECTRICAL CONNECTION

Baumalight now offers a more direct and simple way of connecting to your skidsteer’s auxiliary electrical connection. Simply connect the hydraulics and plug in the electrical. Now you can control the attachment from inside your cab.

See video on how AUX operation works

BOBCAT 7-PIN CANBUS PLUG

D006408 : Bobcat 7-pin CANBUS plug for two directional valves or four selector valves.

Note: D006386, D006408 & D007070 Greentronics controllers are incompatible with Bobcat Telehandlers.

HOW IT WORKS:

STEP 1

Find the new location for your tree. Position the spade at a defined direction, say North. Engage blades and scoop your hole.





STEP 2

Align the spade with the tree in the same direction chosen for the hole—in this case, North.
Open blade, move forward to position tree in the center of the dig area. Engage blades until they meet.





STEP 3

Lift the tree up and transport to the new hole. Note: In harder earth, the spades may cause glazing on the hole walls. Before the new tree is placed, this surface needs scuffing in order for the new roots to penetrate.





STEP 4

Align the shaft with the orientation of the new hole. Lower and position the tree Note: Trees become more tolerant of hot afternoon sun on one side. Changing their orientation can burn the foliage.





HOW TO BUCKET:

STEP 1

Prepare root ball.

Flatten root ball for stability. Retract the spades a little at a time in a circular motion, until approx. 6" of the root ball is exposed below spades. Using a shovel remove the excess and flatten the root ball.



STEP 2

Get basket ready.

Place your burlap liner in the wire basket and place the basket on level ground.



STEP 3

Place in Basket

Line up the root ball with basket and lower into place. Retract the spades fully, until root ball is resting in basket. Remove the tree spade leaving tree in basket.



STEP 4

Tie tree in place.

Fold in burlap and basket and tie tree into place.

Detailed Specifications

Spade-Electric Controls (20" of wire)
