Description

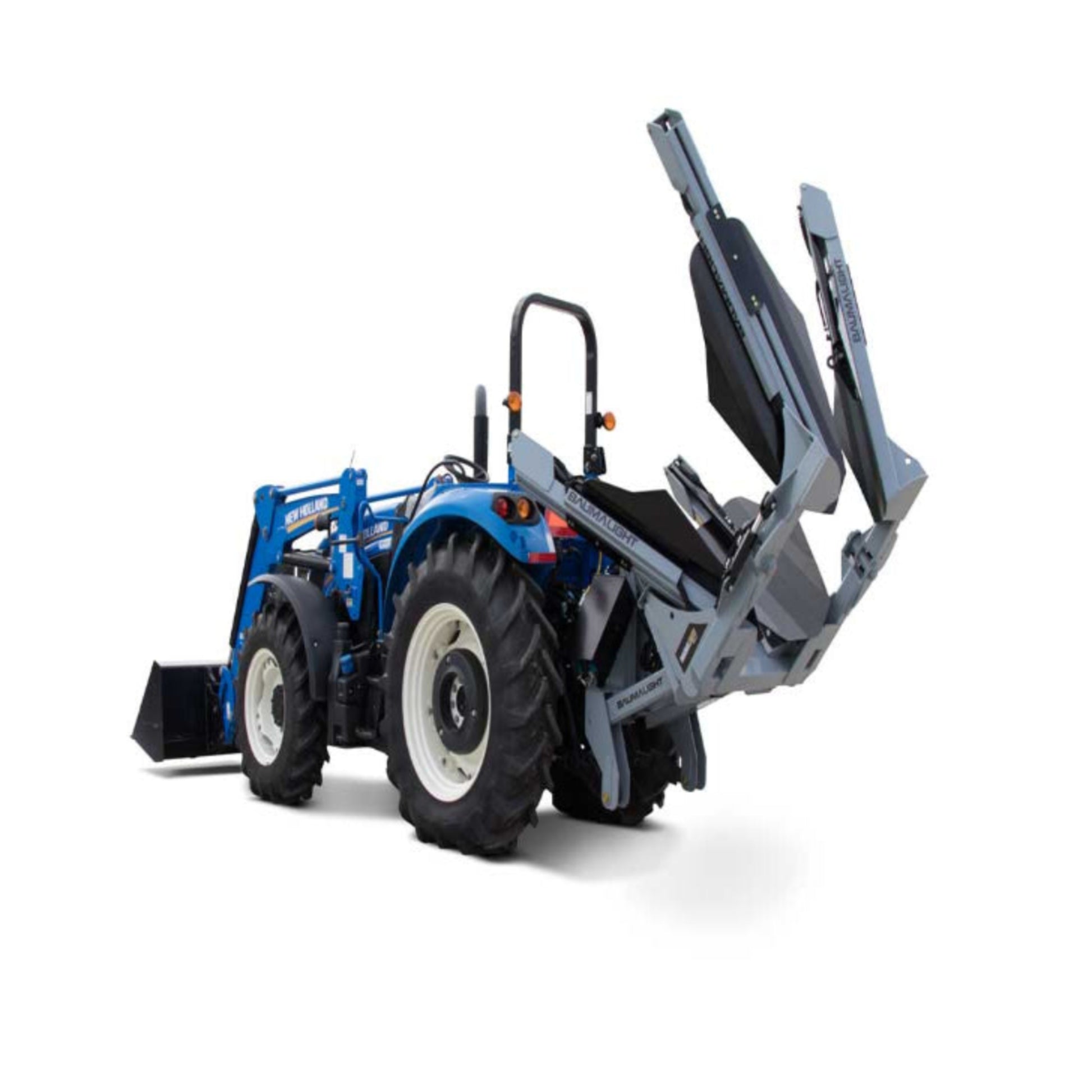

Baumalight Tree Spade 3 Point Hitch | Model PT440/D001566 | Capacity 40" Root Ball | For Tractor
DESCRIPTION
The Baumalight PT440/D001566 Tree Spade is a robust attachment designed for tractors with a 3-point hitch. It features a 40" root ball capacity, making it ideal for transplanting medium to large sized trees with precision and ease. This tree spade is engineered for durability and efficiency, ensuring successful tree transplants for landscaping, forestry, and agricultural operations.
- 4" Evergreen
- 3" Hardwood
- Wheeled Skidsteer - 7000 lbs
- Tracked Skidsteer - 6500 lbs
- Wheel Loader - 6000 lbs Min.
- 3PH - 6000 lbs Min.
- Tractor Loader - 7800 lbs Min.
- Backhoe - 6000 lbs
- Telehandler - 6000 lbs
Electric Controls (20" of wire)
PT440-D001313 - ST440 w/7M 3PT Hitch Adaptor - Electric Controls (20" of wire)

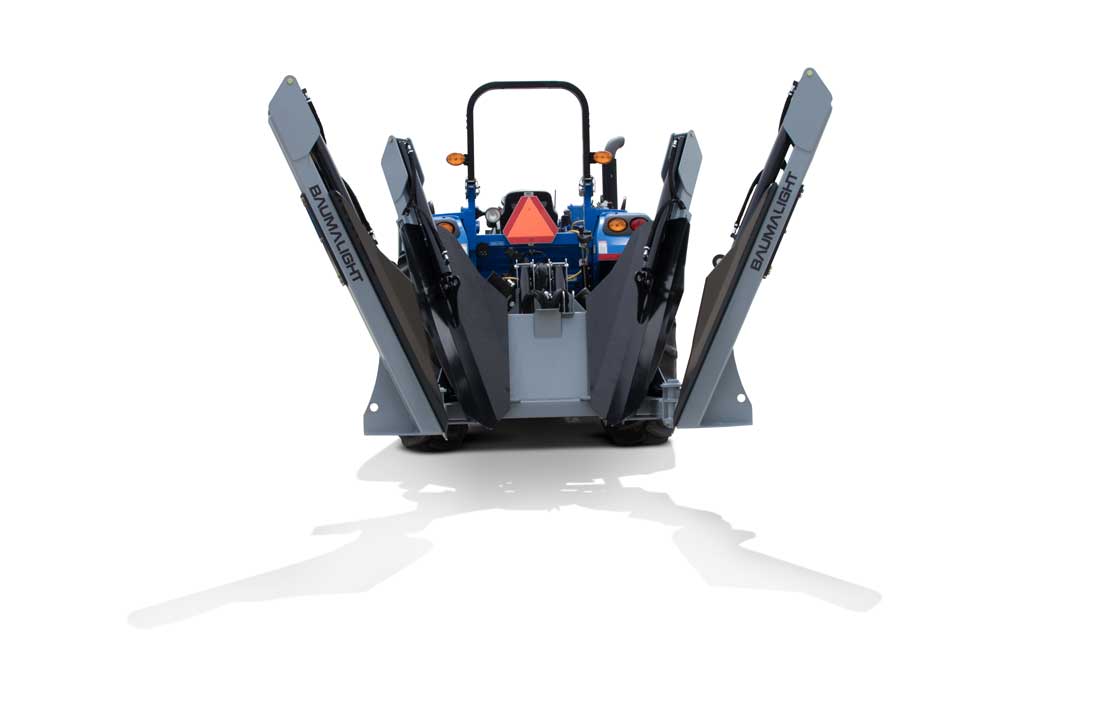

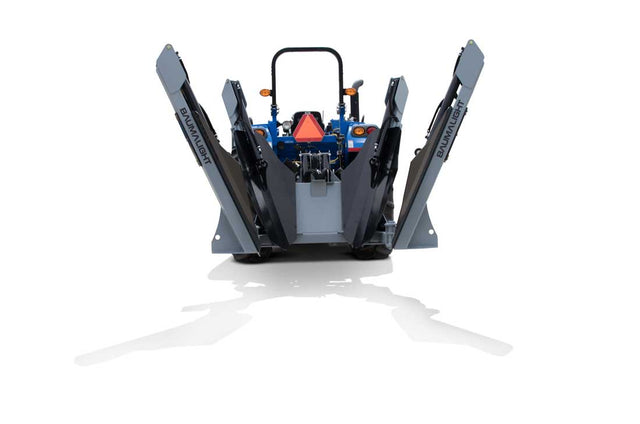

Four blades and dual-hinged outer frame arms immediately make the Nomad PT440 tree spade stand out. The wide blade position gives the operator a comfortable and clear view of the spading action, which is incredibly important when transplanting evergreen trees and minimizing damage to the lower branches. To avoid any unnecessary damage or trauma to the tree, the dual tree hugger hinged frame arms allow the operator to take extra care while positioning the tree spade. The PT440’s spades are made of 1/4" high alloy steel that hardens with use for reliable digging and compacting performance.
Wireless Controls (needs 12v to spade)
PT440-D001566 - ST440 w/7M 3PT Hitch Adaptor - Wirelss Controls (needs 12v to spade)
Four blades and dual-hinged outer frame arms immediately make the Nomad PT440 tree spade stand out. The wide blade position gives the operator a comfortable and clear view of the spading action, which is incredibly important when transplanting evergreen trees and minimizing damage to the lower branches. To avoid any unnecessary damage or trauma to the tree, the dual tree hugger hinged frame arms allow the operator to take extra care while positioning the tree spade. The PT440’s spades are made of 1/4" high alloy steel that hardens with use for reliable digging and compacting performance.
Manual Control
PT440-D003445 - ST440 w/7M 3PT Hitch Adaptor - Manual Controls
Four blades and dual-hinged outer frame arms immediately make the Nomad PT440 tree spade stand out. The wide blade position gives the operator a comfortable and clear view of the spading action, which is incredibly important when transplanting evergreen trees and minimizing damage to the lower branches. To avoid any unnecessary damage or trauma to the tree, the dual tree hugger hinged frame arms allow the operator to take extra care while positioning the tree spade. The PT440’s spades are made of 1/4" high alloy steel that hardens with use for reliable digging and compacting performance.
Key Features
- Large Root Ball Capacity: Capable of handling root balls up to 40 inches in diameter, ideal for medium to large tree transplants.
- Durable Construction: Made of high-strength steel for long-lasting performance.
- Multiple Control Options: Offers manual, hydraulic, and wireless control options for precise operation.
- Efficient Hydraulic System: Operates with a hydraulic flow of 10 - 50 GPM for powerful performance.
- Versatile Application: Suitable for various uses, including landscaping, forestry, and agricultural operations.
- Four-Blade Design: Ensures efficient digging and compacting of root balls for cleaner and more viable transplants.
Shipping configuration
The PT440 3-point hitch tree spade is shipped on a nice metal shipping and storage skid.
Anti Slip
Non slip step pads for easy entry.
JIC Fittings
Secure hydraulic conectios and easy servicing.
Sleeved Hoses
All hoses are sleeved for operator and hose protection.
Powder Coat Finish
Heavy-duty construction and a durable powder-coated finish.
Lifting Eye
Lifting eyes for easy storage and transport.
Semi Truncated Blades
The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to to hold sandier soils.
Cylinders Push for Maximum Efficiency
Universal Skidsteer Adaptor
Bolt in Tractor Loader Adaptor
Power Built-In
Attached to your tractor by a rigid top link and lower arms, the built-in hydraulics are designed to provide tilt for positioning, down pressure to help keep the frame in position, and lift to get the tree spade out of the hole.
Wide Range of Control Options
Increase the efficiency of your tree spade operation with the Controls line of remotes from Baumalight.
HARDENED STEEL BUSHING
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Greaseable Pins
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | PT440/D001566 |
| Hitch Type | 3 Point Hitch |
| Root Ball Capacity | 40 inches |
| Minimum Tractor Weight | 4000 lbs |
| Blade Material | High-strength steel |
| Blade Count | 4 |
| Control Options | Manual, Hydraulic, Wireless |
| Hydraulic Flow | 10 - 50 GPM |
| Weight | Approx. 1550 lbs |
| Usage | Landscaping, Forestry, Agricultural |
Electric Controls (20" of wire)
| Part #: | PT440/D001313 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 40" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 6000 LB MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 40" ROOT BALL |
Wireless Controls (needs 12v to spade)
| Part #: | PT440/D001566 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 40" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 6000 LB MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 40" ROOT BALL |
Manual Control
| Part #: | PT440/D003445 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 40" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 6000 LB MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 40" ROOT BALL |
