Baumalight Tree Spade 3 Point Hitch | Model PS330/D001261 | 30" Root Ball Diameter | For Tractor
DESCRIPTION
The Baumalight Tree Spade is a versatile attachment designed for tree transplanting. It features a three-point hitch and is suitable for tractors with a minimum weight of 4000 lbs. The spade can handle trees with a root ball diameter of 30 inches, making it ideal for both evergreen and hardwood trees.
PS330-D001261 - SS330 w/7M 3PT Hitch Adaptor - Electric Controls (20" of wire)
The Nomad PS330 adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. Because of its compact size, removing and positioning the perfect tree are easy tasks. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make the Nomad PS330 tree spade a great match for landowners and landscapers.
Electric Controls (20" of wire) 28" deep root ball
PT330-D001782 - ST330 w/7M 3PT Hitch Adaptor - Electric Controls (20" of wire)
The three-blade fixed frame Nomad PT330 tree spade is designed to simplify tree transplanting. Featuring uncomplicated controls and a rugged frame, the PT330 is ready to get down to work. Built to tackle trees and saplings with up to 3" trunk diameters and a 30" diameter and 28" deep root ball, it’s no wonder this tree spade is a favourite among acreage owners.
Wireless Controls (needs 12v to spade)
PS330-D001565 - SS330 w/7M 3PT Hitch Adaptor - Wireless Controls (needs 12v to spade)
The Nomad PS330 adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. Because of its compact size, removing and positioning the perfect tree are easy tasks. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make the Nomad PS330 tree spade a great match for landowners and landscapers.
Wireless Controls (needs 12v to spade) 28" deep root ball
PT330-D003430 - ST330 w/7M 3PT Hitch Adaptor - Wirelss Controls (needs 12v to spade)
The three-blade fixed frame Nomad PT330 tree spade is designed to simplify tree transplanting. Featuring uncomplicated controls and a rugged frame, the PT330 is ready to get down to work. Built to tackle trees and saplings with up to 3" trunk diameters and a 30" diameter and 28" deep root ball, it’s no wonder this tree spade is a favourite among acreage owners.
Manual Control
PS330-D003444 - ST330 w/7M 3PT Hitch Adaptor - Manual Controls
The Nomad PS330 adds a hinged frame arm for easy positioning and less damage to lower branches. This three-blade tree spade can handle trees up to 3" in diameter. Because of its compact size, removing and positioning the perfect tree are easy tasks. The rear spades on either side of the operator provide the best possible view of the spading operations. Operator comfort and size make the Nomad PS330 tree spade a great match for landowners and landscapers.
Key Features
-
Three-Point Hitch: Easy attachment to tractors with a minimum weight of 4000 lbs.
-
30" Root Ball Diameter: Suitable for both evergreen and hardwood trees.
-
Three Blades: Made of 3/8" steel for durability.
-
Manual and Hydraulic Controls: Offers flexibility in operation.
-
Wireless Control Option: Allows for precise control and ease of use.
-
Rugged Frame: Built to handle tough tree transplanting tasks.
Anti Slip
Non slip step pads for easy entry.
JIC Fittings
Secure hydraulic conectios and easy servicing.

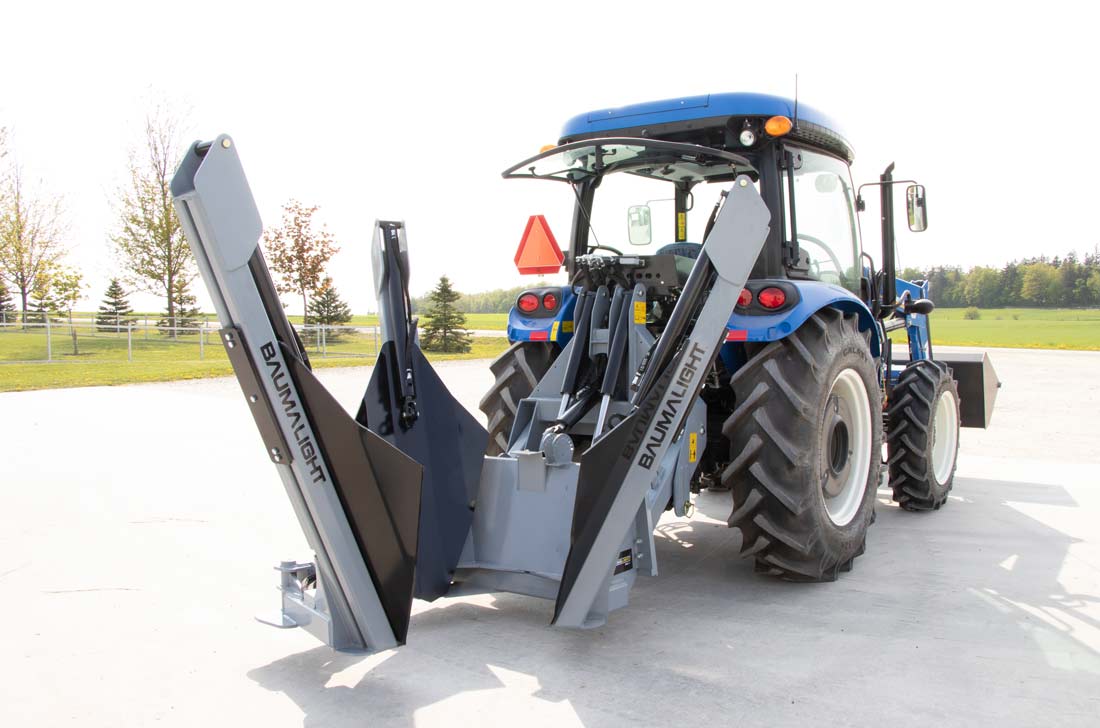

Sleeved Hoses
All hoses are sleeved for operator and hose protection.
Powder Coat Finish
Heavy-duty construction and a durable powder-coated finish.
Lifting Eye
Lifting eyes for easy storage and transport.
Semi Truncated Blades
The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to hold sandier soils.
Cylinders Push for Maximum Efficiency
Universal Skidsteer Adaptor
Bolt in Tractor Loader Adaptor
Power Built-In

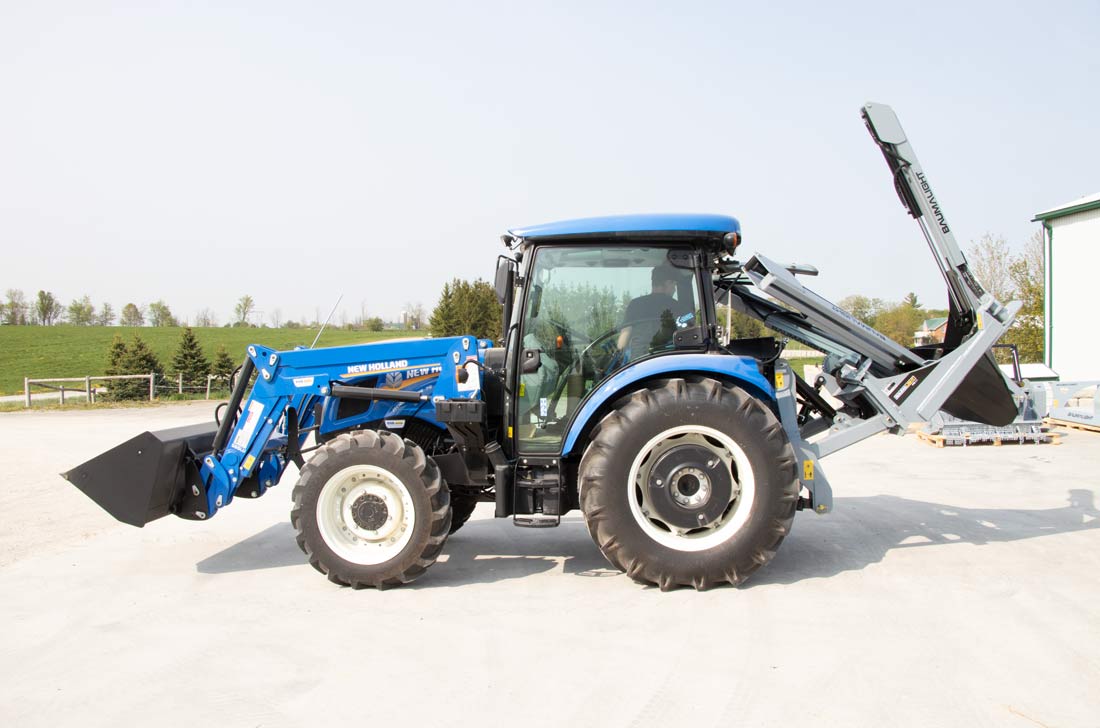

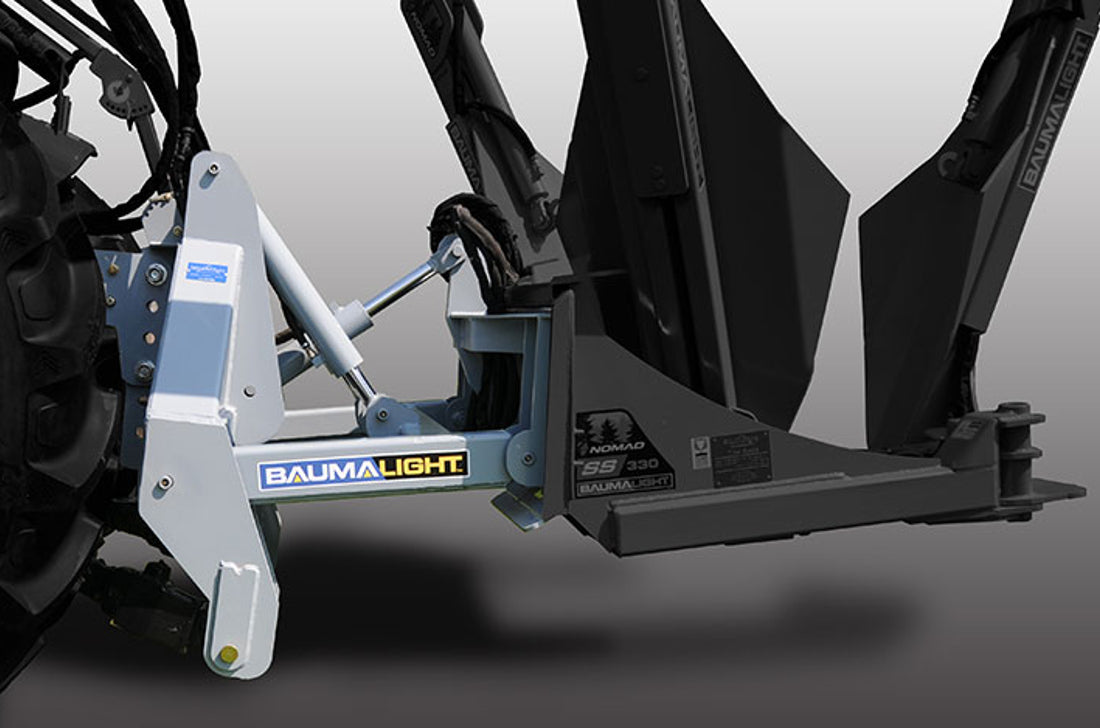

Attached to your tractor by a rigid top link and lower arms, the built-in hydraulics are designed to provide tilt for positioning, down pressure to help keep the frame in position, and lift to get the tree spade out of the hole.
Wide Range of Control Options

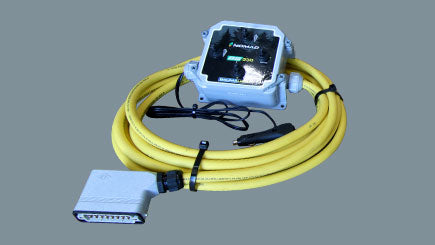

Increase the efficiency of your tree spade operation with the Controls line of remotes from Baumalight.
Hardened Steel Bushing
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Greaseable Pins
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
Set up for shipping
The PS330 3-point hitch tree spade is shipped on a nice metal shipping and storage skid.
Detailed Specifications
| Specification | Detail |
|---|---|
| Model | Baumalight Tree Spade |
| Hitch Type | 3 Point Hitch |
| Root Ball Diameter | 30 inches |
| Minimum Tractor Weight | 4000 lbs |
| Blade Material | 3/8" Steel |
| Blade Quantity | 3 |
| Root Ball Depth | 28 inches |
| Control Options | Manual, Hydraulic, Wireless |
| Required Hydraulic Flow | 10 - 50 GPM |
| Weight | 1550 lbs (without root ball) |
| Color | Gray |
Manual Control
| Part #: | PS330/D001261 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 30" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 4000 LB MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 30" ROOT BALL |
Electric Controls (20" of wire) 28" deep root ball
| Part #: | PT330/D001782 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 30" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 4000 LB MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 30" ROOT BALL |
Wireless Controls (needs 12v to spade)
| Part #: | PS330/D001565 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 30" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 4000 LB MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 30" ROOT BALL |
Wireless Controls (needs 12v to spade) 28" deep root ball
| Part #: | PT330/D003430 |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | TREE SPADE 3 POINT HITCH 30" ROOT BALL |
| Industry: | AGRICULTURAL |
| Machine Size: | 4000 LB MINIMUM TRACTOR WEIGHT |
| Attachment Size: | 30" ROOT BALL |
