Baumalight Tree Saw For Excavator | Model DXH752 | DXA530

Baumalight Tree Saw | Model DXH752 | DXA530 | 15,000LBS-42,000LBS | 25-50GPM | For Excavator

DESCRIPTION

The Baumalight DXH752/T590 Tree Saw is a powerful attachment designed for excavators weighing between 15,000 lbs and 42,000 lbs. It features a hydraulic flow rate of 25-50 GPM, making it highly efficient for cutting through trees and brush. The saw is equipped with a 52-inch cutting blade and Beaver teeth, ensuring clean and precise cuts. Its robust construction and high-performance motor make it ideal for forestry, land clearing, and right-of-way maintenance tasks.

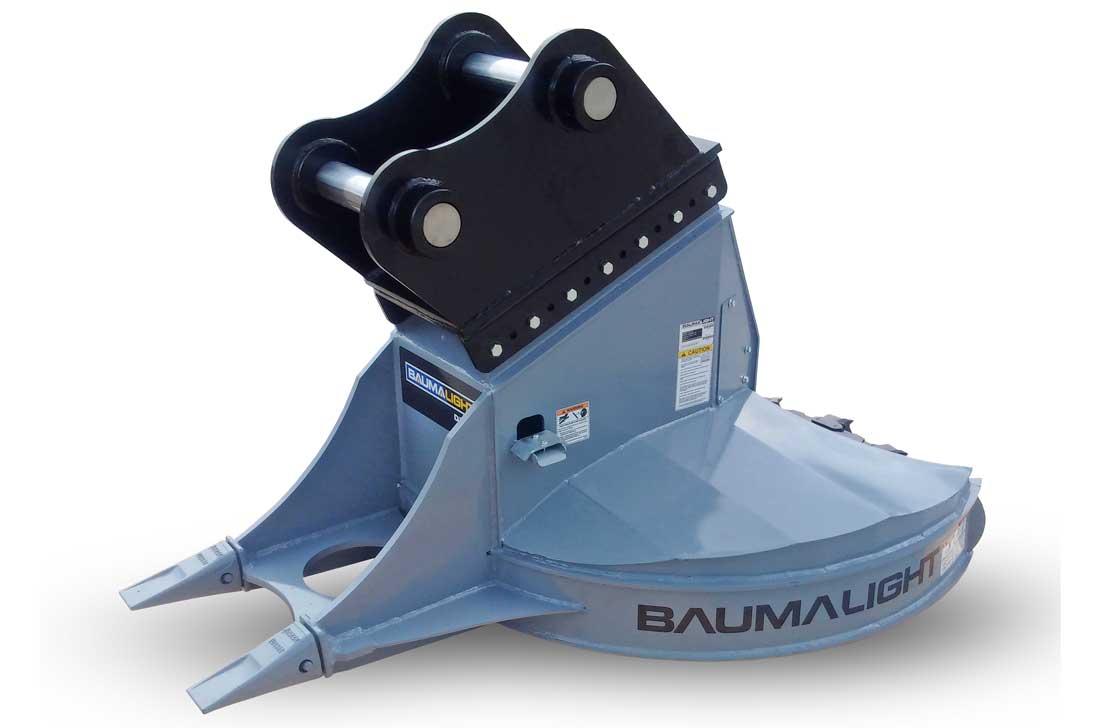

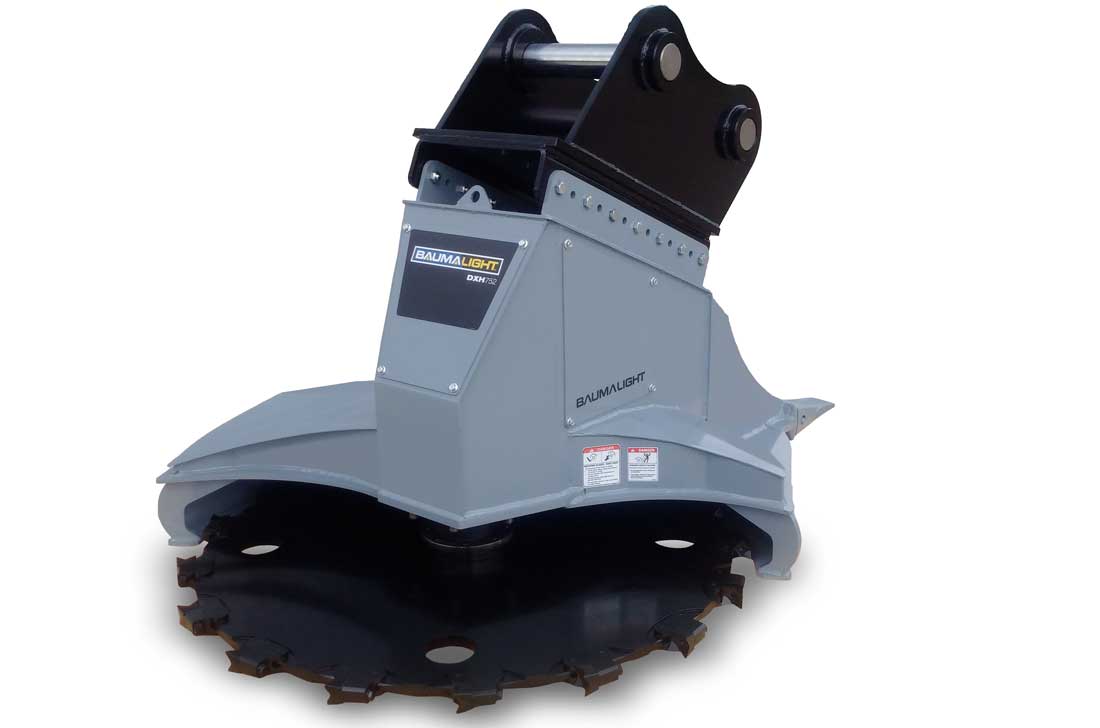

 DXH752/T590

TREE SAW (WITH MOUNT AND PINS) NO HOSES **CASE DRAIN REQUIRED**

Take your rural property a cut above and tackle overgrown brush and small trees with DropSaw, Baumalight’s hydraulically-driven tree saw. The 52” DXH752 DropSaw model, a large tree saw for excavators is a larger attachment that features heavy-duty construction and replaceable Beaver teeth. It is ideal for high volume commercial cutting, high speed pasture clearing, right-of-way clearing, trimming limbs along fence rows, and cutting downed trees into logs. We offer multiple motor options to match your flow, if you don’t know how much flow your skidsteer has then check out our flow & pressure data base.

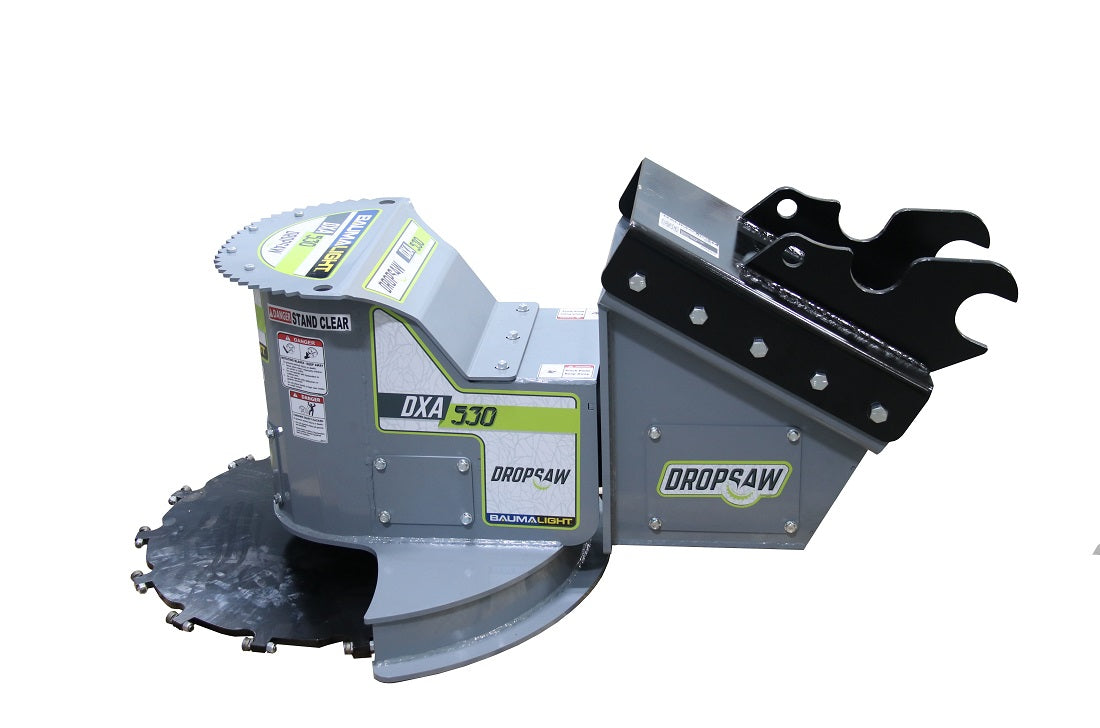

DXA530/T530

TREE SAW (cutting head rotates 180 degrees) (WITH A MOUNT AND PINS) NO HOSES PROVIDED **CASE DRAIN REQUIRED**MUST SPECIFY MOUNT

Keep your property well-maintained with DropSaw, the hydraulically-driven tree saw. With the DXA530 DropSaw model, a multi angle tree saw for excavators, the cutting head rotates 180 degrees for quick cleaning, trimming and limbing of branches as well as cutting down small trees. Featuring heavy-duty construction and replaceable carbide-tipped teeth, the DXA530 also offers a circular blade made from abrasion-resistant AR-400 steel. Be sure to visit our excavator mounting section of the website to see how we can help mounting a Dropsaw Tree Saw for you.

Key Features

The Baumalight DXH752/T590 Tree Saw 15,000LBS-42,000LBS 25-50GPM for Excavator:

• Wide Compatibility: Designed for excavators weighing between 15,000 lbs and 42,000 lbs.

• High Hydraulic Flow: Operates with a hydraulic flow rate of 25 - 50 GPM for efficient cutting.

• Powerful Cutting Blade: Features a 52-inch cutting blade equipped with durable Beaver teeth.

• Durable Frame: Built with AR400 steel in high-stress areas for enhanced durability and performance.

• Enhanced Visibility: Open frame design provides better visibility for the operator.

• Advanced Hydraulic System: Utilizes an electric-over-hydraulic system for smooth operation.

• Efficient Motor: Equipped with a bent axis piston motor for optimal performance.

• User-Friendly Design: Requires only one set of remote hydraulics for all functions.

• Versatile Application: Ideal for forestry, land clearing, and right-of-way maintenance tasks.

MANUAL ROTATING CUTTING HEAD

Effectively switch from horizontal tree cutting position to vertical trimming and limbing position with the 90 degree manual rotating head. Simply remove the 4 bolts at the base of the cutting head, rotate the unit 90 degrees to the left or right and then secure the bolts.

HEAVY DUTY BUILD

he tree saw’s durable design and quality materials combine to create a saw that is able to stand up to the demanding work of cutting limbs and trees.

BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT

The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.



SAW BLADE SHIELDING

The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.

DESIGNED FOR MAXIMUM VISIBILITY

Making sure you have the best seat in the house, the tree saw was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.

Replaceable High Speed Teeth

The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the tree bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.

Easy Teeth Changing

The high speed teeth design allows for easy rotation and changing of the teeth as needed.

Clean Cuts

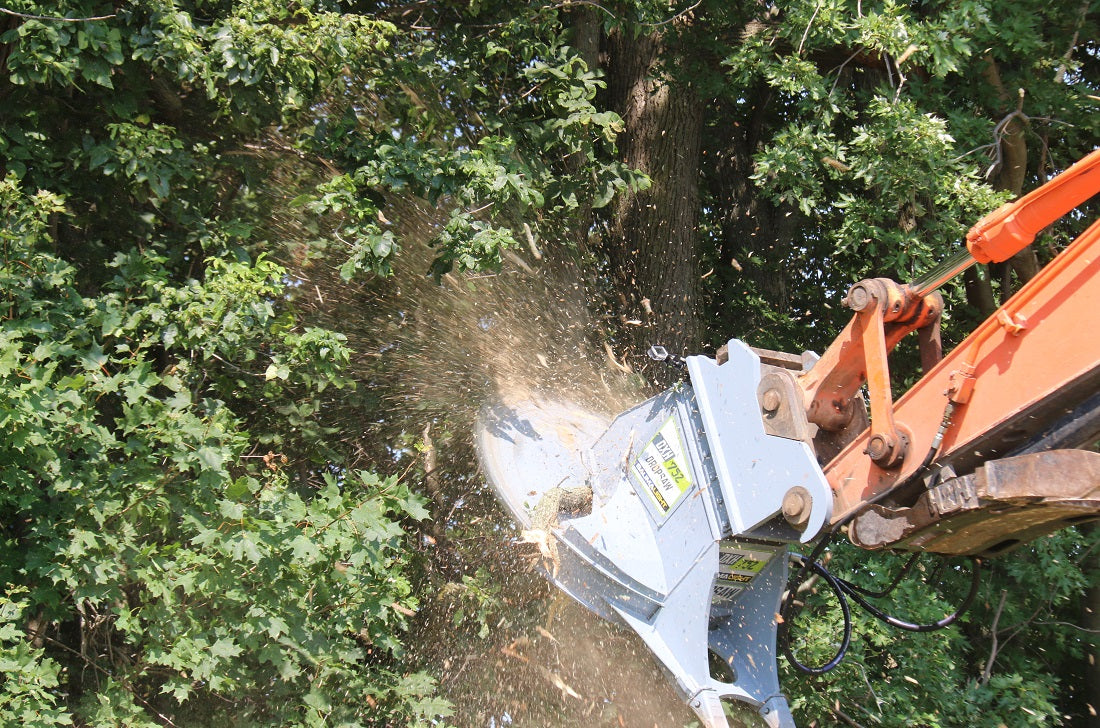

Baumalight Tree Saws makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.



Thick AR400 Steel Blade

The tree saw’s heavy duty circular blade is designed and shaped from AR-400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.

FRONT PUSH BAR

A solid serrated steel plate up front helps guide limbs, branches and small trees safely away from the operator.

INTERNAL HOSE ROUTING

All of the hydraulic hoses on the DropSaw are sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armour for double protection. The hoses are then routed internally, keeping them out of harm’s way. The DropSaw also features a pivoting arm with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.



CASE DRAIN – VENT TO ATMOSPHERE

To prevent pressure relief activation on the motor seal, the DXA530 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance.



AVAILABLE WITH GEAR MOTOR OR BENT AXIS PISTON MOTOR

Gear motors are a good cost effective choice for the average user and our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.
