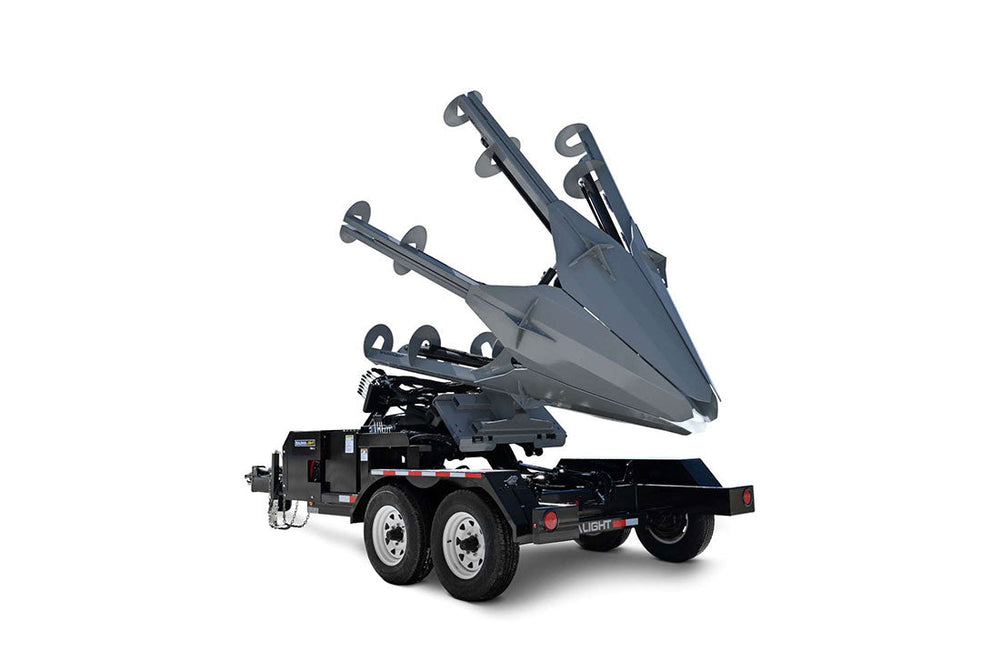

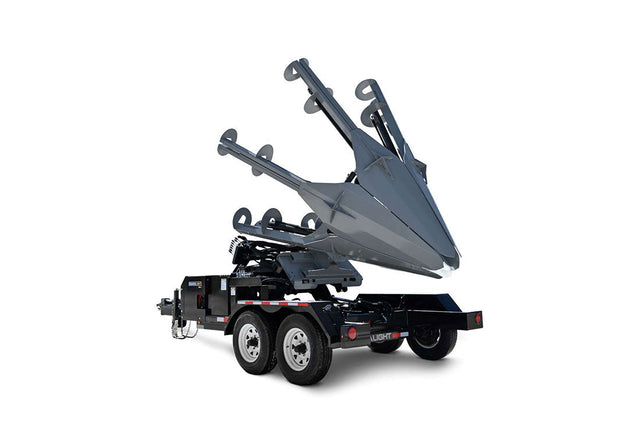

Baumalight Trailer Mounted Tree Spade-With Self Contained Hydraulic Power Pack | TR330-440-650 | 30" / 40" / 50" Root Ball Diameter | Pull Type
DESCRIPTION

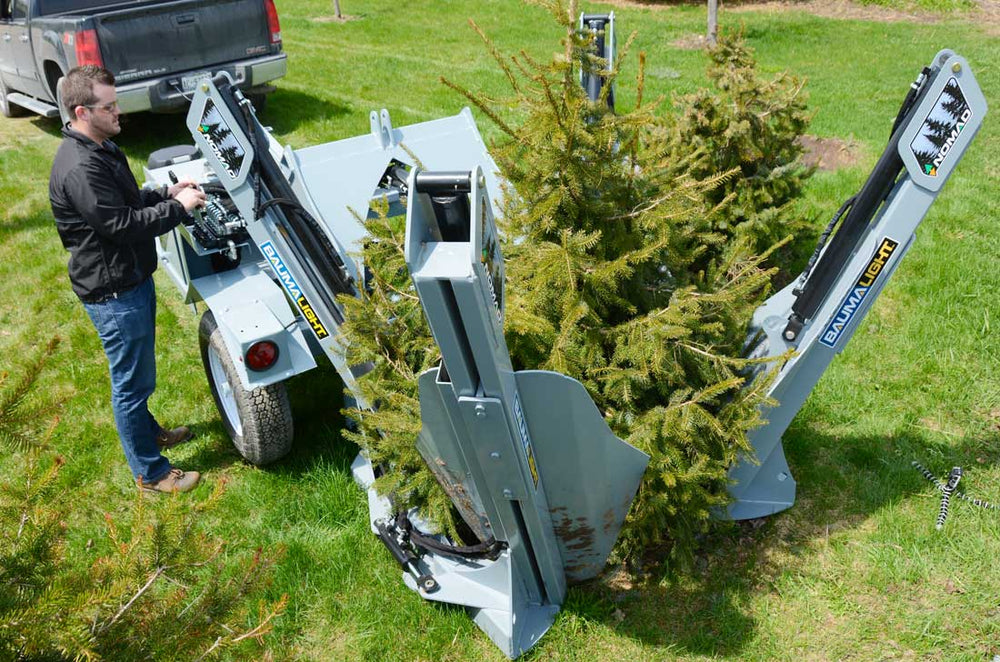

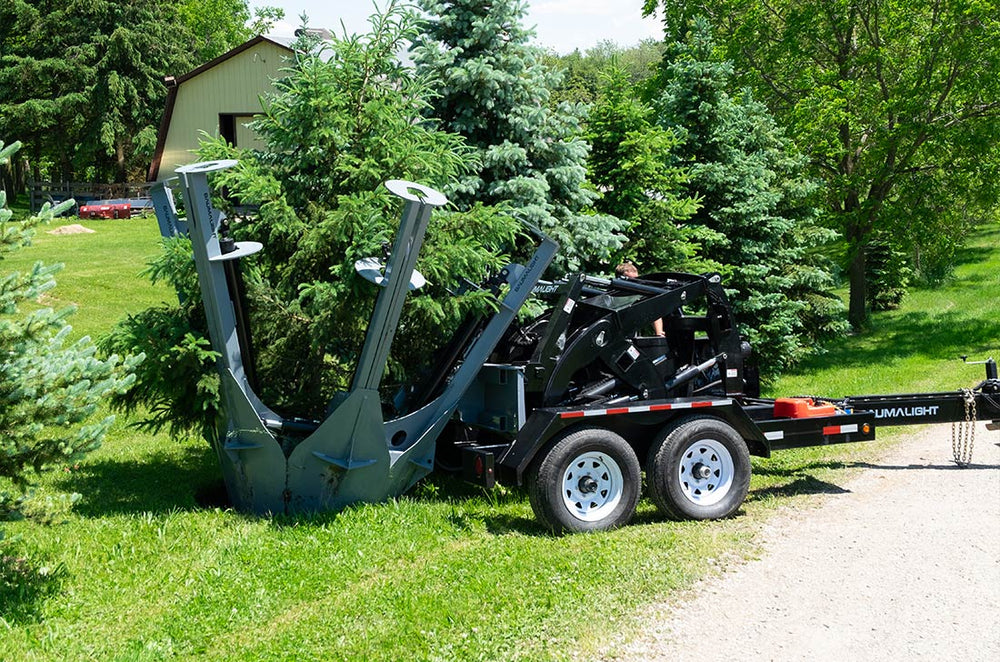

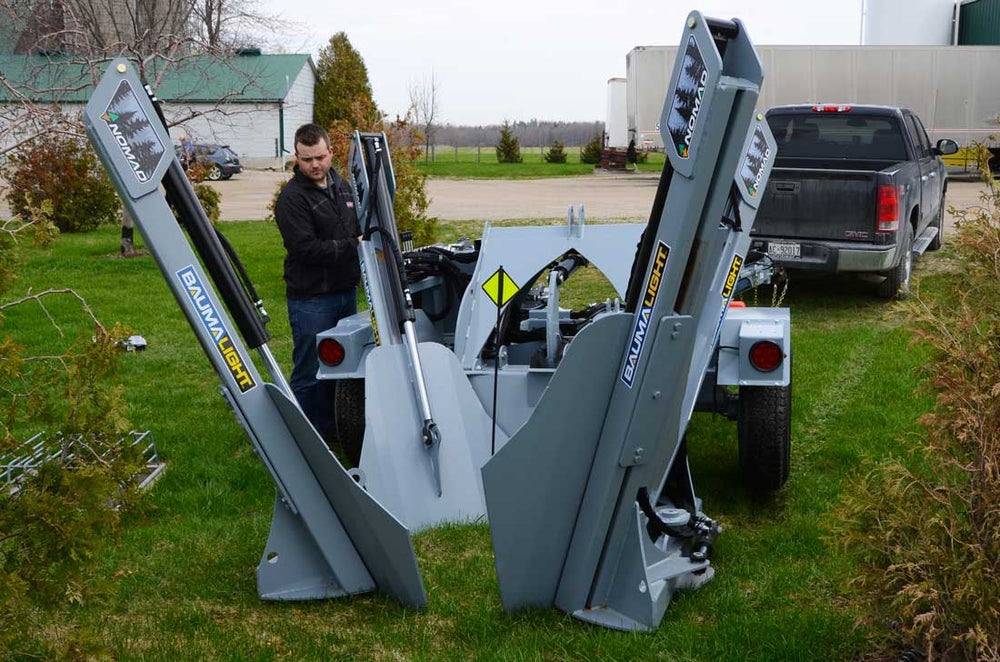

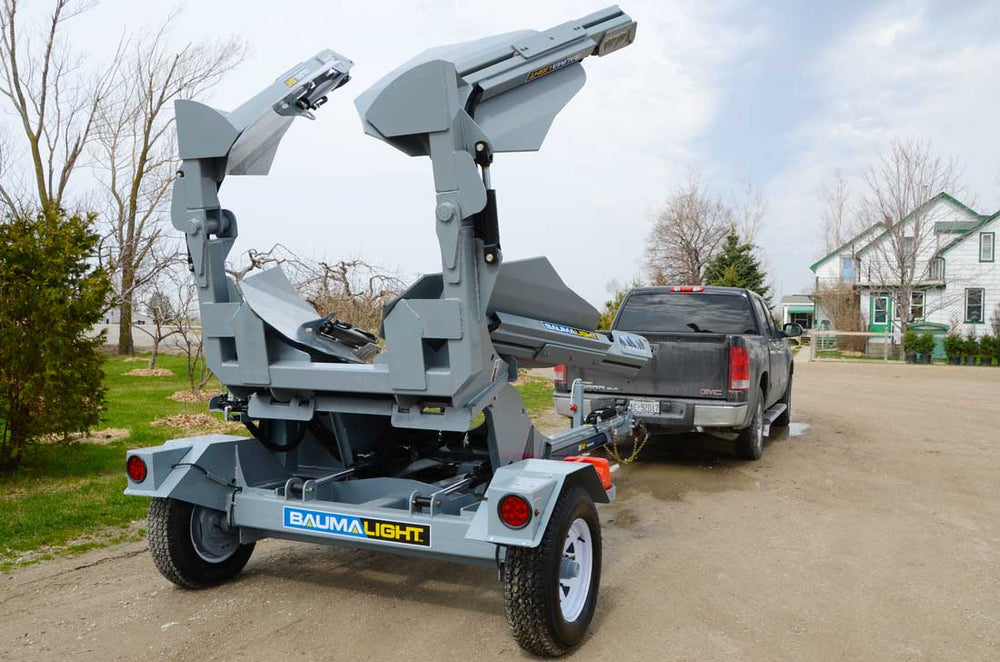

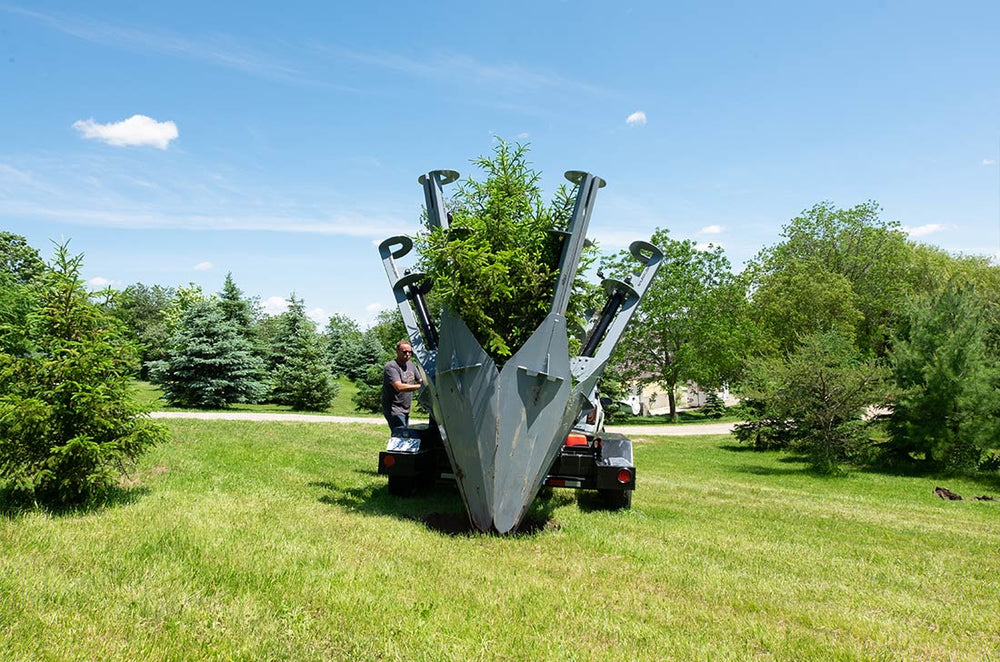

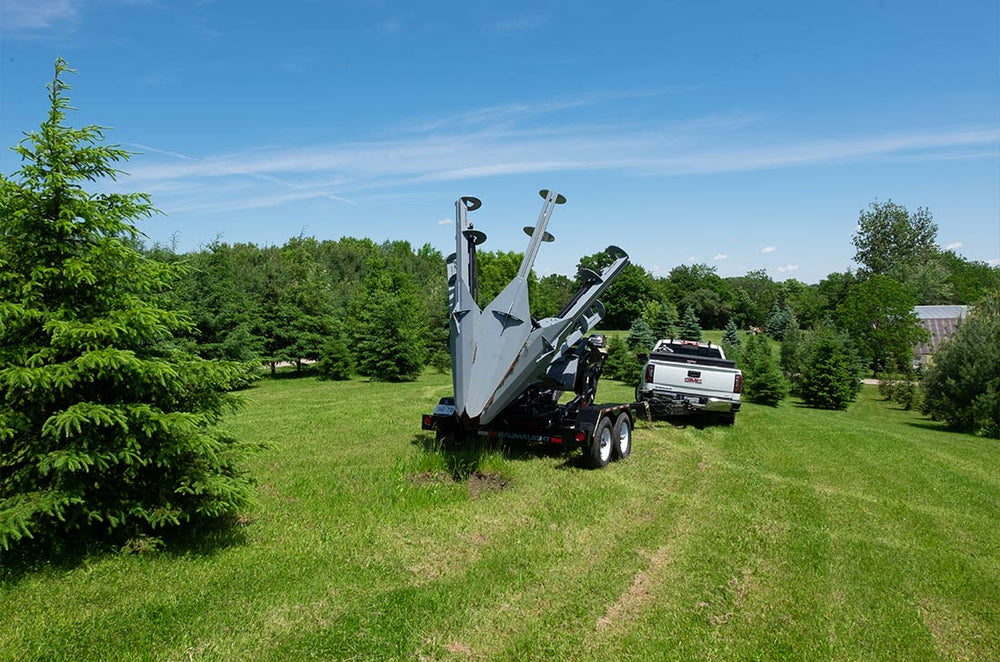

The Baumalight Trailer Mounted Tree Spade with a self-contained hydraulic power pack is designed for efficient tree transplanting. This pull-type tree spade is available with 30", 40", and 50" root ball sizes, making it versatile for various tree sizes. The trailer-mounted design allows for easy transportation and operation, while the hydraulic power pack ensures reliable performance.
Key Features
- Versatile Root Ball Sizes: Available in 30", 40", and 50" root ball sizes to accommodate various tree sizes.
- Self-Contained Hydraulic Power Pack: Ensures reliable and efficient operation.
- High-Strength Steel Blades: Durable blades for efficient digging and tree transplanting.
- Trailer-Mounted Design: Easy to transport and operate, suitable for various terrains.
- Hydraulic Controls: Precise and easy-to-use controls for better operation.
- Wide Application: Ideal for landscaping, forestry, and tree nursery operations.
D001575 - Optional Power Pack

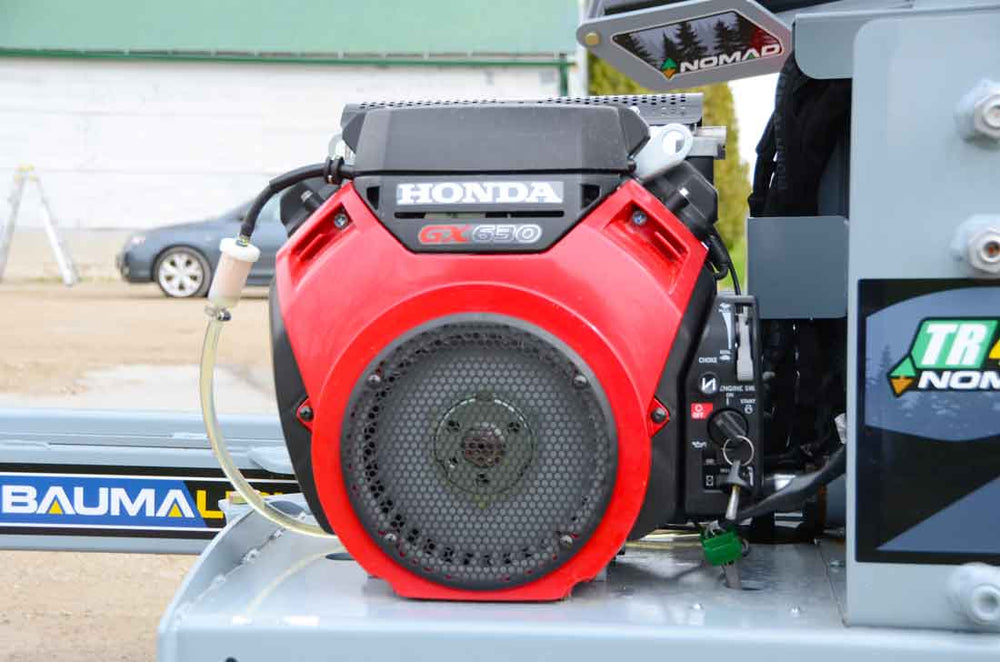

If you plan on using the tree spade with a pickup truck and need stand alone hydraulic power, upgrade to the electric start, gas-powered Honda GX630 688 cc hydraulic power pack.
Hydraulic Tongue
The Hydraulic Tongue extension easily places the trailer spade at the proper distance.
Hydraulic Lateral Placement
The lateral adjustment fine-tunes the positioning of the tree spade.
2 Stage Vertical Placement
The two-stage tilt and lift puts the Baumalight Trailer Mounted tree spade firmly in contact with the ground for confident spading and lifting.
Truncated Blades

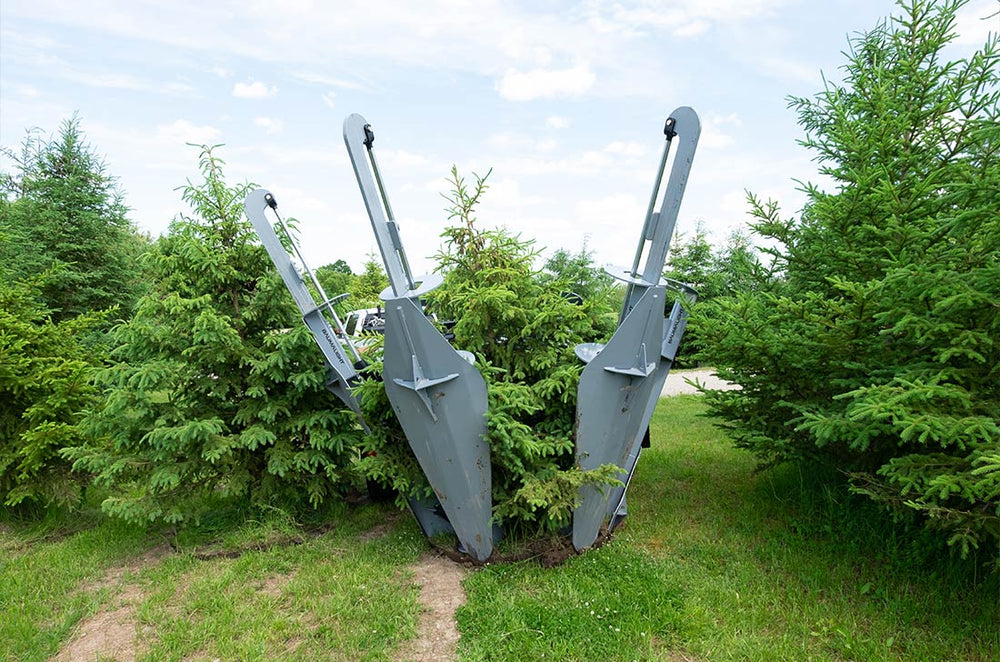

Fully truncated blades mean a more upright cut on the root ball, leaving a wider bottom base. A truncated blade is ideal for shallow-rooted trees and clay-base soil.

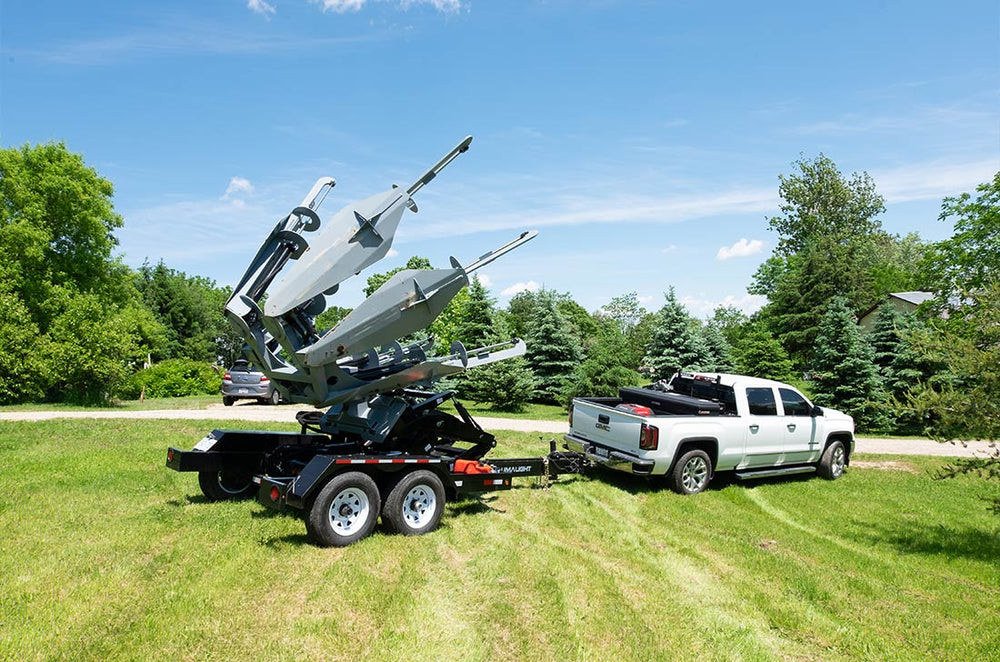

Highway Ready

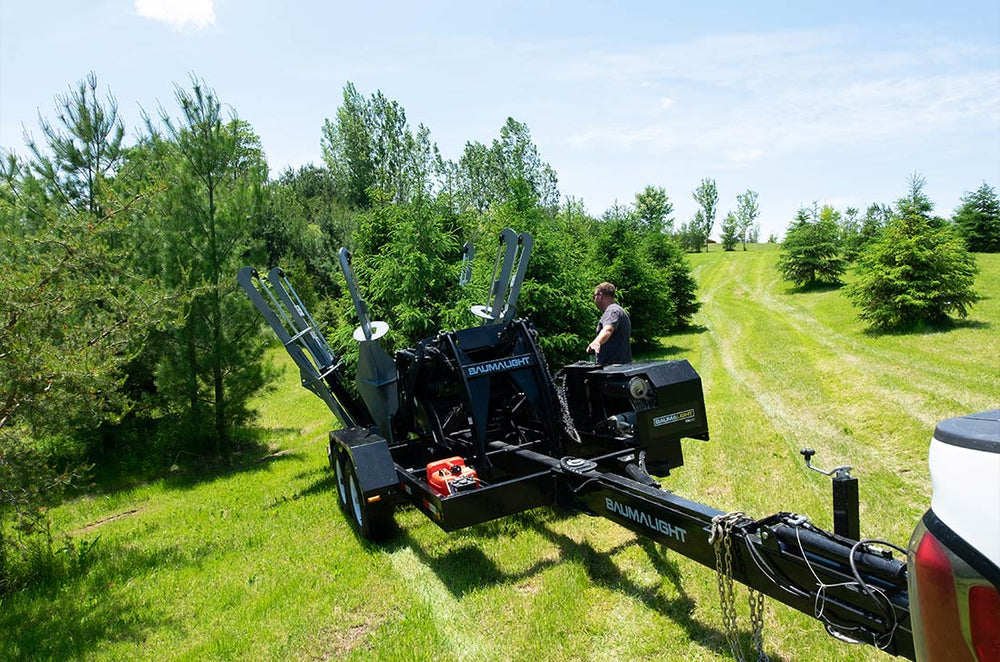

When it’s time to head out to your next job, this trailer is fully highway certified (for Ontario), complete with highway rated tires and factory light kit.
Pintle Hitch & Safety Chains
For safety and convenience when towing, the trailer comes standard with a pintle trailer hitch and safety chains.
Torflex Suspension
To ensure a smooth ride and easy towing, the trailer comes with Torflex suspension axles. Torflex suspension is designed to absorb road impact.
Fenders
Steel fenders reduce mud spray on other vehicles while you’re driving on the highway.
Powder Coat Finish on the spade
The spade is manufactured with heavy-duty construction and a durable powder-coated finish.
LARGE HYDROULIC OIL RESERVOIR
The TR440 boasts a capacious reservoir that has the ability to contain a considerable quantity of hydraulic oil, this allows the system to run cooler making it ideal for prolonged usage.
Engine cover
The engine cover on the TR440 is specifically designed to provide easy access to the engine and other key components for maintenance and repair. It is also designed to keep the engine clean and free from debris, which can help prolong its lifespan and improve its performance.
Easy access start panel
The easy access start panel on the Tree-Spades TR440 is located near the operator's station, an essential component of the machine, providing an easy and quick way for the operator to start and run the machine.
With battery start
The battery start system on the Tree-Spades TR440 is another feature of the machine, providing operators with the convenience and reliability they need to start the equipment quickly and easily.
Large gas tank
The gas tank on the TR440 is made of durable materials (polyethylene plastic) and comes with a visual fluid level gauge. The Gas tank is designed to hold enough fuel to keep the machine running for many hours of continuous operation. This means that operators can complete more work without having to stop and refuel.
HARDENED STEEL BUSHING
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
Greaseable Pins
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.
Detailed Specifications
| Model |  |
 |
 |
|---|---|---|---|
| Tree Size (Evergreen) | 3" | 4" | 5" |
| Tree Size (Hardwood) | 2.5" | 3" | 4" |
| Root Ball Diameter | 30" | 40" | 50" |
| Root Ball Depth | 29" | 30" | 43" |
| Opening (Width) | 60" | 52" | 47" |
| Blade Angle (Degrees) | 25° | 25° | 25° |
| Number of Blades | 3 | 4 | 6 |
| Blade Thickness | 3/8" Mild Alloy | 1/4" High Alloy | 1/4" High Alloy |
| Slides | Steel | Steel | Steel |
| Blade Truncation | Semi | Full | Semi |
| Towers Swing Hinge | Yes | Yes | Yes |
| Weight | - | 4150 | 8238 |
| Weight with Root Ball | - | 4986 | 10785 |
