BAUMALIGHT TN560 TRENCHER FOR SKID STEER

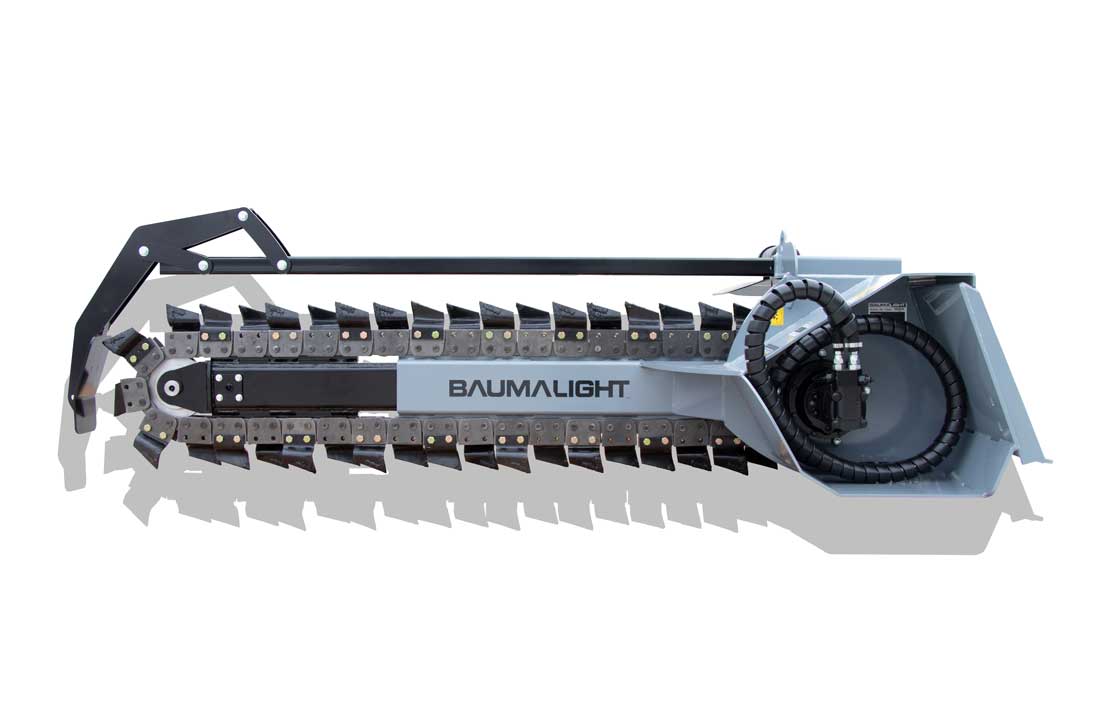

TN560 TRENCHER FOR SKID STEERS

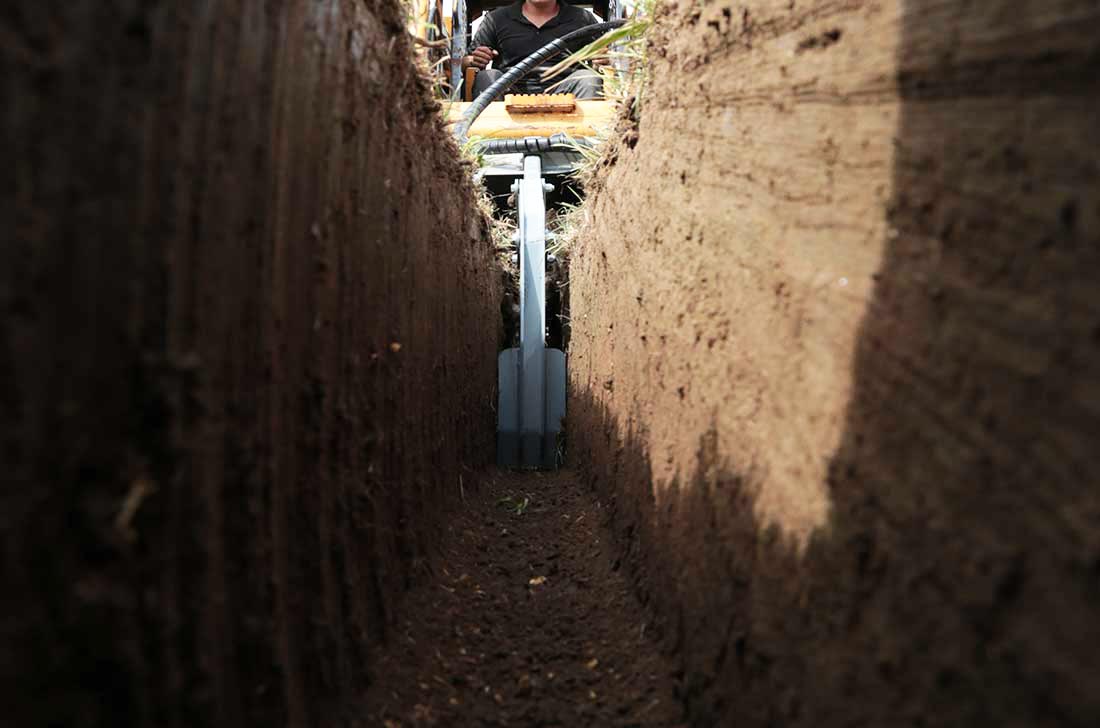

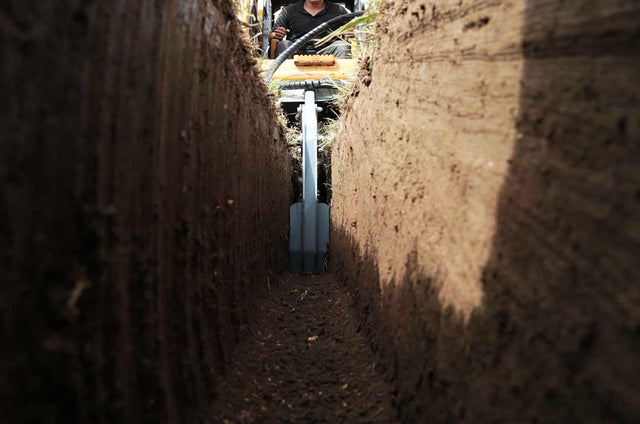

Dig deep, an impressive 5 feet deep with Baumalight’s TN560 Trencher for skidsteer. Ideal or landscapers or contractors who need to safely bury gas lines, electrical line, plumbing or drainage lines, the Baumalight TN560 will cut trenches up to 60” deep and between 6” to 10” wide, getting you far underground and below the frost line. The TN560 trencher is powered by a planetary drive system. With no roller chain to worry about, the planetary drive unit delivers hydraulic power directly to the sprocket of the digging chain for optimal trenching performance.

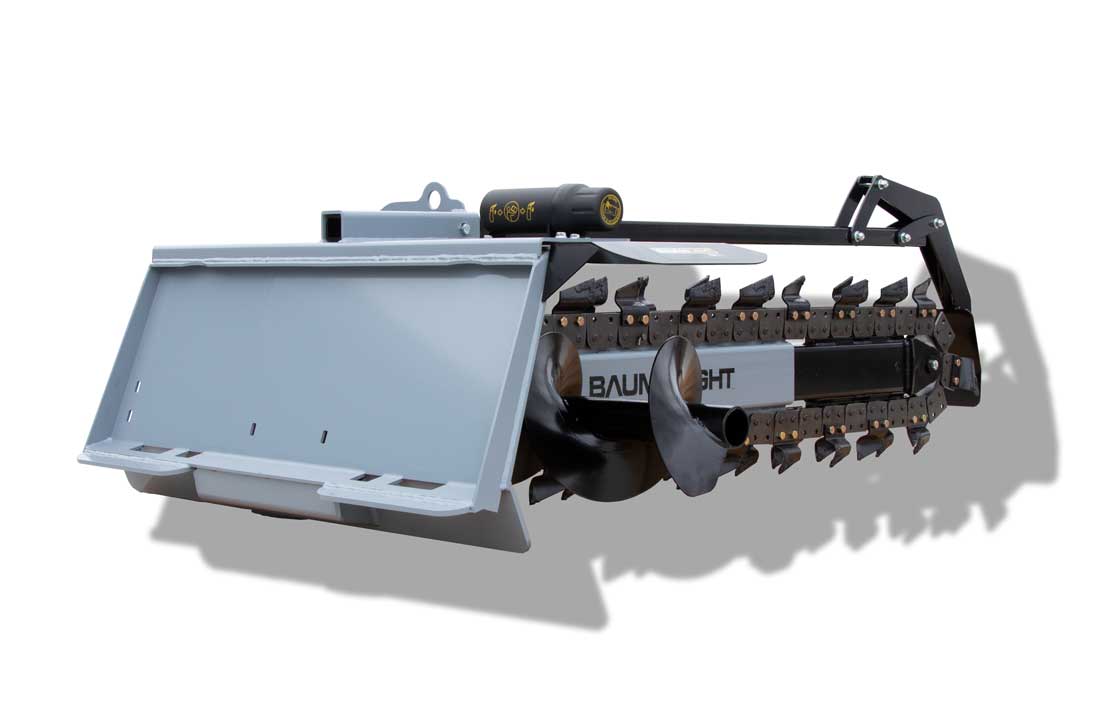

The TN560 can be mounted to skidsteers between 3000 and 7000 lbs.
Key Features

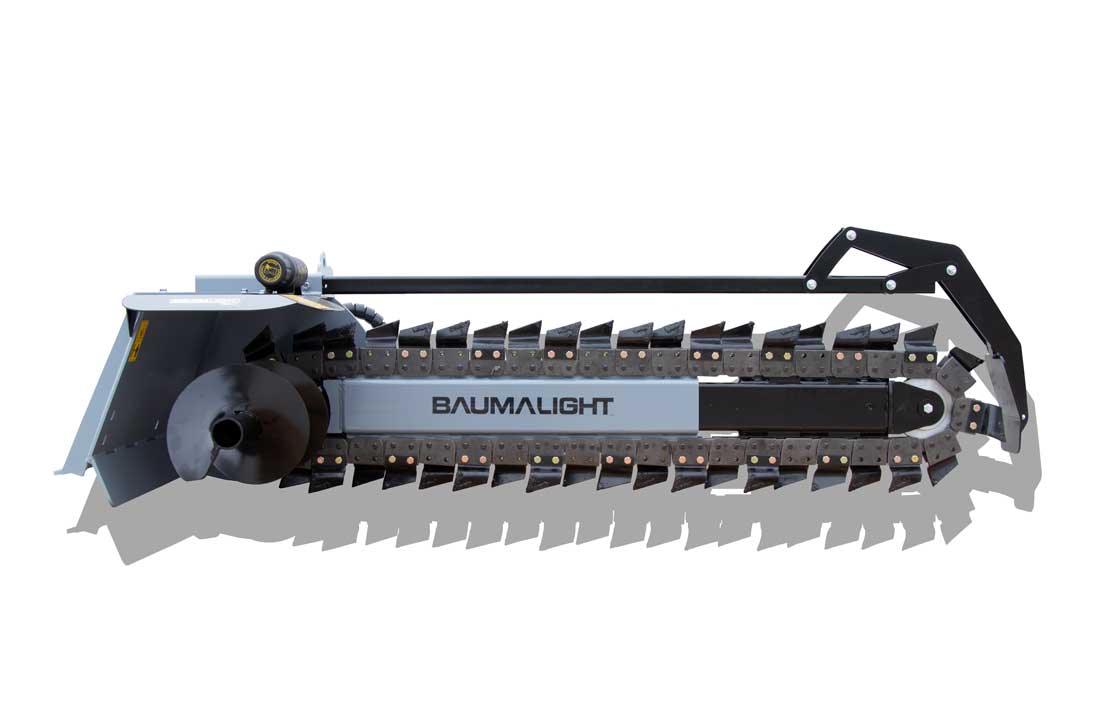

SIDE AUGER
Baumalight Trenchers are designed with a convenient side auger. The side auger keeps the dirt clear from the trenching action but still near the trench when it’s time for back filling.

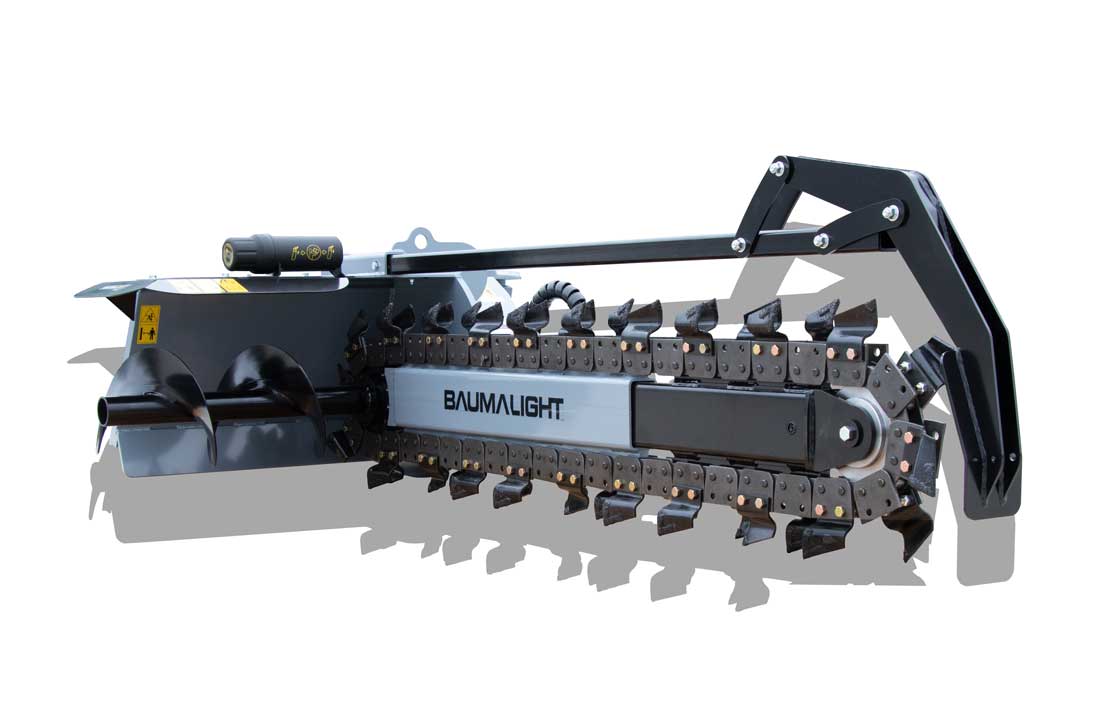

CRUMB SCRAPER BAR
The Trencher has a crumb scraper bar as standard equipment, this helps to scrape and sweep extra dirt and debris into the chain where it is lifted out of the trench. The heavy construction and hinged design mean that the scraper performs no matter what depth of trench you are digging.
SOLID STEEL NOSE
The Baumalight Trencher’s heavy duty nose is precision machined from a piece of solid steel. It runs freely on dual tapered roller bearings to deal with the extreme forces of trenching.
Dirt is the enemy of all bearings. A precision machined washer protects the bearings from rocks and dirt. This initial barricade is reinforced by the rubber seal on the bearings, finishing the job is the easily accessible grease fitting which keeps the bearings lubricated and protected from moisture and keeps our nose running freely.

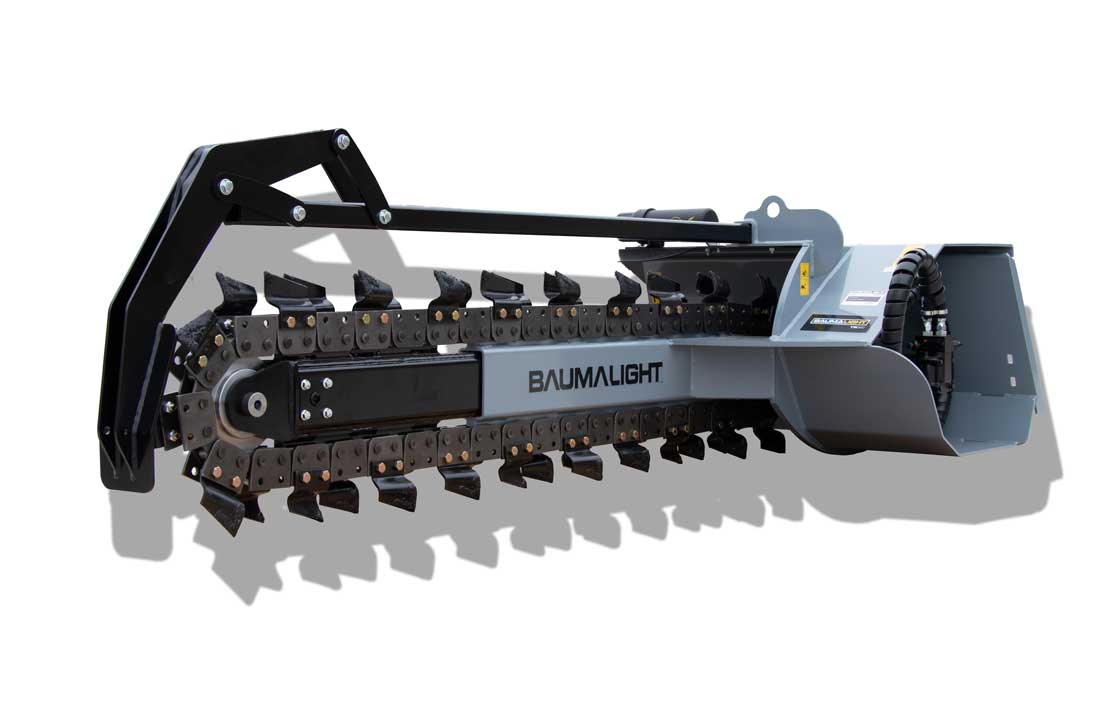

ADJUSTABLE CHAIN TENSION
Adjusting the chain tension with a couple of pumps. The grease cylinder tensioner allows you to adjust the tension of the chain quickly with only a grease gun. By applying grease to an internal cylinder the roller nose is pushed forward taking the slack out of the chain. What could be a long frustrating process is now a few quick pumps.
Detailed Specifications
| Part #: | TN560 |
| Mfg: | BAUMALIGHT |
| Category: | SKID STEER ATTACHMENTS |
| SubCategory: | TRENCHER SKID STEER |
| Industry: | CONSTRUCTION |
| Machine Size: | 3000 - 7000lbs |
| Attachment Size: | 60" X 6" to 10" TRENCH |
General Warranty Info:
- Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
