BaumalightSKU: RSS780
  • Free Shipping On Orders Over $5000
  • Lead Times May Vary Depending on Machine Fitment
  • Message Us for Up-To-Date Fitment Status
  • 30 Day Satisfaction Guarantee
  • Easy Financing Available Through Shop Pay
Variant Models: RSS780 - 10000LBS MAX CARRIER 20GPM-55GPM
Price:
$10,363.97
Stock:
In stock

Description

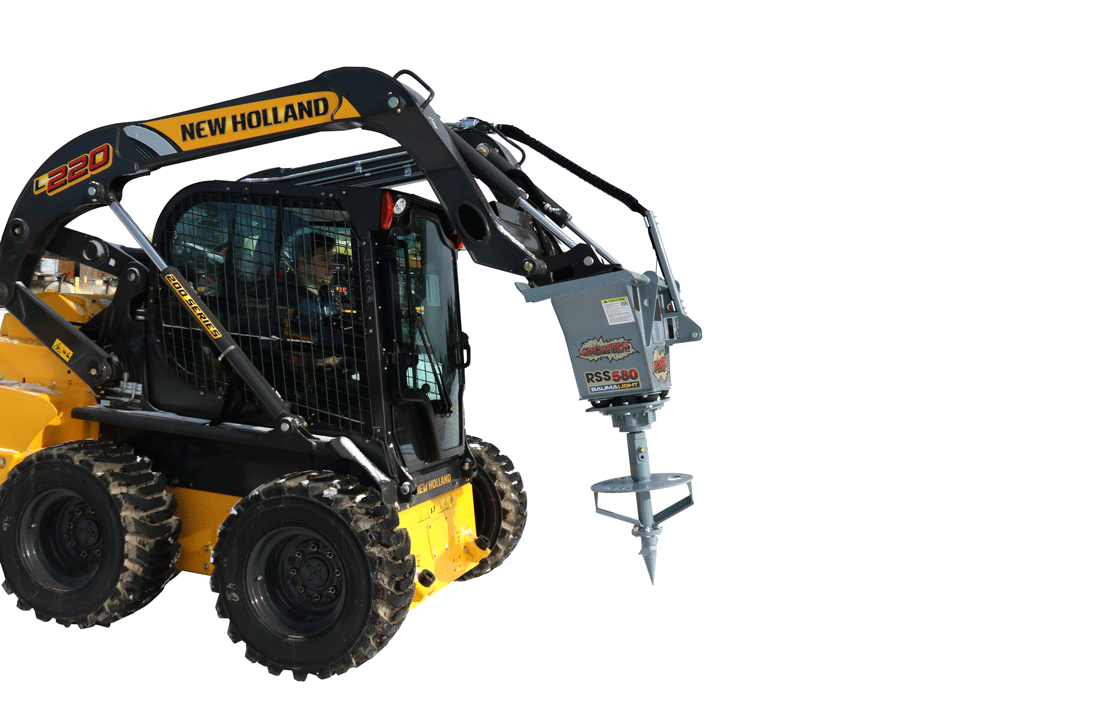

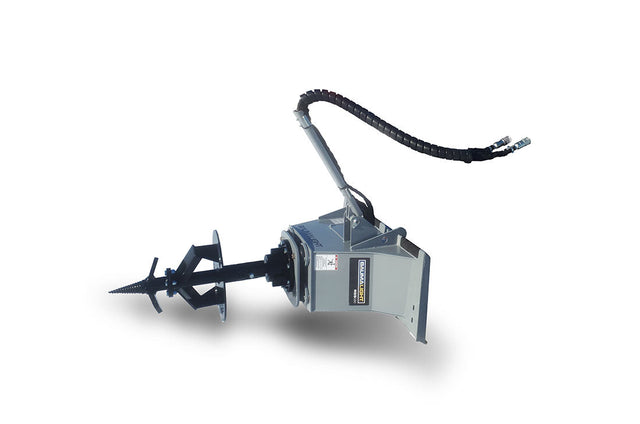

Baumalight Stump Planer | Model RSS 380-580-780 | 20" Cutting Diameter | Max Carrier 20GPM-50GPM | For Skid Steer

DESCRIPTION

The Baumalight 20" Stump Planer SSL is a robust and efficient tool designed for skid steers. It is ideal for removing tree stumps in urban areas or confined spaces where maintaining a clean work environment is crucial. Here are the key features:

  • Maximum Carrier Weight: 10,000 lbs
  • Hydraulic Flow Range: 20 GPM to 50 GPM
  • Cutting Diameter: 20 inches
  • Low RPM Operation: Ensures that chips are contained during operation, minimizing mess and making it suitable for urban settings.
  • Hardened Replaceable Tip: Provides extra-long wear and durability.
  • Sharpenable Cutting Blades: Reduces maintenance costs by allowing blades to be sharpened rather than replaced frequently.
  • Heavy-Duty Construction: Built to withstand rigorous use, ensuring long-lasting performance.

Key Feautres

  • Maximum Carrier Weight: 10,000 lbs
  • Hydraulic Flow Range: 20 GPM to 50 GPM
  • Cutting Diameter: 20 inches
  • Low RPM Operation: Ensures minimal mess by containing chips during operation.
  • Hardened Replaceable Tip: Provides durability and long-lasting performance.
  • Sharpenable Cutting Blades: Reduces maintenance costs by allowing blades to be sharpened.
  • Heavy-Duty Construction: Built to withstand rigorous use, ensuring reliability and longevity.
  • Urban and Confined Space Suitability: Ideal for use in areas where maintaining a clean work environment is crucial.

HEAVY DUTY BUILD

The Splinter screw wood splitter features a heavy-duty encasement that locks into place for long-lasting durability.

Heavy Duty Build

PROTECTIVE POWDER COAT FINISH

Heavy duty construction and a durable powder coated finish.

Protective Powder Coat Finish

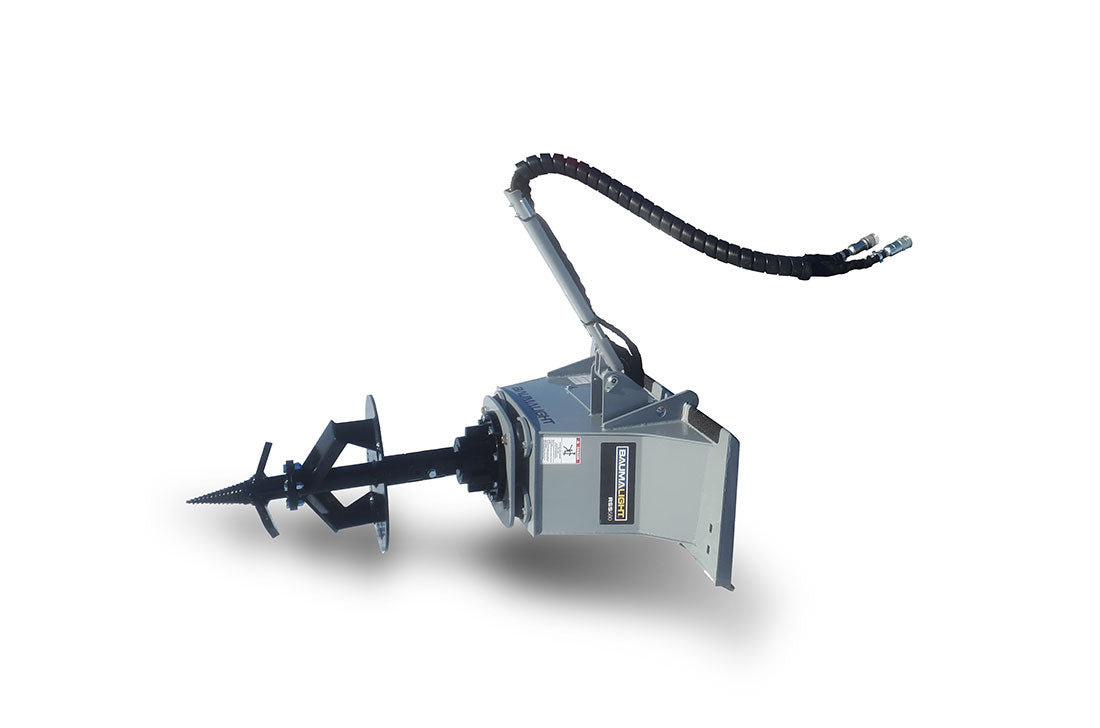

PLANETARY DRIVE

Power comes from the Splinter’s hydraulically-driven planetary drive, delivering up to 3,800 ft/lbs of torque.

Planetary Drive

NO 12V ELECTRIC REQUIRED

With no extra electrical cables, connection is quick and easy.

No 12V Electric Required

MAIN SHAFT SEAL PROTECTION

The Splinter’s flange protects the main shaft seal to prevent damage to the Splinter’s bearings from possible debris.

Main Shaft Seal Protection

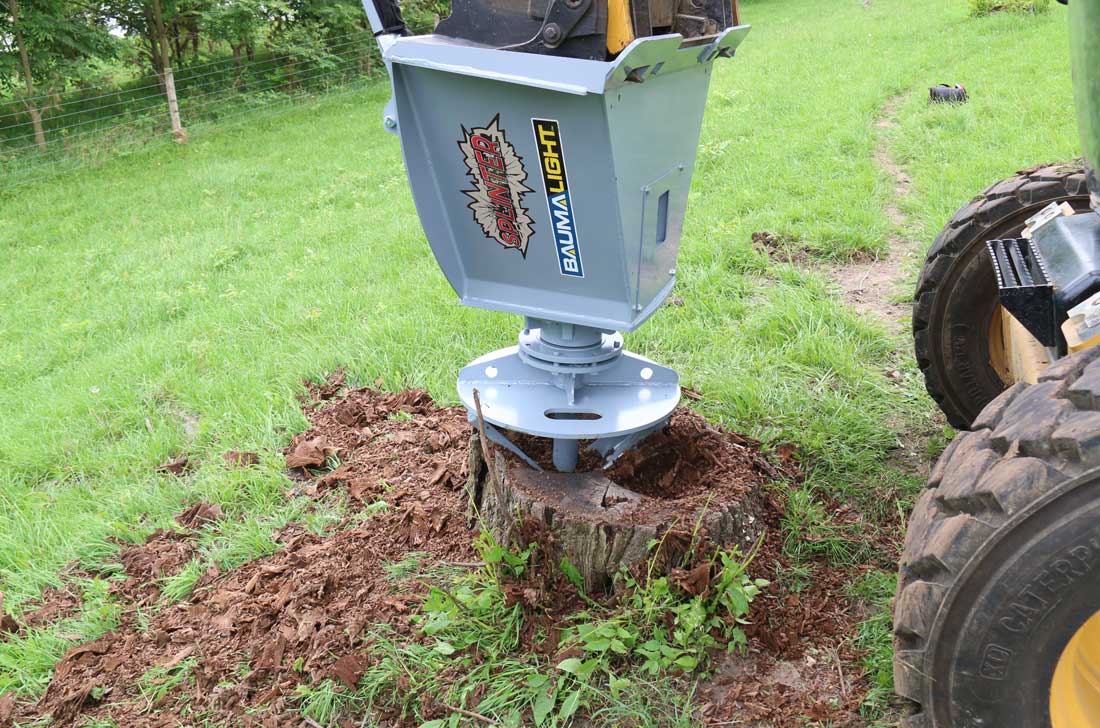

NO FLYING CHIPS

Because the Splinter operates at a low RPM, chips are contained during operation with very little mess to clean up.

No Flying Chips

IDEAL FOR URBAN AREAS

The planer is ideal for urban areas and confined spaces where keeping chips contained is critical.

Ideal For Urban areas

LARGER CHIPS

With less power required to produce fine material, larger stumps can be ground faster with small carriers, creating mulch for other small trees.

Larger Chips

HARDENED REPLACEABLE TIP

The Splinter’s entry tip if hardened for extra-long wear and replaceable for a longer life.

Hardened Replaceable Tip

Heavy Duty Sharpenable Blades

The smaller leading blade is made from AR500 steel and the larger clean up blade is made with AR400 steel. All cutting blades can be sharpened, lowering costs by not replacing blades as often.

Heavy Duty Sharpenable Blades

INTERNAL HOSE ROUTING

All of the hydraulic hoses on the Splinter are routed internally where possible and sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armor for double protection. The Splinter features travelling hose support and a greaseable pin on the hose support.

Internal Hose Routing

ANTI-SLIP MAT FOR EASY ACCESS TO CAB

For ease of entry and exit from the cab an anti-slip strip gives sure footing.

Anti Slip Mat For Easy Access To Cab

EASY TO CHANGE BITS

Easily change from splitting to grinding.

Easy To Change Bits

Auger Attachment

Pengo’s patented 40/50 dual angle bolt on cutting can be flipped from a 40 degree cut angle to a 50 degree cut angle for a more aggressive cut in clay and hard pack dirt. Aggressor augers also come standard with our Tri-Flow Pilot bit. The three cutting blades make it easier to start a hole and keep the bit straighter


Auger Attachment

Log Splitter Attachment

Baumalight’s log splitter tool can split pieces of wood and logs up to 12 feet or even 20 ft long. The bit’s bite comes from machining two helical spirals machined into two pieces of steel. The two spirals join at the hardened tip for easy boring into the log.

Log Splitter Attachment



HOST MACHINES

 ASV RT120 HIGH FLOW

ASV RT120 HIGH FLOW

ASV RT75 HIGH FLOW

ASV RT75 HIGH FLOW

ASV VT70 HIGH FLOW

ASV VT70 HIGH FLOW

BOBCAT T62 HIGH FLOW

BOBCAT T62 HIGH FLOW

BOBCAT T64 HIGH FLOW

BOBCAT T64 HIGH FLOW

BOBCAT T66 HIGH FLOW

BOBCAT T66 HIGH FLOW

BOBCAT T740 HIGH FLOW

BOBCAT T740 HIGH FLOW

BOBCAT T76 HIGH FLOW

BOBCAT T76 HIGH FLOW

BOBCAT T770 HIGH FLOW

BOBCAT T770 HIGH FLOW

BOBCAT T870 HIGH FLOW

BOBCAT T870 HIGH FLOW

CASE TR270 HIGH FLOW

CASE TR270 HIGH FLOW

CASE TR310 HIGH FLOW

CASE TR310 HIGH FLOW

CASE TR340 ENHANCED HIGH FLOW

CASE TR340 ENHANCED HIGH FLOW

CASE TV370 HIGH FLOW

CASE TV370 HIGH FLOW

CASE TV450 ENHANCED HIGH FLOW

CASE TV450 ENHANCED HIGH FLOW

CATERPILLAR 289 HIGH FLOW

CATERPILLAR 289 HIGH FLOW

CATERPILLAR 299 D3 XE

CATERPILLAR 299 D3 XE

CATERPILLAR 299 HIGH FLOW

CATERPILLAR 299 HIGH FLOW

CATERPILLER 259 HIGH FLOW

CATERPILLER 259 HIGH FLOW

JOHN DEERE 325G HIGH FLOW

JOHN DEERE 325G HIGH FLOW

JOHN DEERE 331G HIGH FLOW

JOHN DEERE 331G HIGH FLOW

JOHN DEERE 333G HIGH FLOW

JOHN DEERE 333G HIGH FLOW

KUBOTA SSV65F HIGH FLOW

KUBOTA SSV65F HIGH FLOW

KUBOTA SVL75 HIGH FLOW

KUBOTA SVL75 HIGH FLOW

KUBOTA SVL90 HIGH FLOW

KUBOTA SVL90 HIGH FLOW

KUBOTA SVL95 HIGH FLOW

KUBOTA SVL95 HIGH FLOW

KUBOTA SVL97 HIGH FLOW

KUBOTA SVL97 HIGH FLOW

MUSTANG 2150RT HIGH FLOW

MUSTANG 2150RT HIGH FLOW

MUSTANG 2550RT HIGH FLOW

MUSTANG 2550RT HIGH FLOW

MUSTANG 3200VT HIGH FLOW

MUSTANG 3200VT HIGH FLOW

NEW HOLLAND C332 HIGH FLOW

NEW HOLLAND C332 HIGH FLOW

NEW HOLLAND C334 HIGH FLOW

NEW HOLLAND C334 HIGH FLOW

NEW HOLLAND C345 HIGH FLOW

NEW HOLLAND C345 HIGH FLOW

NEW HOLLAND C362 HIGH FLOW

NEW HOLLAND C362 HIGH FLOW

TAKEUCHI TL10 HIGH FLOW

TAKEUCHI TL10 HIGH FLOW

TAKEUCHI TL12 HIGH FLOW

TAKEUCHI TL12 HIGH FLOW

TAKEUCHI TL8 HIGH FLOW

TAKEUCHI TL8 HIGH FLOW

WACKER NUESON ST28 HIGH FLOW

WACKER NUESON ST28 HIGH FLOW

WACKER NUESON ST31 HIGH FLOW

WACKER NUESON ST31 HIGH FLOW

WACKER NUESON ST35 HIGH FLOW

WACKER NUESON ST35 HIGH FLOW

WACKER NUESON ST40 HIGH FLOW

WACKER NUESON ST40 HIGH FLOW

WACKER NUESON ST45 HIGH FLOW

WACKER NUESON ST45 HIGH FLOW

WACKER NUESON ST50 HIGH FLOW

WACKER NUESON ST50 HIGH FLOW


HOW  IT WORKS:



Proper operation

How it Works Step 1

Step 1

When positioning the planer on a stump that is larger than the larger blade diameter, it is important to begin cutting from one side rather than the center. Shear down using the smaller leading blades until your cut is complete.

How it Works Step 2

Step 2

After your first cut is finished, start a new cut on the other side of the stump still using the smaller leading blades to make the cut.

How it Works Step 3

Step 3

Continue to move around the perimeter of the stump making more cuts. Do this until there are no outer ridges left on the stump.

How it Works Step 4

Step 4

Once the center area is smaller than the diameter of the larger blades, a final center cut is made using the larger cleanup blades to finish the job.

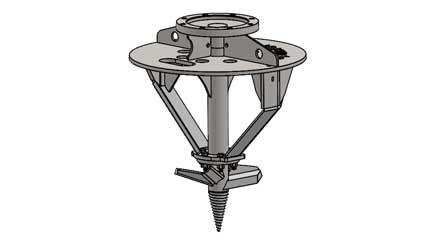

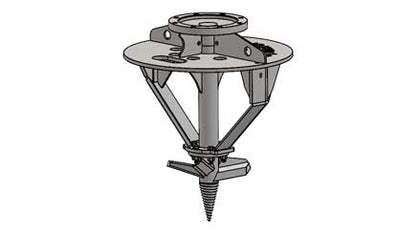

STUMP PLANER BIT

Planer Bit

CAUTION

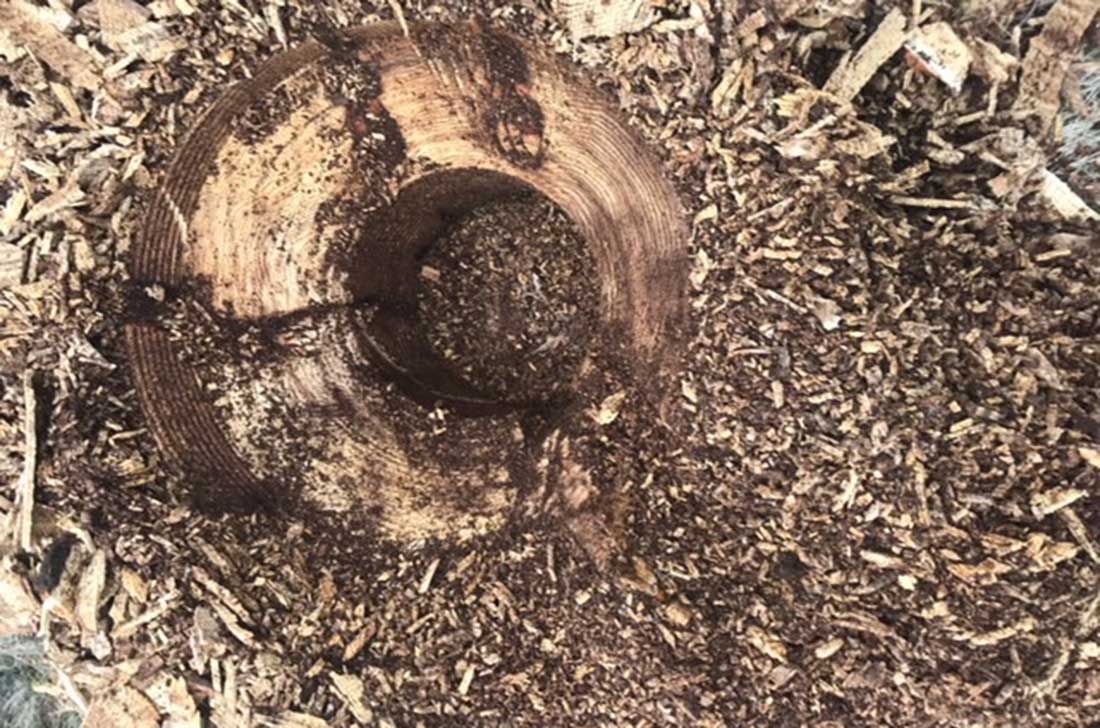

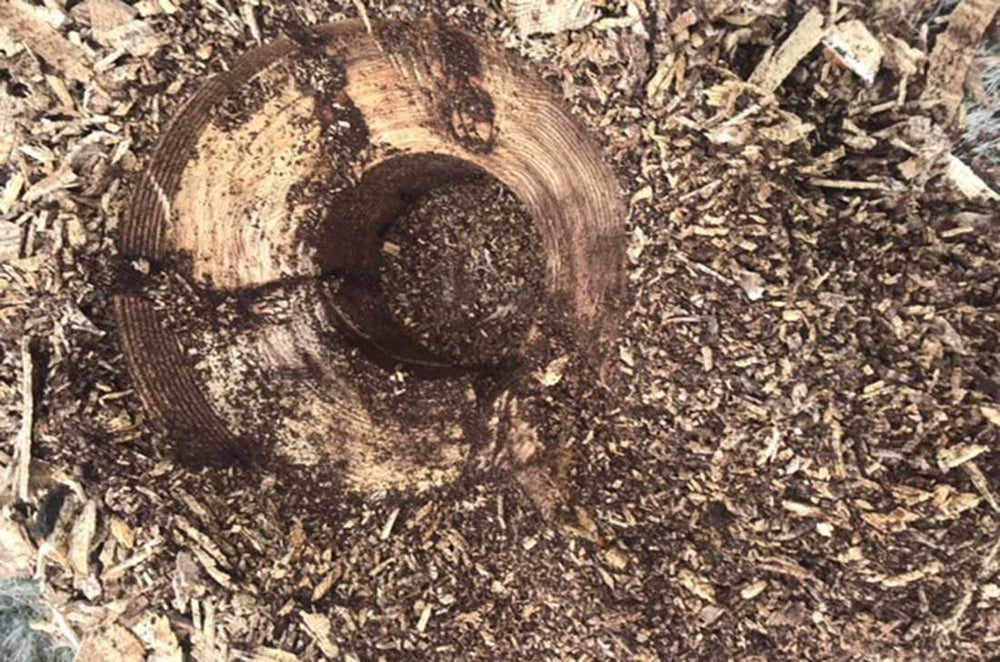

When using the planer on a larger stump, if you begin cutting directly in the center of the stump, you will bore a center hole, leaving a ridge around the outer edge of the stump. If you do this, it will be difficult to properly cut the outer edges, instead you will just break off small chunks.

Proper operation

Planer Correct Use

Improper operation

Planer Impropper Use

Down ArrowUp ArrowLeft ArrowRight ArrowHide


REPLACEMENT WEAR PARTS



D003508

D003508

D003930

D003930

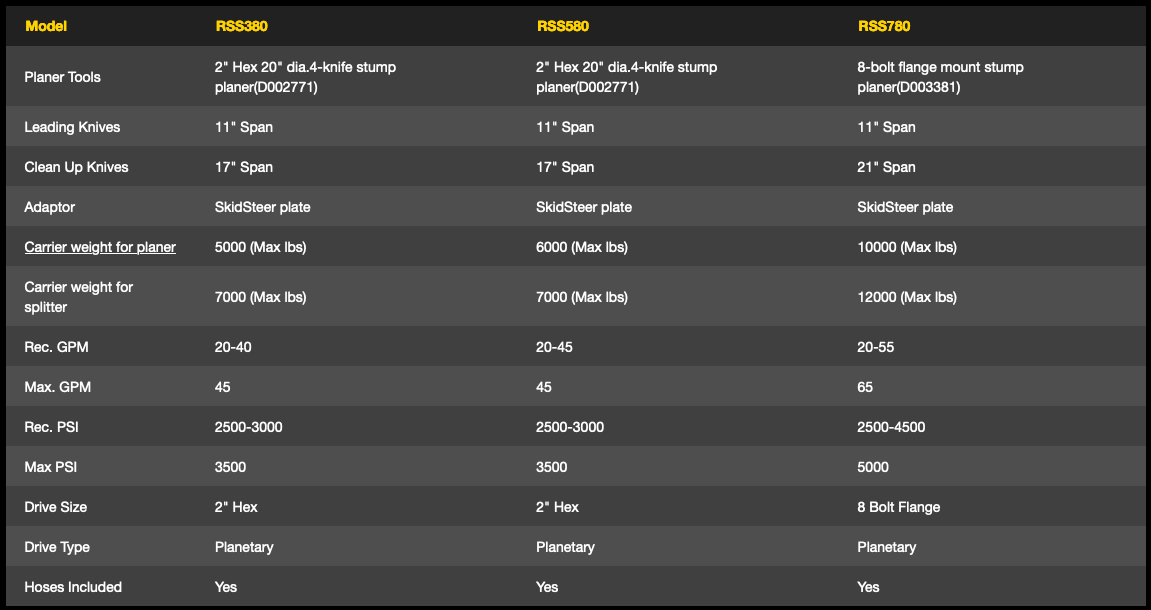

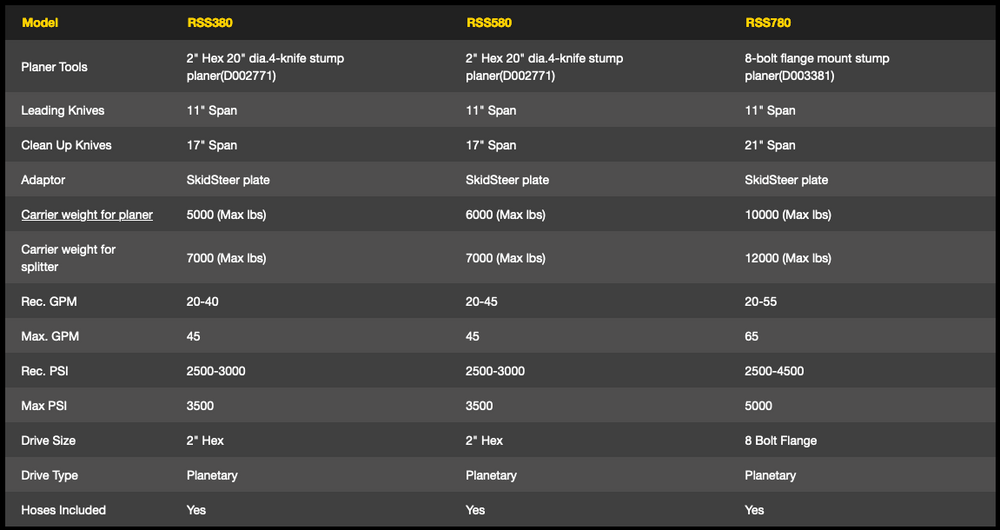

Detailed Specificaitons


Specification Details
Model 20" Stump Planer SSL
Maximum Carrier Weight 10,000 lbs
Hydraulic Flow Range 20 GPM to 50 GPM
Cutting Diameter 20 inches
Operation Speed Low RPM
Tip Material Hardened, replaceable
Blade Type Sharpenable cutting blades
Construction Heavy-duty
Application Suitable for skid steers
Ideal Use Urban and confined spaces

SSL 10,000LBS MAX CARRIER 20GPM-50GPM


Part #: RSS780/D003381
Mfg: BAUMALIGHT
Category: SKID STEER ATTACHMENTS
SubCategory: STUMP PLANER SKID STEER
Industry: CONSTRUCTION
Machine Size: SSL 10,000LBS MAX CARRIER 20GPM-50GPM
Attachment Size: 20" PLANER


SSL 6000LBS MAX CARRIER 20GPM-45GPM


Part #: RSS580/D002771
Mfg: BAUMALIGHT
Category: SKID STEER ATTACHMENTS
SubCategory: STUMP PLANER SKID STEER
Industry: CONSTRUCTION
Machine Size: SSL 6000LBS MAX CARRIER WEIGHT 20GPM-45GPM
Attachment Size: 20" PLANER


SSL 5000LBS MAX CARRIER 15GPM-40GPM


Part #: RSS380/D002771
Mfg: BAUMALIGHT
Category: SKID STEER ATTACHMENTS
SubCategory: STUMP PLANER SKID STEER
Industry: CONSTRUCTION
Machine Size: SSL 5000LBS MAX CARRIER WEIGHT 15GPM-40GPM
Attachment Size: 20" PLANER

Manuals & Documents

The Product Manual

 General Warranty Info:

  • Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos



SERVICE AND INSTRUCTIONAL VIDEOS

How to Remove Seal on Hydraulic Motor or Load Adapter




What Can Cause Excessive Case Drain Back-Pressure on Skidsteers?



Testing Skidsteer Case Drain Back-Pressure Using Pressure Gauge



Why Breaking in a Replacement Hydraulic Motor is Important




The Purpose of Rubber Mounts on RSS580 & RSX580 Screw Splitters
