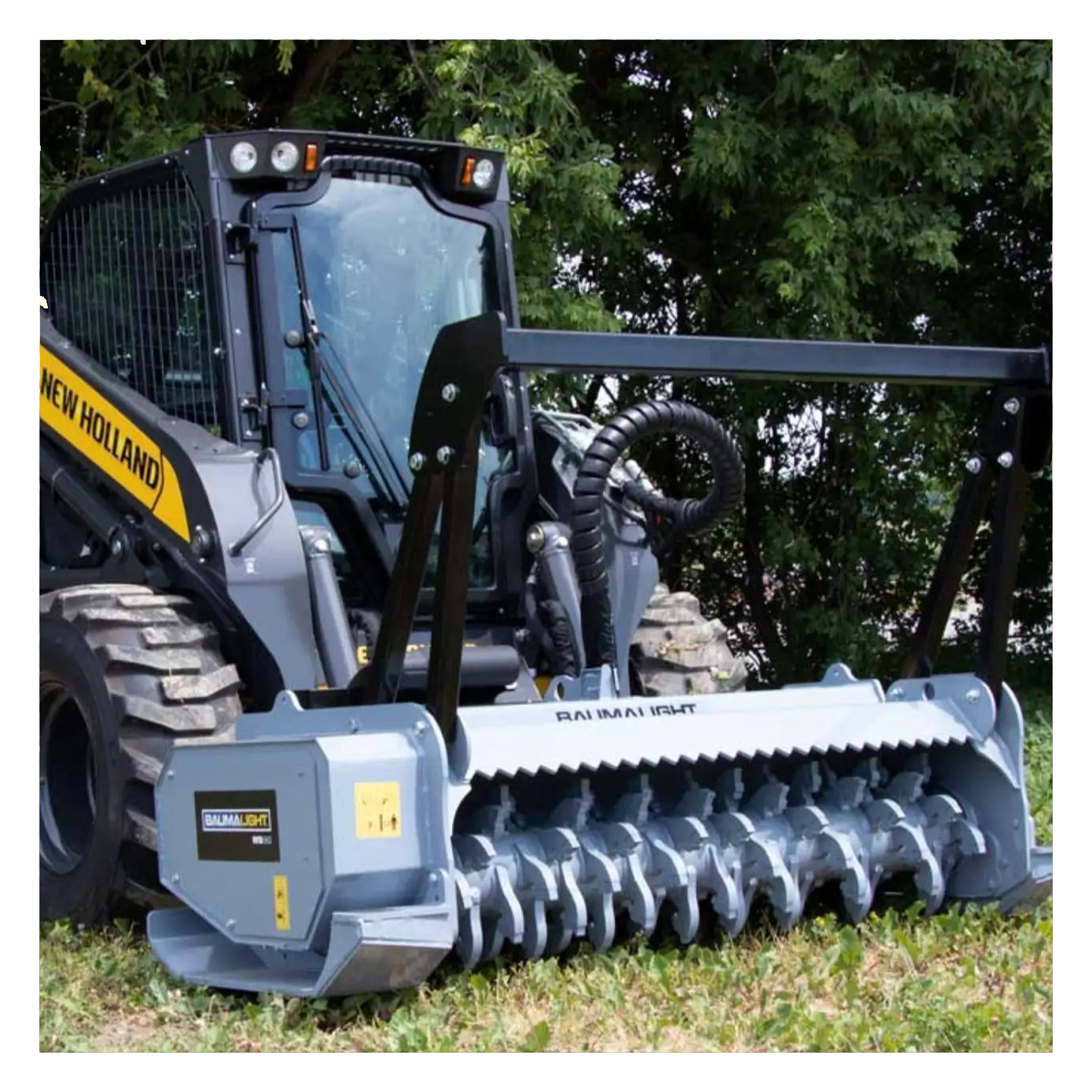

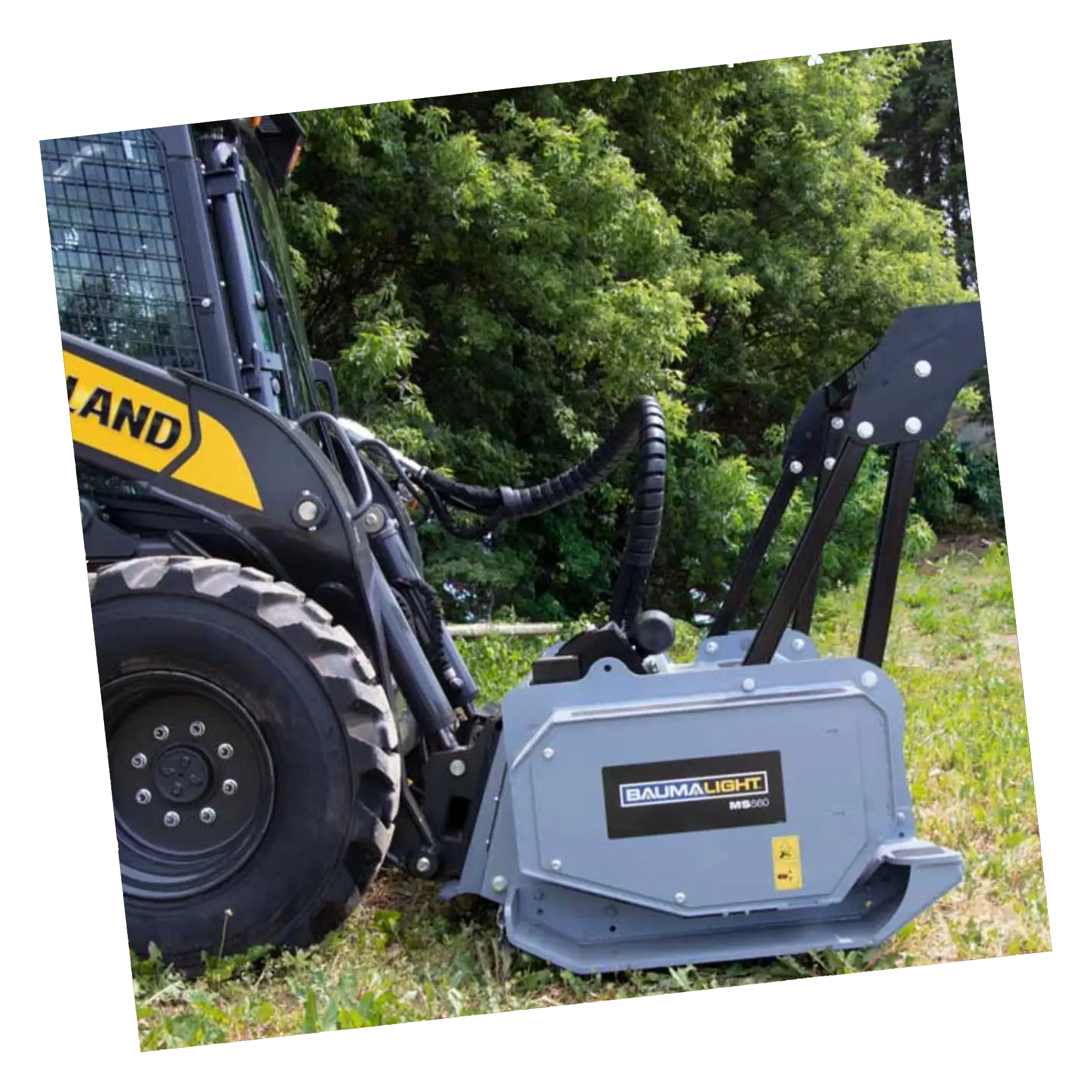

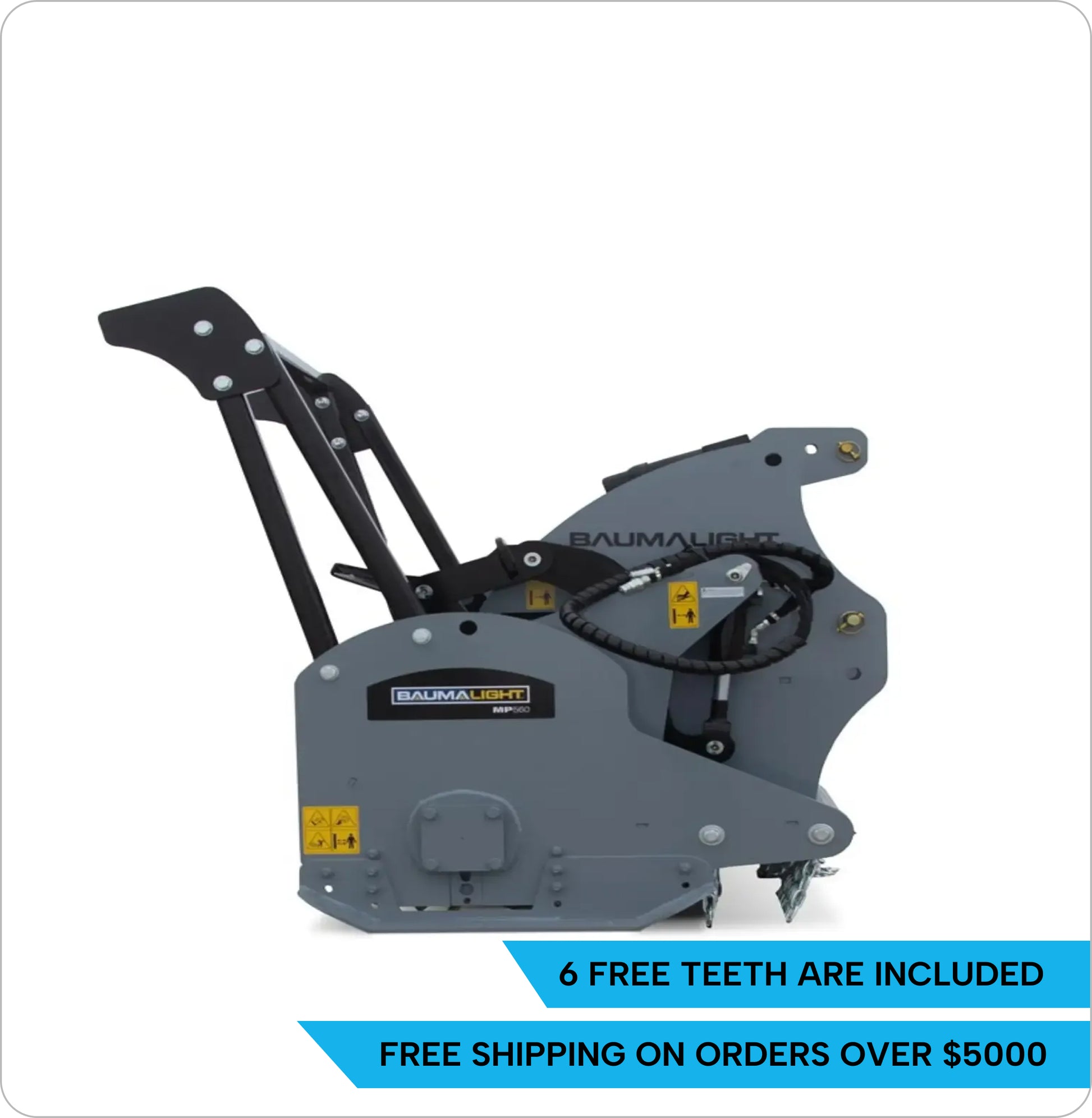

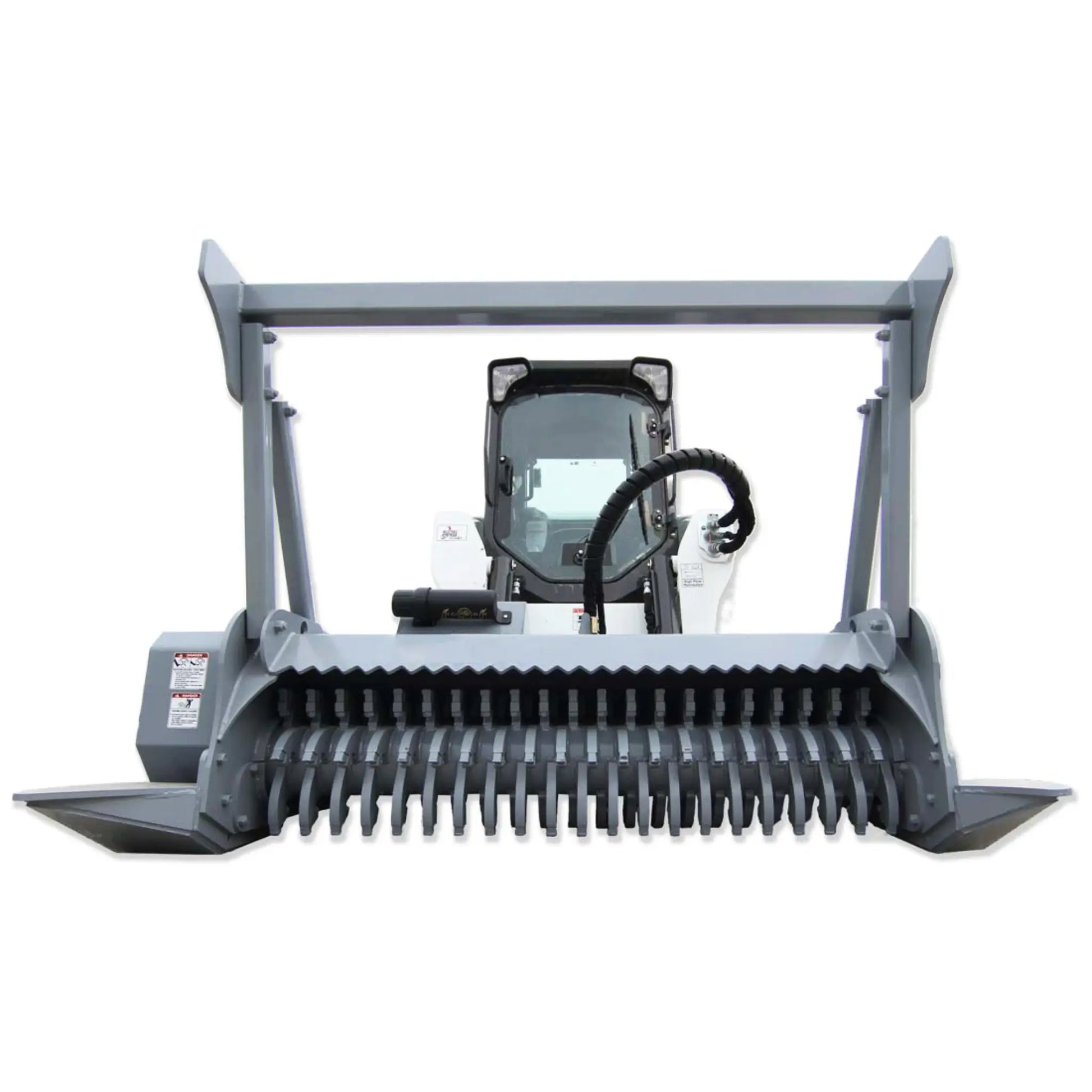

Baumalight MS560 Skid Steer Mulcher | 60" Fixed Tooth Brush Mulcher

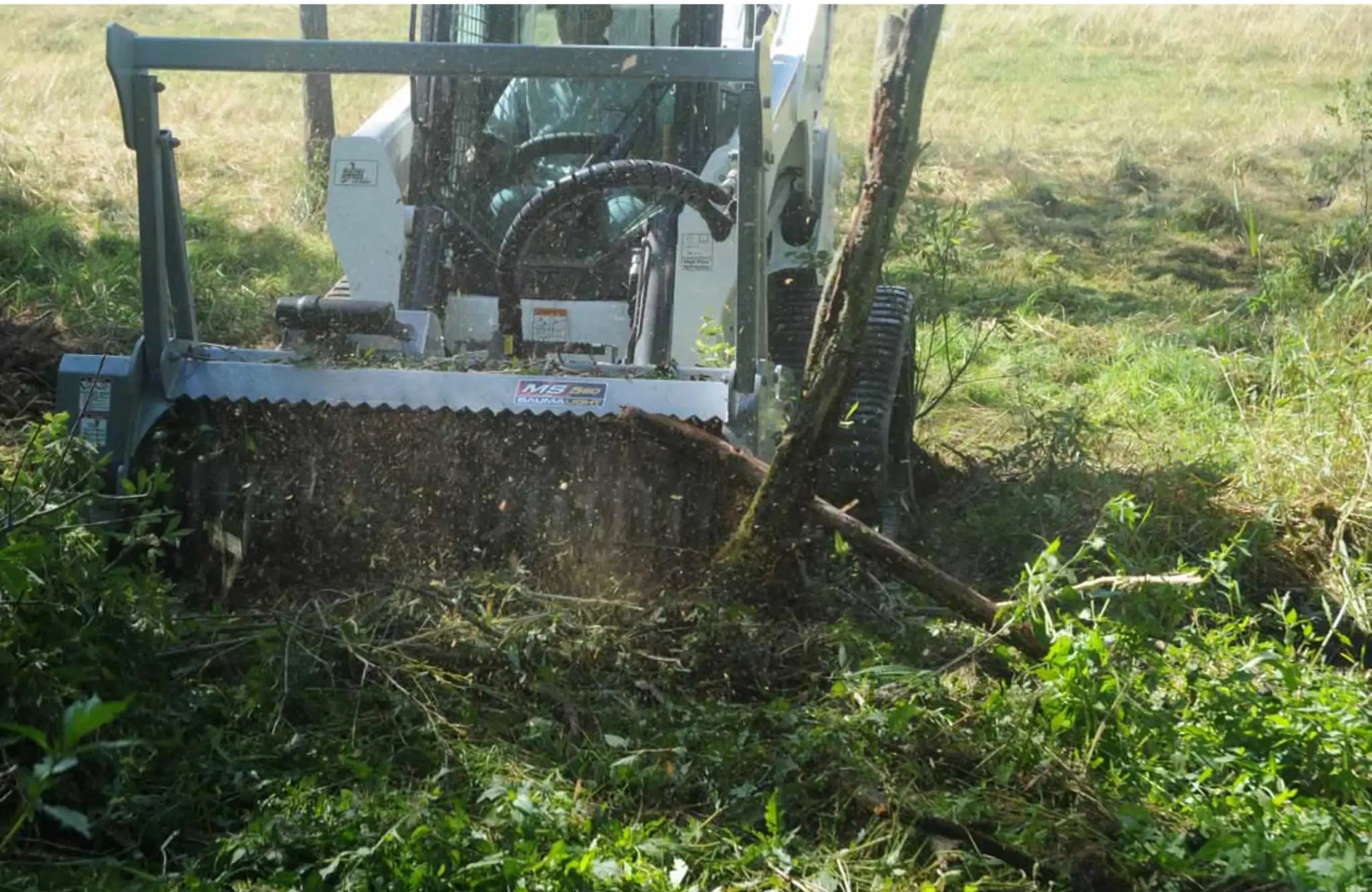

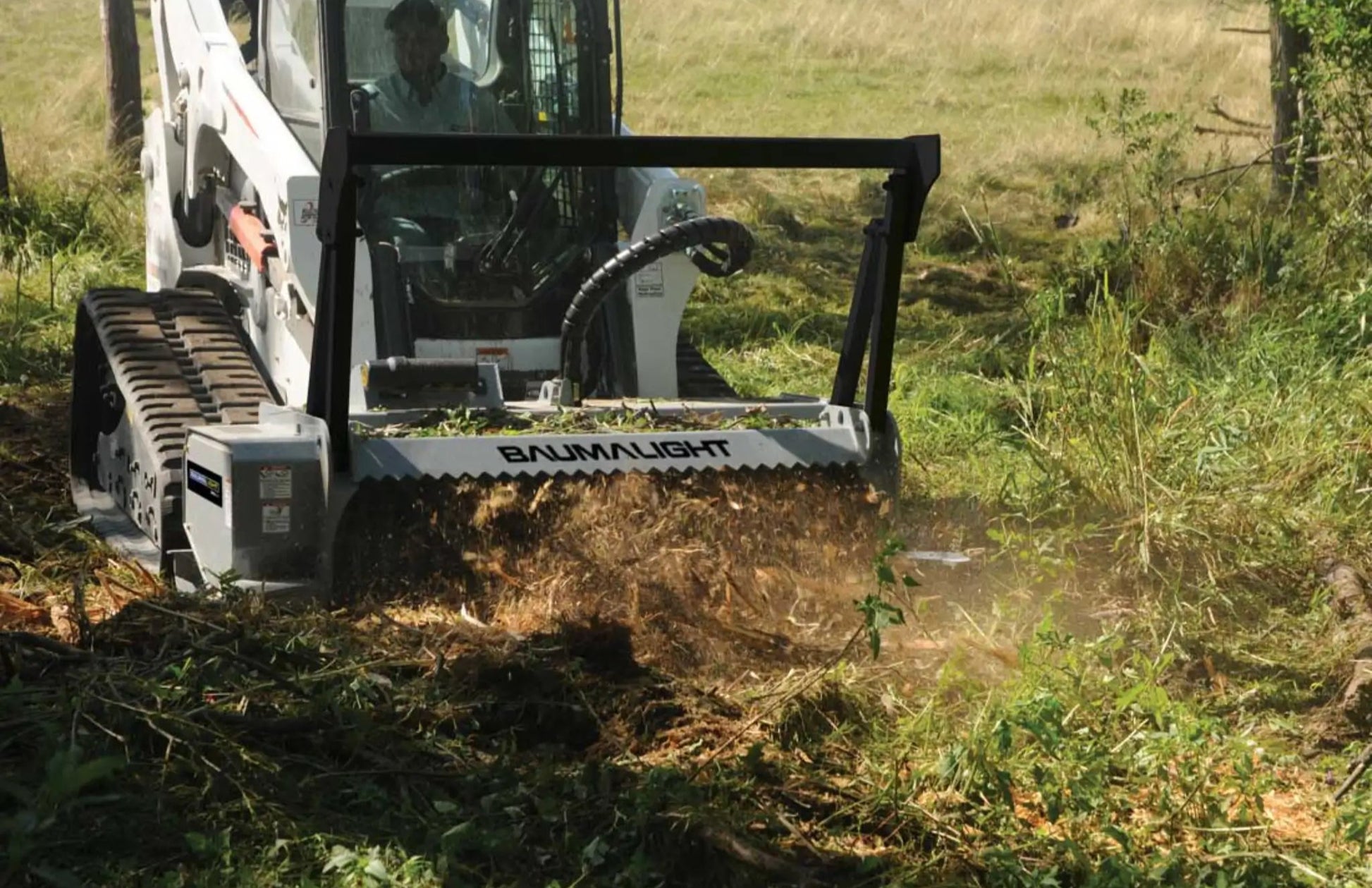

The Baumalight MS560 Skid Steer Mulcher is a 60-inch fixed-tooth brush mulcher built for skid steer and compact track loader owners who need to clear brush, fence lines, overgrowth, saplings, trails, farm lanes, hunting property, right-of-way edges, and light land-clearing jobs without moving up to a full-size forestry package.

With a 75-inch overall path width, 60-inch rotor width, 92 carbide-tipped P5000 bolt-in cutters, and a universal skid steer quick-attach mount, the Baumalight MS560 is a strong fit for landowners, farmers, landscapers, tree service contractors, property managers, and entry-level land clearing contractors who want a durable drum mulcher that can be matched to their skid steer’s hydraulic flow.

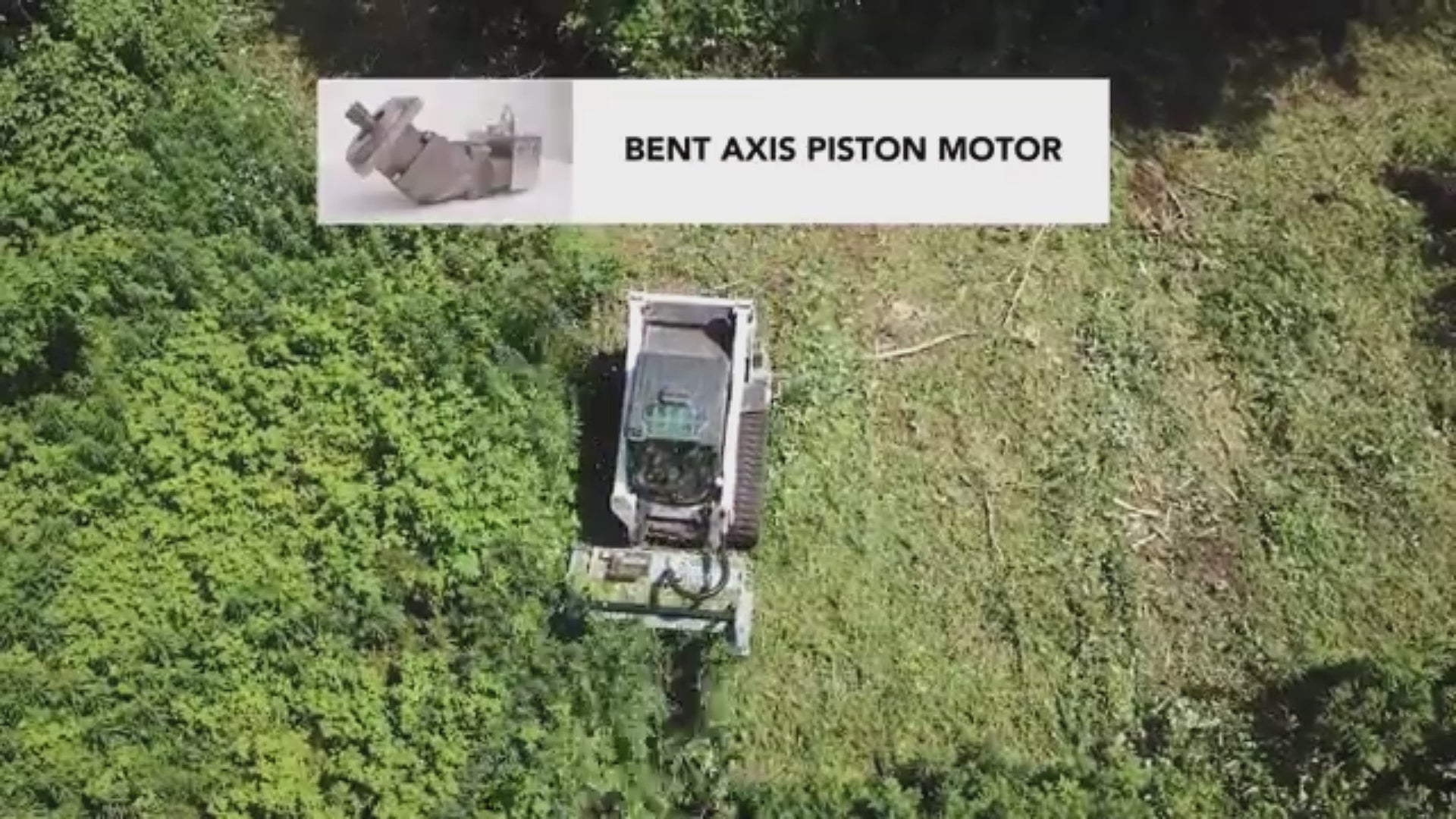

The MS560 is available with multiple bent-axis piston motor options, allowing the mulcher to be paired to standard-flow, mid-flow, and high-flow skid steers. For best performance, choose the motor that puts your machine’s hydraulic flow near the upper end of that motor’s operating range. This helps maximize rotor speed and cutting efficiency.

Key Features of the Baumalight MS560 Brush Mulcher

• 60" rotor width for productive brush and small-tree clearing
• 75" path width to cover more ground with each pass
• Universal skid steer mount for most full-size skid steers and compact track loaders

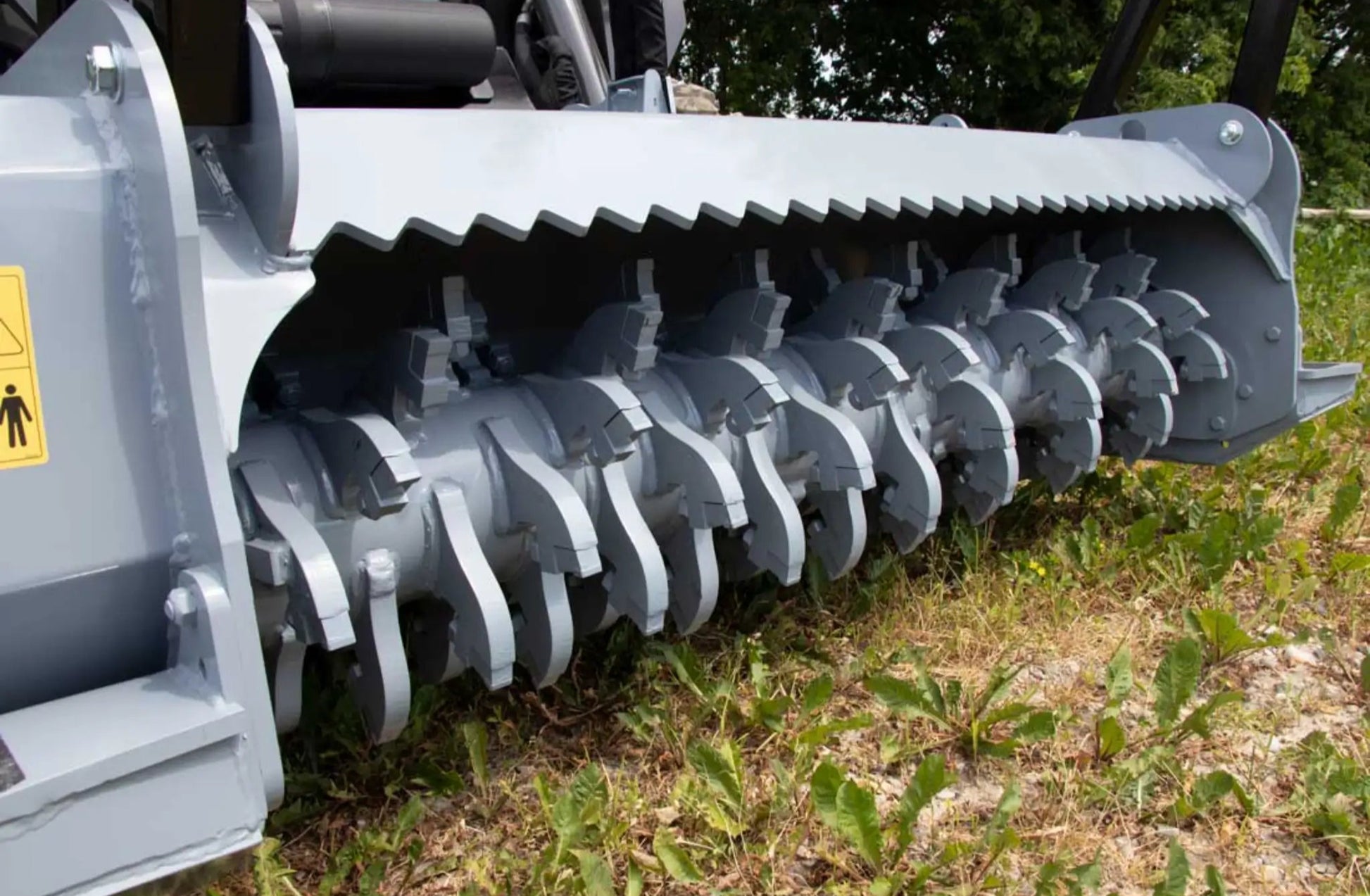

• Fixed carbide-tipped bolt-in teeth for aggressive cutting and field serviceability

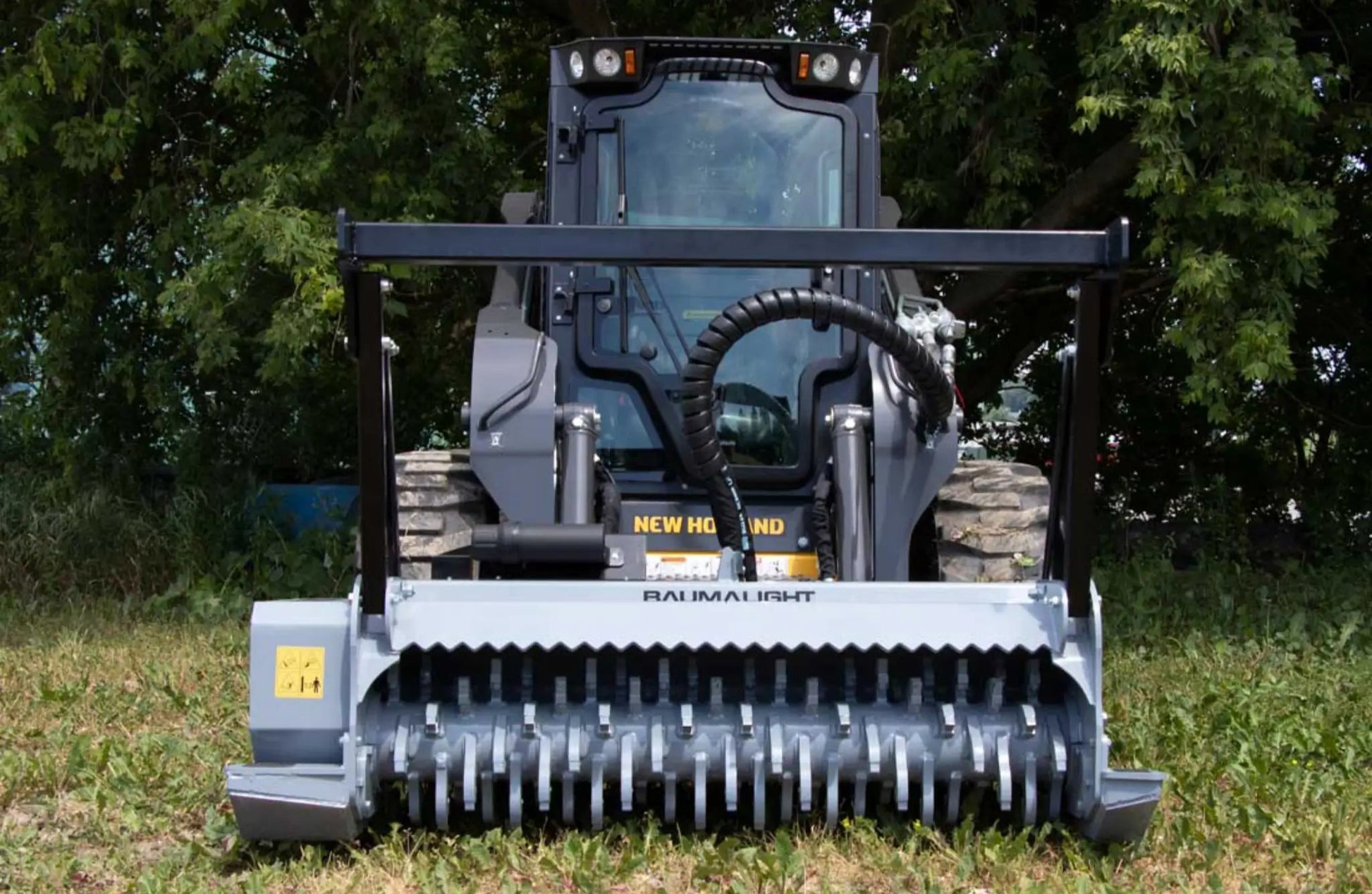

• 92 P5000 cutters arranged for smooth mulching performance
• 15" rotor diameter with a 575 lb rotor weight for strong cutting momentum
• Critical case drain requirement for piston motor protection

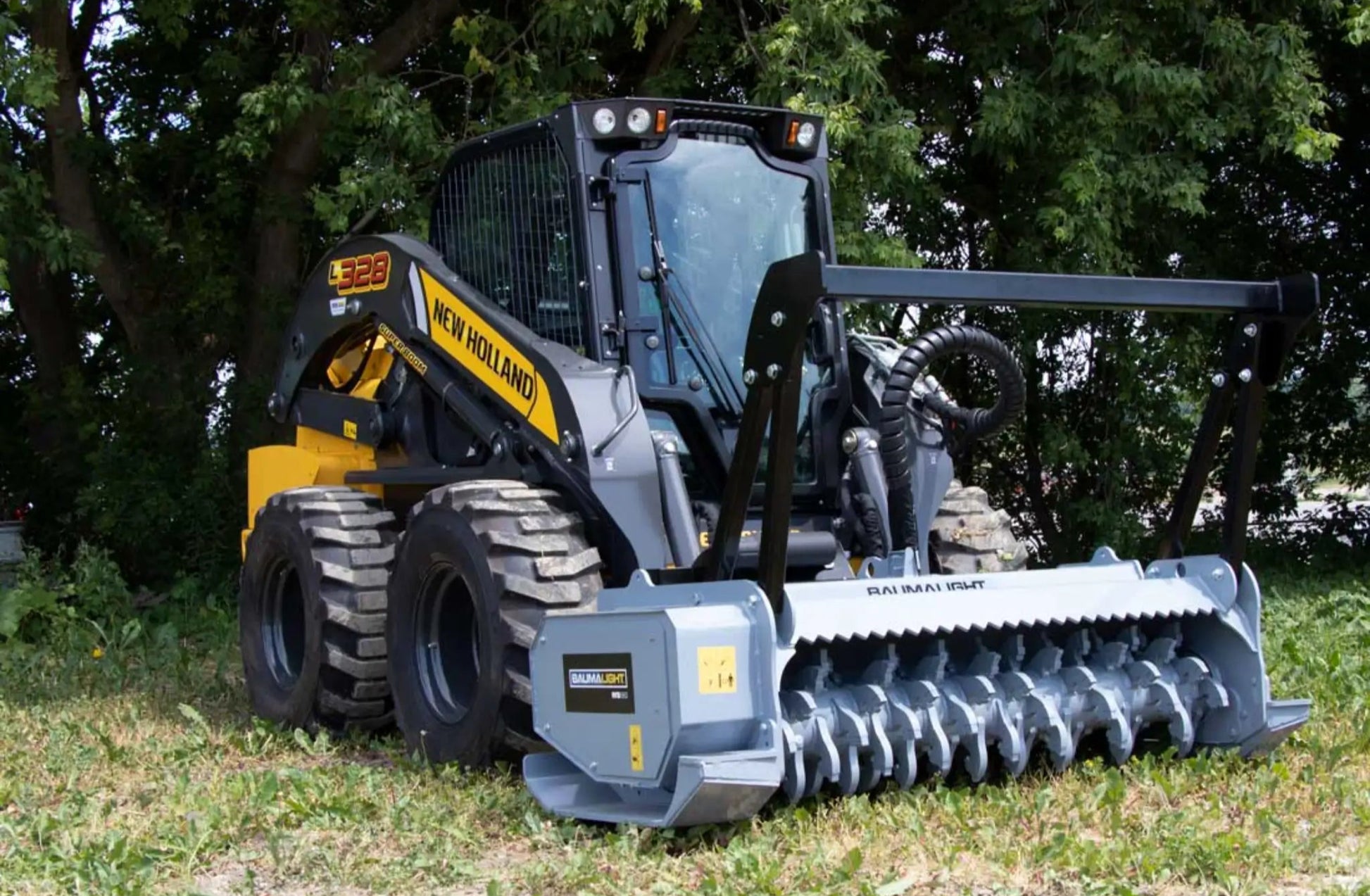

• Integrated push bar to help bend and control taller brush before it reaches the rotor
• Adjustable skid shoes for controlling cutting height
• Pressure gauge to help the operator monitor hydraulic load while mulching
• Relief valve protection to help protect the hydraulic system from pressure spikes

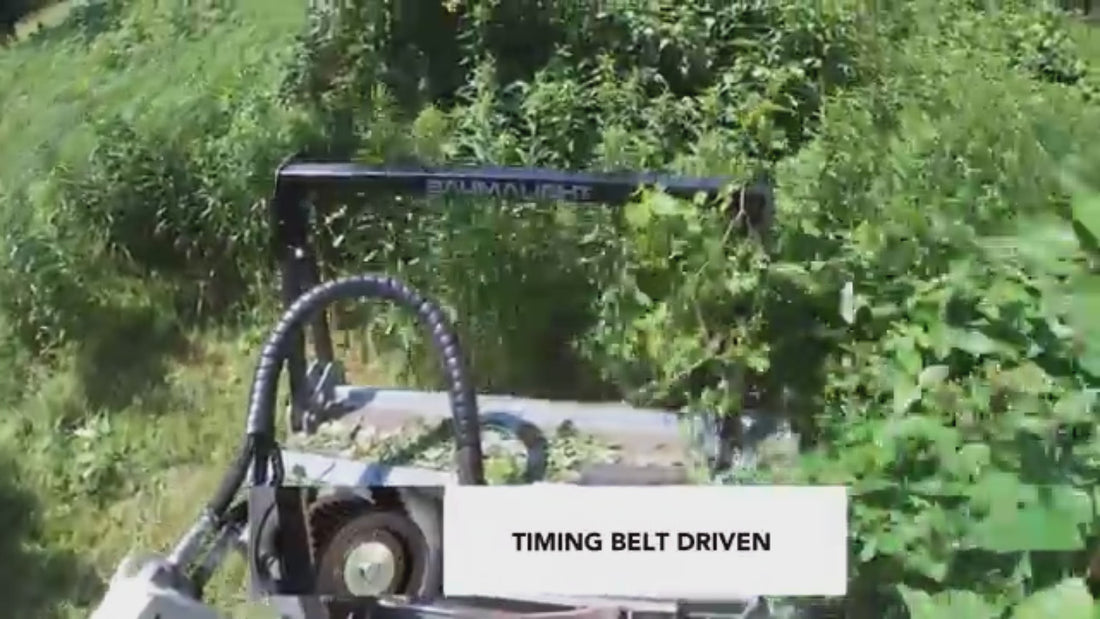

• Reinforced belt drive to absorb shock loads during mulching
• Wire protection kit to help reduce damage from fencing and debris
• Heavy-duty frame built with T1 alloy tool steel in key wear areas

Baumalight MS560 Specifications

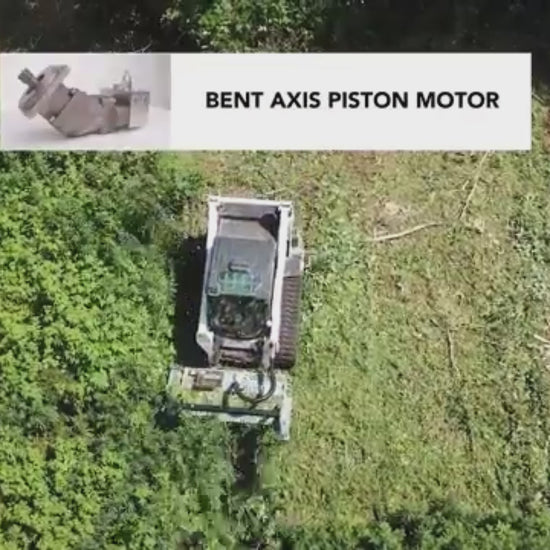

Hydraulic Motor Options for the Baumalight MS560

The Baumalight MS560 should be ordered with the correct bent-axis piston motor for your skid steer’s hydraulic flow. Do not choose a motor only because it has a wider range. The best motor is usually the one where your machine’s GPM is close to the top of the motor’s recommended range, because that gives the rotor the fastest head speed for that motor.

Example: If your skid steer produces 24–25 GPM, the C510 motor is usually the better pairing than moving up to a larger motor, because 25 GPM is at the top of the C510 range. If your machine produces 30 GPM, the C530 motor is the better match. If your machine produces 39–40 GPM, choose the C550 motor.

Quick Motor Selection Guide by Skid Steer Flow

Common Skid Steers and Compact Track Loaders That May Run the Baumalight MS560

The MS560 is designed for full-size skid steers and compact track loaders with a universal quick-attach mount, adequate carrier weight, proper auxiliary hydraulic flow, proper hydraulic pressure, and a functioning case drain. Always confirm your exact machine’s hydraulic specs before ordering.

Common machines that may be considered for the MS560 include:

• Bobcat T650, T740, T770, S650, S740, S770
• CAT 259D, 279D, 289D, 299D, 299D3, 299D3 XE
• John Deere 325G, 331G, 333G
• Kubota SVL75, SVL75-3, SVL95, SVL97-2
• Case TR310, TV370, TV380, TV450

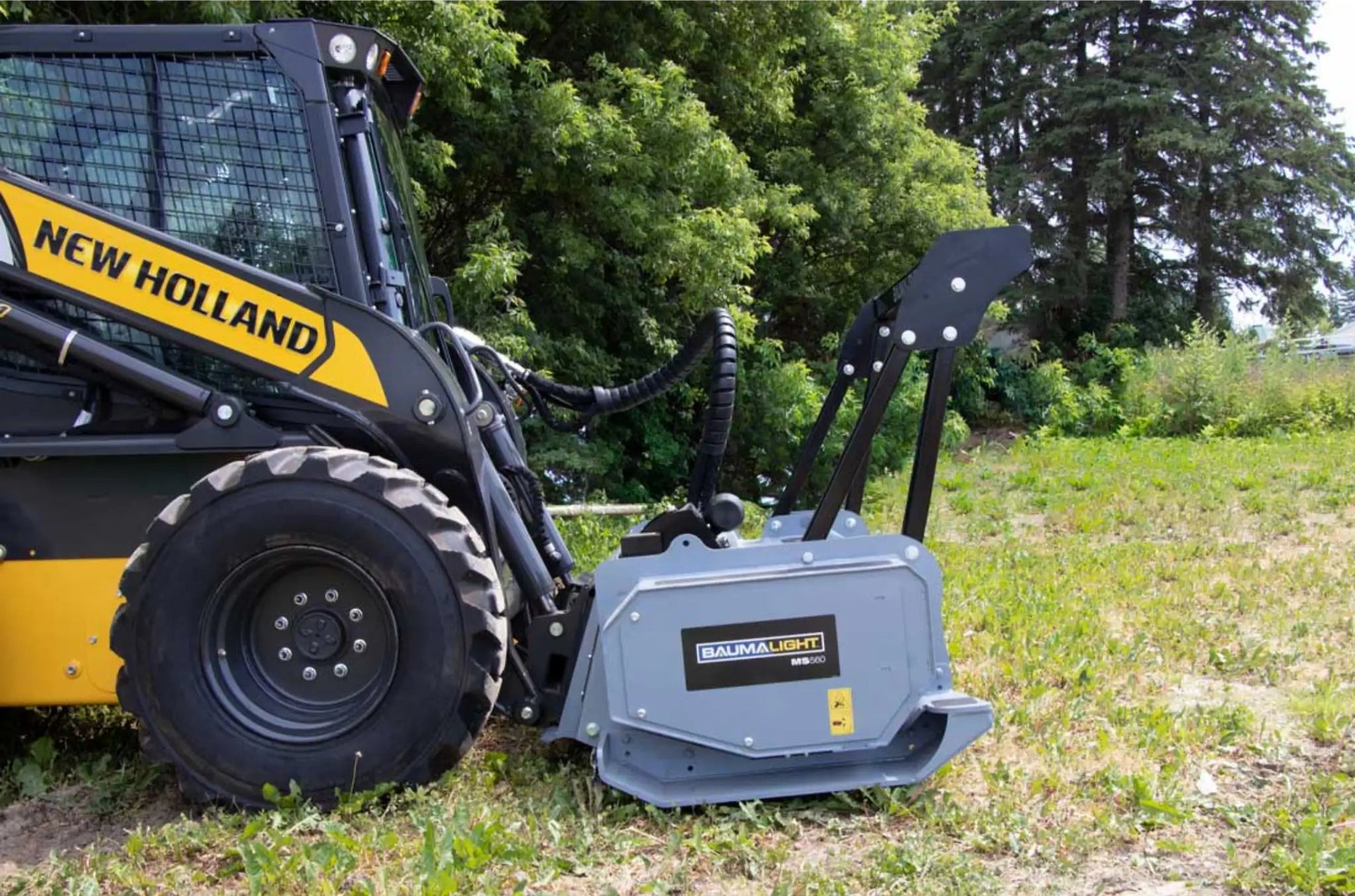

• New Holland C332, C337, C345, L328, L334
• Takeuchi TL10, TL12, TL12V2, TL12R2
• ASV RT-75, RT-95, RT-120, RT-135
• Gehl RT215, RT255, V330
• Mustang 2150RT, 2500RT, 3300V

Important: Machine compatibility depends on more than brand and model. Before ordering, verify your skid steer’s auxiliary GPM, hydraulic pressure, operating weight, lift capacity, case drain availability, and coupler requirements.

Who Should Buy the Baumalight MS560?

The Baumalight MS560 is a strong choice for operators who need a durable skid steer mulcher for brush clearing, property cleanup, trail maintenance, fence line clearing, overgrown farm lanes, hunting property maintenance, and small-tree mulching. It is especially useful for buyers who want a 60-inch drum mulcher that can be matched to a wide range of hydraulic flows using the correct bent-axis piston motor.

This mulcher is ideal for:

• Farm and ranch property maintenance
• Landscaping and hardscape contractors
• Tree service companies
• Fence line clearing
• Trail and hunting property maintenance
• Right-of-way cleanup
• Small acreage land clearing
• Entry-level forestry and land clearing contractors

Why Buy the MS560 from Skid Steer Store?

At Skid Steer Store, we help match your attachment to your machine before you buy. The MS560 has multiple motor options, and choosing the wrong motor can reduce rotor speed, cutting efficiency, and overall performance. Our team can help confirm your skid steer’s hydraulic flow, pressure, coupler setup, and case drain requirements so you can order the right Baumalight MS560 configuration the first time.

Frequently Asked Questions

What size skid steer do I need for the Baumalight MS560?

The Baumalight MS560 requires a minimum carrier weight of 5,500 lbs. You should also verify hydraulic flow, hydraulic pressure, case drain availability, lift capacity, and coupler requirements before ordering.

What hydraulic motor should I choose for the Baumalight MS560?

Choose the bent-axis piston motor that places your skid steer’s GPM near the upper end of the motor’s flow range. For example, a 24–25 GPM machine is usually best paired with the C510 motor, while a 39–40 GPM machine is usually best paired with the C550 motor.

Does the Baumalight MS560 need a case drain?

Yes. The MS560 piston motor configurations require a case drain. A case drain helps protect the motor by allowing internal leakage oil to return safely to the tank without excessive back pressure.

Can the Baumalight MS560 fit a Bobcat skid steer?

Yes, the MS560 uses a universal skid steer mount and may fit many Bobcat skid steers and compact track loaders, including machines such as the T650, T740, T770, S650, S740, and S770. Always confirm hydraulic flow, pressure, weight, and case drain compatibility.

Can the MS560 run on a standard-flow skid steer?

Yes, depending on the machine. Standard-flow machines in the 16–25 GPM range are commonly paired with the C510 bent-axis piston motor. Lower-flow machines may require the C508 motor.

Is the Baumalight MS560 good for high-flow skid steers?

Yes. The MS560 can be configured with larger bent-axis piston motors for high-flow machines. Common high-flow pairings include the C530 for 20–30 GPM, C540 for 25–35 GPM, C550 for 30–40 GPM, C570 for 35–50 GPM, and C590 for 45–60 GPM.

What is the cutting width of the Baumalight MS560?

The MS560 has a 60-inch rotor width and a 75-inch path width.

What teeth does the Baumalight MS560 use?

The MS560 uses P5000 carbide-tipped bolt-in teeth. The standard setup uses Planer-style teeth, with optional Ripper-style teeth available for certain applications.

Is the MS560 good for fence line clearing?

Yes. The MS560 is well suited for fence lines, farm cleanup, brush clearing, and small-tree mulching. The wire protection kit, fixed teeth, push bar, and heavy-duty frame make it useful for overgrown property maintenance.

Are hydraulic couplers included with the Baumalight MS560?

No. Hydraulic couplers are not included because coupler requirements vary by skid steer brand and model. Couplers should be matched to your machine before delivery.
