Baumalight Fixed Tooth Mulcher | Model MS530M | 30" Cutting Width | For Mini Skid Steer
DESCRIPTION
MS530M Fixed Tooth Mulcher for Mini Skidsteer BOBCAT MOUNT
MS530M Fixed Tooth Mulcher for Mini Skidsteer ASV RT40 MOUNT
MS530M Fixed Tooth Mulcher for Mini Skidsteer
The MS530M Brush Mulcher is a heavy-duty, versatile Mini Skidsteer mulcher built for efficient mulching and clearing of brush, trees, and vegetation. It features an integrated push bar to control and bend taller brush, along with adjustable skid shoes for optimal cutting height. The armoured and sleeved Baumalight hoses with a pivoting arm protect against pinching and strain. The hardened V-Notch teeth and tooth holders firmly grip the teeth to absorb impacts, while the spiral tooth pattern allows smooth mulching. The standard wire protection kit prevents damage from fencing. The reinforced belt delivers force from the from the bent axis piston motor to the rotor, protecting against mulching shocks. The heavy-duty, powder-coated frame ensures durability and the bent axis piston motor makes efficient use of hydraulic flow for powerful brush clearing. With 6 free replacement teeth included, and optional 500 Series ripper teeth for shredding action, the MS530M combines innovative features and robust construction for outstanding mulching performance.
Key Features
MINI BOBCAT MOUNT 12GPM-20GPM / MINI 12GPM-20GPM
- Heavy-Duty Construction: Built for efficient mulching and clearing of brush, trees, and vegetation.
- Integrated Push Bar: Helps control and bend taller brush for easier mulching.
- Adjustable Skid Shoes: Allows for optimal cutting height adjustment.
- Armoured and Sleeved Hoses: Protects against pinching and strain, with a pivoting arm for added protection.
- Hardened V-Notch Teeth: Firmly grip the teeth to absorb impacts, with a spiral tooth pattern for smooth mulching.
- Wire Protection Kit: Prevents damage from fencing.
- Reinforced Belt: Delivers force from the bent axis piston motor to the rotor, protecting against shocks.
- Powder-Coated Frame: Ensures durability.
- Bent Axis Piston Motor: Efficiently uses hydraulic flow for powerful brush clearing.
- Free Replacement Teeth: Comes with 6 free replacement teeth, with optional 500 Series ripper teeth for shredding action.

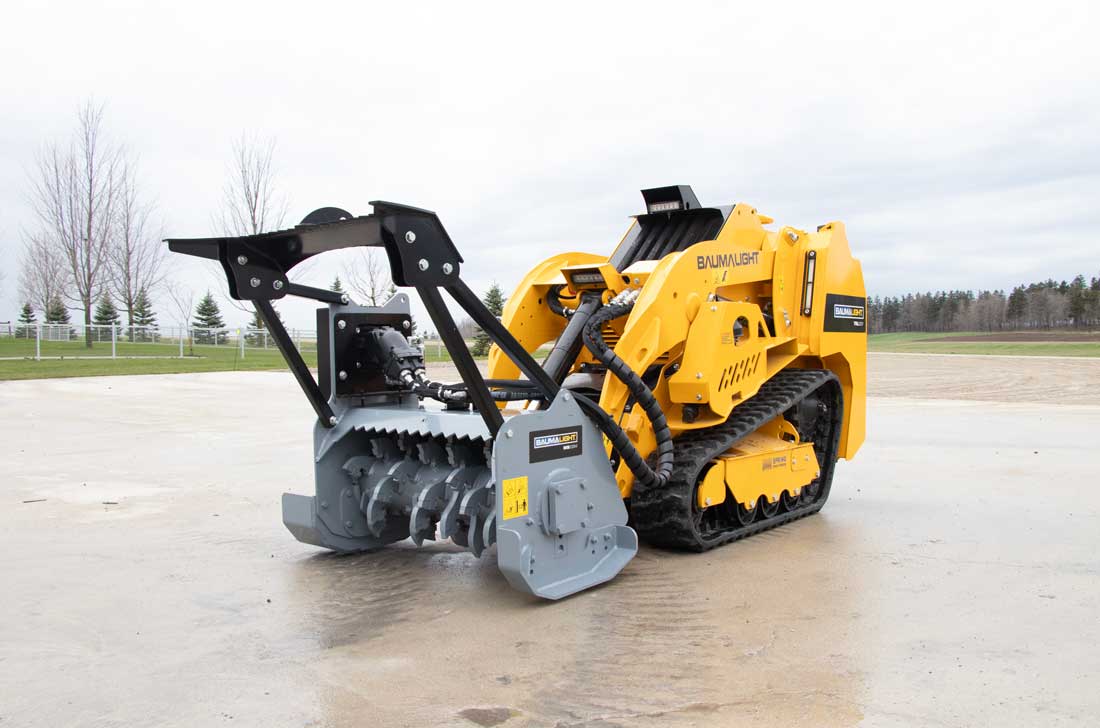

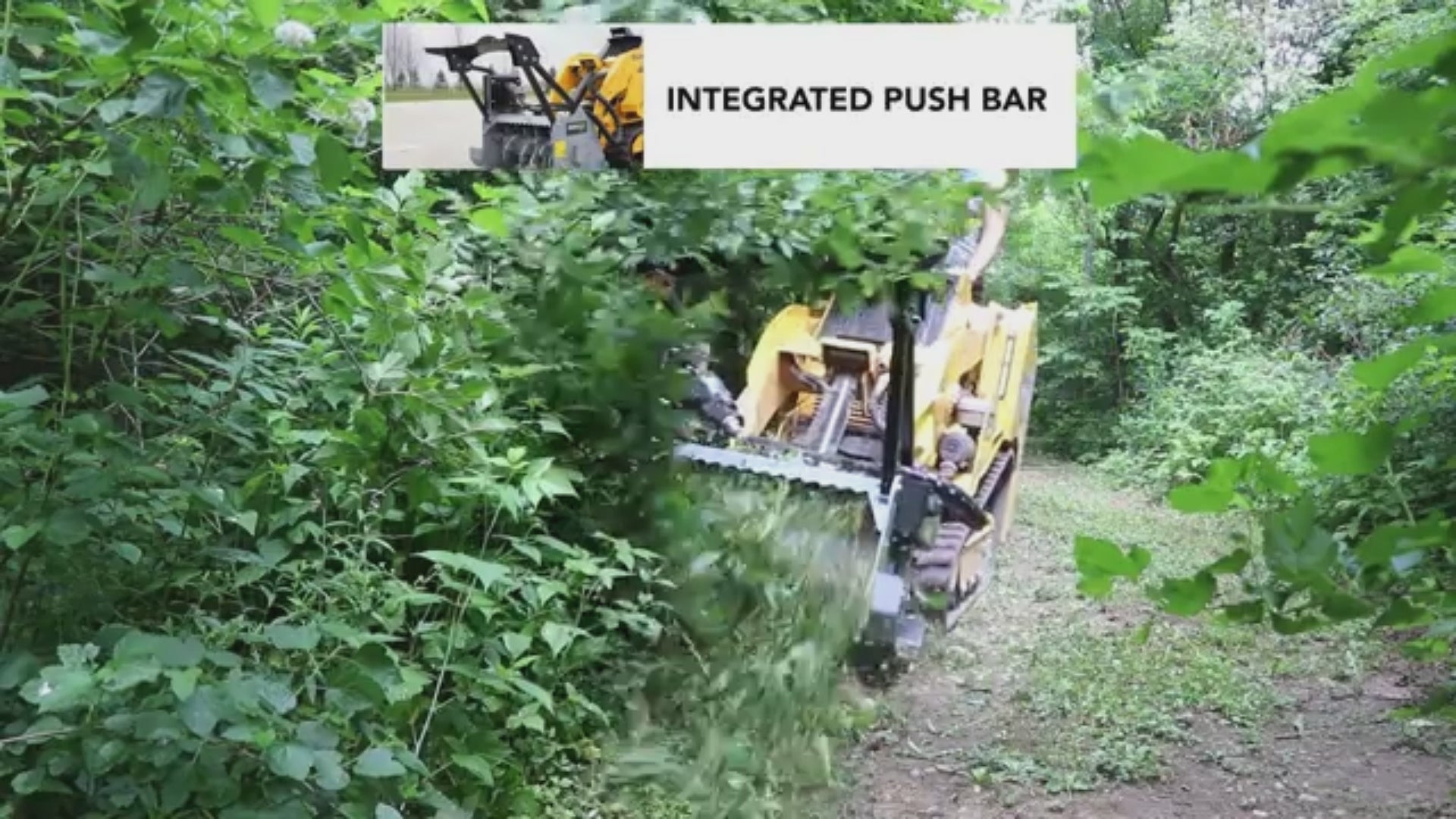

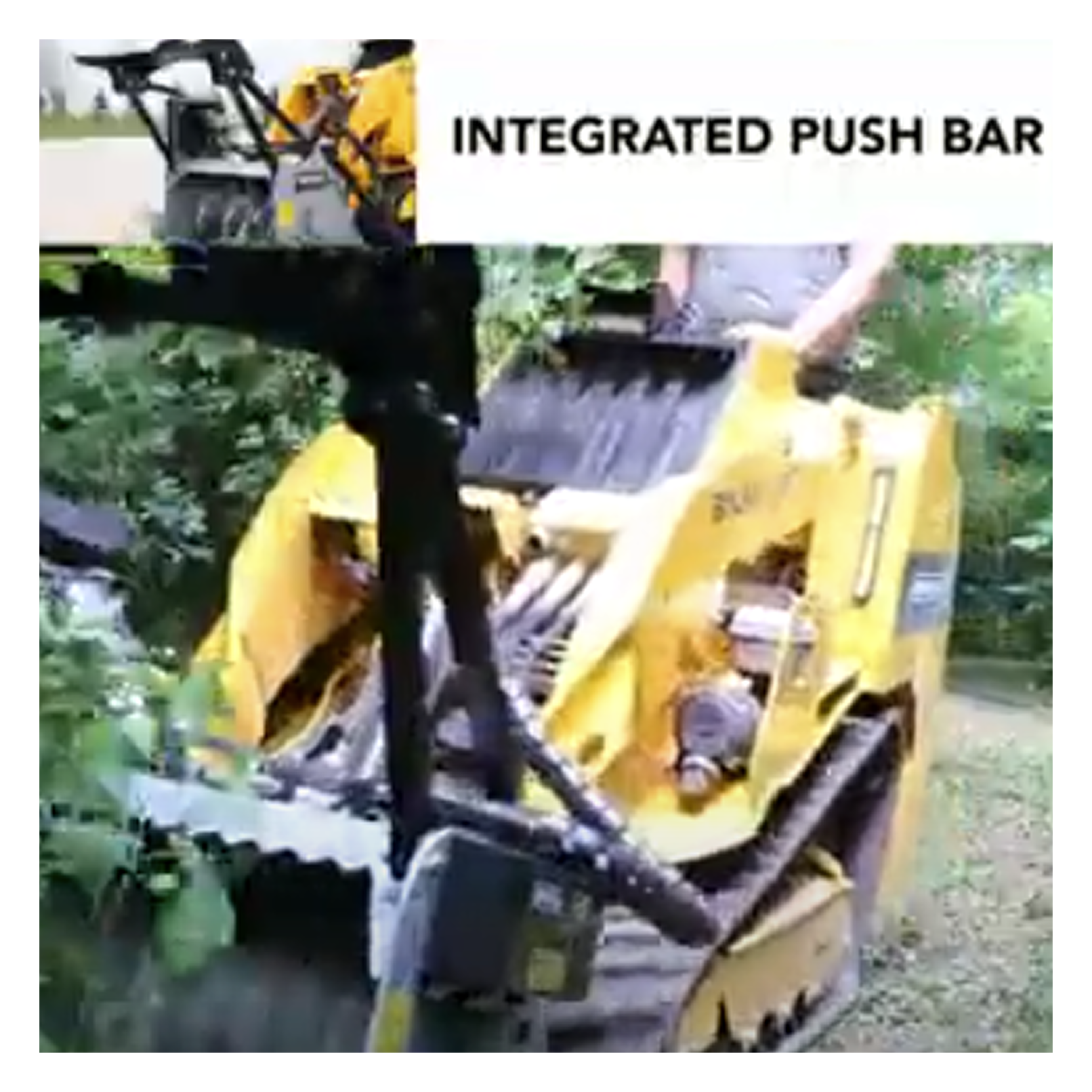

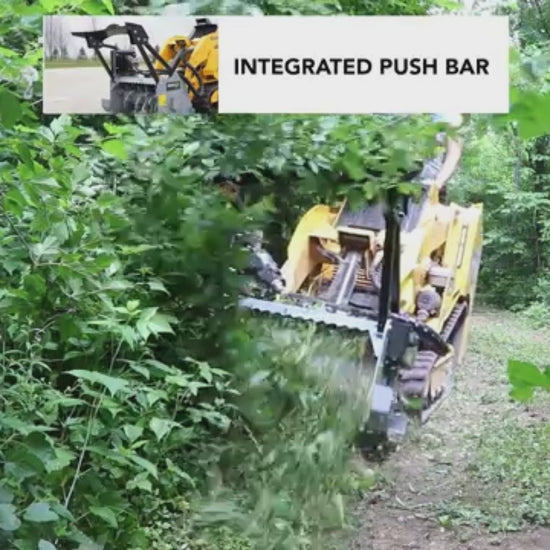

Integrated Push Bar
The integrated brush bar helps control the brush and bend taller brush for easier mulching.

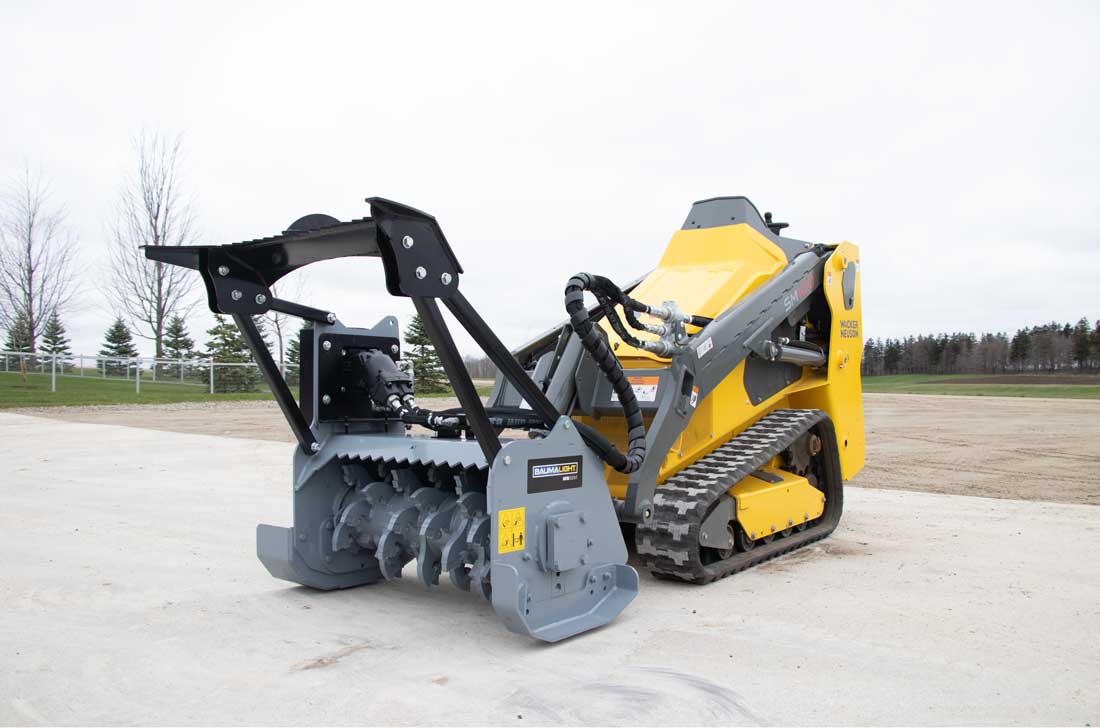

Adjustable Skid Shoes
These two position skid shoes allow you to adjust the cutting height for optimal clearing performance.
Armoured and Sleeved
Baumalight hoses are sleeved for the operator and hose protection. A pivoting arm is also standard with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.

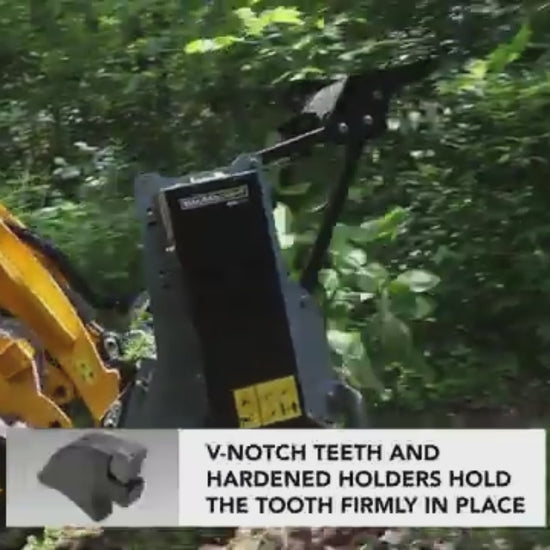

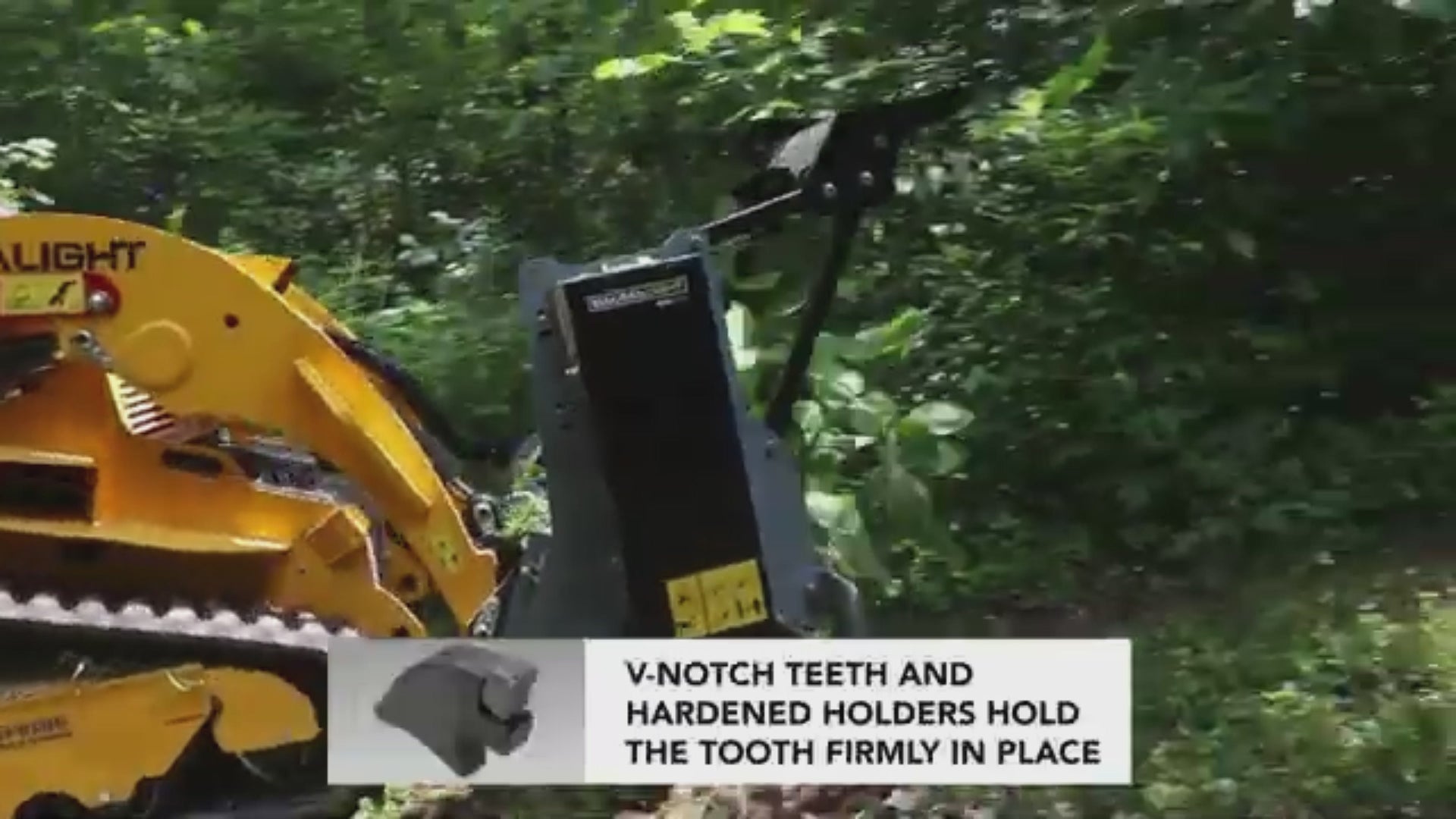

V-Notch
The force and impact of mulching often bends the teeth. Our V-Notch teeth and hardened holders hold the tooth firmly in place to absorb impacts from multiple directions.
Hardened Tooth Holders
These heavy-duty tooth holders resist bending and keep you working longer.

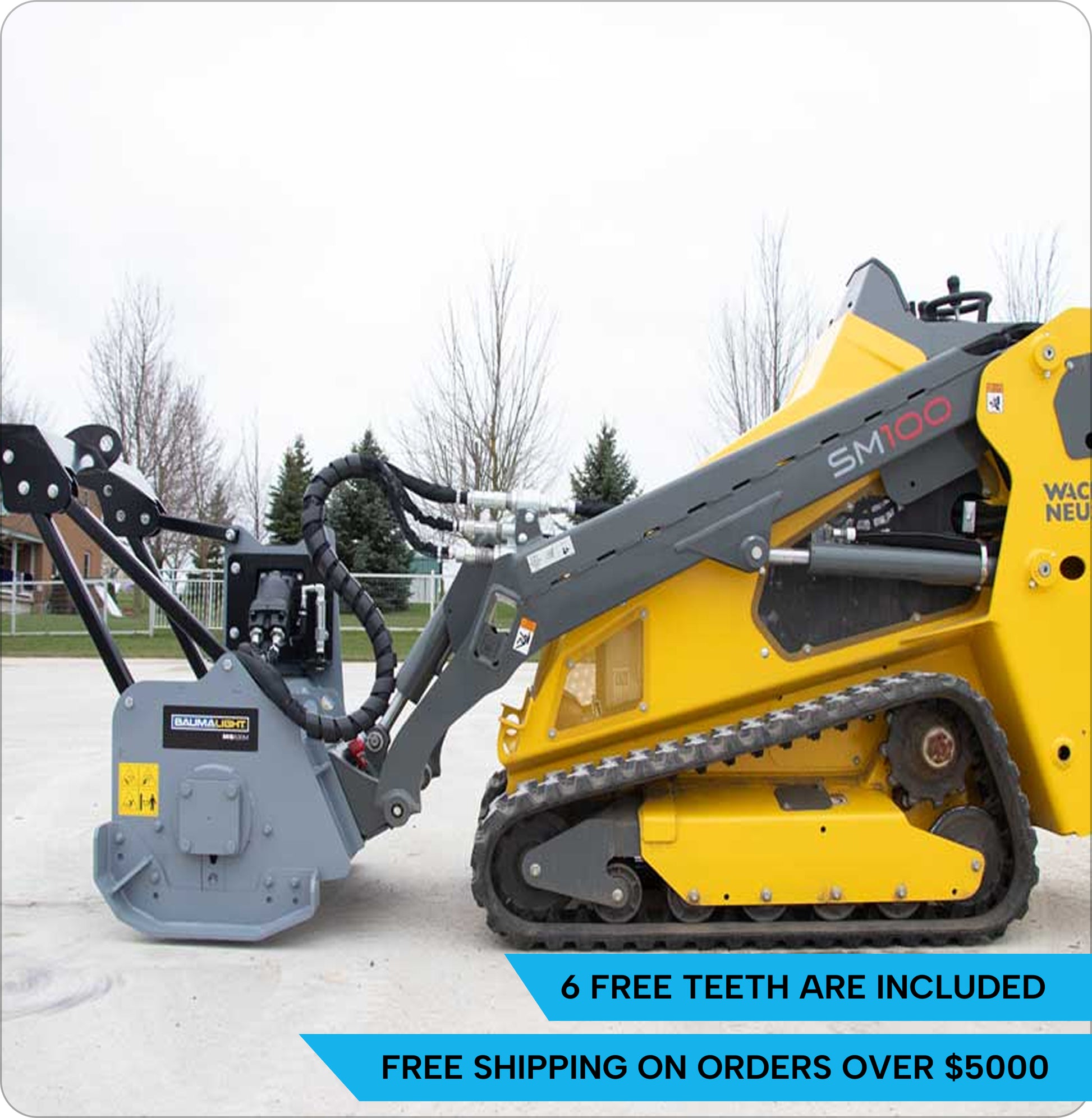

6 Free Teeth
All MS530M Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
Optional 500 Series Ripper Teeth
The 500 Series teeth come in two carbide tipped styles; Planer and Ripper. The Planer style teeth take small bites and provide the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their v-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines. Both styles are Bolt-on replaceable for quick and easy servicing and replacement even in the field.
All units shipped with Standard P5000 Series Planer Teeth only and ripper teeth can be installed as the planer teeth need replacing. Units can be operated with a mix of Planer and Ripper teeth.

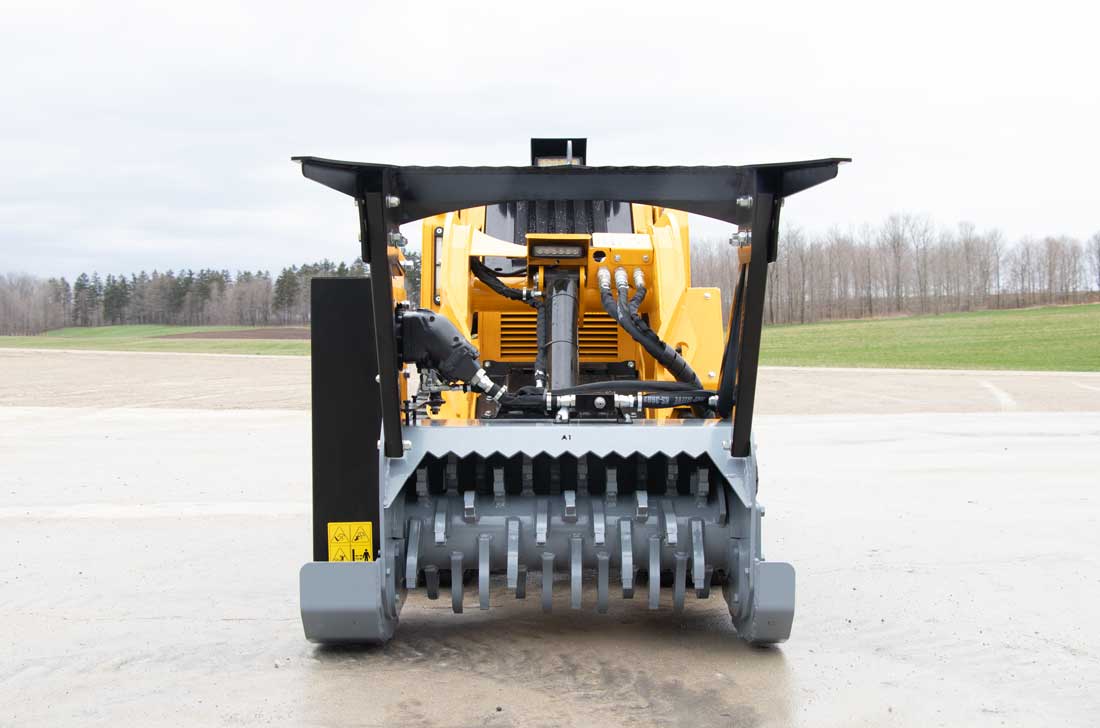

Sprial Tooth Pattern
For smoother mulching, the spiral tool pattern allows one tooth to engage at a time.
Reinforced Belt
A heavy duty reinforced belt delivers the force from the gear box to the rotor. This offers protection from the shocks inherent in mulching.
Wire Protection Kit
Protective steel cover that prevents damage from wire fencing.

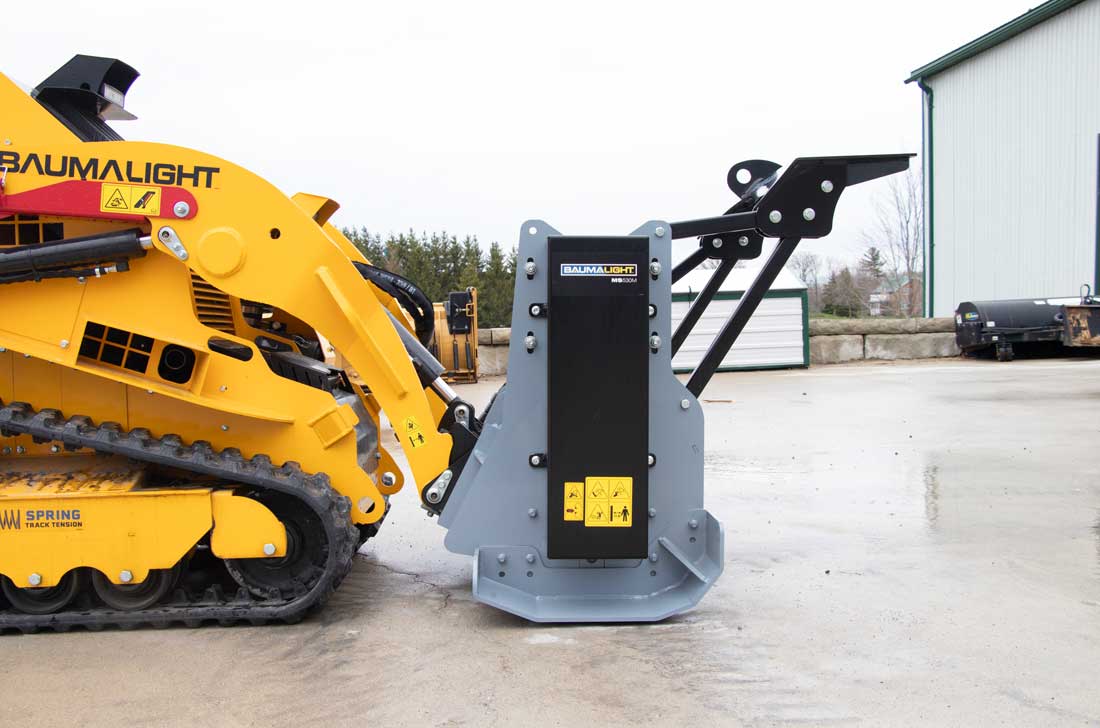

Heavy duty frame
Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas. Powder coated frame with multiple anti-slip pads to give you secure footing for ease of entry and exit from your cab.
Powder Coated
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
Bent Axis Piston Moter
Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.
Hydraulic Flow & Pressure Database
For your convenience Baumalight has Developed a PSI Flow and Pressure database with over 1000 different carrier models to help you decide the best Baumalight model for your machine.
MINI BOBCAT MOUNT 12GPM-20GPM
| BOBCAT MT 55 |  |
| BOBCAT MT100 |  |
| BOBCAT MT85 |  |
MINI 12GPM-20GPM
| ASV RT40 STANDARD FLOW |  |
| ASV RT50 STANDARD FLOW |  |
| BOBCAT MT 55 | |
| BOBCAT MT100 | |
| BOBCAT MT52 |  |
| BOBCAT MT85 | |
| BOXER 425D |  |
| BOXER 427 |  |
| BOXER 427W |  |
| BOXER 526DX |  |
| DITCH WITCH SK1050 |  |
| DITCH WITCH SK3000 |  |
| DITCH WITCH SK350 |  |
| DITCH WITCH SK500 |  |
| DITCH WITCH SK600 |  |
| DITCH WITCH SK650 |  |
| DITCH WITCH SK750 |  |
| DITCH WITCH SK752 |  |
| DITCH WITCH SK755 |  |
| DITCH WITCH SK780 |  |
| DITCH WITCH SK850 |  |
| TORO TX100 |  |
| TORO TX525N |  |
| TORO TX525W |  |
| TORO TXL2000 |  |
| VERMEER CTX100 |  |
| VERMEER S450TX |  |
| VERMEER S600TX |  |
| VERMEER S650TX |  |
| VERMEER S725TX |  |
| VERMEER S800TX |  |
Detailed Specifications
Mini Bobcat Mount 12GPM-20GPM
| Part #: | MS530M/D006290 |
| Mfg: | BAUMALIGHT |
| Category: | MINI SKID STEER ATTACHMENTS |
| SubCategory: | MULCHER MINI SKIDSTEER |
| Industry: | CONSTRUCTION |
| Machine Size: | MINI BOBCAT MOUNT 12GPM-20GPM |
| Attachment Size: | 30” CUTTING WIDTH |
Mini12GPM-20GPM
| Part #: | MS530M |
| Mfg: | BAUMALIGHT |
| Category: | MINI SKID STEER ATTACHMENTS |
| SubCategory: | MULCHER MINI SKIDSTEER |
| Industry: | CONSTRUCTION |
| Machine Size: | MINI 12GPM-20GPM |
| Attachment Size: | 30" CUTTING WIDTH |
Maximum Brush Cutting Sizes
(Brush Diameter in Inches) 500 Series
| Specification | MS530M |
|---|---|
| Type | Bent Axis Piston |
| Pressure Rating (PSI) | 2500 - 4000 |
| Case Drain | Critical |
| Flow Range (GPM) | 25 - 60 |
| RPM at 15 GPM | ~1450 |
| RPM at 20 GPM | ~1800 |
| RPM at 30 GPM | ~2100 |
| RPM at 45 GPM | ~2500 |
| RPM at 60 GPM | ~2900 |
| Port Size at 25 GPM | 2.5" - 3.5" |
| Port Size at 45 GPM | 5" - 5.75" |
| Port Size at 60 GPM | ~6" |
Double brush size for “stop and chew” cutting for skidsteer models ONLY
NOTICE: Max GPM value must NEVER be exceeded on roller-vane motors or failure will occur, Piston motors run much faster before failure will occur
NOTICE: Above GPM values are under load flow estimates

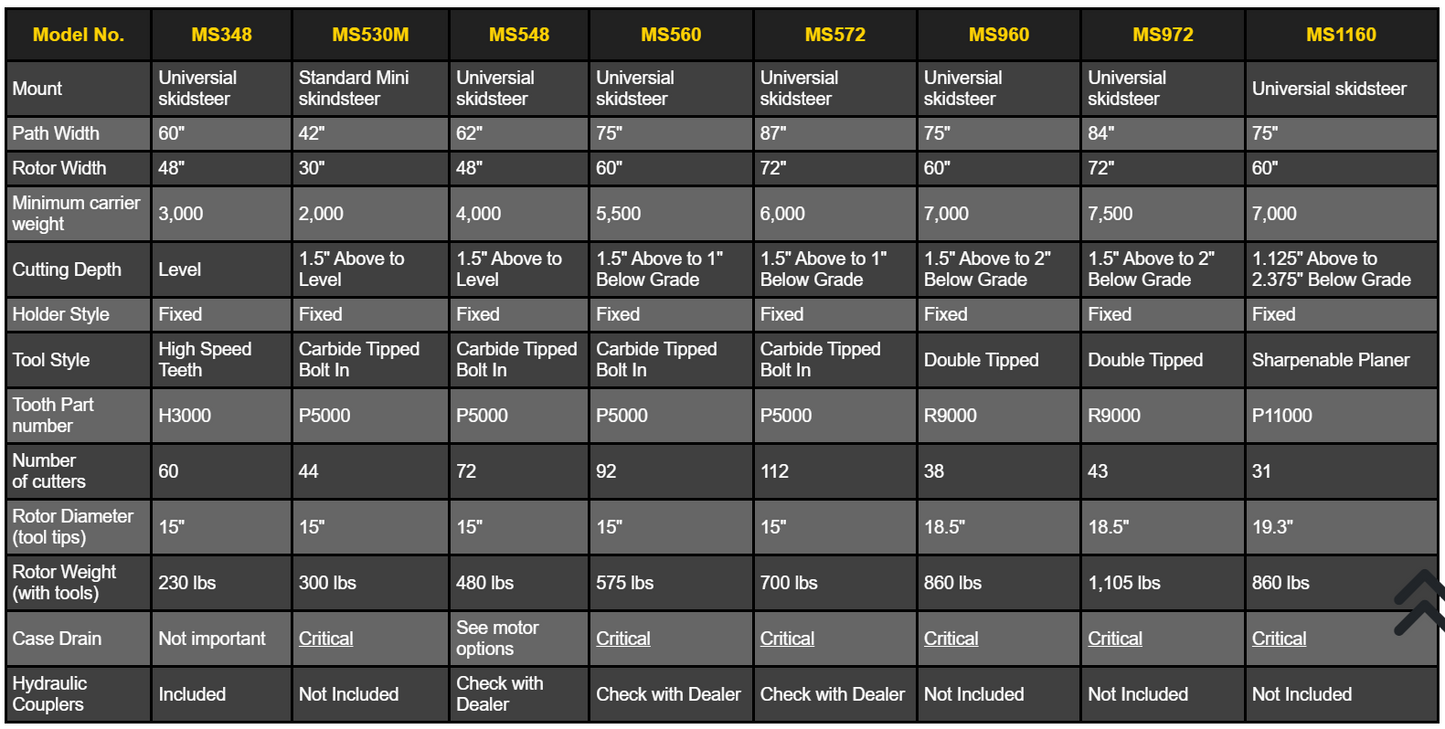

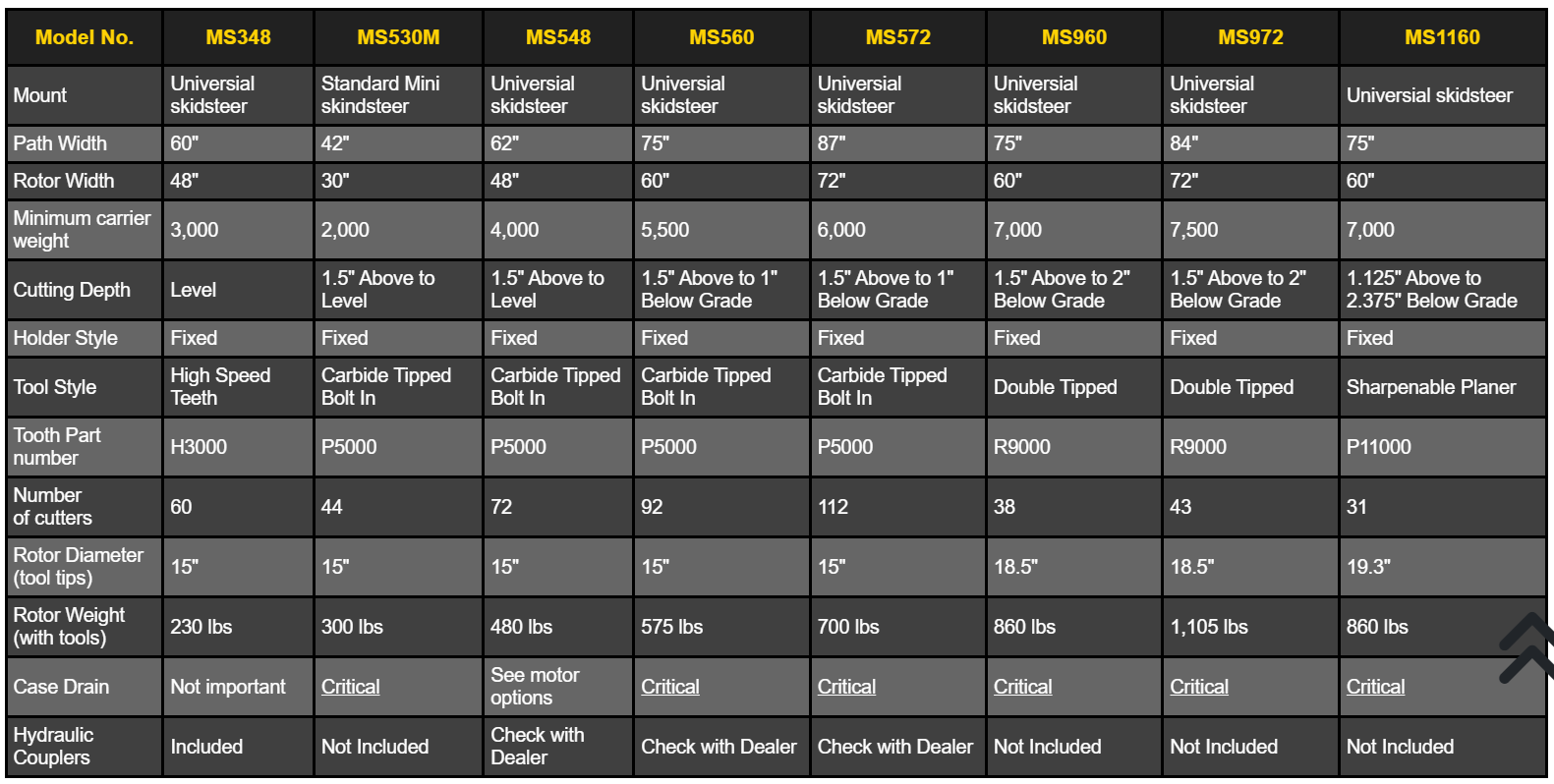

Comparison Chart
