Baumalight HSM513 Manual Rotation Tree Saw with 168" Extended Boom for Skid Steers

Take control of overgrown fence lines, high limbs, small trees, and dense woody vegetation with the Baumalight HSM513 Tree Saw for Skid Steers. Available from Skid Steer Store, the HSM513 is a heavy-duty, hydraulically driven extended-reach tree saw built for farms, ranches, land-clearing projects, rural properties, rights-of-way, and professional vegetation management.

What sets the HSM513 apart from a conventional skid steer tree saw is its impressive 168-inch operating length. The extended boom allows operators to reach higher limbs and farther into tree lines while remaining inside the skid steer. This makes it especially useful for clearing overhanging branches along farm roads, fields, fence lines, trails, driveways, and areas where larger agricultural equipment needs additional overhead clearance.

The HSM513 features a manual rotating cutting head that can be positioned horizontally or vertically, allowing the same attachment to cut small trees and brush near ground level or trim limbs and branches overhead. Its heavy-duty AR400 steel circular saw blade, replaceable carbide-tipped High Speed Teeth, serrated front push bar, blade shielding, and bent-axis piston hydraulic motor make it a serious tree-cutting attachment for demanding skid steer applications.

Why Choose the Baumalight HSM513 Extended-Reach Tree Saw?

The Baumalight HSM513 is designed for operators who need substantially more reach than a standard skid steer tree saw. Whether you're maintaining miles of agricultural fence line, opening access for taller farm equipment, trimming tree limbs along a road, or reclaiming overgrown rural property, the HSM513 gives your skid steer the ability to reach vegetation that would otherwise require additional equipment.

• Trim high and overhanging tree limbs
• Maintain farm and ranch fence lines
• Create clearance for tractors, combines, sprayers, trucks, and other equipment
• Cut small trees and woody brush
• Maintain trails, access roads, and driveways
• Clear property boundaries and rights-of-way
• Manage rural acreage and wooded property
• Reduce the need for ladders and handheld saws in many applications

168-Inch Extended Reach

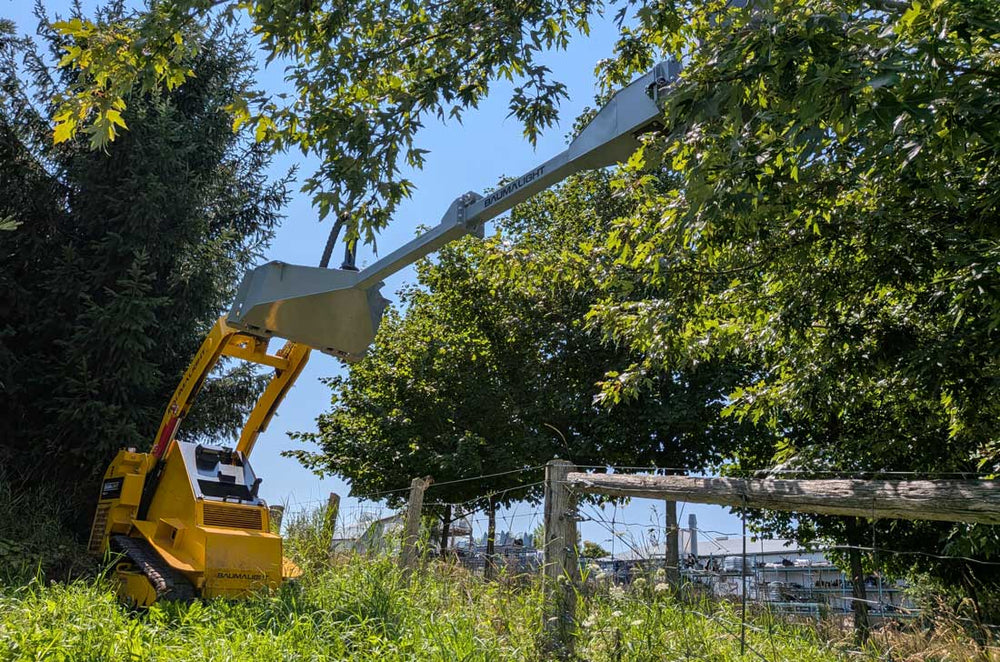

The standout feature of the Baumalight HSM513 skid steer tree saw is its approximately 168-inch operating length. This extended boom gives the operator significantly more reach than a traditional close-mounted skid steer tree saw.

For farmers and property owners, the extra reach can be particularly valuable when trimming limbs that interfere with combines, tractors, hay equipment, sprayers, trucks, trailers, and other tall machinery.

Folding Boom for Transport and Storage

Although the HSM513 provides impressive reach during operation, the boom is designed to fold for more compact transport and storage. This reduces the attachment's overall footprint when hauling it between jobs or storing it when not in use.

Manual Horizontal and Vertical Cutting Positions

The HSM513 uses a manual bolt-on rotating cutting head that can be configured for both horizontal and vertical cutting applications.

Horizontal Tree Cutting Position

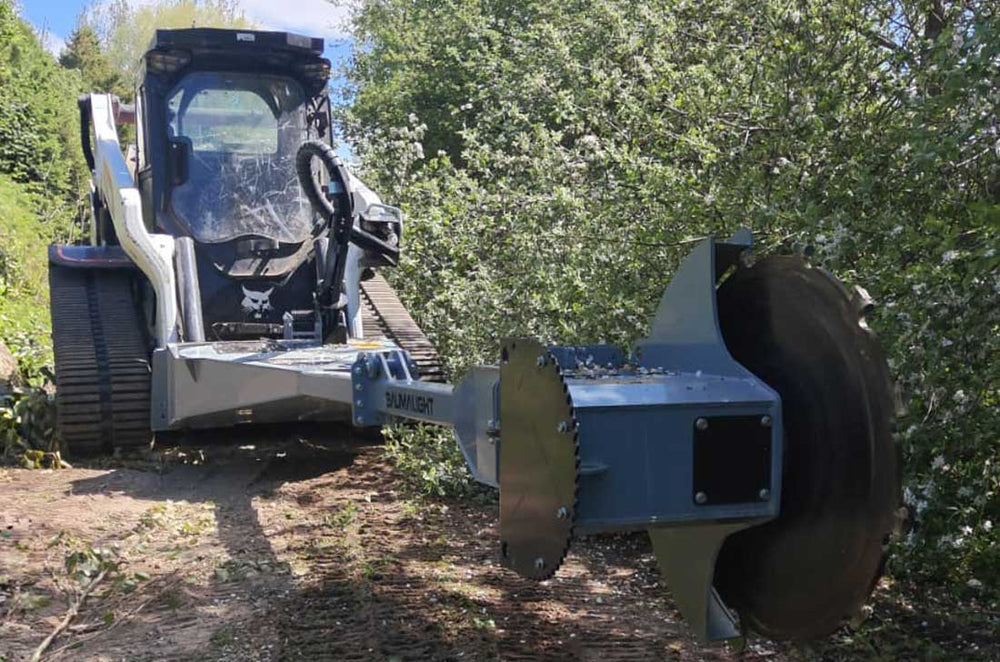

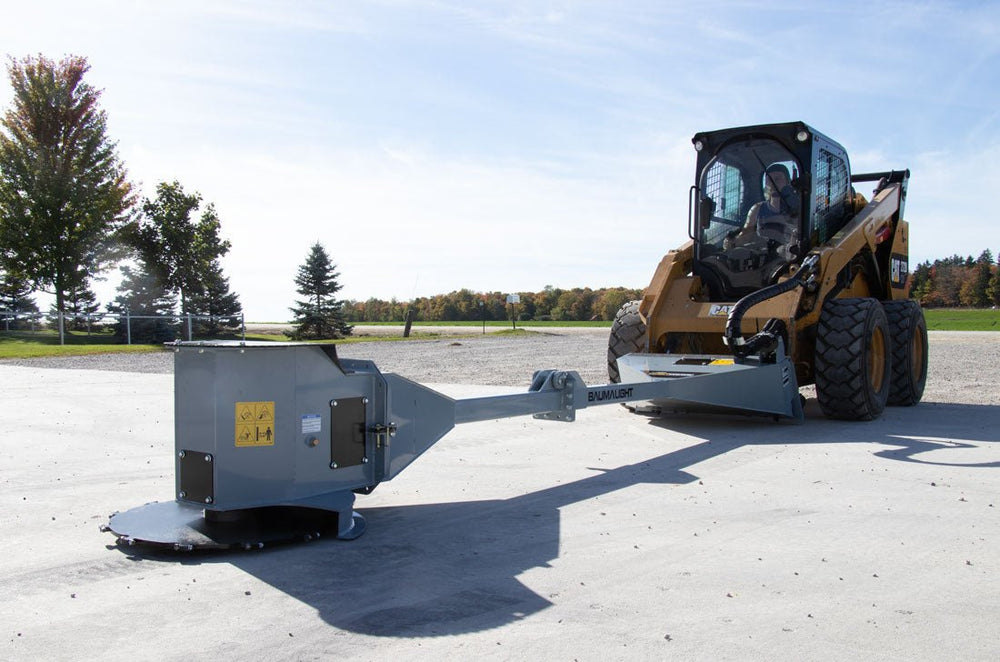

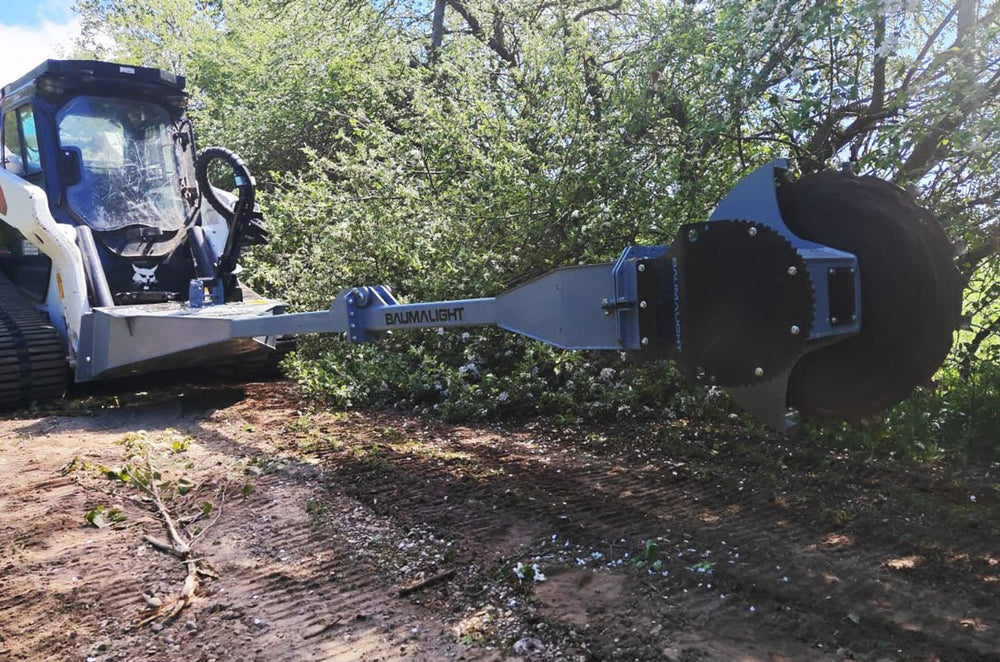

Position the blade horizontally for cutting small trees, saplings, brush, and woody vegetation near ground level.

Vertical Limb-Trimming Position

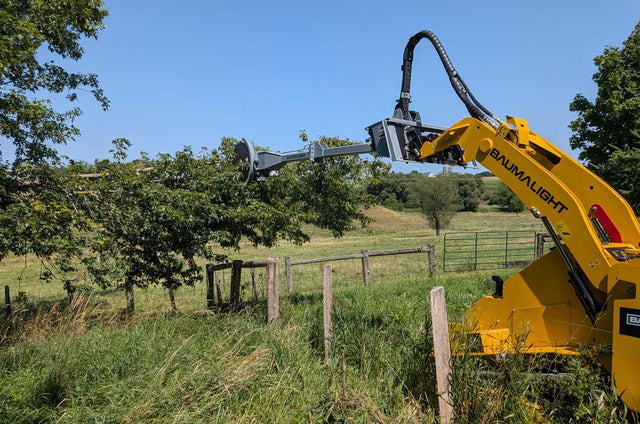

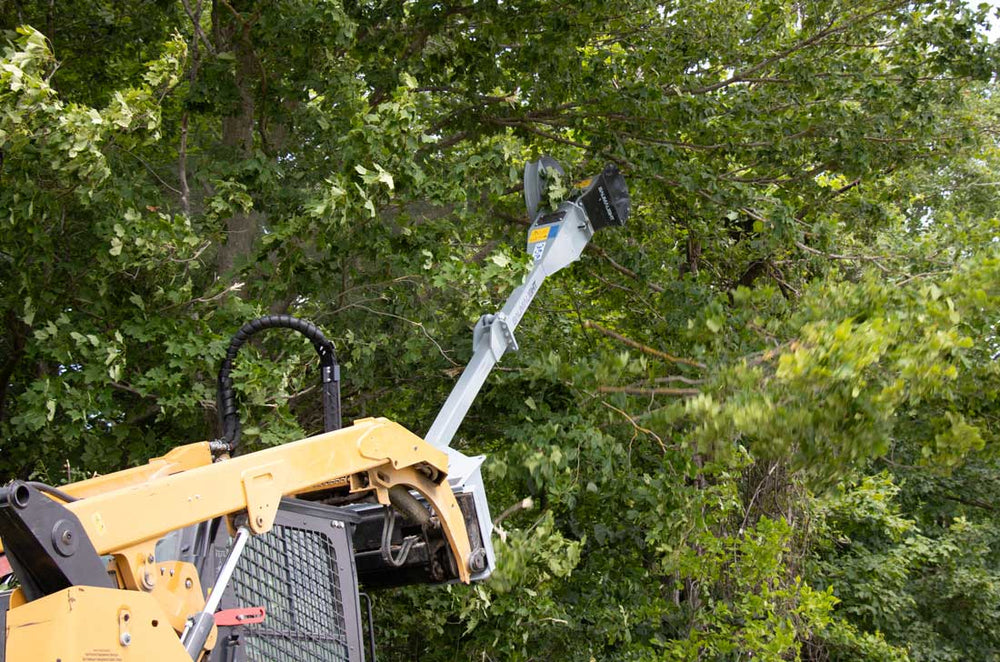

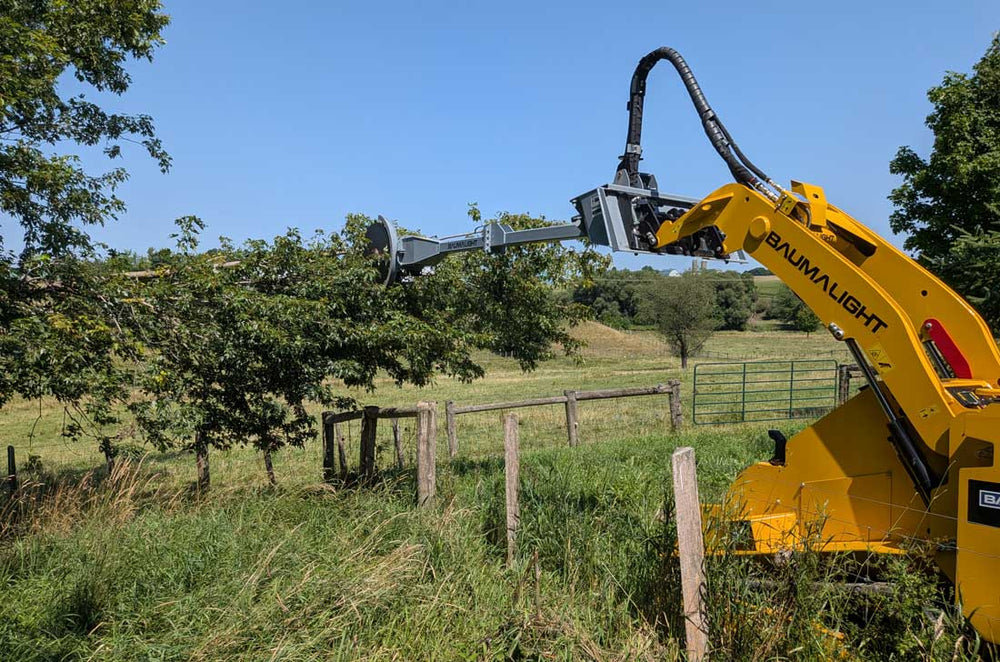

For trimming limbs, fence lines, tree rows, and overhanging branches, the cutting head can be manually rotated 90 degrees to the left or right.

To change the cutting position, remove the eight bolts at the base of the cutting head, rotate the assembly 90 degrees to the desired side, and securely reinstall the bolts.

Because rotation is manual, the HSM513 does not require an electrical auxiliary connection to control the cutting-head position.

Heavy-Duty AR400 Steel Saw Blade

The HSM513 uses a heavy-duty circular saw blade constructed from abrasion-resistant AR400 steel. This material is designed to withstand demanding cutting conditions and provide long service life in forestry, agricultural, and property-maintenance applications.

Carbide-Tipped High Speed Teeth

Baumalight equips the HSM513 with its aggressive High Speed Teeth. Each tooth uses a concave carbide cutting tip designed to chip away at woody material as the blade rotates.

Each round tooth provides three usable cutting edges. When one edge becomes worn, simply loosen the retaining nut, rotate the tooth to a fresh cutting surface, and tighten it back into position.

This design helps extend tooth life and reduces the frequency of complete tooth replacement.

Six Replacement Teeth Included

Every Baumalight HSM513 includes a free set of six replacement High Speed Teeth. The spare teeth are conveniently stored in a durable enclosed compartment located on top of the attachment frame.

Easy Tooth Replacement

The replaceable High Speed Tooth design makes routine saw maintenance straightforward. Individual teeth can be rotated or replaced without replacing the complete saw blade.

Heavy-Duty Blade Bearing Support

The HSM513 saw blade is mounted on an overhung load adapter with tapered roller bearings. This heavy-duty bearing support is engineered to handle the loads produced by the spinning circular saw blade during demanding tree and limb cutting.

The overhung load adapter helps keep the blade properly supported and rotating through tough trimming and vegetation-clearing conditions.

Serrated Front Push Bar

A solid serrated steel front push bar is positioned ahead of the cutting blade. The push bar helps guide limbs, branches, brush, and small trees during operation while assisting in directing cut material away from the operator.

Protective Saw Blade Shield

A durable blade shield encloses a substantial portion of the circular saw blade. The shield helps protect the cutting assembly and directs chips and debris as the saw moves through limbs, trees, and brush.

Clean, Controlled Tree and Limb Cuts

The Baumalight HSM513 is designed to make fast, controlled cuts through limbs and small trees while producing a cleaner cut than many tearing or shearing methods.

This makes it particularly useful for agricultural tree maintenance, fence-line trimming, property management, and applications where the quality of the remaining limb cut is important.

Rollback-Angled Skid Steer Mount

The Baumalight DropSaw mounting plate is positioned on a rollback angle. This mounting geometry provides additional flexibility when positioning the saw and can help operators reach difficult limbs and vegetation.

Combined with the extended boom and manually rotating cutting head, the rollback mount gives the operator multiple ways to approach hard-to-reach material.

Designed for Maximum Operator Visibility

Baumalight designed the HSM513 with operator visibility in mind. The boom and frame geometry help provide a clearer view of the cutting head and target material from the skid steer cab.

Improved visibility makes it easier to position the saw and can help operators make more precise cuts.

Bent-Axis Piston Hydraulic Motor

The Baumalight HSM513 is powered by a 52cc bent-axis piston hydraulic motor. Baumalight identifies this motor option as the T530.

The piston motor provides dependable hydraulic power to the high-speed saw blade while allowing the attachment to operate across a broad range of skid steer auxiliary hydraulic systems.

Baumalight HSM513 Hydraulic Requirements

The HSM513 is designed to operate on skid steers providing approximately 10–40 GPM of auxiliary hydraulic flow and hydraulic pressure up to 4,000 PSI.

Hydraulic Flow Requirements

• Minimum hydraulic flow: 10 GPM
• Maximum hydraulic flow: 40 GPM
• Maximum hydraulic pressure: 4,000 PSI

Case Drain Required

The Baumalight HSM513 requires a case drain connection. Before ordering, verify that your skid steer is properly equipped with a compatible case drain line.

No Electrical Auxiliary Required

An electrical auxiliary connection is not required because rotation of the cutting head is performed manually.

Hydraulic Hose Supplied

Baumalight supplies the hydraulic hose with the HSM513.

Baumalight HSM513 Specifications

Common Uses for the Baumalight HSM513 Tree Saw

Farm Fence Line Maintenance

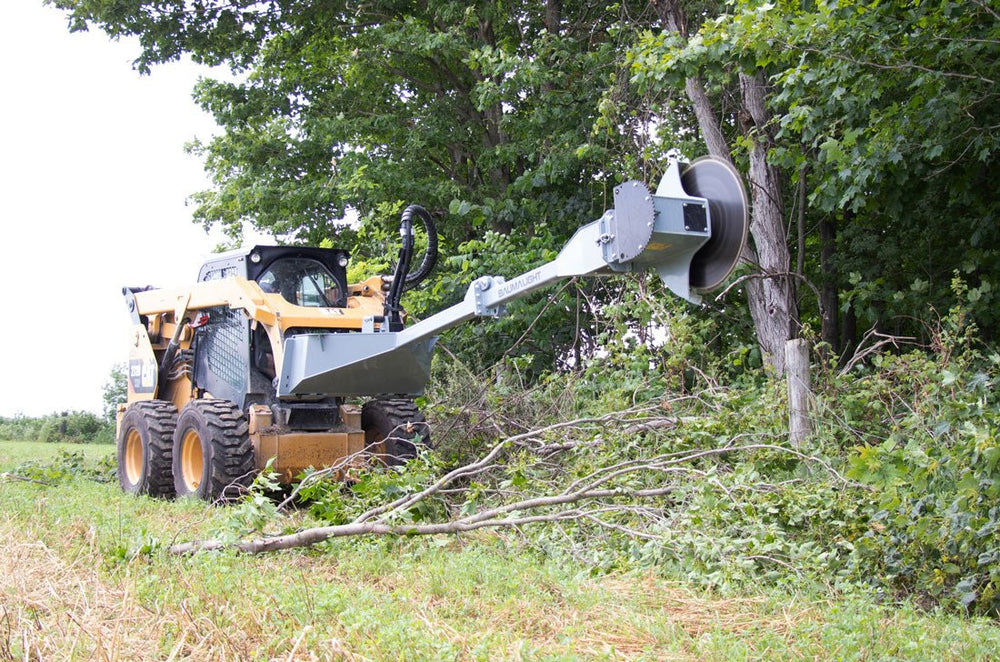

Use the HSM513 to trim limbs, trees, and woody growth that encroach on agricultural fencing. The extended boom allows the skid steer to remain farther from the fence while reaching vegetation along the tree line.

Clearing Limbs for Agricultural Equipment

Overhanging branches can interfere with tractors, combines, hay equipment, sprayers, trucks, and other large machinery. The HSM513's 168-inch extended reach helps create additional overhead clearance around fields, lanes, roads, and equipment access points.

Rural Property Maintenance

The HSM513 is well suited for farms, ranches, hunting properties, wooded acreage, estates, and other large rural properties where ongoing tree and brush maintenance is required.

Roadside and Trail Trimming

The long boom and vertical cutting position make the HSM513 useful for trimming limbs along trails, access roads, driveways, field lanes, and rights-of-way.

Small Tree and Brush Removal

Rotate the cutting head into its horizontal position to tackle small trees, saplings, and dense woody vegetation that needs to be removed near ground level.

Who Is the Baumalight HSM513 Designed For?

• Farmers and ranchers
• Land-clearing contractors
• Tree-service contractors
• Fence contractors
• Municipal maintenance departments
• Road and right-of-way crews
• Landowners and acreage owners
• Landscape contractors
• Rural property managers

Will the Baumalight HSM513 Fit My Skid Steer?

The HSM513 uses a Universal Skid Steer mounting adapter, but mounting compatibility is only one part of proper attachment fitment.

Before ordering, verify:

1. Skid steer make and model
2. Auxiliary hydraulic flow between 10 and 40 GPM
3. Hydraulic pressure compatibility up to 4,000 PSI
4. Availability of a properly configured case drain
5. Universal skid steer quick-attach compatibility
6. Carrier capacity and stability with an extended-reach attachment

If you're unsure whether the Baumalight HSM513 is properly matched to your machine, contact Skid Steer Store with your skid steer make, model, auxiliary hydraulic flow, and hydraulic pressure before ordering.

Why Buy the Baumalight HSM513 from Skid Steer Store?

At Skid Steer Store, we specialize in skid steer, mini skid steer, excavator, and compact-equipment attachments. When you're purchasing a specialized hydraulic attachment like the Baumalight HSM513, proper machine fitment matters just as much as the attachment itself.

• Authorized Baumalight Dealer
• Heavy equipment attachment specialists
• Machine and hydraulic fitment assistance
• Factory-direct shipping
• USA-based customer support
• Secure online ordering
• Manufacturer warranty support
• Experienced skid steer attachment team

Shipping & Support

FREE Ground Shipping

Questions about hydraulic flow, case drain requirements, mounting, or whether the HSM513 will work with your machine? Contact Skid Steer Store before ordering and our equipment team can help verify compatibility.

Baumalight HSM513 Tree Saw FAQ

What is the Baumalight HSM513?

The Baumalight HSM513 is a hydraulically powered extended-reach skid steer tree saw with a 168-inch operating length, manually rotating cutting head, AR400 circular saw blade, and replaceable carbide-tipped cutting teeth.

How far does the Baumalight HSM513 reach?

The HSM513 has an approximately 168-inch operating length, giving it significantly more reach than many conventional skid steer tree saw attachments.

Can the HSM513 cut vertically and horizontally?

Yes. The cutting head can be manually repositioned for horizontal or vertical cutting. The head can be rotated 90 degrees to either side using its bolt-on mounting system.

Does the Baumalight HSM513 have hydraulic rotation?

No. The HSM513 uses a manual bolt-on rotation system. No additional hydraulic or electrical circuit is required to rotate the cutting head.

What hydraulic flow does the Baumalight HSM513 require?

The HSM513 is specified for skid steers providing approximately 10–40 GPM of auxiliary hydraulic flow.

What hydraulic pressure can the HSM513 handle?

The HSM513 is rated for hydraulic pressure up to 4,000 PSI.

Does the Baumalight HSM513 require a case drain?

Yes. A properly connected hydraulic case drain is required.

Does the HSM513 require an electrical connection?

No. An electrical auxiliary connection is not required because cutting-head rotation is performed manually.

What type of hydraulic motor does the HSM513 use?

The HSM513 uses a 52cc bent-axis piston hydraulic motor. Baumalight identifies the motor option as the T530.

What is the Baumalight HSM513 blade made from?

The circular saw blade is constructed from heavy-duty AR400 abrasion-resistant steel.

What type of cutting teeth does the HSM513 use?

The HSM513 uses replaceable carbide-tipped Baumalight High Speed Teeth. Each round tooth provides three usable cutting edges.

Does the HSM513 include replacement teeth?

Yes. The Baumalight HSM513 includes six replacement cutting teeth stored in an enclosed compartment on the attachment.

What is the Baumalight HSM513 used for?

Common applications include high limb trimming, fence-line maintenance, agricultural property maintenance, road and trail clearing, small-tree removal, brush cutting, and creating overhead clearance for farm equipment.

Is the Baumalight HSM513 good for fence-line trimming?

Yes. The 168-inch extended boom and vertical cutting position make the HSM513 especially useful for trimming tree limbs and woody vegetation along agricultural fence lines.

Can the HSM513 trim high tree limbs?

Yes. Extended-reach trimming is one of the primary advantages of the HSM513. The 168-inch operating length allows the operator to reach limbs that may be difficult to access with a conventional skid steer-mounted tree saw.

Does the Baumalight HSM513 fit a standard skid steer quick attach?

The HSM513 uses a Universal Skid Steer adapter. Hydraulic flow, pressure, case drain availability, carrier capacity, and machine stability should also be verified before ordering.

Why buy a Baumalight tree saw from Skid Steer Store?

Skid Steer Store is an authorized Baumalight dealer specializing in heavy-equipment attachments. Our team can assist with hydraulic requirements, machine fitment, attachment selection, ordering, and manufacturer warranty support.

Order the Baumalight HSM513 Extended-Reach Tree Saw

If you need to clear high limbs, maintain long fence lines, open access for agricultural equipment, or manage trees and brush across a large rural property, the Baumalight HSM513 Extended-Reach Tree Saw gives your skid steer the reach and cutting capability to get the job done.

With its 168-inch operating length, horizontal and vertical cutting positions, AR400 steel saw blade, carbide-tipped High Speed Teeth, heavy-duty bearing support, protective blade shield, serrated front push bar, and broad 10–40 GPM hydraulic operating range, the HSM513 is built for serious vegetation-management work.

Order your Baumalight HSM513 from Skid Steer Store and contact our team if you need help confirming hydraulic flow, case drain compatibility, or machine fitment.
