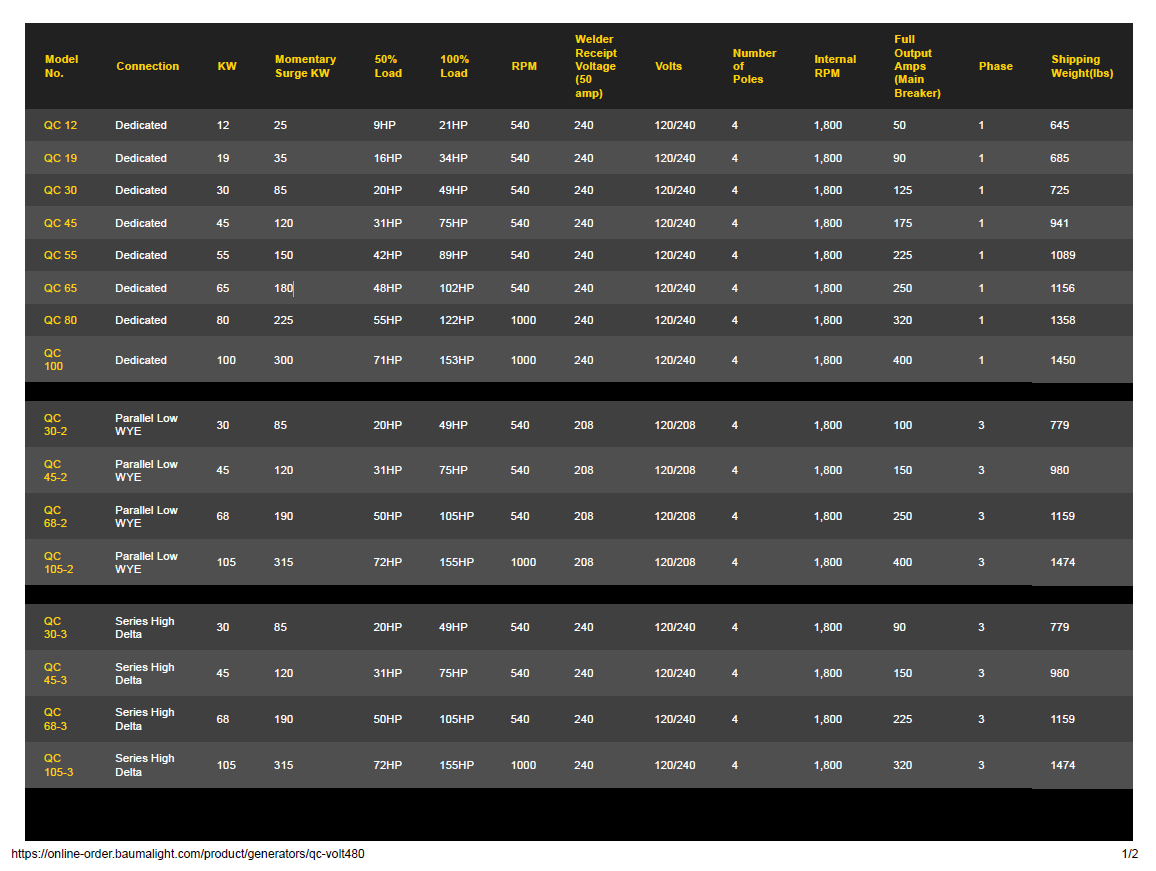

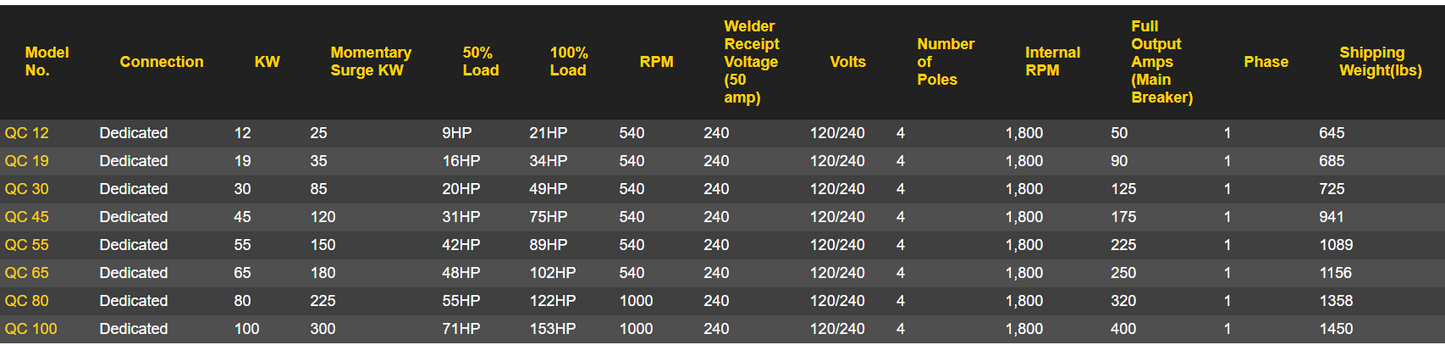

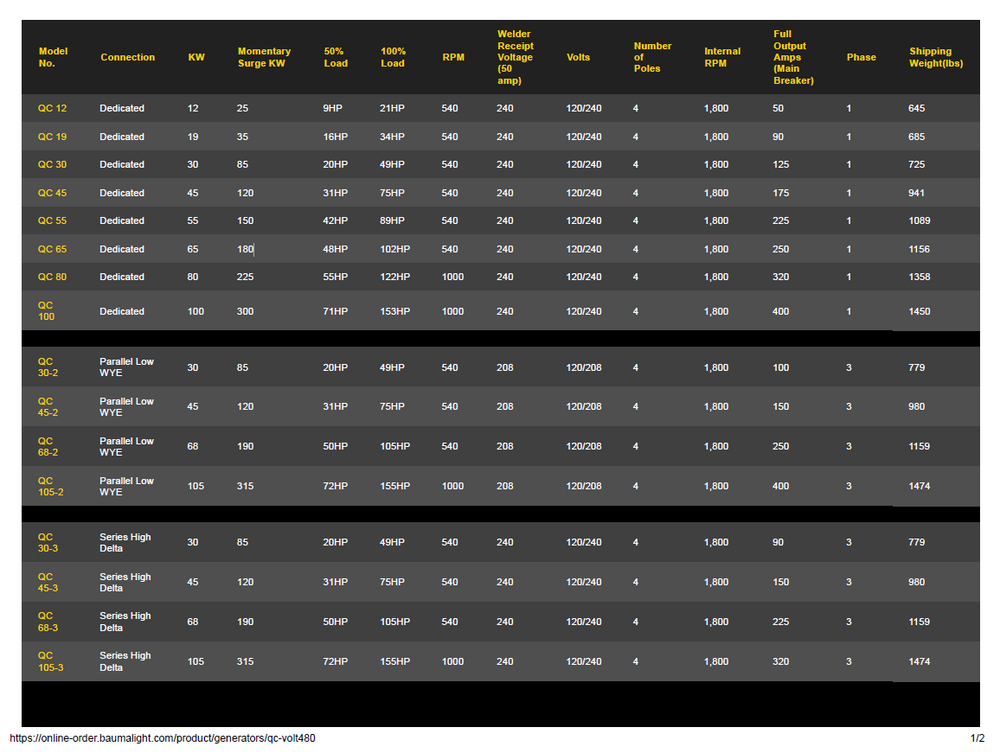

Baumalight Generator PTO 4 Pole | Model Q Series | 12KW-113KW | 21HP-153HP | For Tractor

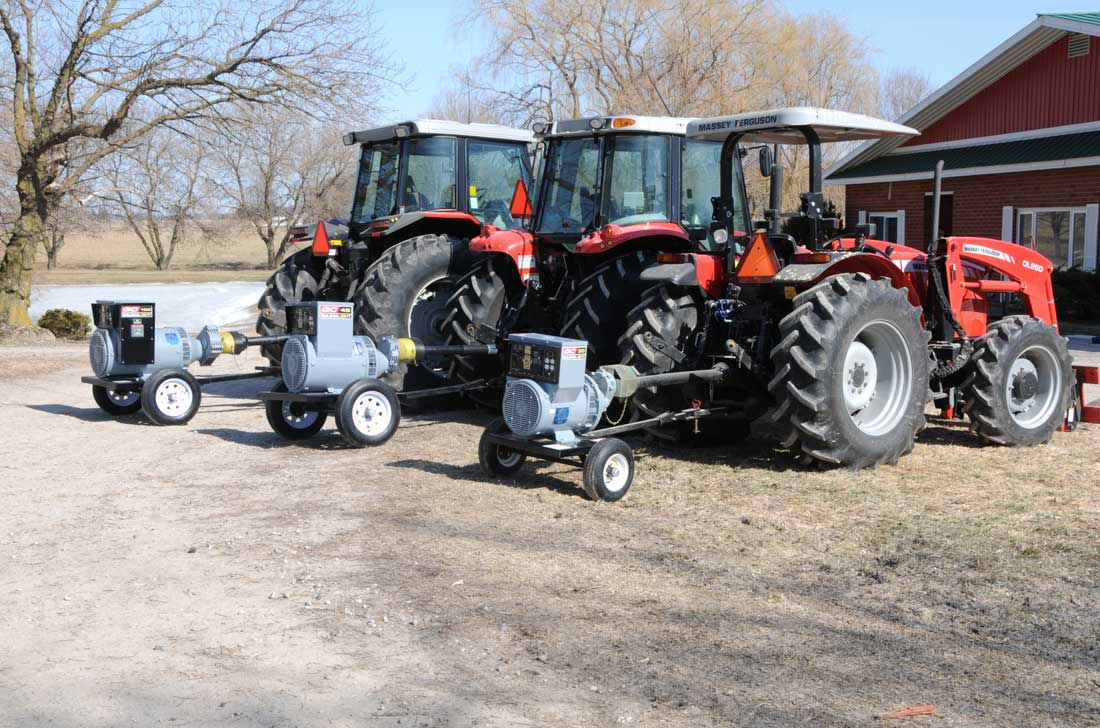

SOURCE FOR POWER

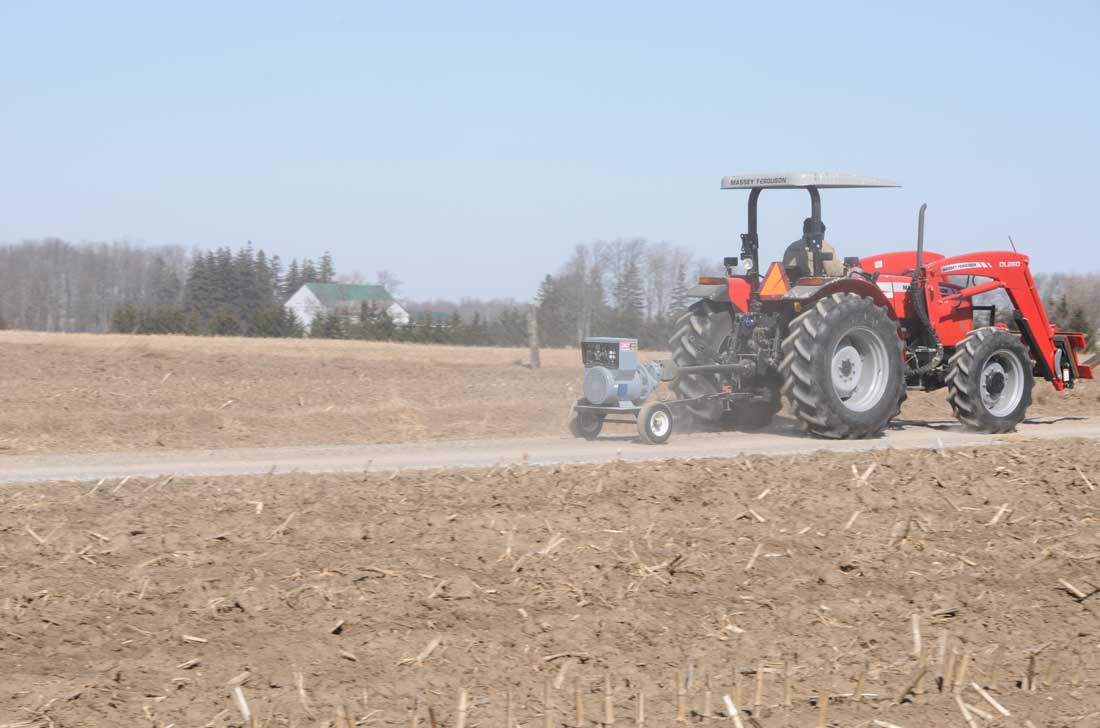

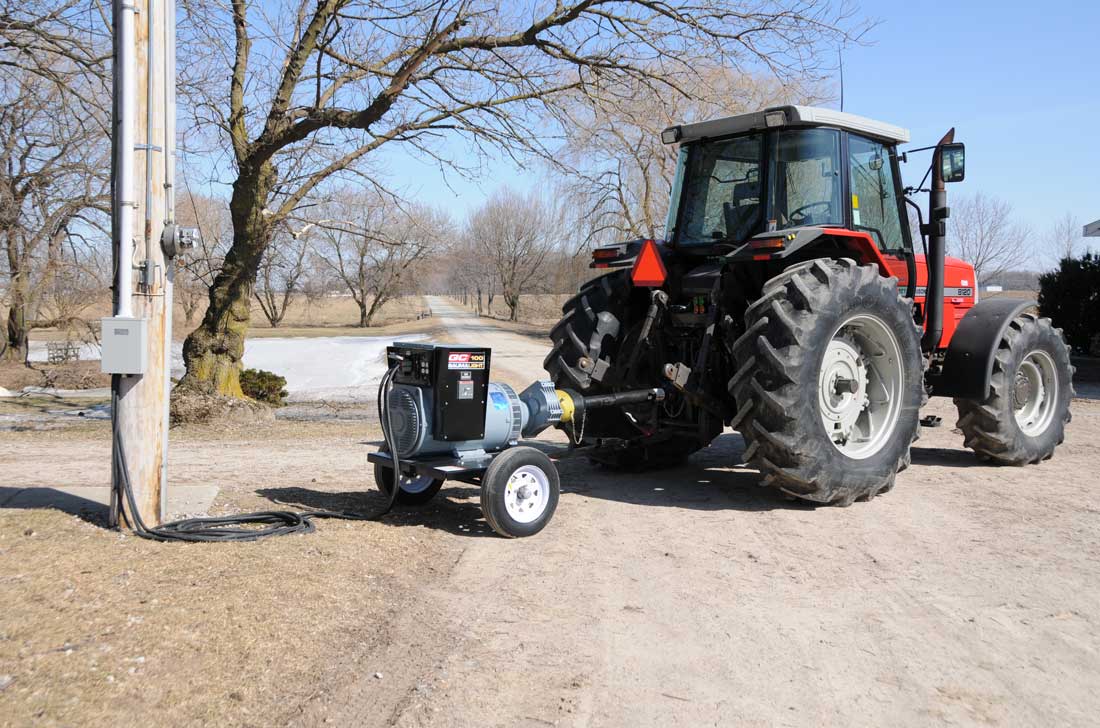

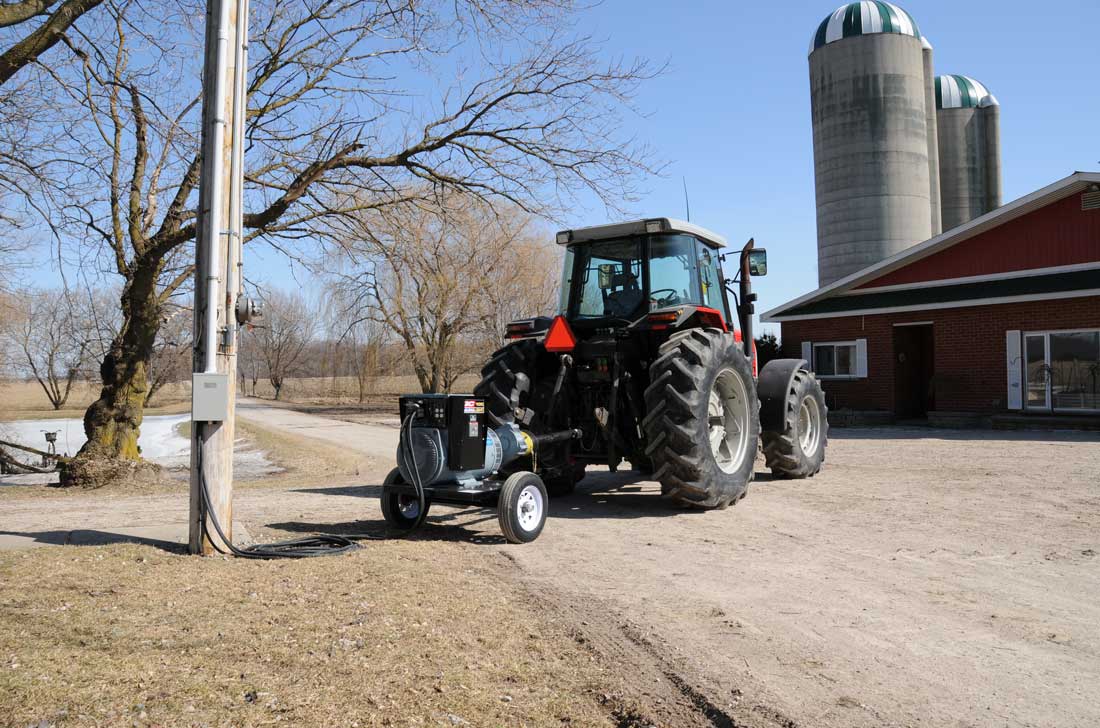

QC PTO generators provide convenient and reliable back-up and remote power for your property – simply by using your tractor. All QC PTO generators come with a full-load main outlet, along with a higher-than-average number of plug-in options – giving you several different ways to use your generator.

QC PTO Generator connection panels feature full load connectors with a lockable cover and multiple receptacles with overload protection for safe, simple operation.

QC PERFORMANCE

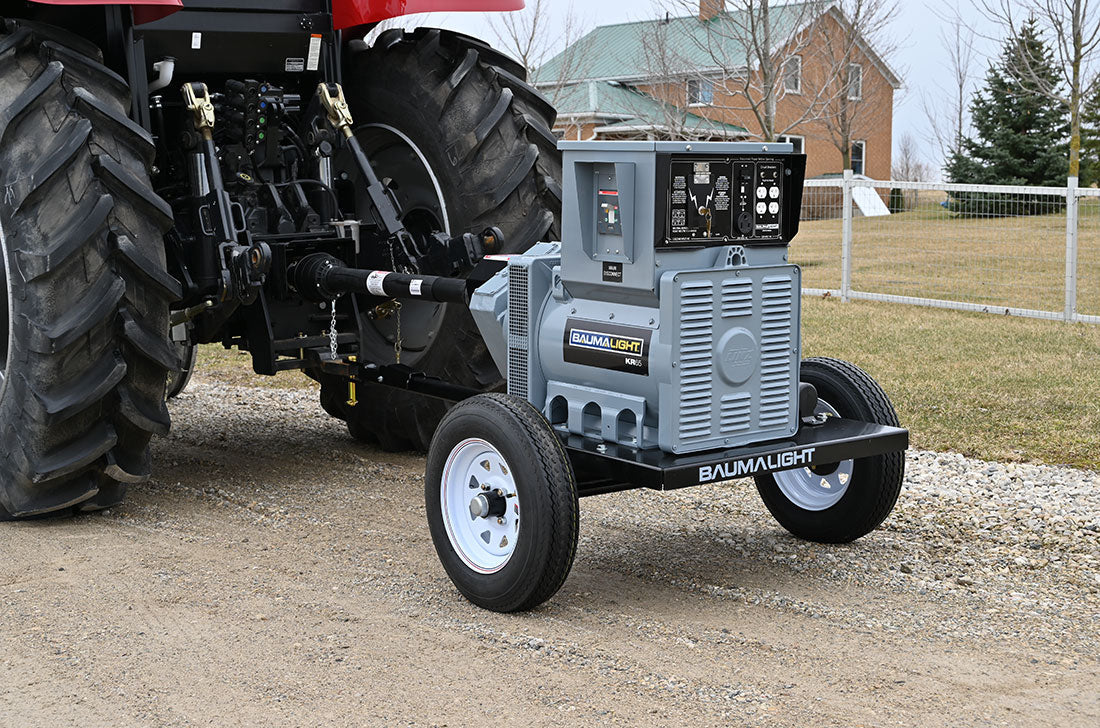

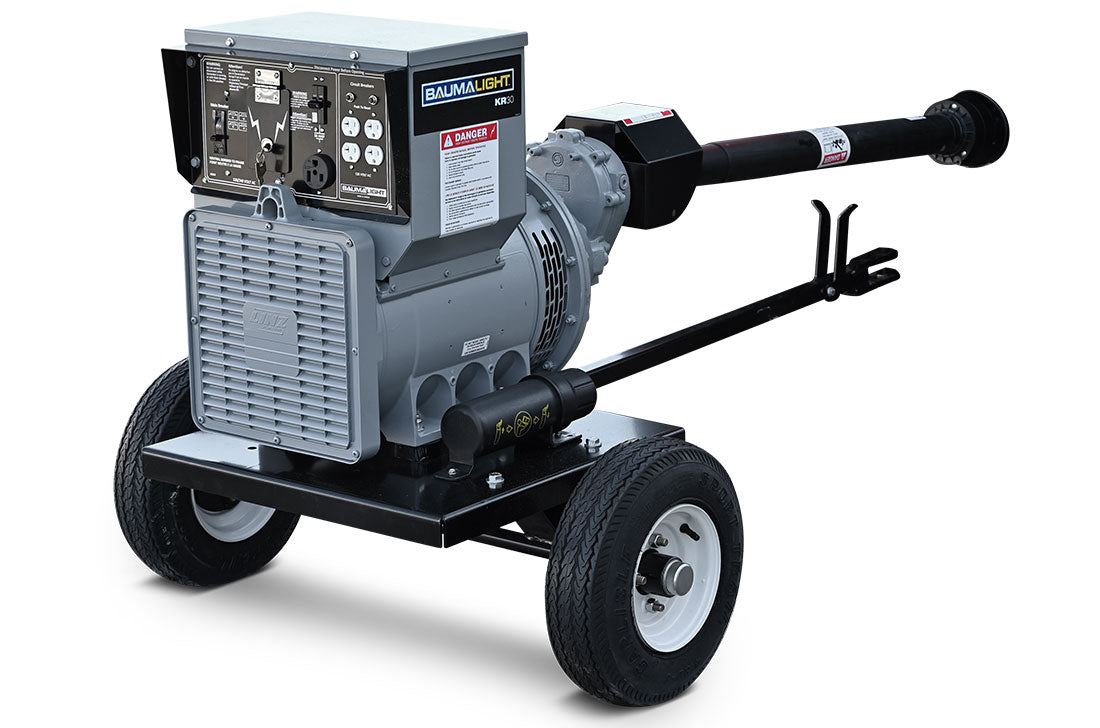

Designed to meet the needs of your operation, the QC PTO generators are built for 24 Hr. 7 day a week dependability. The heavy-duty genset features a cast-iron body with four oversized copper windings for more efficient power generation. Integrated cooling fans allow for venting at the front and back of the genset.

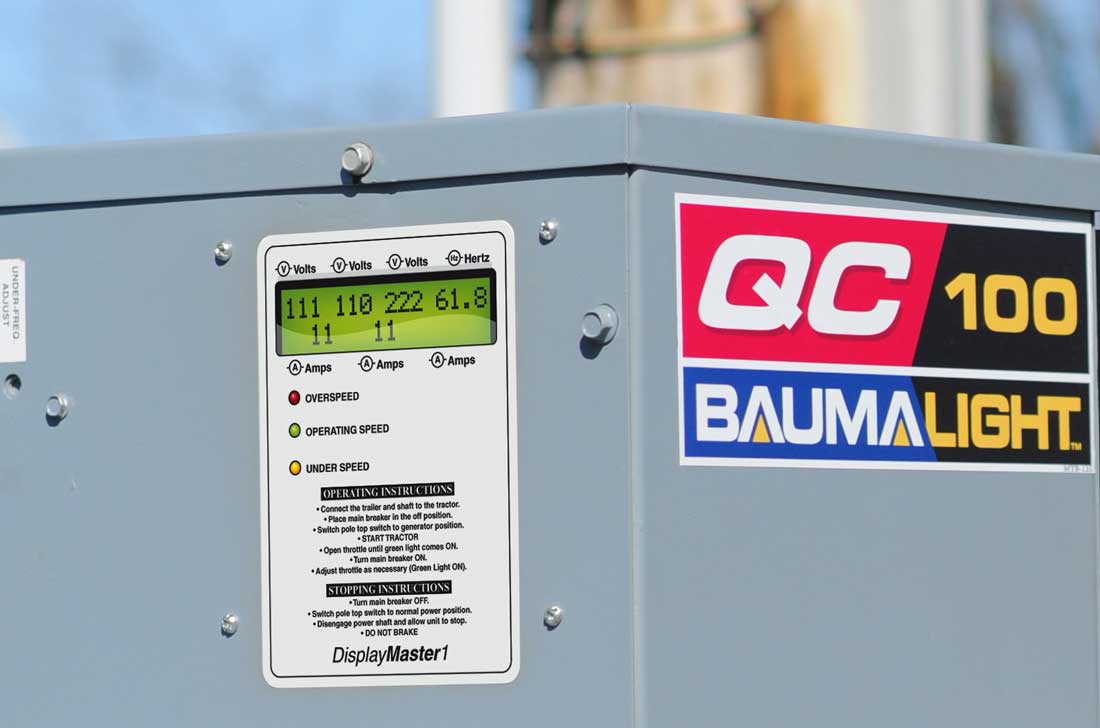

DISPLAYMASTER1

Designed exclusively for Baumalight QC PTO generators, the DisplayMaster1 is your guide for quick, easy setup and an "at a glance" monitor of key performance factors. The intuitive three light system gives instant feedback whether over or under speed. The DisplayMaster1 screen also shows the generator’s voltage, frequency and amperage; KW, KVA and Power Factor; runtime and KW hours; and peak/average KVA.

RESET CIRCUIT BREAKERS

With Baumalight’s Reset Circuit Breakers, you can protect your PTO generator against short-circuit damage without the worry of blown fuses. When your PTO generator experiences a power surge, simply reset the breaker and restart the generator.

Brushless Design

For improved and reliable performance, the brushless design on your QC PTO tractor-driven generator provides efficient operation with the same power output as conventional brushes, but which are lighter, less noisy and require less maintenance over time without the added risk of sparks

4 oversized Copper Windings

Baumalight QC PTO generators run on four oversized copper windings, reducing the RPM of the unit and increasing the quality and stability of the power – giving you nearly three times the momentary surge capacity over their rated power, with the exception of the QC12 and QC19 models.

Internal speed at load

The durable QC gear box turns the tractor’s PTO RPM into 1,800 RPM internally. This lower operating speed increases duty cycle and operating life and means less friction, heat, and wear over a longer period of time, ensuring a longer life for your generator.

Speed indicating lights

Getting the power up and running is a simple task with the intuitive three light system. The bright LEDs give instant feedback whether over or under speed. Once the optimal PTO speed is reached, the green light is lit and you are ready to go.

Automatic voltage regulation

Our automatic voltage regulation keeps power stable within 1% plus or minus from 64 down to 56 Hz, allowing for near constant voltage in the case of an unexpected load variation. This protects your generator from harm and provides a superior quality of power regardless of your property’s varying power requirements.

High momentary surge

The QC PTO tractor generator offers high momentary surge capacity up to three times over their rated power. If there is a sudden change of load, the AVR will automatically stabilize the voltage to a near constant level, eliminating problems created by under-voltage or over-voltage fluctuations, as well as offering protection against minor and major spikes and surges.

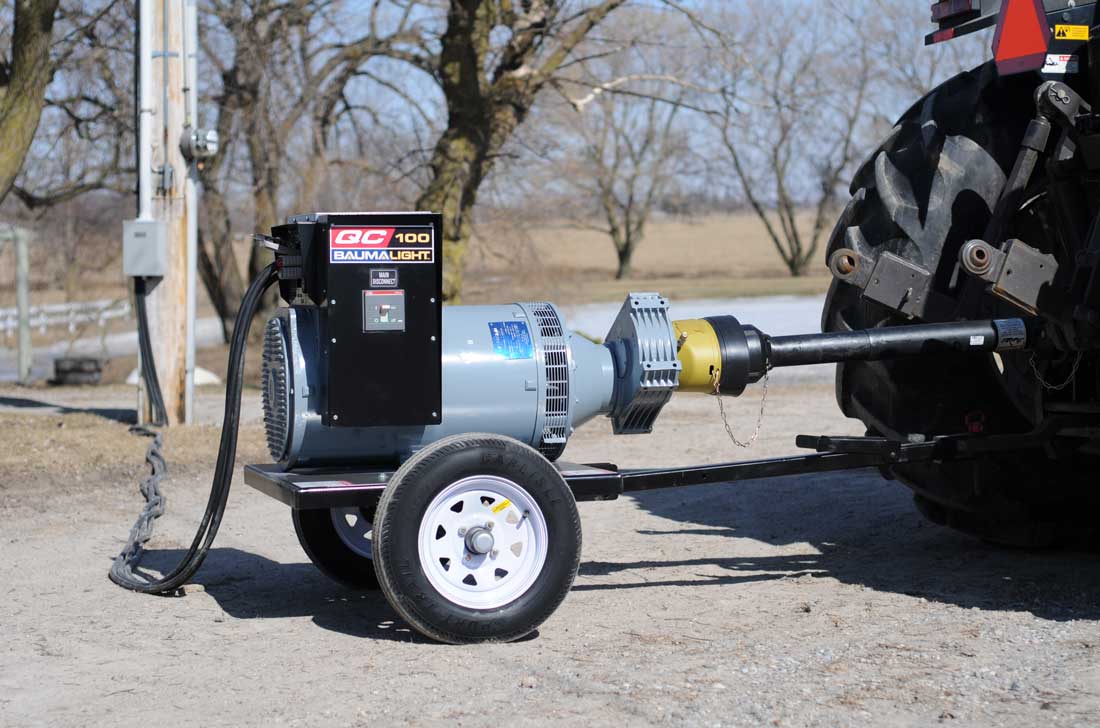

FULL LOAD CONNECTOR

The QC PTO Generator connection panel features full load connectors and multiple receptacles with overload protection for safe and simple operation. The full load connector also features a lockable cover for additional safety measures.

20 amp duplex receptacle

The QC PTO generators feature 2 x 20 amp duplex receptacle for additional versatility on your property when you need to run multiple pieces of equipment during a power outage.

50 amp welder receptacle

Some QC generator models come with a 50 amp welder receptacle, allowing you to transport your portable QC PTO generator and plug it into a welder for remote repairs on your farm equipment.

Drip Proof design

The drip-proof design features ventilation on the sides of the PTO generator, allowing air to circulate through the generator but prevents drops of liquid from falling inside.

TRAILER TONGUE

The trailer tongue enables quick, easy connections, allowing one person to move the generator from place to place by hand. It comes in the standard 5/8” hitch pin size.

Limited 2 Year/2000 hour Warranty

All Baumalight QC generators come with a Limited 2 year/2,000 hour warranty.

At Baumalight, we make it easy to get help for large repairs on your generator by offering an expansive network of motor repair centers. You can visit the Support page on our website to locate a service center near you.

When your PTO generator requires smaller repairs, such as replacing the gearbox, tires, PTO shaft, AVR, digital display or receptacles, you can visit your local farm repair dealership to find the Baumalight part you need.

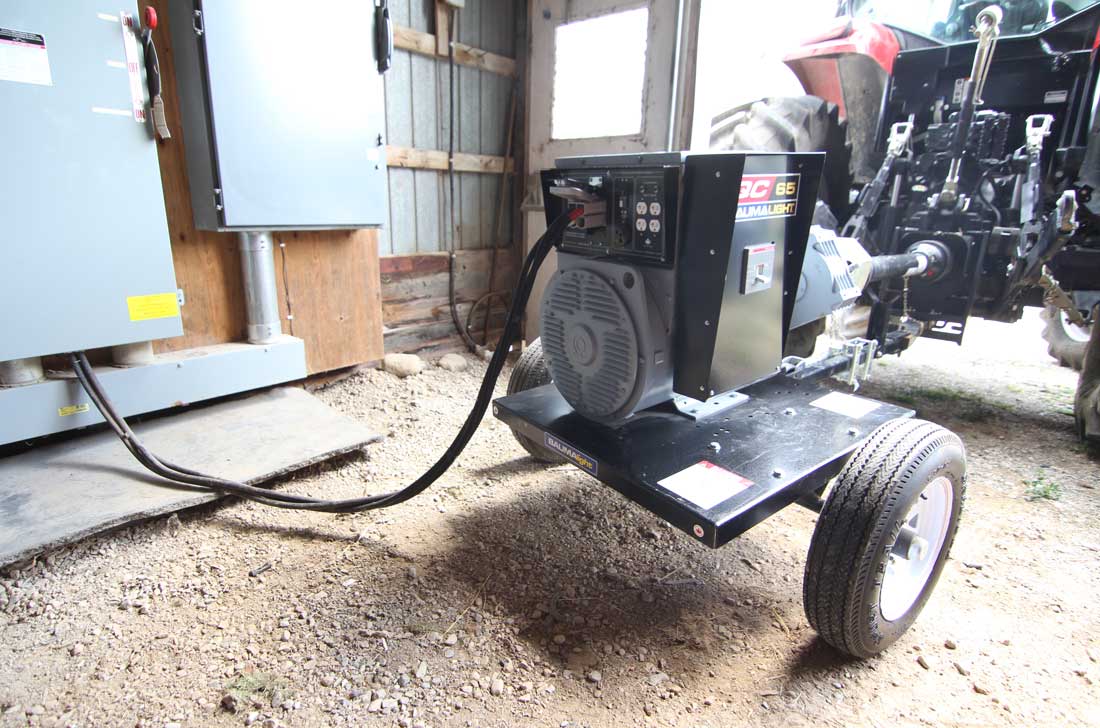

10Ft cord

Included with your purchase is a 10-foot, high-quality full power cable for simple connection of the PTO generator into your system. We also offer custom cuts in any length of generator cable.

Crated

Every one of our QC PTO generators is tested and crated before heading to your property or home. For additional safety measures, all QC generators are shipped with the neutral bonded to the ground inside the alternator.

Gearbox

The durable gear box turns the tractor’s PTO RPM into 1,800 RPM internally. This lower operating speed increases duty cycle and operating life and means less friction, heat and wear over a longer period of time. The oil-filled gearbox is also easily serviced and helps provide consistent speed and quality power.

Option to mount on concrete

You can make your QC PTO generator stationary by mounting it on a concrete pad; however, you should never mount a generator directly onto concrete, rock, metal or soil. We have rubber mount kits available to help the tires absorb the shock from the vibrations and high frequencies created by the generator.

To help ensure accurate and proper mounting of your generator on a concrete pad, please refer to the Mounting Dimensions manual for QC generators. These measurements are available for each model of QC generator.

Powder Coated Trailers

The trailer is powder-coated for additional durability, reducing corrosion from scratches, chipping and abrasion.

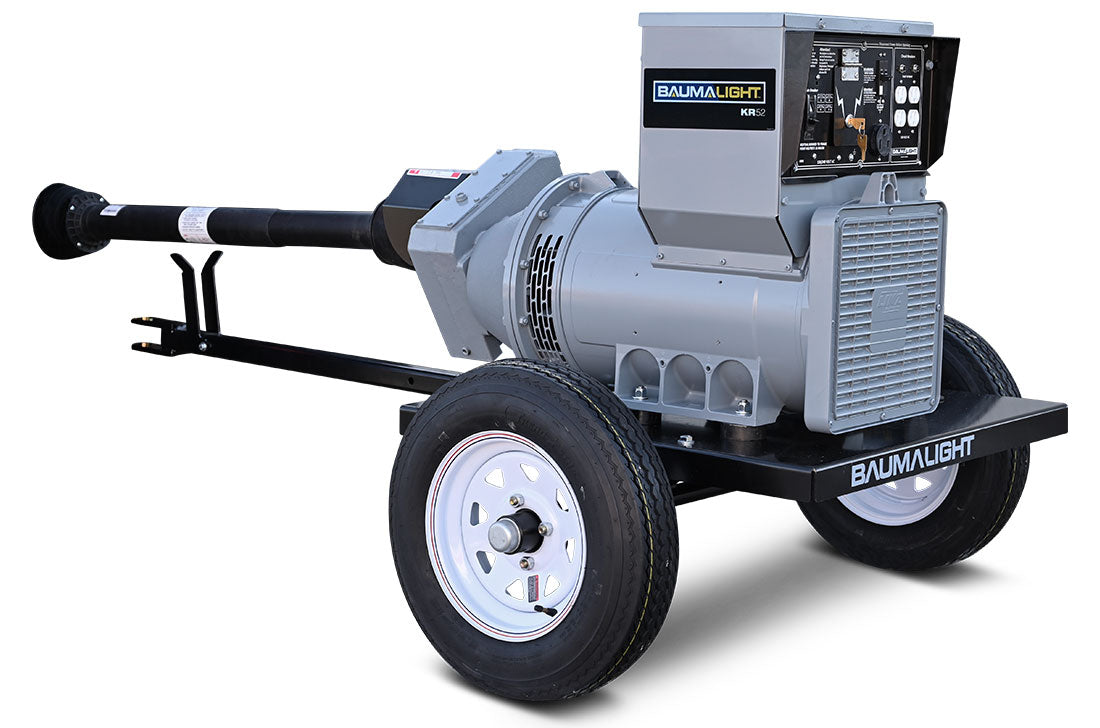

Shielded PTO

For additional safety measures, the fully-shielded PTO shaft is equipped with guards to prevent entanglement.

PNEUMATIC TRAILER TIRES

Pneumatic trailer tires make it easy to move the generator around – inside by hand and even from property to property. They also provide shock absorption and cushioning for the generator while it is operating. Bearings on the wheels allow long service life and the ability to move the trailer from farm to farm if necessary.
