Baumalight Feller Buncher Tree Saw | Model FBXD752 | 45,000LBS-65,000LBS | 20" Max Tree Size | For Excavator
DESCRIPTION

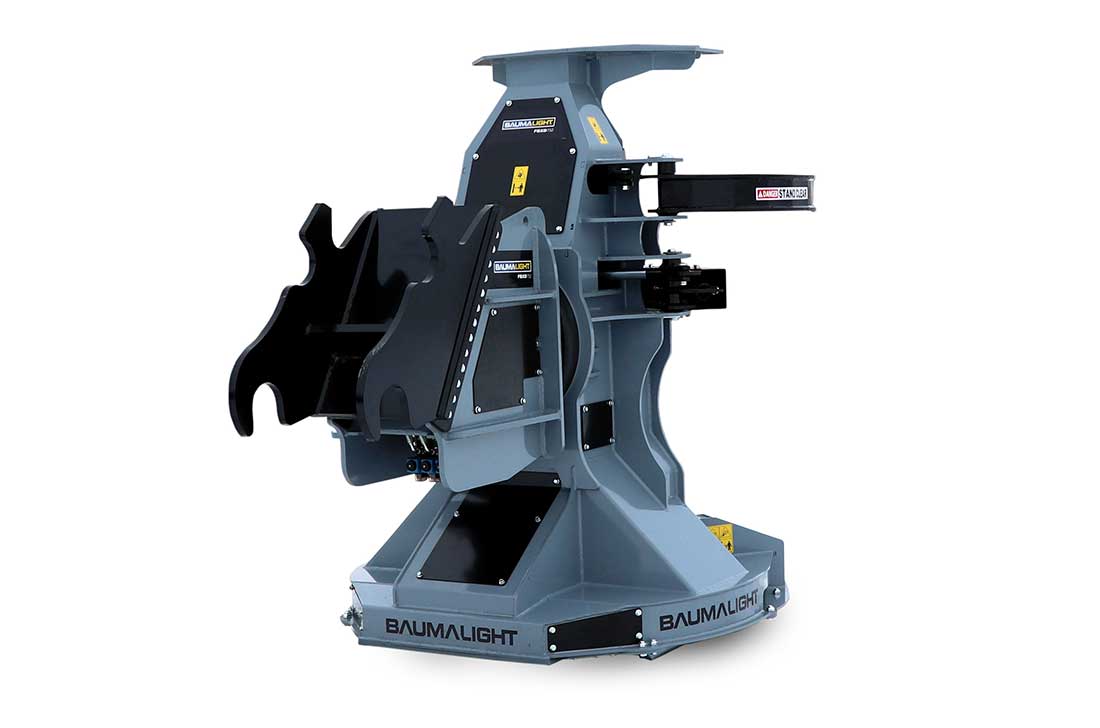

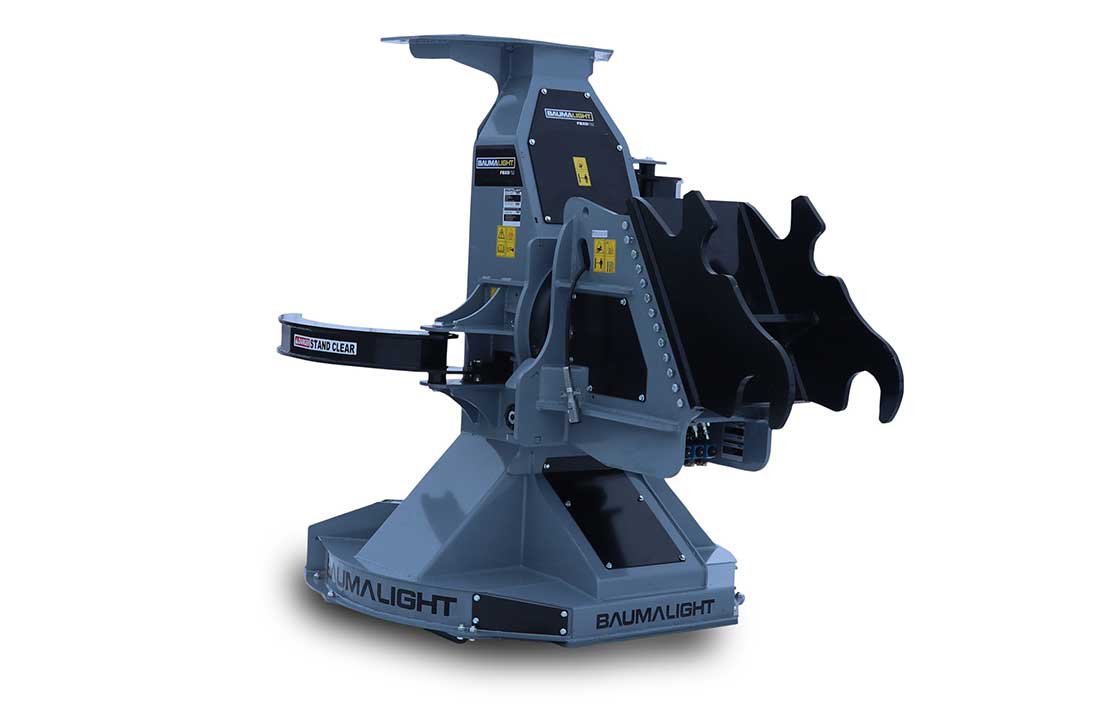

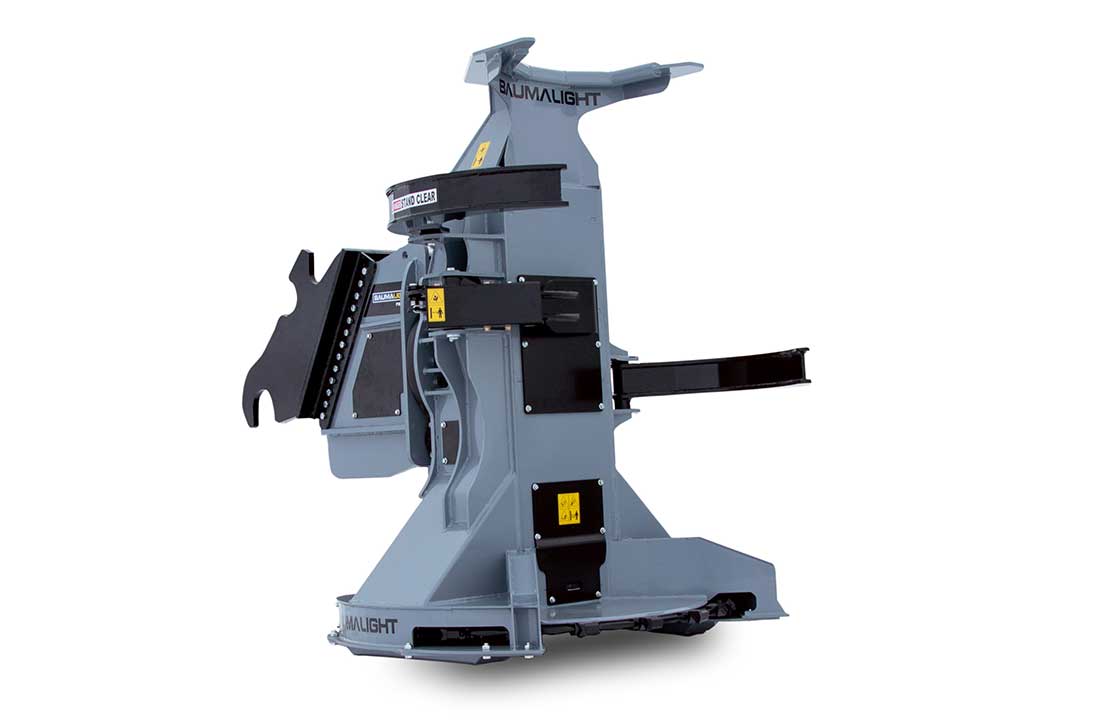

The Baumalight FBXD752 Feller Buncher Tree Saw is a powerful attachment designed for excavators weighing between 45,000 lbs and 65,000 lbs. It features a 52-inch cutting disc capable of handling trees with a maximum diameter of 20 inches. Equipped with 18 Beaver cutting teeth, this feller buncher ensures efficient and reliable tree cutting. The electric-over-hydraulic system operates efficiently on hydraulic flows as low as 30 GPM, and only one set of remote hydraulics is required for all functions if an AUX electrical connection is available. This attachment is ideal for timber and forestry applications, providing robust performance and ease of use.
FELLER BUNCHER FOR EXCAVATOR

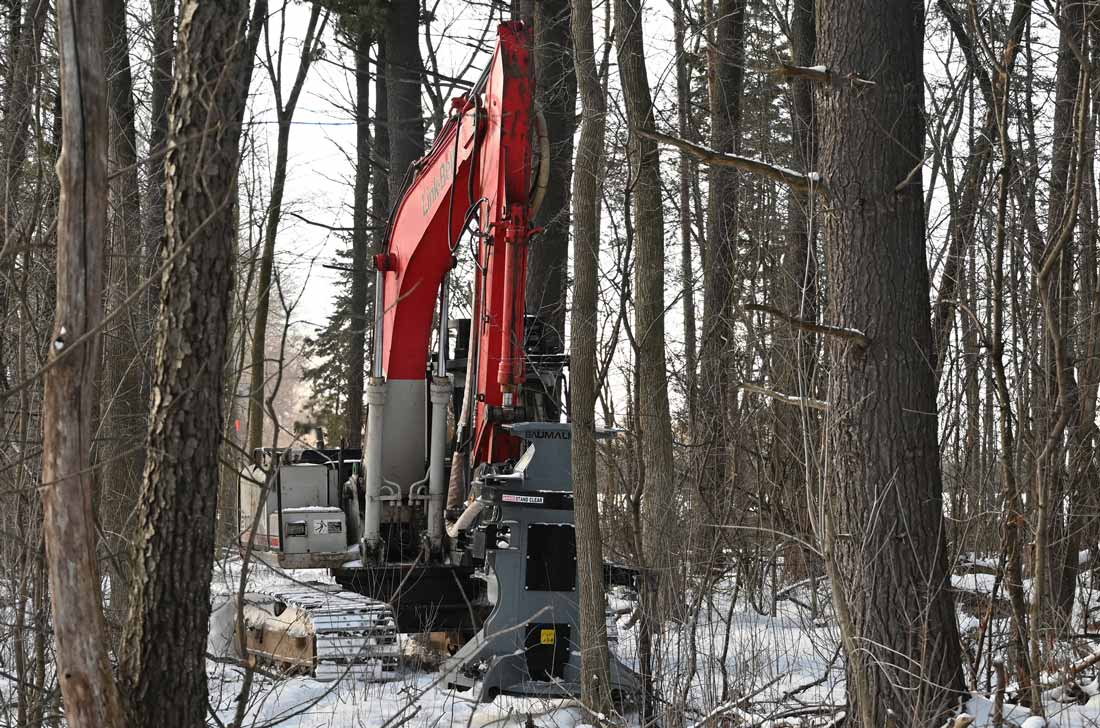

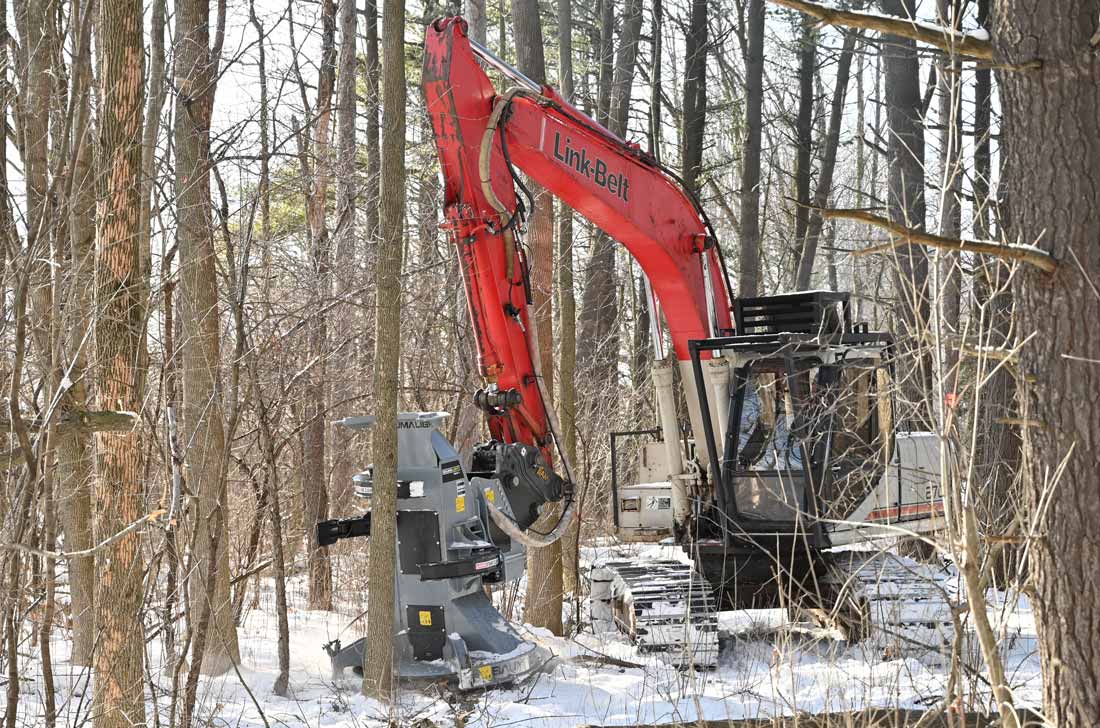

Feller Buncher For Excavator We are working to design a number of Feller Buncher models and welcome feed back in exchange for preproduction discounts. Our goal is to sell through dealers and then work with end users to develop compact harvesting solutions for skid steers and medium sized excavators. The first excavator mounted Feller Buncher we have build features a 52” cutting disc that can take up to 20” trees and is equipped with 18 Beaver cutting teeth from Quadco. We also designed this excavator mounted feller buncher with a Slew Drive so there is continues rotation, no stop at any point. It has an electric-over-hydraulic system which operates efficiently on hydraulic flows as little as 30 gpm and a smaller model would work on lower flow yet. Only one set of remote hydraulics is required to operate all functions if you have an AUX electrical connection.
Key Features
The Baumalight FBXD752 Feller Buncher Tree Saw 45,000LBS-65,000LBS 20" Max Tree Size for Excavator:
-
HeavyDuty Compatibility: Suited for excavators weighing between 45,000 lbs and 65,000 lbs.
-
Large Cutting Capacity: Can handle trees with a maximum diameter of 20 inches.
-

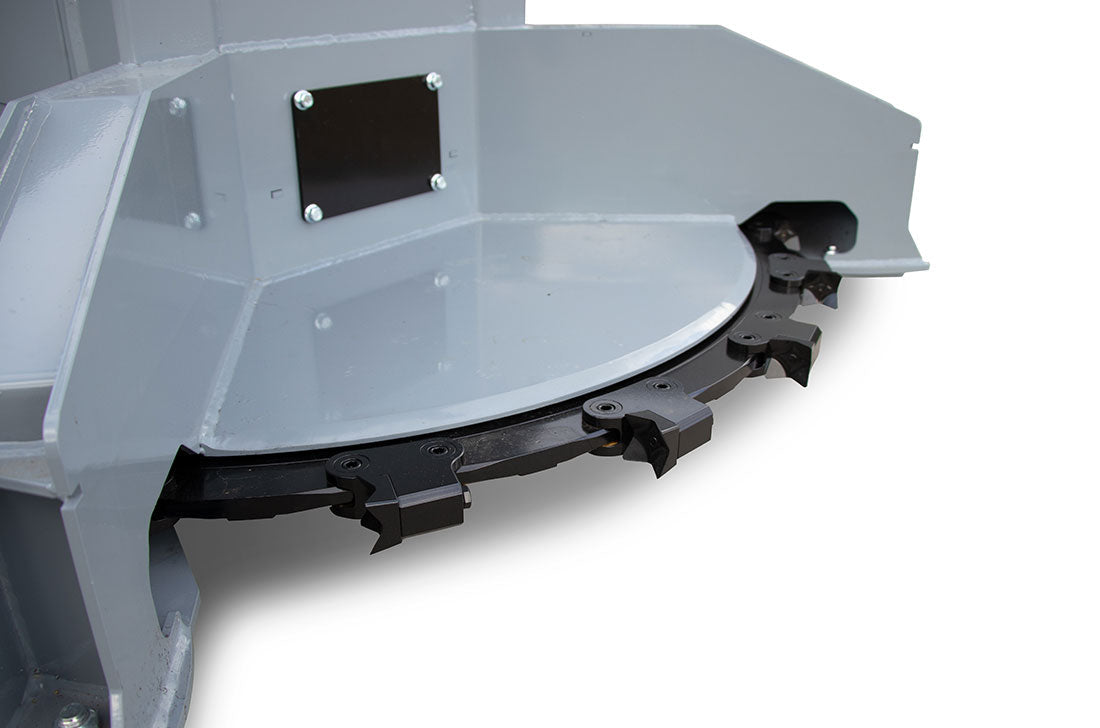

Efficient Cutting Disc: Features a 52-inch cutting disc with 18 Beaver cutting teeth for optimal performance.
-
Durable Construction: Built with AR400 steel in high-stress areas to ensure durability and long-lasting performance.
-
Enhanced Visibility: Open frame design improves operator visibility during operation.
-
Hydraulic Efficiency: Operates with a minimum hydraulic flow rate of 30 GPM.
-
Advanced Hydraulic System: Utilizes an electric-over-hydraulic system for smooth and efficient operation.
-
Powerful Motor: Equipped with a bent axis piston motor for high efficiency.
-
UserFriendly Design: Requires only one set of remote hydraulics for all functions if an AUX electrical connection is available.
-
Wide Throat Opening: Features a 36inch throat opening for handling large trees.
HOST MACHINES
|
CASE CX245D SR |
|
CASE CX300D |
|
CASE CX350D |
|
CATERPILLAR 320 |
|
CATERPILLAR 320 GC |
|
CATERPILLAR 323 |
|
CATERPILLAR 330 |
|
DOOSAN DX225LC-5 |
|
DOOSAN DX235LCR-5 |
|
DOOSAN DX255LC-5 |
|
HITACHI ZX210-6 |
|
HITACHI ZX250LC-6 |
|
JOHN DEERE 200G |
|
JOHN DEERE 210G LC |
|
JOHN DEERE 245G LC |
|
JOHN DEERE 250G LC |
|
KOBELCO SK230SRLC-5 |
|
KOBELCO SK270SRLC-5 |
|
KOMATSU PC210LC-11 |
|
KOMATSU PC238USLC-11 |
|
KOMATSU PC240LC-11 |
|
SANY SY215C |
|
SANY SY225C |
|
SANY SY265C |
|
VOLVO EC160E |
|
VOLVO EC220E |
|
VOLVO ECR235E |
Detailed Specifications
| Specification | Details |
|---|---|
| Model | Baumalight FBXD752 |
| Excavator Weight | 45,000 lbs - 65,000 lbs |
| Max Tree Diameter | 20 inches |
| Cutting Disc Size | 52 inches |
| Cutting Teeth | 18 Beaver teeth |
| Frame Material | AR400 steel |
| Visibility | Open frame for better operator view |
| Hydraulic Flow Requirement | Minimum 30 GPM |
| Hydraulic System | Electric-over-hydraulic |
| Motor Type | Bent axis piston motor |
| Remote Hydraulics | One set required for all functions |
| Auxiliary Electrical Connection | Standard for in-cab control |
| Throat Opening | 36 inches |
| Application | Timber and forestry |
FBXD752
| Part #: | FBXD752 |
| Mfg: | BAUMALIGHT |
| Category: | EXCAVATOR ATTACHMENTS |
| SubCategory: | FELLER BUNCHER TREE SAW EXCAVATOR |
| Industry: | CONSTRUCTION |
| Machine Size: | 45,000LBS-65,000LBS |
| Attachment Size: | 20" MAX TREE SIZE |
Comparison Chart
| Feature | FBS752 | FBXD752 |
|---|---|---|
| Model Number | - A03 | A03 |
| Mount Type | Skidsteer Mounted | Excavator Mounted |
| Blade Type | Fixed Horizontal Blade | 360° Slew drive |
| Adaptor Type | Universal Skidsteer Adaptor | Bolt-on Adaptor |
| Slew Drive | Yes | Yes |
| Max Pressure | 4000 PSI | 4000 PSI |
| Case Drain | Critical | Critical |
| Power Requirement | Requires 12V Electric | Requires 12V Electric |
| Switchable Signals Required | Four 12V positive | Six 12V positive |
| Wire Supply | Wire Supplied to AUX | Wire NOT Supplied |
| Hoses | Included | Not Included |
| Couplers | Not Included | Not Included |
| Blade Diameter | 52" | 52" |
| Max Cut | 20" | 20" |
| Blade Material | 3/4" Steel Blade | 3/4" Steel Blade |
| Cut Thickness | 1 5/8" | 1 5/8" |
| Edges Per Tooth | 4 | 4 |
| Number of Teeth | 18 | 18 |
| Tooth Type | B8000 Beaver Teeth | B8000 Beaver Teeth |
| Throat Opening | 36" | 36" |
Motor Options
| Parameter | Value |
|---|---|
| MOTOR | T590 |
| MOTOR TYPE | Bent Axis Piston |
| CC | 108 |
| CASE DRAIN | Critical |
| IDEAL RPM | 800-1400 |
| 20 GPM | -- |
| 25 GPM | 700 RPM |
| 30 GPM | 900 RPM |
| 35 GPM | 1050 RPM |
| 40 GPM | 1230 RPM |
| 45 GPM | 1400 RPM |
