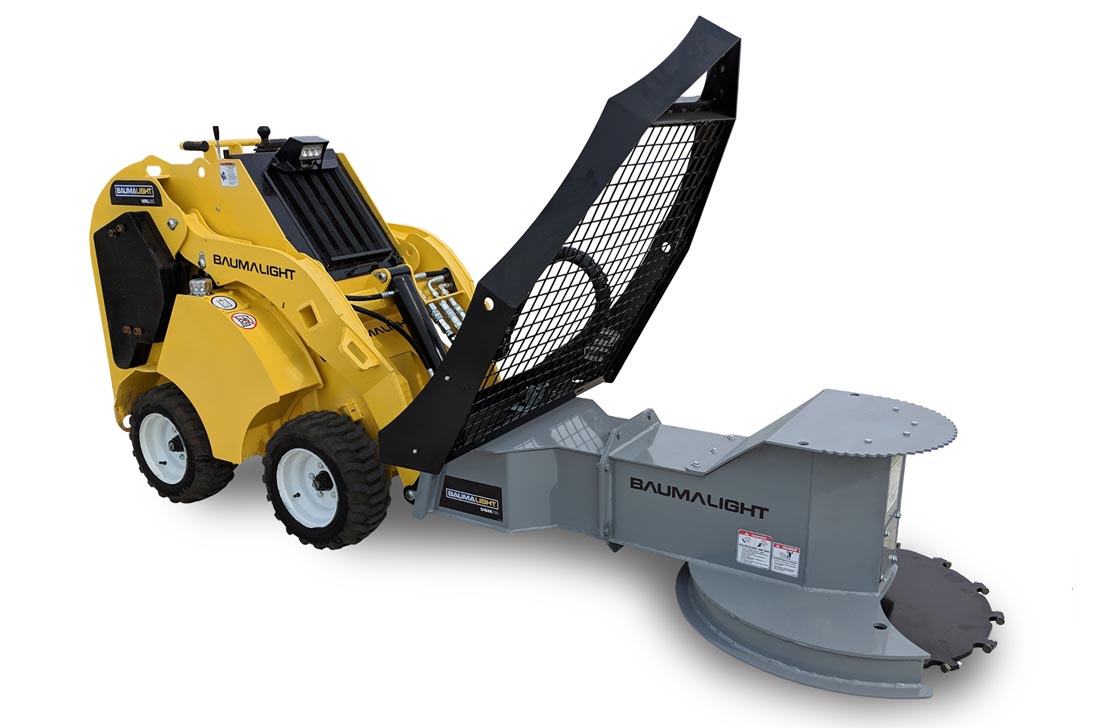

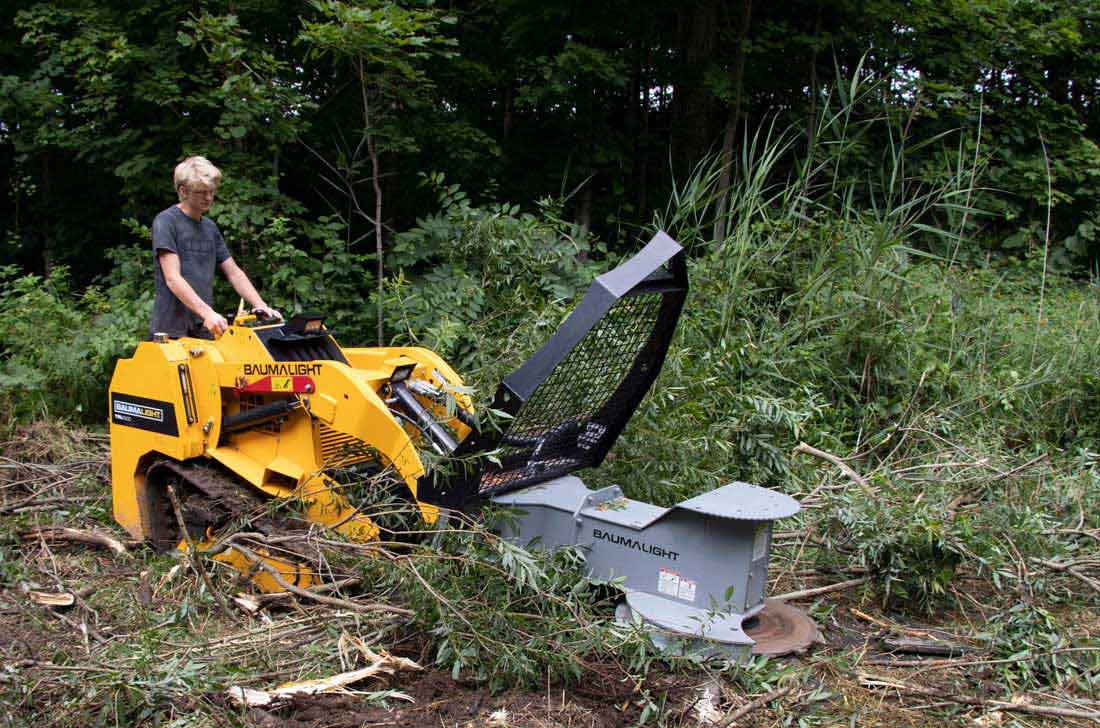

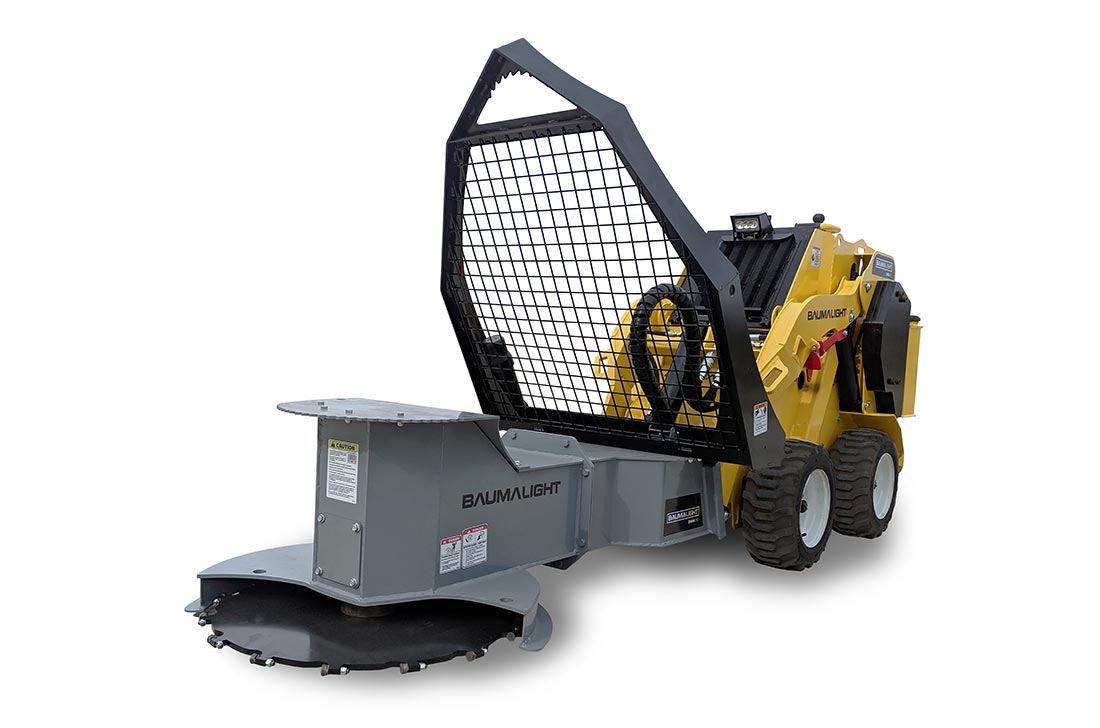

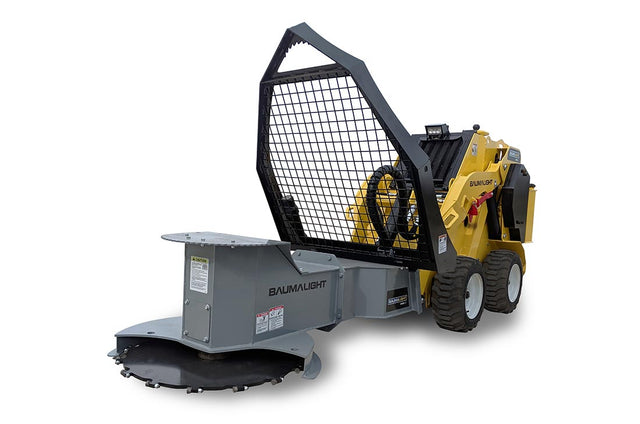

Baumalight DSM230 Manual Rotation Tree Saw For Mini Skid Steers

Key Features

The Baumalight DSM230 Mini Tree Saw for Skid Steer:

• Manual Rotation: Can be rotated manually to cut in either horizontal or vertical position.

• Heavy-Duty Construction: Built with solid serrated front push bar for durability.

• Replaceable Carbide-Tipped Teeth: Ensures long-lasting cutting performance.

• Abrasion-Resistant Material: Made from AR-400 steel for toughness.

• Hydraulic Drive: Efficiently powered by skid steer hydraulics.

• Safety Features: Includes a durable shield around the blade and integrated safety mesh.

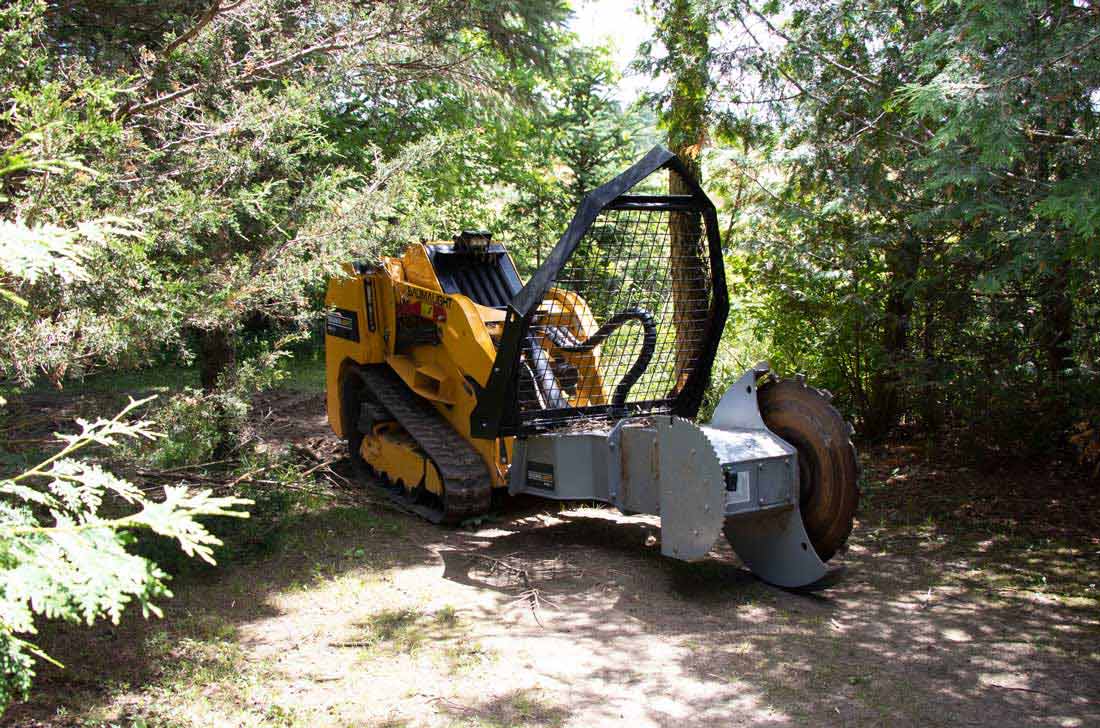

MANUAL ROTATING CUTTING HEAD

Effectively switch from horizontal tree cutting position to vertical trimming and limbing position with the 90 degree manual rotating head. Simply remove the 8 bolts at the base of the cutting head, rotate the unit 90 degrees to the left or the right and then secure the bolts. CLICK HERE TO WATCH VIDEO

Heavy duty build

The tree saw’s durable design and quality materials combine to create a saw that is able to stand up to the demanding work of cutting limbs and trees.

Clean Cuts

The tree saw makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.

Mount Angle

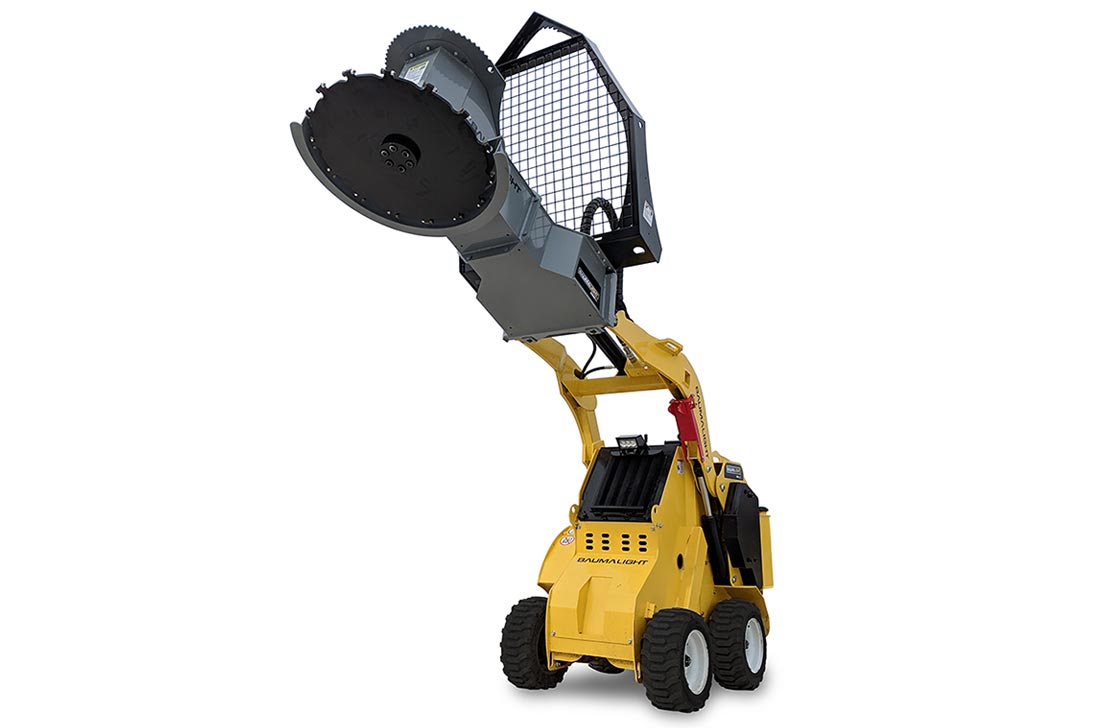

DropSaw's skidsteer plate is on a roll back angle. This gives you even more flexibility to successfully trim areas that are difficult to reach.

Saw blade shielding

The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.

Blade mounted on heavy duty bearing support

The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.

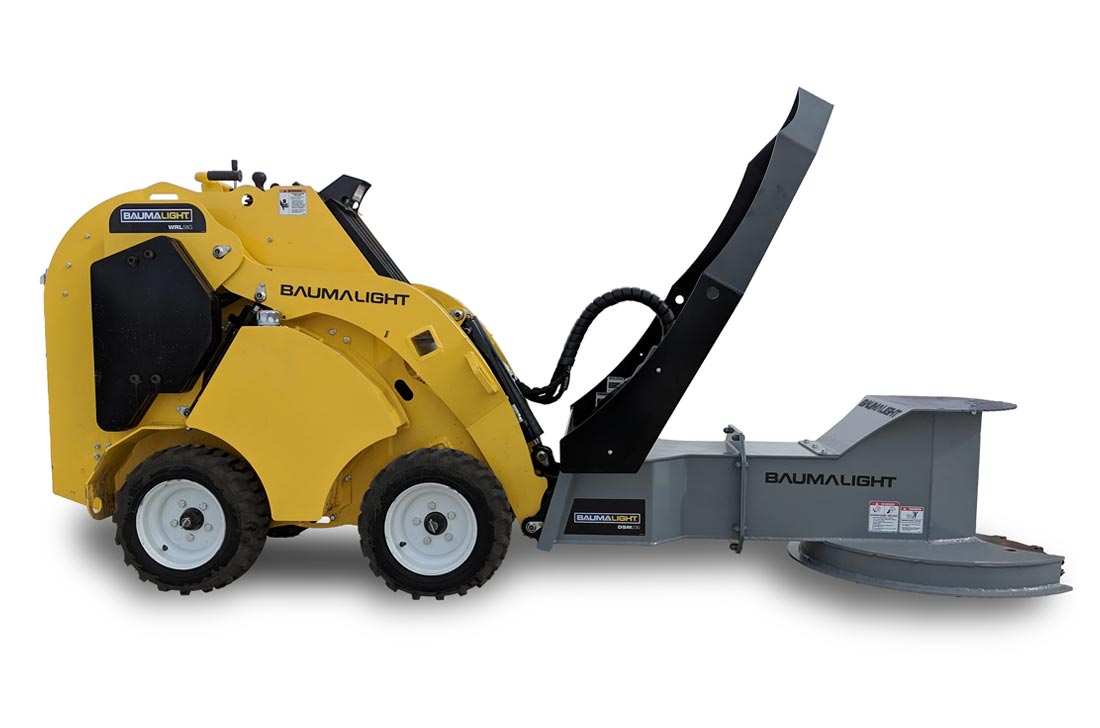

Available with Gear motor or BENT AXIS PISTON MOTOR

Gear motors are a good cost effectvie choice for the average user and our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.

CASE DRAIN – VENT TO ATMOSPHERE

To prevent pressure relief activation on the motor seal, the DXA530 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.

FRONT PUSH BAR

A solid serrated steel plate up front helps guide limbs, branches and small trees safely away from the operator.

ANGLED PUSH BAR WITH PROTECTIVE MESH

The large push bar with integrated safety mesh is angled to help guide any falling debris away from the operator.

AR400 STEEL BLADE

The tree saw’s heavy duty circular blade is designed and shaped from AR-400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.

HIGH SPEED TEETH

The concave shaped carbide tip of our High Speed Teeth provide aggressive cutting action by chipping the brush bit by bit. This round tooth is 3 teeth in 1. Simply loosen the lock nut and rotate the tooth to a fresh, sharp cutting edge. This can be done three times, extending the life of each tooth.

EASY TEETH CHANGING

The high speed teeth design allows for easy rotation and changing of the teeth as needed.

6 FREE TEETH

All DSM530 Tree Saw come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

Designed for maximum visibility

Making sure you have the best seat in the house, the tree saw was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.

PROTECTIVE POWDER COAT FINISH

Heavy duty construction and a durable powder coated finish.

Easy Access Panels for Service

Built for the long haul, the tree saw has multiple removable panels for easier access and servicing.

ANTI-SLIP MAT FOR EASY ACCESS TO CAB

For ease of entry and exit from the cab an anti-slip strip gives sure footing.

INTERNAL HOSE ROUTING

All of the hydraulic hoses on the DropSaw are sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armour for double protection. The hoses are then routed internally, keeping them out of harm’s way. The DropSaw also features a pivoting arm with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.

Hoses supplied

Skidsteer tree saw models ship with the necessary hydraulic hoses, so you can connect and go to work.

Hoses double shielded

All of the hydraulic hoses are routed internally where possible and sleeved for operator and hose protection, while the connecting hoses are sleeved and wrapped in hose armor for double protection.

HOSE SUPPORT

Skidsteer Dropsaws feature travelling hose supports that relieves pressure and strain on hoses. A greaseable pin on the hose support ensures longer life and better performance.

GREASEABLE PINS

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

MOTOR OPTIONS:

Parameter	T508 Motor
Motor Type	Piston
CC	25
Case Drain	Critical
RPM at Max GPM	2600
PSI	3000
Cutting Time for 10" Limb
@ 9 GPM	30 sec
@ 12 GPM	20 sec
@ 15 GPM	15 sec
@ 20 GPM	10 sec
