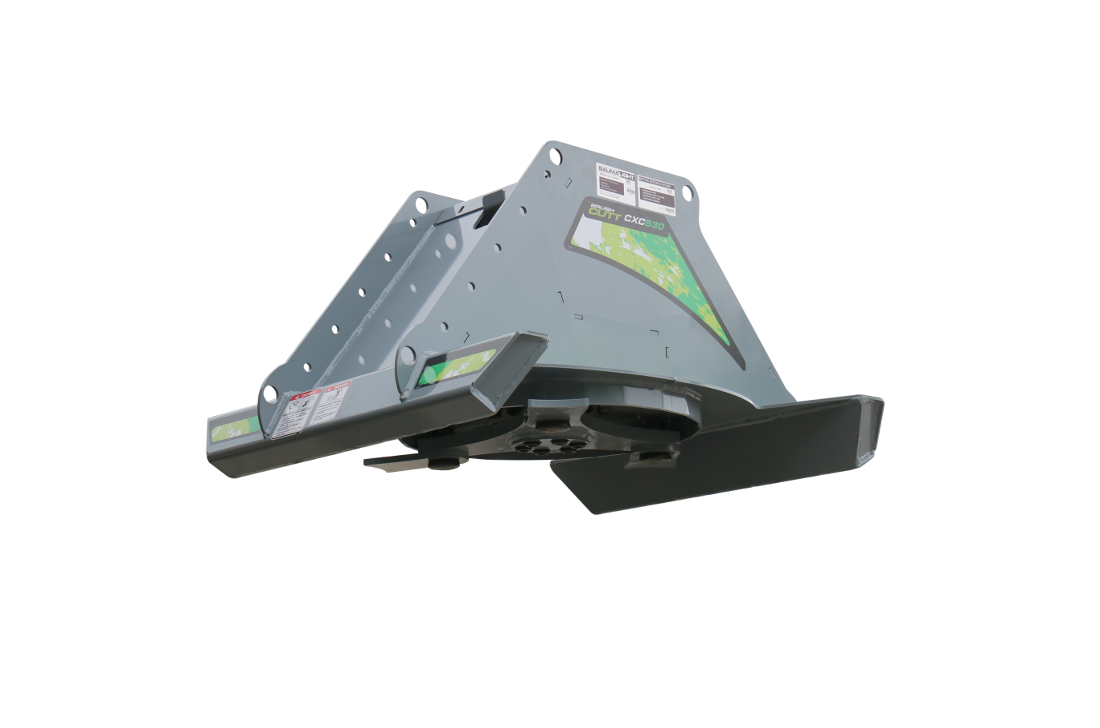

Baumalight Excavator Rotary Brush Cutter | Model CXC550 | Maximum Brush Size 6" | Cutting Width 50" | For Excavators
DESCRIPTION

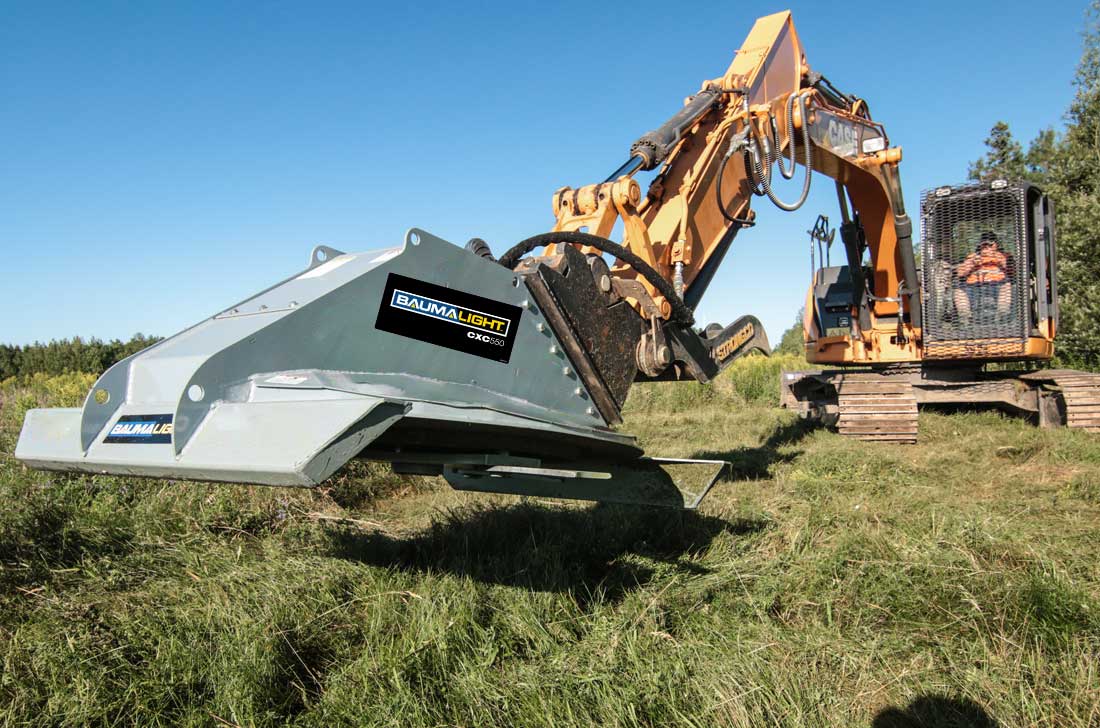

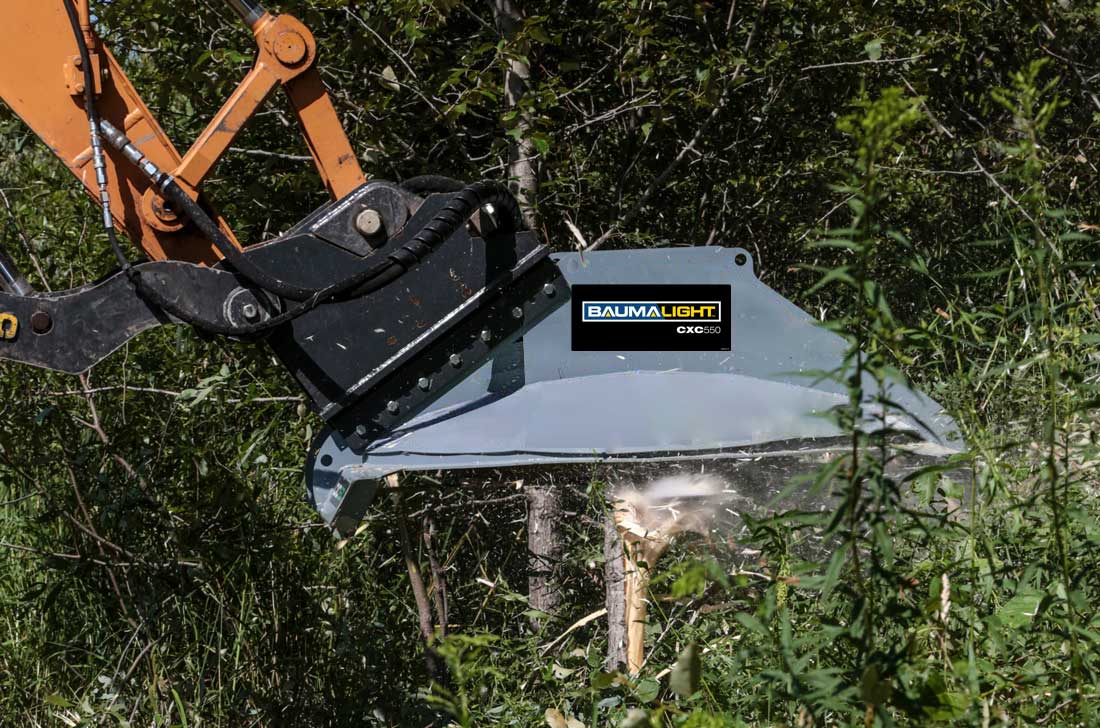

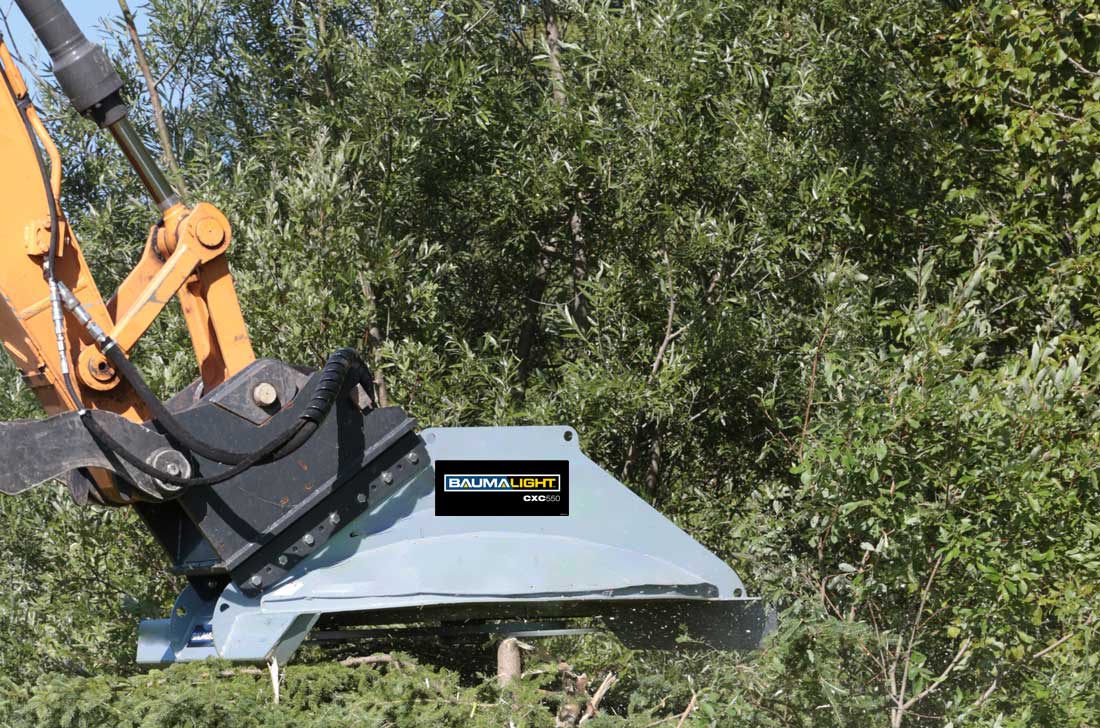

Taking the Rotary Brush Cutter to new heights is the 50” Baumalight CXC550 model for mid-range excavators. Built to help you tackle the areas with limited access, the CXC550’s unique blade design attacks and cuts thick brush, reducing it to mulch. The reversible blades provide long performance before requiring sharpening or replacement. The tri-swing blades chop and mulch all the way to the ground, allowing operators to mulch whole trees. Giving bite to the blade is an industry-leading bent axis piston motor, making the best possible use of this Rotary Brush Cutter’s hydraulic flow and pressure.
Key Features
- 50" Cutting Width: Ideal for reducing thick brush to mulch.
- Reversible TriSwing Blades: Designed for extended performance, these blades mulch all the way to the ground, even chopping whole trees.
- Bent Axis Piston Motor: This industryleading motor optimizes hydraulic flow and pressure for maximum efficiency.
- Multiple Motor Options: Choose the motor that best matches your hydraulic flow to enhance performance.
Three Cuts per Pass
As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary Brush Cutter advances forward. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 75–100 slashes per second with devastating results. The Rotary Brush Cutter’s reversible/replaceable blades are made of long lasting 1/2" AR 400 steel.
Large Bearing Support
Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system.
Blade Mount
To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins.
3-Way Model
Designed for easy service, the 3-Way models feature a heavy duty rotor with 3 fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing 75–100 slashes per second.
FREE BLADE SET
All CXC550 Rotary Brush Cutter come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping skid.

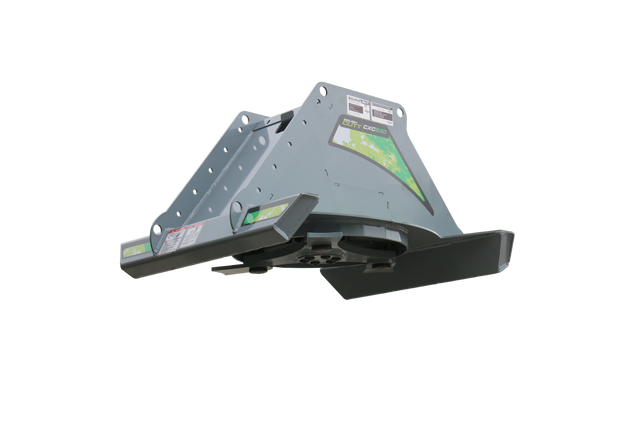

Deck Strength
Taking back your property can be a rough job. We designed and built the deck as a solid platform to take on the task. Built from rugged 1/4 inch steel and then further reinforced with support channels it’s a solid base of operations.

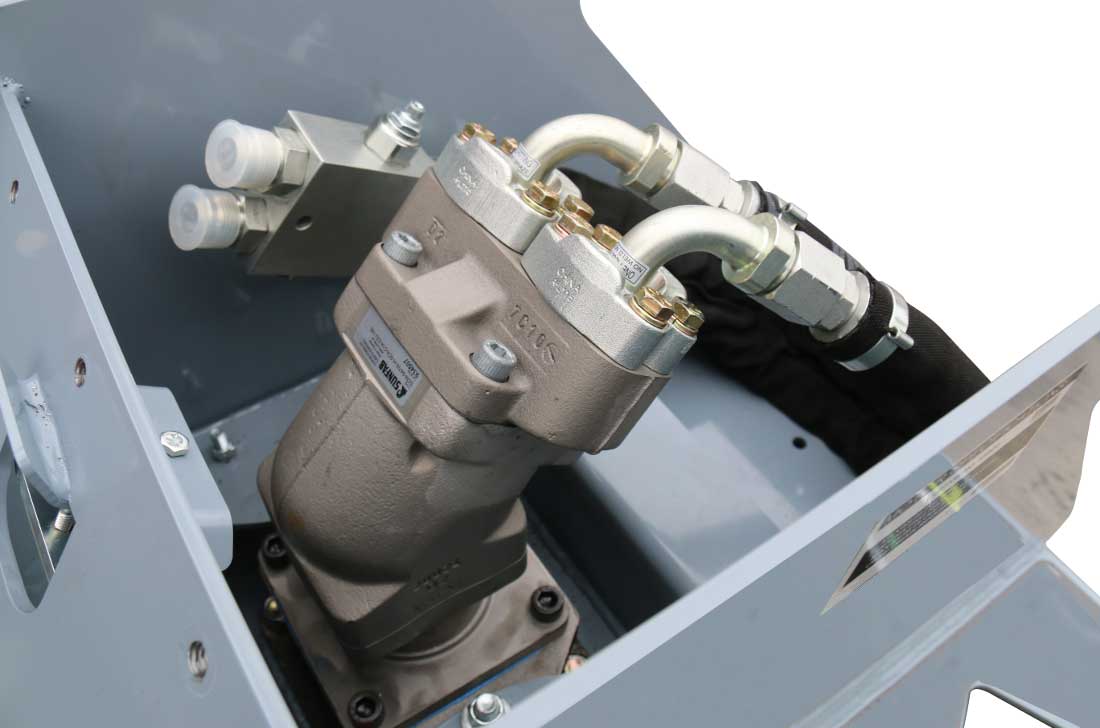

Bent Axis Piston Motor
Our industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for your brush clearing needs.

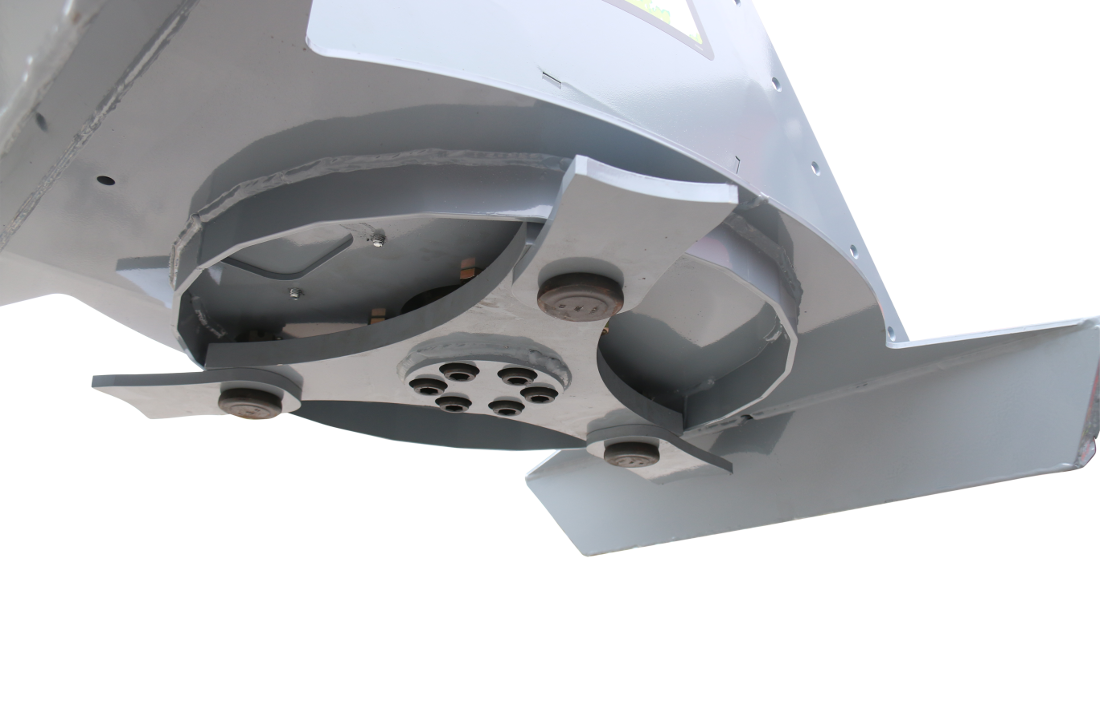

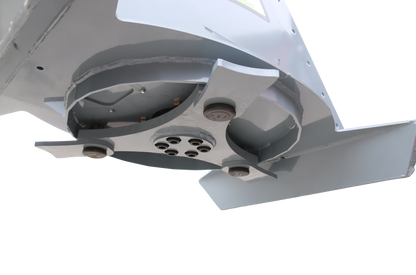

Rotor
Using a 1" top plate and a 1" bottom plate this heavy-duty rotor sandwiches the three–way blade assembly in place.
| Model | Host Machines |
|---|---|
|
CXC550 / HX590 |
Takeuchi TB280FR |
|
CXC550 / HX570 |
Caterpillar 308, Caterpillar 310, Caterpillar 307, Doosan DX140LC-5, Doosan DX140LCR-5, Komatsu PC78US-11, Sany SY75C, Takeuchi TB280FR, Yanmar SV100-2A |
|
CXC550 / HX550 |
Bobcat E145, Bobcat E88, Caterpillar 308, Caterpillar 310, Caterpillar 307, Hitachi ZX130-6, Hyundai HX85A, Hyundai R80CR-9A, John Deere 130G, John Deere 135G, Kubota KX080, Sany SY135U, Sany SY155U, Sany SY75C, Sany SY80U, Takeuchi TB290, Volvo ECR88D, Wacker Neuson ET90, Yanmar SV100-2A, Yanmar VIO 80-1A |
|
CXC550 / HX530 |
Bobcat E145, Bobcat E88, Doosan DX85R-3, Hyundai HX85A, Hyundai R80CR-9A, John Deere 130G, John Deere 135G, Kubota KX080, Sany SY80U, Sany SY95C, Takeuchi TB290, Wacker Neuson ET90, Wacker Nueson ET145, Yanmar VIO 80-1A |
Motor Options

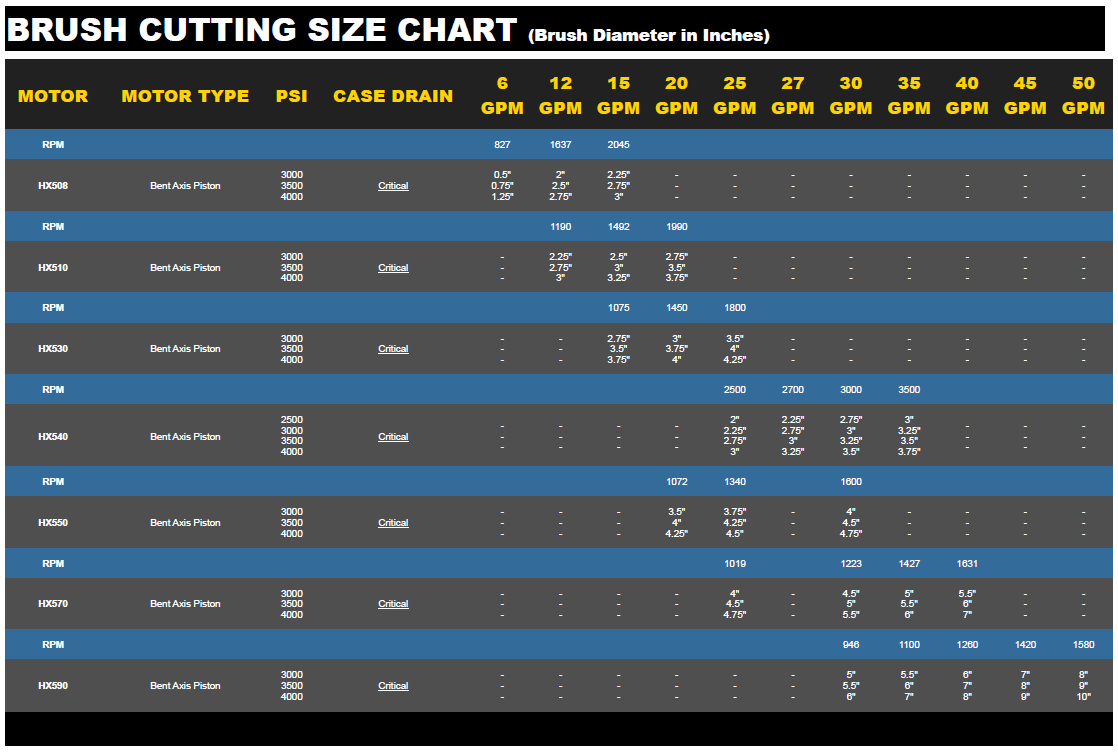

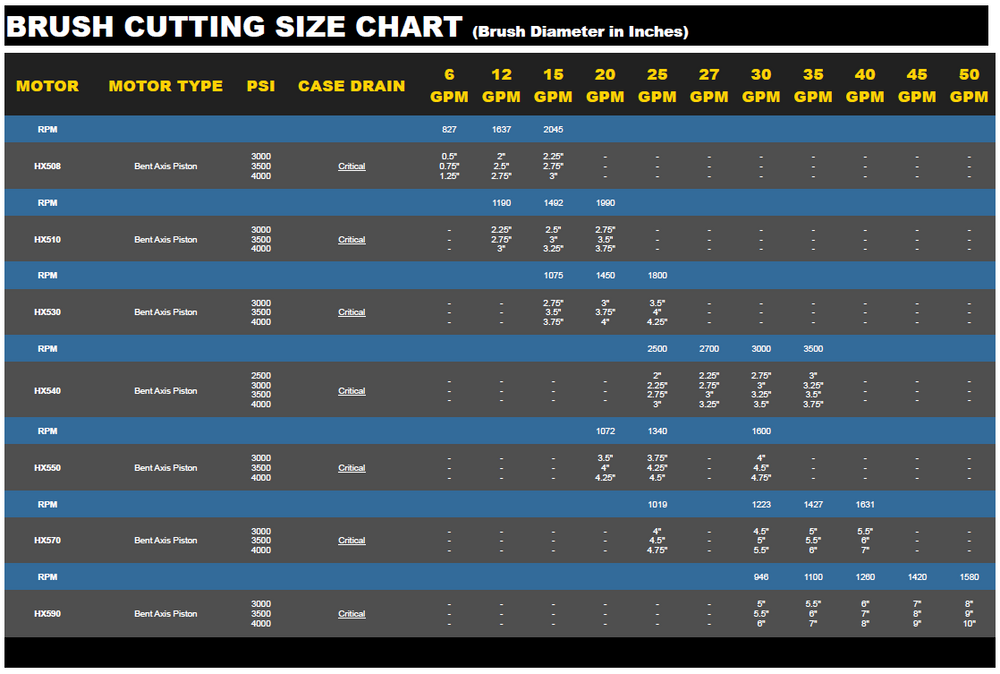

BRUSH CUTTING SIZE CHART (Brush Diameter in Inches)
|

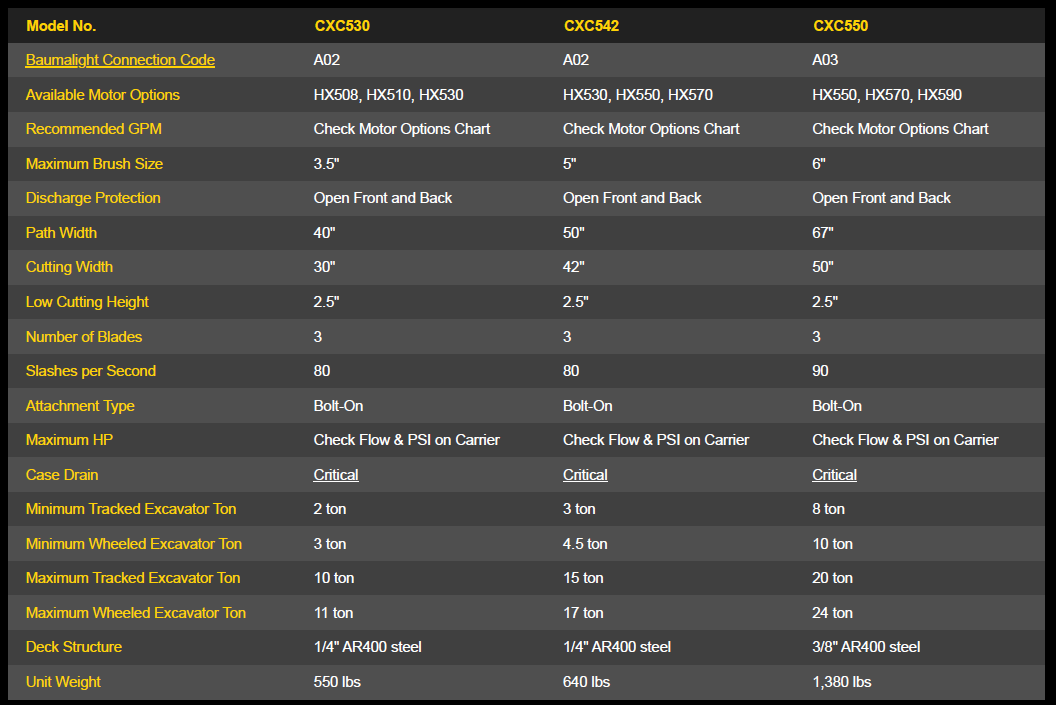

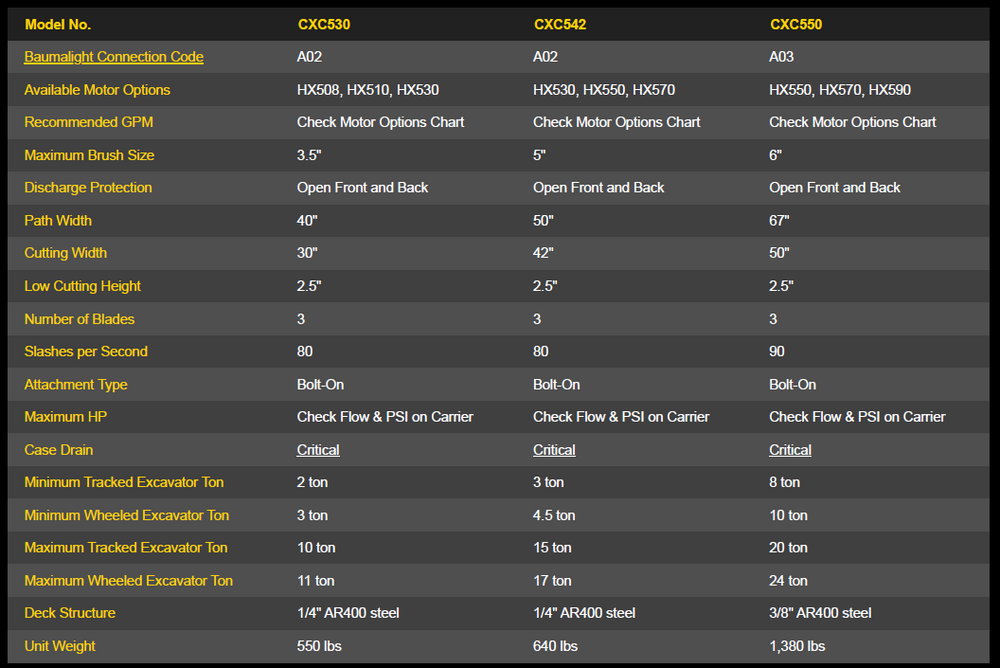

Detailed Specifications
| Model No. | CXC530 | CXC542 | CXC550 |
|---|---|---|---|
| Baumalight Connection Code | A02 | A02 | A03 |
| Available Motor Options | HX508, HX510, HX530 | HX530, HX550, HX570 | HX550, HX570, HX590 |
| Recommended GPM | Check Motor Options Chart | Check Motor Options Chart | Check Motor Options Chart |
| Maximum Brush Size | 3.5" | 5" | 6" |
| Discharge Protection | Open Front and Back | Open Front and Back | Open Front and Back |
| Path Width | 40" | 50" | 67" |
| Cutting Width | 30" | 42" | 50" |
| Low Cutting Height | 2.5" | 2.5" | 2.5" |
| Number of Blades | 3 | 3 | 3 |
| Slashes per Second | 80 | 80 | 90 |
| Attachment Type | Bolt-On | Bolt-On | Bolt-On |
| Maximum HP | Check Flow & PSI on Carrier | Check Flow & PSI on Carrier | Check Flow & PSI on Carrier |
| Case Drain | Critical | Critical | Critical |
| Minimum Tracked Excavator Ton | 2 ton | 3 ton | 8 ton |
| Minimum Wheeled Excavator Ton | 3 ton | 4.5 ton | 10 ton |
| Maximum Tracked Excavator Ton | 10 ton | 15 ton | 20 ton |
| Maximum Wheeled Excavator Ton | 11 ton | 17 ton | 24 ton |
| Deck Structure | 1/4" AR400 steel | 1/4" AR400 steel | 3/8" AR400 steel |
| Unit Weight | 550 lbs | 640 lbs | 1,380 lbs |
