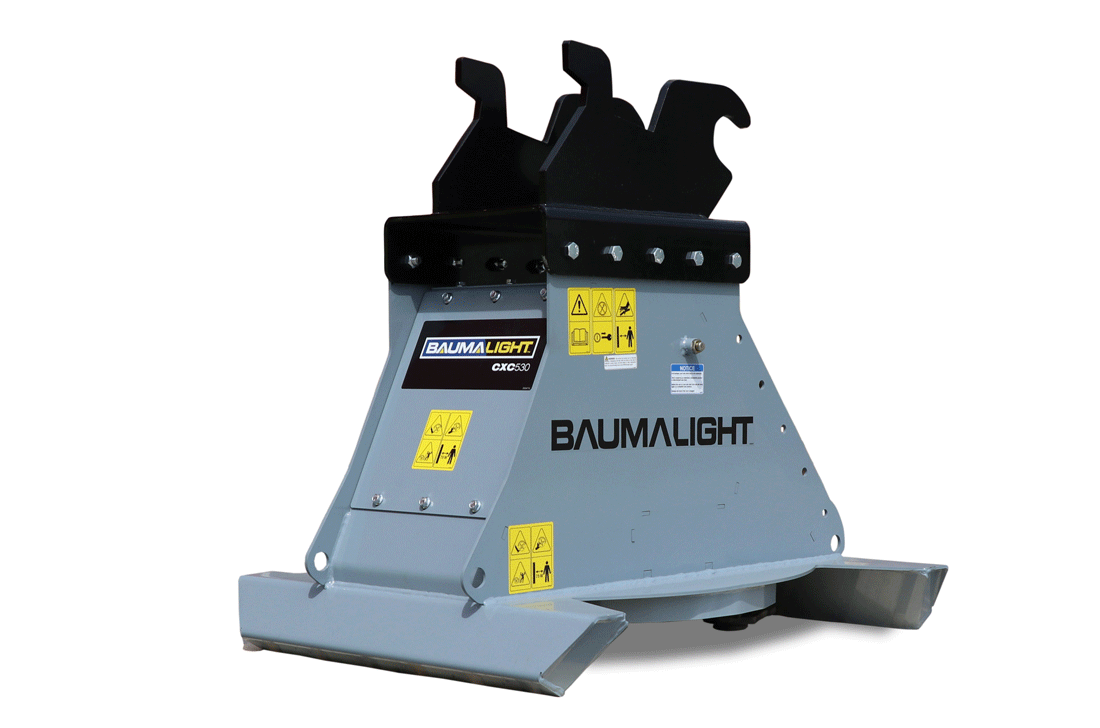

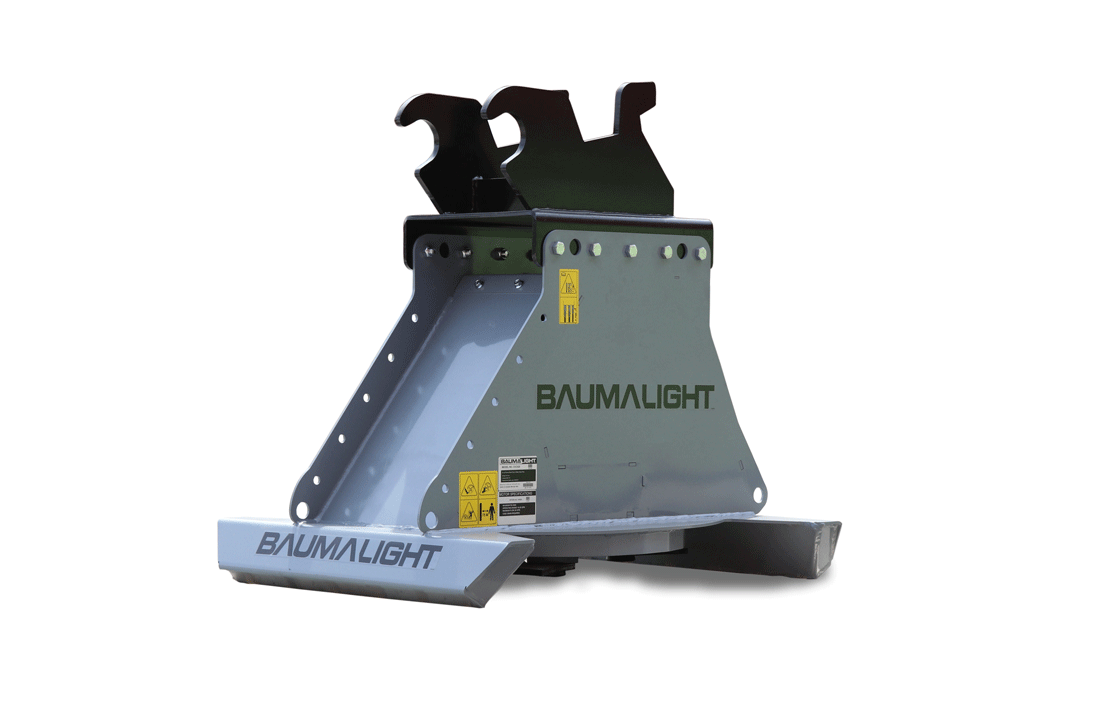

Baumalight CXC530 Rotary Brush Cutter For Excavator

Key Features

• Compact Design: Perfect for miniexcavators, allowing access to tight areas.
• Efficient Cutting: Unique blade design reduces thick brush to mulch, including whole trees.
• Reversible Tri-Swing Blades: Longlasting performance with fewer replacements.
• Hydraulic Optimization: Industryleading bent axis piston motor maximizes hydraulic flow and pressure.
• Durable Build: Constructed with 1/4" AR400 steel for enhanced durability.
• Unique Blade Design: Efficiently attacks and cuts thick brush, reducing it to mulch.
• Reversible Blades: Longlasting performance before needing sharpening or replacement.
• TriSwing Blades: Effective all the way to the ground, allowing mulching of entire trees.
• Bent Axis Piston Motor: Optimizes hydraulic flow and pressure for maximum cutting efficiency.

Three Cuts per Pass

As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary Brush Cutter advances forward. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 75–100 slashes per second with devastating results. The Rotary Brush Cutter’s reversible/replaceable blades are made of long lasting 1/2" AR 400 steel.

Large Bearing Support

Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system.

Blade Mount

To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins.

3-Way Model

Designed for easy service, the 3-Way models feature a heavy duty rotor with 3 fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing 75–100 slashes per second.

FREE BLADE SET

All CXC530 Rotary Brush Cutter come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping skid.

Deck Strength

Taking back your property can be a rough job. We designed and built the deck as a solid platform to take on the task. Built from rugged 1/4 inch steel and then further reinforced with support channels it’s a solid base of operations.

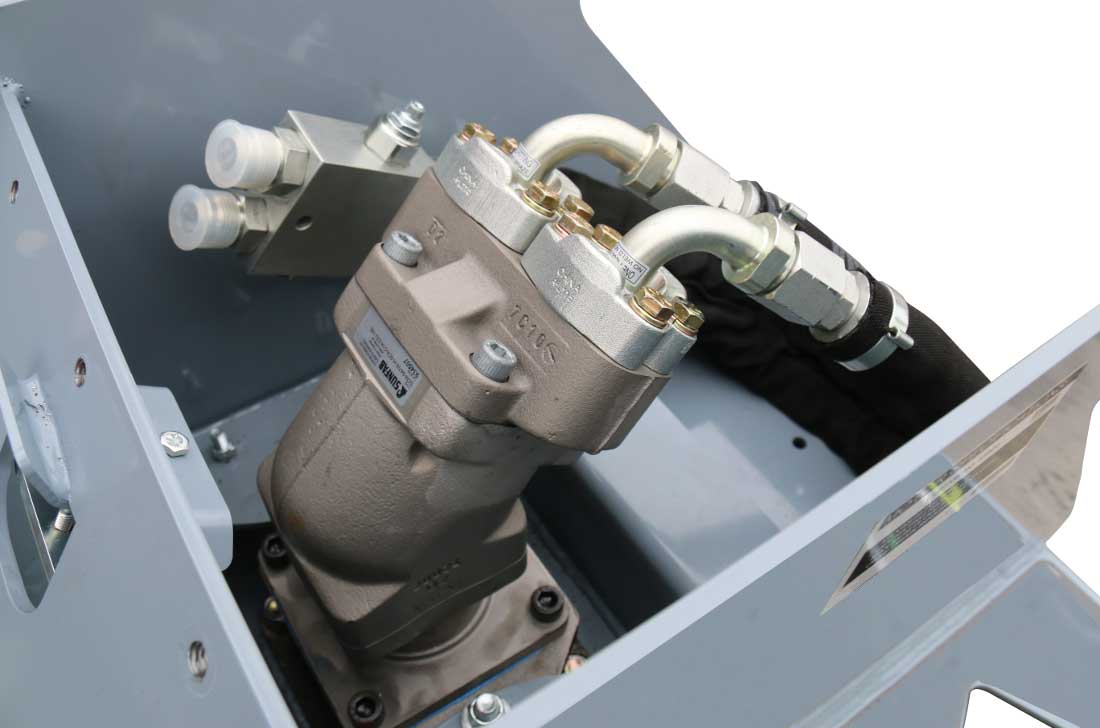

Bent Axis Piston Motor

Our industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for your brush clearing needs.

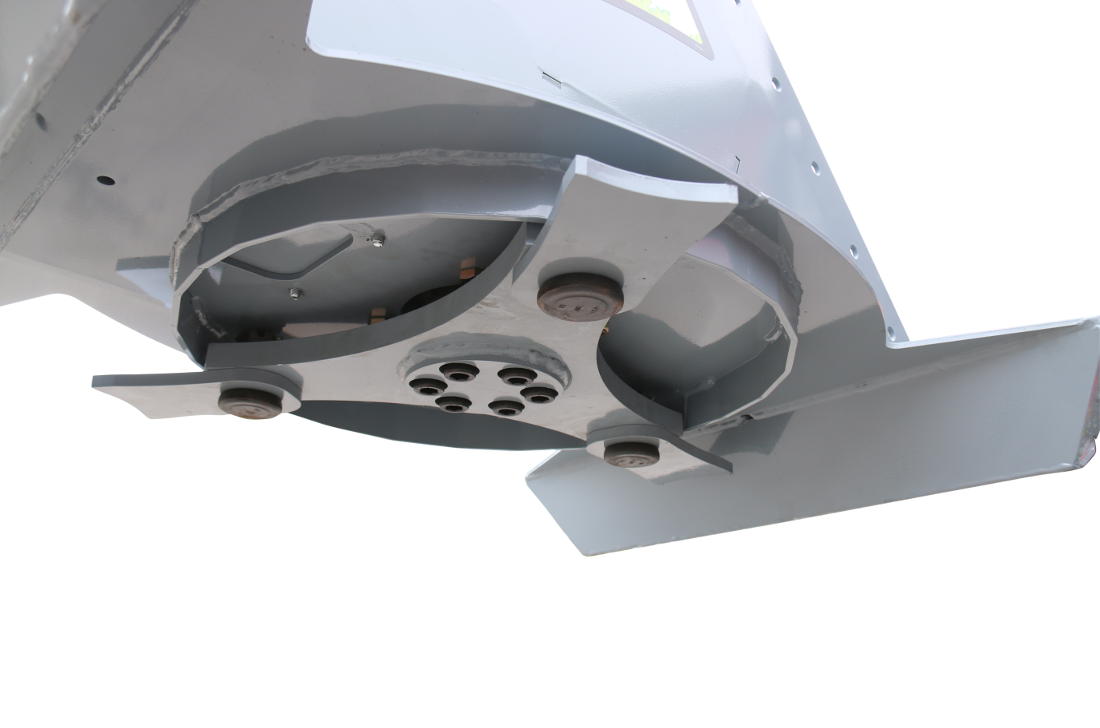

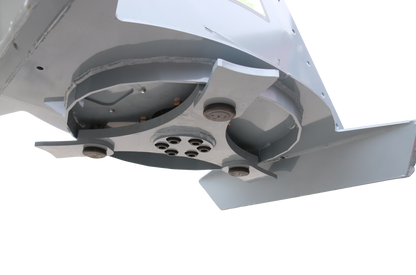

Rotor

Using a 1" top plate and a 1" bottom plate this heavy-duty rotor sandwiches the three–way blade assembly in place.

Motor Options

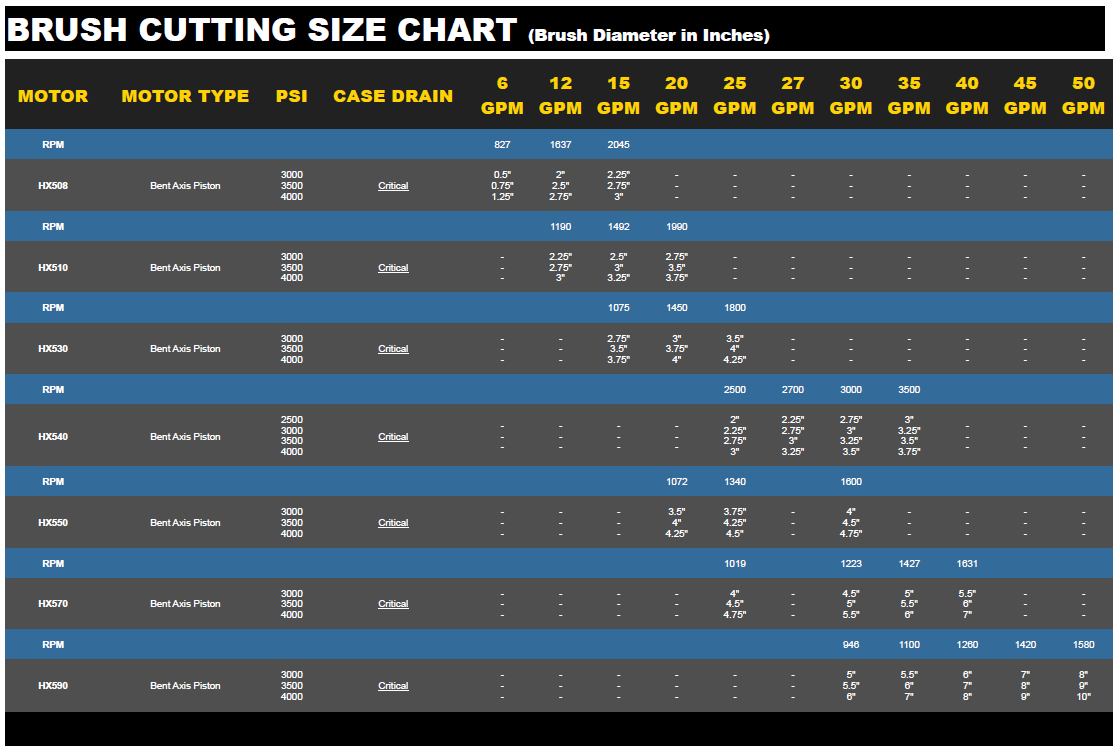

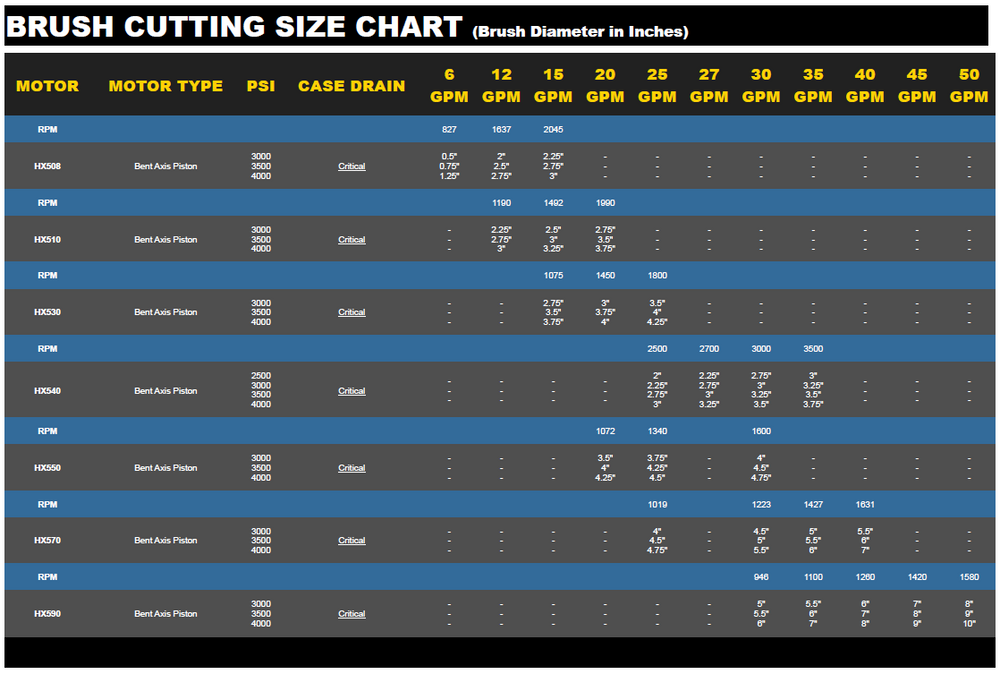

BRUSH CUTTING SIZE CHART (Brush Diameter in Inches)

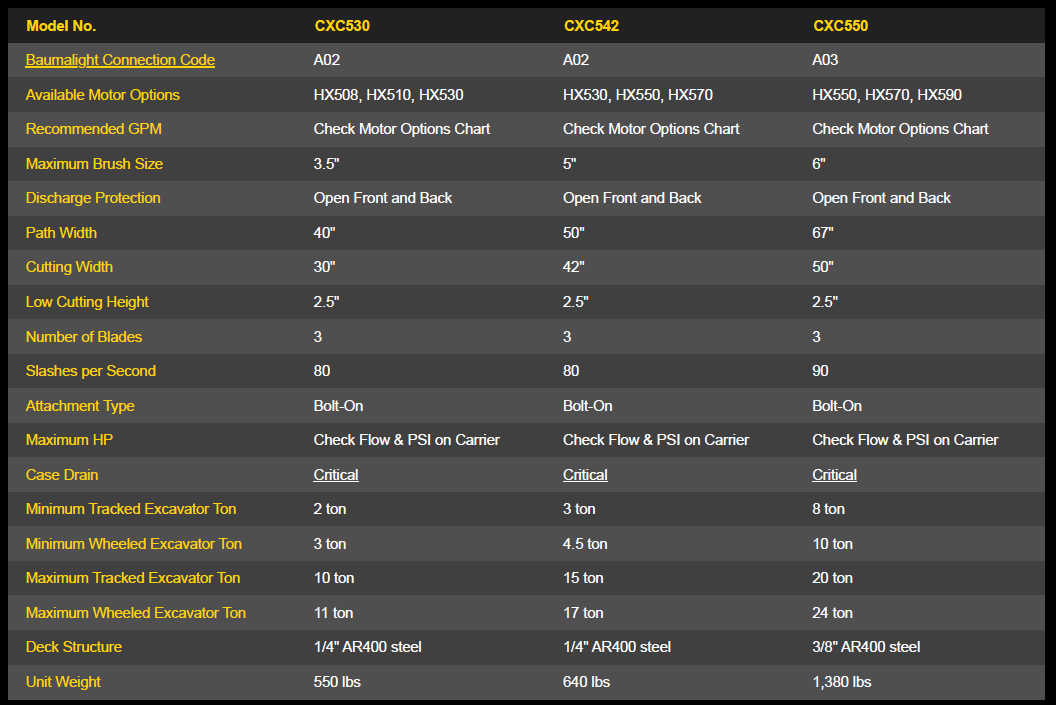

Detailed Specifications

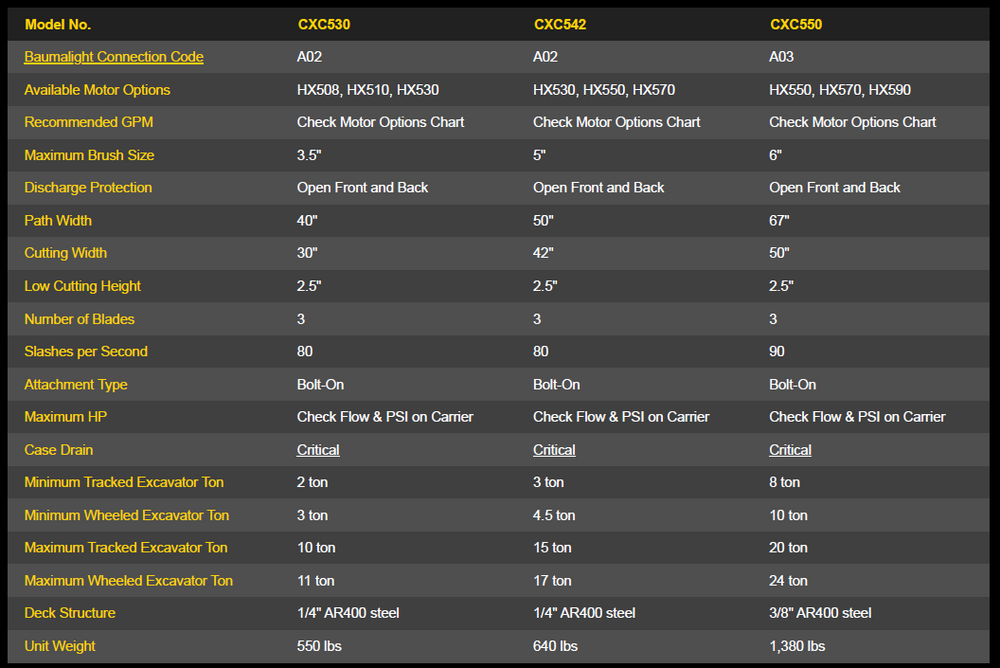

Comparison Chart

General Warranty Info:

• Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!
