Description

Baumalight CF772 Brush Cutter For Skid Steer

DESCRIPTION

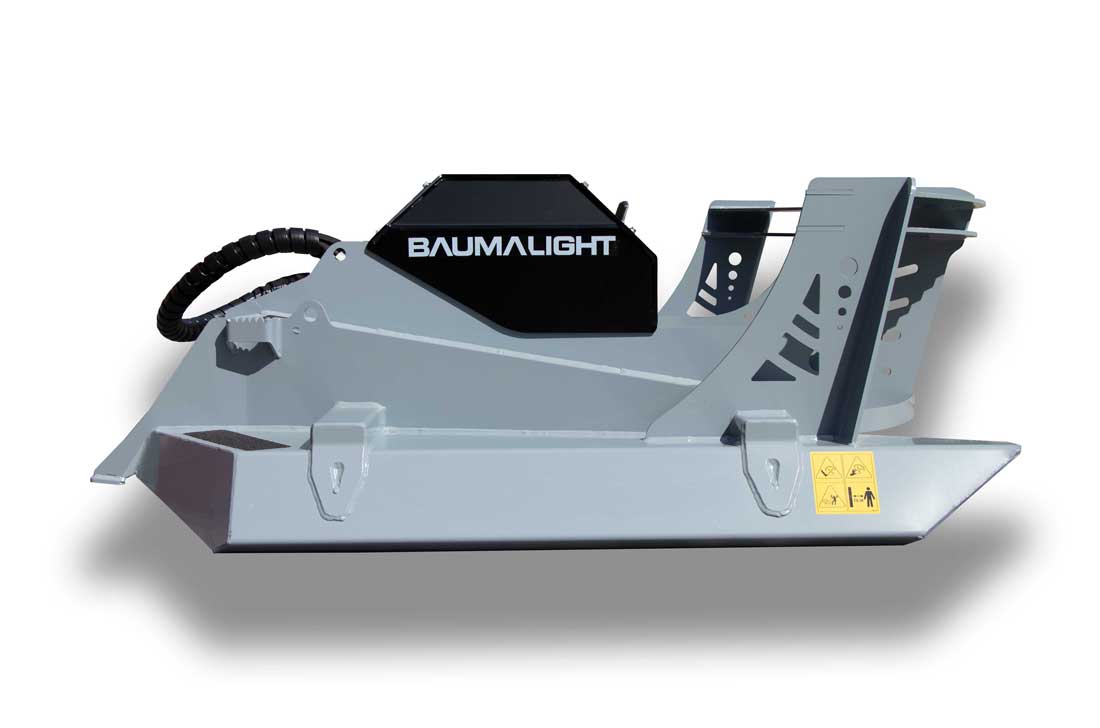

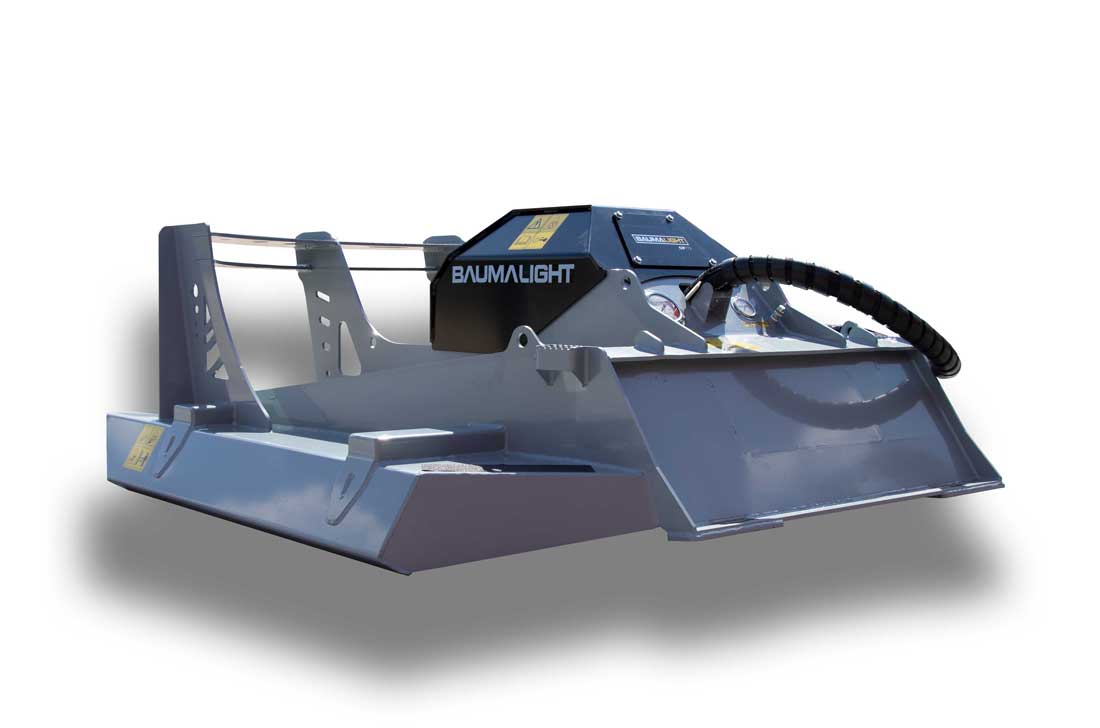

CF772 Open Front Skid Steer Rotary Brush Cutter Model

The rugged frame of the CF772 heavy-duty rotary brush cutter houses four AR400 blades featuring an 83" path width. The 1/4” steel deck is designed to stand up and perform in rough terrain while cutting trees, brush, unwanted weeds and grass. The 72" wide open mouth of this unit allows you to cut down larger trees in a sawing action. Standard on the 700 series rotary brush cutter, the Brush Bar helps to funnel brush under the Rotary Brush Cutter to the AR400 blades. The serrated open front design of the push bar works to push the taller, heavier brush to the hardened blades, making quick work of woody brush and saplings.

Key Features

  • BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT

The CF772 Rotary Brush Cutter's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.

  • EASY ACCESS PANELS FOR SERVICE

Built for the long haul, CF772 has removable panel for easier access and servicing.

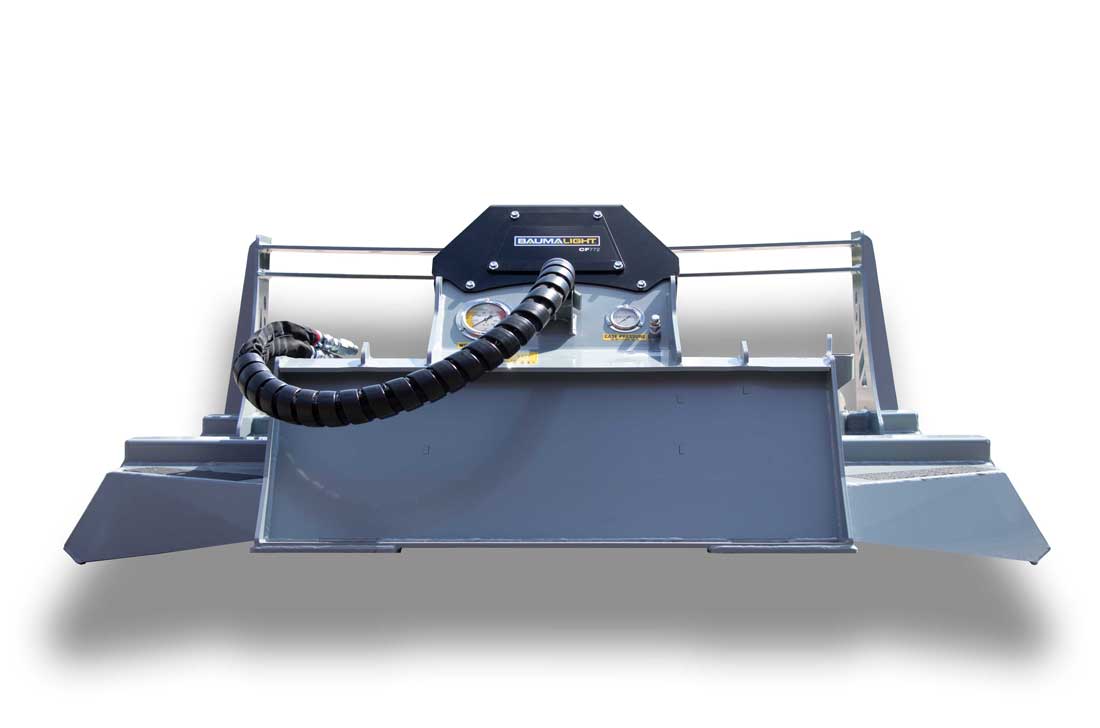

  • HOSE ARMOUR

Standard on all Rotary brush cutter models is Hose Armour. This is a tough wrap which coils around the hoses and protects them from the harsh environment of brush cutting. The armour helps to prevent any punctures from fallen brush or trees.

  • FREE BLADE SET

All CF772 Rotary brush cutter come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping ski

  • SERRATED TEETH ROTOR

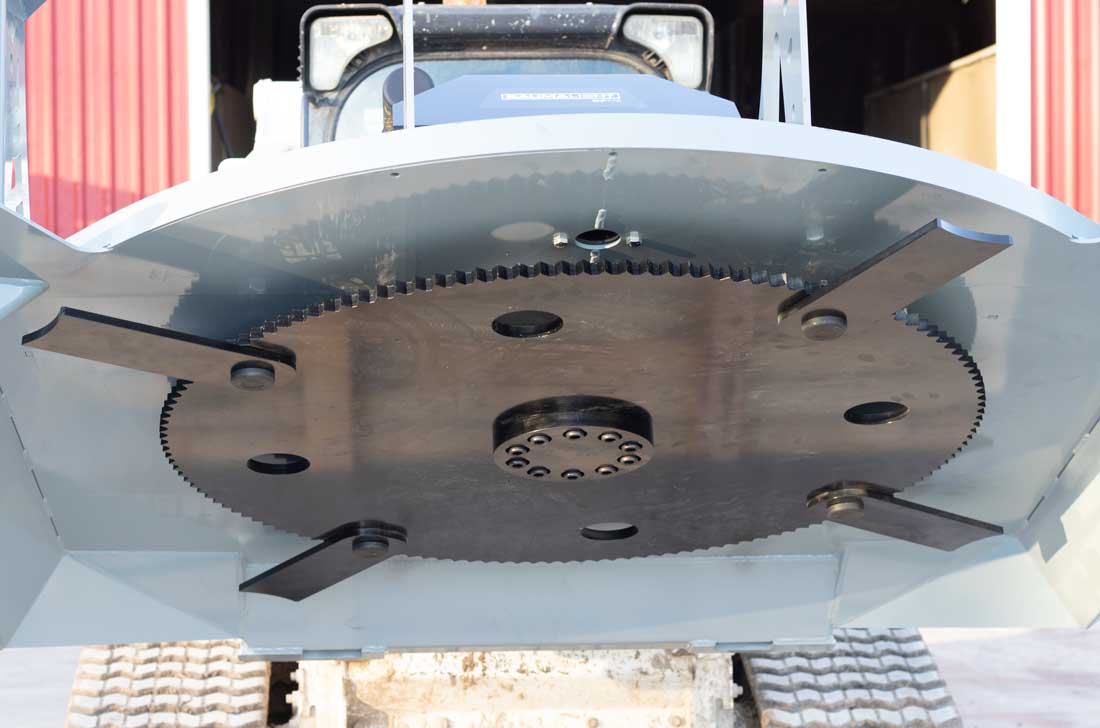

CF772 uses 3/4" heavy duty circular rotor designed with unique serrated edges. Serrated edge on the rotor helps to increase the mulching action and it also protects the load adaptor bearing setup.

  • SUPPLIED WITH BENT AXIS PISTON MOTOR

Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.

  • CASE DRAIN – VENT TO ATMOSPHERE

To prevent pressure relief activation on the motor seal, the rotary brush cutter CF772 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you.

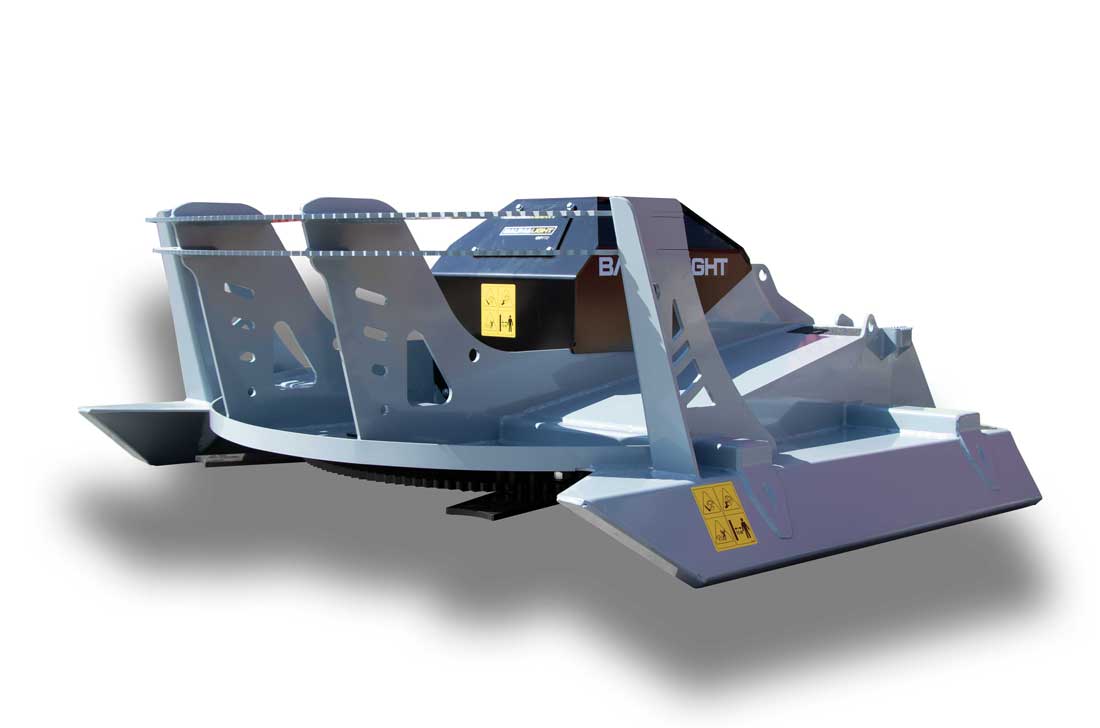

  • OPEN FRONT WITH PUSH BAR

The open front with push bar provides extra control against thick brush and the felling of trees, while the teeth hold the brush as the blades chew it up from below.

  • POWDER COATED FINISH

Heavy-duty construction and a durable powder-coated finish.

Detailed Specifications

Specification Details
Working Width 72 inches
Blade Material AR400 steel
Deck Material 1/4" steel
Number of Blades 4
Cutting Capacity Trees, brush, weeds, and grass
Hydraulic Flow High flow
Relief Valve Set at 3,000 psi
Gearbox Bevel gearbox, up to 90 HP
Mouth Design Open front for larger trees
Additional Features Chain curtain, bolt-on tail wheel



CF772/HX590

Part #: CF772/HX590
Mfg: BAUMALIGHT
Category: SKID STEER ATTACHMENTS
SubCategory: BRUSH CUTTER SKID STEER HIGH FLOW
Industry: CONSTRUCTION
Machine Size: SSL 30GPM-50GPM
Attachment Size: 72" WORKING WIDTH

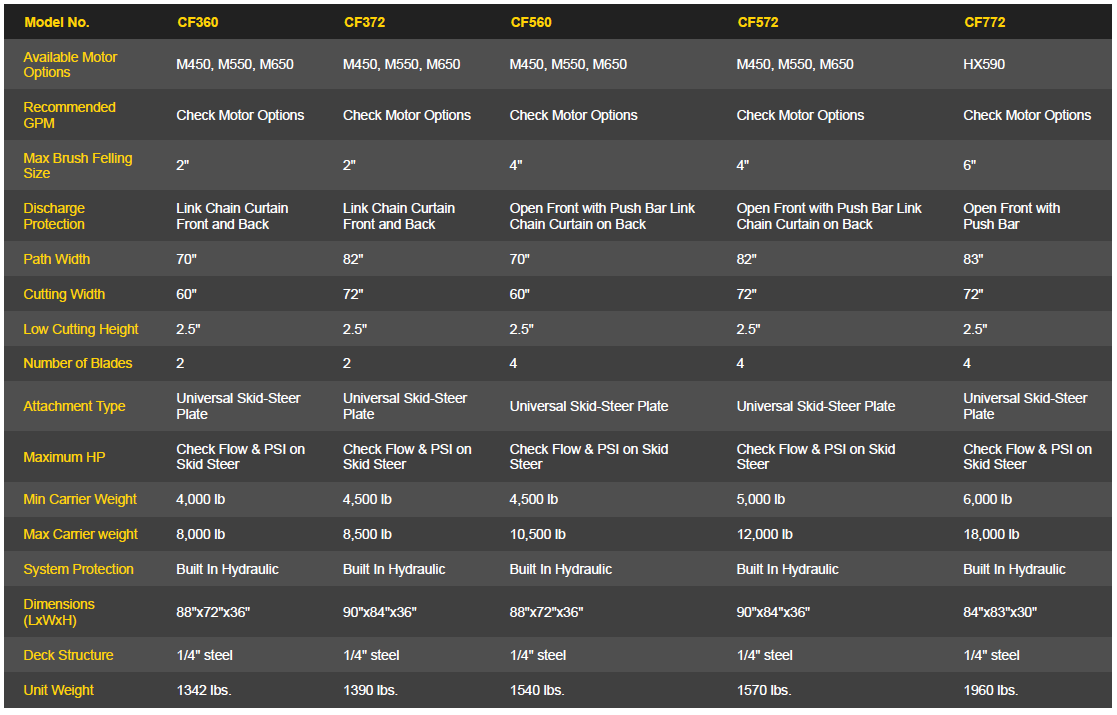

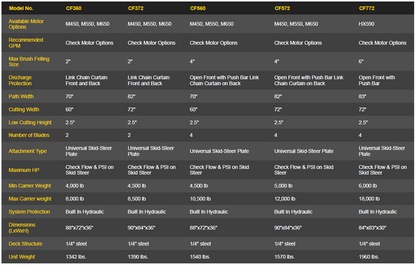

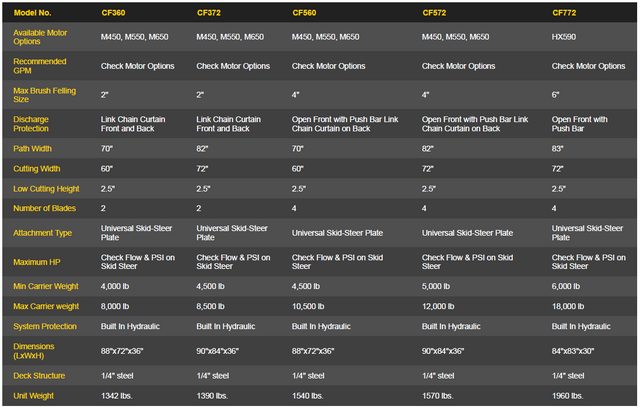

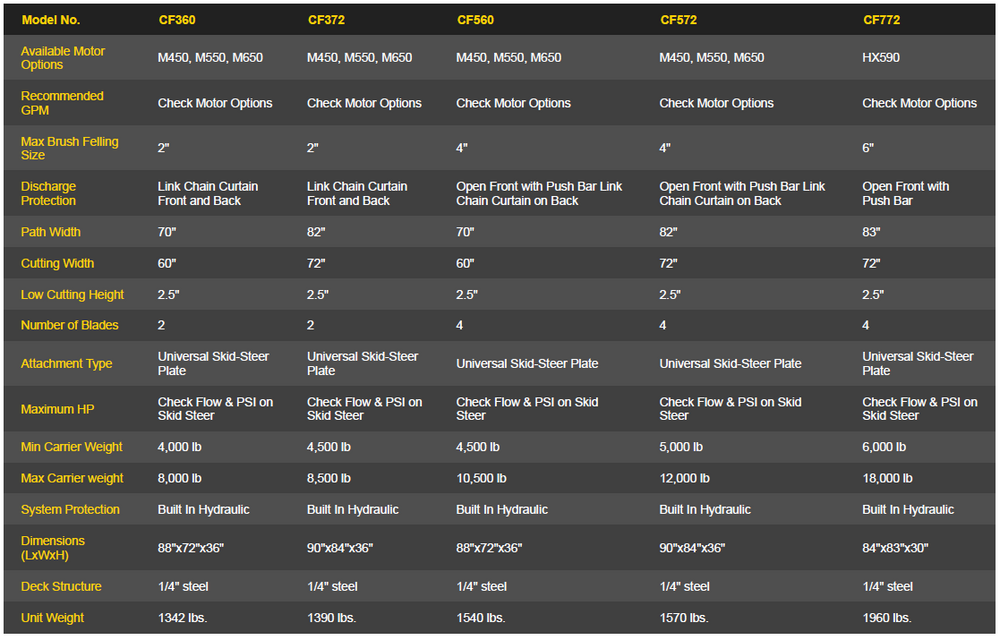

Comparison Chart


Specification CF360 CF372 CF560 CF572 CF772
Model No. CF360 CF372 CF560 CF572 CF772
Available Motor Options M450, M550, M650 M450, M550, M650 M450, M550, M650 M450, M550, M650 HX590
Recommended GPM Check Motor Options Check Motor Options Check Motor Options Check Motor Options Check Motor Options
Max Brush Felling Size 2" 2" 4" 4" 6"
Discharge Protection Link Chain Curtain (Front/Back) Link Chain Curtain (Front/Back) Open Front with Push Bar, Link Chain Curtain on Back Open Front with Push Bar, Link Chain Curtain on Back Open Front with Push Bar
Path Width 70" 82" 70" 82" 83"
Cutting Width 60" 72" 60" 72" 72"
Low Cutting Height 2.5" 2.5" 2.5" 2.5" 2.5"
Number of Blades 2 2 4 4 4
Attachment Type Universal Skid-Steer Plate Universal Skid-Steer Plate Universal Skid-Steer Plate Universal Skid-Steer Plate Universal Skid-Steer Plate
Maximum HP Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer
Min Carrier Weight 4,000 lb 4,500 lb 4,500 lb 5,000 lb 6,000 lb
Max Carrier Weight 8,000 lb 8,500 lb 10,500 lb 12,000 lb 18,000 lb
System Protection Built-In Hydraulic Built-In Hydraulic Built-In Hydraulic Built-In Hydraulic Built-In Hydraulic
Dimensions (LxWxH) 88"x72"x36" 90"x84"x36" 88"x72"x36" 90"x84"x36" 84"x83"x30"
Deck Structure 1/4" steel 1/4" steel 1/4" steel 1/4" steel 1/4" steel
Unit Weight 1342 lbs. 1390 lbs. 1540 lbs. 1570 lbs. 1960 lbs.
