BaumalightSKU: CF560-M450
  • Free Shipping On Orders Over $5000
  • Lead Times May Vary Depending on Machine Fitment
  • Message Us for Up-To-Date Fitment Status
  • 30 Day Satisfaction Guarantee
  • Easy Financing Available Through Shop Pay
Size: M450 Motor 15GPM-22GPM | Standard Couplers, No Case Drain
Price:
$8,697.00
Stock:
In stock

Description

Baumalight CF560 Brush Cutter For Skid Steer

DESCRIPTION

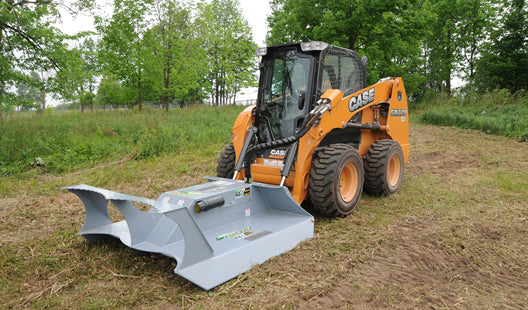

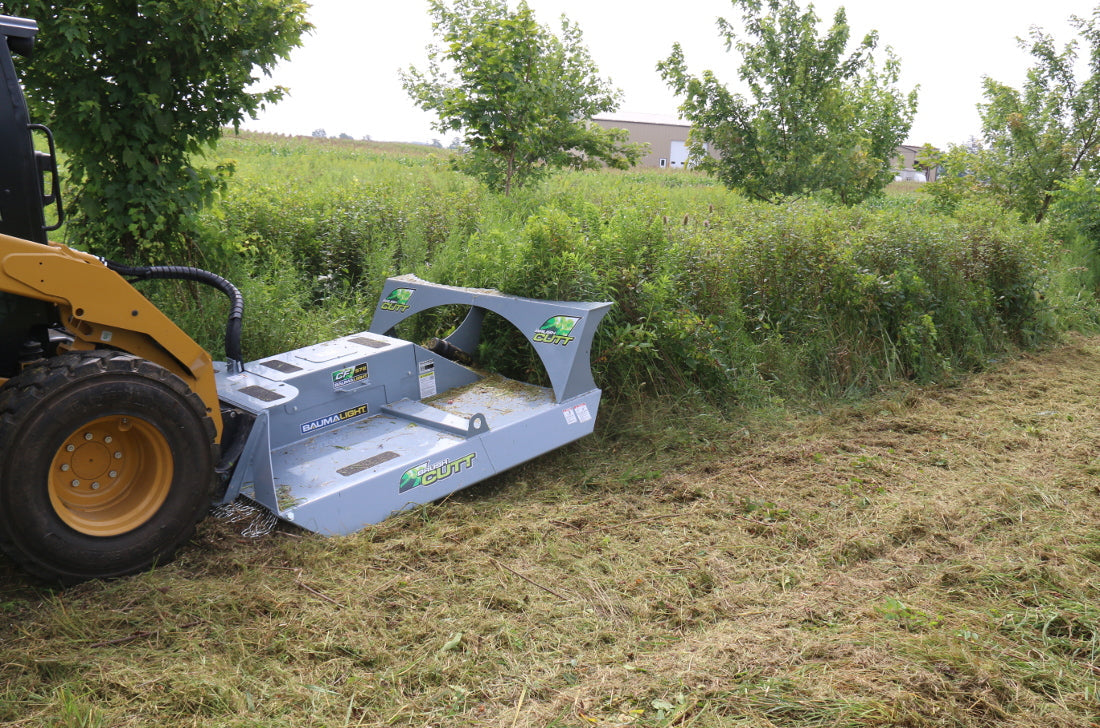

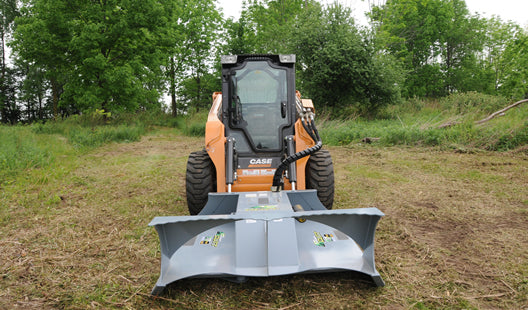

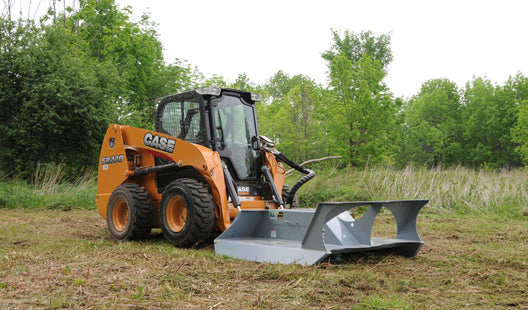

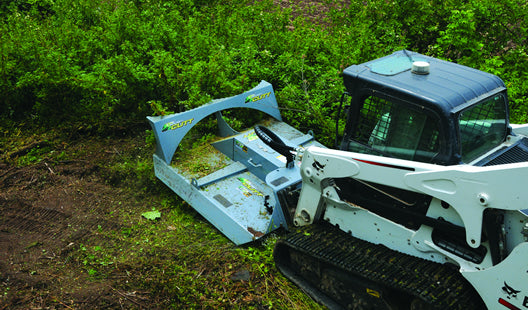

Baumalight CF560 Open Front Skid Steer Rotary Brush Cutter

The rugged frame of the CF560 heavy-duty rotary brush cutter houses four AR400 blades featuring a 70" path width. The 1/4” steel deck is designed to stand up and perform in rough terrain while cutting trees, brush, unwanted weeds and grass. The 60" wide open mouth of this unit allows you to cut down larger trees in a sawing action.
Standard on the 500 series rotary brush cutter, the Brush Bar helps to funnel brush under the Rotary Brush Cutter to the AR400 blades. The double arch design of the push bar works to pull the taller, heavier brush to the hardened blades, making quick work of woody brush and saplings. The rear of the unit is guarded by a chain curtain so standing brush enters and mulched debris exits as you break new trails, clear ditches, construction, property sites, and other overgrown areas.

Key Features

  • Durable Construction: Built with a heavy-duty frame and a 1/4" steel deck, the Baumalight Brush Cutter is designed to withstand tough conditions and provide long-lasting performance.
  • Cutting Efficiency: Equipped with AR400 steel blades, the cutter ensures efficient cutting with a high slashing rate, making quick work of dense vegetation.
  • Safety Features: The unit includes front and rear chain curtains to control debris and ensure safe operation, preventing flying debris while allowing brush to enter easily.
  • Hydraulic Protection: A built-in relief valve set at 3,000 psi protects the hydraulic system by disengaging the driveline if the pressure becomes too high, safeguarding both the skid steer and the brush cutter.
  • Versatile Use: Suitable for various applications such as trail clearing, ditch maintenance, and site preparation, making it a versatile tool for property maintenance and construction projects.
  • Easy Attachment: The universal skid-steer plate allows for quick and easy attachment to most skid steer models, ensuring compatibility and convenience.

Whether you need to clear a large area of brush or maintain overgrown property, the Baumalight 60" & 72" Brush Cutter for Skid Steer offers the durability and performance needed to get the job done efficiently.

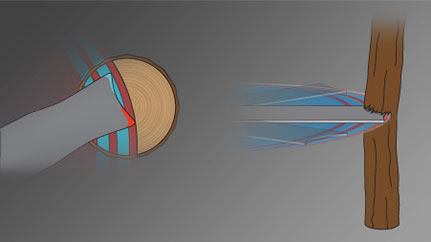

  • TWO CUTS PER PASS

    As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary brush cutter advances forward. The curved cutting tips of the slasher blades give the Rotary brush cutter two cuts per pass of each blade. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 26–52 slashes per second with devastating results.As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary brush cutter advances forward. The curved cutting tips of the slasher blades give the Rotary brush cutter two cuts per pass of each blade. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 26–52 slashes per second with devastating results.

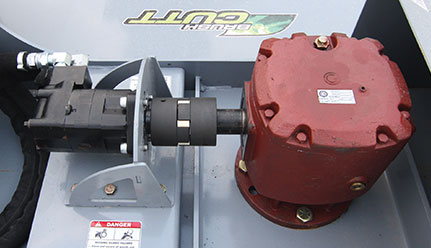

  • GEAR BOX

    Standard on all Rotary Brush Cutter models is a relief valve. Set at 3,000 psi, this valve disengages the driveline if the hydraulic system pressure is too great, thereby protecting both the skidsteer and the Rotary brush cutter. The Rotary brush cutter uses a bevel gearbox capable of handling up to 90HP for final drive output. More durable than conventional direct drive setups, these gearboxes prevent shocks from cutting being passed to the drive motor.Standard on all Rotary Brush Cutter models is a relief valve. Set at 3,000 psi, this valve disengages the driveline if the hydraulic system pressure is too great, thereby protecting both the skidsteer and the Rotary brush cutter. The Rotary brush cutter uses a bevel gearbox capable of handling up to 90HP for final drive output. More durable than conventional direct drive setups, these gearboxes prevent shocks from cutting being passed to the drive motor.

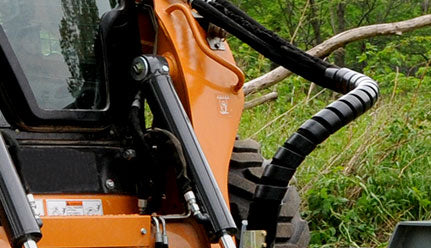

  • HOSE ARMOUR

    Standard on all Rotary Brush Cutter models is Hose Armour. This is a tough wrap which coils around the hoses and protects them from the harsh environment of brush cutting. The armour helps to prevent any punctures from fallen brush or trees.

    Standard on all Rotary Brush Cutter models is Hose Armour. This is a tough wrap which coils around the hoses and protects them from the harsh environment of brush cutting. The armour helps to prevent any punctures from fallen brush or trees.

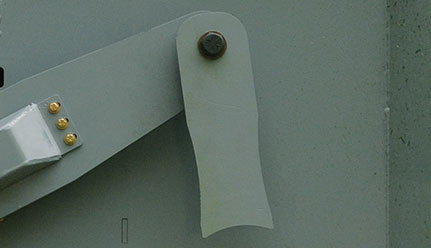

  • SLASHER BLADES

    Crafted from 1/4" AR 400 steel, the unique profile of the slasher blades provides increased cutting surface. The blade’s thin reversible profile continuously provides a sharp edge.

    Crafted from 1/4" AR 400 steel, the unique profile of the slasher blades provides increased cutting surface. The blade’s thin reversible profile continuously provides a sharp edge.

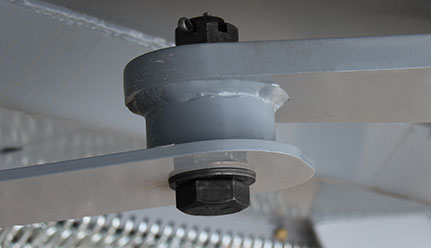

  • BLADE MOUNT

    To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins. The blade mount uses a fully welded collar to drop the blade; this spacing helps to reduce the blade from binding while in operation.

    To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins. The blade mount uses a fully welded collar to drop the blade; this spacing helps to reduce the blade from binding while in operation.

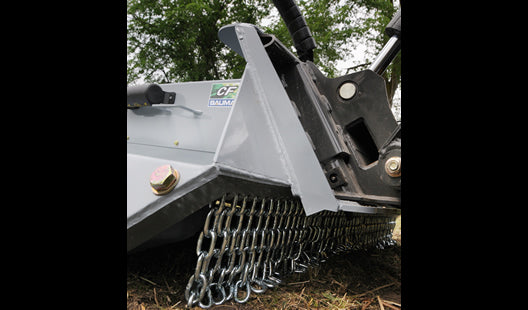

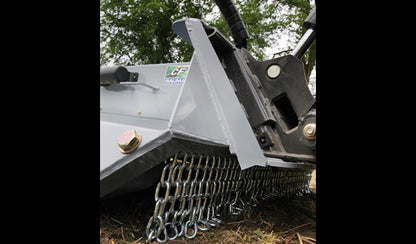

  • FRONT & REAR CHAIN CURTAINS

    A heavy-duty chain curtain reduces discharge of debris. Unlike traditional chain curtains, Baumalight’s Rotary Brush Cutter uses a curtain rod setup that is free of welds. This setup allows the chain to absorb the impacts and places less strain on the welded link for longer curtain life.

    A heavy-duty chain curtain reduces discharge of debris. Unlike traditional chain curtains, Baumalight’s Rotary Brush Cutter uses a curtain rod setup that is free of welds. This setup allows the chain to absorb the impacts and places less strain on the welded link for longer curtain life.

  • SHIELD

    To protect the output shaft from impact or contamination caused by debris, each model of Rotary Brush Cutter is finished off with a heavy-duty output shaft shield.

     To protect the output shaft from impact or contamination caused by debris, each model of Rotary Brush Cutter is finished off with a heavy-duty output shaft shield.

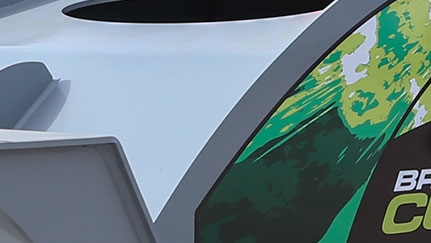

  • POWDER COATED FINISH

    Heavy-duty construction and a durable powder-coated finish.

    Heavy-duty construction and a durable powder-coated finish.

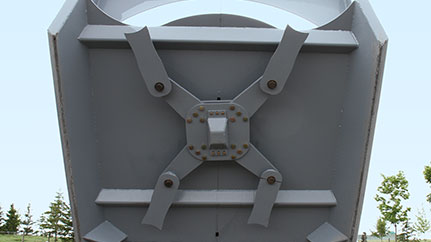

  • WAY MODEL

    Designed for easy service, the four-way models feature a heavy-duty rotor with four fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing up to 52 slashes per second.

    Designed for easy service, the four-way models feature a heavy-duty rotor with four fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing up to 52 slashes per second.

Detailed Specifications

Specification 60" Brush Cutter 72" Brush Cutter
Cutting Width 60 inches 72 inches
Overall Width 68 inches 80 inches
Weight 1,200 lbs 1,400 lbs
Blade Material AR400 Steel AR400 Steel
Number of Blades 2 2
Deck Thickness 1/4 inch 1/4 inch
Hydraulic Flow Requirement 18-30 GPM 18-30 GPM
Relief Valve Setting 3,000 psi 3,000 psi
Cutting Capacity Up to 4 inches in diameter Up to 4 inches in diameter
Safety Features Front and rear chain curtains Front and rear chain curtains
Attachment Type Universal skid-steer plate Universal skid-steer plate
Application Brush, small trees, thick grass Brush, small trees, thick grass

COMPARISON CHART

CF360

Specification CF360
Available Motor Options M450, M550, M650
Recommended GPM Check Motor Options
Max Brush Felling Size 2"
Discharge Protection Link Chain Curtain Front and Back
Path Width 70"
Cutting Width 60"
Low Cutting Height 2.5"
Number of Blades 2
Attachment Type Universal Skid-Steer Plate
Maximum HP Check Flow & PSI on Skid Steer
Min Carrier Weight 4,000 lb
Max Carrier Weight 8,000 lb
System Protection Built-In Hydraulic
Dimensions (L x W x H) 88" x 72" x 36"
Deck Structure 1/4" steel
Unit Weight 1342 lbs

CF372

Specification CF372
Available Motor Options M450, M550, M650
Recommended GPM Check Motor Options
Max Brush Felling Size 2"
Discharge Protection Link Chain Curtain Front and Back
Path Width 82"
Cutting Width 72"
Low Cutting Height 2.5"
Number of Blades 2
Attachment Type Universal Skid-Steer Plate
Maximum HP Check Flow & PSI on Skid Steer
Min Carrier Weight 4,500 lb
Max Carrier Weight 8,500 lb
System Protection Built-In Hydraulic
Dimensions (L x W x H) 90" x 84" x 36"
Deck Structure 1/4" steel
Unit Weight 1390 lbs

CF560

Specification CF560
Available Motor Options M450, M550, M650
Recommended GPM Check Motor Options
Max Brush Felling Size 4"
Discharge Protection Open Front with Push Bar, Link Chain Curtain on Back
Path Width 70"
Cutting Width 60"
Low Cutting Height 2.5"
Number of Blades 4
Attachment Type Universal Skid-Steer Plate
Maximum HP Check Flow & PSI on Skid Steer
Min Carrier Weight 4,500 lb
Max Carrier Weight 10,500 lb
System Protection Built-In Hydraulic
Dimensions (L x W x H) 88" x 72" x 36"
Deck Structure 1/4" steel
Unit Weight 1540 lbs

CF572

Specification CF572
Available Motor Options M450, M550, M650
Recommended GPM Check Motor Options
Max Brush Felling Size 4"
Discharge Protection Open Front with Push Bar, Link Chain Curtain on Back
Path Width 82"
Cutting Width 72"
Low Cutting Height 2.5"
Number of Blades 4
Attachment Type Universal Skid-Steer Plate
Maximum HP Check Flow & PSI on Skid Steer
Min Carrier Weight 5,000 lb
Max Carrier Weight 12,000 lb
System Protection Built-In Hydraulic
Dimensions (L x W x H) 90" x 84" x 36"
Deck Structure 1/4" steel
Unit Weight 1570 lbs

CF772

Specification CF772
Available Motor Options HX590
Recommended GPM Check Motor Options
Max Brush Felling Size 6"
Discharge Protection Open Front with Push Bar
Path Width 83"
Cutting Width 72"
Low Cutting Height 2.5"
Number of Blades 4
Attachment Type Universal Skid-Steer Plate
Maximum HP Check Flow & PSI on Skid Steer
Min Carrier Weight 6,000 lb
Max Carrier Weight 18,000 lb
System Protection Built-In Hydraulic
Dimensions (L x W x H) 84" x 83" x 30"
Deck Structure 1/4" steel
Unit Weight 1960 lbs

Comparison Chart

Model No. CF360 CF372 CF560 CF572 CF772
Available Motor Options M450, M550, M650 M450, M550, M650 M450, M550, M650 M450, M550, M650 HX590
Recommended GPM Check Motor Options Check Motor Options Check Motor Options Check Motor Options Check Motor Options
Max Brush Felling Size 2" 2" 4" 4" 6"
Discharge Protection Link Chain Curtain
Front and Back		 Link Chain Curtain
Front and Back		 Open Front with Push Bar Link Chain Curtain on Back Open Front with Push Bar Link Chain Curtain on Back Open Front with Push Bar
Path Width 70" 82" 70" 82" 83"
Cutting Width 60" 72" 60" 72" 72"
Low Cutting Height 2.5" 2.5" 2.5" 2.5" 2.5"
Number of Blades 2 2 4 4 4
Attachment Type Universal Skid-Steer Plate Universal Skid-Steer Plate Universal Skid-Steer Plate Universal Skid-Steer Plate Universal Skid-Steer Plate
Maximum HP Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer Check Flow & PSI on Skid Steer
Min Carrier Weight 4,000 lb 4,500 lb 4,500 lb 5,000 lb 6,000 lb
Max Carrier weight 8,000 lb 8,500 lb 10,500 lb 12,000 lb 18,000 lb
System Protection Built In Hydraulic Built In Hydraulic Built In Hydraulic Built In Hydraulic Built In Hydraulic
Dimensions (LxWxH) 88"x72"x36" 90"x84"x36" 88"x72"x36" 90"x84"x36" 84"x83"x30"
Deck Structure 1/4" steel 1/4" steel 1/4" steel 1/4" steel 1/4" steel
Unit Weight 1342 lbs. 1390 lbs. 1540 lbs. 1570 lbs. 1960 lbs.
