Baumalight BMM230 Barrier Mower for Mini Skid Steers

Maintain fence lines, guardrails, orchards, vineyards, roadsides, and other hard-to-reach areas with the Baumalight BMM230 Barrier Mower for Mini Skid Steers. Available from Skid Steer Store, the BMM230 is a compact hydraulic mower designed to cut long grass, weeds, brush, and woody vegetation in narrow areas where conventional mower decks cannot easily reach.

With a 32-inch cutting width, dual AR400 slasher blades, up to 1-inch brush cutting capacity, a 90-inch overall reach, and hydraulic requirements of just 8–15 GPM, the BMM230 gives mini skid steer operators a highly maneuverable vegetation-control attachment for farms, properties, landscaping, roadside maintenance, fencing, orchards, and vineyards.

The mower comes standard with manual angle adjustment and can be upgraded with Baumalight's optional electric actuator kit for powered positioning. A bent-axis piston motor, armored hydraulic hoses, rear discharge shielding, case-drain protection, and heavy-duty construction make the BMM230 well suited for demanding commercial and agricultural mowing applications.

Why Choose the Baumalight BMM230 Mini Skid Steer Barrier Mower?

Traditional mower decks work well in open areas but become difficult to use around posts, fencing, guardrails, trees, vineyard rows, orchard trunks, and other obstacles. The Baumalight BMM230 is designed specifically for these situations.

Its offset mower design allows the mini skid steer to stay clear of obstacles while the cutting head reaches into areas that would otherwise require considerable hand trimming.

The BMM230 is an excellent choice for:

• Fence line mowing
• Guardrail vegetation control
• Vineyard maintenance
• Orchard maintenance
• Pasture edge mowing
• Roadside vegetation management
• Property maintenance
• Grass and weed control
• Small brush removal
• Mowing around posts, poles, trees, and other obstacles

32-Inch Cutting Width for Tight Areas

The Baumalight BMM230 provides a compact 32-inch cutting width that allows it to work in confined areas where larger brush cutters and mower decks may not fit.

This narrower cutting head is particularly useful when working around agricultural fencing, vineyard rows, orchard trees, roadside barriers, landscape features, utility poles, and other obstacles.

Up to 1-Inch Brush Cutting Capacity

The BMM230 is rated to cut vegetation and brush up to approximately 1 inch in diameter. This gives the attachment more capability than a simple finish mower or string trimmer when working through heavy grass, weeds, and light woody growth.

Dual AR400 Slasher Blades

The Baumalight BMM230 uses two heavy-duty 1/4-inch AR400 slasher blades designed for demanding vegetation-control work.

AR400 is an abrasion-resistant steel commonly used in high-wear applications. Baumalight uses this durable material to provide long blade life when mowing grass, weeds, and brush in challenging environments.

Reversible Blade Profile

The BMM230 blades feature a reversible cutting profile, allowing operators to make better use of each blade before replacement.

When one cutting edge becomes worn, the blade can be serviced according to Baumalight's recommended procedures to help maximize usable blade life.

Replacement Blade Set Included

Baumalight includes a replacement set of mower blades with the BMM230. The replacement blades are secured to the shipping skid so a spare set is available when routine blade replacement becomes necessary.

Bent-Axis Piston Hydraulic Motor

The Baumalight BMM230 is powered by a bent-axis piston hydraulic motor. Baumalight identifies the motor option for this model as the C508.

The piston motor is designed to efficiently convert hydraulic flow into usable cutting power, making it a strong match for compact carriers with limited auxiliary hydraulic output.

This allows the BMM230 to deliver effective mowing performance while operating within a relatively broad 8–15 GPM hydraulic flow range.

Baumalight BMM230 Hydraulic Requirements

Correct hydraulic matching is essential when selecting a mower for a mini skid steer. The BMM230 is designed for compact machines providing between 8 and 15 GPM of auxiliary hydraulic flow.

Hydraulic Flow and Pressure

• Hydraulic flow: 8–15 GPM
• Hydraulic pressure range: 2,700–4,000 PSI
• System protection: Carrier hydraulic relief
• Case drain: Required

Before ordering, verify both the hydraulic flow and pressure specifications of your mini skid steer.

Case Drain Required

The Baumalight BMM230 requires a properly connected case drain.

A case drain allows internal motor leakage oil to return to the hydraulic reservoir at low pressure. Excessive case pressure can damage hydraulic motor seals, making proper case-drain installation critical.

Vent-to-Atmosphere Case Drain Protection

Baumalight incorporates a vent-to-atmosphere case drain protection system designed to provide an additional safeguard if excessive back pressure develops in the case drain circuit.

This protection does not eliminate the need for a correctly installed case drain. Always verify proper case-drain operation before using the mower.

Manual Angle Adjustment

The BMM230 comes standard with a manual angle-adjustment system. This allows the mower head to be positioned for different terrain, obstacle, and mowing conditions without requiring an electrical actuator.

Optional Electric Actuator Kit

For operators who want powered angle adjustment, the BMM230 is compatible with Baumalight's optional D007053 electric actuator kit.

The electric actuator allows the operator to adjust mower position more conveniently when working across changing ground contours or moving between different mowing situations.

The optional actuator requires a 12-volt electrical supply rated for 30 amps.

90-Inch Overall Reach

The Baumalight BMM230 measures approximately 90 inches from the mounting plate to the far side of the cutting disk.

This extended working reach is a major advantage when maintaining vegetation around obstacles. The carrier can remain positioned away from a fence, guardrail, tree, pole, or other obstruction while the mower reaches the vegetation beside or beneath it.

3-Inch Minimum Cutting Height

The BMM230 has a specified low cutting height of approximately 3 inches, making it suitable for maintaining tall grass and vegetation while providing clearance between the cutting system and the ground.

Actual finished cutting height may vary depending on terrain, carrier position, mower angle, and operating conditions.

Rear Discharge Protection

Baumalight equips the BMM230 with a sheet-metal discharge curtain and rear guard designed to help control material leaving the mower deck.

The shielding helps direct cut vegetation and debris away from the carrier and operator while maintaining a more controlled discharge pattern.

All mower guards and shields should remain installed and properly maintained during operation.

Armored and Sleeved Hydraulic Hoses

Hydraulic hoses on vegetation-control attachments are exposed to branches, brush, posts, and other hazards. The BMM230 uses armored and sleeved hydraulic hoses to provide additional protection in demanding mowing environments.

Protected Internal Hose Routing

Hydraulic lines are routed to help reduce exposure to pinching, snagging, and impact damage.

Pivoting Hose Support Arm

A pivoting support system helps manage the hydraulic hoses as the mower moves through its operating range, reducing unnecessary stress on hose connections.

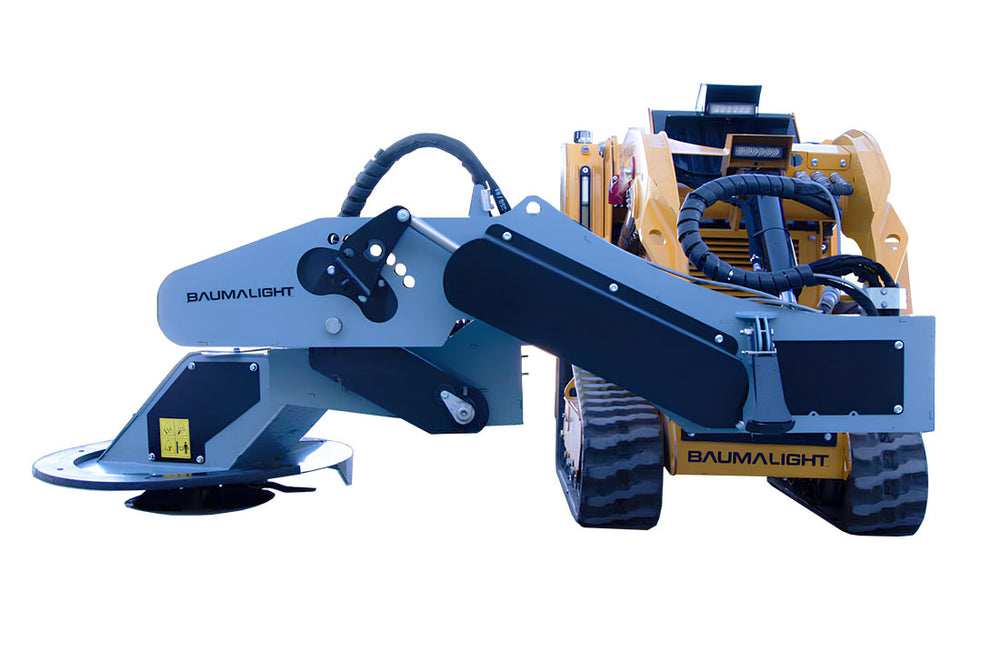

Collapsible Storage and Hookup Leg

The BMM230 includes a collapsible support leg that helps stabilize the mower when it is disconnected from the carrier.

This feature can make attachment storage and hookup easier by helping keep the mower properly positioned when it is not connected to the mini skid steer.

Heavy-Duty Powder-Coated Finish

Baumalight finishes the BMM230 with a durable powder-coated finish designed to resist corrosion, abrasion, and normal environmental exposure.

The coating helps protect the mower structure during agricultural, roadside, and commercial vegetation-management work.

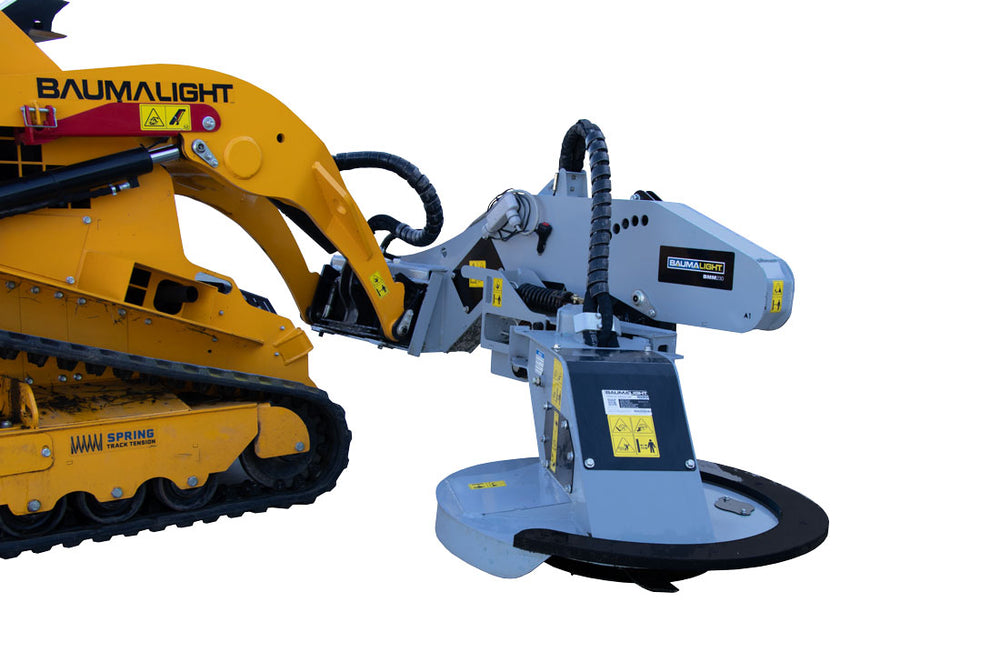

Common Industry Mini Skid Steer Mount

The Baumalight BMM230 uses a common industry mini skid steer mounting system, allowing it to connect to many popular mini skid steers and compact utility loaders.

Mounting standards can vary between manufacturers, so physical fitment should always be verified for your specific machine before ordering.

Optional Bobcat Mini Skid Steer Adapter

For applicable Bobcat mini skid steer applications, Baumalight offers an optional D006290 cheater plate / mount adapter.

Contact Skid Steer Store with your machine make and model if you are unsure which mounting configuration is required.

Baumalight BMM230 Specifications

Ideal Applications for the Baumalight BMM230

Fence Line Mowing

Fence lines are difficult to maintain with conventional mowing equipment because posts, wire, braces, and vegetation create constant obstacles. The BMM230's offset reach allows the mower to work alongside fencing while the mini skid steer remains in a more accessible travel path.

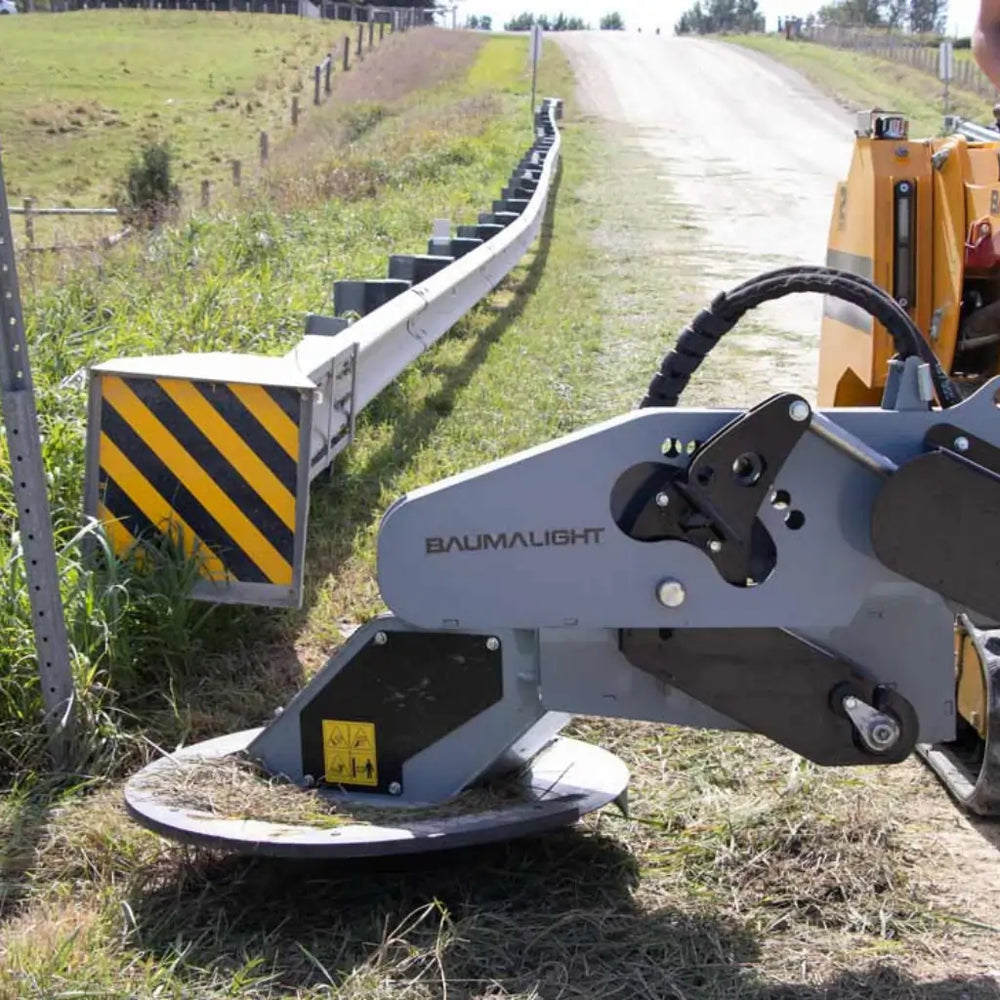

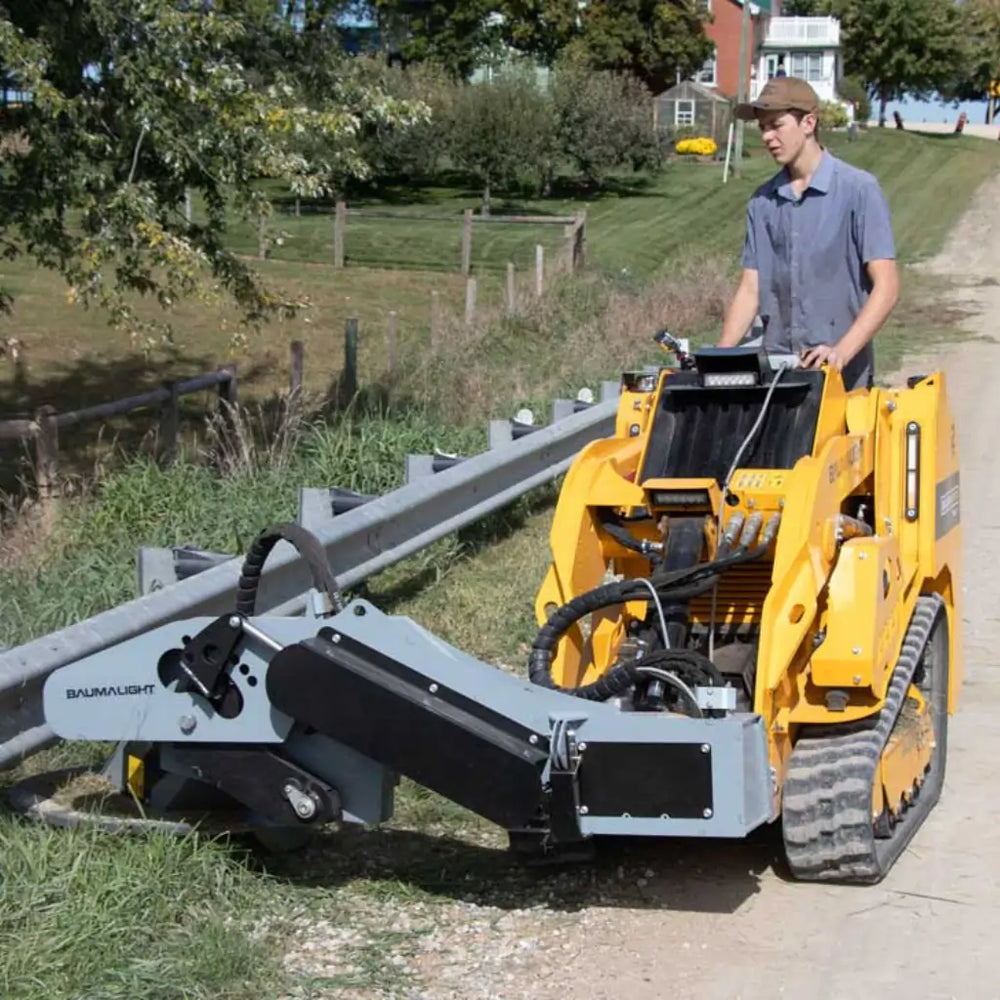

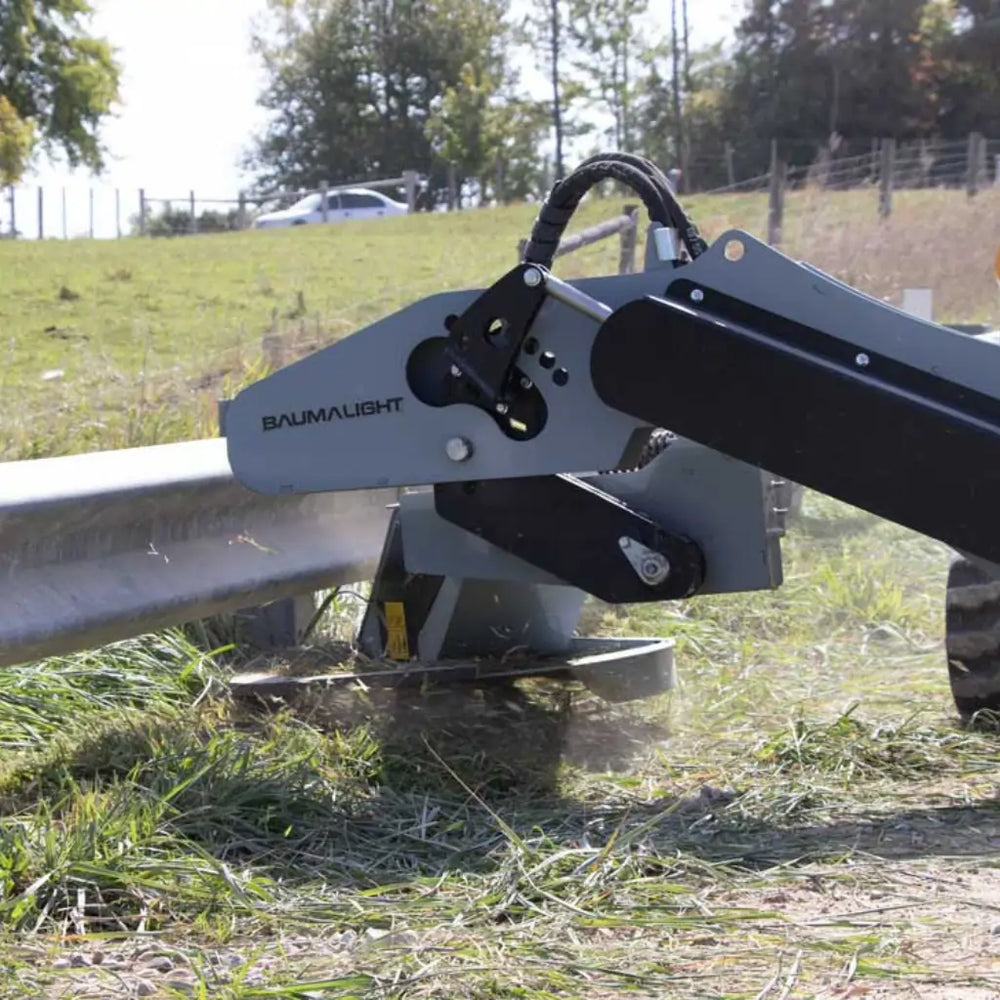

Guardrail Vegetation Control

The BMM230 can reach vegetation along guardrails and roadside barriers where conventional mower decks may not be able to operate effectively.

Vineyard Maintenance

The compact design makes the BMM230 a strong vegetation-management option for vineyard rows where maneuverability and controlled mowing around posts and vines are important.

Orchard Mowing

Use the mower to control grass, weeds, and light brush around orchard trees while allowing the mini skid steer to maintain separation from trunks and other obstacles.

Roadside and Property Maintenance

The BMM230 is well suited for maintaining tall vegetation along property boundaries, road edges, trails, ditches, pastures, and other difficult-to-access areas.

Mowing Around Posts, Poles, and Trees

The barrier mower design allows operators to reach vegetation surrounding fixed obstacles that would otherwise require string trimming, handheld brush cutting, or significant manual labor.

Who Should Buy the Baumalight BMM230?

• Farmers and ranchers
• Fence maintenance contractors
• Landscape contractors
• Vineyard operators
• Orchard operators
• Municipal maintenance departments
• Roadside maintenance contractors
• Property maintenance companies
• Large-acreage property owners

Will the Baumalight BMM230 Fit My Mini Skid Steer?

The BMM230 uses a common industry mini skid steer mount, but proper fitment depends on more than the mounting plate.

Baumalight lists the BMM230 for carriers in approximately the 2,100–4,000 lb. weight range with auxiliary hydraulic systems capable of supplying 8–15 GPM at 2,700–4,000 PSI.

Before ordering, verify:

1. Mini skid steer make and model
2. Machine operating weight and attachment capacity
3. Auxiliary hydraulic flow between 8 and 15 GPM
4. Hydraulic pressure between 2,700 and 4,000 PSI
5. Proper case drain connection
6. Mini skid steer mounting system
7. 30-amp 12V electrical supply if using the optional electric actuator

If you're unsure whether the Baumalight BMM230 will work with your machine, contact Skid Steer Store with your carrier make, model, hydraulic flow, and hydraulic pressure before ordering.

Why Buy the Baumalight BMM230 from Skid Steer Store?

At Skid Steer Store, we specialize in skid steer, mini skid steer, excavator, and compact-equipment attachments. Our team can help you confirm hydraulic requirements, mounting compatibility, and optional equipment before you order.

• Baumalight equipment specialists
• Mini skid steer fitment assistance
• Hydraulic compatibility support
• Factory-direct ordering
• USA-based customer support
• Secure online purchasing
• Manufacturer warranty assistance

Shipping & Availability

The Baumalight BMM230 ships factory-direct from Baumalight. Units may ship crated and require equipment capable of safely unloading heavy attachments.

Lead times can vary based on factory production schedules and seasonal demand. Optional mount adapters and electric actuator kits may ship separately depending on availability.

Baumalight BMM230 Barrier Mower FAQ

What is the Baumalight BMM230?

The Baumalight BMM230 is a hydraulic barrier mower for mini skid steers designed to cut grass, weeds, and brush around fence lines, guardrails, orchards, vineyards, posts, trees, and other obstacles.

How wide does the Baumalight BMM230 cut?

The BMM230 has a specified 32-inch cutting width.

How large of brush can the Baumalight BMM230 cut?

Baumalight rates the BMM230 for vegetation and brush up to approximately 1 inch in diameter.

What hydraulic flow does the BMM230 require?

The Baumalight BMM230 requires approximately 8–15 GPM of auxiliary hydraulic flow.

What hydraulic pressure does the BMM230 require?

Baumalight specifies an operating pressure range of approximately 2,700–4,000 PSI.

Does the Baumalight BMM230 require a case drain?

Yes. The BMM230 requires a properly connected case drain.

What type of motor does the Baumalight BMM230 use?

The BMM230 uses a bent-axis piston hydraulic motor. Baumalight identifies the motor option as the C508.

What blades does the BMM230 use?

The Baumalight BMM230 uses two 1/4-inch AR400 slasher blades designed for aggressive vegetation cutting.

Does the BMM230 include replacement blades?

Yes. Baumalight includes a replacement blade set with the mower.

What is the minimum cutting height of the BMM230?

Baumalight lists a low cutting height of approximately 3 inches.

How far does the Baumalight BMM230 reach?

The mower measures approximately 90 inches from the attachment plate to the far side of the cutting disk.

Does the BMM230 have hydraulic angle adjustment?

The BMM230 comes standard with manual angle adjustment. An optional electric actuator kit is available for powered angle control.

What is the part number for the BMM230 electric actuator kit?

The optional Baumalight electric actuator kit is D007053.

Does the electric actuator require electrical power?

Yes. The optional actuator requires approximately 30 amps of 12-volt electrical power.

Will the Baumalight BMM230 fit a Bobcat mini skid steer?

Mounting compatibility depends on the specific Bobcat model. Baumalight offers an optional D006290 Bobcat mini skid steer adapter / cheater plate for applicable machines. Contact Skid Steer Store with your exact machine model to confirm fitment.

What size mini skid steer is recommended for the BMM230?

Baumalight lists the BMM230 for carriers in approximately the 2,100–4,000 lb. weight range. Hydraulic flow, pressure, mounting configuration, machine capacity, and case drain compatibility must also be verified.

Can the Baumalight BMM230 mow fence lines?

Yes. Fence-line mowing is one of the primary applications for the BMM230. Its offset cutting design allows the mower to reach vegetation around posts and fencing while the carrier remains in a more accessible travel path.

Can the BMM230 be used in vineyards and orchards?

Yes. The compact design and extended reach make the BMM230 suitable for vegetation maintenance in vineyards and orchards, particularly when mowing around rows, posts, and trees.

Can the Baumalight BMM230 mow around guardrails?

Yes. The BMM230 is designed for obstacle-filled environments and can be used for vegetation management around guardrails and similar roadside barriers.

What are the dimensions of the Baumalight BMM230?

Baumalight lists the BMM230 at approximately 90 inches long, 40 inches wide, and 30 inches high.

Safety Information

Always verify that your mini skid steer meets Baumalight's hydraulic, carrier, mounting, and electrical requirements before operating the BMM230.

• Connect the case drain correctly before operating the mower.
• Keep all guards and discharge shielding installed and properly maintained.
• Inspect hydraulic hoses before each use.
• Keep bystanders well outside the operating area.
• Never direct mower discharge toward people, vehicles, buildings, livestock, or equipment.
• Follow all operating, maintenance, and safety procedures in the Baumalight operator's manual.

Order the Baumalight BMM230 from Skid Steer Store

If you need a compact mower that can reach vegetation conventional decks leave behind, the Baumalight BMM230 Mini Skid Steer Barrier Mower provides the reach, hydraulic efficiency, and maneuverability needed for demanding fence-line, roadside, orchard, vineyard, and property-maintenance work.

With its 32-inch cutting width, up to 1-inch brush capacity, 90-inch overall reach, dual AR400 slasher blades, bent-axis piston motor, protected hydraulic hoses, and optional electric angle adjustment, the BMM230 gives mini skid steer operators a purpose-built solution for vegetation management around obstacles.

Order the Baumalight BMM230 from Skid Steer Store and contact our equipment team if you need help confirming hydraulic flow, pressure, case drain, mounting compatibility, or optional actuator requirements.
