Baumalight 360° Rotating Tree Saw | Model DXD752/T590 |15,000LBS-42,000LBS | 25-50GPM | For Excavator
DESCRIPTION

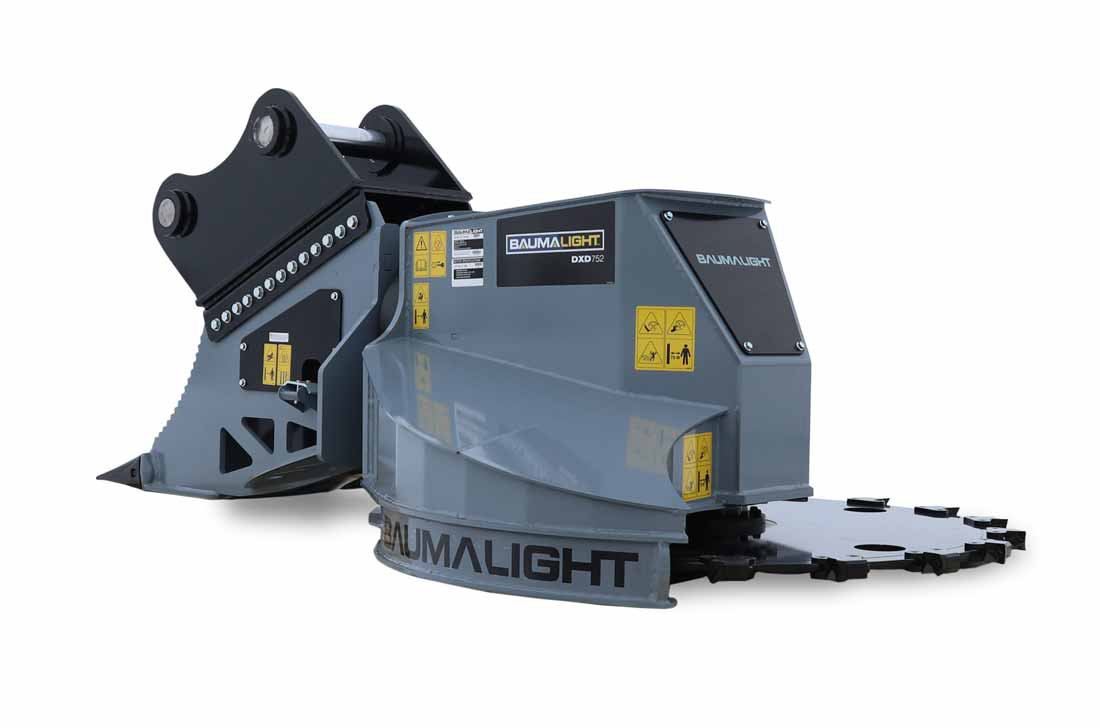

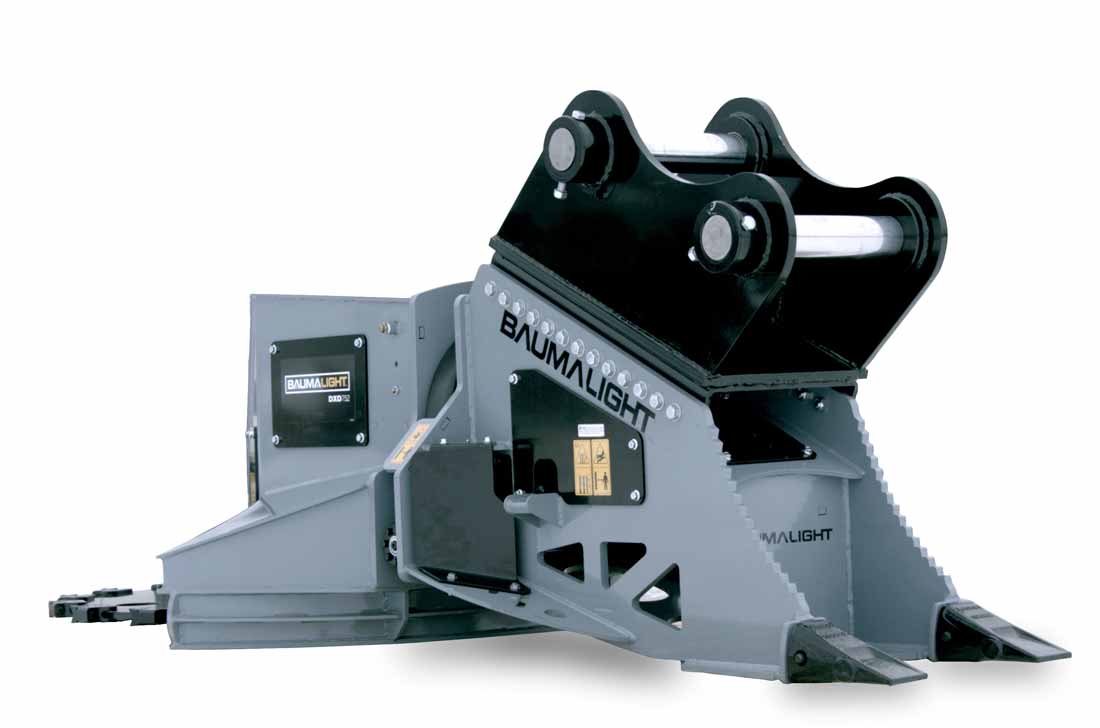

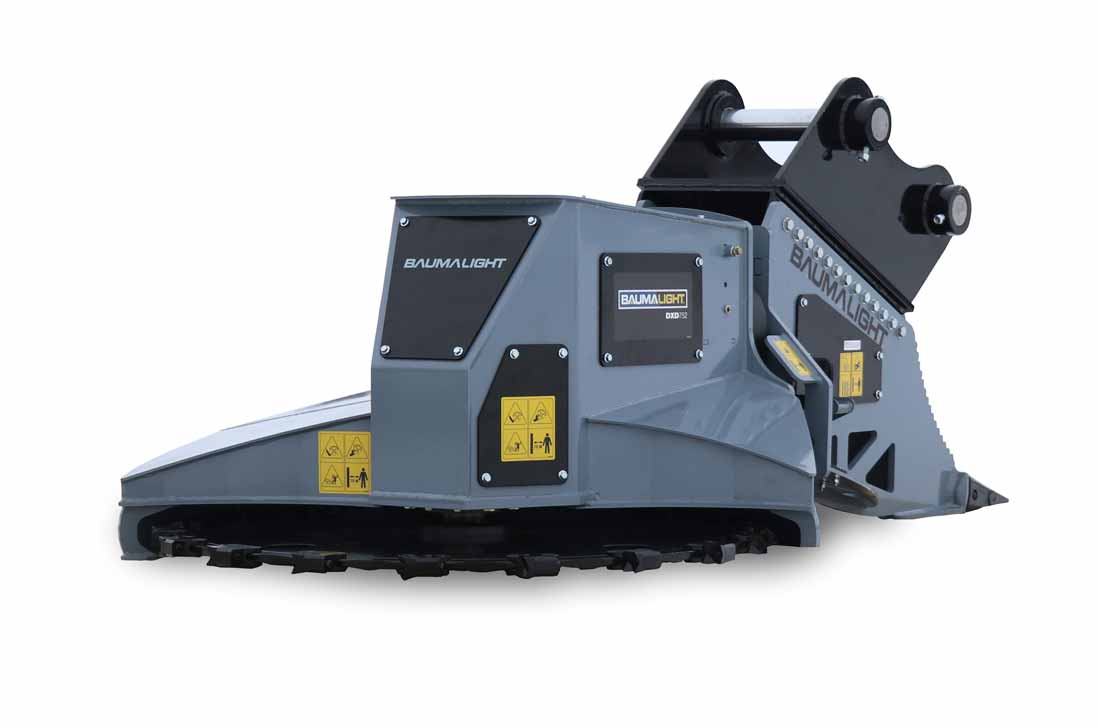

The Baumalight DXD752/T590 360° Rotating Tree Saw is a versatile attachment designed for excavators weighing between 15,000 lbs and 42,000 lbs. It features a powerful 52-inch cutting blade with replaceable Beaver teeth, capable of handling trees up to 20 inches in diameter. The key feature of this tree saw is its 360° rotating capability, powered by a robust slew drive rotator, allowing for precise and efficient cutting from any angle. This makes it ideal for high-volume commercial cutting, pasture clearing, right-of-way maintenance, and trimming limbs along fence rows. The durable construction ensures long-lasting performance, even in the toughest conditions.
TREE SAW 360° Rotating Tree Saw for Excavator(WITH MOUNT AND PINS) NO HOSES **CASE DRAIN REQUIRED**
Welcome to a new spin on Baumalight’s tree saws for excavators. Easily tackle overgrown brush and small trees from any angle with the 360° rotating DXD752, Baumalight’s hydraulically-driven tree saw. Driving the 360° blade rotation is a powerful slew drive rotator. With a 52" diameter, 1" thick steel blade, the DXD752 tree saw quickly slices through trees up to 20" diameter. The blade features replaceable planer style Beaver teeth. The DXD752 is ideal for high volume commercial cutting, high speed pasture clearing, right-of-way clearing, trimming limbs along fence rows, and cutting downed trees into logs. We offer multiple motor options to match your flow, if you don’t know how much flow your excavator has then check out our flow & pressure data base.
Key Features
The Baumalight DXD752/T590 360° Rotating Tree Saw 15,000LBS-42,000LBS 25-50GPM for Excavator:
-
360° Rotation: Full rotation capability for versatile cutting angles and improved efficiency.
-
Wide Compatibility: Designed for excavators weighing between 15,000 lbs and 42,000 lbs.
-
High Hydraulic Flow: Operates with a hydraulic flow rate of 25 - 50 GPM.
-
Powerful Cutting Blade: Features a 52-inch cutting blade with replaceable Beaver teeth for effective cutting.
-
Durable Construction: Built with AR400 steel in high-stress areas for enhanced durability.
-
Enhanced Visibility: Open frame design provides better visibility for the operator.
-
Advanced Hydraulic System: Utilizes an electric-over-hydraulic system for smooth and precise operation.
-
Efficient Motor: Equipped with a bent axis piston motor for optimal performance.
-
User-Friendly Design: Requires only one set of remote hydraulics for all functions.
-
Versatile Applications: Ideal for high-volume commercial cutting, pasture clearing, right-of-way maintenance, and trimming limbs along fence rows.
ROTATING HEAD POWERED BY SLEW DRIVE
The cutting head’s 360º rotation is powered by a slew drive gearbox. Slew drives are a compact gearbox that offer high power density.
FULL 360 DEGREE ROTATION
Attack your trees from any angle. The DXD752 cutting head allows a full 360º rotation, offering precise control for quick, clean trimming and limbing.
BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT
The tree saw's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.
SAW BLADE SHIELDING
The durable shield encloses the blade for protection, directing the chips as it easily cuts through limbs and trees.
DESIGNED FOR MAXIMUM VISIBILITY
Making sure you have the best seat in the house, DXD752 was designed with maximum visibility in mind, allowing you to make cleaner and better cuts.
EASY ACCESS PANELS FOR SERVICE
Built for the long haul, DXD752 has multiple removable panels for easier access and servicing.
CLEAN CUTS
DXD752 makes clean work of limbing and trimming trees safely and quickly, leaving pruned trees with a clean cut.
BOLT-ON EXCAVATOR ADAPTOR
Our bolt-on mounting adaptors provide strength and future flexibility. If needed, your tree saw can easily be bolted to another adaptor to mount to your new excavator.
Supplied WITH BENT AXIS PISTON MOTOR
Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.
CASE DRAIN – VENT TO ATMOSPHERE
To prevent pressure relief activation on the motor seal, the DXA530 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.
PROTECTIVE POWDER COAT FINISH
Heavy duty construction and a durable powder coated finish.
REPLACEABLE BEAVER TEETH
Made from high-grade alloy steel, the Beaver style, with its straight edges, is a very durable tooth mounted on a replaceable holder. Tips can be re-sharpened right on the blade with a teeth grinder.
6 FREE TEETH
All DXD752 Tree Saws come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.
ROOT RAKE
The DXD752 is equipped with a root rake for pushing cut logs or other debris out of the way. The root rake uses replaceable bucket-style scrapper teeth.
HOST MACHINE
|
BOBCAT E145 |
|
BOBCAT E165 |
|
BOBCAT E88 |
|
CATERPILLAR 306 |
|
CATERPILLAR 308 |
|
CATERPILLAR 310 |
|
CATERPILLAR M314 |
|
CATERPILLER 307 |
|
DOOSAN DX140LC-5 |
|
DOOSAN DX140LCR-5 |
|
DOOSAN DX170LC-5 |
|
DOOSAN DX85R-3 |
|
HITACHI ZX130-6 |
|
HITACHI ZX160LC-6 |
|
HYUNDAI HX85A |
|
HYUNDAI R80CR-9A |
|
JOHN DEERE 130G |
|
JOHN DEERE 135G |
|
JOHN DEERE 160G LC |
|
KOMATSU PC78US-11 |
|
KOMATSU PC88US-11 |
|
KUBOTA KX080 |
|
SANY SY135U |
|
SANY SY155U |
|
SANY SY75C |
|
SANY SY80U |
|
TAKEUCHI TB280FR |
|
TAKEUCHI TB290 |
|
VOLVO EC140E |
|
VOLVO ECR145C |
|
VOLVO ECR88D |
|
WACKER NEUSON ET90 |
|
WACKER NUESON ET145 |
|
YANMAR SV100-2A |
|
YANMAR VIO 80-1A |
MOTOR OPTIONS:
Cutting Time for 10" Limb
| Details_1 | Details_2 | |
|---|---|---|
| MOTOR | T590 | T590 |
| MOTOR TYPE | Piston | Piston |
| CC | 108 | 108 |
| CASE DRAIN | Critical | Critical |
| RPM AT MAX GPM | 1900 | 1900 |
| PSI | 3000 | 4000 |
| 20 GPM | 12 sec | 10 sec |
| 25 GPM | 8 sec | 8 sec |
| 30 GPM | 8 sec | 8 sec |
| 35 GPM | 8 sec | 8 sec |
| 40 GPM | 5 sec | 5 sec |
| 50 GPM | 5 sec | 5 sec |
| 60 GPM | 5 sec | 5 sec |
Detailed Specifications
| Specification | Details |
|---|---|
| Model | Baumalight DXD752/T590 |
| Excavator Weight | 15,000 lbs - 42,000 lbs |
| Hydraulic Flow | 25 - 50 GPM |
| Cutting Blade Size | 52 inches |
| Cutting Teeth | Beaver teeth |
| Rotation Capability | 360° rotating capability |
| Frame Material | AR400 steel for high-stress areas |
| Visibility | Open frame for better operator visibility |
| Hydraulic System | Electric-over-hydraulic |
| Motor Type | Bent axis piston motor |
| Remote Hydraulics | One set required for all functions |
| Auxiliary Electrical Connection | Standard for in-cab control |
| Usage | High-volume commercial cutting, pasture clearing, right-of-way maintenance, trimming limbs along fence rows |
| Part #: | DXD752/T590 |
| Mfg: | BAUMALIGHT |
| Category: | EXCAVATOR ATTACHMENTS |
| SubCategory: | TREE SAW EXCAVATOR |
| Industry: | CONSTRUCTION |
| Machine Size: | 15,000LBS-42,000LBS 25-50GPM |
