Description

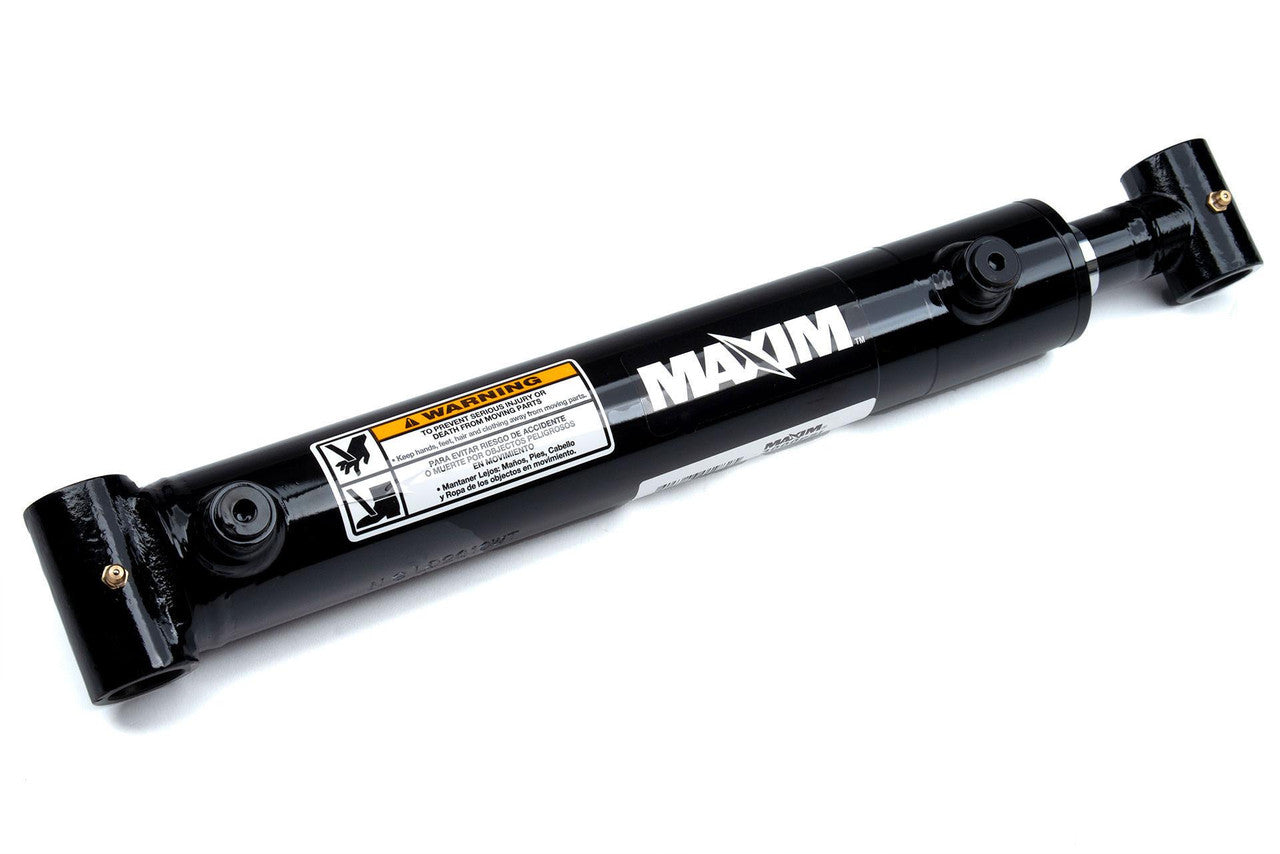

1.5” X 6” Welded Cylinder
Our 1.5” X 6” Welded Cylinder is the replacement cylinder for all 54” Granite Grapples, 54” Summit Grapples, and any other grapple that has a 1.5” X 6” cylinder.
Specifications
Weight: 8.00 LBS
Bore: 1.5"
Stroke: 6"
PSI: 3000
Pin Hole Diameter: .78” (Fits 3/4” Pin)
Retracted dimension of center to center of pin holes: 14 in
Extended dimension of center to center of pin holes: 20 in
Rod Diameter: 1”
Fitting Size: SAE 4
Column Load: 5300 lbs
