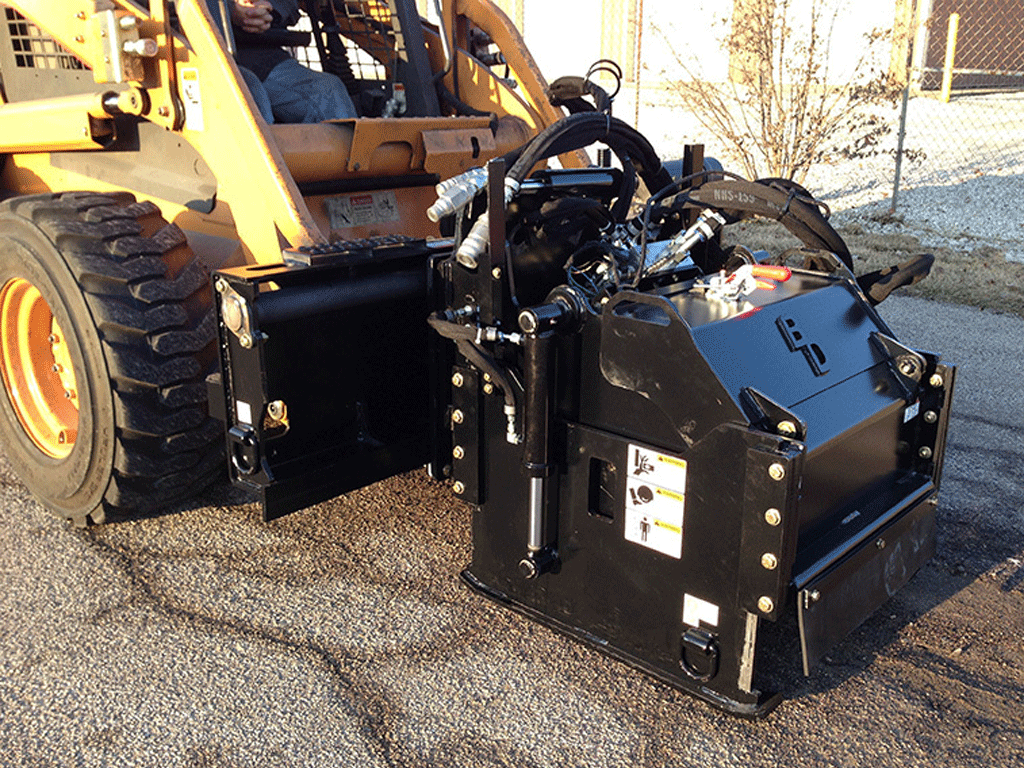

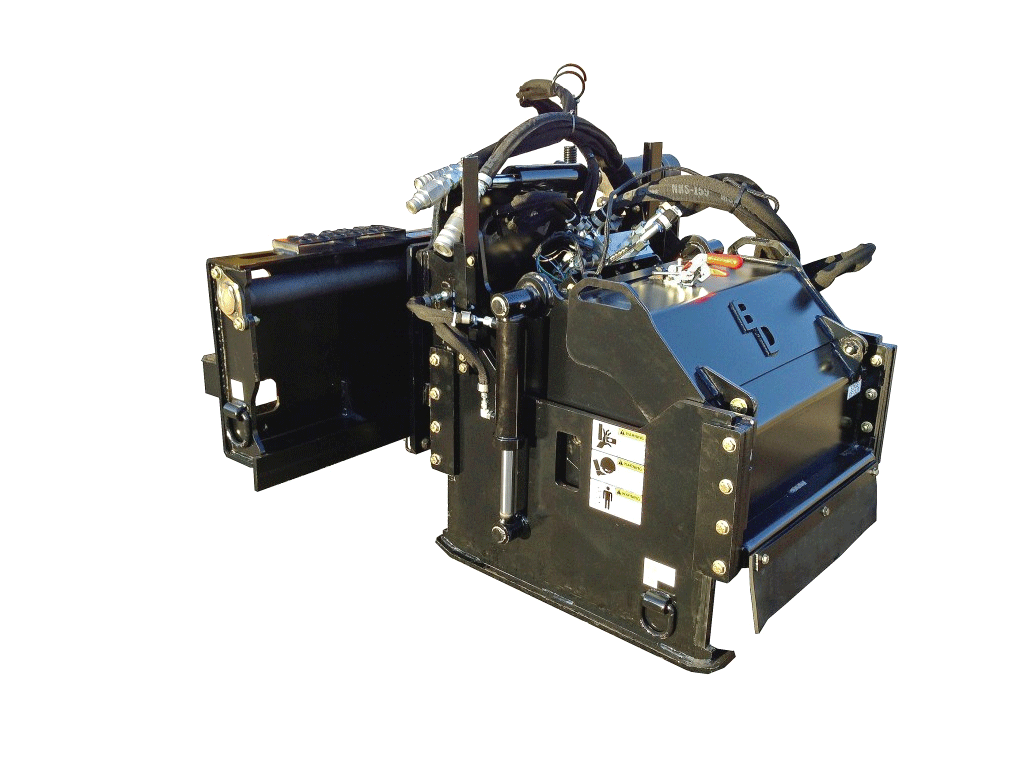

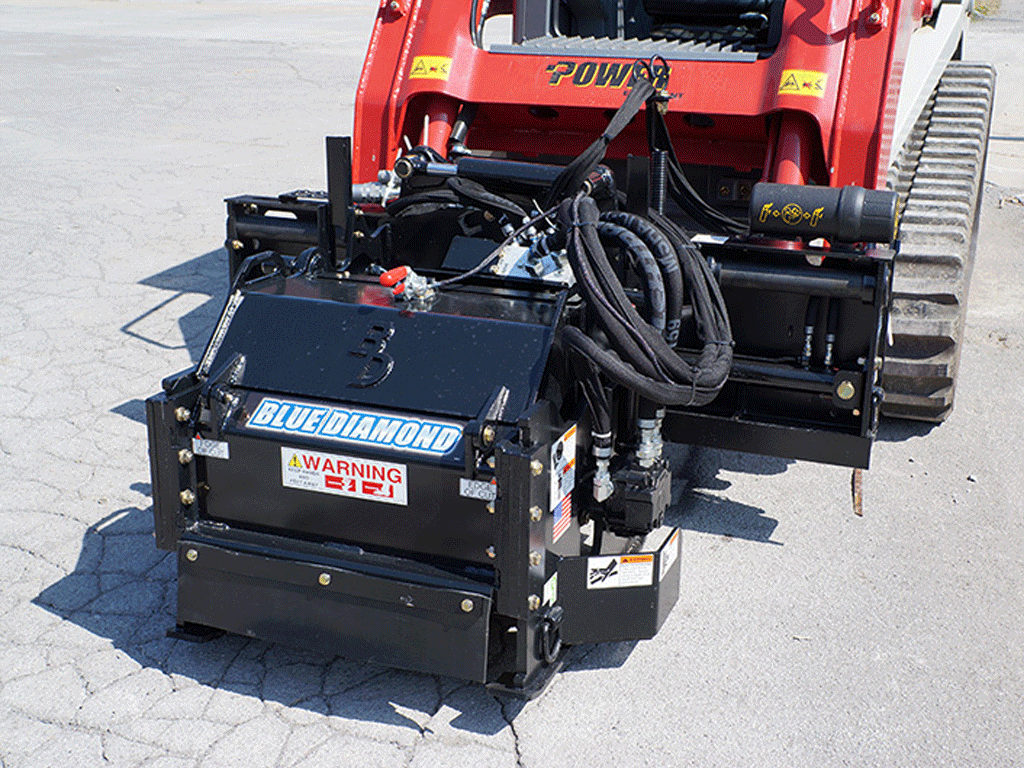

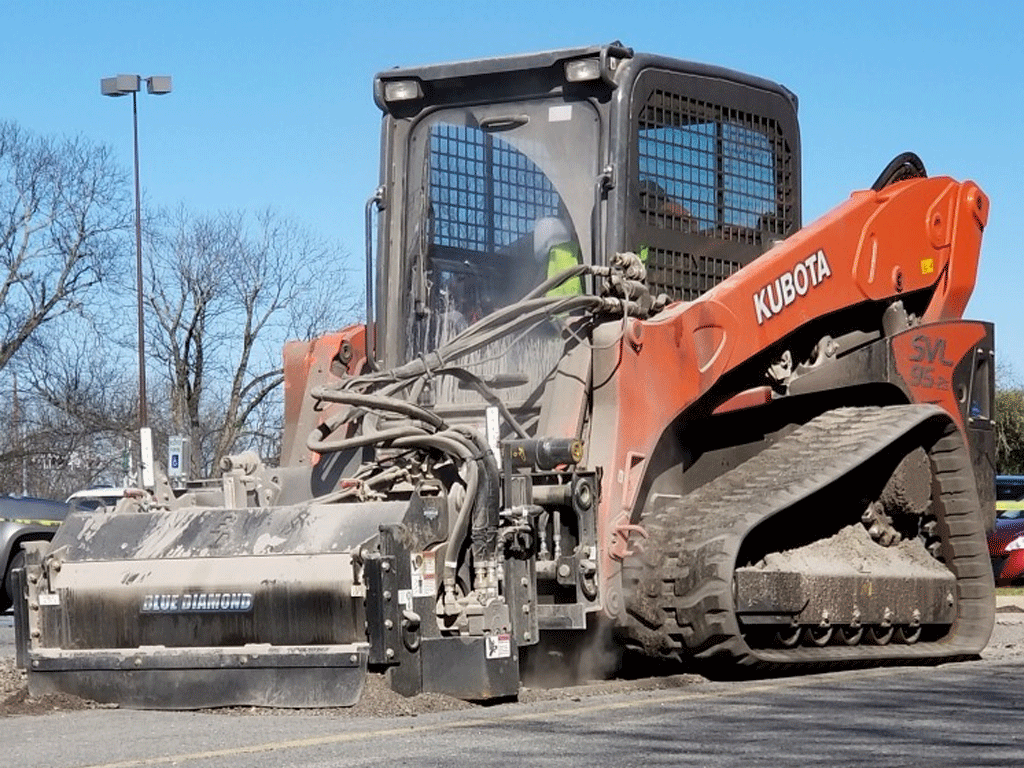

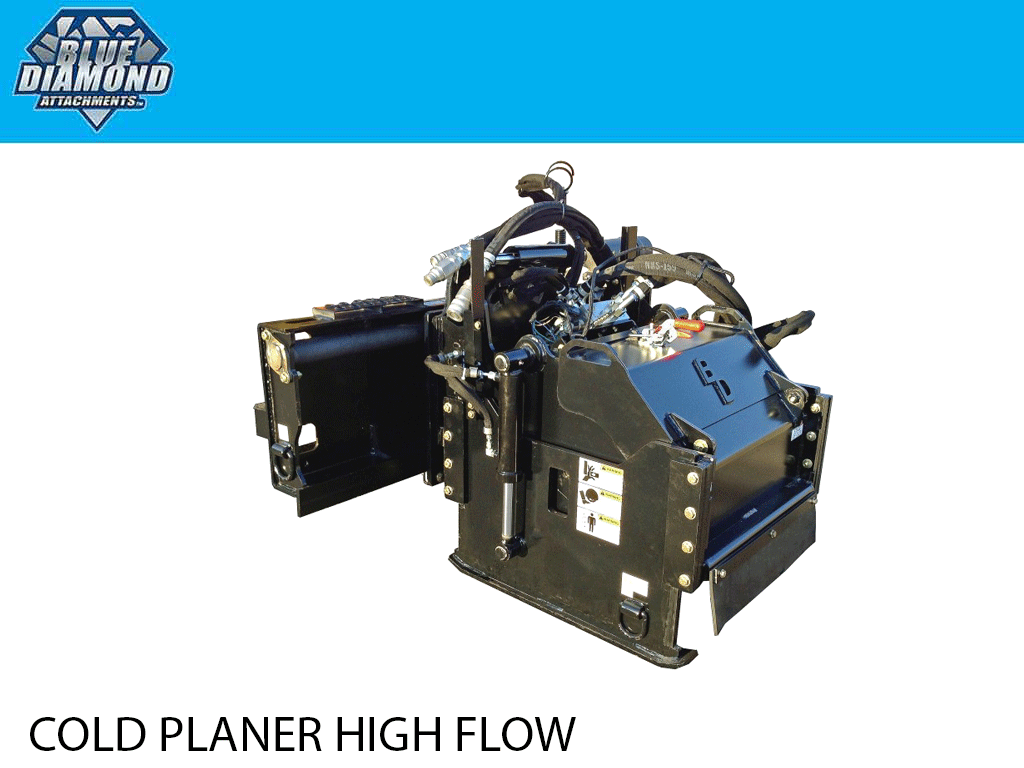

COLD PLANER FOR SKID STEER – HIGH FLOW
The Blue Diamond® High Flow Cold Planer uses the most trusted components in the industry, from the Sauer piston motor to the Fairfield planetary hub featured in the high flow models. These high end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer. Rental Recommended.
Electronic adjustment controls
High-torque, planetary drive
High drum weight = less vibration

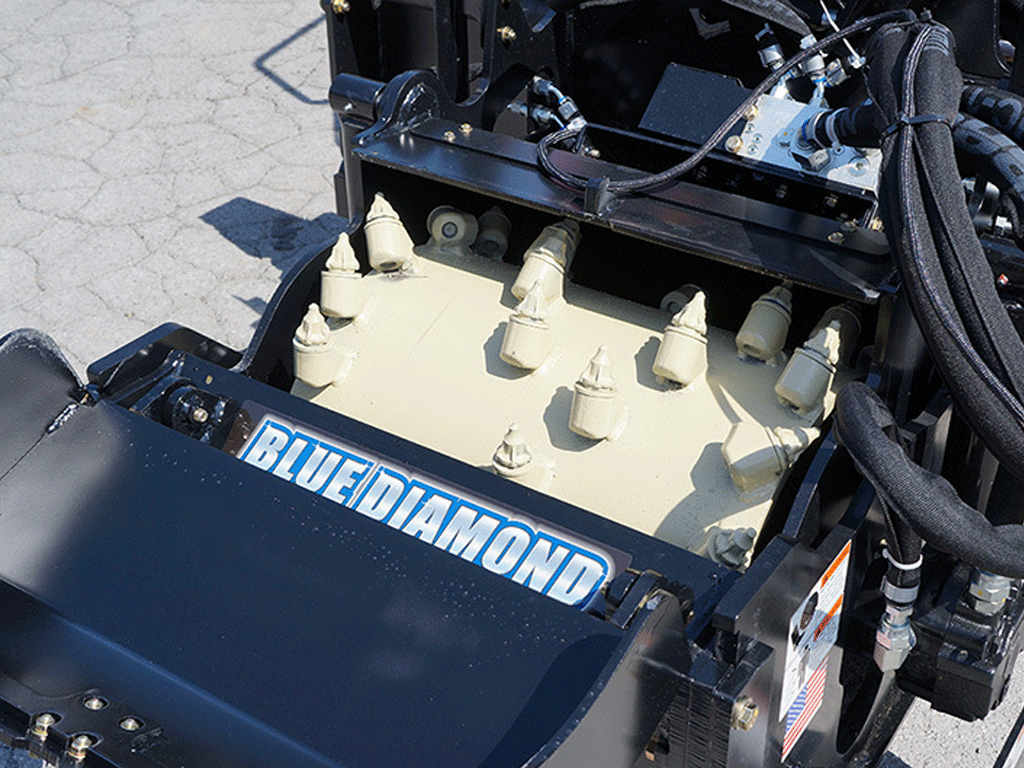

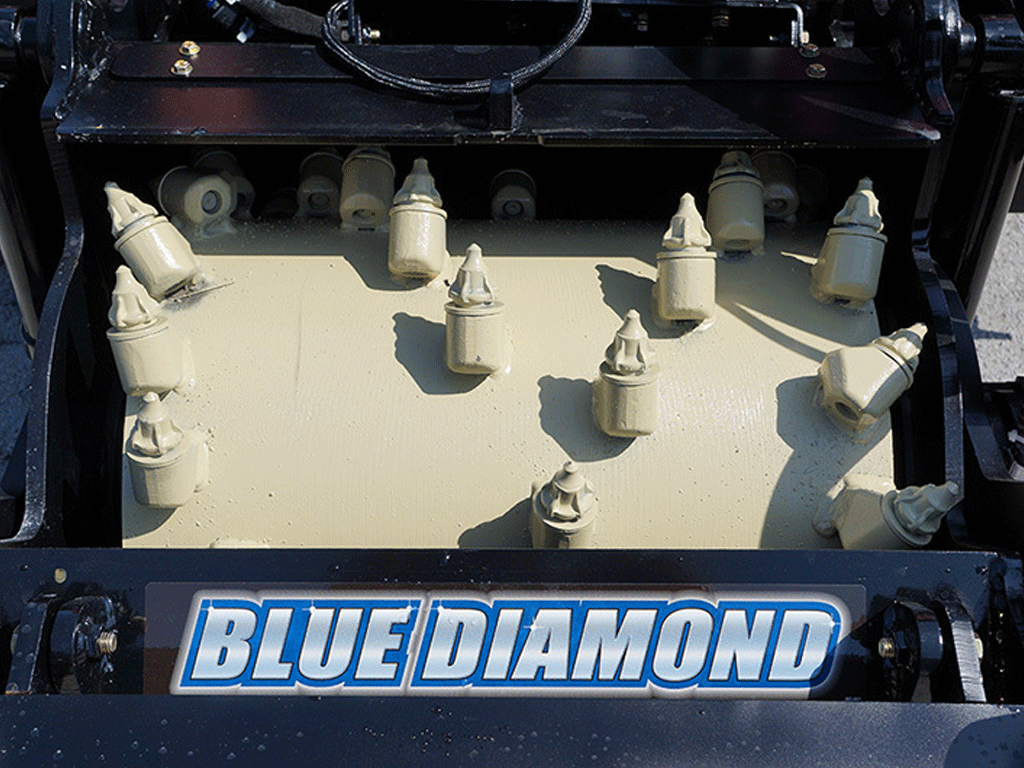

5/8″ thick drum tube

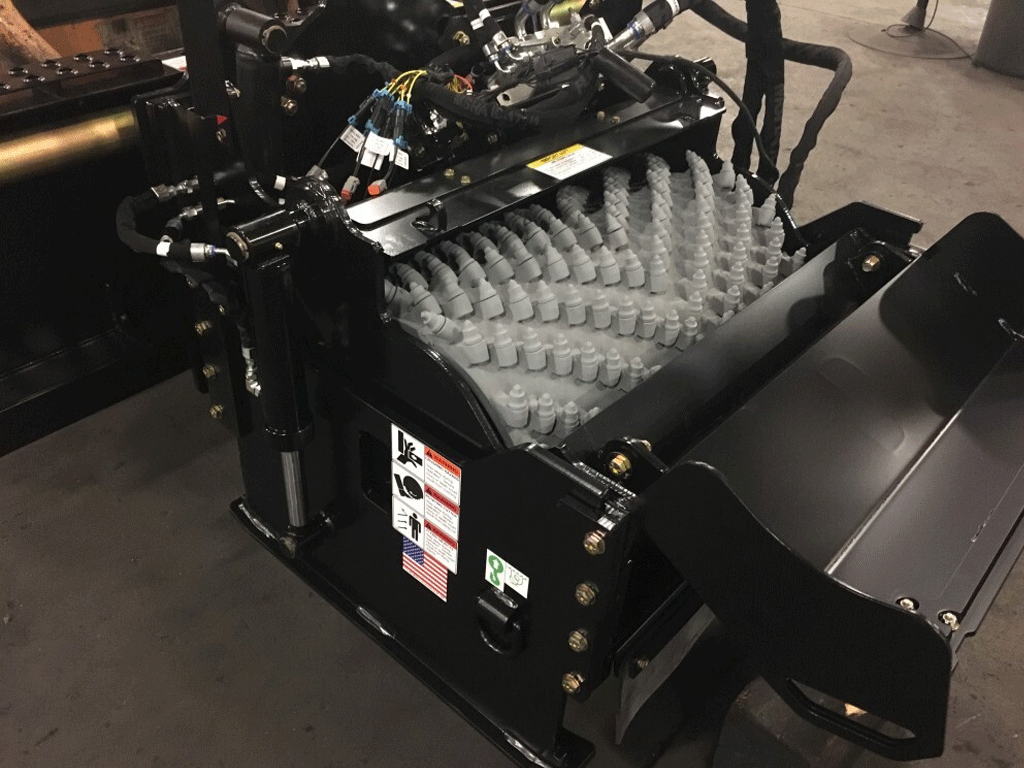

Easy access tooth replacement
Water kit available
Fine-cut drum available
16″-30″ Grinding Widths
Up to 6″ Cutting Depth
APPLICATIONS INCLUDE:

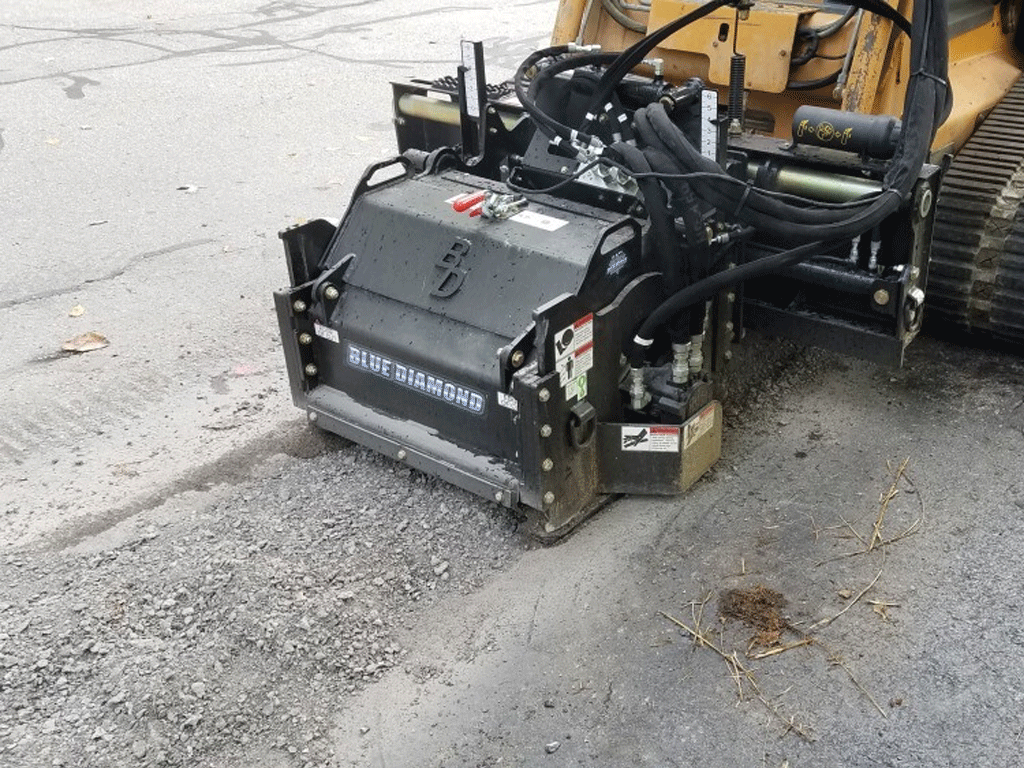

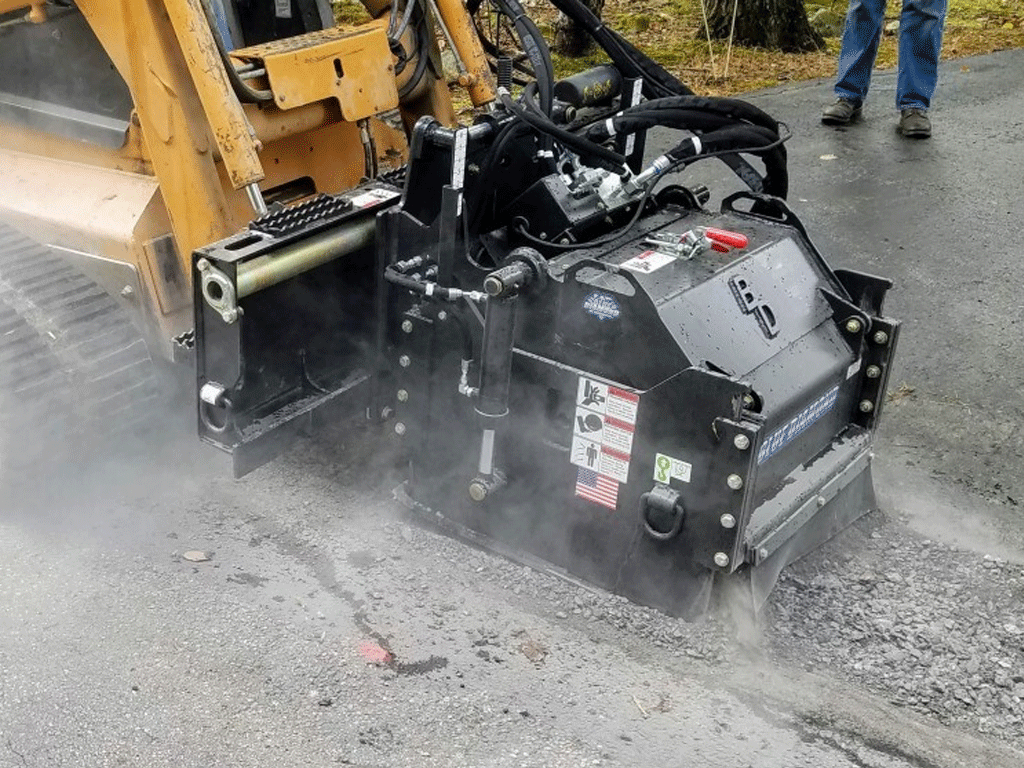

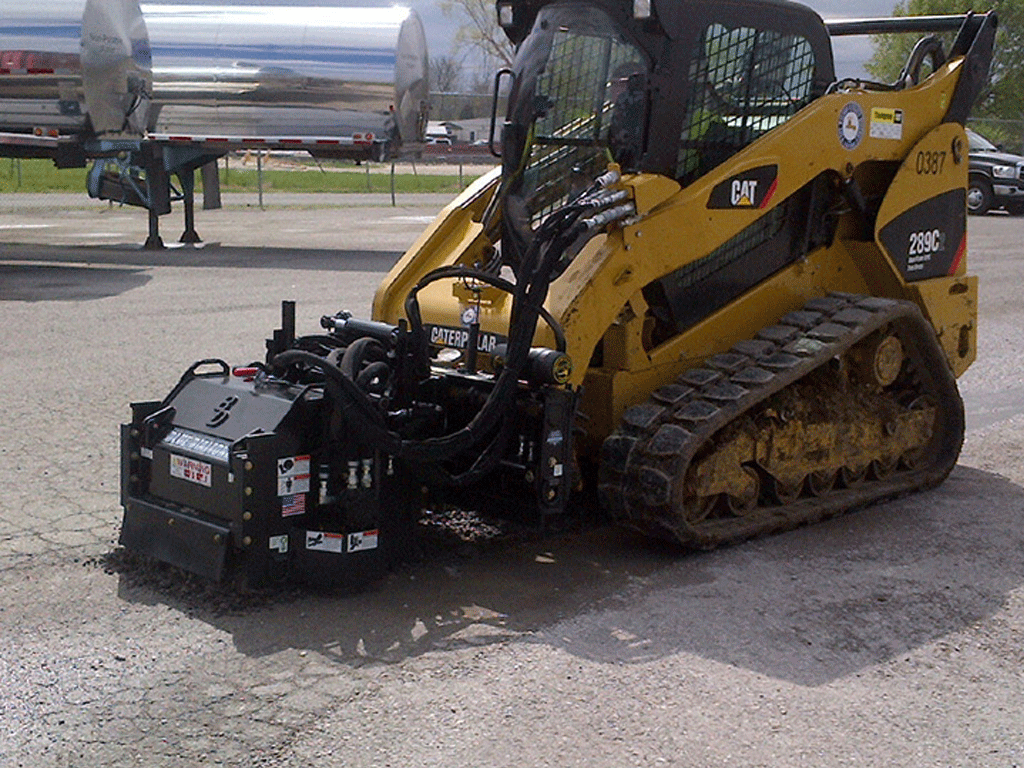

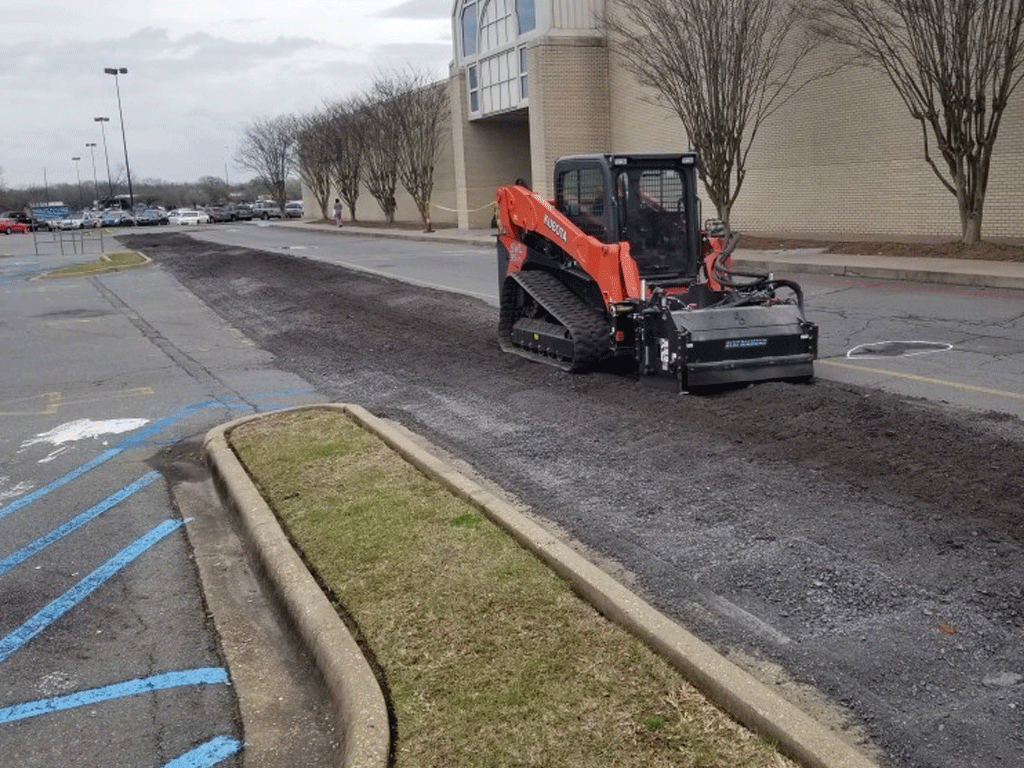

Removing asphalt surfaces prior to overlay
Widening shoulders
Repairing potholes
Restoring drainage lines
Mixing stabilizing agents into base for a more durable repair
SPECS
Part Number
Model
Number of Teeth
Min-Max Flow
Min-Max Pressure
Weight
Tilt Capacity
160220-HP
16" High Flow
38
27-45 GPM
2450-5000 PSI
1,710 lbs
+/-15
160225-HP
18" High Flow
40
27-45 GPM
2450-5000 PSI
1,810 lbs
+/-15
160230-HP
24" High Flow
50
27-45 GPM
2450-5000 PSI
1,970 lbs
+/-13
160235-HP
30" High Flow
60
30-45 GPM
2500-5000 PSI
2,160 lbs
+/-10
160240-HP
40" High Flow
76
30-45 GPM
3000-5000 PSI
2,455 lbs
+/-8
160245-HP
48" High Flow
90
30-45 GPM
3250-5000 PSI
3,210 lbs
+/-6
