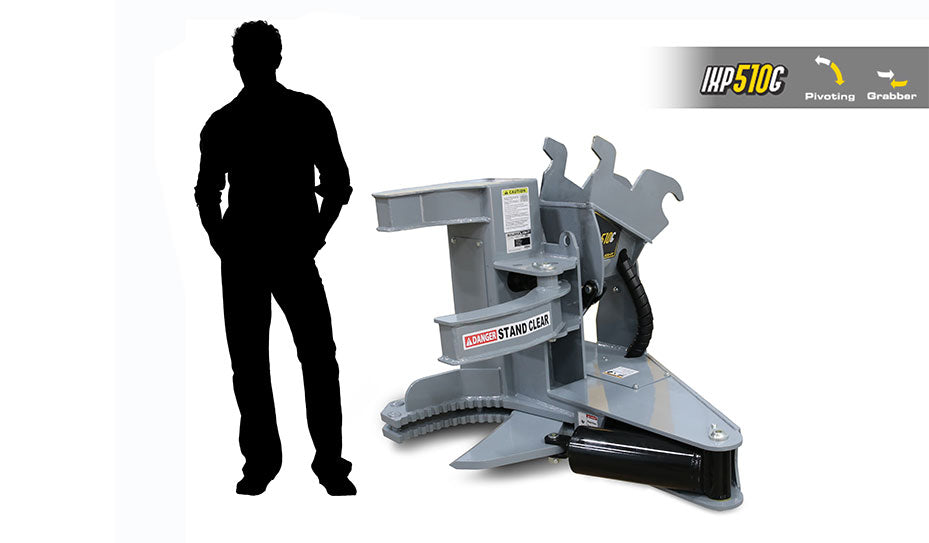

Baumalight IXP Tree Shear For Excavator | IXP508G | IXP510G | IXP512G

Key Features

• Cutting Capacity: Capable of cutting trees up to 8 inches in diameter.

• Construction Material: Made from tough, abrasion-resistant AR400 steel for long-lasting durability.

• Hydraulic Drive: Equipped with a powerful hydraulic cylinder for efficient cutting.

• Safety Design: Features sleeved hydraulic hoses and hose armor for operator protection.

• Versatility: Suitable for both softwoods and hardwoods, including oak, ash, and maple.

• Ease of Use: Grease pins on all pivot points ensure smooth operation and easy maintenance.

• Flexible Mounting: Bolt-on mounting plate with multiple mounting holes for flexibility.

• 90 Degree Rotation: Offers a full 90-degree radius, allowing you to fell trees in the upright position or cut limbs horizontally.

• Grabber Arm: Comes with an individually moving grabber arm and a fixed curved cradle bar to securely move sheared limbs to a safe location.

TOUGH, RELIABLE AR400 STEEL

The Incisor is made from tough, abrasion-resistant AR400 steel. This grade of steel alloy is strong enough to handle the labours of tree shearing.

HEAVY CUTTING

Capable of cutting and clearing multiple varieties of softwoods, the robust Incisor is equally adept at tackling and taking down tough hardwood trees like oak, ash and maple.

GRABBER ARMS

Standard on the IXP508G models is one individually moving grabber arm and a fixed curved cradle bar that allows you to securely move the sheared limbs to your desired safe location.

EASY ACCESS



GREASE PINS ON ALL PIVOT POINTS

The IXP Incisor model features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.

PROTECTED HOSE

All hydraulic hoses are sleeved for operator protection and routed internally, keeping them out of harm's way. The connecting hoses are sleeved and wrapped in hose armour for double protection while a pivoting arm reduces slack and safeguards the hoses from pinching and strain.

HARDENED STEEL BUSHING

Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.

GREASEABLE PINS

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

HOST MACHINE

6,000LBS-20,000LBS

16,000LBS-40,000LBS

Detailed Specifications

Horizontal

Rotating

6,000LBS-20,000LBS

General Warranty Info:

• Skid Steer Store works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

Greasing & Replacing Pins on Tree Shear
