Baumalight FBS752 | Feller Buncher Tree Saw For Skid Steer

Baumalight Feller Buncher Tree Saw | 12,000LBS MIN 35GPM | 20" TREE MAX | For Skid Steer

Description

The Baumalight Feller Buncher Tree Saw for Skid Steer is a robust attachment designed for skid steers weighing 12,000 lbs or more. It features a 35 GPM minimum hydraulic flow and is capable of handling trees with a minimum diameter of 20 inches. This powerful tree saw is ideal for forestry and land clearing tasks, providing efficient and reliable performance.

FELLER BUNCHER SKID STEER CASE DRAIN REQUIRED — REQUIRES 4 LIVE AUX PINS

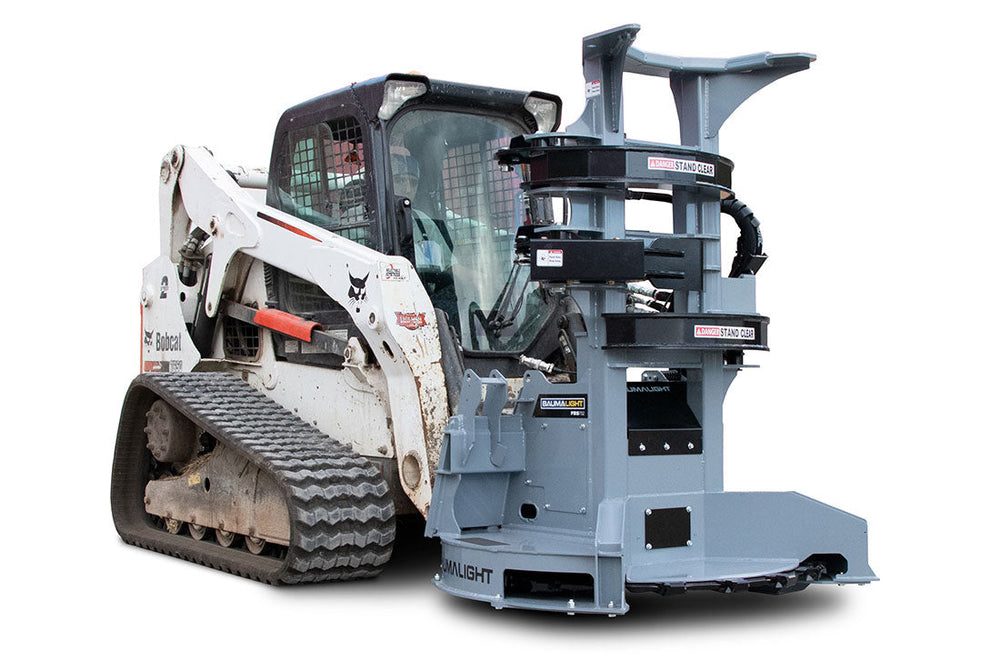

The FBS752 Skidsteer Mounted Feller Buncher is designed with a 52” cutting disc (equipped with 18 Beaver cutting teeth) that can handle up to 20” trees. The tower is built with 4x4 tubing for better operator visibility and reinforced in high stress areas with AR400 steel. Its electric-over-hydraulic system operates efficiently at flows as low as 25 GPM and is powered by a bent axis piston motor. Only one set of remote hydraulics is required if you have an AUX electrical connection.

Key Features

• Heavy-Duty Compatibility: Fits skid steers with a minimum weight of 12,000 lbs
• High Hydraulic Flow: Requires at least 35 GPM hydraulic flow
• Large Cutting Capacity: Handles trees up to 20 inches in diameter
• Efficient Cutting Disc: 52-inch disc with 18 Beaver cutting teeth
• Durable Construction: AR400 steel in high-stress areas for durability
• Enhanced Visibility: Open frame design for better operator sightlines
• Advanced Hydraulic System: Electric-over-hydraulic for smooth operation
• Powerful Motor: Equipped with a bent axis piston motor for efficiency
• Easy Operation: Operates with a single set of remote hydraulics
• Wide Throat Opening: 36-inch throat for large tree handling
• Versatile Application: Ideal for timber and forestry tasks

AUX Electrical Connection for In-Cab Control is Standard

For simple in-cab control, the FBS752 comes standard with Baumalight's Auxiliary Electrical Connection. This connection provides quick and easy access to all the attachment functions using your machine's own controls.

36" Throat Opening

The Feller Buncher features a 36" wide throat opening at the teeth, which allows you to perform a low cut on trees with a wide root flair.

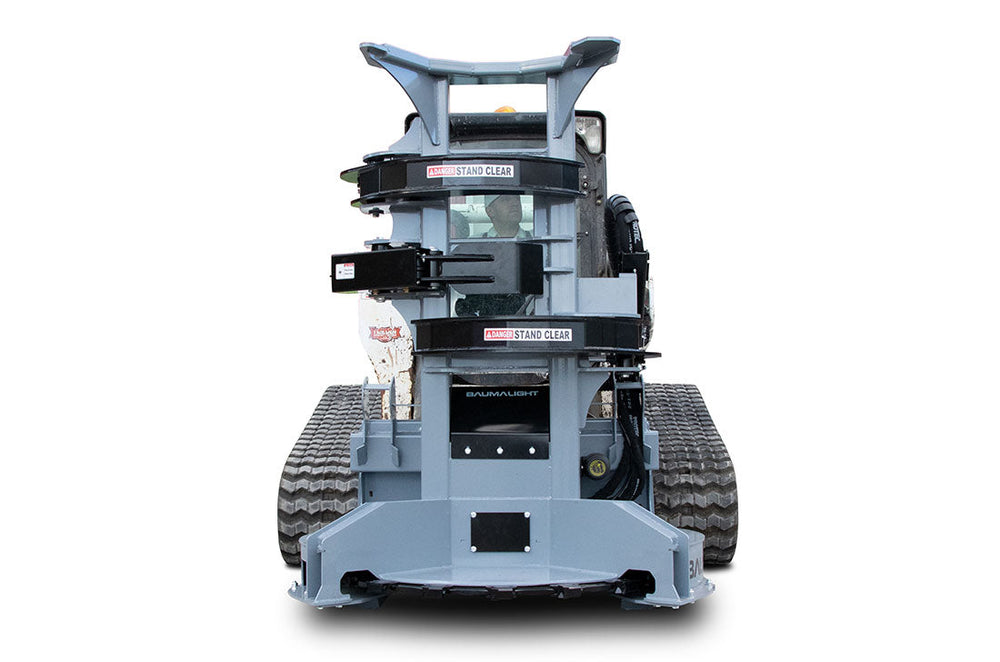

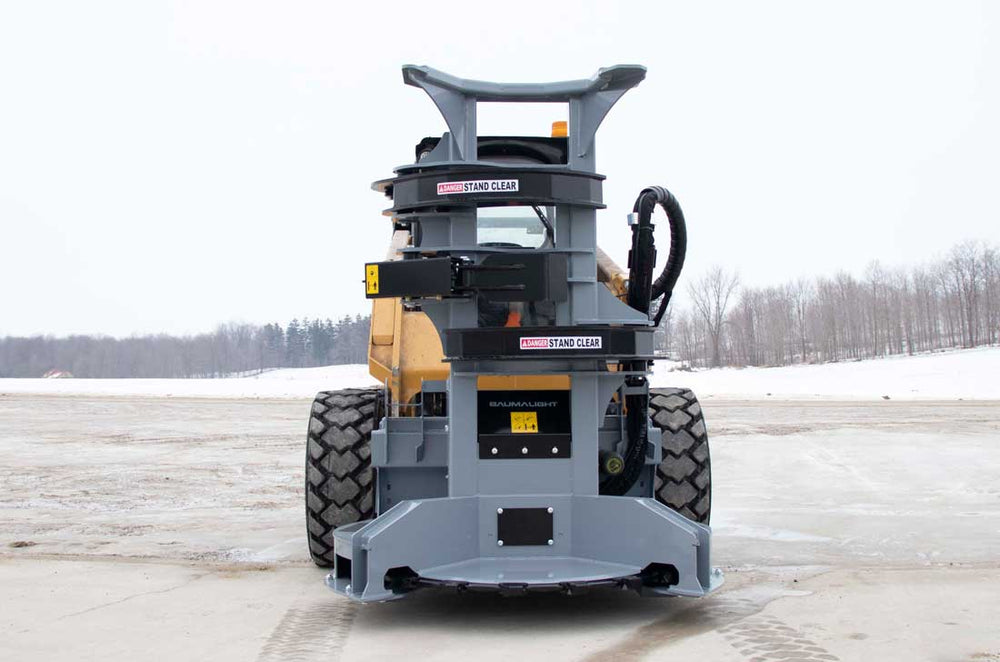

Open Frame for Better Visibility

The upright frame is open, improving operator visibility during tree felling.

Bent Axis Piston Motor

The industry-leading bent axis piston motor maximizes the use of hydraulic flow and pressure for efficient brush clearing.

Heavy Duty Frame

Constructed with T1 alloy tool steel sheet metal in main areas and powder-coated with anti-slip pads, the heavy-duty frame ensures both strength and safe entry/exit.

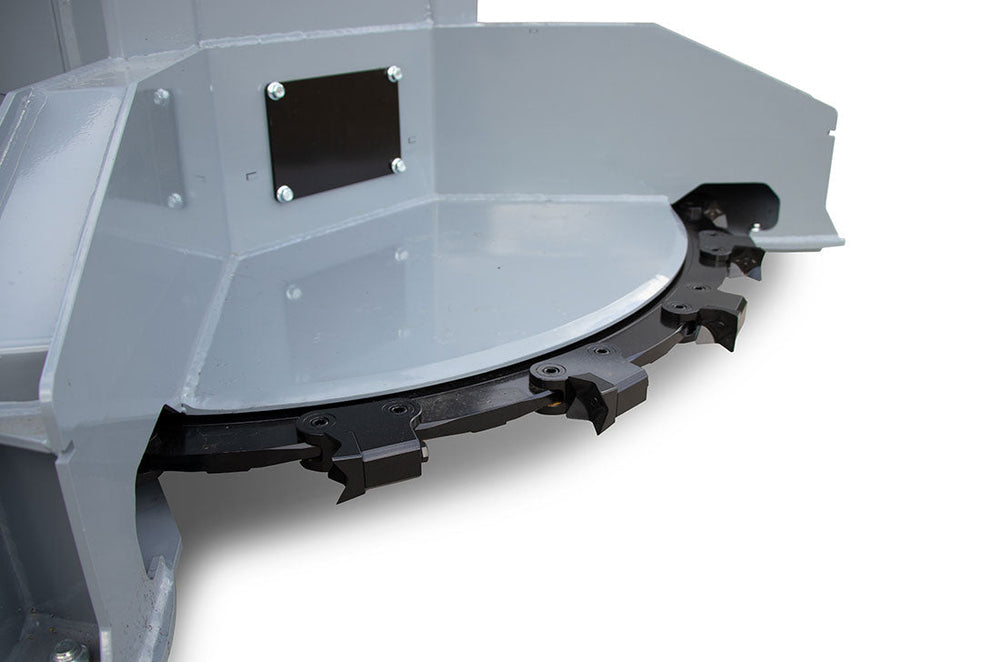

Blade Mounted on Heavy Duty Bearing Support

The saw blade is mounted on an overhung load adapter with tapered roller bearings for durability in the toughest conditions.

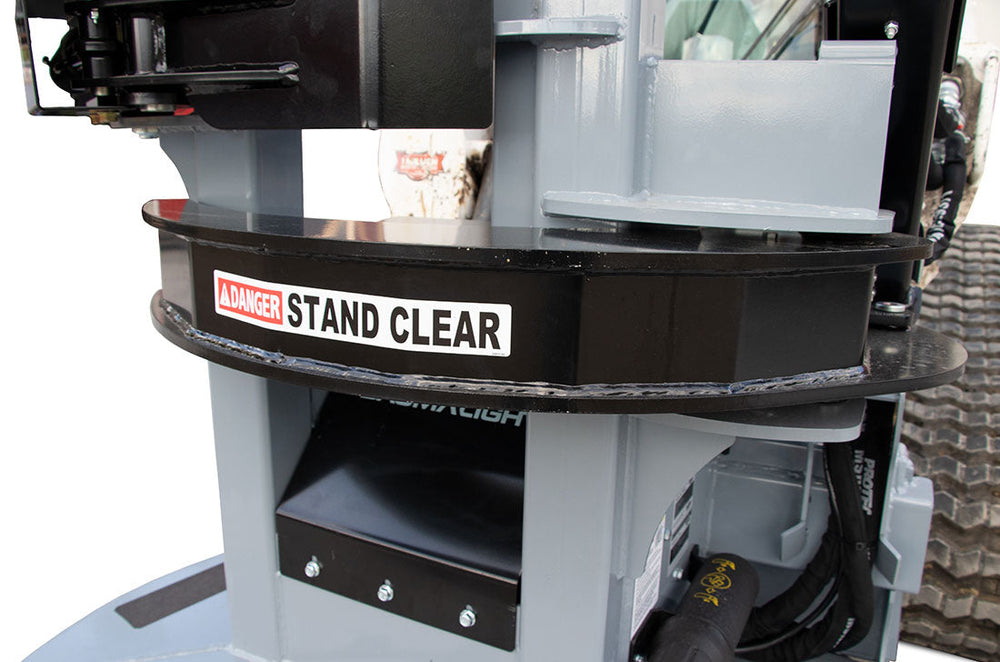

Saw Blade Shielding

A durable shield made with AR400 steel covers the blade for protection and directs chips during operation.

Clean Cuts with B8000 Beaver Teeth

The FBS752 produces clean cuts on trees, leaving trunks and stumps neat and ready for further processing.

Powder Coated Finish

The powder coat finish is tougher than conventional paint and helps protect the unit against rust.

Hose Support Mounted Left or Right

The hose support is designed to be mounted on either side to accommodate various skid steer configurations.

Spring Loaded Hose Support

This feature protects the hoses during forward curl by preventing them from falling into harm’s way.

Curved Hose Bracket

A new curved design provides enhanced support and helps reduce the risk of hose damage.

Armoured and Sleeved Hoses

Baumalight hoses come sleeved with a pivoting arm and greaseable pin to keep excess hose slack safely out of the way.

Rounded Edges

Rounded edges on the unit help protect the hoses from damage.

Rounded Edges on Push Bar/Feller Hook

Designed with rounded edges, the push bar minimizes the risk of trees catching during operation.

Pressure Gauge

A large PSI pressure gauge monitors hydraulic performance and ensures optimal flow.

6 Free Teeth

The FBS752 includes 6 replacement teeth, which can be stored in an enclosed spare tool compartment.

Grabber Arms

Designed for robust performance, the grabber arms are made of AR400 steel with adjustable swing speed for improved control.

Buncher Arm

The buncher arm features a shielded spring and greaseable pins at all pivot points for extended durability.

Bolt-On Skis

The bolt-on skis allow for easy replacement.

Service Access

The design of the FBS752 ensures full service access for ease of maintenance.

Greaseable Pins

Zinc plated grease pins prevent corrosion and help ensure smooth joint operation over the unit’s lifetime.

Hardened Steel Bushing

High-grade chrome-vanadium AISI 6150 spring steel bushings are used in all major pivot points.

Host Machine

ASV RT120 HIGH FLOW

BOBCAT T870 HIGH FLOW

CASE TV450 ENHANCED HIGH FLOW

CATERPILLAR 299 D3 XE

CATERPILLAR 299 HIGH FLOW

JOHN DEERE 333G HIGH FLOW

KUBOTA SVL90 HIGH FLOW

KUBOTA SVL95 HIGH FLOW

KUBOTA SVL97 HIGH FLOW

MUSTANG 3200VT HIGH FLOW

TAKEUCHI TL10 HIGH FLOW

TAKEUCHI TL12 HIGH FLOW

WACKER NUESON ST50 HIGH FLOW

NEW HOLLAND C345 HIGH FLOW

Detailed Specifications

Model No	FBS752	FGS952	FBXD752
Baumalight Connection Code	-	-	A03
Mounting type	Skidsteer Mounted	Skidsteer Mounted	Excavator Mounted
Blade position	Fixed Horizontal Blade	Fixed Horizontal Blade	360° Slew drive
Adaptor	Universal Skidsteer Adaptor	Universal Skidsteer Adaptor	Bolt-on Adaptor Slew Drive
PSI	4000 PSI	4000 PSI	4000 PSI
Case drain	Requires Case Drain - Critical	Requires Case Drain - Critical	Requires Case Drain - Critical
Electrical Requirement	Requires 12V Electric	Requires 12V Electric	Requires 12V Electric
Electric AUX	Four 12V positive switchable signals required	Two 12V positive switchable signals required	Six 12V positive switchable signals required
Wire Supplied or not	Wire Supplied to AUX	Wire Supplied to AUX	Wire NOT Supplied
Hydraulic Hose and Couplers	Hoses Included Couplers NOT Included	Hoses Included & Couplers NOT Included	Hoses & Couplers NOT Included
Blade diameter	52" Diameter Blade	52" Diameter Blade	52" Diameter Blade
Maximum cut	20" Max Cut	20" Max Cut	20" Max Cut
Blade Material	3/4" Steel Blade	5/8" AR400	3/4" Steel Blade
Cutt thickness	1 5/8" Cutt Thickness	1 5/8" Cutt Thickness	1 5/8" Cutt Thickness
Number of edges per Tooth	4 Edges Per Tooth	4 Edges Per Tooth	4 Edges Per Tooth
Number of teeth	18 Teeth	18 Teeth	18 Teeth
Tooth part number	B8000 Beaver Teeth	B8000 Beaver Teeth	B8000 Beaver Teeth
Throat Opening at teeth	Throat Opening at teeth: 36"	36" Throat Opening	36" Throat Opening
Weight	2850 lbs	2250 lbs	4415 lbs



Specification	Details
Model	Baumalight Feller Buncher Tree Saw
Skid Steer Weight	12,000 lbs minimum
Hydraulic Flow	Minimum 35 GPM
Tree Diameter	Minimum 20 inches
Cutting Disc Size	52 inches
Cutting Teeth	18 Beaver cutting teeth
Frame Material	AR400 steel for high stress areas
Visibility	Open frame for better operator visibility
Hydraulic System	Electric-over-hydraulic
Piston Motor	Bent axis piston motor
Remote Hydraulics	One set required for all functions
Auxiliary Electrical Connection	Standard for in-cab control
Throat Opening	36 inches
Usage	Timber and forestry applications

Specification	Description
Part #	FBS752/T590/D004956
Manufacturer	Baumalight
Category	Skid Steer Attachments
Subcategory	Feller Buncher Tree Saw for Skid Steer
Industry	Construction
Machine Size	12,000 lbs minimum
Hydraulic Flow	35 GPM minimum
Attachment Size	Handles up to 20" diameter trees
